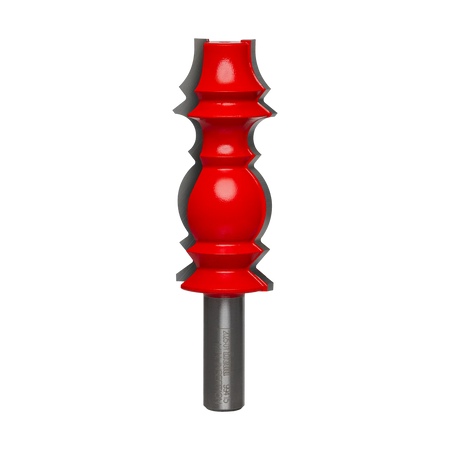

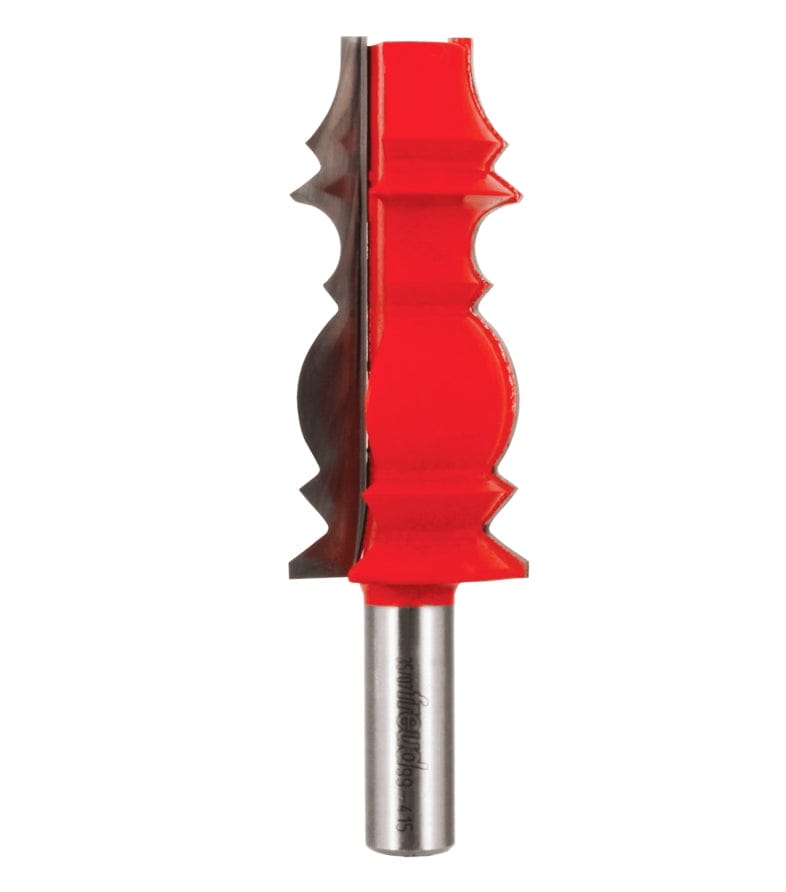

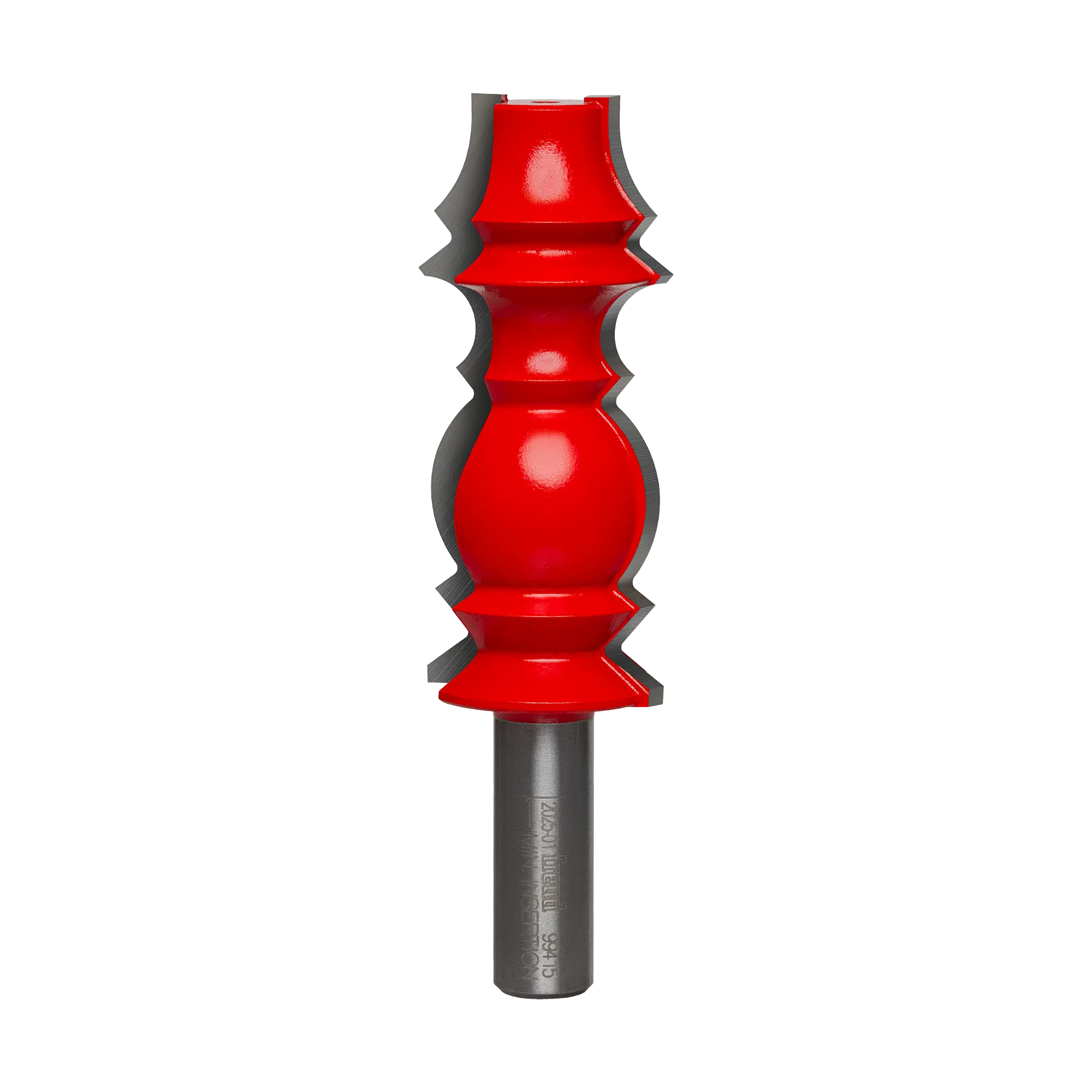

Studio shot of the Freud 99-415 wide crown molding router bit standing upright, featuring a tall red Perma-SHIELD body with carbide cutters on a 1/2 inch shank.

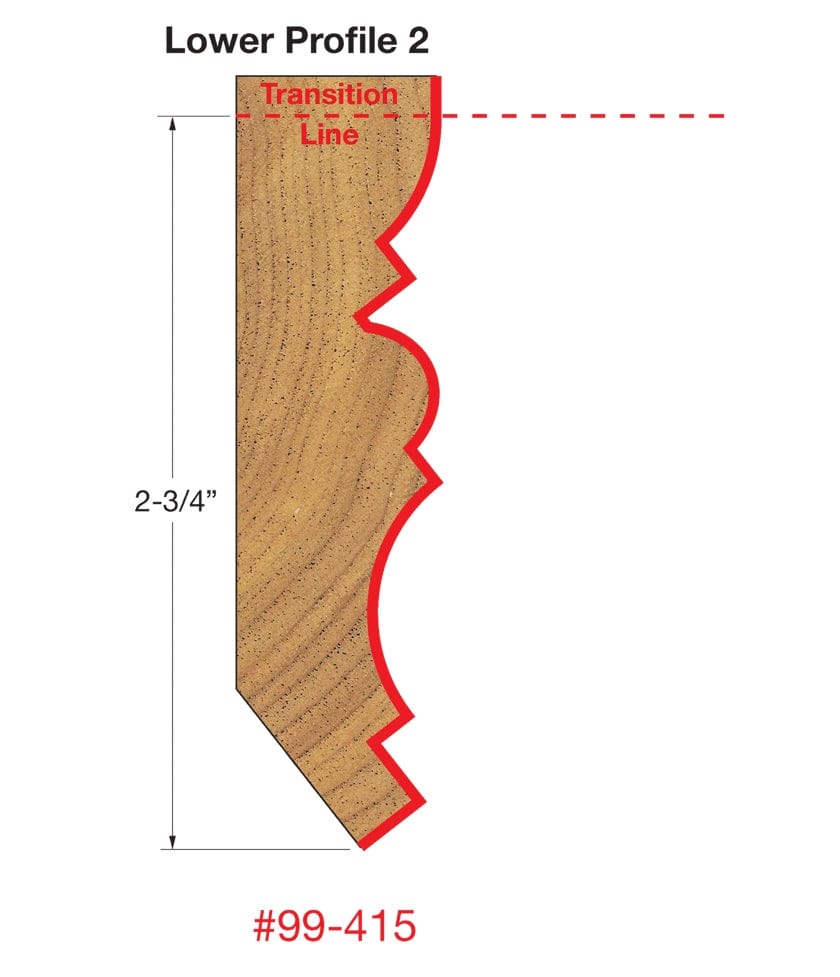

Technical diagram illustrating Lower Profile 2 created by the Freud 99-415 bit, showing dimensions of 2-3/4 inches and a transition line for joining with an upper profile.

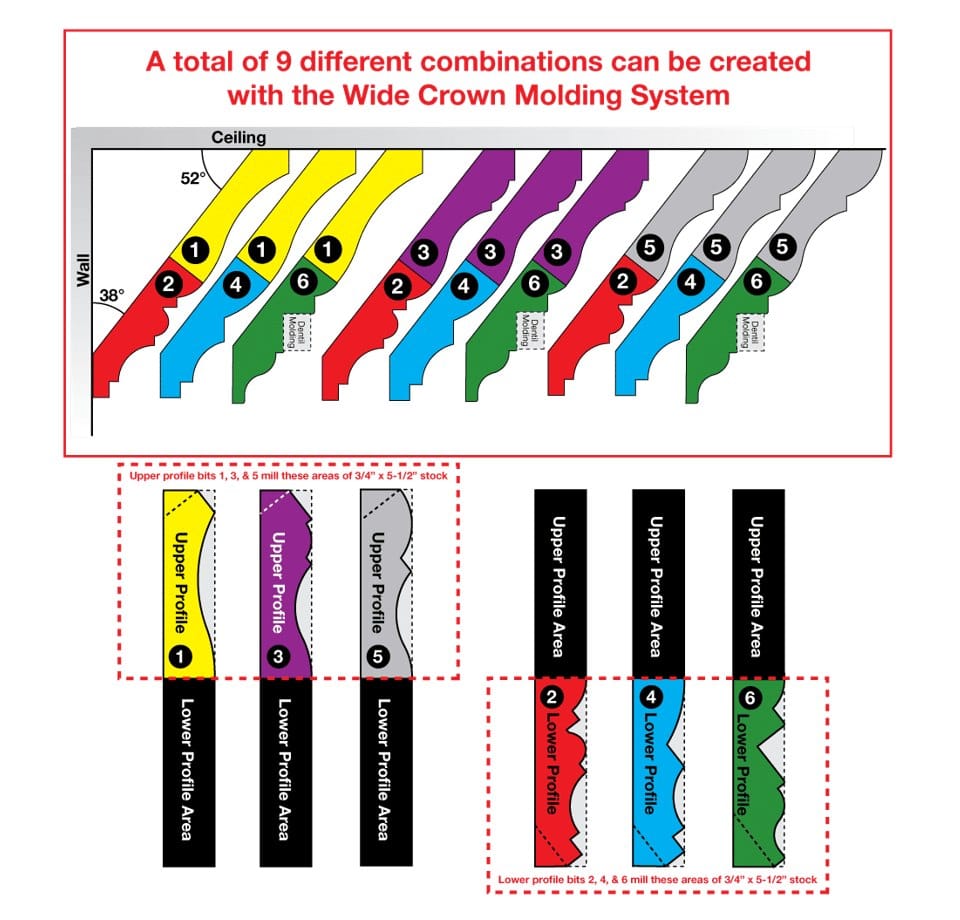

Informational chart demonstrating the Freud Wide Crown Molding System, displaying how three upper profile bits and three lower profile bits combine to create nine different architectural designs.

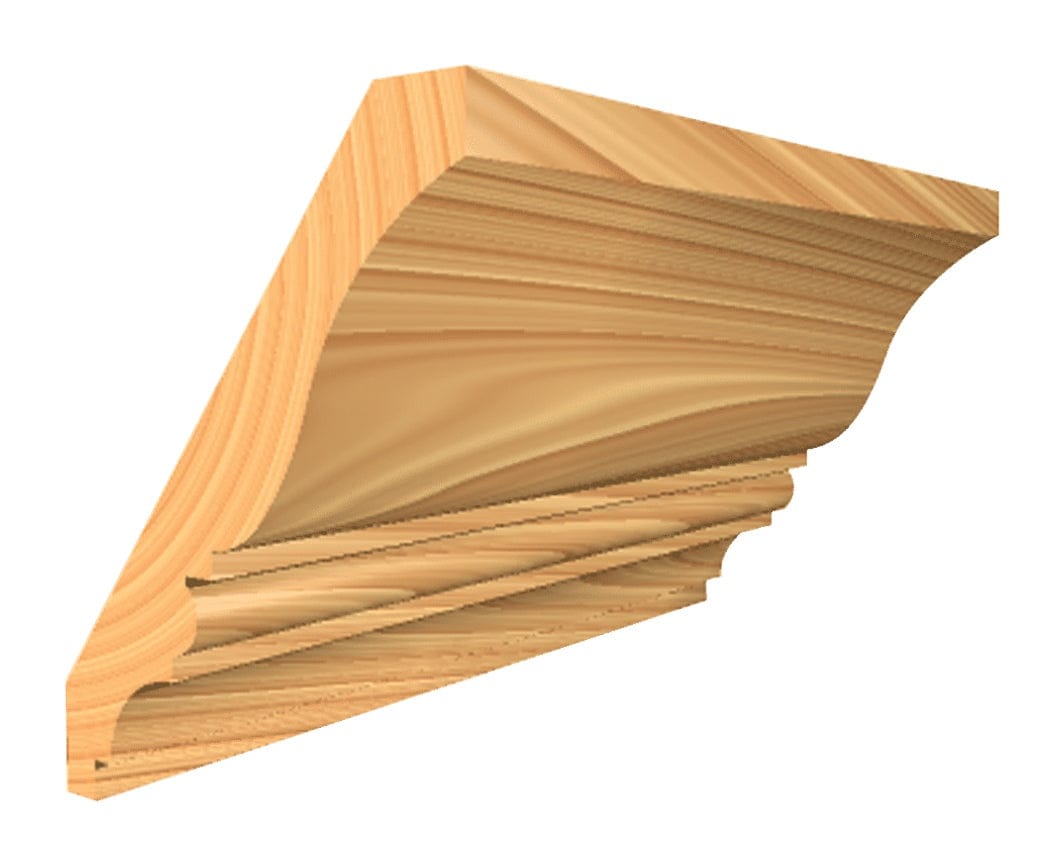

Rendering of a wood block showing a finished wide crown molding profile with elegant curves and stepped details created by combining the lower profile with an upper profile.

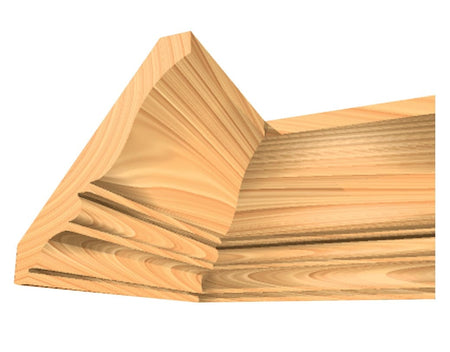

Rendering of a wood block illustrating the full height and depth of the custom 5-1/2 inch crown molding created by joining the Lower Profile 2 with a matching upper profile.
Rendering of a wood block displaying the detailed lower section of a crown molding profile, emphasizing the cove and bead details produced by the bit.
Studio shot of the Freud 99-415 wide crown molding router bit standing upright, featuring a tall red Perma-SHIELD body with carbide cutters on a 1/2 inch shank.
Architectural Millwork Router Bits promotional video
Studio shot of the Freud 99-415 wide crown molding router bit standing upright, featuring a tall red Perma-SHIELD body with carbide cutters on a 1/2 inch shank.
Technical diagram illustrating Lower Profile 2 created by the Freud 99-415 bit, showing dimensions of 2-3/4 inches and a transition line for joining with an upper profile.
Informational chart demonstrating the Freud Wide Crown Molding System, displaying how three upper profile bits and three lower profile bits combine to create nine different architectural designs.
Rendering of a wood block showing a finished wide crown molding profile with elegant curves and stepped details created by combining the lower profile with an upper profile.
Rendering of a wood block illustrating the full height and depth of the custom 5-1/2 inch crown molding created by joining the Lower Profile 2 with a matching upper profile.
Rendering of a wood block displaying the detailed lower section of a crown molding profile, emphasizing the cove and bead details produced by the bit.
Studio shot of the Freud 99-415 wide crown molding router bit standing upright, featuring a tall red Perma-SHIELD body with carbide cutters on a 1/2 inch shank.
Architectural Millwork Router Bits promotional video
Freud

Freud 99-415 Wide Crown Molding Router Bit 1-3/8 Dia 1/2 Shank Custom 5-1/2 Inch Architectural Millwork Lower Profile Cutter

Only 2 left
SKU: 99-415
$64.99 USD

Description

Freud precisely the best logo Logout

Master Architectural Millwork: Freud 99-415 Wide Crown Molding Bit for Custom 5-1/2 Inch Profiles

Elevate the elegance of any room by crafting your own massive, stain-grade moldings with the Freud 99-415 Wide Crown Molding Router Bit. As a specific "Lower Profile" cutter within Freud’s innovative Wide Crown Molding System, this tool empowers woodworkers to produce stunning 5-1/2 inch wide crown molding that would cost a premium to buy pre-made. By combining this bit with compatible upper profile bits (sold separately), you can mix and match to create nine distinct, architecturally correct designs, giving you total creative control over your ceiling and cabinetry accents using your preferred hardwood or softwood.

Built for serious production, this bit features a substantial 3-1/16 inch carbide height and is engineered exclusively for use in a router table with a minimum 6-inch high fence. Due to the large scale of the cut, safety and precision are paramount; the profile must be milled in three or more passes to ensure a smooth finish and reduce load on your router. The bit is finished with Freud’s signature Perma-SHIELD® Non-Stick Coating to resist heat and pitch buildup, while the premium TiCo™ Hi-Density Carbide ensures razor-sharp edges and long-lasting durability even when working with tough materials.

Key Features

  • Wide Crown System: Specially designed to create the lower profile of a grand 5-1/2" wide crown molding.
  • Design Versatility: Part of a modular system that allows you to mix and match with upper profile bits for 9 unique designs.
  • Industrial Carbide: Features TiCo™ Hi-Density Carbide for cleaner cuts and longer edge life in hardwoods and softwoods.
  • Perma-SHIELD® Coating: distinctive red coating prevents rust, heat buildup, and pitch accumulation.
  • Router Table Exclusive: Designed for safe operation in table-mounted routers with a tall fence (minimum 6" height).
  • Controlled Cutting: Requires the use of featherboards and hold-downs, ensuring stable and safe stock feeding.

What's Included

(1) Freud 1-3/8" Diameter Wide Crown Molding Router Bit with 1/2" Shank (Lower Profile #2)

Specifications

Brand Freud
Model Number 99-415
Profile Type Wide Crown (Lower Profile #2)
Overall Diameter (D) 1-3/8 in
Shank Diameter (A) 1/2 in
Carbide Height (h) 3-1/16 in
Overall Length (H) 4-9/16 in
Number of Cutters 2
Max RPM 16,000
Required Setup Router Table with 6" Fence
Material Application Hardwood, Softwood, Composites

Pro-Tip: To achieve a seamless transition where the upper and lower profiles meet, use a piece of scrap stock to dial in your fence depth and bit height settings. Once the test piece fits perfectly with your upper profile test piece, lock your fence down securely and run your production stock. This ensures the 5-1/2" face looks like one solid piece of wood.
