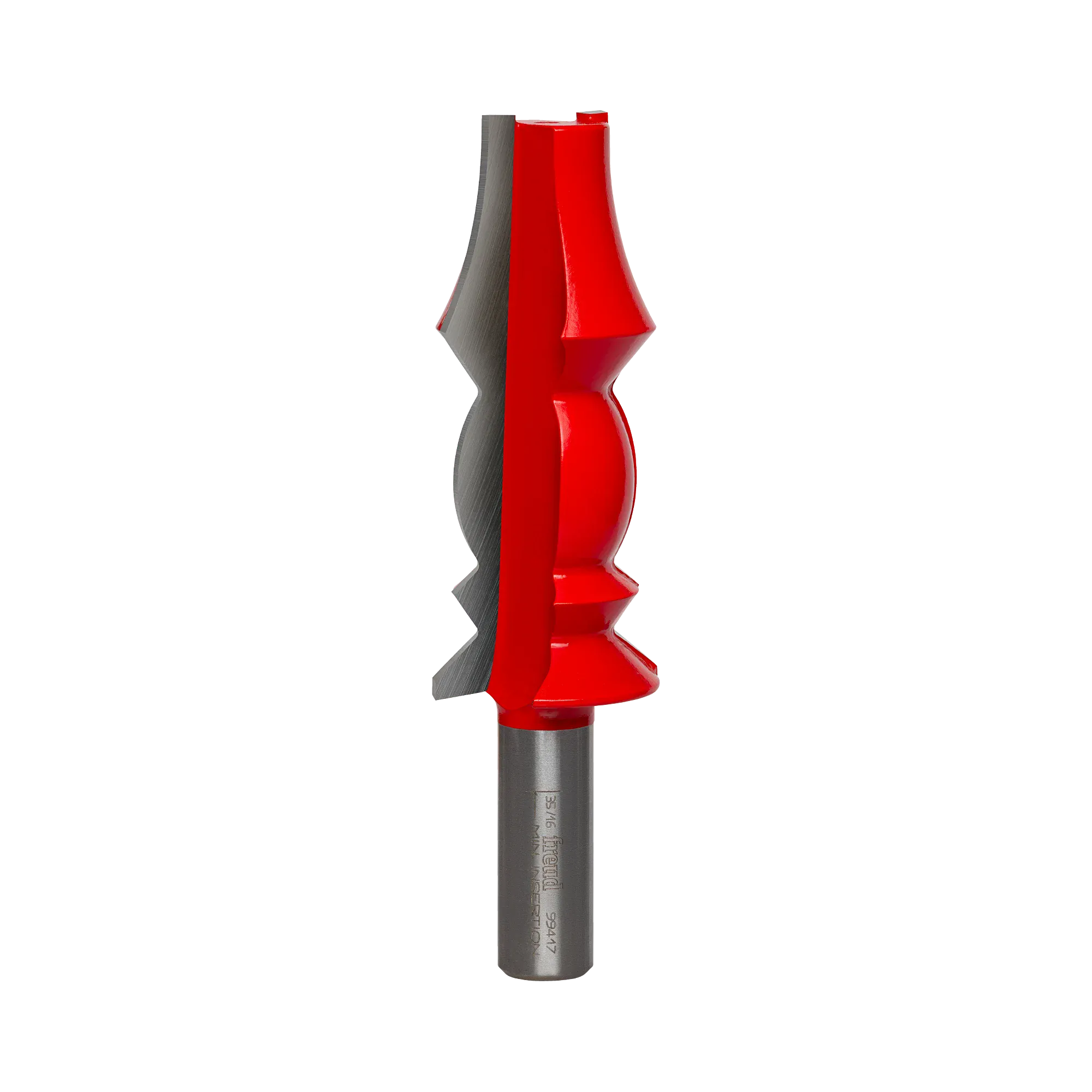

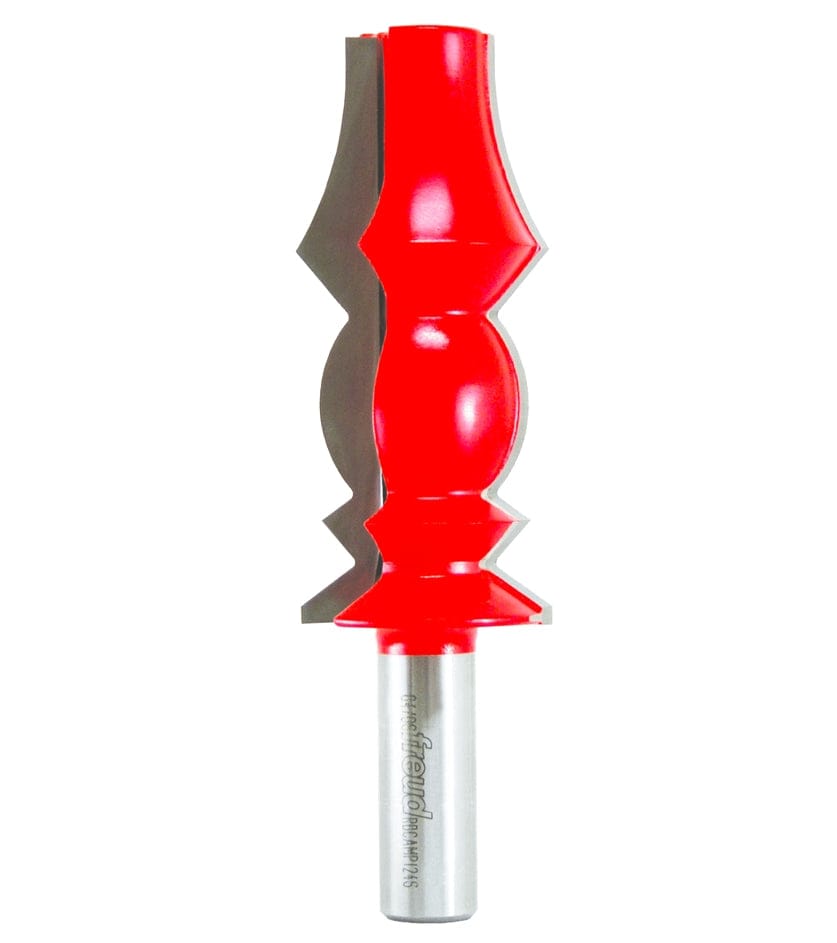

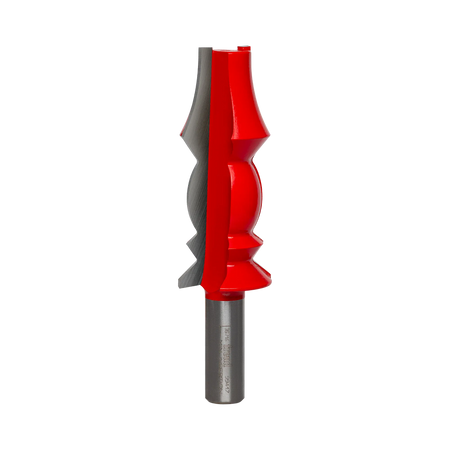

Studio shot of the Freud 99-417 wide crown molding router bit standing upright, featuring a tall red Perma-SHIELD body with carbide cutters on a 1/2 inch shank.

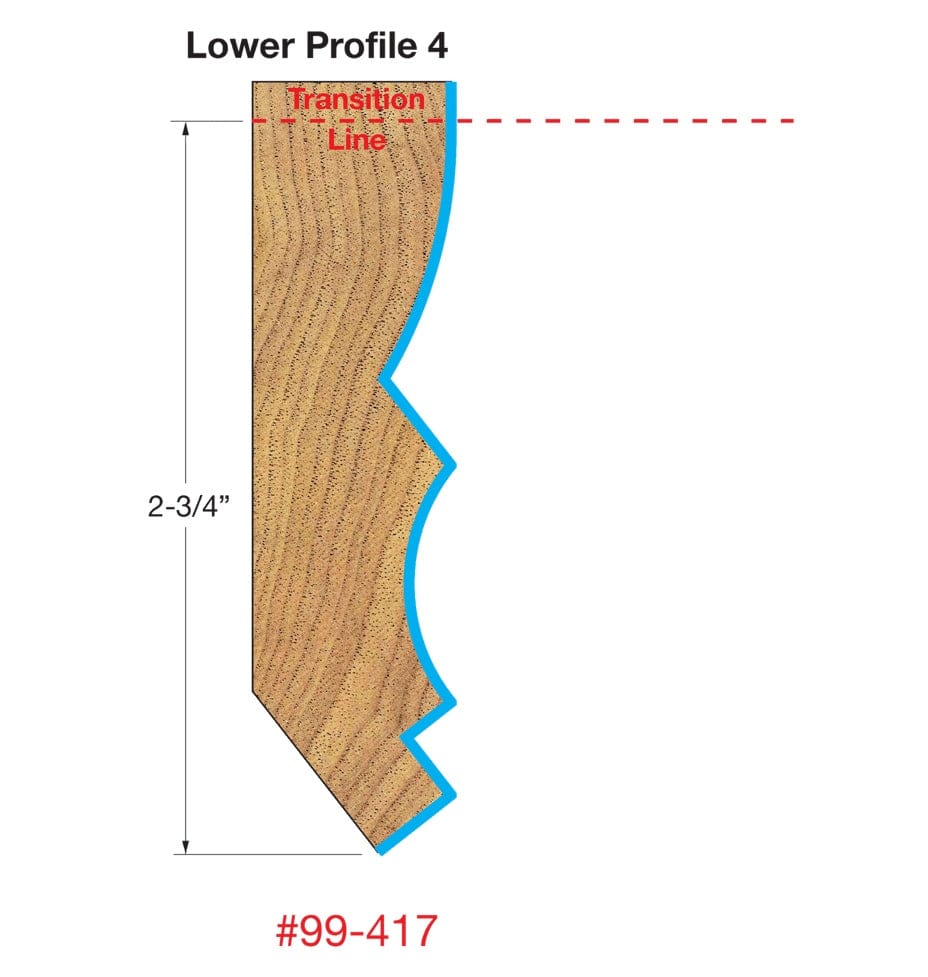

Technical diagram illustrating Lower Profile 4 created by the Freud 99-417 bit, showing dimensions of 2-3/4 inches and a transition line for joining with an upper profile.

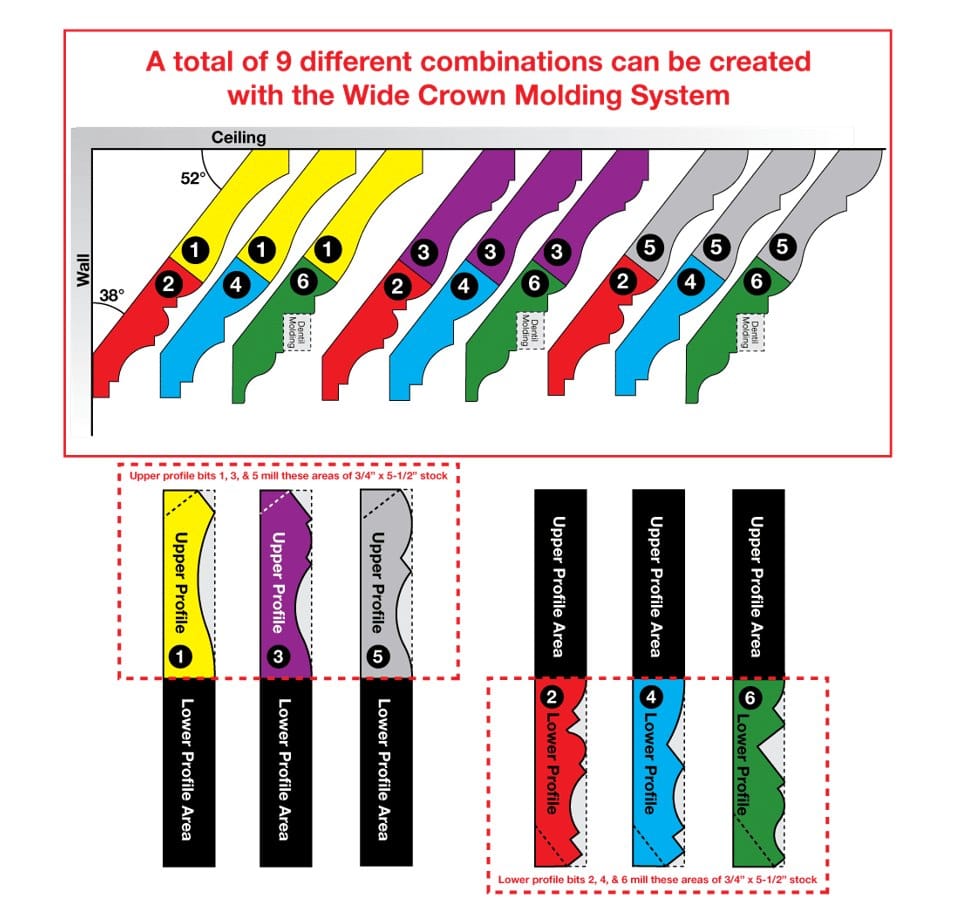

Informational chart demonstrating the Freud Wide Crown Molding System, displaying how three upper profile bits and three lower profile bits combine to create nine different architectural designs.

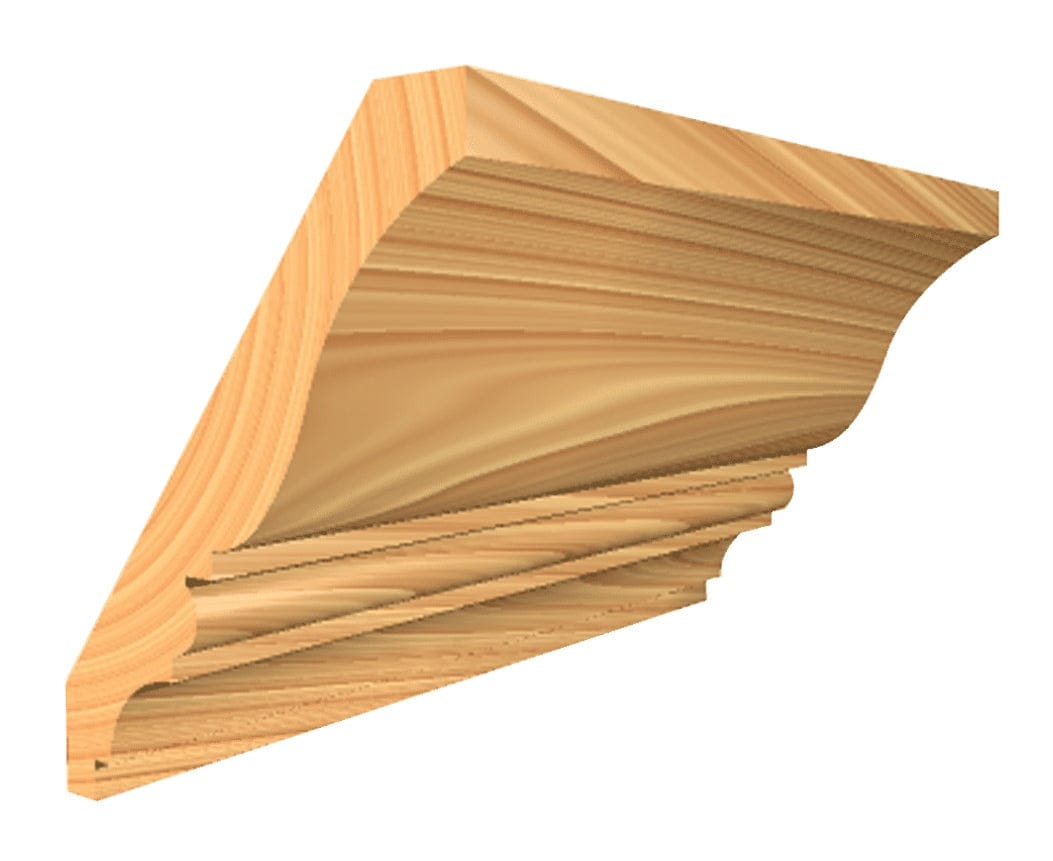

Rendering of a wood block showing a finished wide crown molding profile incorporating the Lower Profile 4 cut, featuring a smooth cove and stepped details.

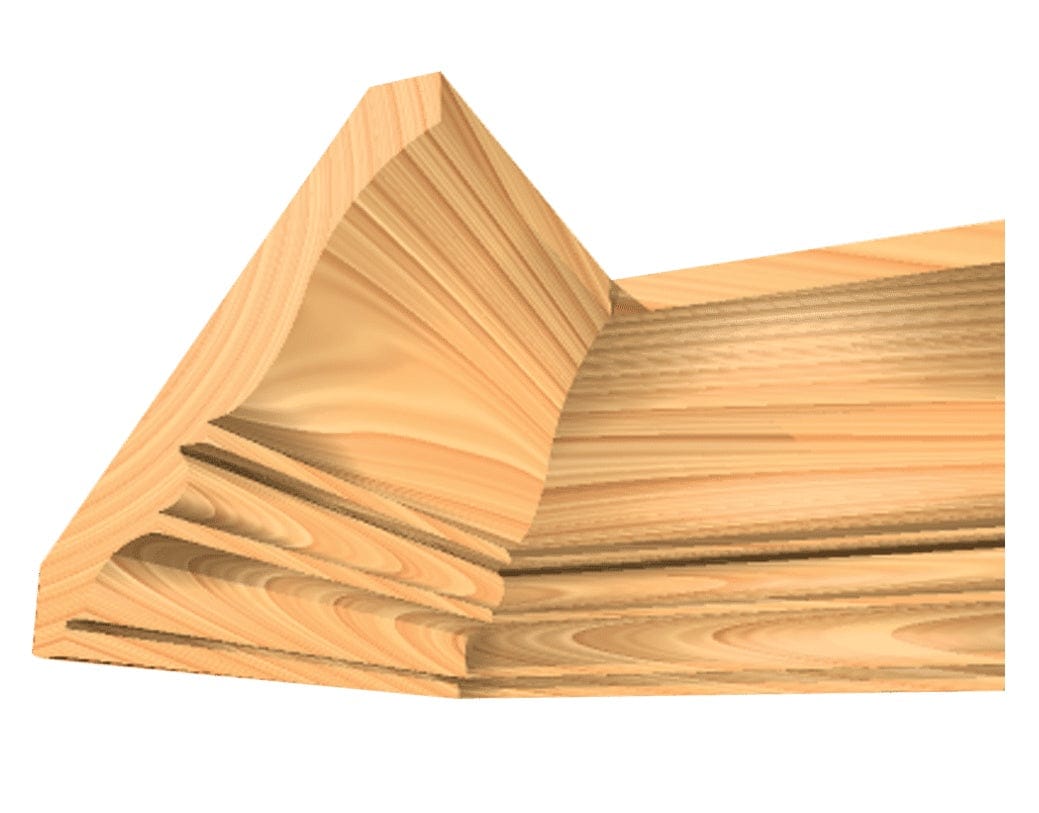

Rendering of a wood block illustrating the full height and depth of the custom 5-1/2 inch crown molding created by joining the lower profile with a matching upper profile.
Rendering of a wood block displaying the detailed lower section of a crown molding profile, emphasizing the elegant curve and crisp edges produced by the bit.
Studio shot of the Freud 99-417 wide crown molding router bit standing upright, featuring a tall red Perma-SHIELD body with carbide cutters on a 1/2 inch shank.
Architectural Millwork Router Bits promotional video
Studio shot of the Freud 99-417 wide crown molding router bit standing upright, featuring a tall red Perma-SHIELD body with carbide cutters on a 1/2 inch shank.
Technical diagram illustrating Lower Profile 4 created by the Freud 99-417 bit, showing dimensions of 2-3/4 inches and a transition line for joining with an upper profile.
Informational chart demonstrating the Freud Wide Crown Molding System, displaying how three upper profile bits and three lower profile bits combine to create nine different architectural designs.
Rendering of a wood block showing a finished wide crown molding profile incorporating the Lower Profile 4 cut, featuring a smooth cove and stepped details.
Rendering of a wood block illustrating the full height and depth of the custom 5-1/2 inch crown molding created by joining the lower profile with a matching upper profile.
Rendering of a wood block displaying the detailed lower section of a crown molding profile, emphasizing the elegant curve and crisp edges produced by the bit.
Studio shot of the Freud 99-417 wide crown molding router bit standing upright, featuring a tall red Perma-SHIELD body with carbide cutters on a 1/2 inch shank.
Architectural Millwork Router Bits promotional video
Freud

Freud Wide Crown Molding Router Bit 99-417 1/2 Inch Shank (1-3/8 Dia 3-1/16 Carbide Height TiCo Custom 5-1/2 Architectural Lower Profile Cutter)

Only 2 left
SKU: 99-417
$63.29 USD

Description

Freud precisely the best logo Logout

High-Density 1/2 Inch Shank 1-3/8 Inch Diameter 3-1/16 Inch Carbide Height Wide Crown Molding Router Bit

The Freud 99-417 Wide Crown Molding Router Bit operates as an industrial architectural millwork tool engineered to cut lower-tier profiles for custom 5-1/2-inch wide crown moldings. Built with micro-grain TiCo titanium cobalt carbide cutting flutes, this heavy-duty 1/2-inch shank bit runs on table-mounted routers featuring a minimum 6-inch tall fence at spindle speeds up to 16,000 RPM. The 1-3/8-inch overall diameter cutter incorporates a 3-1/16-inch carbide cutting height coated with a non-stick red Perma-SHIELD fluoropolymer barrier, enabling woodworkers to execute progressive multi-pass shaping runs across solid hardwoods, softwoods, plywood, and composite timber stock.

Best Used For:

  • 5-1/2 Inch Architectural Crown Molding: Milling lower-profile decorative ceiling cornices and large room borders from solid hardwood or paint-grade pine stock.
  • Custom Cabinet Cornice Detailing: Shaping lower decorative molding strips for custom kitchen cabinetry, built-in bookcases, and furniture crowns.
  • Modular Profile Combinations: Pairing with complementary upper-profile Freud bits to generate up to nine distinct architectural crown designs.

Key Performance & Safety Features

  • Extended 3-1/16 Inch Carbide Height: Generous vertical cutting span enables single-pass profiling of lower 5-1/2-inch architectural molding stock.
  • TiCo Hi-Density Carbide Flutes: Specialized titanium cobalt micro-grain carbide formulation holds sharp cutting edges through heavy wood stock removal.
  • Perma-SHIELD Non-Stick Coating: Thermal fluoropolymer red barrier resists friction heat, guards against pitch buildup, and prevents rust.
  • Modular System Compatibility: Integrates into Freud's Wide Crown System to combine lower and upper cuts for varied molding styles.
  • Table Router & Tall Fence Requirement: Engineered strictly for table-mounted router setups equipped with a minimum 6-inch tall auxiliary fence.

What's Included

  • (1) Freud 99-417 1-3/8" Diameter Wide Crown Molding Router Bit with 1/2" Shank

Technical Specifications

Brand Name Freud Tools
Item Model SKU 99-417
Tool Classification Wide Crown Molding Router Bit (Lower Profile)
Shank Diameter Track 0.50 in. (1/2 in.)
Overall Cutter Diameter 1.375 in. (1-3/8 in.)
Carbide Cutting Height 3.0625 in. (3-1/16 in.)
Overall Tool Length 4.5625 in. (4-9/16 in.)
Target Finished Molding Width 5.50 in. (5-1/2 in.)
Number of Cutting Flutes 2 Flutes
Maximum Operating Speed 16,000 RPM
Required Equipment Setup Router Table with Minimum 6" High Fence
Material Applications Hardwoods, Softwoods, Plywood, Composition Wood

Pro-Tip: Due to the tall 3-1/16 inch cutter height, mill wide crown molding stock in three or more progressive depth passes using featherboards and hold-downs. Taking light incremental passes reduces cutting resistance at 16,000 RPM, protects TiCo carbide edges, and ensures a chatter-free finish across long trim runs.
