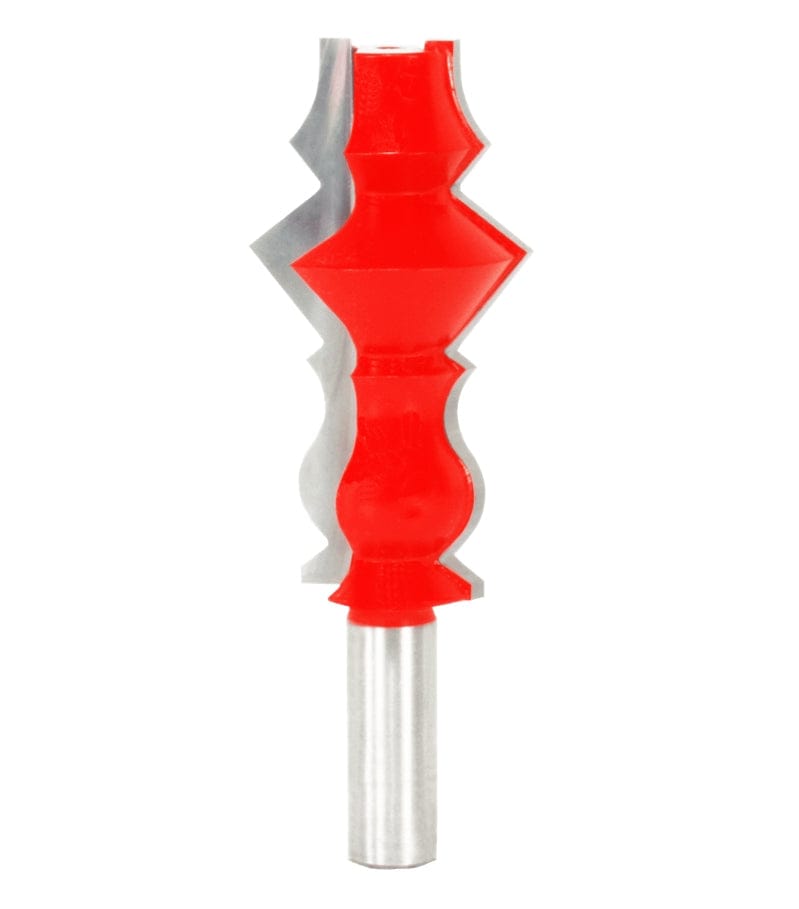

Studio shot of the Freud 99-419 wide crown molding router bit standing upright, featuring a tall red Perma-SHIELD body with carbide cutters on a 1/2 inch shank.

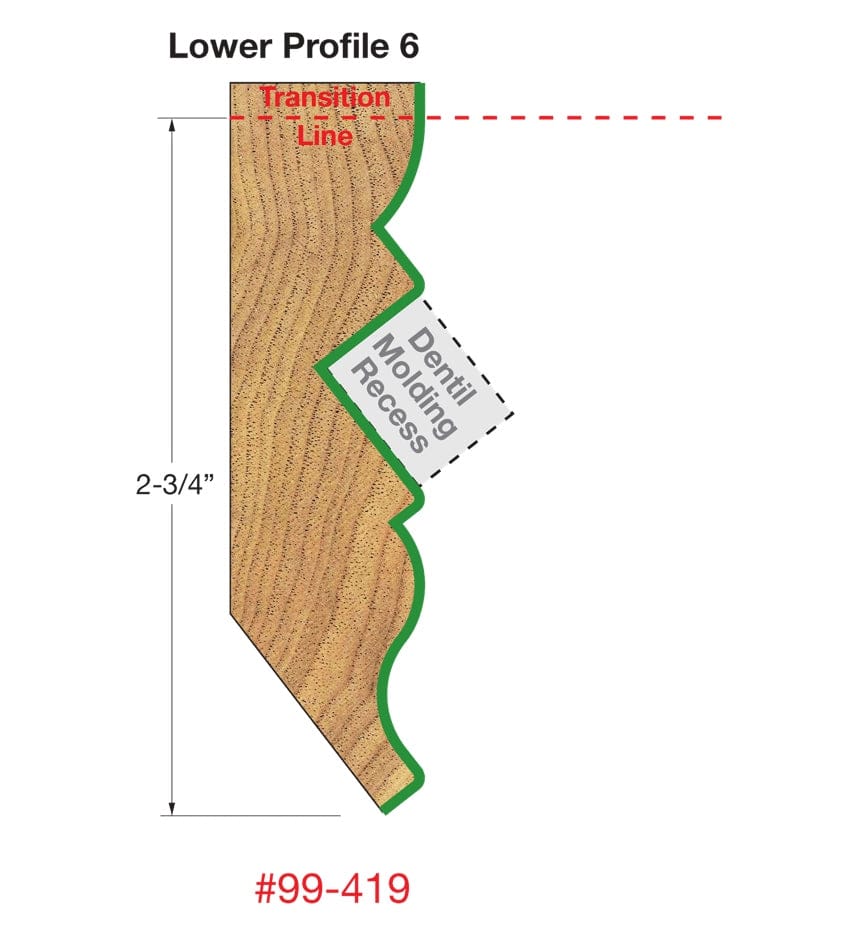

Technical diagram illustrating Lower Profile 6 created by the Freud 99-419 bit, showing dimensions of 2-3/4 inches and a designated recess for dentil molding inserts.
Informational chart demonstrating the Freud Wide Crown Molding System, displaying how three upper profile bits and three lower profile bits combine to create nine different architectural designs.
Rendering of a wood block showing a variation of the wide crown molding profile with a convex curve and stepped details created by the Freud system.
Rendering of a wood block showing a finished 5-1/2 inch wide crown molding profile with a large cove and detailed bottom edge.
Rendering of a wood block displaying a finished crown molding profile that utilizes the Lower Profile 6 cut, highlighting the elaborate architectural style.
Studio shot of the Freud 99-419 wide crown molding router bit standing upright, featuring a tall red Perma-SHIELD body with carbide cutters on a 1/2 inch shank.
Architectural Millwork Router Bits promotional video
Studio shot of the Freud 99-419 wide crown molding router bit standing upright, featuring a tall red Perma-SHIELD body with carbide cutters on a 1/2 inch shank.
Technical diagram illustrating Lower Profile 6 created by the Freud 99-419 bit, showing dimensions of 2-3/4 inches and a designated recess for dentil molding inserts.
Informational chart demonstrating the Freud Wide Crown Molding System, displaying how three upper profile bits and three lower profile bits combine to create nine different architectural designs.
Rendering of a wood block showing a variation of the wide crown molding profile with a convex curve and stepped details created by the Freud system.
Rendering of a wood block showing a finished 5-1/2 inch wide crown molding profile with a large cove and detailed bottom edge.
Rendering of a wood block displaying a finished crown molding profile that utilizes the Lower Profile 6 cut, highlighting the elaborate architectural style.
Studio shot of the Freud 99-419 wide crown molding router bit standing upright, featuring a tall red Perma-SHIELD body with carbide cutters on a 1/2 inch shank.
Architectural Millwork Router Bits promotional video
Freud

Freud Wide Crown Molding Router Bit 99-419 1/2 Inch Shank (1-3/8 Dia 3-1/16 Carbide Height TiCo Custom 5-1/2 Architectural Millwork Cutter)

Only 2 left
SKU: 99-419
$57.99 USD

Description

Freud precisely the best logo Logout

High-Density 1/2 Inch Shank 1-3/8 Inch Diameter 3-1/16 Inch Carbide Height Wide Crown Molding Router Bit

The Freud 99-419 Wide Crown Molding Router Bit provides an industrial architectural millwork cutter engineered to shape custom 5-1/2-inch wide crown molding profiles across interior ceilings and furniture cornices. Driven by micro-grain TiCo titanium cobalt carbide cutting flutes, this heavy-duty 1/2-inch shank tool operates on table-mounted routers featuring a minimum 6-inch tall fence at spindle speeds up to 16,000 RPM. The 1-3/8-inch overall diameter cutter features a massive 3-1/16-inch carbide cutting height coated with a non-stick red Perma-SHIELD fluoropolymer barrier, allowing woodworkers to execute progressive multi-pass shaping runs in solid hardwoods, softwoods, plywood, and composite timber stock.

Best Used For:

  • 5-1/2 Inch Architectural Crown Molding: Milling large-format ceiling cornice profiles and decorative wall moldings from solid hardwood or paint-grade pine stock.
  • Custom Cabinet Cornice Detailing: Shaping upper decorative molding strips for high-end kitchen cabinetry, built-in bookcases, and wardrobe crowns.
  • Mix-and-Match Profile Milling: Combining cutter passes with complementary Freud crown system bits to generate up to nine distinct architectural designs.

Key Performance & Safety Features

  • Extended 3-1/16 Inch Carbide Height: Massive vertical cutting span enables single-bit shaping of wide 5-1/2-inch architectural molding stock.
  • TiCo Hi-Density Carbide Flutes: Specialized titanium cobalt micro-grain carbide formulation holds sharp cutting edges through heavy wood removal.
  • Perma-SHIELD Non-Stick Coating: Thermal fluoropolymer red barrier resists friction heat, guards against pitch buildup, and prevents rust.
  • Multi-Profile System Compatibility: Integrates into Freud's Wide Crown System to combine lower and upper cuts for varied molding styles.
  • Table Router & Tall Fence Requirement: Engineered strictly for table-mounted router setups equipped with a minimum 6-inch tall auxiliary fence.

What's Included

  • (1) Freud 99-419 1-3/8" Diameter Wide Crown Molding Router Bit with 1/2" Shank

Technical Specifications

Brand Name Freud Tools
Item Model SKU 99-419
Tool Classification Wide Crown Molding Router Bit
Shank Diameter Track 0.50 in. (1/2 in.)
Overall Cutter Diameter 1.375 in. (1-3/8 in.)
Carbide Cutting Height 3.0625 in. (3-1/16 in.)
Overall Tool Length 4.5625 in. (4-9/16 in.)
Target Finished Molding Width 5.50 in. (5-1/2 in.)
Number of Cutting Flutes 2 Flutes
Maximum Operating Speed 16,000 RPM
Required Equipment Setup Router Table with Minimum 6" High Fence
Material Applications Hardwoods, Softwoods, Plywood, Composition Wood

Pro-Tip: Due to the tall 3-1/16 inch cutter height, mill wide crown molding in at least three shallow, progressive depth passes. Taking incremental passes reduces vibration, prevents motor bogging down at 16,000 RPM, and produces a glass-smooth finish that requires minimal hand sanding.
