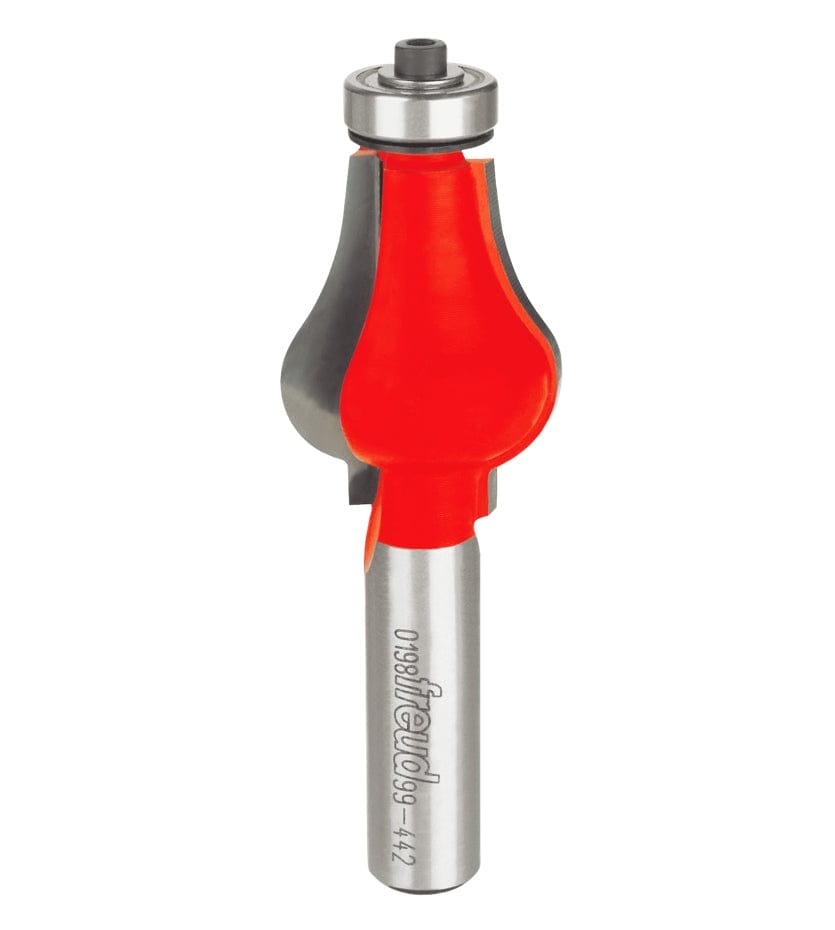

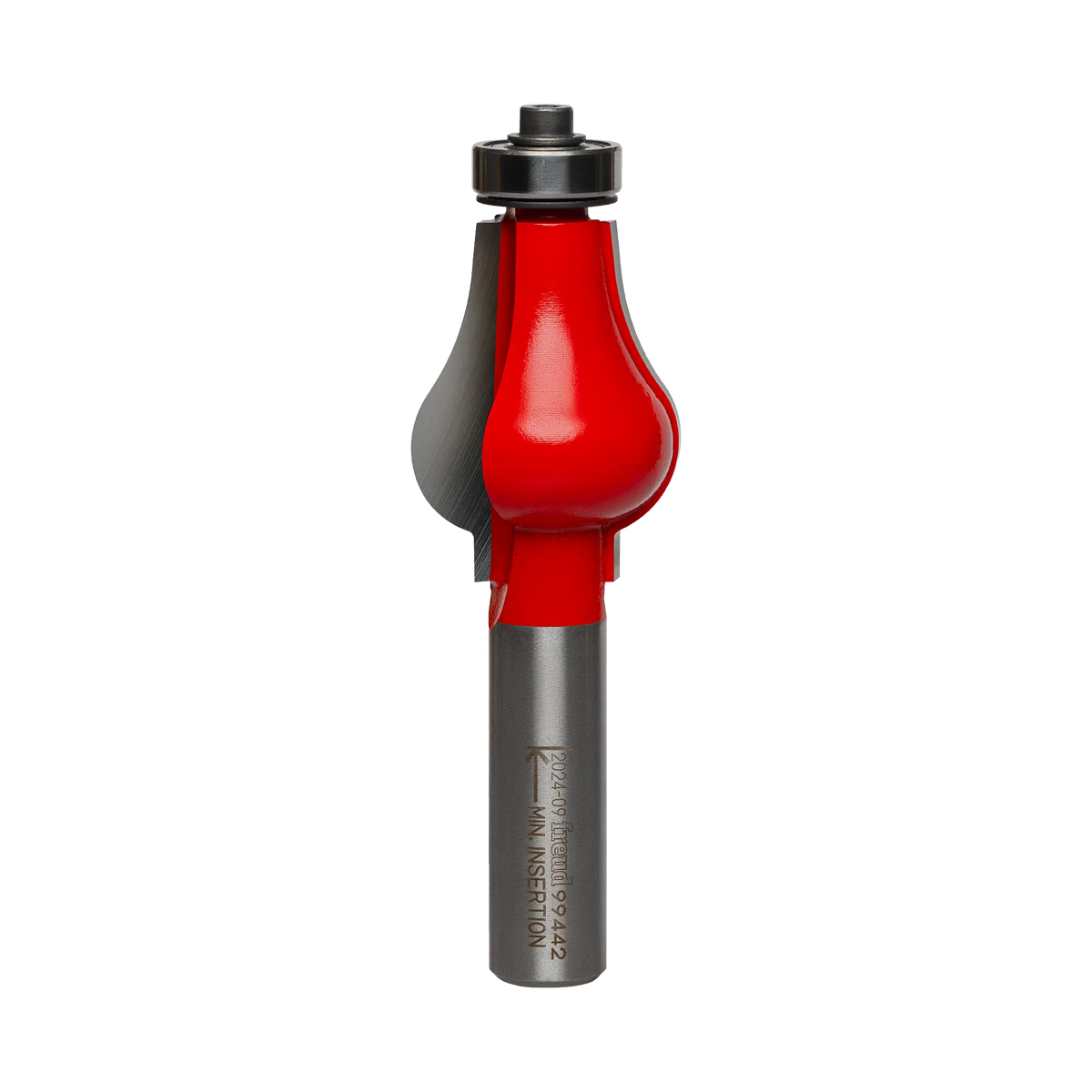

Studio shot of the Freud 99-442 handrail router bit standing upright, featuring a red Perma-SHIELD coating, carbide cutters, and a ball bearing guide on a 1/2 inch shank.

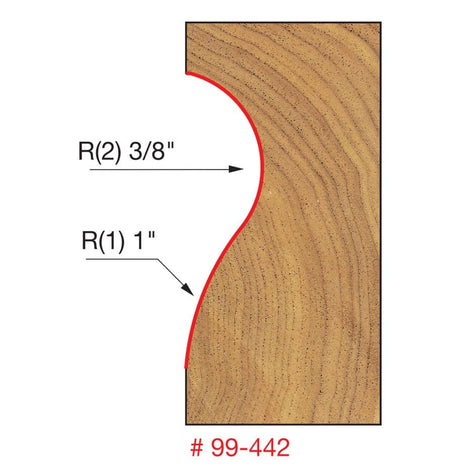

Technical diagram showing the cross-section profile of the Freud 99-442 bit, indicating a 3/8 inch small radius and 1 inch large radius for the handrail curve.
Application diagram demonstrating how the Freud 99-442 bit cuts the lower side profile of a handrail and pairs with other bits to create various custom banister designs.
Graphic displaying compatible materials for the router bit, including veneered plywood, hardwoods, softwoods, and composites.
Studio shot of the Freud 99-442 handrail router bit standing upright, featuring a red Perma-SHIELD coating, carbide cutters, and a ball bearing guide on a 1/2 inch shank.
Architectural Millwork Router Bits promotional video
Studio shot of the Freud 99-442 handrail router bit standing upright, featuring a red Perma-SHIELD coating, carbide cutters, and a ball bearing guide on a 1/2 inch shank.
Technical diagram showing the cross-section profile of the Freud 99-442 bit, indicating a 3/8 inch small radius and 1 inch large radius for the handrail curve.
Application diagram demonstrating how the Freud 99-442 bit cuts the lower side profile of a handrail and pairs with other bits to create various custom banister designs.
Graphic displaying compatible materials for the router bit, including veneered plywood, hardwoods, softwoods, and composites.
Studio shot of the Freud 99-442 handrail router bit standing upright, featuring a red Perma-SHIELD coating, carbide cutters, and a ball bearing guide on a 1/2 inch shank.
Architectural Millwork Router Bits promotional video
Freud

Freud Handrail Router Bit 99-442 1/2 Inch Shank Lower Profile (1-3/16 Dia 1 Radius TiCo Carbide Stair Banister Railing Wood Milling Tool)

Only 2 left
SKU: 99-442
$48.79 USD

Description

Freud precisely the best logo Logout

High-Density 1/2 Inch Shank 1-3/16 Inch Diameter Lower Profile Handrail Router Bit

The Freud 99-442 Lower Profile Handrail Router Bit delivers an industrial architectural joinery solution engineered to mill the underside finger-rest profiles of custom stair banisters and railings. Manufactured using high-density TiCo titanium cobalt carbide cutting flutes and protected by a non-stick red Perma-SHIELD finish, this 1/2-inch shank tool operates smoothly on table-mounted routers and CNC machinery running at speeds up to 18,000 RPM across hardwoods and softwoods. The 1-3/16-inch overall diameter cutter provides a 1-1/2-inch carbide cutting height with dual radiuses (1 in. large, 3/8 in. small) and incorporates a 5/8-inch pilot ball bearing to pair with upper-profile bits like Freud 99-450, 99-452, or 99-027 for complete two-pass stair railing fabrication.

Best Used For:

  • Custom Stair Handrail Milling: Routing the lower grip and finger-rest profiles of traditional wood banisters in solid oak, mahogany, or cherry stock.
  • Architectural Trim Matching: Replicating historic handrail undercut details during staircase restoration projects using stain-grade hardwoods.
  • Multi-Pass Railing Assemblies: Machining the bottom section of architectural handrails before running upper-profile bits to form full structural railings.

Key Performance & Safety Features

  • Precision Dual-Radius Geometry: Combines a generous 1-inch large radius and 3/8-inch small radius to form comfortable lower finger grooves on handrails.
  • TiCo Hi-Density Carbide: Custom micro-grain titanium cobalt carbide tip formulation maintains razor-sharp cutting edges under continuous millwork operations.
  • Perma-SHIELD Thermal Barrier: Non-stick red fluoropolymer coating prevents pitch buildup, reduces thermal friction, and guards against surface rust.
  • Matched Railing System Interface: Integrates with Freud upper handrail bits (99-450, 99-452, 99-027) to complete multi-piece architectural assemblies.
  • Table-Mount & CNC Requirement: Engineered specifically for safe material control and zero-chatter shaping on table routers and automated CNC spindles.

What's Included

  • (1) Freud 99-442 1-3/16" Diameter Handrail Router Bit (Lower Profile) with 1/2" Shank
  • (1) 5/8-Inch Precision Steel Pilot Ball Bearing Guide

Technical Specifications

Brand Name Freud Tools
Item Model SKU 99-442
Tool Classification Lower Profile Handrail Router Bit
Shank Diameter Track 0.50 in. (1/2 in.)
Overall Cutter Diameter 1.1875 in. (1-3/16 in.)
Carbide Cutting Height 1.50 in. (1-1/2 in.)
Overall Tool Length 3.50 in. (3-1/2 in.)
Large Profile Radius (R1) 1.00 in. (1 in.)
Small Profile Radius (R2) 0.375 in. (3/8 in.)
Pilot Bearing Diameter (B) 0.625 in. (5/8 in.)
Number of Cutting Wings 2 Flutes
Maximum Operating Speed 18,000 RPM
Required Equipment Type Table-Mounted Router with Fence or CNC Machine
Material Applications Stain-Grade Hardwoods, Softwoods, Stair Timber

Pro-Tip: When routing deep handrail profiles in dense hardwoods like red oak or mahogany, make two or three light passes rather than taking the full 1-1/2-inch depth in a single pass. Taking incremental passes protects the TiCo carbide edges from heat discoloration and produces a glass-smooth, stain-ready finish.
