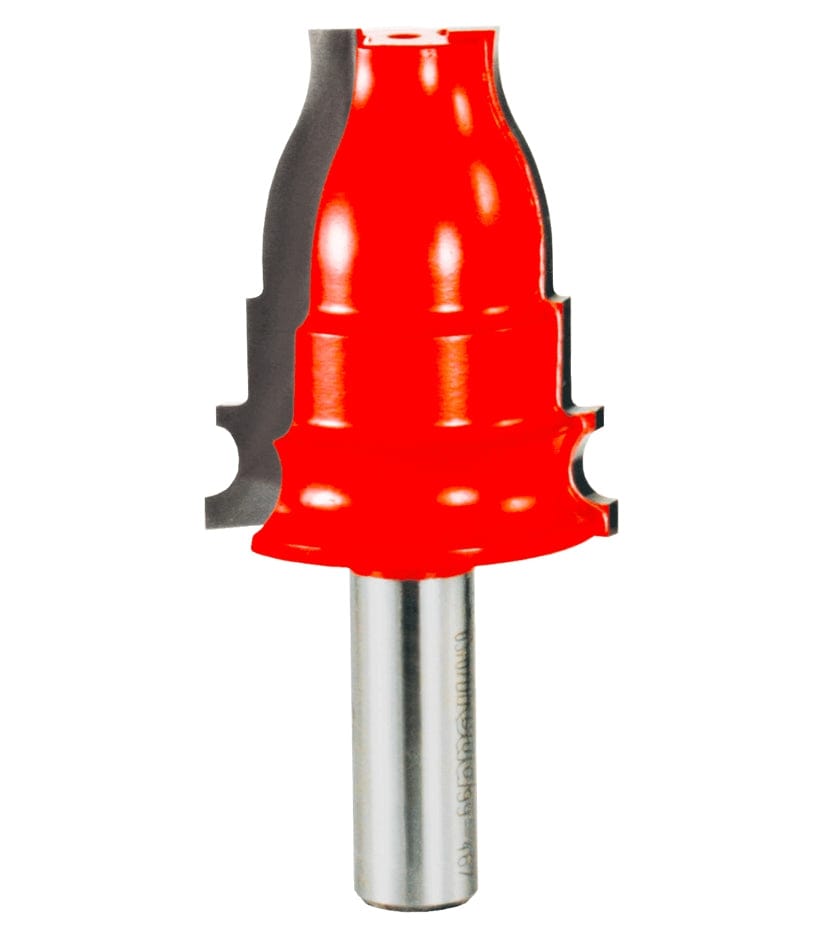

Studio product shot of the Freud 99-467 Architectural Casing Router Bit featuring a red Perma-SHIELD coated body and a 1/2-inch shank.
Composite diagram showing the Freud 99-467 router bit on the left and a cross-section of the wood molding on the right, demonstrating how the cutter geometry matches the profile.
Technical profile diagram for model #99-467 showing the dimensions for "Standard Casing Profile # 376". A red line traces the profile on a wood block, indicating a total height of 2-1/4 inches and a width of 11/16 inches.
3D illustration of a finished wooden casing molding strip exhibiting the classic curves and architectural details created by the router bit.
Diagram titled "Routing Technique for all casing profiles" displaying cross-sections of four different casing profiles (#356, #366, #376, and #445) being routed vertically on a router table against a fence.
Studio product shot of the Freud 99-467 Architectural Casing Router Bit featuring a red Perma-SHIELD coated body and a 1/2-inch shank.
Architectural Millwork Router Bits promotional video
Studio product shot of the Freud 99-467 Architectural Casing Router Bit featuring a red Perma-SHIELD coated body and a 1/2-inch shank.
Composite diagram showing the Freud 99-467 router bit on the left and a cross-section of the wood molding on the right, demonstrating how the cutter geometry matches the profile.
Technical profile diagram for model #99-467 showing the dimensions for "Standard Casing Profile # 376". A red line traces the profile on a wood block, indicating a total height of 2-1/4 inches and a width of 11/16 inches.
3D illustration of a finished wooden casing molding strip exhibiting the classic curves and architectural details created by the router bit.
Diagram titled "Routing Technique for all casing profiles" displaying cross-sections of four different casing profiles (#356, #366, #376, and #445) being routed vertically on a router table against a fence.
Studio product shot of the Freud 99-467 Architectural Casing Router Bit featuring a red Perma-SHIELD coated body and a 1/2-inch shank.
Architectural Millwork Router Bits promotional video
Freud

Freud Router Bit 99-467 Profile 376 Casing 1-5/8 Inch Diameter 1/2 Shank TiCo Carbide Architectural Door Window Frame Wood Trim Custom Molding Tool

Only 2 left
SKU: 99-467
$51.29 USD

Description

Freud precisely the best logo Logout

High-Density TiCo Carbide Door and Window Casing Router Bit for Profile #376 Architectural Millwork

The Freud 99-467 1-5/8-Inch Diameter Architectural Casing Router Bit delivers an industrial woodworking solution engineered to machine standard casing profile #376 on residential millwork trim boards. Built with a robust 1/2-inch shank and a massive 1-15/16 inch carbide cutting height, this high-performance bit enables woodworkers to craft custom stain-grade door frames and window trims from premium oak, walnut, or poplar stock. Tipped with exclusive TiCo hi-density carbide and treated with a heat-resistant red non-stick protective layer, this computer-balanced dual-cutter head runs up to 16,000 RPM inside table-mounted routers and CNC centers to deliver glass-smooth profiles requiring zero secondary sanding.

Best Used For:

  • Architectural Casing Milling: Fabricating custom profile #376 casing trim panels for professional door frames and window surrounds.
  • Stain-Grade Trim Production: Shaping detailed, multi-radius horizontal moldings on high-end hardwoods like walnut and oak without surface burning.
  • Custom Trim Matching: Replicating classical trim designs on raw lumber blanks to match existing interior millwork arrays.

Key Performance & Safety Features

  • TiCo Hi-Density Carbide: Engineered micro-grain tungsten carbide blend maintains extreme edge sharpness during high-volume architectural lumber runs.
  • Massive 1-15/16 Inch Cut Height: Extended vertical carbide profile accommodates deep, dramatic architectural shapes across wide structural boards.
  • Perma-SHIELD Non-Stick Shielding: Proprietary red coating isolates thermal stress buildup, limits friction drag, and blocks sticky resin adhesion.
  • Precision Balanced Geometry: Computer-balanced bit architecture eliminates spindle vibrations to secure a smooth finish and clear chip-outs.
  • Table Mount Configuration: Formulated explicitly for controlled mechanical tracking in automated CNC lines or stationary router table fences.

What's Included

  • (1) Freud 99-467 Architectural Casing Router Bit with 1/2" Shank

Technical Specifications

Brand Name Freud
Model Number 99-467
Bit Classification Door and Window Casing Bit
Profile Application Casing Profile #376
Overall Cutter Diameter 1.625 in. (1-5/8 in.)
Carbide Cutting Height 1.9375 in. (1-15/16 in.)
Shank Diameter 0.50 in. (1/2 in.)
Overall Tool Length 3.4375 in. (3-7/16 in.)
Total Integrated Cutters 2 Flutes
Maximum Speed Rating 16,000 RPM
Material Compatibility Hardwood, Softwood, Wood Composites
Tool Compatibility Router Table, CNC Only

Pro-Tip: Due to the significant 1-15/16 inch cutting profile height of this architectural bit, divide your casing molding process into multiple progressive depth runs. Shaving the material down in increments ensures maximum cutter life and eliminates splintering risks on deep timber faces.
