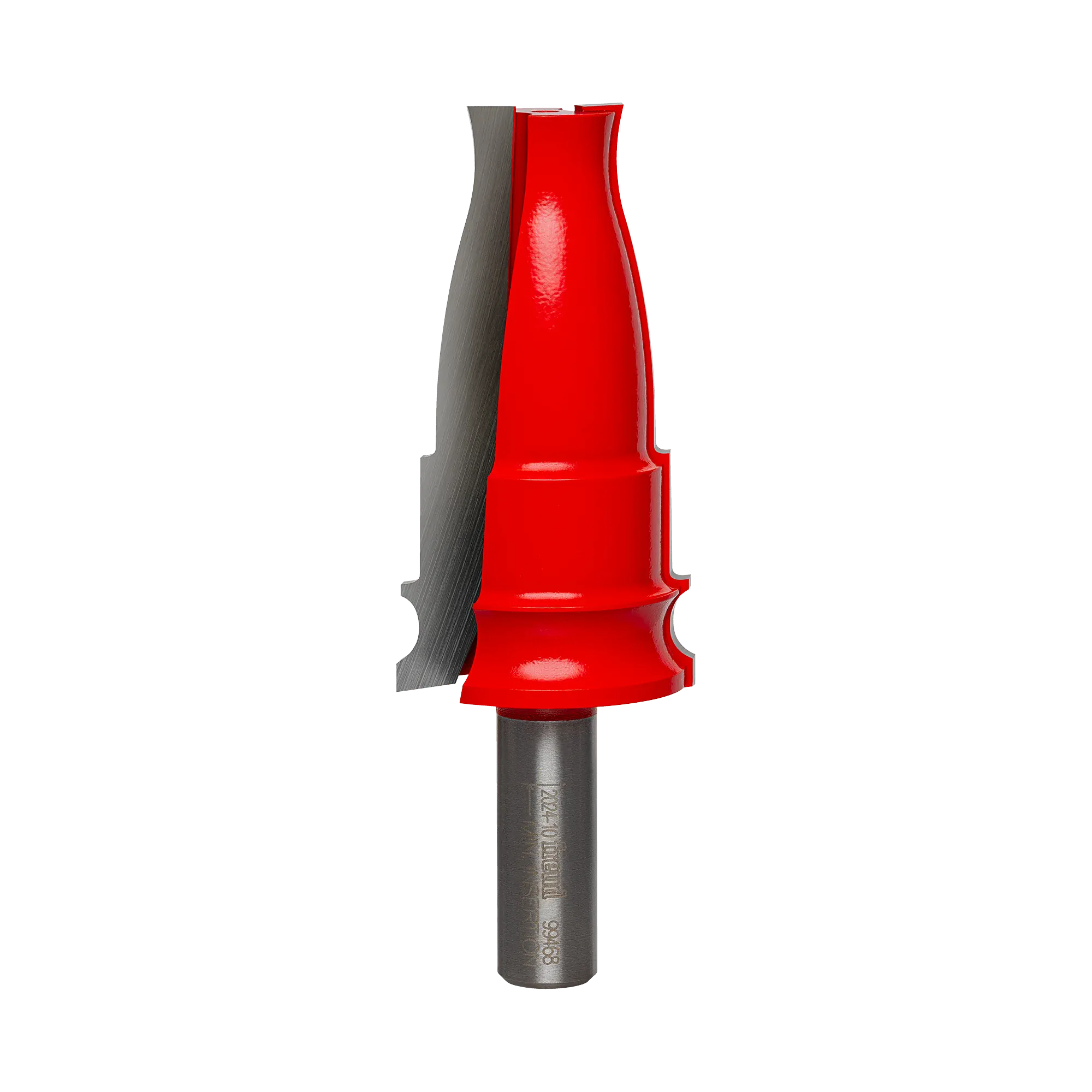

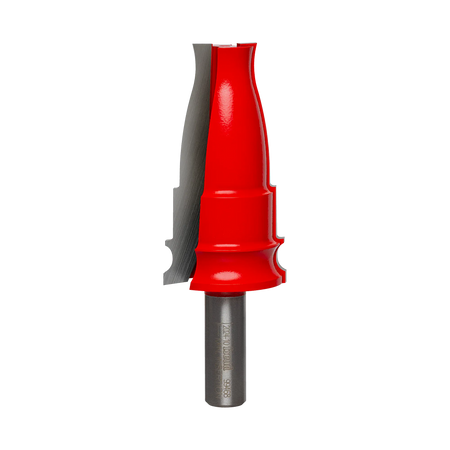

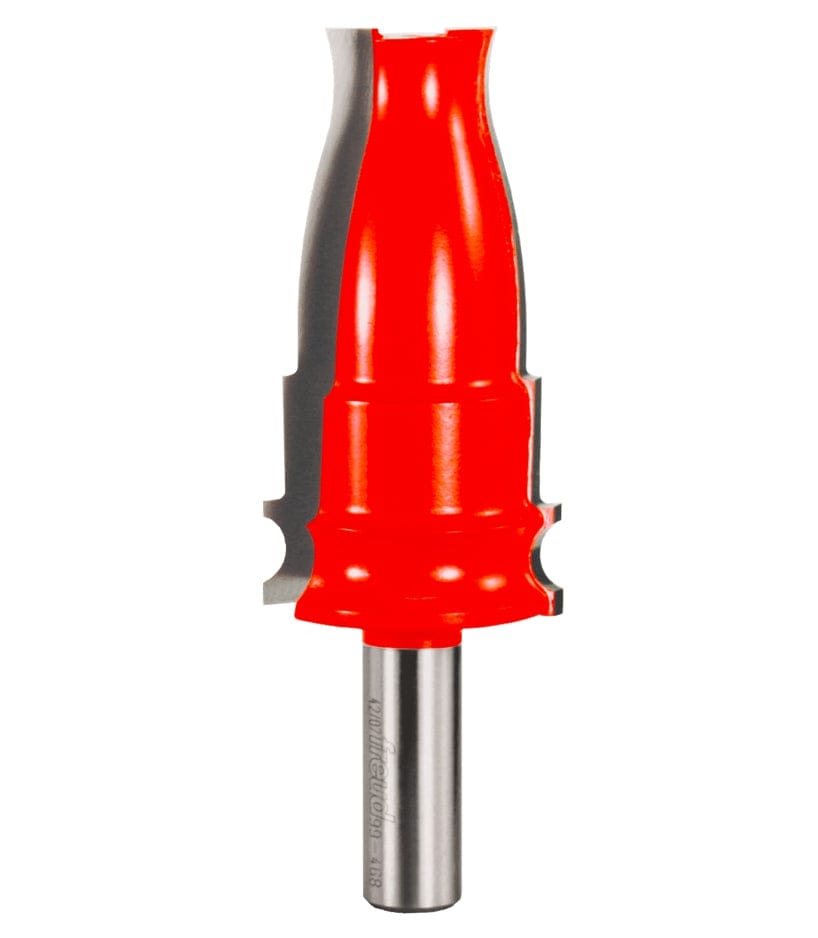

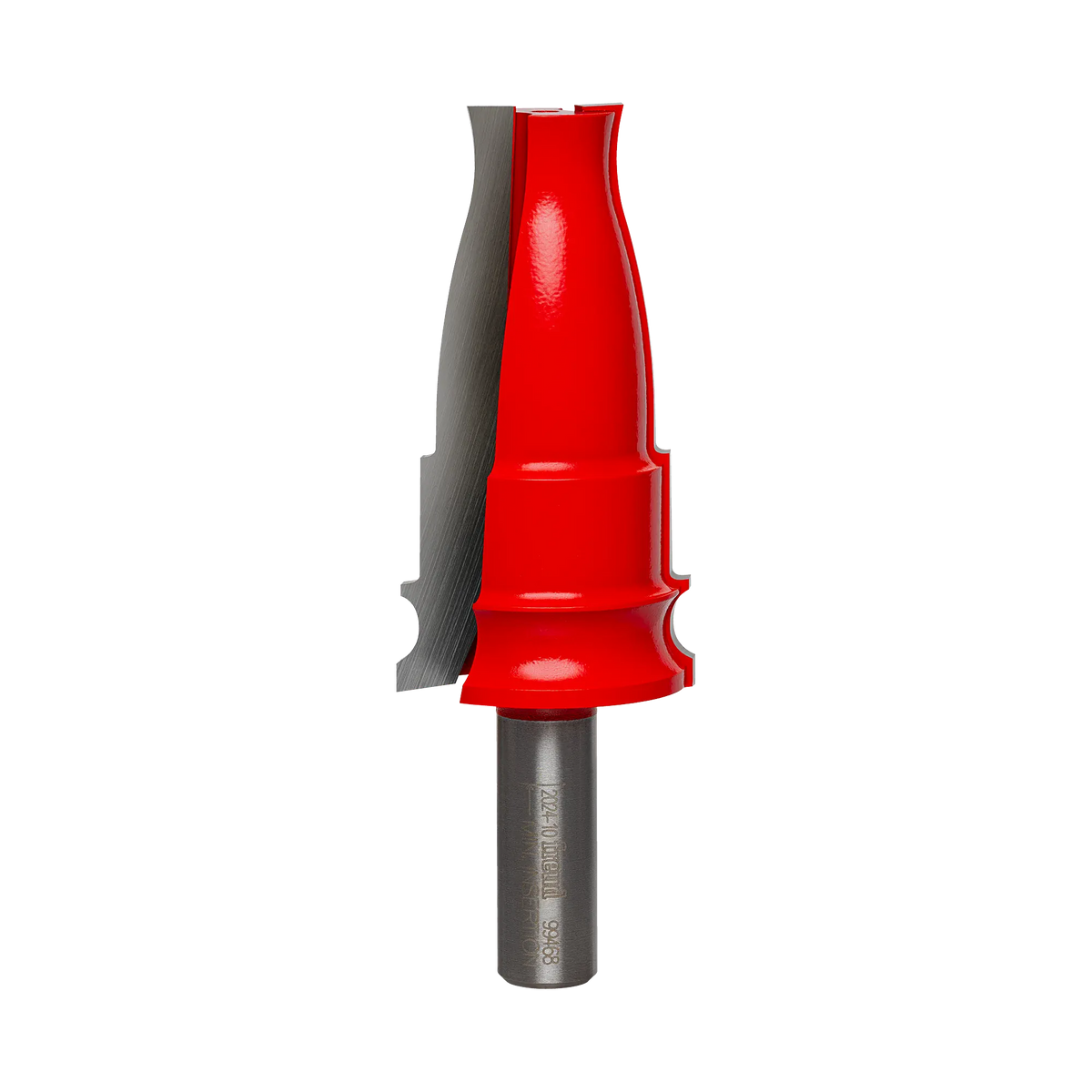

Studio product shot of the Freud 99-468 Door and Window Casing Router Bit featuring a tall red Perma-SHIELD coated body and a 1/2-inch shank.

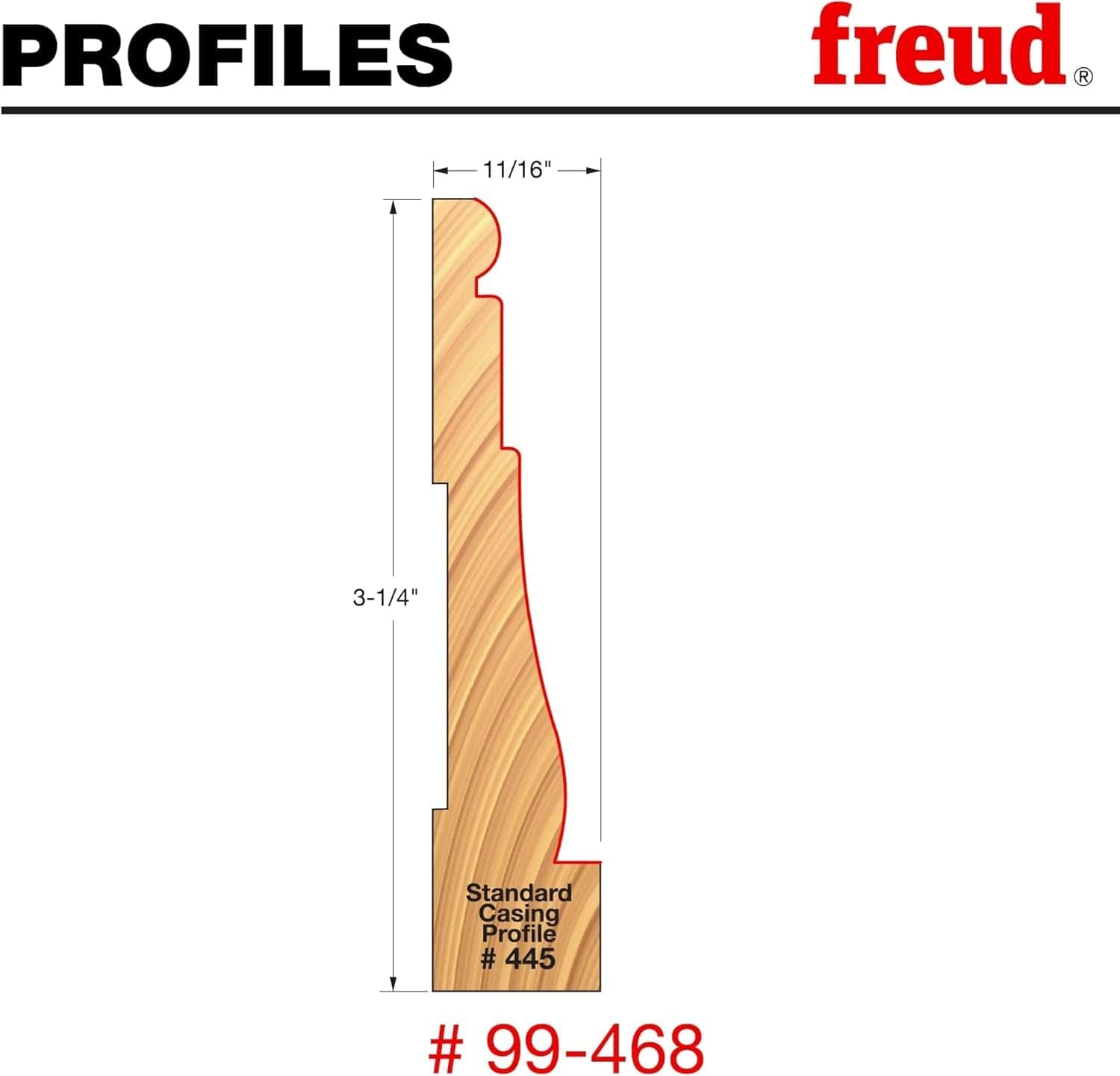

Technical profile diagram for model #99-468 showing the dimensions for "Standard Casing Profile # 445". A red line traces the profile on a wood block, indicating a total height of 3-1/4 inches and a top width of 11/16 inches.

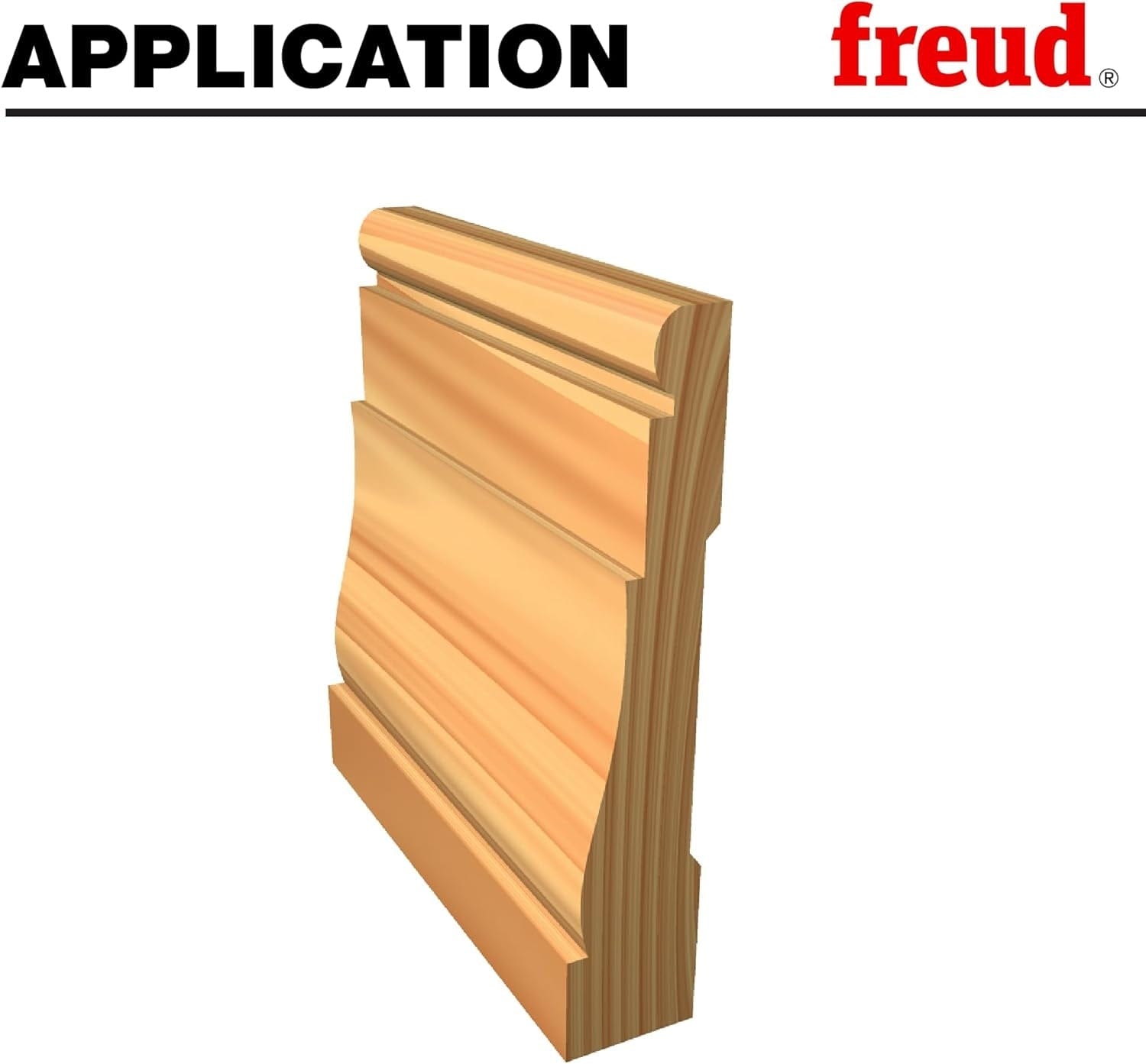

3D illustration of a finished wooden casing molding strip exhibiting the classic curves and architectural details created by the router bit.

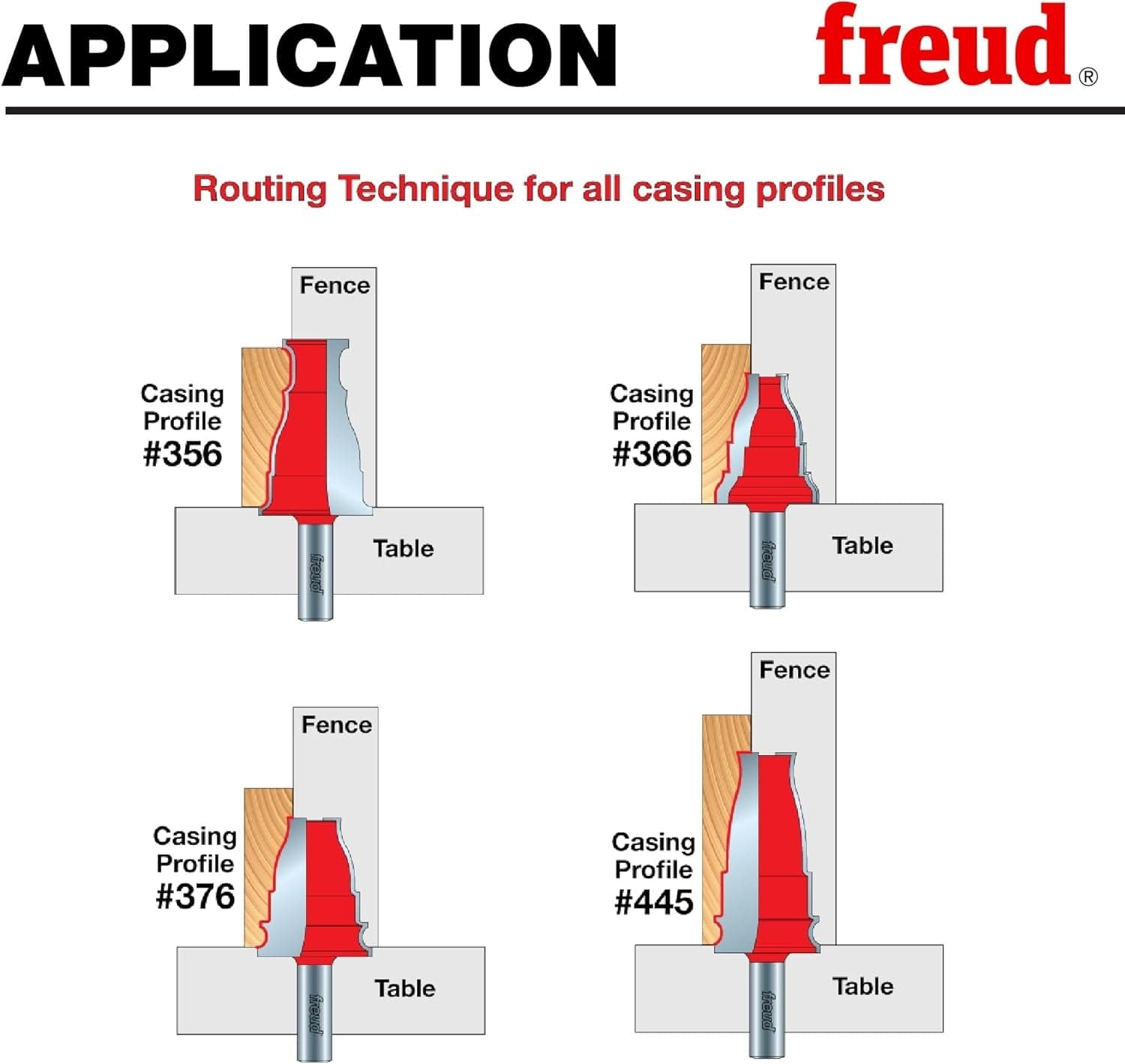

Diagram titled "Routing Technique for all casing profiles" displaying cross-sections of four different casing profiles (#356, #366, #376, and #445) being routed vertically on a router table against a fence.

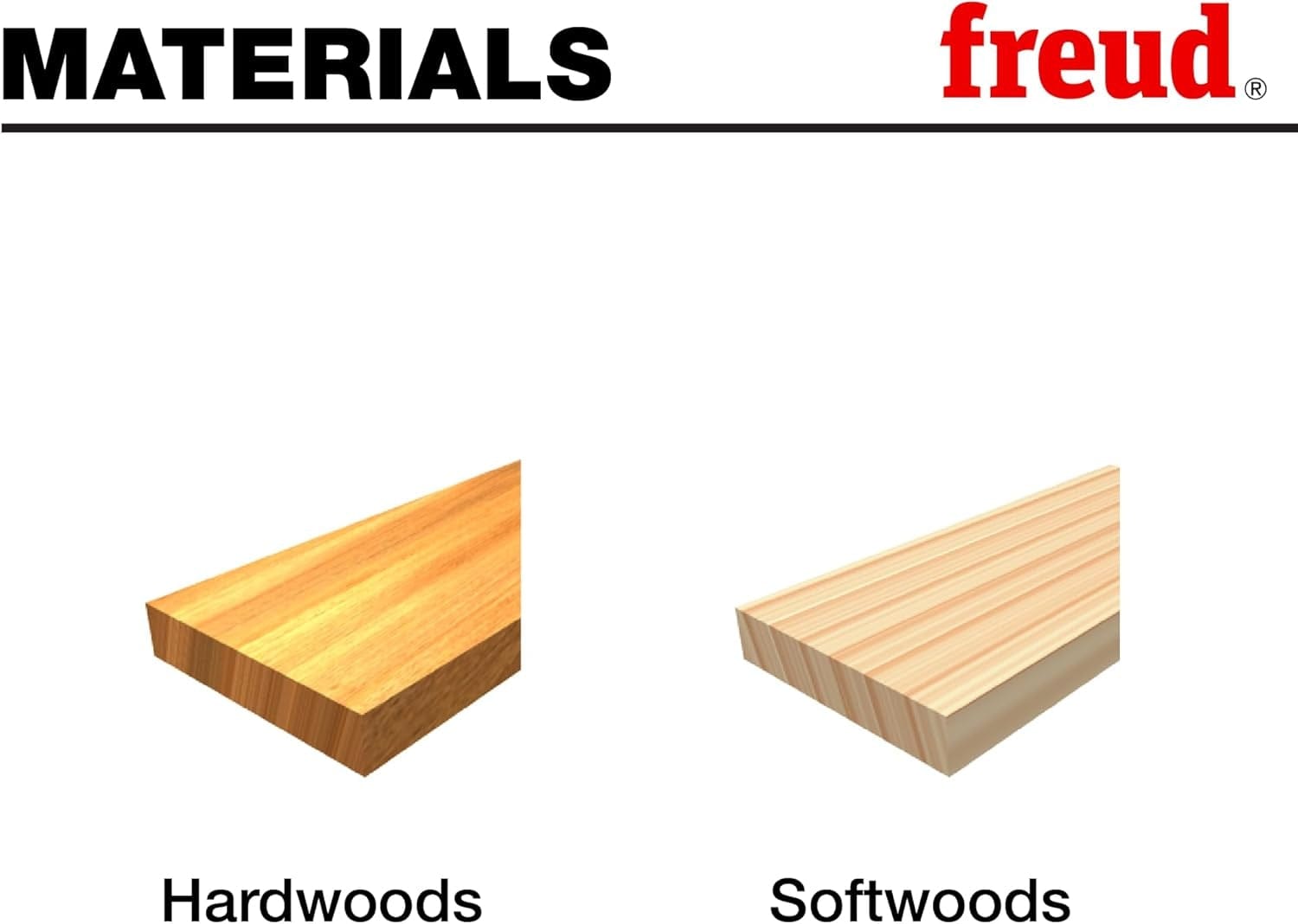

Graphic titled MATERIALS showing two rectangular samples of wood types compatible with the router bit: Hardwoods and Softwoods.

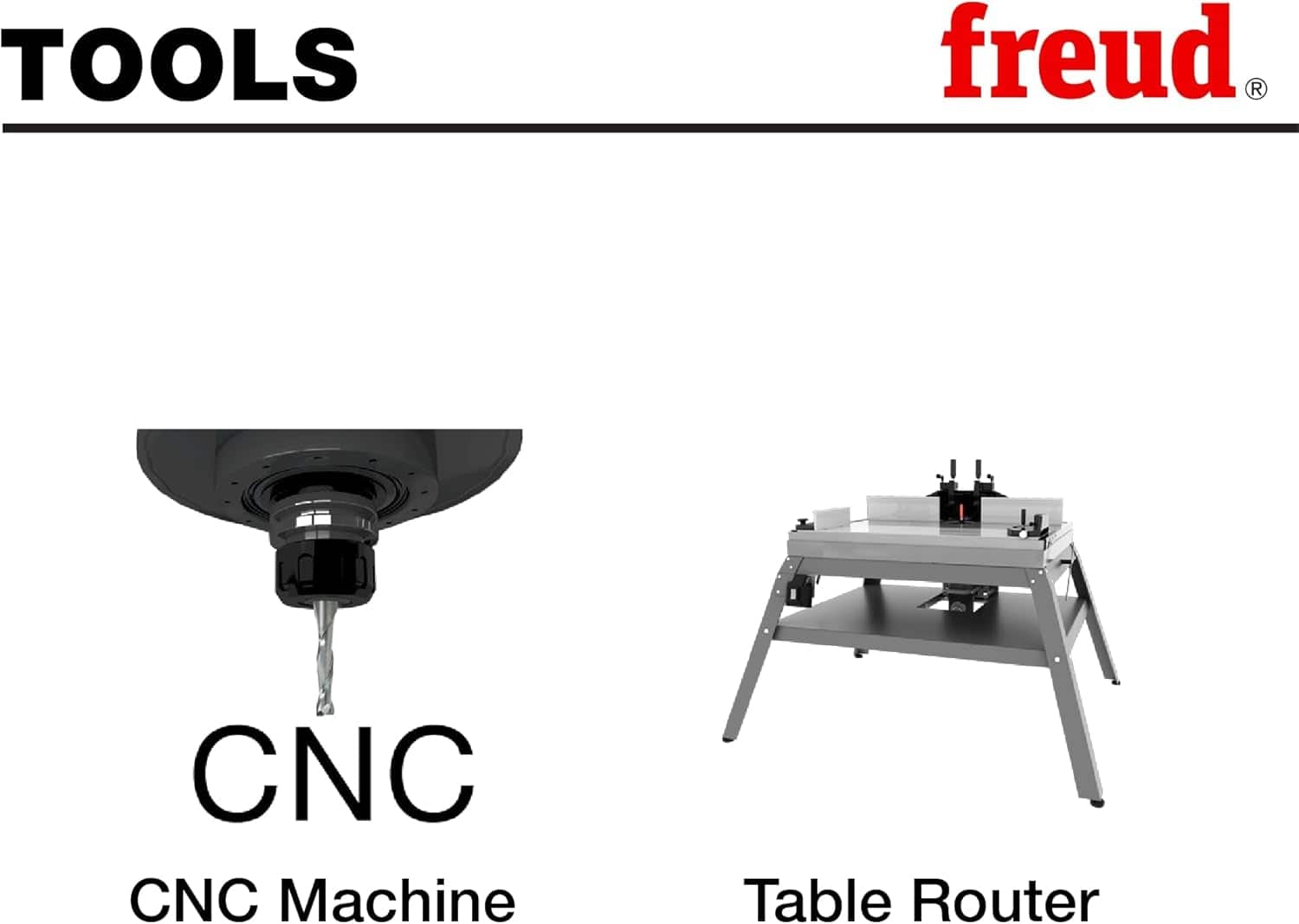

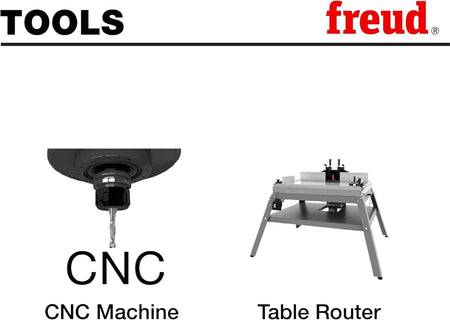

Graphic titled TOOLS displaying two router setups compatible with this bit: a CNC Machine on the left and a stationary Table Router on the right.
Studio product shot of the Freud 99-468 Door and Window Casing Router Bit featuring a tall red Perma-SHIELD coated body and a 1/2-inch shank.
Architectural Millwork Router Bits promotional video
Studio product shot of the Freud 99-468 Door and Window Casing Router Bit featuring a tall red Perma-SHIELD coated body and a 1/2-inch shank.
Technical profile diagram for model #99-468 showing the dimensions for "Standard Casing Profile # 445". A red line traces the profile on a wood block, indicating a total height of 3-1/4 inches and a top width of 11/16 inches.
3D illustration of a finished wooden casing molding strip exhibiting the classic curves and architectural details created by the router bit.
Diagram titled "Routing Technique for all casing profiles" displaying cross-sections of four different casing profiles (#356, #366, #376, and #445) being routed vertically on a router table against a fence.
Graphic titled MATERIALS showing two rectangular samples of wood types compatible with the router bit: Hardwoods and Softwoods.
Graphic titled TOOLS displaying two router setups compatible with this bit: a CNC Machine on the left and a stationary Table Router on the right.
Studio product shot of the Freud 99-468 Door and Window Casing Router Bit featuring a tall red Perma-SHIELD coated body and a 1/2-inch shank.
Architectural Millwork Router Bits promotional video
Freud

Freud 99-468 Door and Window Casing Router Bit 1-1/2 Inch Diameter 1/2 Inch Shank Profile #444 for Hardwood Trim

Only 1 left
SKU: 99-468
$62.99 USD

Description

Freud precisely the best logo Logout

Mill Industry-Standard Door and Window Casing with Precision

Elevate the finish of your home renovation or custom woodworking project with the Freud 99-468 Door and Window Casing Router Bit. This professional-grade tool is specifically designed to replicate the industry-standard casing profile #444, adding an elegant, traditional touch to door frames, window trim, and built-ins. By milling your own molding, you are no longer restricted to the basic pine or primed MDF found at big-box stores. Instead, you can choose the perfect wood species—whether it's rich cherry, durable oak, or exotic mahogany—to seamlessly match your existing furniture and décor.

Built for serious production, the 99-468 features a substantial 2-7/8 inch carbide cutting height, allowing it to mill wide profiles with exceptional detail. The bit is crafted with Freud’s exclusive TiCo™ Hi-Density Carbide, a specialized formulation that stays sharper longer and provides a flawless, stain-ready finish on both hardwoods and softwoods. Protected by the signature red Perma-SHIELD® coating, this bit resists heat buildup, rust, and pitch accumulation, ensuring smooth operation even during extended use. Due to its large profile and cutting height, this bit is designed for safe and stable use in table-mounted routers or CNC machines.

Key Features

  • Standard Profile #444: Precisely mills one of the most popular door and window casing profiles used in residential construction.
  • Custom Species Choice: Allows you to create high-end moldings from any hardwood or softwood species for a custom look.
  • TiCo Hi-Density Carbide: Proprietary carbide blend delivers a sharper edge and superior finish quality that requires minimal sanding.
  • Perma-SHIELD Coating: Non-stick red coating reduces friction and heat while preventing resin buildup and corrosion.
  • Heavy-Duty Design: Features a 1/2-inch shank and a massive 2-7/8 inch cutting height for milling wide stock.
  • Table-Mount Exclusive: Engineered for use in router tables and CNC machines to ensure safety and stability.

What's Included

(1) Freud 99-468 1-1/2" Diameter Door and Window Casing Router Bit with 1/2" Shank

Specifications

Brand Name Freud
Manufacturer Part # 99-468
Profile Type Casing Profile #444
Overall Diameter (D) 1-1/2"
Carbide Height (h) 2-7/8"
Shank Diameter (A) 1/2"
Overall Length (H) 4-3/8"
Number of Cutters 2
Max RPM 16,000
Material Compatibility Hardwood, Softwood, Composites

Pro-Tip: Due to the significant 2-7/8 inch cutting height of this bit, it removes a large volume of wood. To achieve a chatter-free finish and protect your router motor, do not attempt to cut the full depth in a single pass. Instead, use a tall fence for support and make 3 to 4 lighter passes, gradually increasing the depth of cut.
