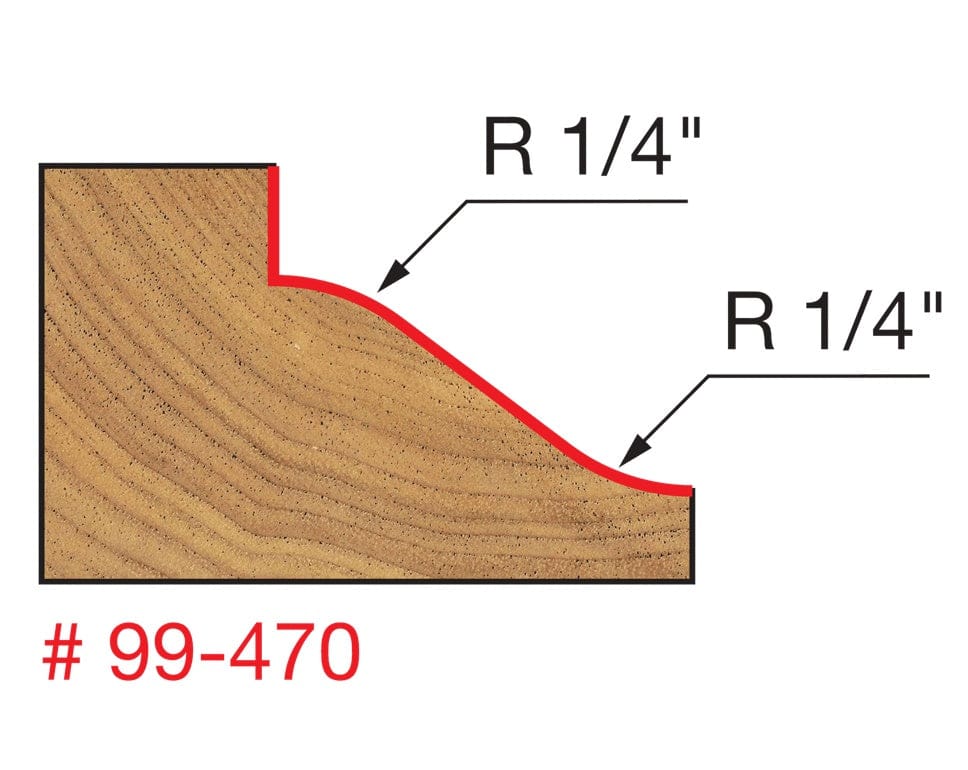

A close-up cross-section diagram of the wood profile created by the Freud 99-470 reversible wainscoting bit, highlighting two 1/4 inch radii that form the decorative curve.

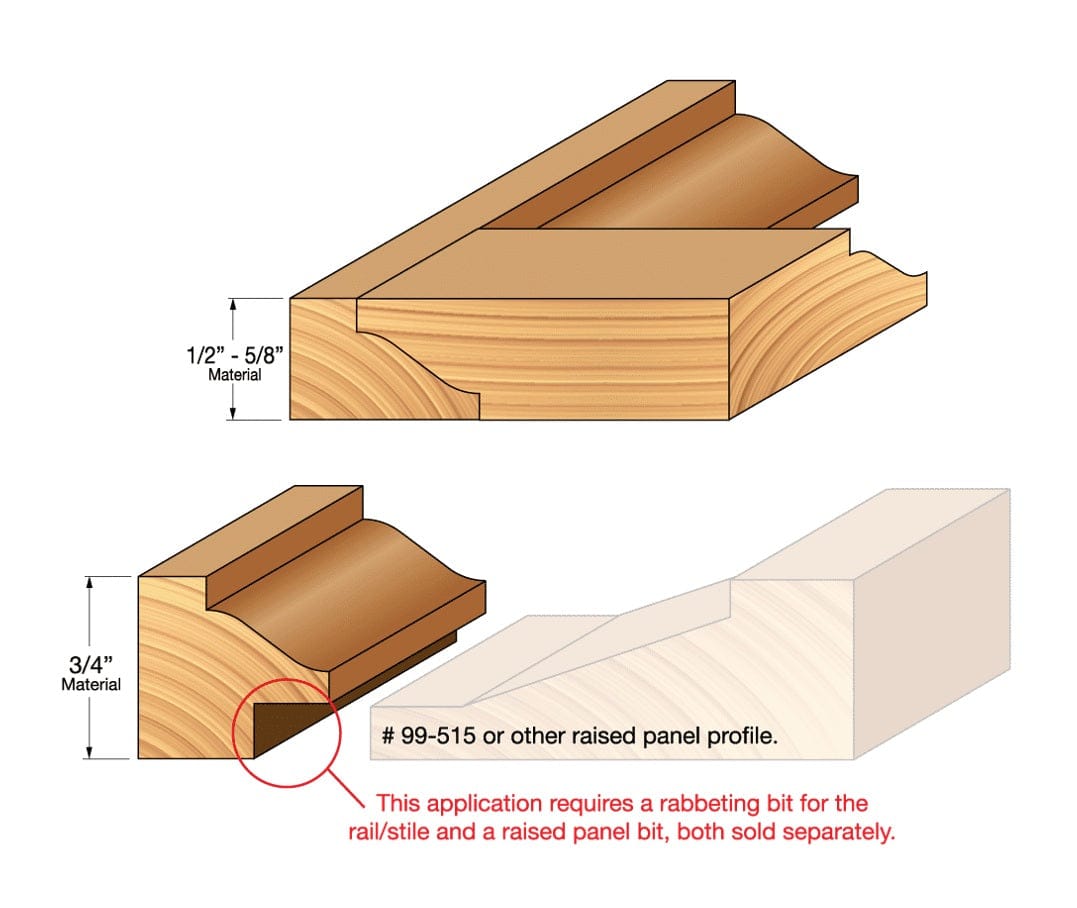

Diagram showing two applications of the Freud 99-470 reversible wainscoting bit. The top image shows the bit producing rail and stile profiles on 1/2 to 5/8 inch material. The bottom image shows how to add a raised panel to a 3/4 inch piece, noting that a separate rabbeting bit and raised panel bit are required.
video of Architectural Millwork Bits For Stunning Custom Interiors.
A detailed image of the Freud 99-470 reversible wainscoting router bit, featuring its distinctive red Perma-SHIELD coating on the cutter head and the Freud logo on the 1/2 inch silver shank.
A close-up cross-section diagram of the wood profile created by the Freud 99-470 reversible wainscoting bit, highlighting two 1/4 inch radii that form the decorative curve.
Diagram showing two applications of the Freud 99-470 reversible wainscoting bit. The top image shows the bit producing rail and stile profiles on 1/2 to 5/8 inch material. The bottom image shows how to add a raised panel to a 3/4 inch piece, noting that a separate rabbeting bit and raised panel bit are required.
video of Architectural Millwork Bits For Stunning Custom Interiors.
Freud

Freud 99-470 Reversible Wainscoting Router Bit 1-1/2" Diameter 1/2" Shank Single Bit Rail & Stile Cutter for 1/2" to 5/8" Stock with Perma-SHIELD

In stock
SKU: 99-470
$27.82

Description

Transform Walls: Mill Perfect Rail and Stile Wainscoting with a Single, Time-Saving Router Bit

Dramatically simplify the process of upgrading interiors with the Freud 99-470 Reversible Wainscoting Bit. This ingenious, single-bit solution allows you to mill beautiful rail and stile profiled wainscoting for existing wall surfaces quickly and flawlessly. The revolutionary reversible design means you set the bit height just one time for both the male and female joints, eliminating frustrating fence or height adjustments. Simply route stiles face down and rails face up for a perfect, tight fit. Ideal for quickly milling stain-grade or paint-grade molding in stock ranging from 1/2" to 5/8" thick—achieving professional, decorative results on hardwoods, softwoods, plywood, and MDF.

Key Features

  • Single-Bit Wainscoting: Rout both the rail and stile profiles with one bit setting, saving time and ensuring matched joints.
  • Reversible Functionality: Cut stiles face down and rails face up to create a perfect male/female lock joint without changing the cutter height.
  • Versatile Panel Option: Features a clever design that allows you to rout a rabbet on the back to accommodate raised panels for an even grander project.
  • Freud Perma-SHIELD® Coating: Exclusive non-stick coating resists heat, corrosion, and pitch buildup for a longer bit life.
  • Precision Carbide: Crafted with Freud's premium carbide for maximum cutting performance and clean edges on all wood and composite materials.
  • Wide Compatibility: Designed for stable, accurate use on both hand-held and table-mounted routers.

Specifications

Specification Detail
Manufacturer Model 99-470
Overall Diameter (D) 1-1/2"
Shank Diameter (A) 1/2"
Carbide Height (h) 7/16"
Minor Height (m) 3/16"
Radius (R) 1/4"
Maximum Stock Thickness 5/8"
Overall Length (H) 2-1/4"
Number of Cutters 2
Max RPM 16,000
Coating Type Perma-SHIELD® (Anti-Friction)
Ideal Material Use Hardwood, Softwood, Plywood, MDF

This single bit is perfect for simple wainscoting, but for making full-sized cabinet and passage doors, you need dedicated joinery tools. We suggest stepping up to a complete system like the Freud 3-Piece Premier Adjustable Cabinet Door Making Router Bit Set (97-276), which gives you specialized bits for building professional-grade raised panel doors from start to finish.
