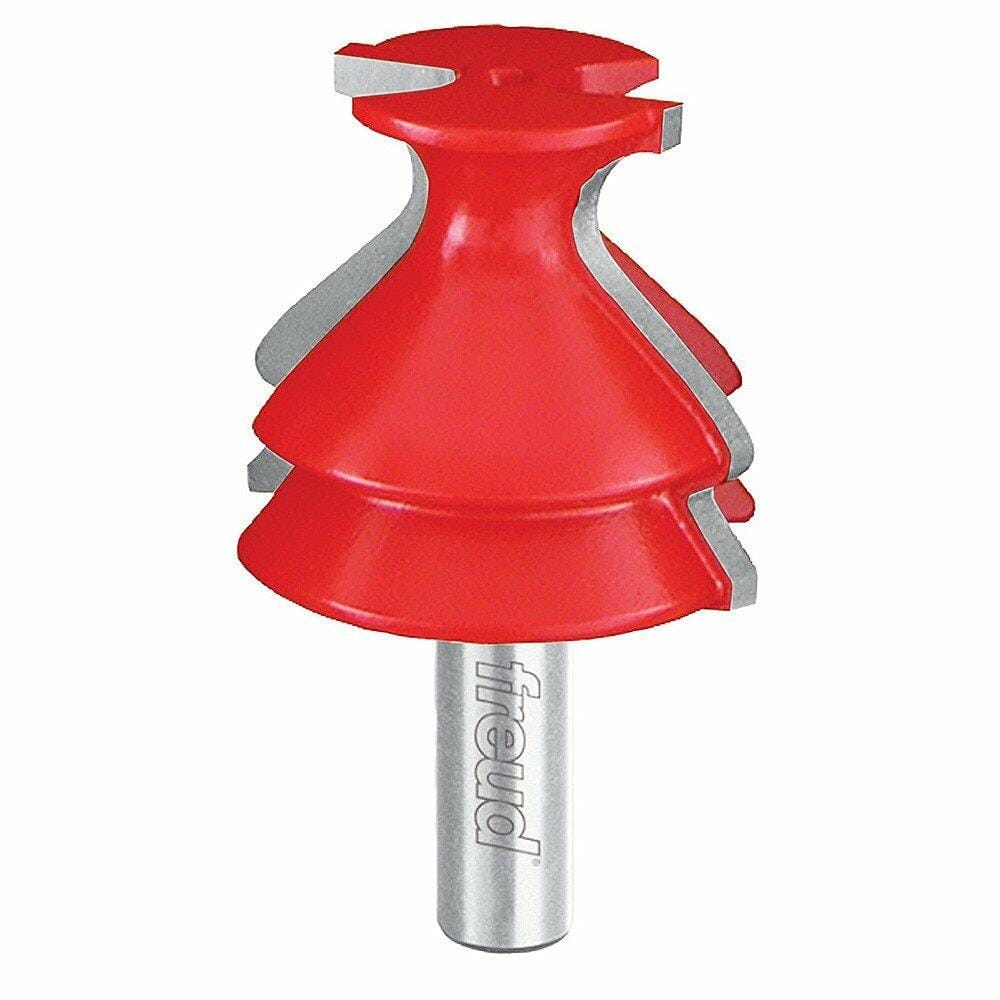

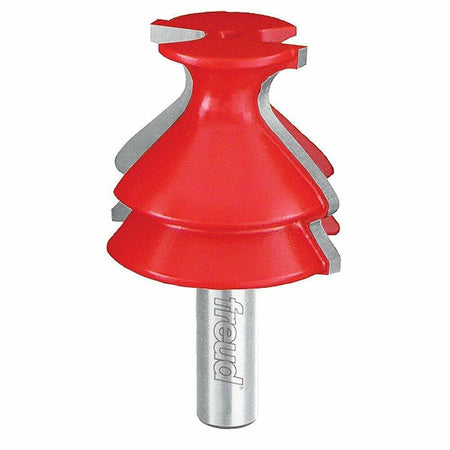

A studio photo of the Freud 99-480 base and cap molding router bit, showing its red Perma-SHIELD coating and 1/2-inch shank.

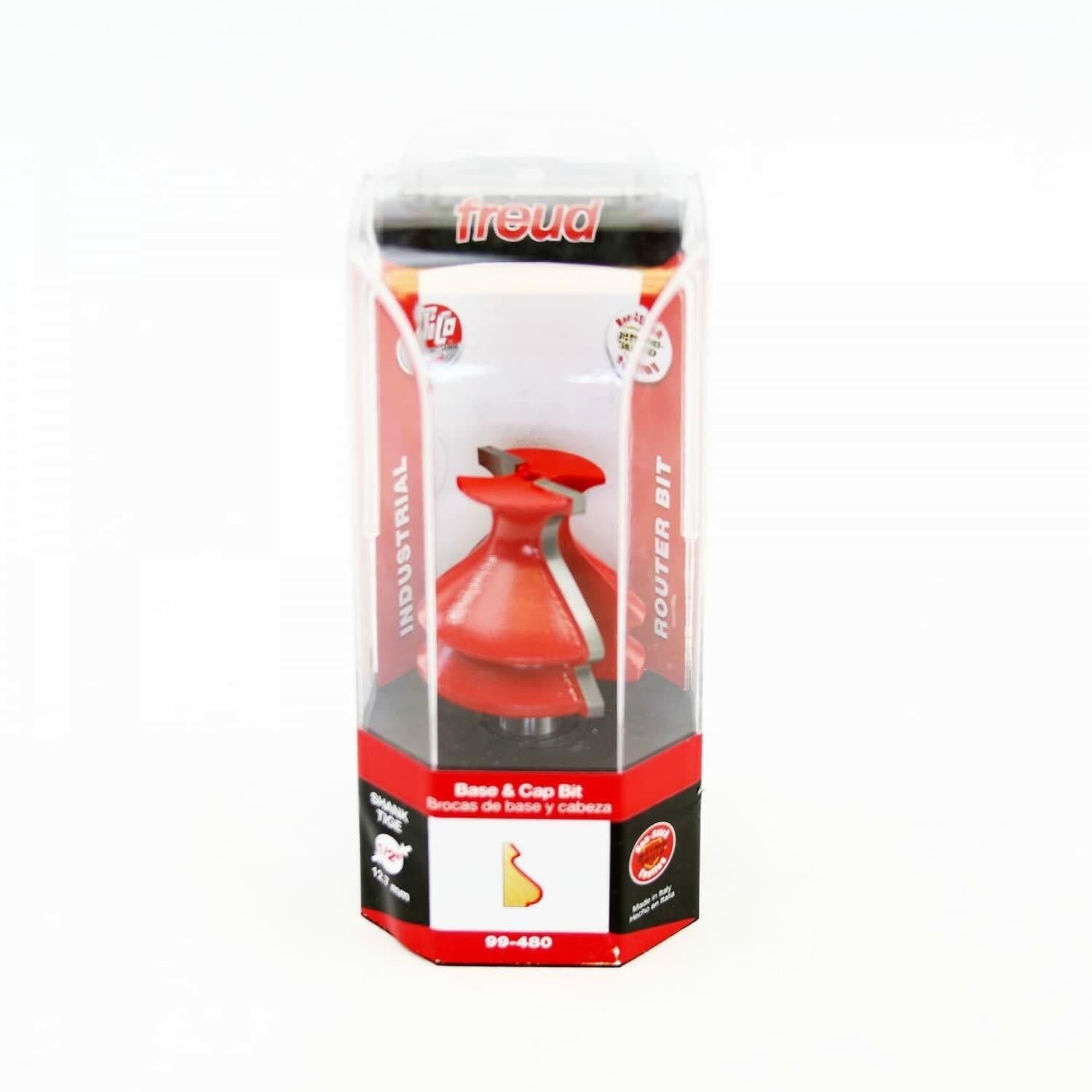

The Freud 99-480 base and cap router bit shown inside its clear and red industrial retail packaging.

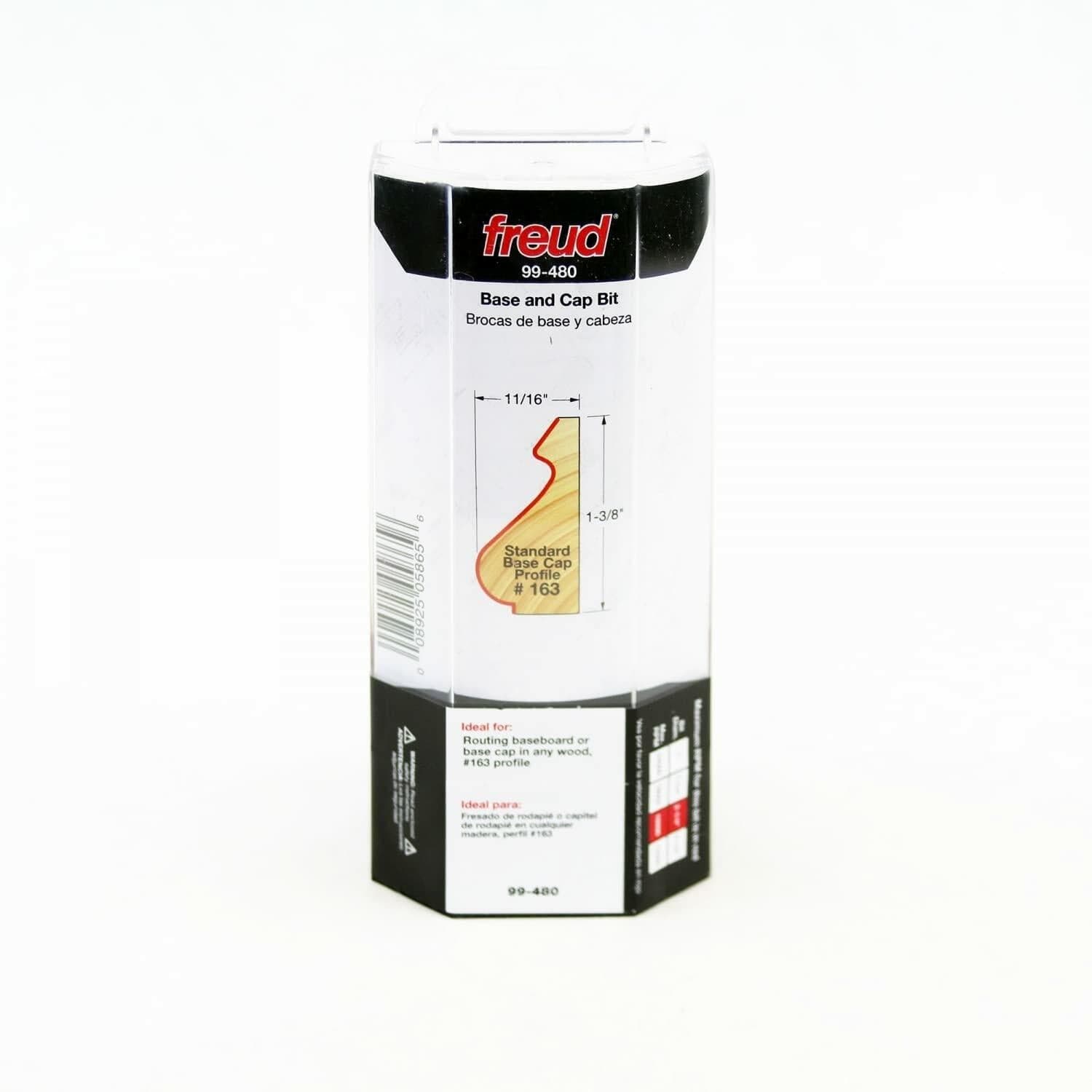

The back of the retail packaging for the Freud 99-480 router bit, showing the profile diagram and barcode.

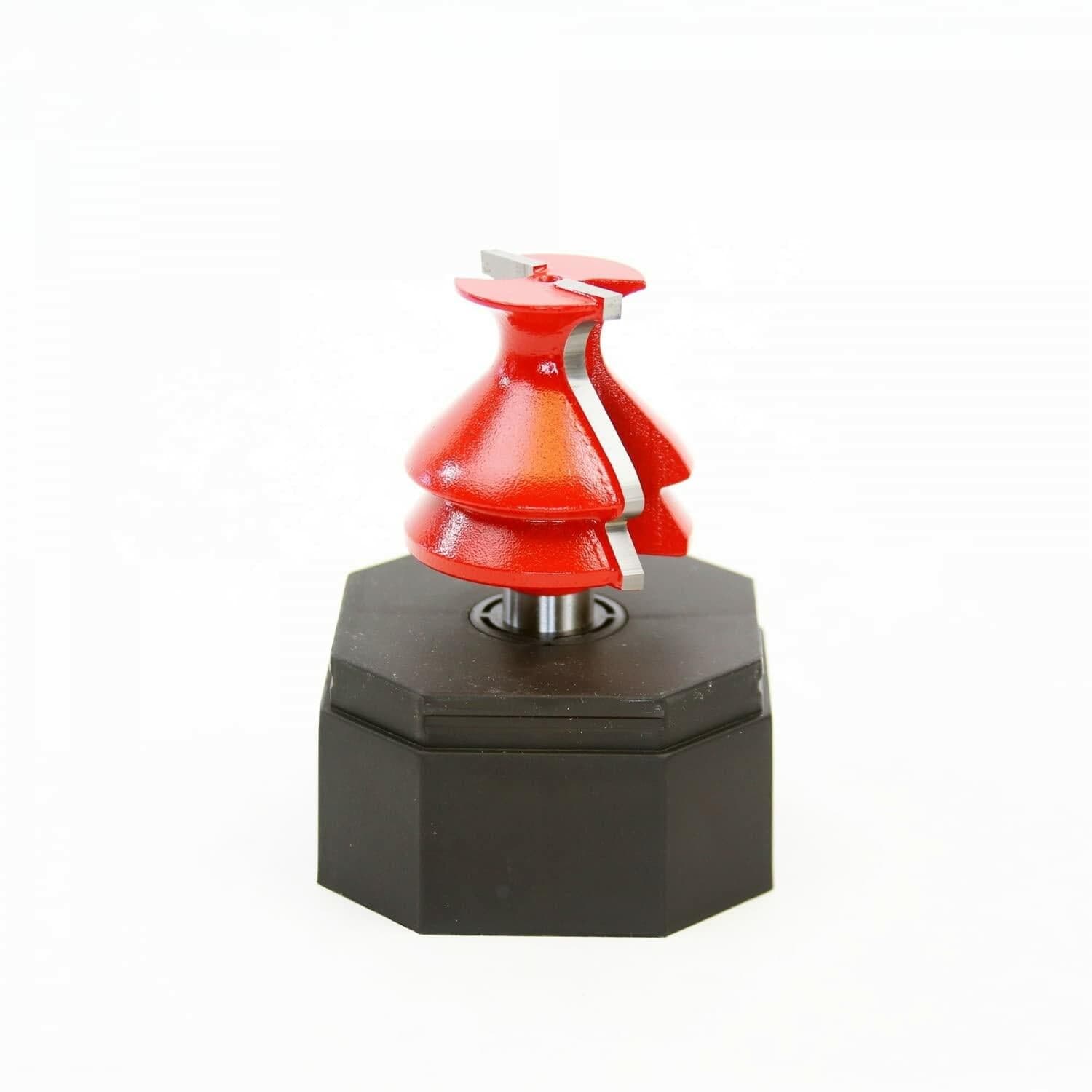

A three-quarter view of the Freud 99-480 router bit in a black display holder.

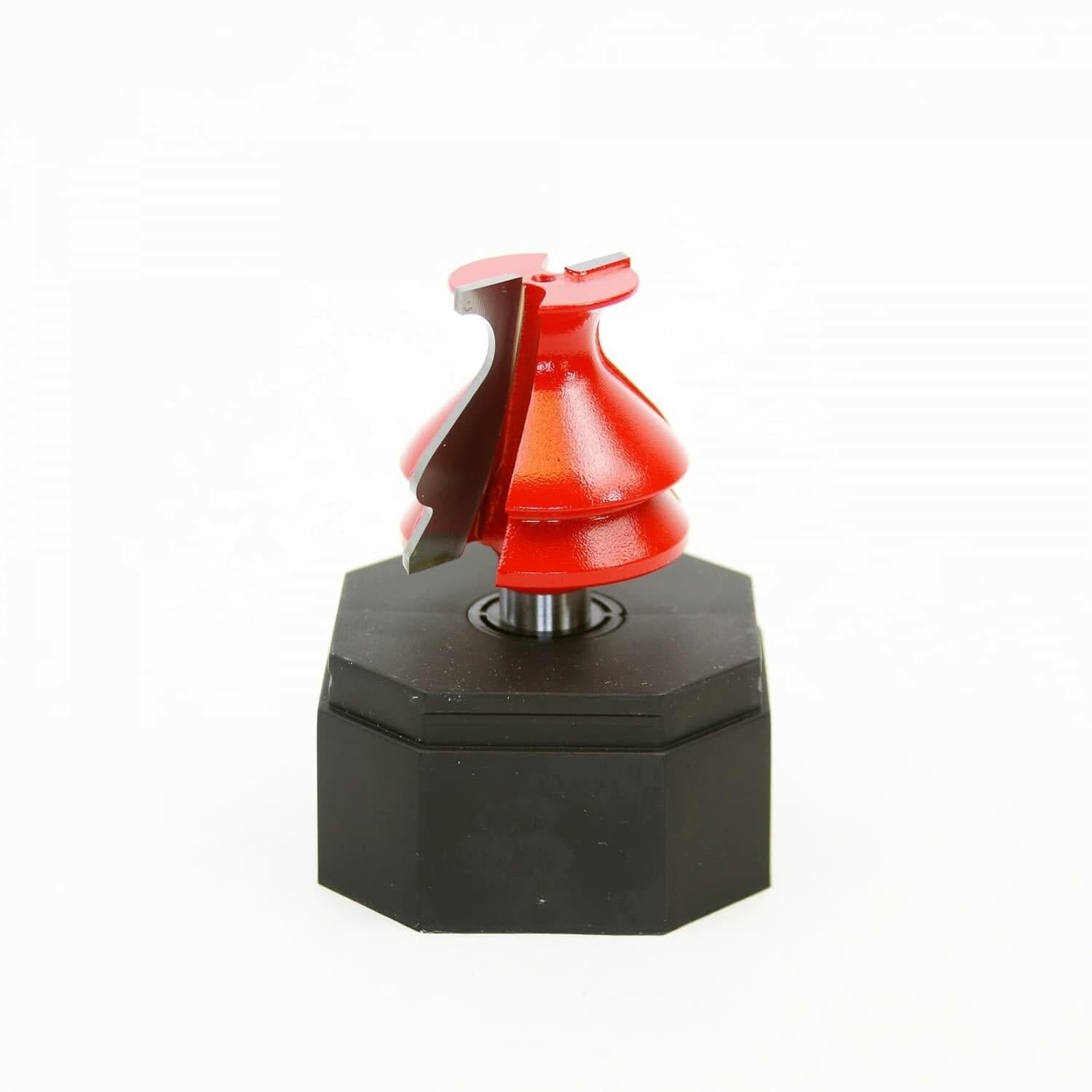

Side profile of the Freud 99-480 router bit seated in a black display holder, highlighting the shape of the carbide cutters.

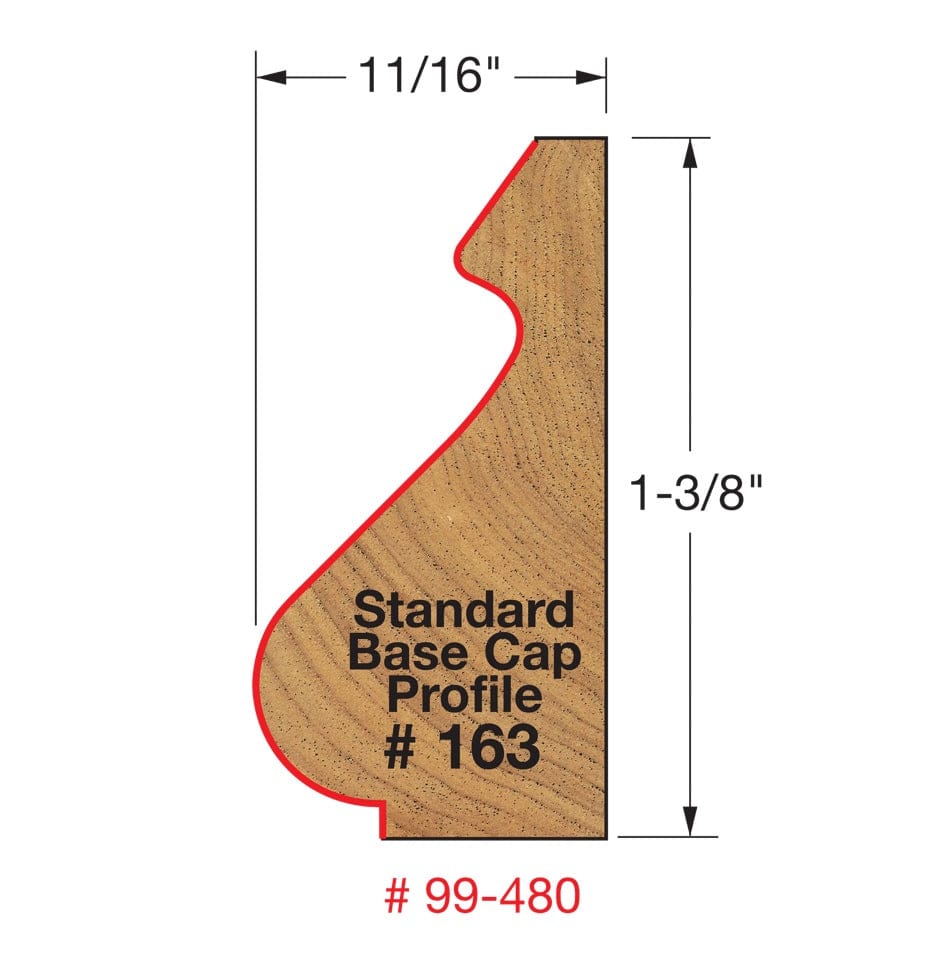

An infographic showing the Standard Base Cap Profile #163, with dimensions of 11/16 inch by 1-3/8 inch, created by the Freud 99-480 router bit.

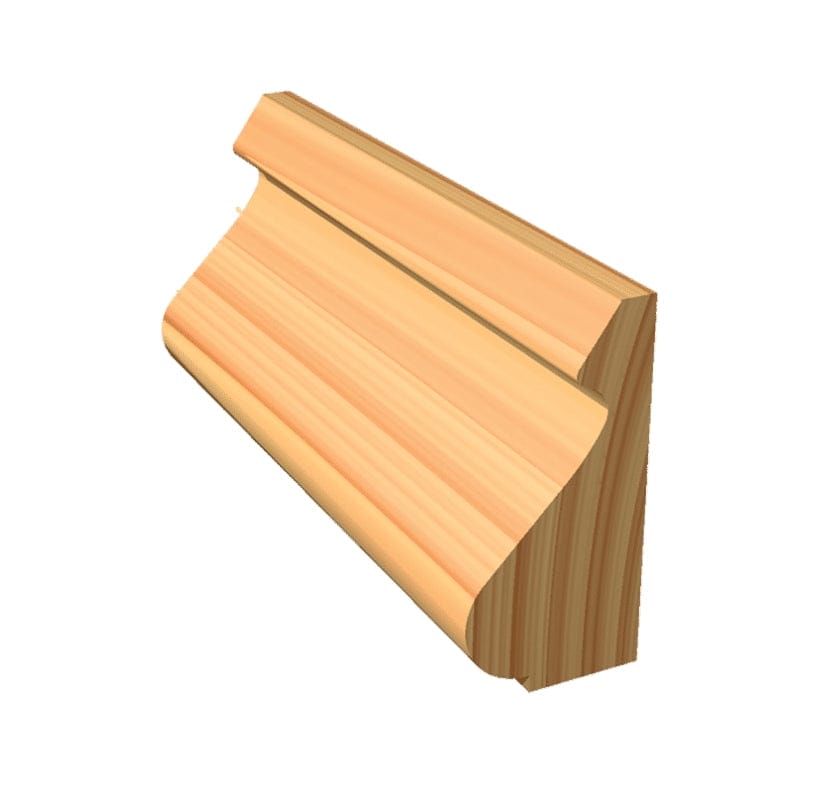

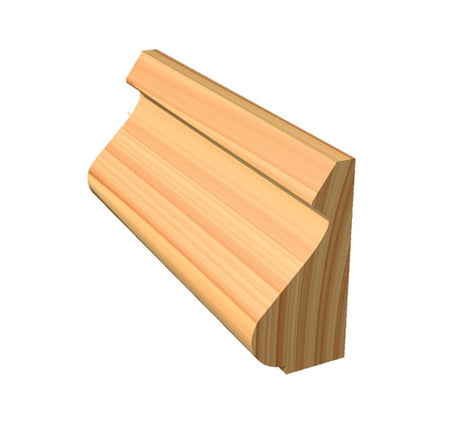

A piece of wood molding showing the final profile cut created by the Freud 99-480 base and cap router bit.
A studio photo of the Freud 99-480 base and cap molding router bit, showing its red Perma-SHIELD coating and 1/2-inch shank.
The Freud 99-480 base and cap router bit shown inside its clear and red industrial retail packaging.
The back of the retail packaging for the Freud 99-480 router bit, showing the profile diagram and barcode.
A three-quarter view of the Freud 99-480 router bit in a black display holder.
Side profile of the Freud 99-480 router bit seated in a black display holder, highlighting the shape of the carbide cutters.
An infographic showing the Standard Base Cap Profile #163, with dimensions of 11/16 inch by 1-3/8 inch, created by the Freud 99-480 router bit.
A piece of wood molding showing the final profile cut created by the Freud 99-480 base and cap router bit.
Freud

Freud Router Bit 99480 1-3/4 Inch Base And Cap Molding (Custom Baseboard Millwork Woodworking Tool)

In stock
SKU: 99-480
$49.00 USD
$92.63 USD Sale $49.00 USD

Description

Freud precisely the best logo Logout

Freud 99-480 1-3/4-Inch Diameter Base and Cap Molding Router Bit with 1/2-Inch Shank

The Freud 99-480 Base and Cap Molding Router Bit mills custom architectural baseboards, mop boards, and decorative trim profiles in any width from solid hardwoods or softwoods. Engineered with dual high-density carbide cutters and a non-stick Perma-SHIELD thermal coating, this large-profile 3-inch overall length router bit produces stain-grade finishes that match historic home millwork. Designed specifically for table-mounted routers and CNC machines operating up to 16,000 RPM, this professional woodworking bit allows finish carpenters and renovators to replicate obsolete or extra-high base moldings effortlessly.

Best Used For:

  • Historic Renovation & Millwork Matching: Milling custom extra-high baseboards and cap moldings to match vintage interior woodwork.
  • Custom Baseboard & Cap Shaping: Routing decorative mop boards and architectural trim pieces from custom hardwood species.
  • Table-Mounted Router Profiling: Executing multi-pass molding cuts safely on high-fence router tables and CNC routers.

Key Performance & Safety Features

  • Dual Carbide Cutter Design: Two precision-ground carbide edges shear wood fibers cleanly for a smooth, stain-grade finish.
  • Perma-SHIELD Non-Stick Coating: Thermal barrier reduces friction, pitch accumulation, and heat buildup to extend bit longevity.
  • Heavy-Duty 1/2-Inch Shank: Large diameter shank provides superior rigidity and chatter reduction during deep profiling passes.
  • Extra-High Carbide Height: 1-1/2 inch carbide profile height accommodates the milling of tall, traditional baseboard sections.
  • Controlled Multi-Pass Routing: Engineered for safe material removal when fed through table-mounted fences in progressive passes.

What's Included

  • (1) Freud 99-480 1-3/4" Diameter Base and Cap Molding Router Bit

Technical Specifications

Specification Detail
Model Number / Part ID 99-480 (99480)
Overall Cutter Diameter 1.75 in (1-3/4 in / 44.45 mm)
Carbide Profile Height 1.50 in (1-1/2 in / 38.10 mm)
Router Shank Diameter 0.50 in (1/2 in Shank Size)
Overall Tool Length 3.0 in (76.2 mm)
Cutter Blade Count 2 Flute Cutters
Maximum RPM Speed Limit 16,000 RPM Max Speed Rating
Anti-Stick Surface Coating Perma-SHIELD Thermal Barrier
Recommended Router Setup Table-Mounted Router with 6" High Fence
Target Trade Application Custom Baseboard and Cap Molding Millwork
Pro-Tip: Always mill your base and cap molding profiles using a table-mounted router equipped with a 6-inch high fence and make multiple shallow passes; incremental depth feeding prevents bit chatter and guarantees a clean, burn-free stain grade finish.
