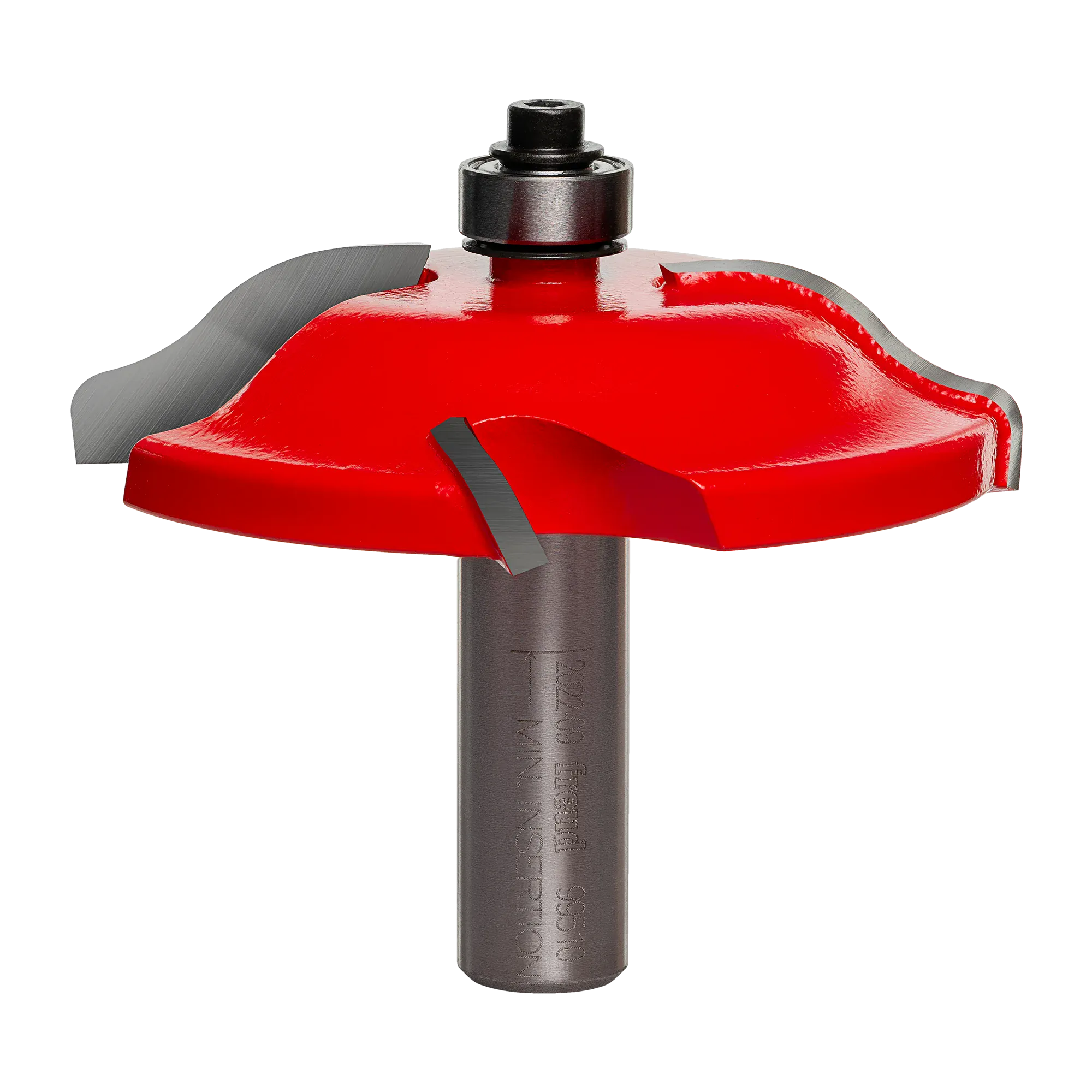

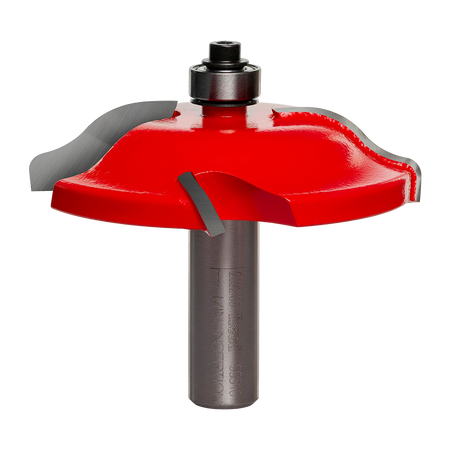

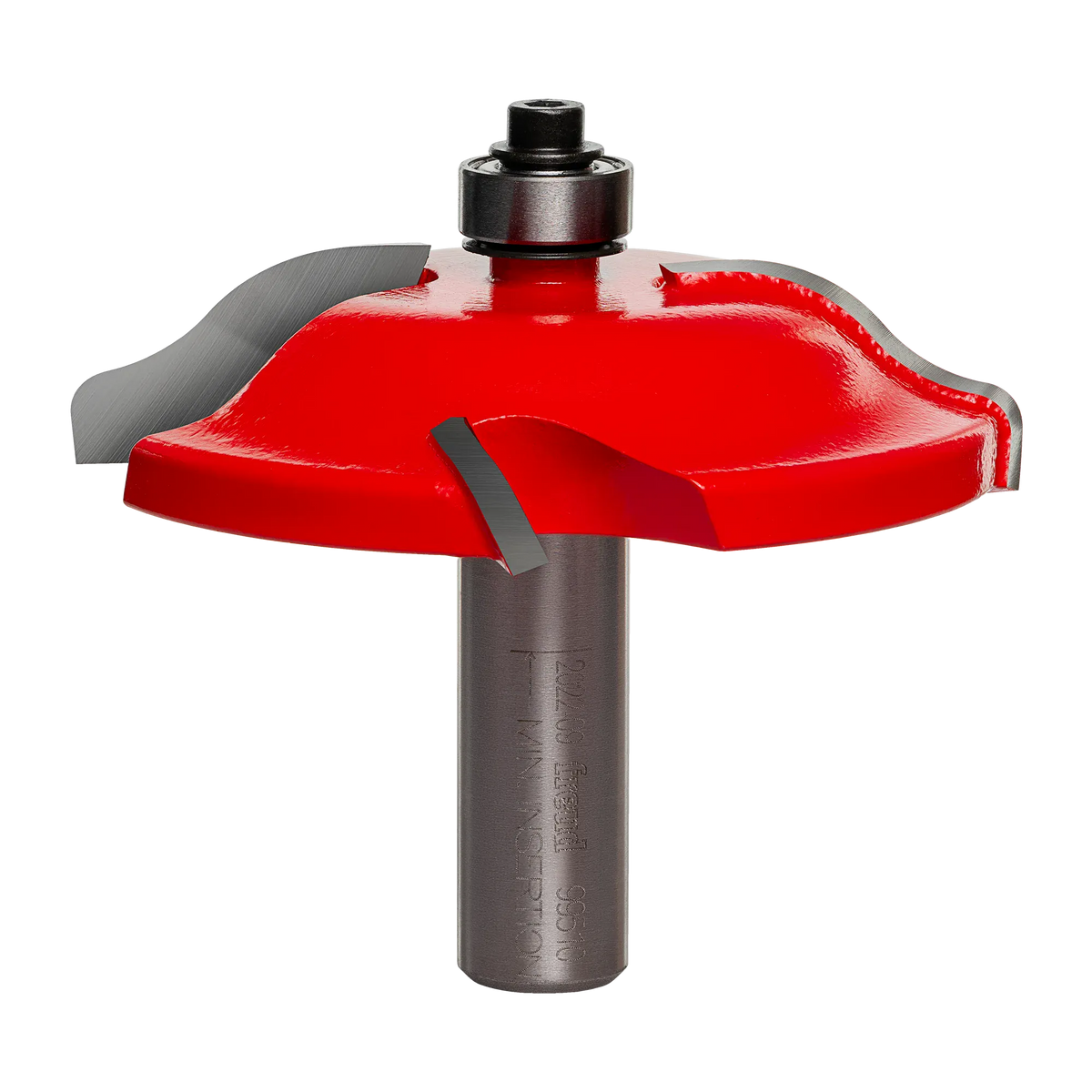

Studio angle view of the Freud 99-510 raised panel router bit, featuring a red body, Quadra-Cut four-wing carbide cutters, top-mounted bearing, and 1/2 inch shank.

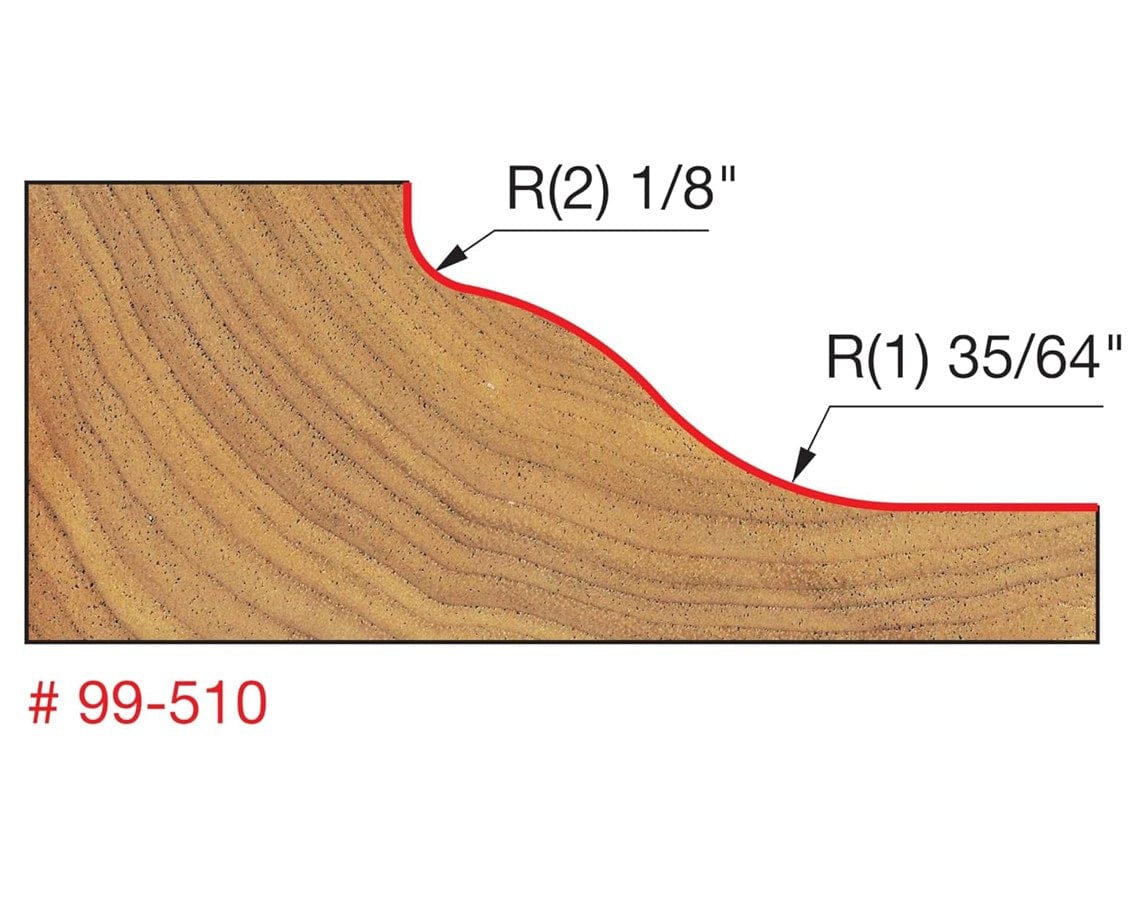

Technical profile diagram of the wood edge cut by the Freud 99-510 bit, displaying the round ogee curve with radius dimensions of 1/8 inch and 35/64 inch.

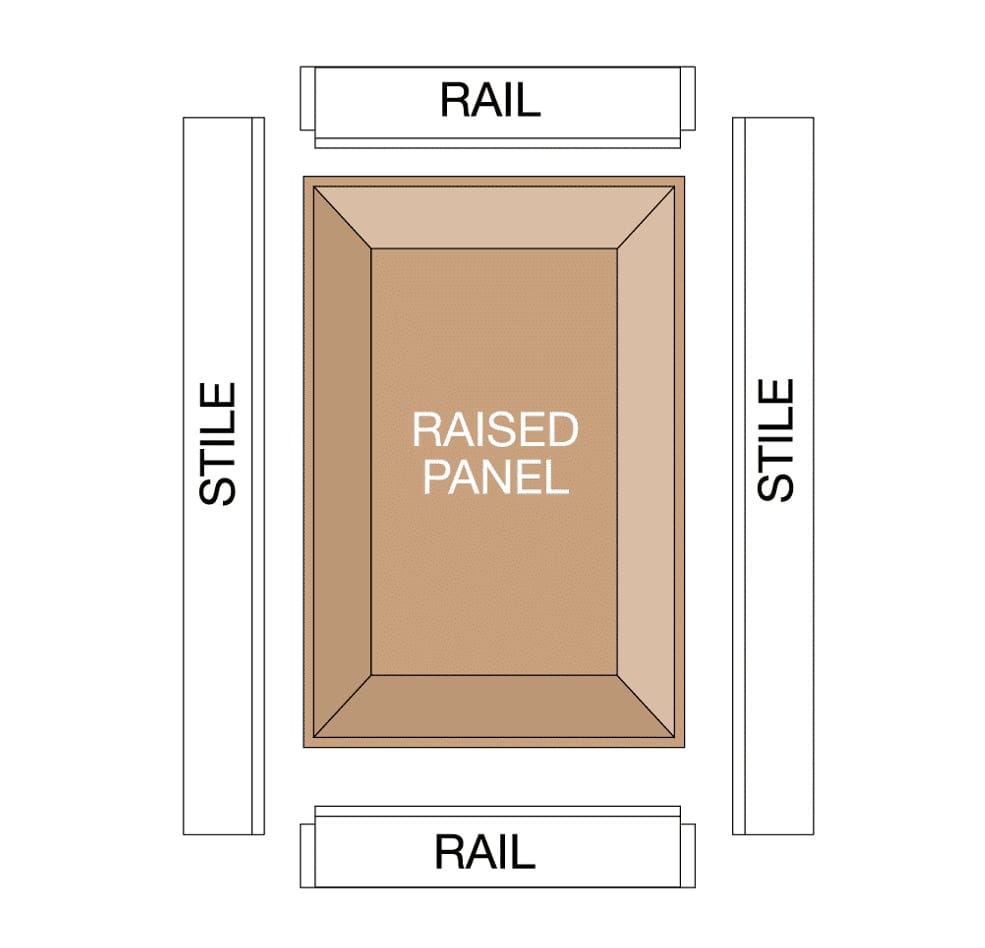

Diagram illustrating the assembly of a five-piece cabinet door, identifying the top and bottom rails, side stiles, and the central raised panel profiled by the router bit.

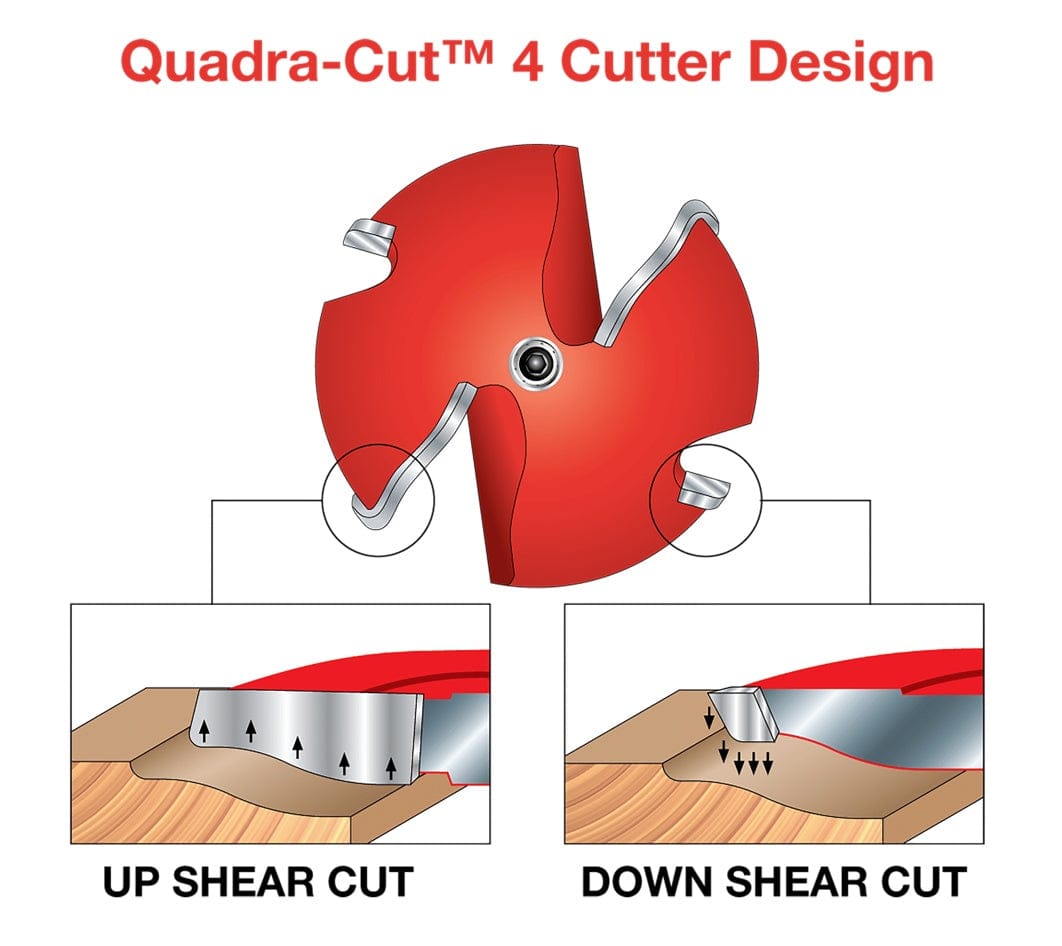

Technical infographic explaining Freud's Quadra-Cut design, demonstrating how the four-wing cutter utilizes both up-shear and down-shear angles to prevent splintering and create a smooth finish.

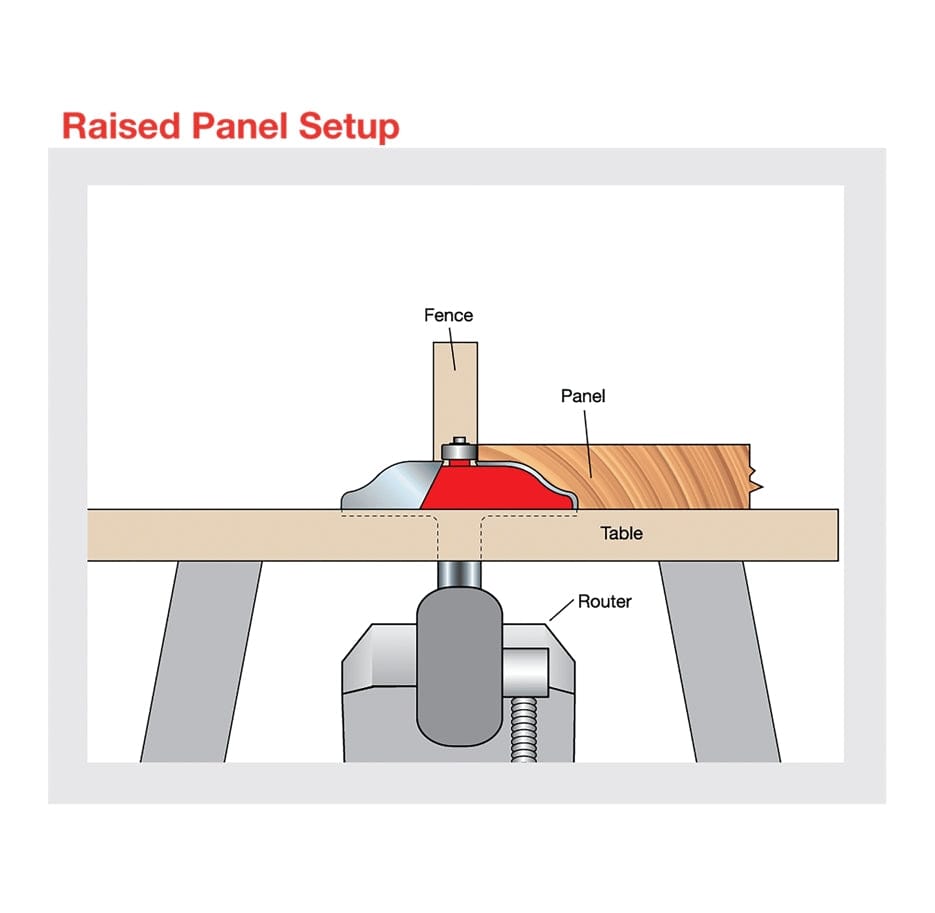

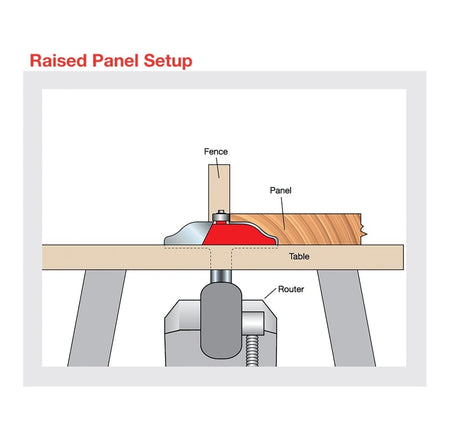

Cross-section illustration of a router table setup for raised panel joinery, showing the vertical positioning of the router bit relative to the table surface and fence while cutting a wood panel.
Freud Quadra Cut Router Bits promotional video
Studio angle view of the Freud 99-510 raised panel router bit, featuring a red body, Quadra-Cut four-wing carbide cutters, top-mounted bearing, and 1/2 inch shank.
Technical profile diagram of the wood edge cut by the Freud 99-510 bit, displaying the round ogee curve with radius dimensions of 1/8 inch and 35/64 inch.

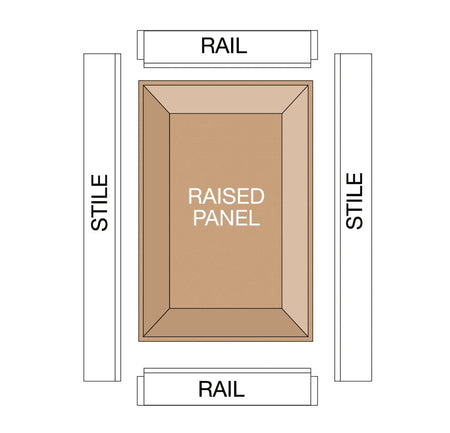

Diagram illustrating the assembly of a five-piece cabinet door, identifying the top and bottom rails, side stiles, and the central raised panel profiled by the router bit.
Technical infographic explaining Freud's Quadra-Cut design, demonstrating how the four-wing cutter utilizes both up-shear and down-shear angles to prevent splintering and create a smooth finish.
Cross-section illustration of a router table setup for raised panel joinery, showing the vertical positioning of the router bit relative to the table surface and fence while cutting a wood panel.
Freud Quadra Cut Router Bits promotional video
Freud

Freud Raised Panel Router Bit 99-510 1/2 Inch Shank 2+2 Quadra Cut (2-3/4 Dia Round Ogee Profile 3/4 Stock Cabinet Door Making Tool)

Only 1 left
SKU: 99-510
$76.95 USD

Description

Freud precisely the best logo Logout

High-Density 1/2 Inch Shank 2+2 Quadra-Cut Round Ogee Raised Panel Router Bit

The Freud 99-510 Round Ogee Raised Panel Router Bit delivers an industrial cabinet door milling solution engineered to shape decorative raised center panels out of 3/4-inch stock. Featuring Freud's patented 2+2 Quadra-Cut four-cutter technology, two large wings shear upward while two smaller wings cut downward to eliminate cross-grain fuzzing and top-edge tear-out. The 1/2-inch shank assembly integrates high-density TiCo carbide edges coated in a protective non-stick Perma-SHIELD finish to resist thermal friction and pitch buildup during table-mounted router operations running at speeds up to 12,000 RPM across solid hardwoods, softwoods, and multi-ply composite panels.

Best Used For:

  • Raised Panel Cabinet Doors: Shaping smooth, classic Round Ogee border profiles on 3/4-inch solid hardwood center panels for kitchen and bath cabinetry.
  • Architectural Wall Paneling: Milling consistent, tear-out-free decorative reveals across large composite or hardwood wainscoting boards.
  • Drawer Front Profiling: Machining clean raised edge details on solid wood drawer faces without requiring extensive end-grain sanding.

Key Performance & Safety Features

  • Quadra-Cut 4-Cutter System: Opposing shear-angle wings combine upward and downward slicing actions to produce a splinter-free finish on cross-grain cuts.
  • 3/4 Inch Stock Optimization: Engineered with a 5/8-inch carbide cutting height specifically proportioned for 3/4-inch panel framing stock.
  • Perma-SHIELD Thermal Barrier: Non-stick red fluoropolymer coating prevents pitch buildup, reduces cutting friction, and protects against corrosion.
  • TiCo Hi-Density Carbide: Custom-formulated micro-grain titanium cobalt carbide tips maintain razor-sharp edges through high-volume production runs.
  • Table-Mounted Fence Safety: Large 2-3/4-inch diameter profile engineered specifically for safe, stable operation in table-mounted router setups.

What's Included

  • (1) Freud 99-510 5/8" Height 2+2 Round Ogee Raised Panel Router Bit

Technical Specifications

Brand Name Freud Tools
Model Number SKU 99-510
Profile Architectural Style Round Ogee Profile
Shank Diameter Track 0.50 in. (1/2 in.)
Overall Cutter Diameter 2.75 in. (2-3/4 in.)
Carbide Cutting Height 0.625 in. (5/8 in.)
Overall Tool Length 2.50 in. (2-1/2 in.)
Number of Cutting Wings 4 Cutters (2+2 Quadra-Cut System)
Large Radius Dimension 0.5468 in. (35/64 in.)
Small Radius Dimension 0.125 in. (1/8 in.)
Minor Profile Height 0.21875 in. (7/32 in.)
Maximum Operating Speed 12,000 RPM
Required Equipment Type Table-Mounted Router with Fence
Material Compatibility Hardwood, Softwood, Plywood, Composition Wood

Pro-Tip: When routing large raised panels, make three progressive passes rather than taking the full depth in a single cut. Elevate your router bit height incrementally to reduce strain on your motor, minimize heat buildup on the TiCo carbide edges, and achieve a flawless surface finish on dense hardwoods.
