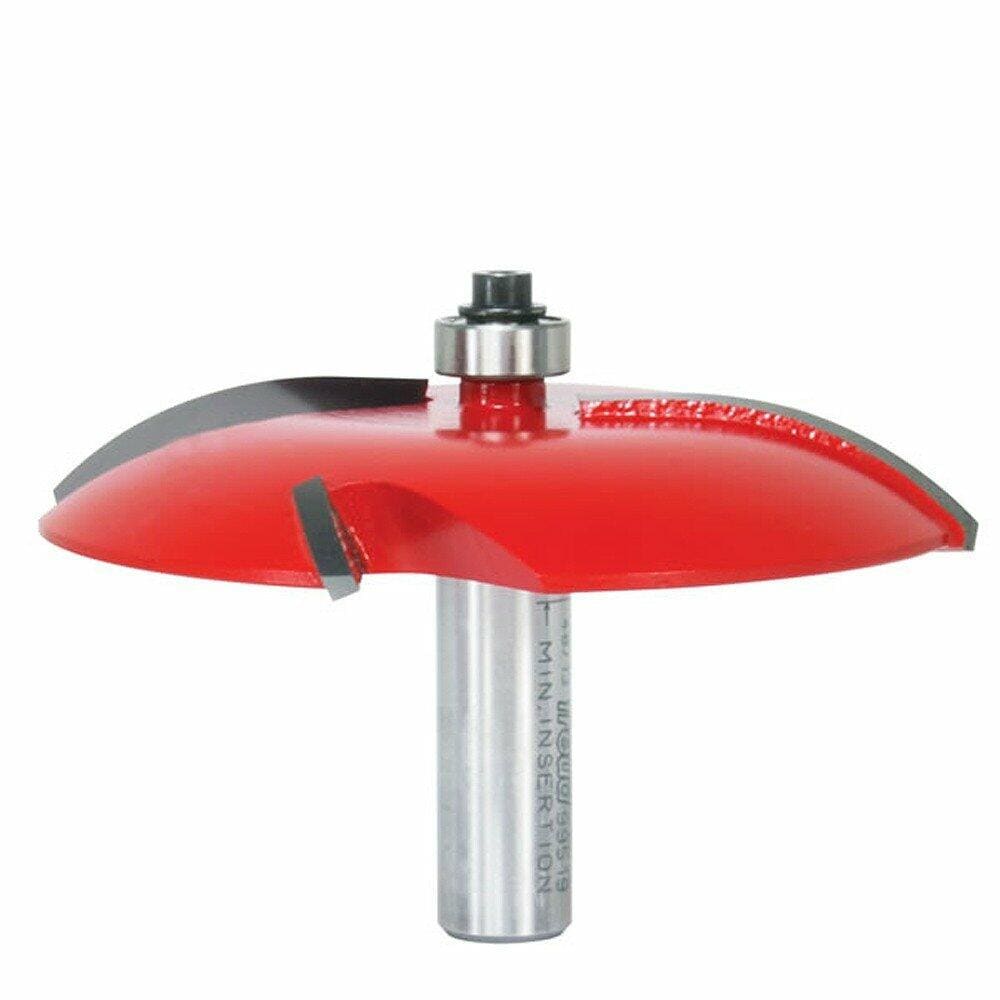

This is a close-up image of a red and silver woodworking router bit. It has a rounded, mushroom-shaped cutting head with two black cutting blades and a small bearing on top.

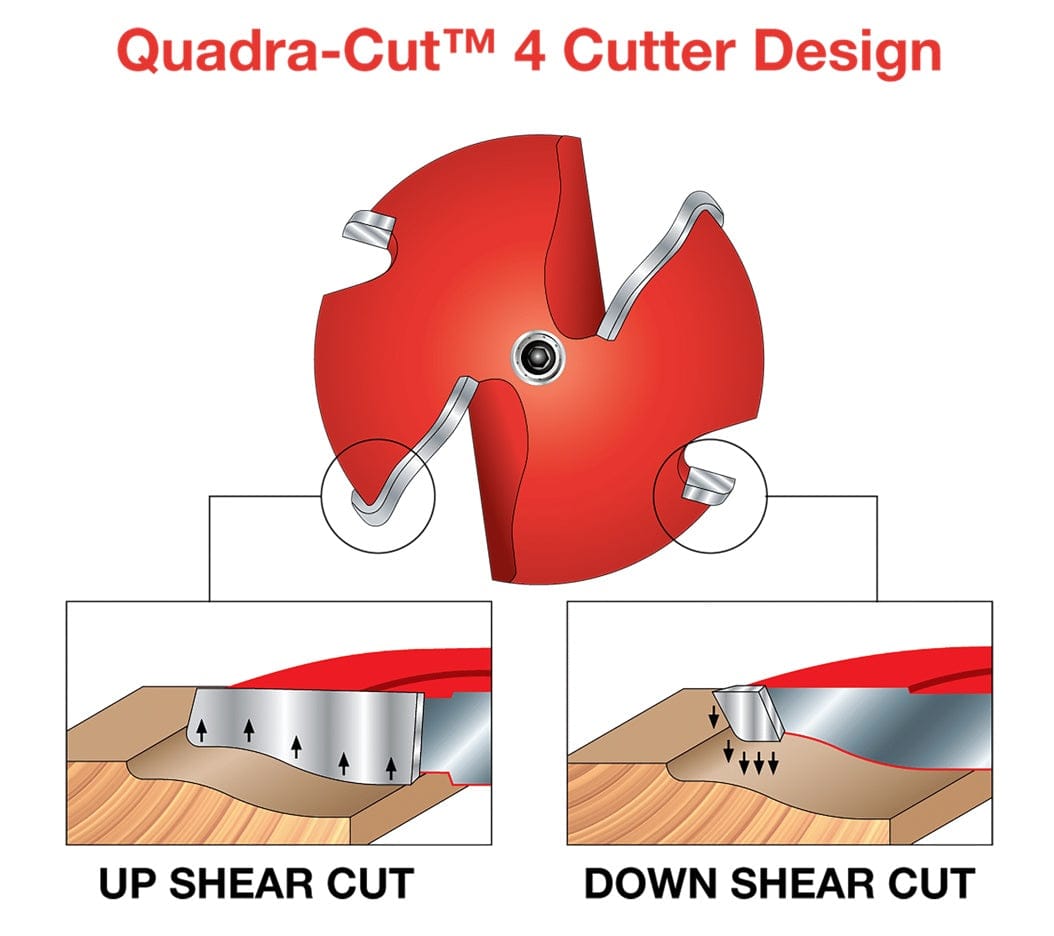

Quadra-Cut diagram showing 4-cutter design with up shear and down shear actions for smooth wood finishes

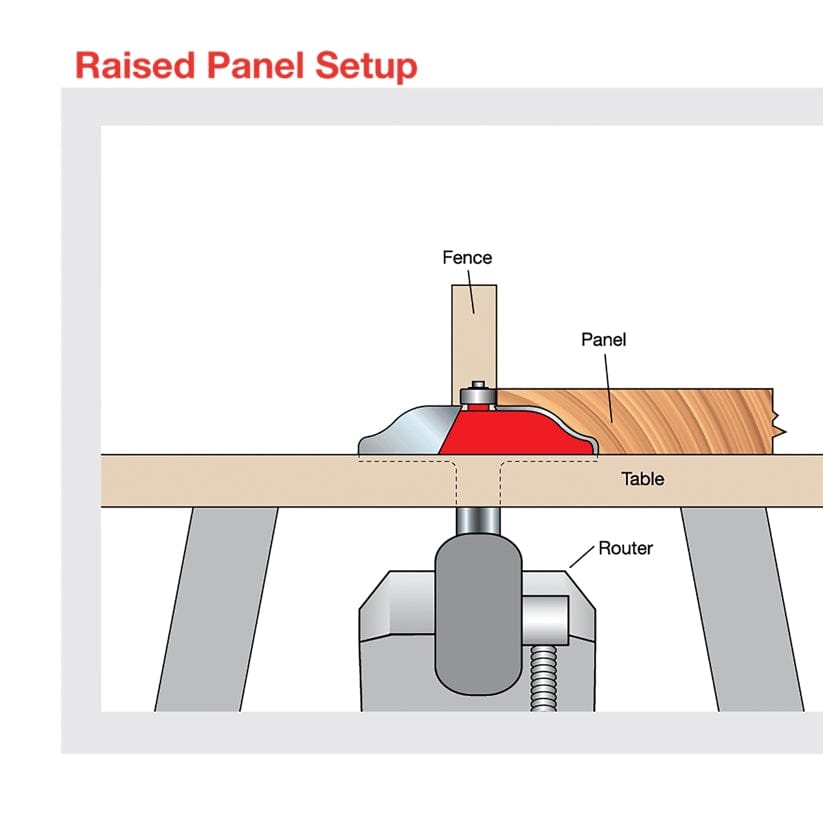

Diagram of raised panel router setup showing fence, table, panel, and router bit cutting edge profile

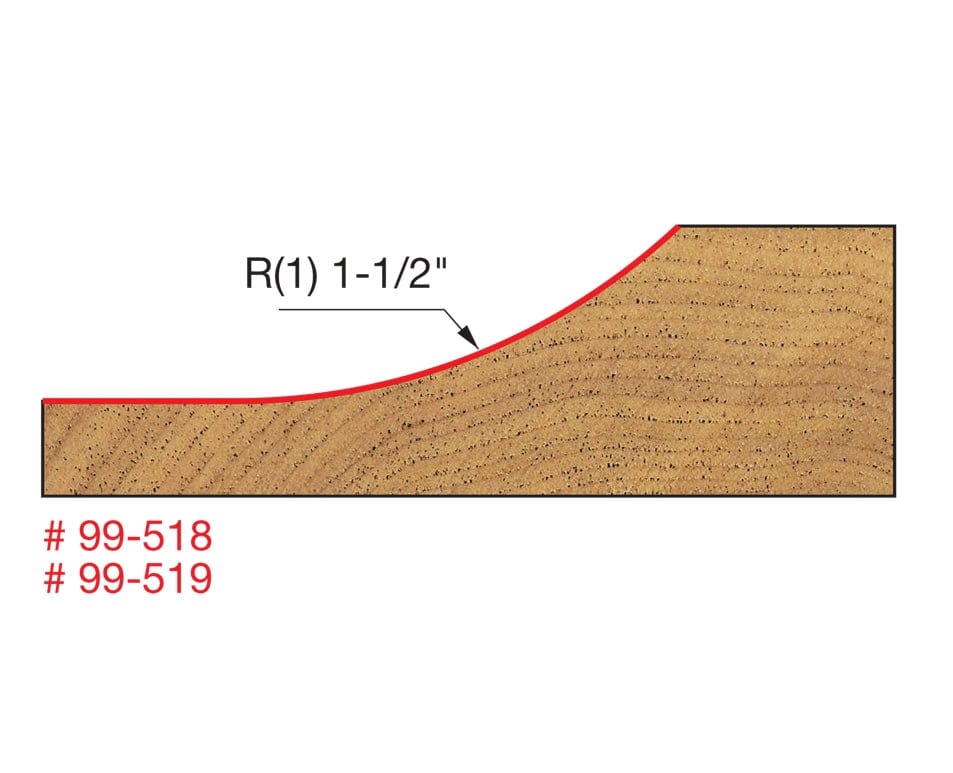

Cross-section of molding profile with 1-1/2" radius curve, labeled for Freud 99-518 and 99-519 router bits.

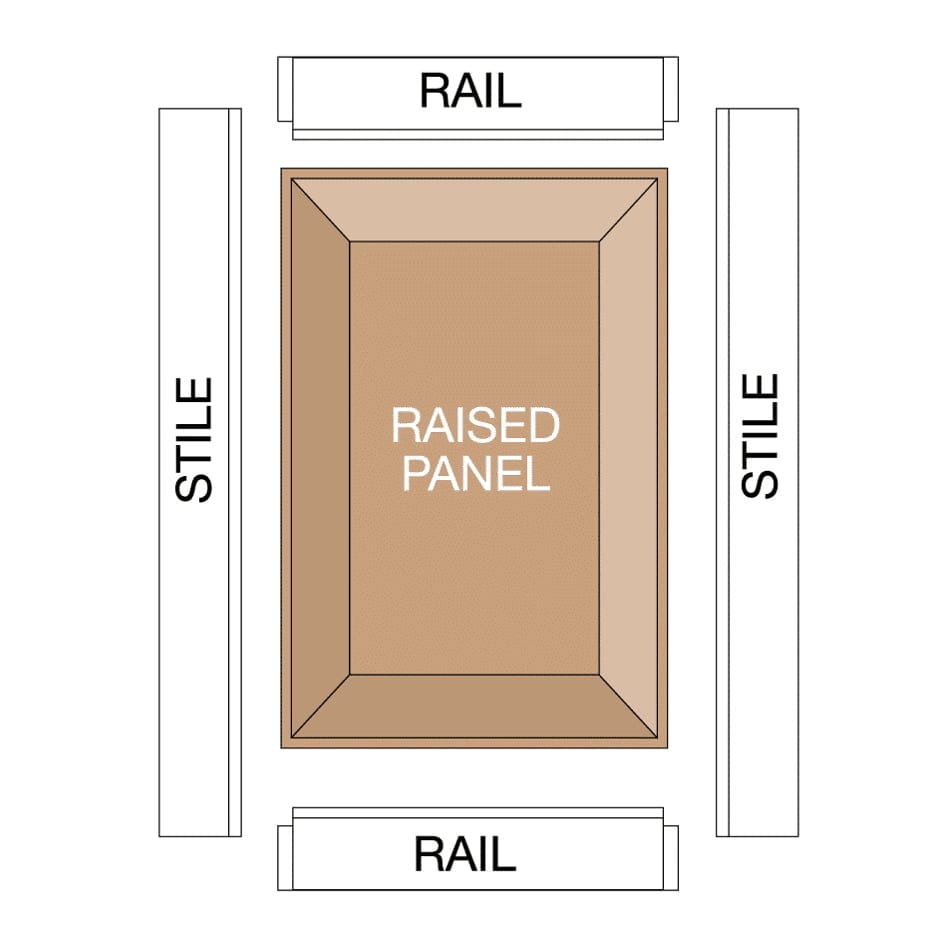

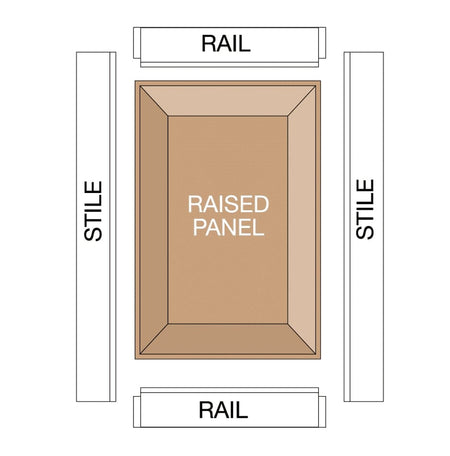

Labeled diagram of raised panel door showing stiles, rails, and center panel used in cabinet construction.
This is a close-up image of a red and silver woodworking router bit. It has a rounded, mushroom-shaped cutting head with two black cutting blades and a small bearing on top.
Quadra-Cut diagram showing 4-cutter design with up shear and down shear actions for smooth wood finishes
Diagram of raised panel router setup showing fence, table, panel, and router bit cutting edge profile
Cross-section of molding profile with 1-1/2" radius curve, labeled for Freud 99-518 and 99-519 router bits.
Labeled diagram of raised panel door showing stiles, rails, and center panel used in cabinet construction.
Freud

Freud 99-519 Raised Panel Router Bit 3-1/2" Diameter 1/2" Shank 1-1/2" Radius Quadra-Cut Hardwood Softwood Composite Routing Tool

In stock
SKU: 99-519
$89.00
$166.93 Sale $89.00
Description

Precision-Cut Raised Panels for Cabinetry, Doors & Decorative Woodwork

Transform ordinary panels into elegant, professional-grade surfaces with the Freud 99-519 Raised Panel Router Bit. Engineered with Freud’s patented Quadra-Cut™ technology, this bit delivers flawless finishes on hardwood, softwood, and composite materials. Whether you're crafting cabinet doors, drawer fronts, or decorative wall panels, this tool ensures splinter-free edges and smooth contours with every pass.

Designed for use in table-mounted routers with a fence, the 99-519 features a large 3-1/2" diameter and a 1-1/2" radius for bold, classic profiles. The 1/2" shank offers stability and control, while Freud’s Perma-SHIELD® coating reduces friction and resists pitch buildup for cleaner cuts and longer tool life.

What's Included

  • Freud 99-519 Raised Panel Bit
  • Quadra-Cut™ design with 4 cutters
  • Factory-sealed packaging

Key Features

  • Quadra-Cut™ delivers splinter-free top edges and smooth bottom shears
  • Ideal for routing raised panels in doors, drawers, and decorative woodwork
  • Compatible with table-mounted routers only
  • Works with hardwood, softwood, and composite panels
  • Perma-SHIELD® coating reduces heat and pitch buildup

Specifications

Brand Freud
Model 99-519
Diameter 3-1/2"
Shank Size 1/2"
Large Radius 1-1/2"
Carbide Height 1/2"
Max RPM 12,000
Number of Cutters 4
Country of Origin Italy
Weight 1.18 lb

Upgrade your woodworking precision with a router bit trusted by professionals for cabinetry, millwork, and custom paneling. Pair it with Freud’s matching stile and rail bits for a complete door-building solution.
