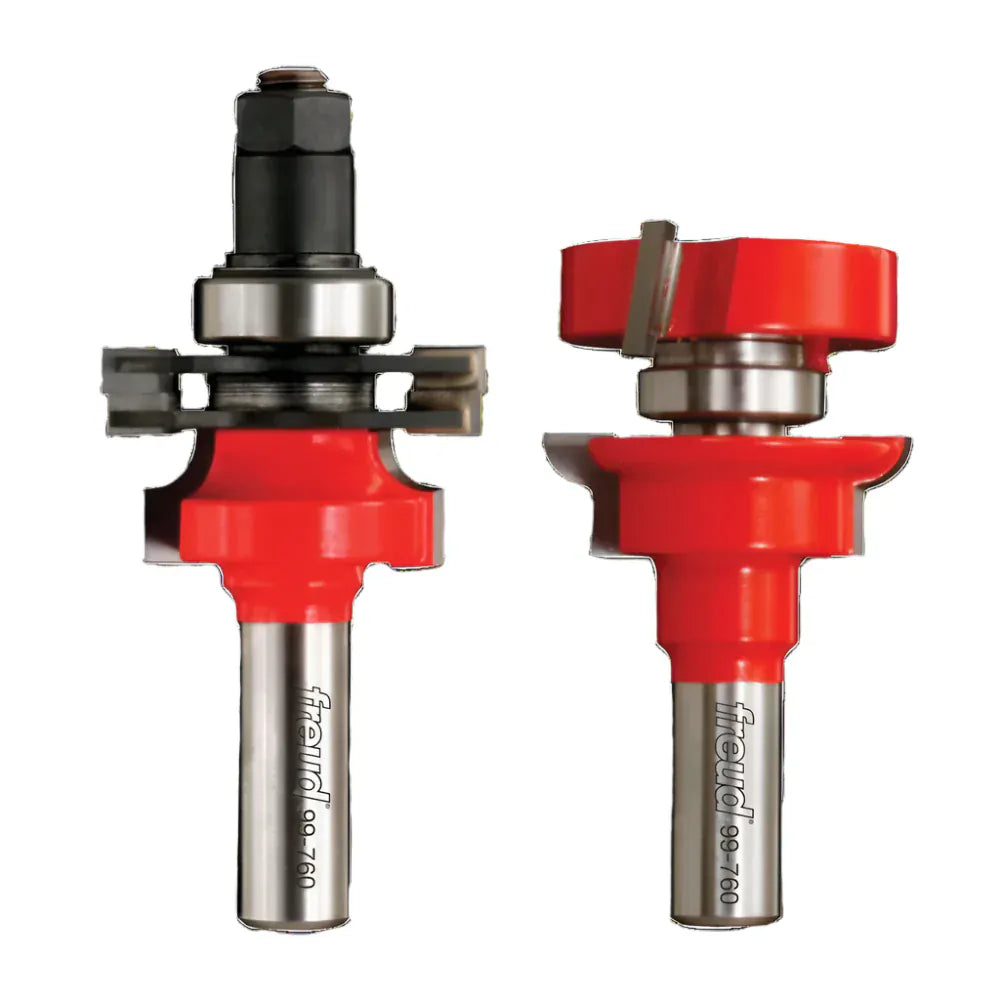

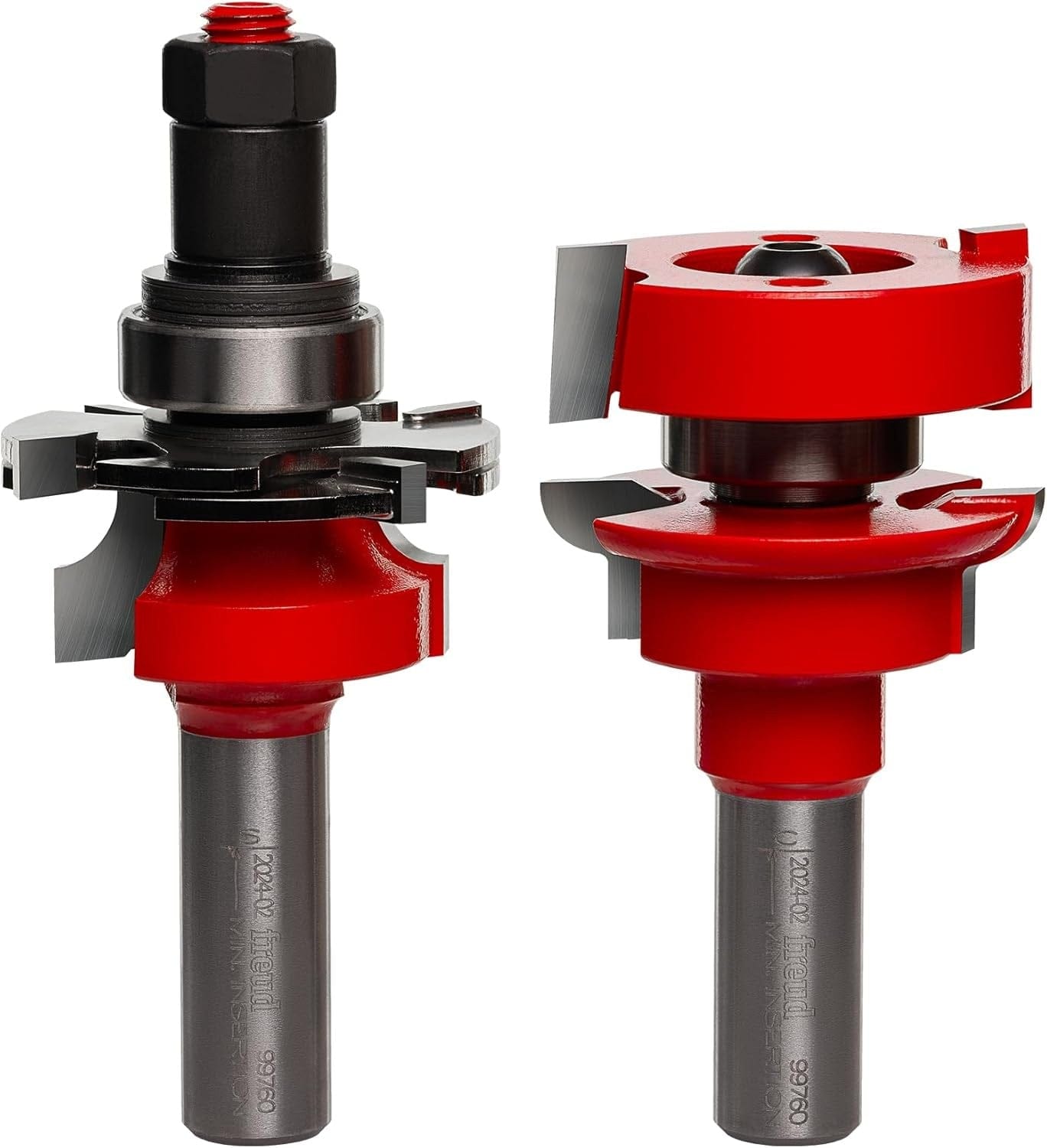

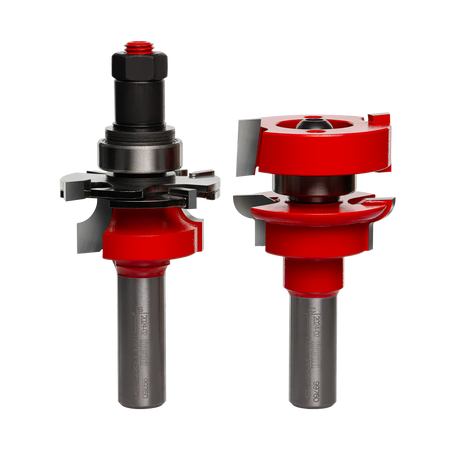

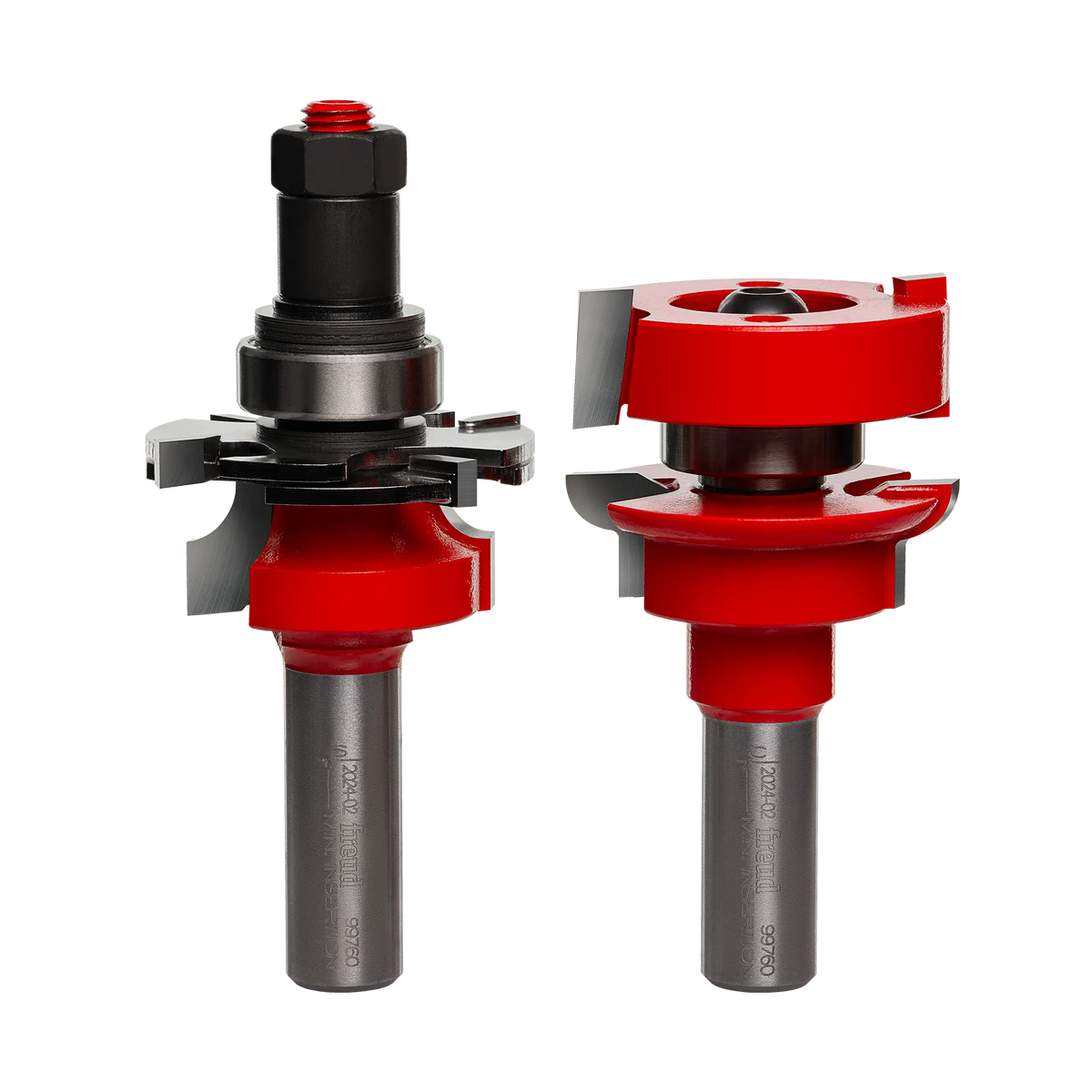

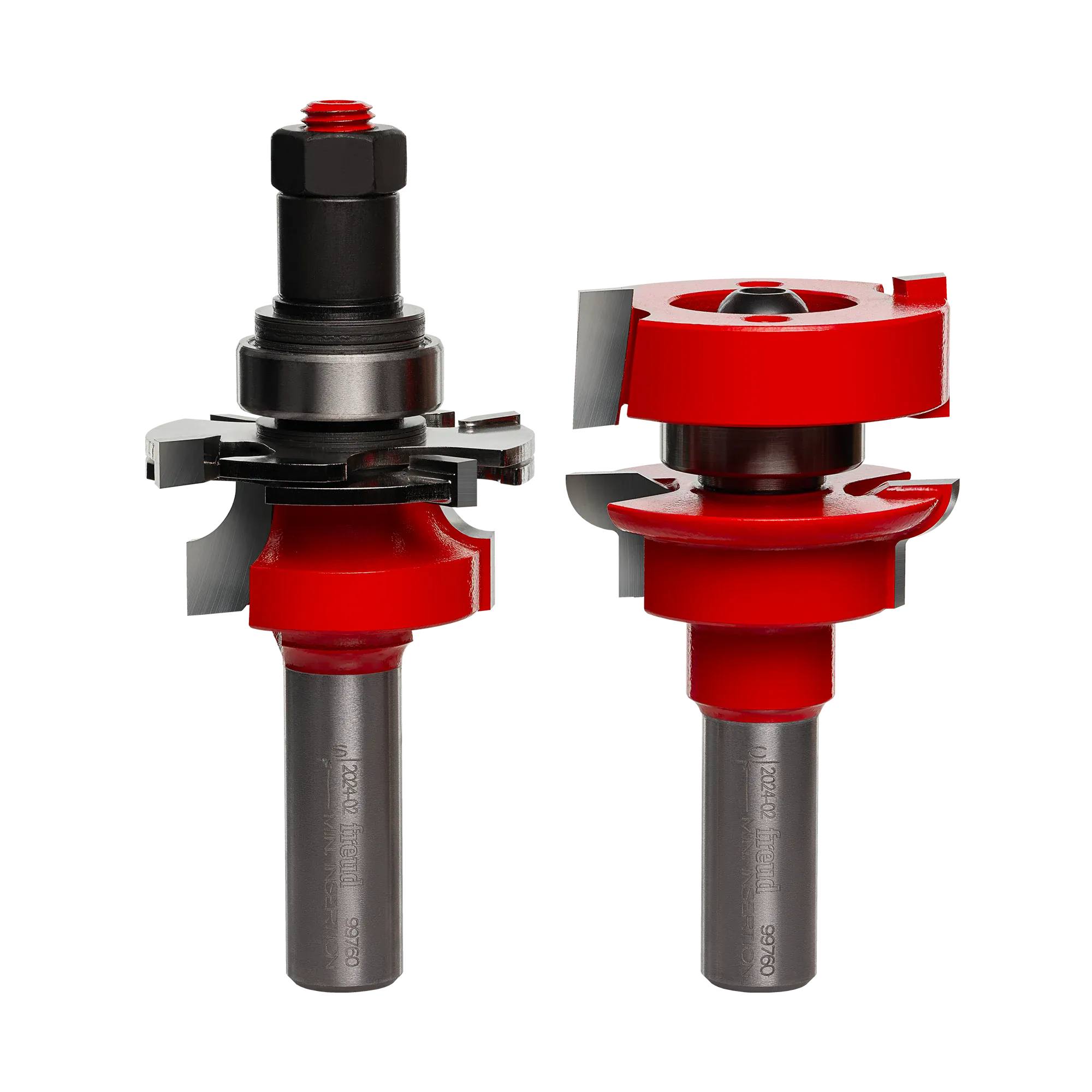

Freud 99-760 1-11/16-inch Premier Adjustable Rail and Stile router bit set featuring 1/2-inch shanks and carbide cutters for professional cabinet door making.

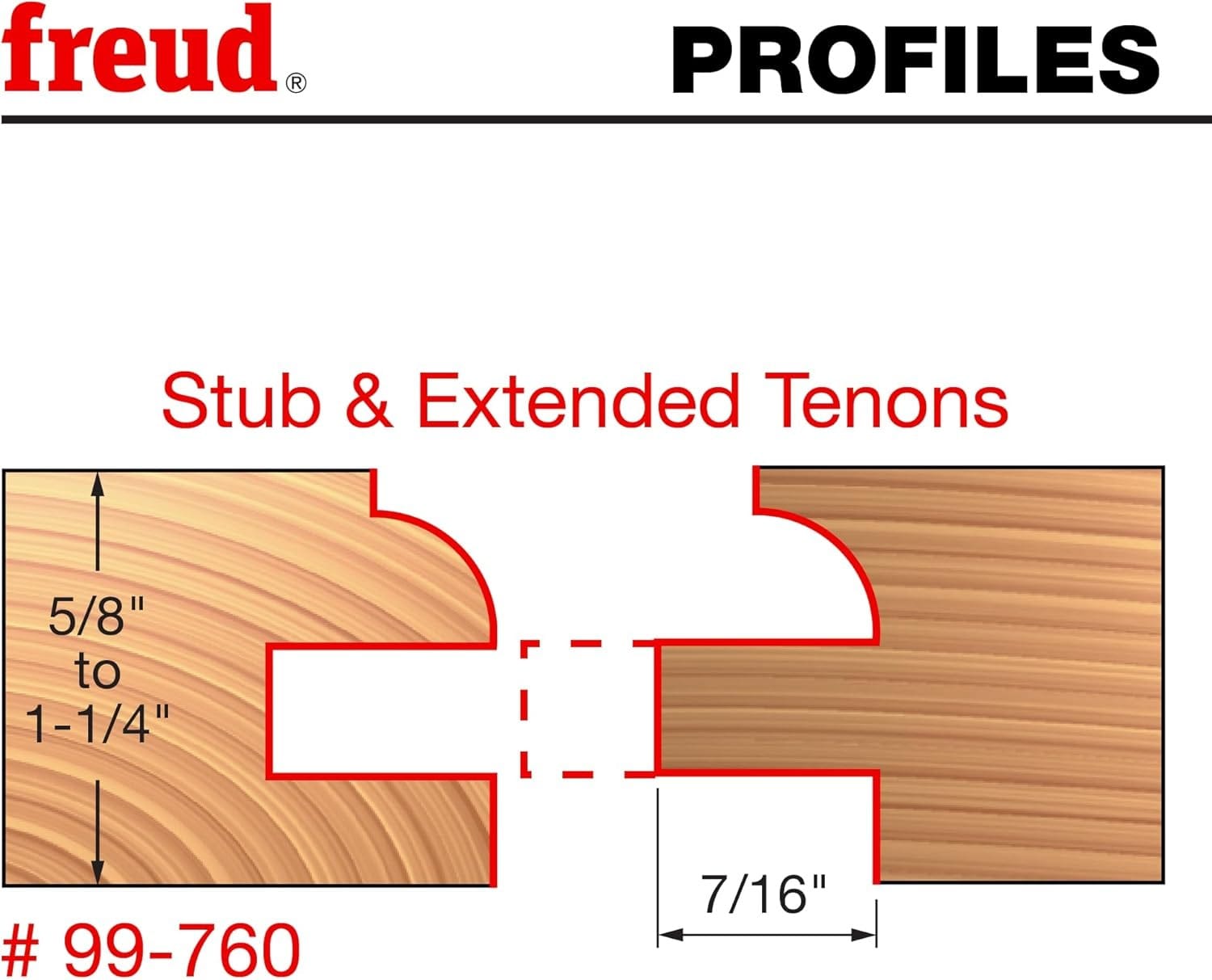

Technical profile diagram illustrating the adjustable stub and extended tenon capabilities of the Freud 99-760 bit for 5/8-inch to 1-1/4-inch thick wood.

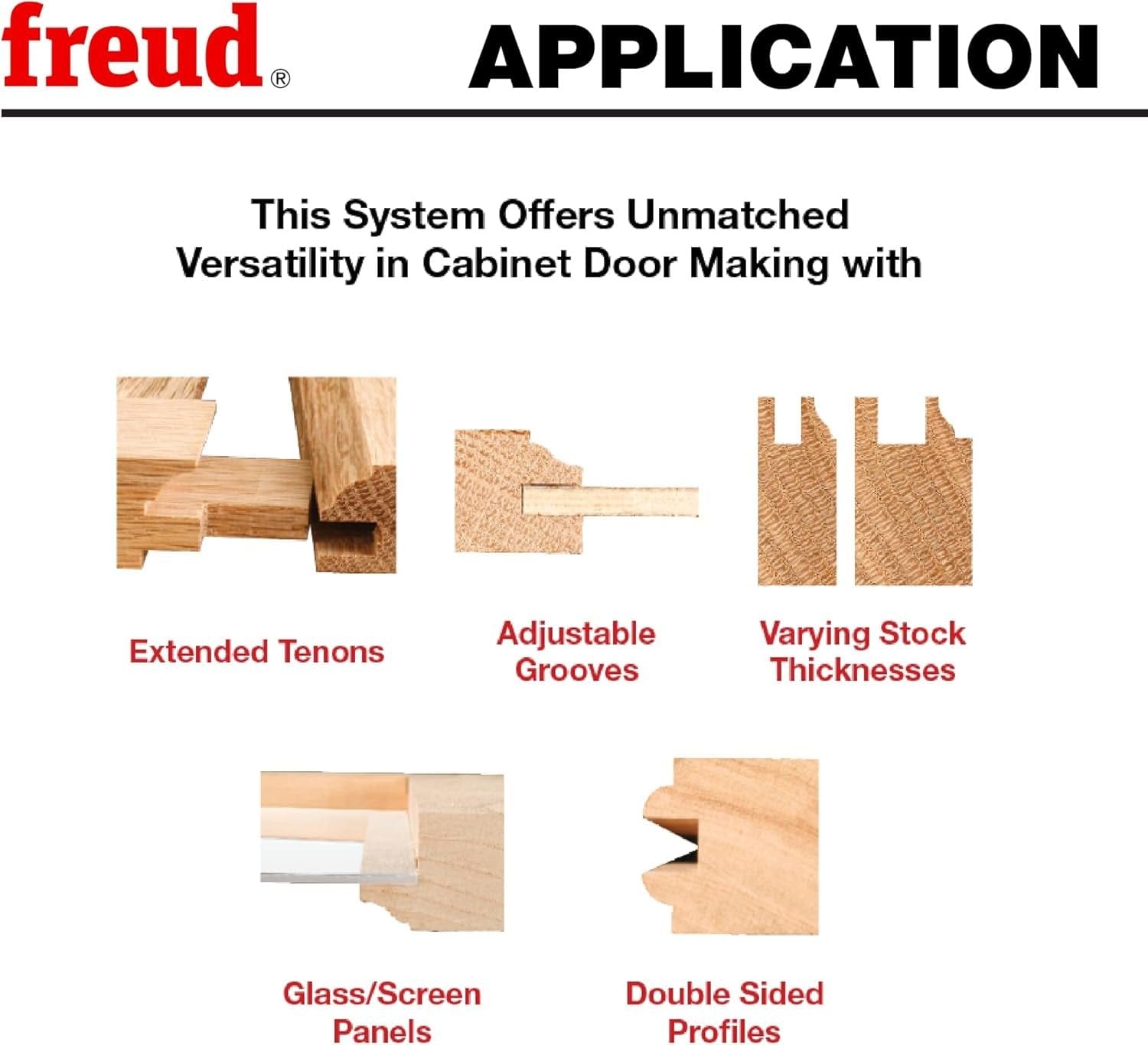

Application diagram showcasing the versatility of the Freud Premier Adjustable Rail and Stile system for extended tenons, adjustable grooves, and varying stock thicknesses.

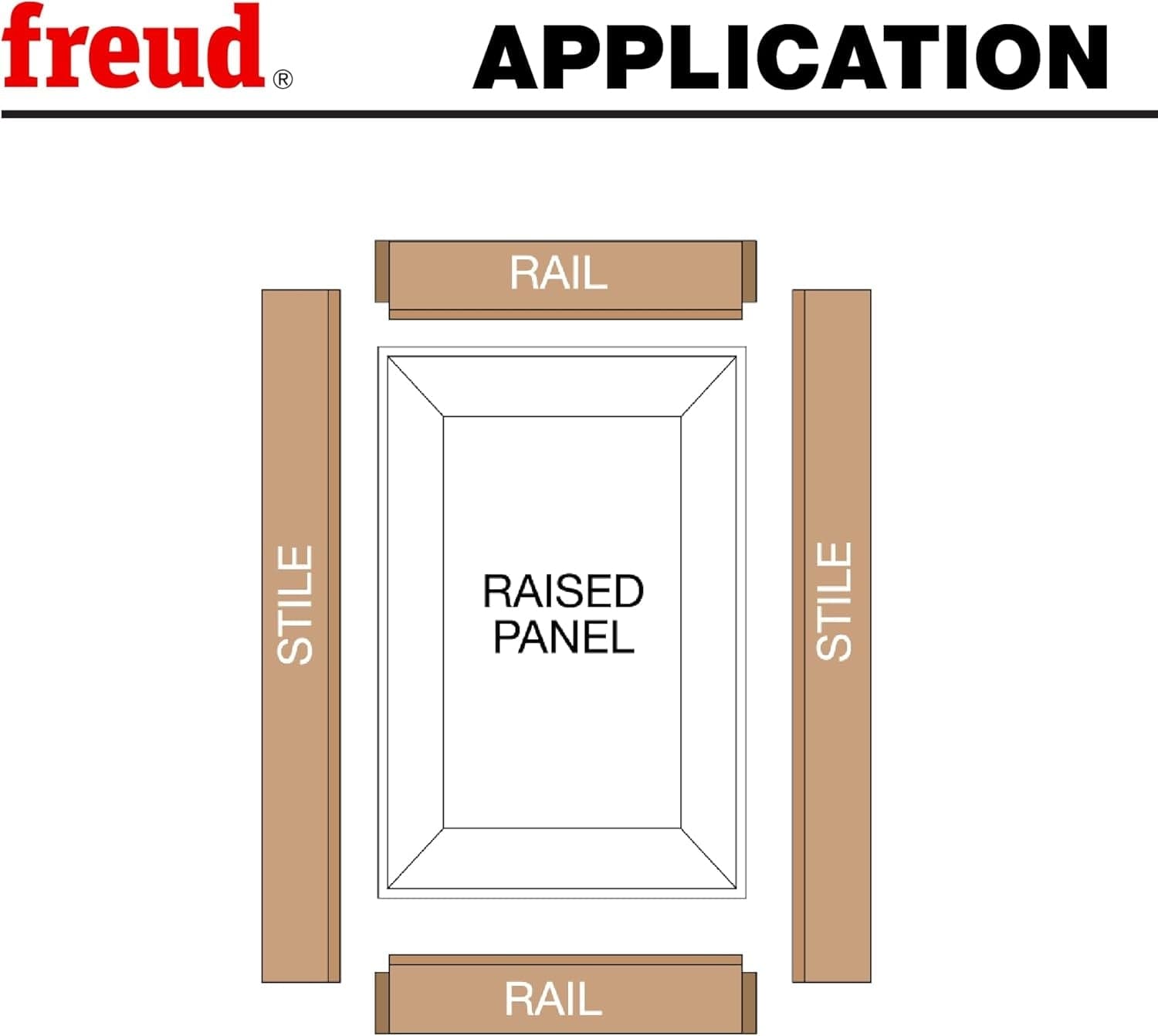

Exploded view diagram of a raised panel cabinet door illustrating the assembly of the stiles, rails, and the central raised wood panel.

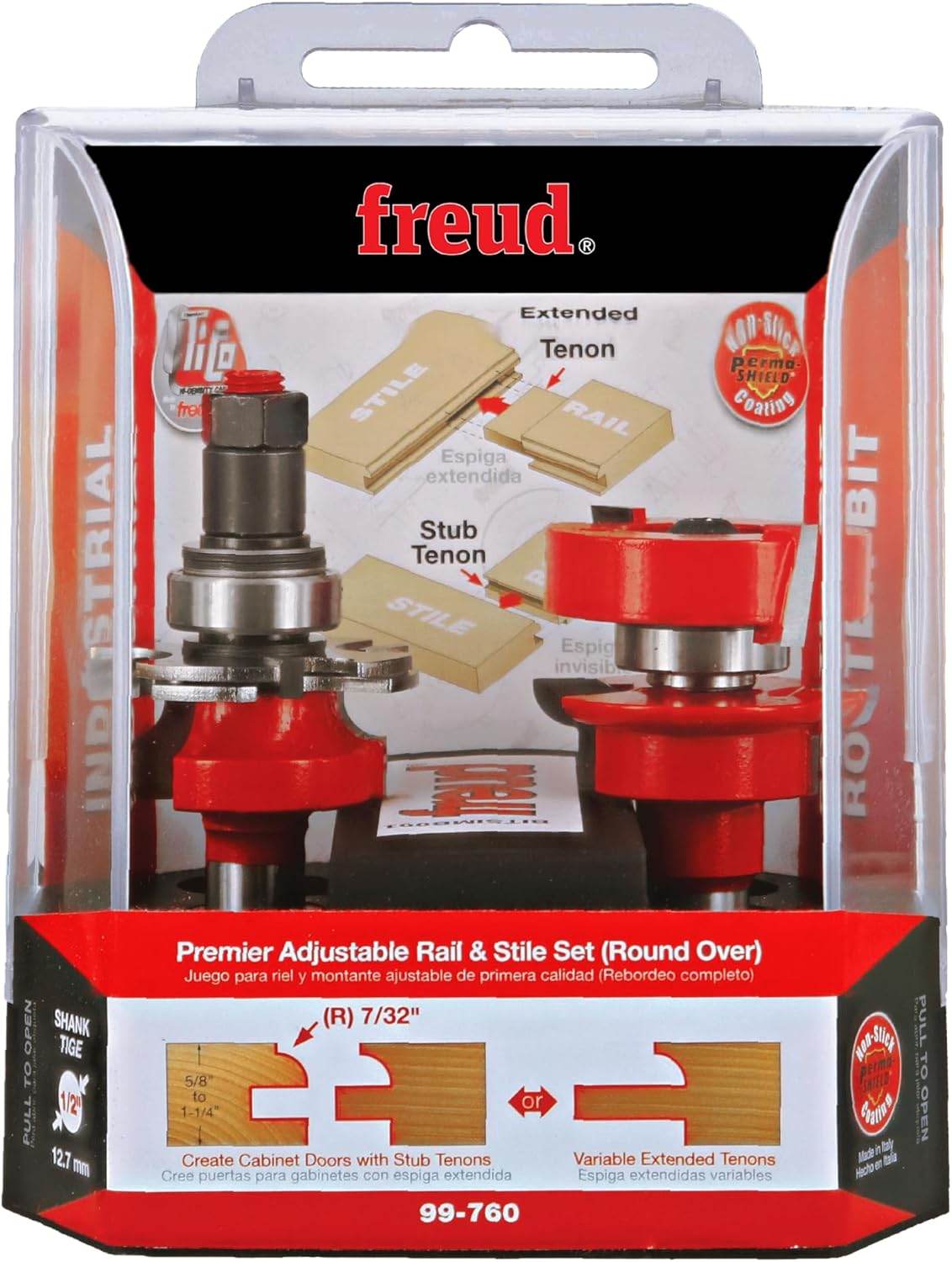

Freud 99-760 Premier Adjustable Rail and Stile router bit set in retail packaging, showing the components for stub and extended tenon cabinet door joints.

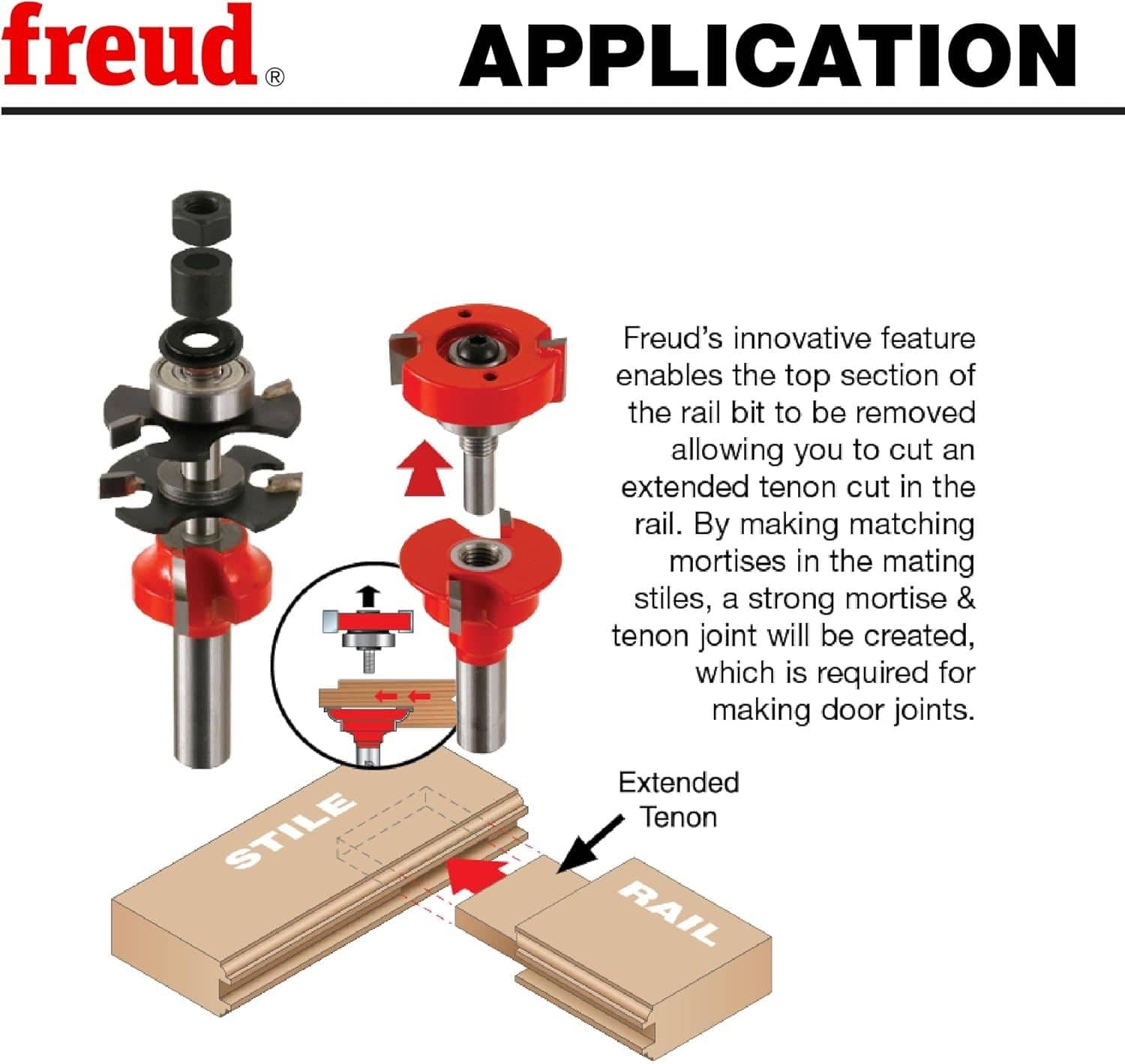

Technical illustration demonstrating how to remove the top section of the Freud rail bit to create matching extended tenon joints for strong door construction.

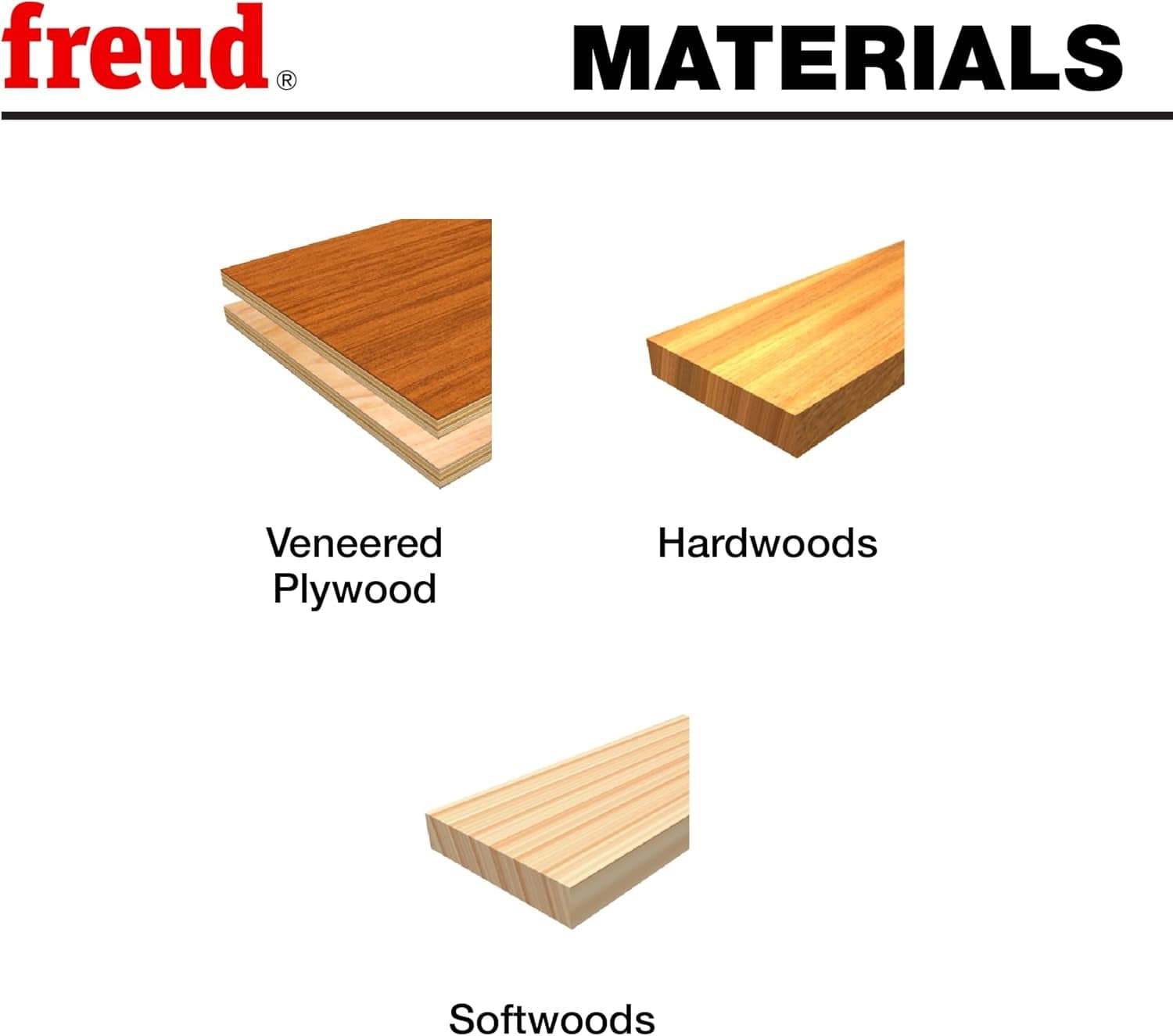

Material compatibility chart indicating the Freud rail and stile bit set is ideal for working with veneered plywood, hardwoods, and softwoods.

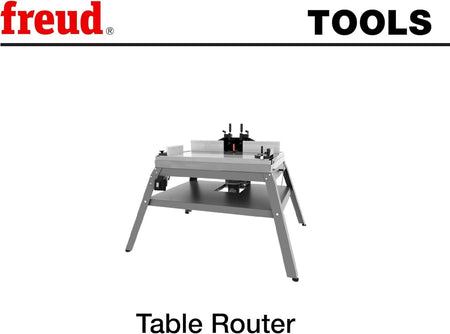

Tool guide indicating that the Freud 99-760 adjustable rail and stile bit system is specifically designed for use in stationary table-mounted routers.
Freud 99-760 1-11/16-inch Premier Adjustable Rail and Stile router bit set featuring 1/2-inch shanks and carbide cutters for professional cabinet door making.

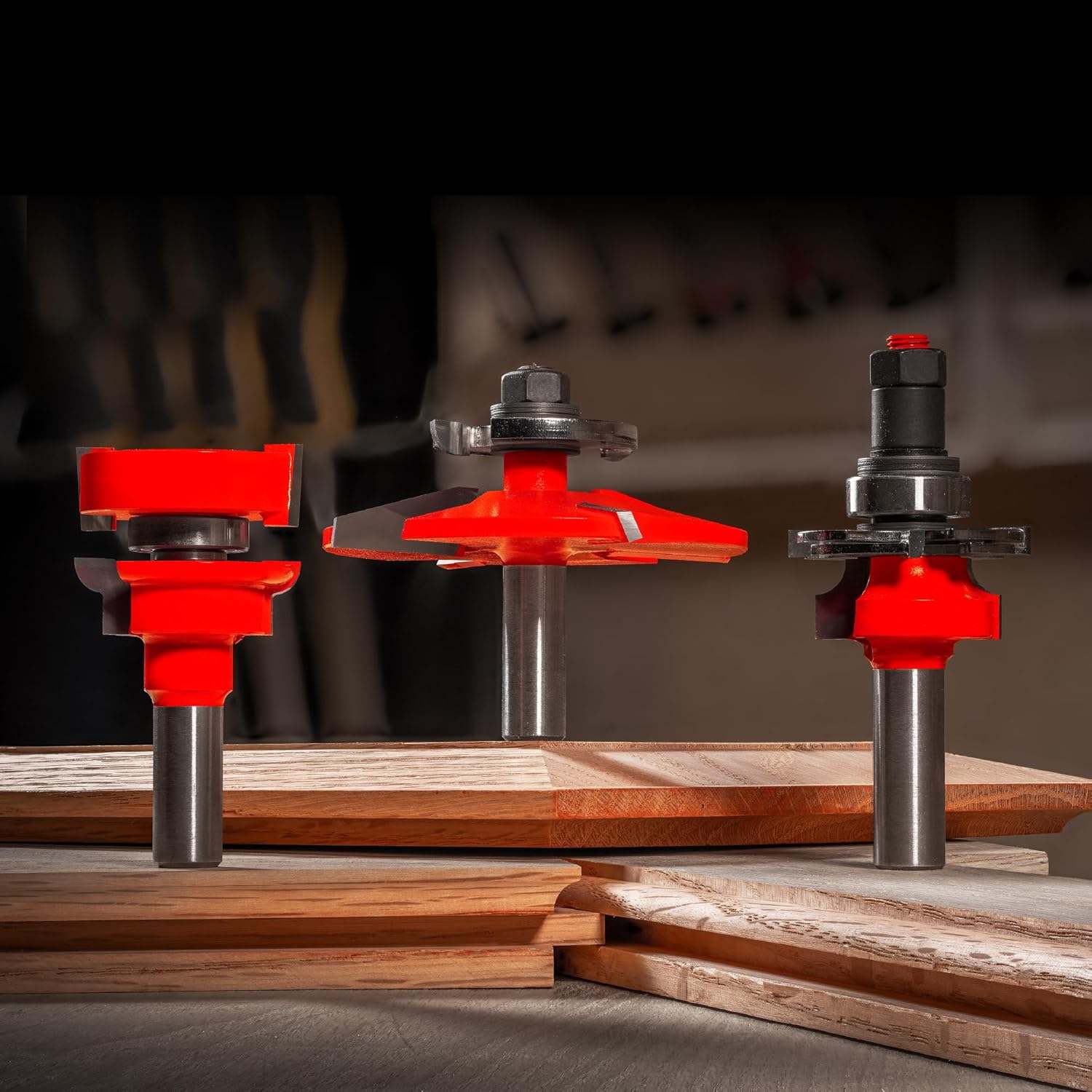

Three Freud adjustable rail and stile bits shown alongside finished wood door components, highlighting the precision joinery and round-over profile.

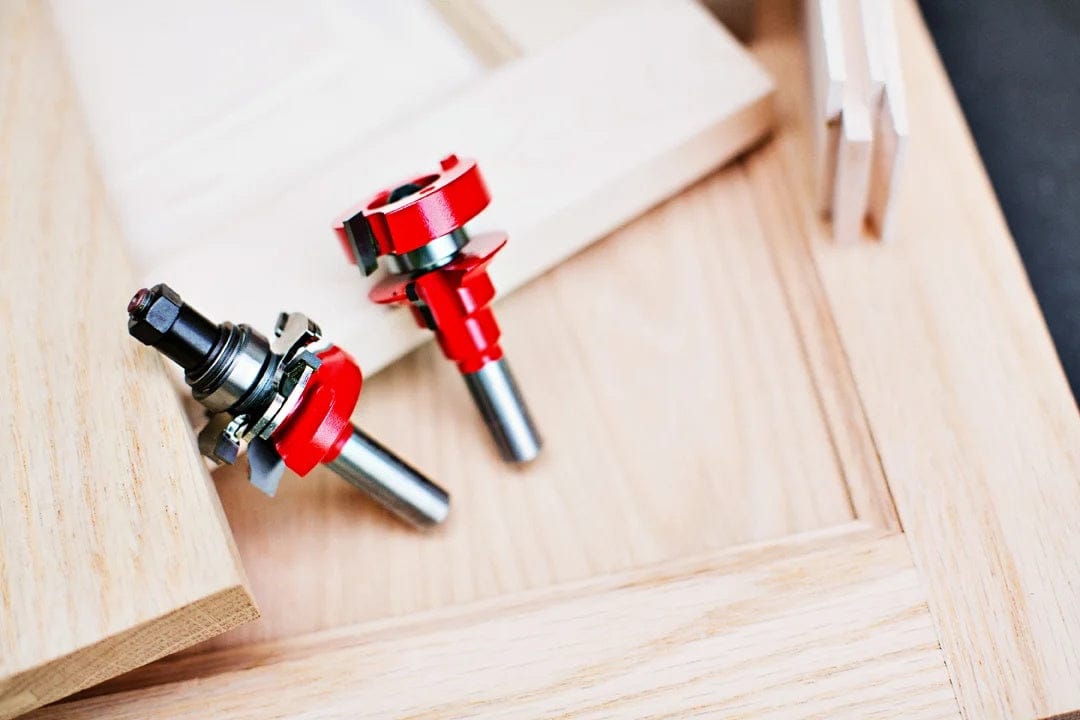

Close-up of the Freud 99-760 rail and stile bits resting on a wooden cabinet door frame, showcasing the professional fit and finish of the wood joints.
Premier Adjustable Rail & Stile Preview promotional how to video
Freud 99-760 1-11/16-inch Premier Adjustable Rail and Stile router bit set featuring 1/2-inch shanks and carbide cutters for professional cabinet door making.
Technical profile diagram illustrating the adjustable stub and extended tenon capabilities of the Freud 99-760 bit for 5/8-inch to 1-1/4-inch thick wood.
Application diagram showcasing the versatility of the Freud Premier Adjustable Rail and Stile system for extended tenons, adjustable grooves, and varying stock thicknesses.
Exploded view diagram of a raised panel cabinet door illustrating the assembly of the stiles, rails, and the central raised wood panel.
Freud 99-760 Premier Adjustable Rail and Stile router bit set in retail packaging, showing the components for stub and extended tenon cabinet door joints.
Technical illustration demonstrating how to remove the top section of the Freud rail bit to create matching extended tenon joints for strong door construction.
Material compatibility chart indicating the Freud rail and stile bit set is ideal for working with veneered plywood, hardwoods, and softwoods.
Tool guide indicating that the Freud 99-760 adjustable rail and stile bit system is specifically designed for use in stationary table-mounted routers.
Freud 99-760 1-11/16-inch Premier Adjustable Rail and Stile router bit set featuring 1/2-inch shanks and carbide cutters for professional cabinet door making.
Three Freud adjustable rail and stile bits shown alongside finished wood door components, highlighting the precision joinery and round-over profile.
Close-up of the Freud 99-760 rail and stile bits resting on a wooden cabinet door frame, showcasing the professional fit and finish of the wood joints.
Premier Adjustable Rail & Stile Preview promotional how to video
Freud

Freud Router Bit 99-760 1/2 Inch Shank Adjustable (Round Over Rail Stile Profile 3 3/4 Length Cabinet Door Woodworking Shaping Tool Assembly)

In stock
SKU: 99-760
$107.99 USD

Description

Freud precisely the best logo Logout

Freud 99-760 1-11/16" Premier Adjustable Round Over Rail and Stile Router Bit

The Freud 99-760 1-11/16-inch adjustable rail and stile router bit creates custom cabinet doors and passage doors in material thicknesses ranging from 5/8 to 1-1/4 inches using table-mounted routers. Engineered with premium TiCo high-density carbide protected by a non-stick Perma-SHIELD coating, this 1/2-inch shank tool operates safely up to 16,000 maximum RPM while milling extra-strong long tenon joints. Outfitted with precision adjustment shims that customize panel groove widths from 7/32 to 3/8 inch, it equips professional woodworkers and cabinet makers with tear-free, glass-smooth edge profiles.

Best Used For:

  • Custom Cabinet Door Rail and Stile Matching: Milling matching rail and stile profiles with classical round-over edges for architectural kitchen cabinetry.
  • Heavy-Duty Passage Door Tenon Milling: Cutting extra-strong long tenon joints in thick solid wood doors ranging from 5/8 to 1-1/4 inches.
  • Adjustable Panel Groove Customization: Fine-tuning panel groove widths between 7/32 and 3/8 inch to accommodate plywood or solid wood raised panels.

Key Performance & Safety Features

  • Adjustable Material Thickness Range: Versatile cutter geometry accommodates cabinet stock and passage doors from 5/8 to 1-1/4 inches thick.
  • Patented Long Tenon Capability: Engineered shim system allows milling of deep, robust tenon joints for maximum structural door durability.
  • TiCo High-Density Carbide Cutters: Premium carbide metallurgy delivers razor-sharp cutting edges and extended operational longevity in hardwoods.
  • Perma-SHIELD Non-Stick Coating: Protective thermal coating shields the bit body from heat buildup, pitch adhesion, and resin gumming.
  • Table-Mounted Stability: Heavy-duty 1/2-inch shank ensures secure chuck gripping and minimal vibration during high-torque milling.

What's Included

  • (1) Freud Premier Adjustable Rail and Stile Bit (Round Over Profile, 99-760)
  • (1) Internal Shim Set for Groove Width Adjustment
  • (1) 1/2-Inch Shank High-Strength Arbor Assembly

Technical Specifications

Manufacturer Freud America Inc. (Bosch Group)
Model Number 99-760
Product Classification Adjustable Rail and Stile Router Bit
Bit Profile Style Round Over Rail and Stile Profile
Overall Bit Diameter 1.6875 inches (1-11/16 in / 42.86 mm)
Shank Diameter Size 0.500 inches (1/2 in / 12.7 mm)
Overall Bit Length 3.75 inches (3-3/4 in / 95.25 mm)
Profile Large Radius 0.219 inches (7/32 in / 5.56 mm)
Stock Thickness Range 0.625 to 1.25 inches (5/8" to 1-1/4")
Panel Groove Adjustment Range 0.219 to 0.375 inches (7/32" to 3/8")
Maximum Rotational Speed 16,000 RPM
Cutter Material Alloy TiCo High-Density Carbide
Coating Technology Perma-SHIELD Non-Stick Finish
Compatible Tool Platforms Table-Mounted Routers with Fence Only

Pro-Tip: When routing matching rail and stile joints on cabinet door frames, always cut your end-grain pieces first before routing the long edge profiles; this ensures any minor chipping at the end of the cut is cleaned up cleanly by the subsequent edge pass.
