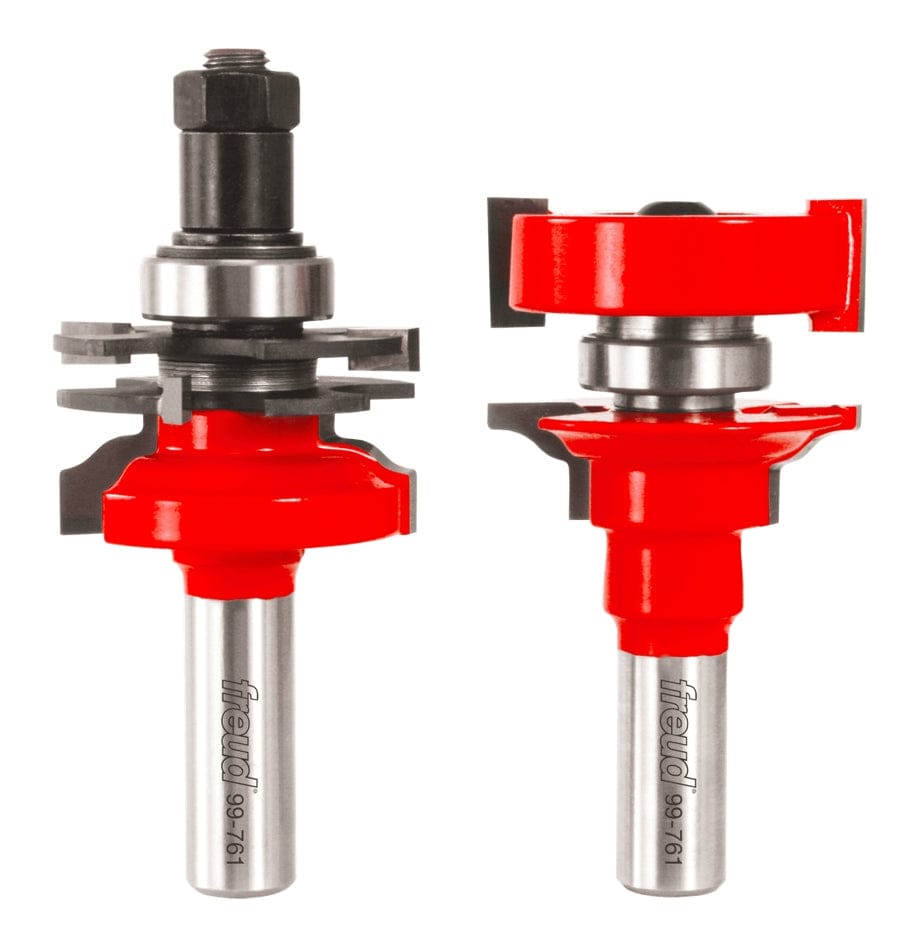

A studio image of the Freud 99-761 premier rail and stile router bit set, showing both the ogee-profile rail bit and stile bit side-by-side.

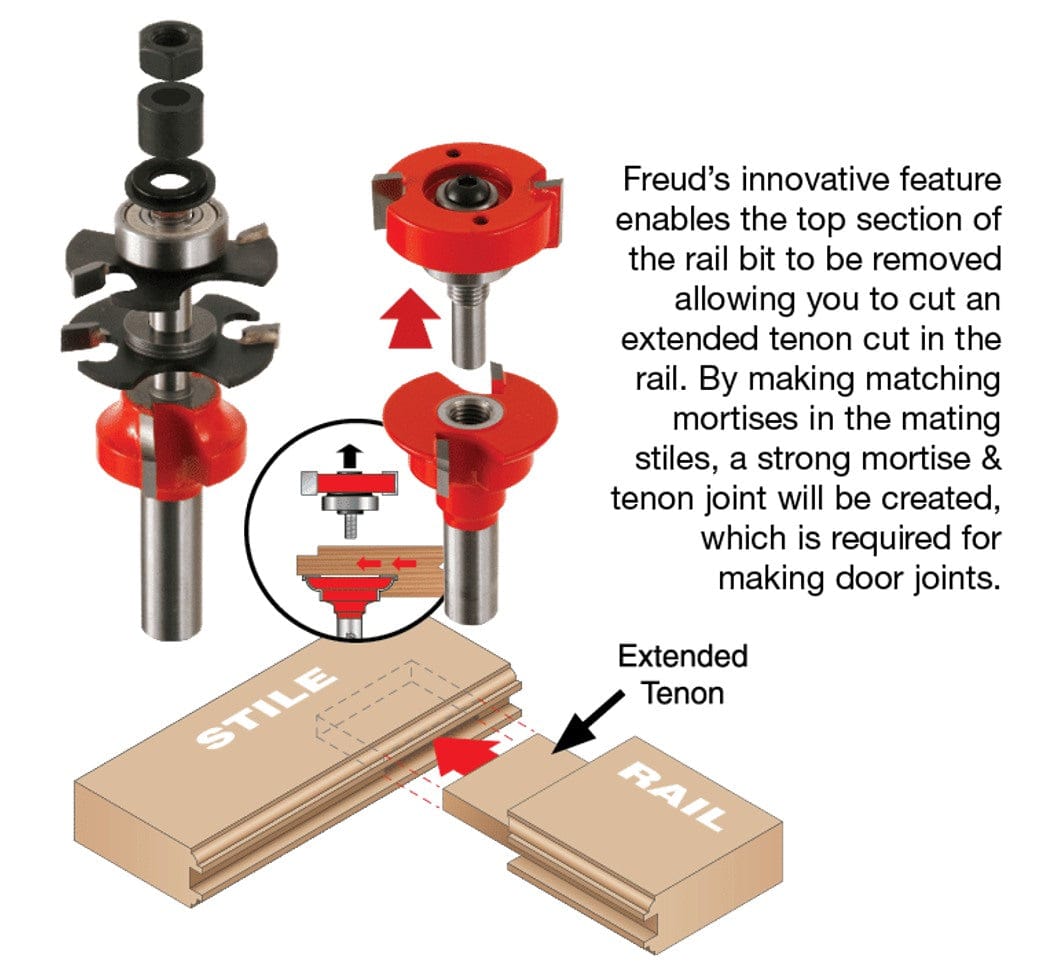

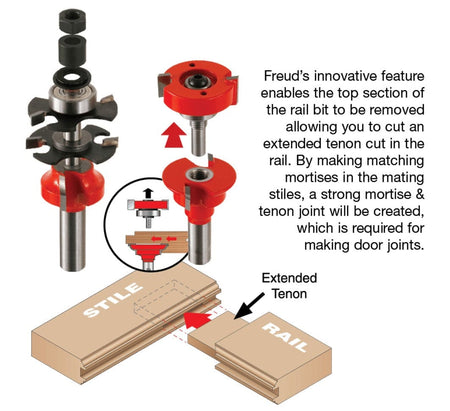

An infographic demonstrating how the Freud rail bit's top section can be removed to create an extended tenon for a stronger mortise and tenon door joint.

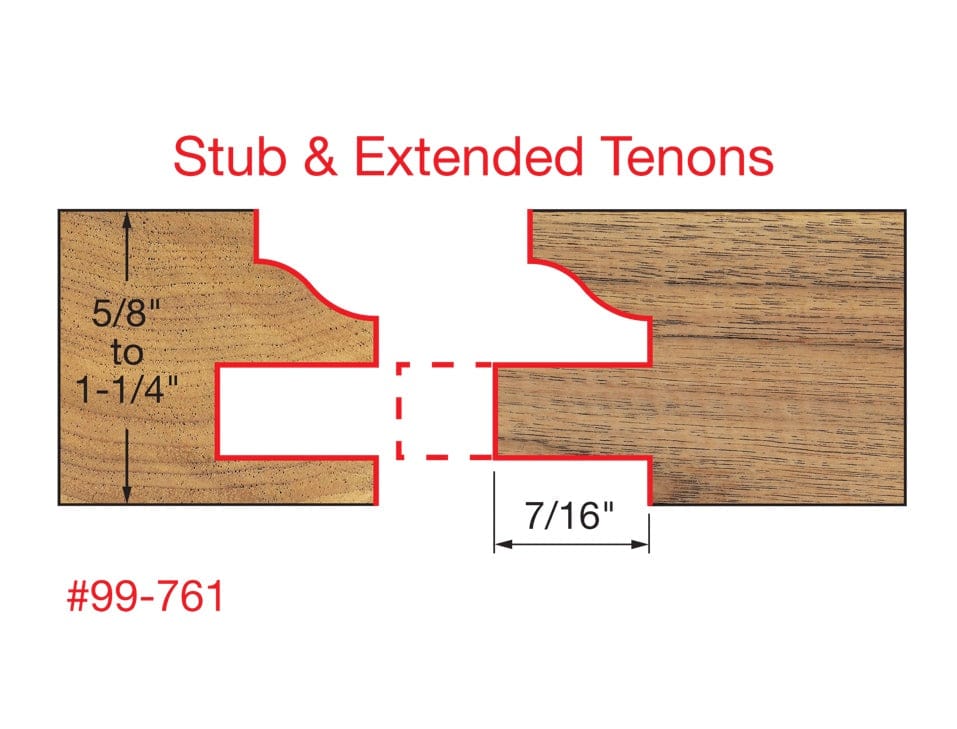

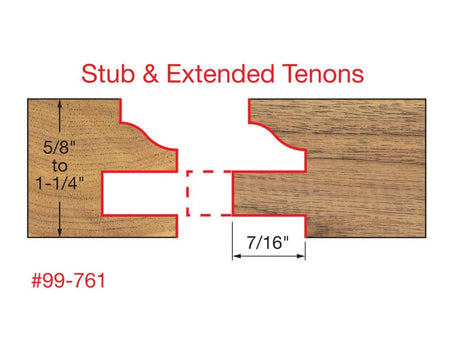

A diagram of the 99-761 ogee profile, showing its capability to create extended tenons and work with wood thickness from 5/8-inch to 1-1/4-inch.

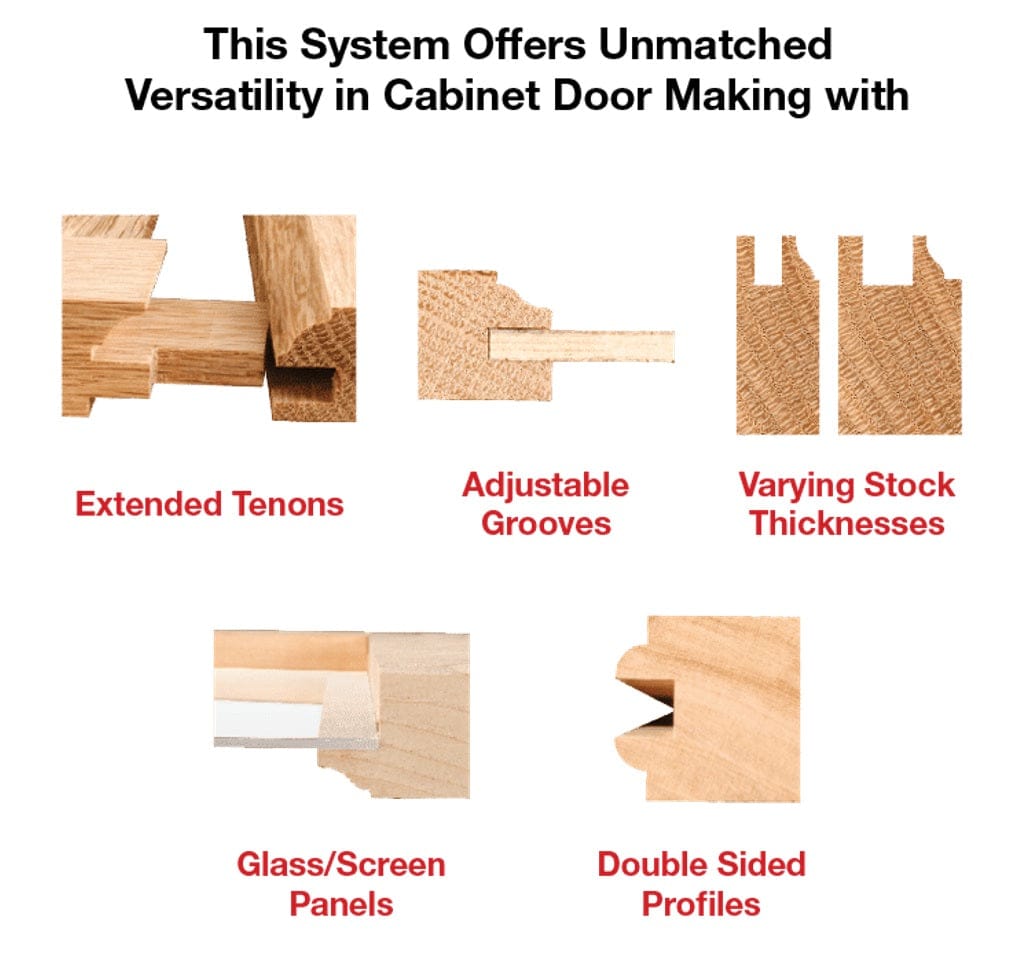

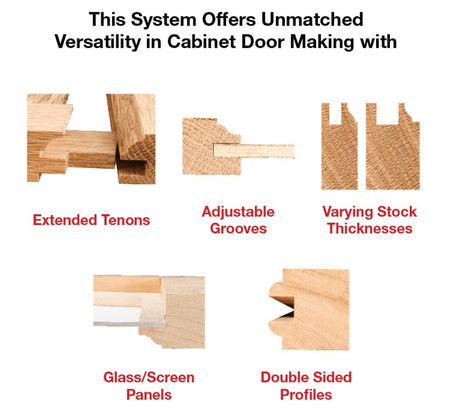

A features infographic for the Freud rail and stile system, showing its versatility for extended tenons, adjustable grooves, varying stock thicknesses, and optional glass panel or double-sided profiles.

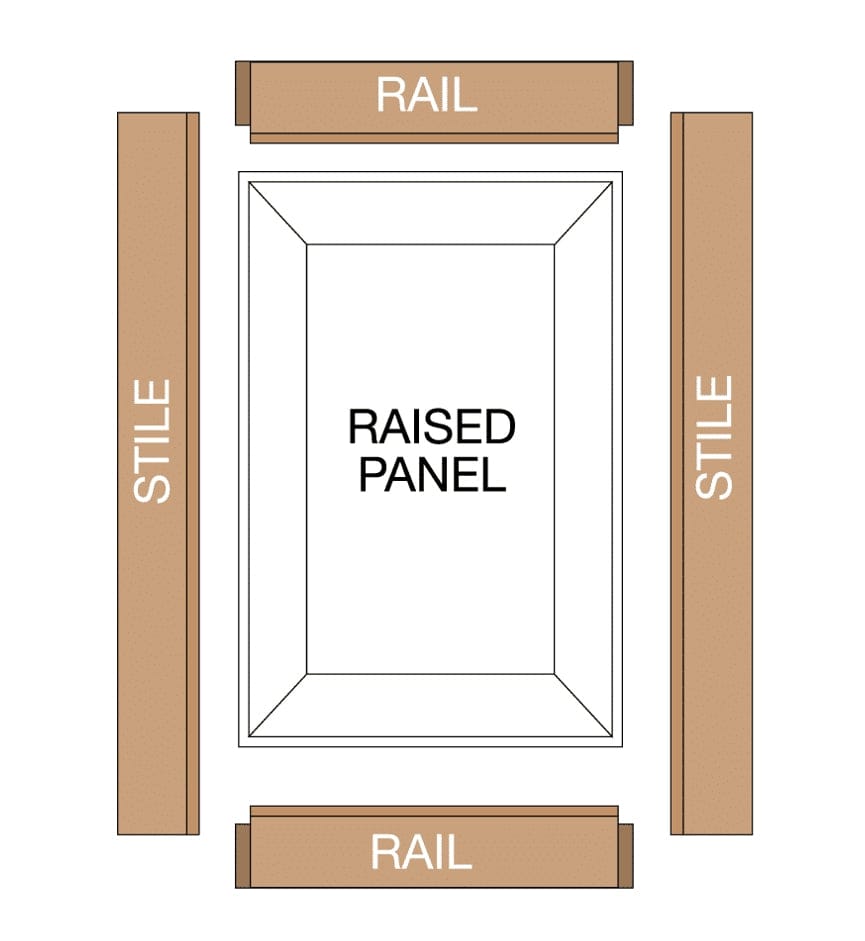

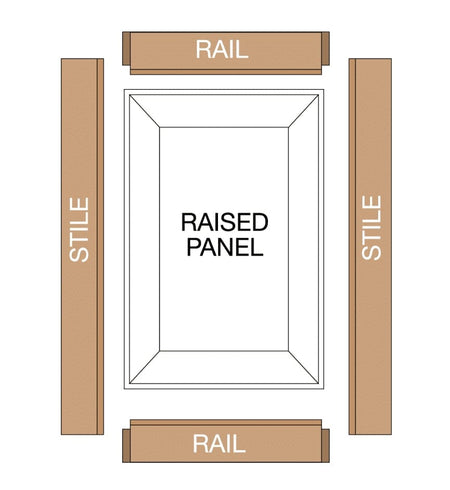

An exploded diagram of a cabinet door, showing the two rails, two stiles, and the central raised panel as separate components.

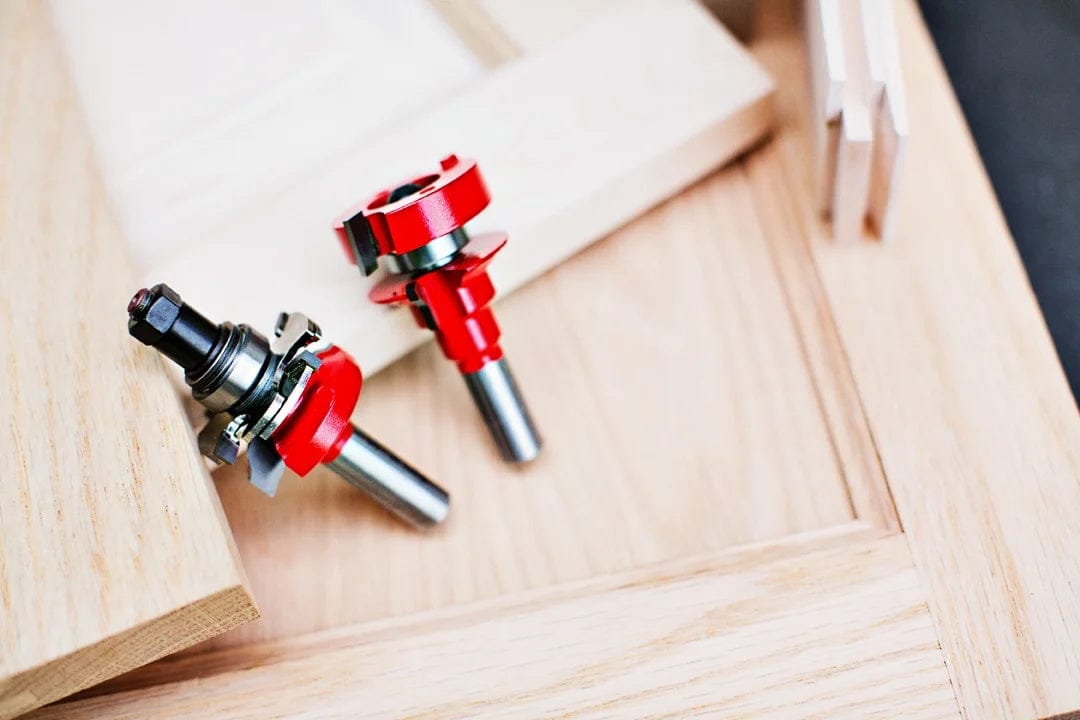

The Freud 99-761 rail and stile router bits resting on top of a partially assembled hardwood cabinet door in a workshop.
A studio image of the Freud 99-761 premier rail and stile router bit set, showing both the ogee-profile rail bit and stile bit side-by-side.
An infographic demonstrating how the Freud rail bit's top section can be removed to create an extended tenon for a stronger mortise and tenon door joint.
A diagram of the 99-761 ogee profile, showing its capability to create extended tenons and work with wood thickness from 5/8-inch to 1-1/4-inch.
A features infographic for the Freud rail and stile system, showing its versatility for extended tenons, adjustable grooves, varying stock thicknesses, and optional glass panel or double-sided profiles.
An exploded diagram of a cabinet door, showing the two rails, two stiles, and the central raised panel as separate components.
The Freud 99-761 rail and stile router bits resting on top of a partially assembled hardwood cabinet door in a workshop.
Freud

Freud Router Bit Set 99-761 1-11/16 Inch Adjustable Rail Stile Ogee (1/2 Inch Shank 16000 RPM TiCo Carbide Perma-SHIELD Cabinet Door Making Tool)

In stock
SKU: 99-761
$111.45 USD
$200.24 USD Sale $111.45 USD

Description

Freud precisely the best logo Logout

Freud 99-761 1-11/16-Inch Premier Adjustable Ogee Rail and Stile Router Bit Set

The Freud 99-761 1-11/16-Inch Premier Adjustable Rail and Stile Router Bit Set mills classic decorative Ogee frame profiles across solid hardwoods, softwoods, and composite panels ranging from 5/8-inch to 1-1/4-inch stock thickness. Engineered with a patented extended tenon milling capacity and precision micro-adjustment shims, this 2-piece matched system allows woodworkers to dial in panel groove widths from 7/32 inch up to 3/8 inch for custom raised panel or flat plywood cabinet doors. Proprietary TiCo Hi-Density Carbide cutters coated in non-stick red Perma-SHIELD operate safely up to 16,000 RPM in table-mounted routers, delivering glass-smooth, tear-out-free profiles that eliminate post-routing sanding.

Best Used For:

  • Custom Cabinet Door Construction: Milling interlocking Ogee rail and stile joints across 3/4-inch and 1-inch thick solid maple, cherry, and oak casework frames.
  • Extended Tenon Structural Joinery: Machining extra-long tenon tongues for oversized pantry doors and heavy passage gates requiring superior joint shear strength.
  • Adjustable Panel Groove Sizing: Shimming cutter gaps from 7/32-inch undersized plywood panels to 3/8-inch solid raised panels without profile distortion.

Key Performance & Safety Features

  • Patented Extended Tenon System: Enables woodworkers to mill interlocking tenon tongues of customizable lengths for unmatched structural joint longevity.
  • TiCo Hi-Density Carbide Cutters: Custom-formulated titanium cobalt micro-grain carbide maintains razor-sharp cutting edges through abrasive hardwoods and composite cores.
  • Precision Shim Adjustment Pack: Allows micro-step thickness customization of the panel slot from 7/32 inch (0.218 in) to 3/8 inch (0.375 in) to fit any panel material.
  • Perma-SHIELD Non-Stick Coating: Thermal barrier protects tool bodies from frictional heat, pitch accumulation, and corrosive resin adhesion.
  • Heavy-Duty 1/2-Inch Shank: Provides rigid, vibration-free rotational stability in high-horsepower table-mounted router setups.

What's Included

  • (1) Freud 1-11/16-Inch Ogee Rail Bit with 1/2-Inch Shank
  • (1) Freud 1-11/16-Inch Ogee Stile Bit with 1/2-Inch Shank
  • (1) Precision Steel Micro-Adjustment Shim Set

Technical Specifications

Specification Detail
Model Number 99-761
Profile Style Classic Ogee (Matched Rail & Stile)
Overall Diameter (D) 1.6875 in (1-11/16 in)
Shank Diameter (A) 0.50 in (1/2 in)
Overall Tool Length (H) 3.75 in (3-3/4 in)
Large Radius (R1) 0.203 in (13/64 in)
Material Thickness Capacity 0.625 in to 1.25 in (5/8 in to 1-1/4 in)
Adjustable Groove Width Range 0.2187 in to 0.375 in (7/32 in to 3/8 in)
Maximum Rotational Speed 16,000 RPM
Cutting Metallurgy TiCo High-Density Tungsten Carbide
Protective Coating Perma-SHIELD Non-Stick Fluoropolymer
Machine Requirement Table-Mounted Routers Only
Pro-Tip: Use a sacrificial push block or backer board when routing the end-grain rail cuts; supporting the workpiece prevents tear-out as the 1-11/16-inch Ogee cutters exit the back edge of your timber.
