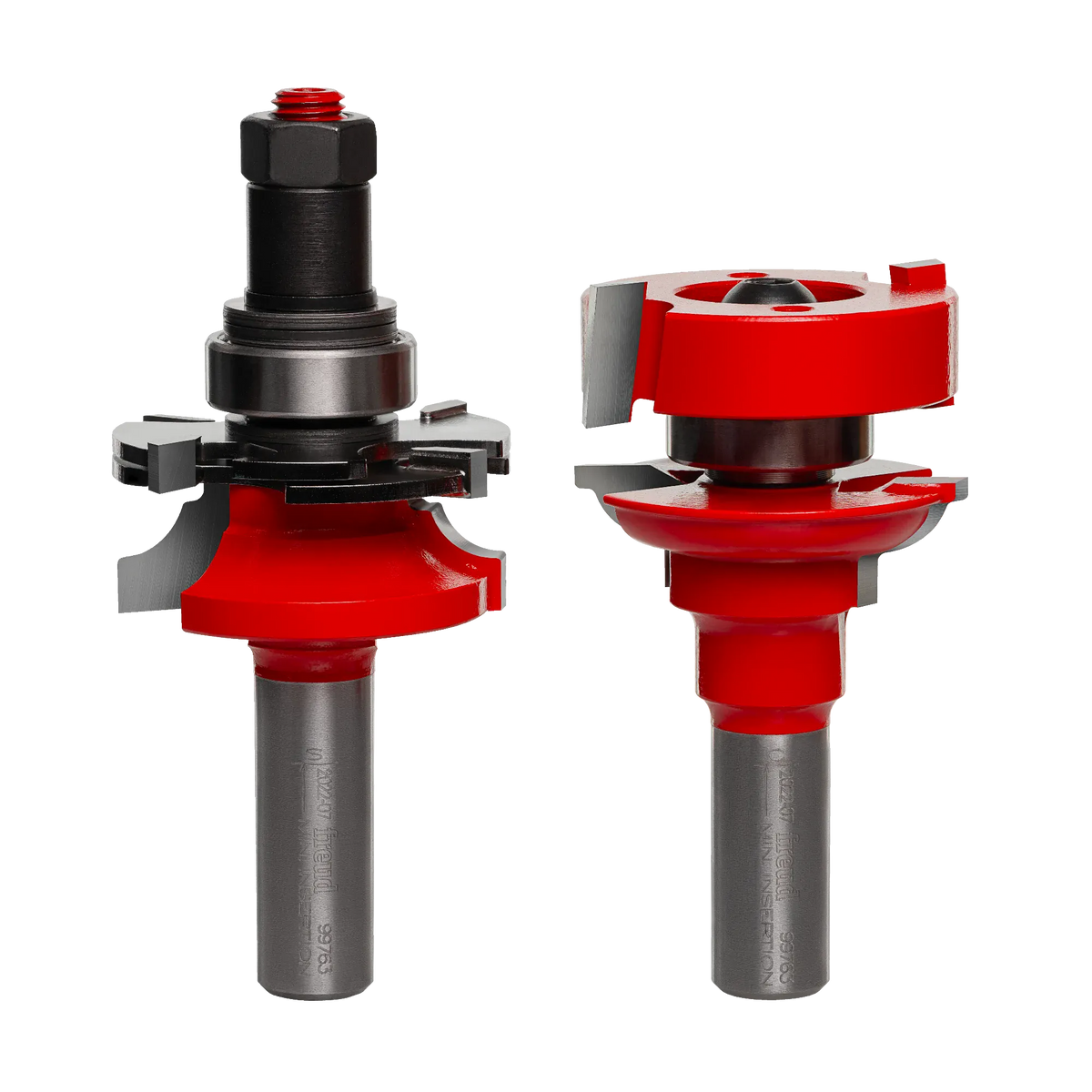

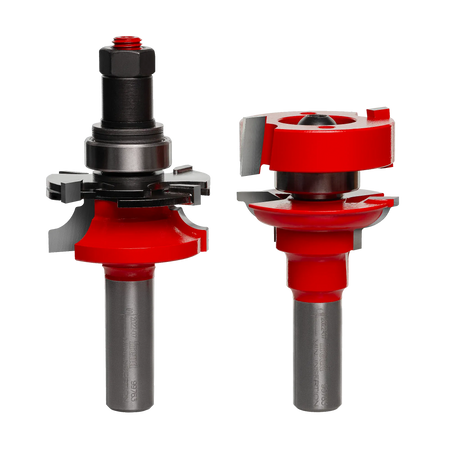

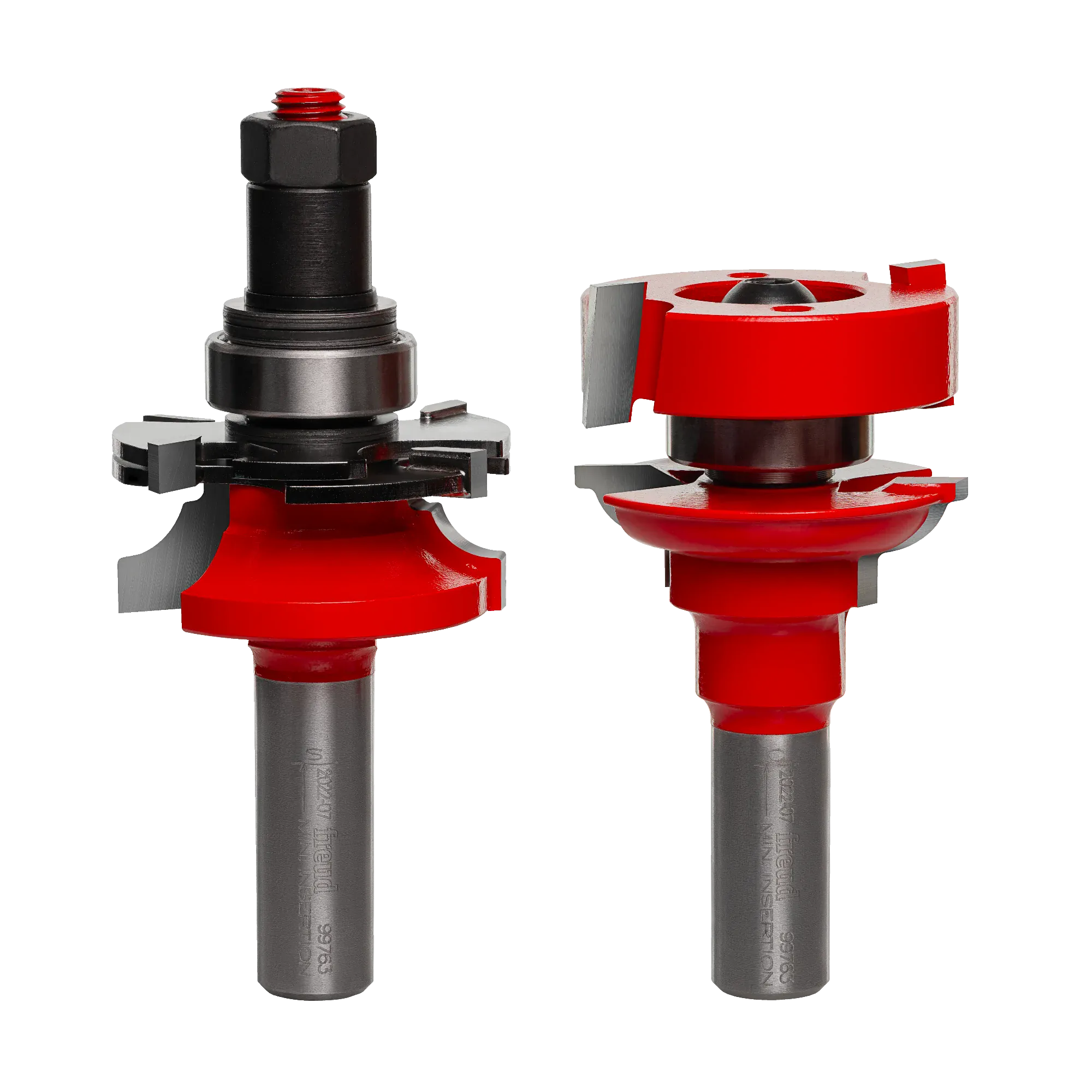

Industrial view of the Freud 99-763 Premier Adjustable Rail and Stile router bit set featuring red Perma-SHIELD coating and TiCo high-density carbide cutters for cabinet door construction.
Technical diagram for the Freud 99-763 system illustrating stub and extended tenon capabilities for material thicknesses from 5/8-inch to 1-1/4-inch with a 7/16-inch tenon length.
Freud 99-763 Premier Adjustable Rail and Stile set in its original red and black retail packaging, highlighting the round over bead profile, 1/2-inch shank, and adjustable tenon features.
Woodworking material compatibility chart for the Freud 99-763 router bit system including veneered plywood, hardwoods, and softwoods.
Tool compatibility graphic indicating the Freud 99-763 adjustable rail and stile system is designed specifically for use with table-mounted routers.
Exploded view diagram demonstrating Freud's innovative feature that allows the top section of the rail bit to be removed to cut an extended tenon for extra-strong door joints.
Dimensional drawing and profile view of the 99-763 router bits showing a 1-11/16-inch overall diameter, 3-3/4-inch overall length, and 1/2-inch shank diameter.
Application diagram showing the assembly layout of a raised panel cabinet door including the vertical stiles and horizontal rails milled by the Freud adjustable bit system.
Industrial view of the Freud 99-763 Premier Adjustable Rail and Stile router bit set featuring red Perma-SHIELD coating and TiCo high-density carbide cutters for cabinet door construction.
Infographic showcasing the unmatched versatility of the Freud cabinet door making system, including extended tenons, adjustable grooves for plywood panels, and varying stock thicknesses.
Industrial action shot of the Freud 99-763 rail and stile bits positioned on a finished wood cabinet door frame to demonstrate the precision fit of the round over bead profile.
Perspective view of the Freud 99-763 adjustable router bits resting on a light wood cabinet door assembly, highlighting the professional-grade TiCo carbide cutting edges and red coating.
A woodworker using the red Freud router bit to mill the edge of a wood board, showcasing the adjustable bit's precision in creating decorative rail and stile profiles.
Close-up of a professional holding a milled wood joint next to a Freud 99-763 router bit, demonstrating the perfect fit and clean cut of the extended tenon system.
Premier Adjustable Rail & Stile Preview promotional video
Industrial view of the Freud 99-763 Premier Adjustable Rail and Stile router bit set featuring red Perma-SHIELD coating and TiCo high-density carbide cutters for cabinet door construction.
Technical diagram for the Freud 99-763 system illustrating stub and extended tenon capabilities for material thicknesses from 5/8-inch to 1-1/4-inch with a 7/16-inch tenon length.
Freud 99-763 Premier Adjustable Rail and Stile set in its original red and black retail packaging, highlighting the round over bead profile, 1/2-inch shank, and adjustable tenon features.
Woodworking material compatibility chart for the Freud 99-763 router bit system including veneered plywood, hardwoods, and softwoods.
Tool compatibility graphic indicating the Freud 99-763 adjustable rail and stile system is designed specifically for use with table-mounted routers.
Exploded view diagram demonstrating Freud's innovative feature that allows the top section of the rail bit to be removed to cut an extended tenon for extra-strong door joints.
Dimensional drawing and profile view of the 99-763 router bits showing a 1-11/16-inch overall diameter, 3-3/4-inch overall length, and 1/2-inch shank diameter.
Application diagram showing the assembly layout of a raised panel cabinet door including the vertical stiles and horizontal rails milled by the Freud adjustable bit system.
Industrial view of the Freud 99-763 Premier Adjustable Rail and Stile router bit set featuring red Perma-SHIELD coating and TiCo high-density carbide cutters for cabinet door construction.
Infographic showcasing the unmatched versatility of the Freud cabinet door making system, including extended tenons, adjustable grooves for plywood panels, and varying stock thicknesses.
Industrial action shot of the Freud 99-763 rail and stile bits positioned on a finished wood cabinet door frame to demonstrate the precision fit of the round over bead profile.
Perspective view of the Freud 99-763 adjustable router bits resting on a light wood cabinet door assembly, highlighting the professional-grade TiCo carbide cutting edges and red coating.
A woodworker using the red Freud router bit to mill the edge of a wood board, showcasing the adjustable bit's precision in creating decorative rail and stile profiles.
Close-up of a professional holding a milled wood joint next to a Freud 99-763 router bit, demonstrating the perfect fit and clean cut of the extended tenon system.
Premier Adjustable Rail & Stile Preview promotional video
Freud

Freud Rail and Stile Router Bit 99-763 1.6875 Inch Outer Diameter (0.5 Inch Shank TiCo Carbide Round Over Bead Cabinet Door Woodworking Joint Tool)

In stock
SKU: 99-763
$118.67 USD

Description

Freud precisely the best logo Logout

Professional TiCo Carbide Adjustable Rail & Stile System for Long Tenon Cabinetry

The Freud 99-763 is an industrial-grade 1-11/16 inch diameter adjustable rail and stile router bit system featuring a 1/2-inch shank, engineered to mill classic round over bead profiles on material thicknesses from 5/8-inch to 1-1/4-inch. Fabricated with premium TiCo titanium-cobalt high-density carbide cutters, this structural joinery tool uses patented geometry to facilitate extra-long tenon cuts for high-stress cabinet doors. Operating safely up to a maximum architectural limit of 16,000 RPM on table-mounted routers, it contains an integrated adjustable shim kit to alter panel groove widths from 7/32-inch up to 3/8-inch without grain tear-out.

Best Used For:

  • Long Tenon Door Construction: Milling extra-strong structural interlocking rails and stiles for heavy utility cabinet panels.
  • Adjustable Groove Width Setups: Altering panel groove clearances using a shim matrix to match thin plywood or thick solid wood inserts.
  • Hardwood Frame Profile Routing: Machining traditional round over bead profiles smoothly across dense oak, walnut, or cherry lumber stock.

Key Performance & Safety Features

  • Patented Long Tenon Technology: Engineered to produce extended tenon lengths that maximize structural gluing surface area for high-use doors.
  • Adjustable Shim System: Modular configuration permits micro-adjustments to panel slots between 7/32-inch and 3/8-inch widths.
  • TiCo Hi-Density Sintered Carbide: Proprietary titanium-cobalt formulation maintains razor-sharp edges and stops premature thermal degradation.
  • Perma-SHIELD Non-Stick Coating: Protective thermal matrix eliminates heat buildup and prevents pitch or resin adhesion during high-volume runs.
  • Tear-Out Free Shear Geometry: Precise hook and cutter shear orientations slice wood fibers smoothly to remove structural cross-grain splintering.

What's Included

  • (1) Freud 99-763 Premier Adjustable Rail & Stile Bit (Round Over Bead Profile)
  • (1) Precision Steel Integrated Shim Set for Panel Groove Width Adjustments

Technical Specifications

Brand Name: Freud Tools
Model Number: 99-763
Bit Style Classification: Premier Adjustable Rail & Stile System
Cutting Edge Profile: Round Over Bead (Decorative Ogee Edge)
Overall Cut Diameter: 1-11/16 in. (1.6875")
Shank Diameter (A): 1/2 in. (0.50")
Overall Length (H): 3-3/4 in. (3.75")
Decorative Bead Radius: 9/32 in. (0.28125")
Material Thickness Capacity: 5/8 in. up to 1-1/4 in. Stock Selection
Groove Width Dimension Range: 7/32 in. up to 3/8 in. Adjustment Scale
Maximum Angular Speed: 16,000 RPM
Cutter Formulation: TiCo Titanium-Cobalt High-Density Sintered Carbide
Recommended Drive Platform: Strictly Table-Mounted Router Tables Only

Pro-Tip: Due to the structural mass and multi-cutter design of this joinery stack, never use this tool in a handheld router. Lock it into a variable-speed table router setup at 16,000 RPM or lower, and use a sacrificial backer block on your coping fence to entirely eliminate exit tear-out when profiling end grains.
