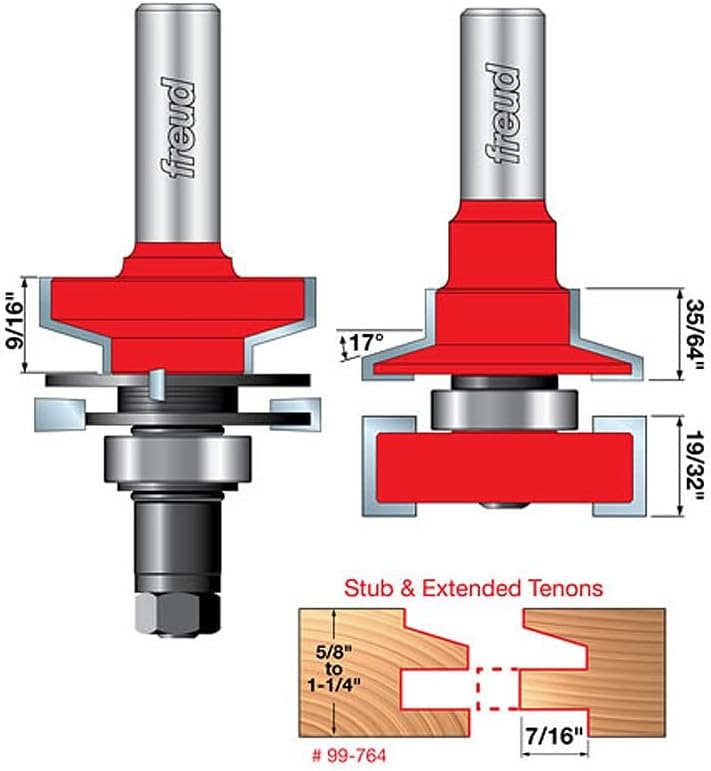

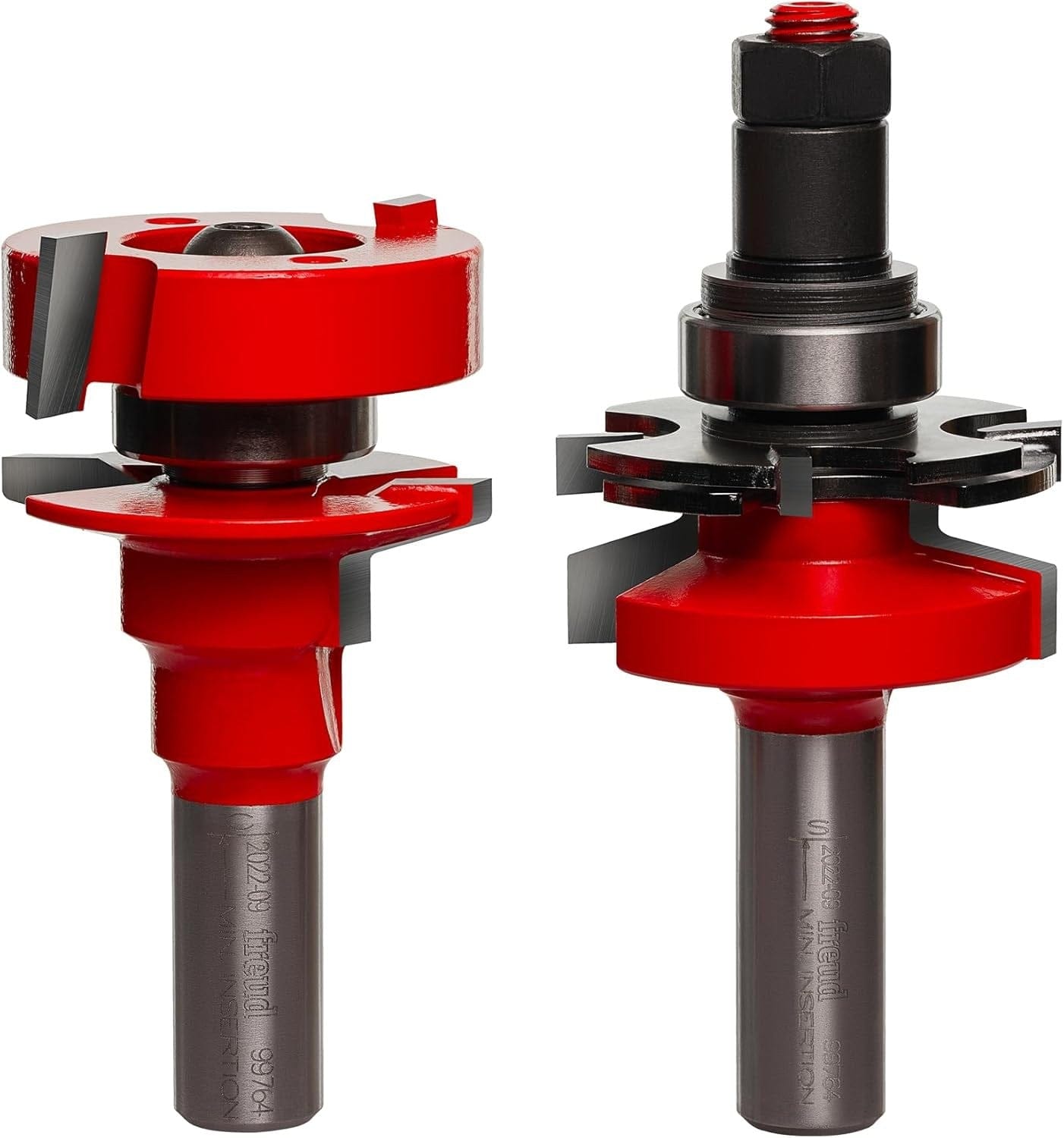

Freud 99-764 1-11/16 Inch Premier Adjustable Rail and Stile Bevel Profile Router Bit 1/2 Inch Shank For Custom Wood Cabinet Door Making
Couldn't load pickup availability
Build Flawless Custom Cabinet Doors with Freud's Bevel Rail and Stile System

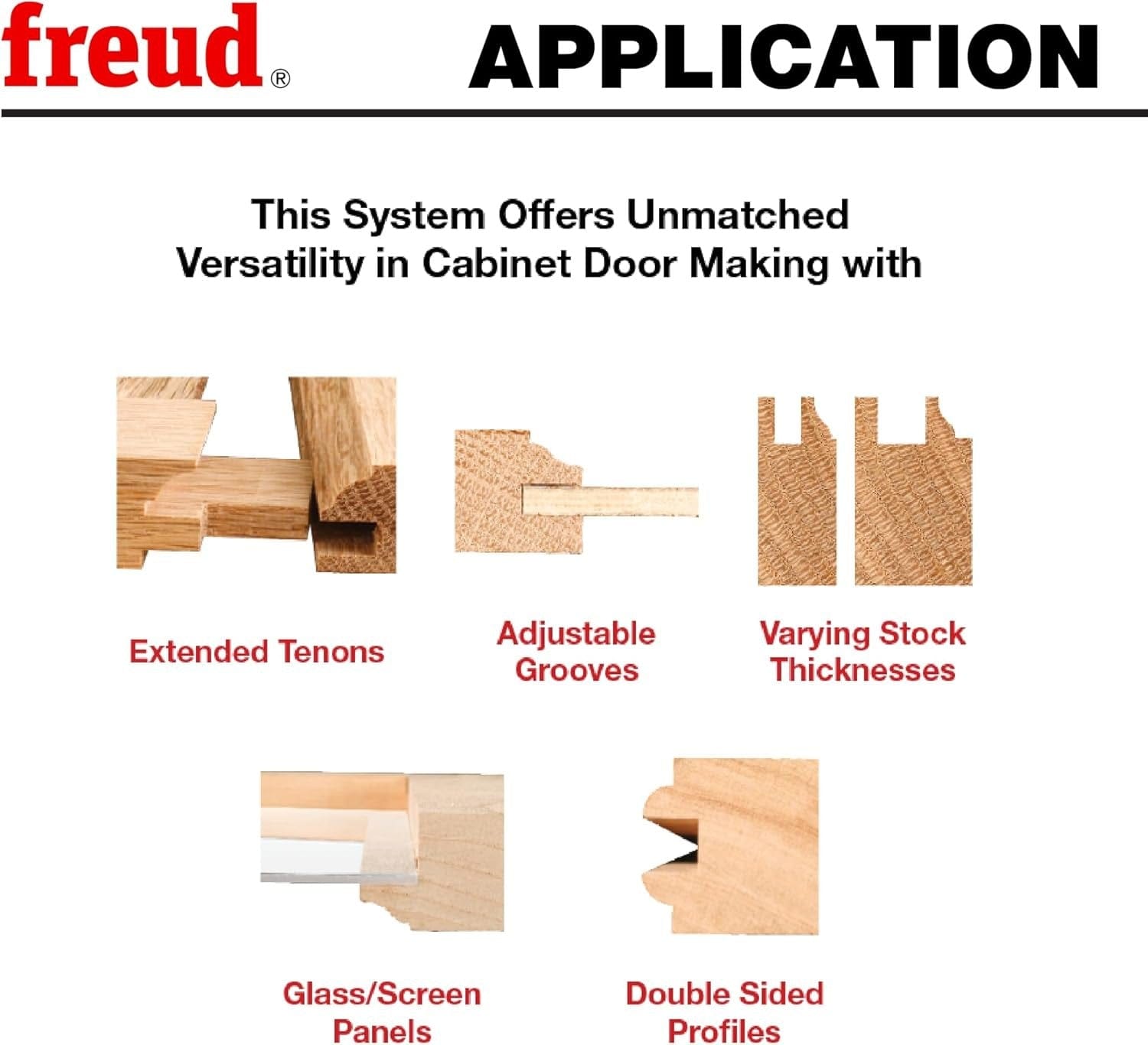

Elevate your cabinetry and furniture making with the Freud 99-764 1-11/16-Inch Premier Adjustable Rail and Stile Router Bit. Featuring a clean, classic Bevel profile, this highly versatile 1/2-inch shank bit empowers woodworkers to build professional-grade, perfectly flush doors in a wide variety of wood stock ranging from 5/8-inch to 1-1/4-inch thick. Unlike standard, fixed rail and stile sets, this patented Freud system utilizes highly precise adjustable shims. This allows you to quickly customize the panel groove width from 7/32-inch to accommodate thinner plywood panels, all the way up to 3/8-inch for thicker, solid hardwood raised panels, guaranteeing a tight, rattle-free fit every time.

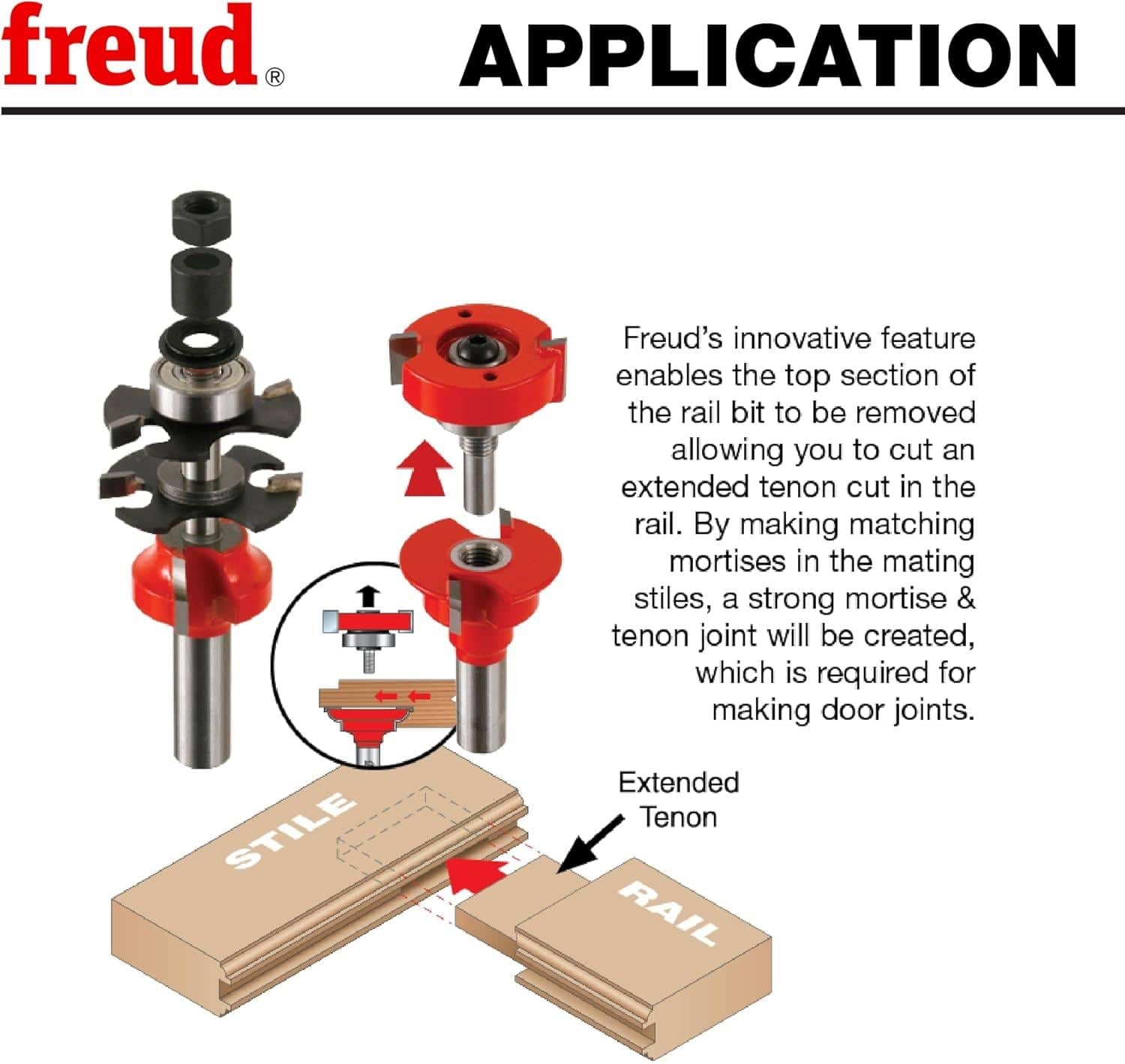

Beyond its adjustable groove capabilities, this premium router bit system integrates Freud's patented extended tenon technology. By simply removing the top cutter of the rail bit, you can mill extra-strong, long tenon joints, providing unmatched structural integrity for heavy-duty cabinet doors. Constructed with Freud's exclusive TiCo Hi-Density Carbide and engineered with a unique shear angle geometry, this bit effortlessly slices through dense hardwoods and softwoods while completely eliminating tear-out. Finished with the protective Perma-SHIELD non-stick coating to resist heat, friction, and pitch buildup, this heavy-duty bit guarantees maximum cutting life. Please note, due to its size and application, this bit is designed exclusively for use in table-mounted routers.
Key Features

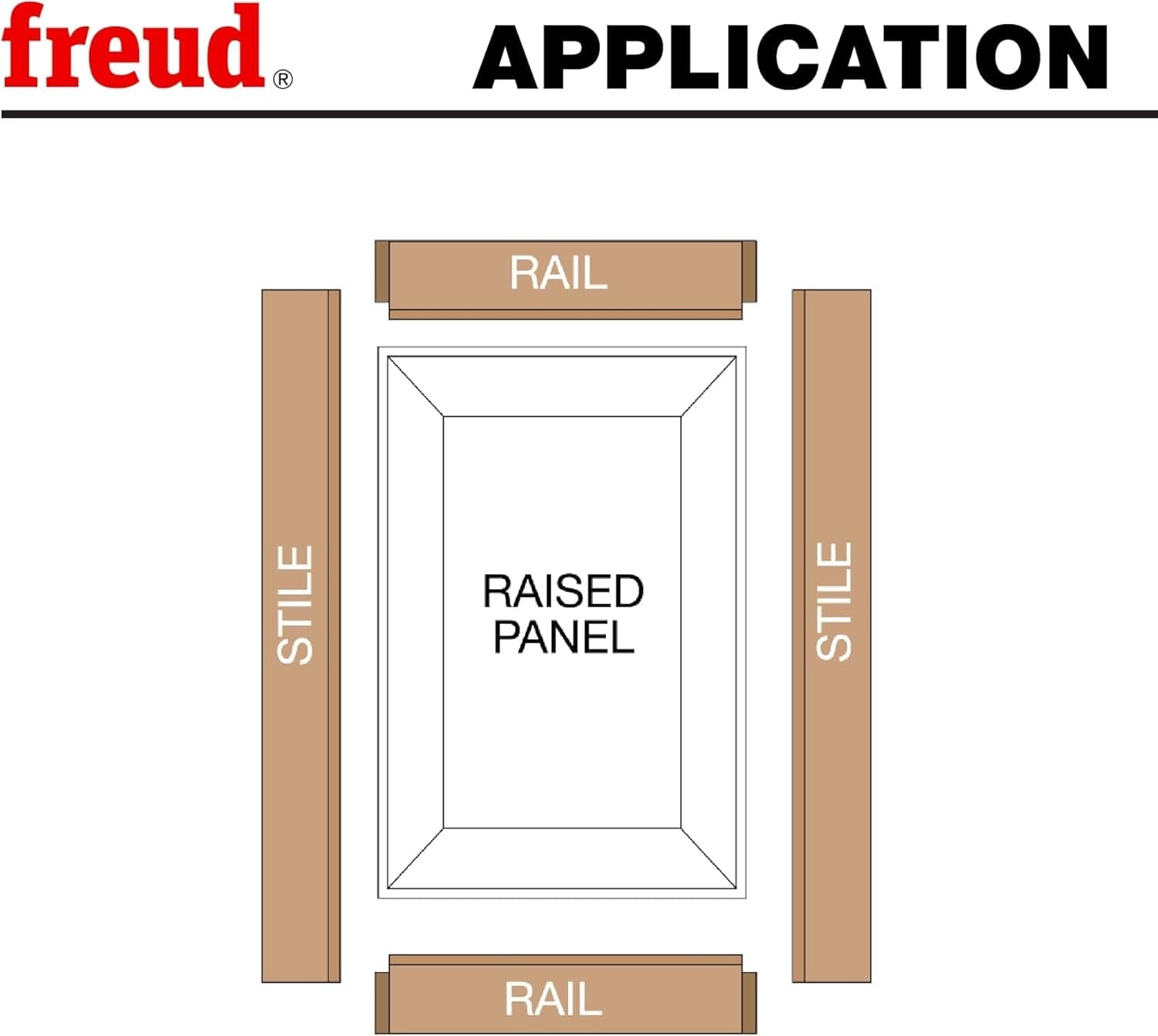

- Build premium rail and stile doors featuring a classic Bevel profile in wood thicknesses ranging from 5/8-inch to 1-1/4-inch.
- Includes precision adjustable shims to perfectly size your panel grooves from 7/32-inch up to 3/8-inch for varied panel materials.

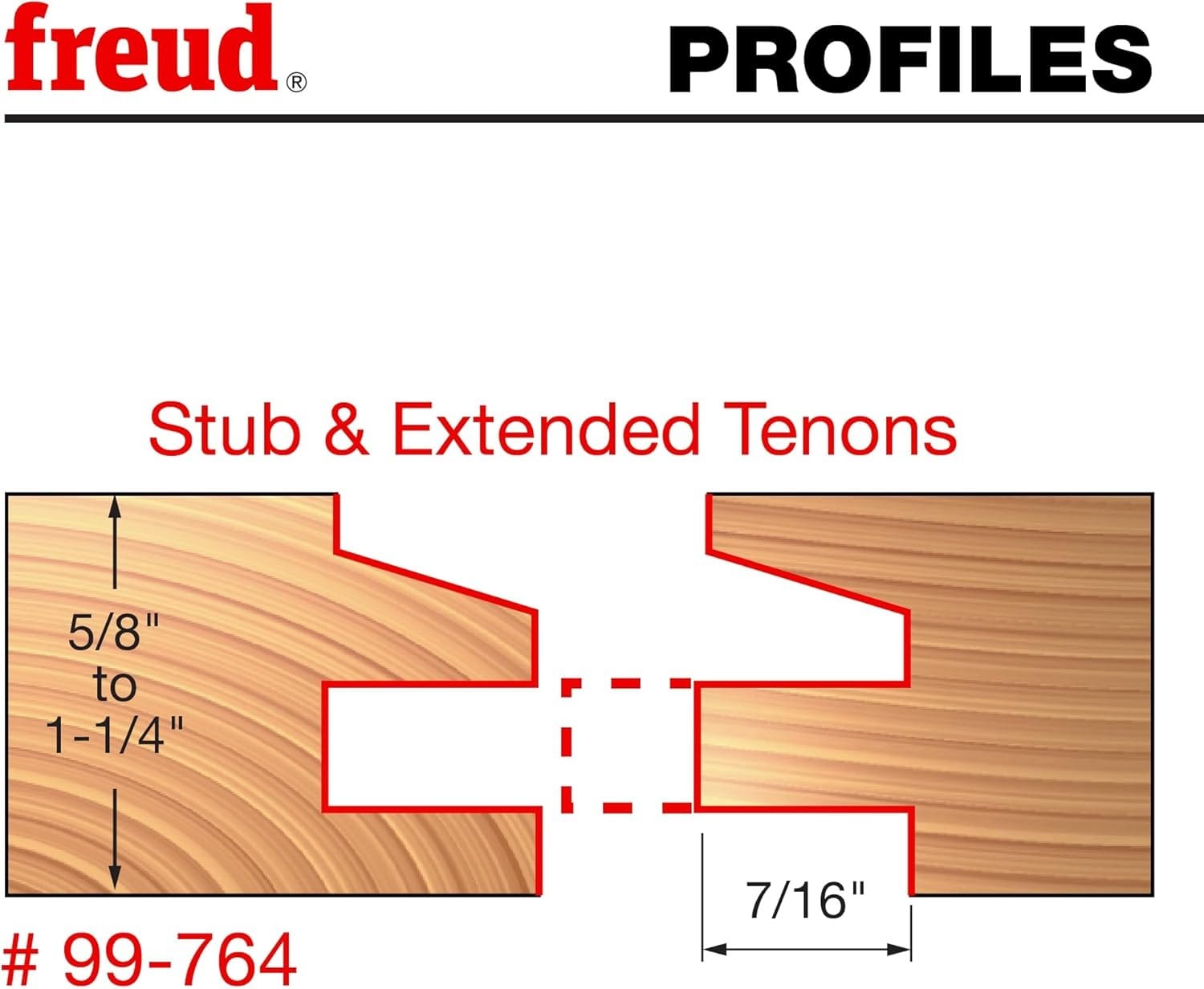

- Patented Extended Tenon Capability allows for the milling of extra-strong, long tenon joints for maximum structural door stability.

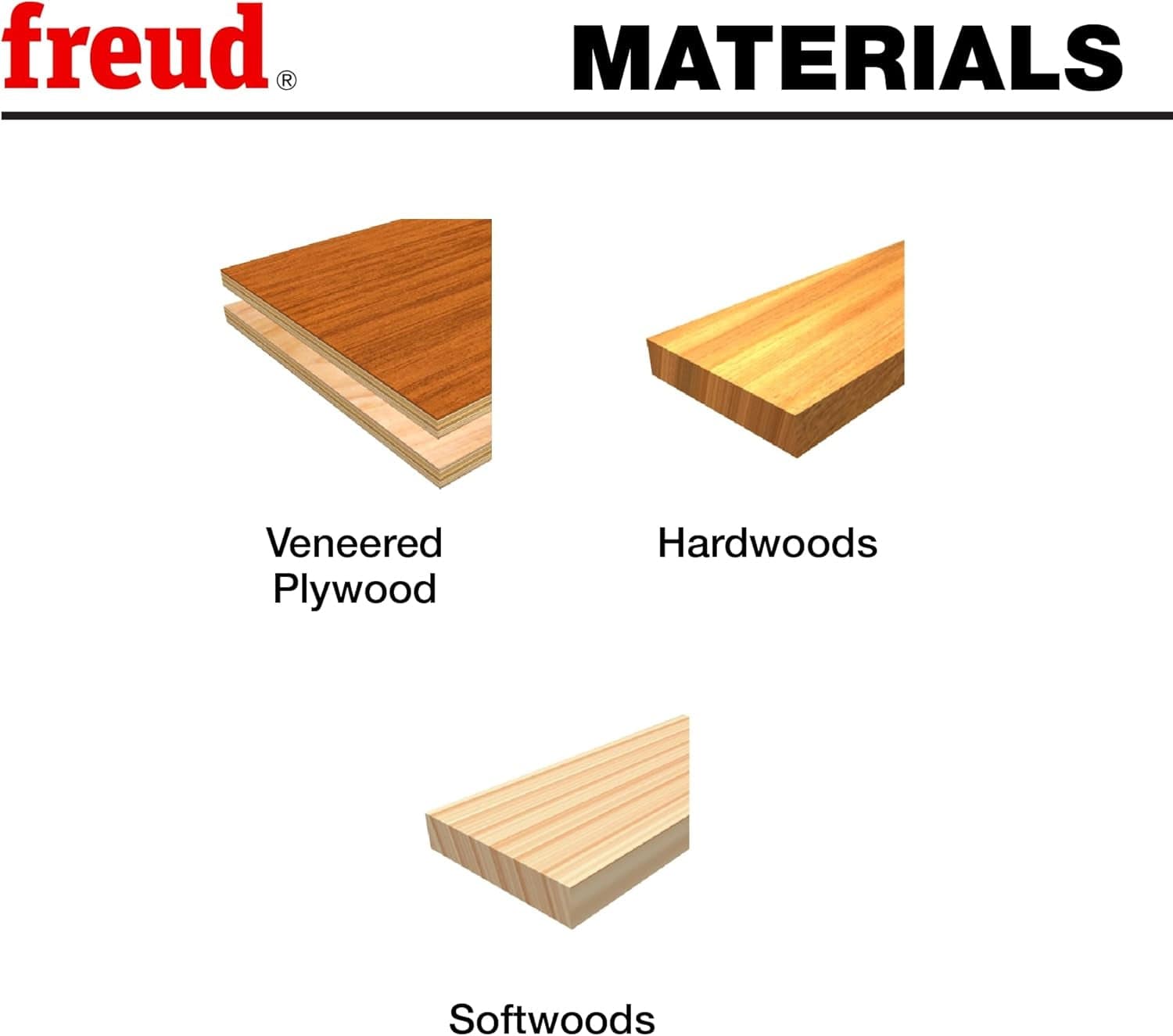

- Unique cutter geometry and TiCo Hi-Density Carbide construction maximize bit life and eliminate tear-out for a glass-smooth finish.
- Perma-SHIELD non-stick coating effectively reduces friction, heat buildup, and wood gumming during heavy use.

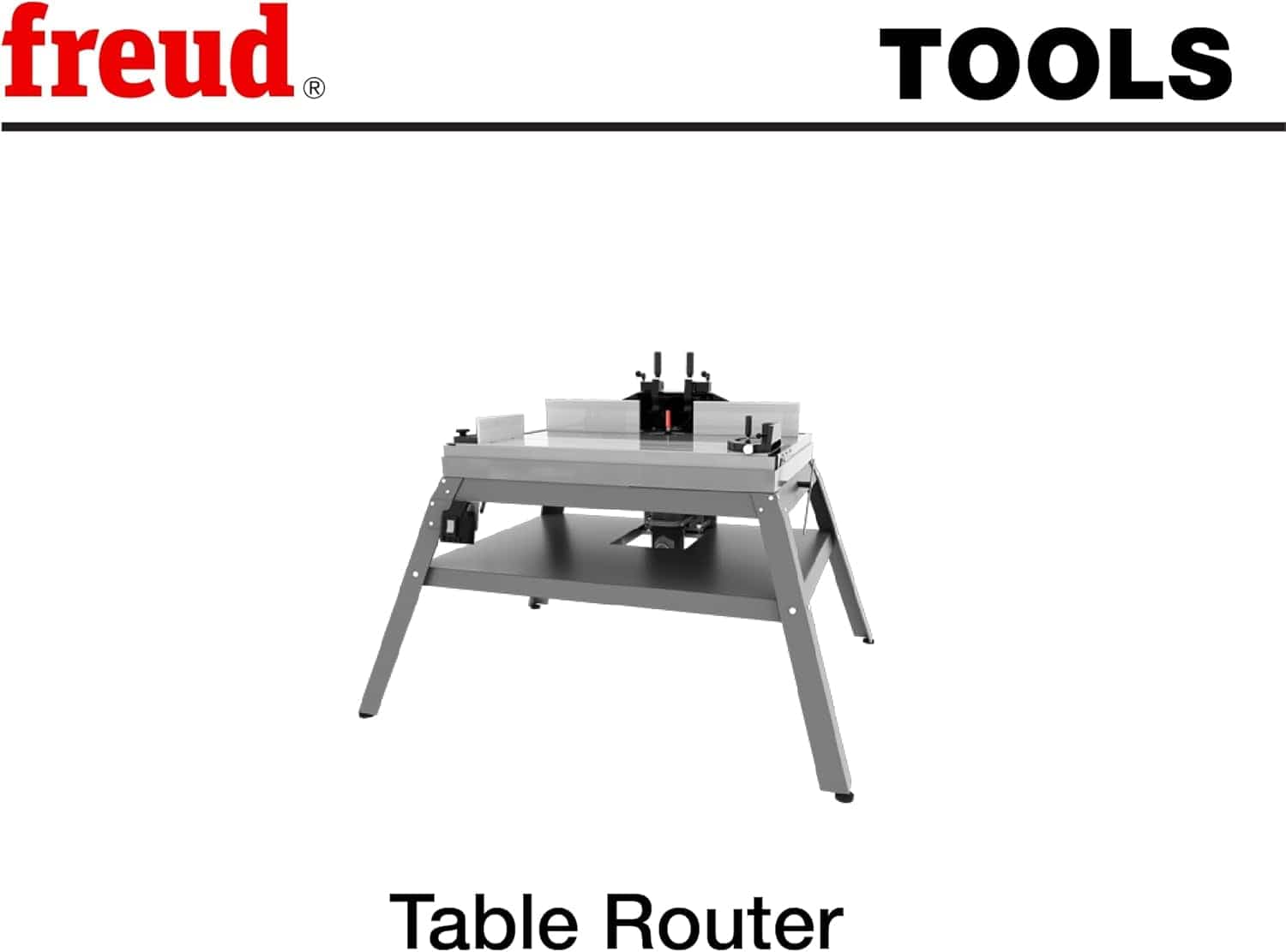

- Designed specifically for use with table-mounted routers to ensure safety, stability, and absolute precision.
What's Included
- (1) Freud 1-11/16-Inch Premier Adjustable Rail & Stile Router Bit - Bevel Profile (99-764)
- (1) Set of Precision Adjustable Shims
Specifications
| Brand | Freud |
|---|---|
| Model Number | 99-764 |
| Bit Profile | Bevel (Rail & Stile) |
| Overall Diameter (D) | 1-11/16 Inches |
| Shank Diameter (A) | 1/2 Inch |
| Overall Length (H) | 3-3/4 Inches |
| Material Thickness Range | 5/8 Inch to 1-1/4 Inches |
| Adjustable Groove Range | 7/32 Inch to 3/8 Inch |
| Maximum RPM | 16,000 RPM |
| Cutting Material | TiCo Hi-Density Carbide |
| Coating Technology | Perma-SHIELD Non-Stick |
| Tool Compatibility | Table-Mounted Routers Only |
Pro-Tip
When routing the cope cuts on the ends of your rails, use a dedicated coping sled. This specialized jig holds the narrow wood stock perfectly square to the router fence and provides a solid backing board behind the cut. This eliminates the risk of blowout or splintering as the bevel bit exits the end grain, ensuring a seamless, professional joint.
