Freud Router Bit Set 32-524 1-3/8 Inch Adjustable Rabbeting (1/2 Inch Shank 7 Bearings TiCo Carbide Perma-SHIELD Cabinet Joinery Flush Trim Tool)

Freud 32-524 1-3/8-Inch Adjustable Rabbeting Router Bit Set with 7 Interchangeable Bearings

The Freud 32-524 1-3/8-Inch Adjustable Rabbeting Router Bit Set cuts seven distinct stepped rabbet depths and executes flush edge trimming across hardwoods, softwoods, plywood, and composite casework. Engineered with a heavy-duty 1/2-inch shank and a 1/2-inch carbide cutting height, this multi-depth joinery system includes seven interchangeable ball bearings to mill precise step recesses from 1/8 inch to 1/2 inch without changing bits. Forged from TiCo Hi-Density Carbide and coated in heat-resistant red Perma-SHIELD, this 2-cutter bit eliminates grain tear-out and burning when routing inset cabinet back panels, glass door lip frames, and structural drawer joints in handheld and table-mounted routers.

Best Used For:

• Cabinet Back & Panel Inset Recesses: Routing crisp stepped ledges to inset 1/4-inch and 1/2-inch rear plywood panels flush into hardwood cabinet carcases.
• Picture Frame & Glass Retainer Step Cuts: Milling clean 3/8-inch and 7/16-inch interior shelf rabbets to seat picture glass, artwork, and mirror backing boards.
• Pattern & Laminate Flush Edge Trimming: Swapping to the 1-3/8-inch bearing to trim edge banding and wood veneers perfectly flush with substrate panels.

Key Performance & Safety Features

• 7-in-1 Stepped Bearing System: Interchangeable bearing set accurately profiles stepped rabbet depths of flush, 1/8", 1/4", 5/16", 3/8", 7/16", and 1/2" with one bit.
• TiCo High-Density Carbide Flutes: Proprietary titanium cobalt formulation delivers razor-sharp cutting edges and maximum longevity in dense natural timbers.
• Perma-SHIELD Non-Stick Thermal Finish: Industrial red coating repels resin, pitch buildup, and frictional heat to prevent work surface burning.
• Heavy-Duty 1/2-Inch Anti-Vibration Shank: High-tensile steel shank prevents deflection and ensures chatter-free operation under heavy lateral loads.
• Anti-Kickback Design: Computer-balanced body geometry limits cut depth per revolution to maximize operator feed safety.

What's Included

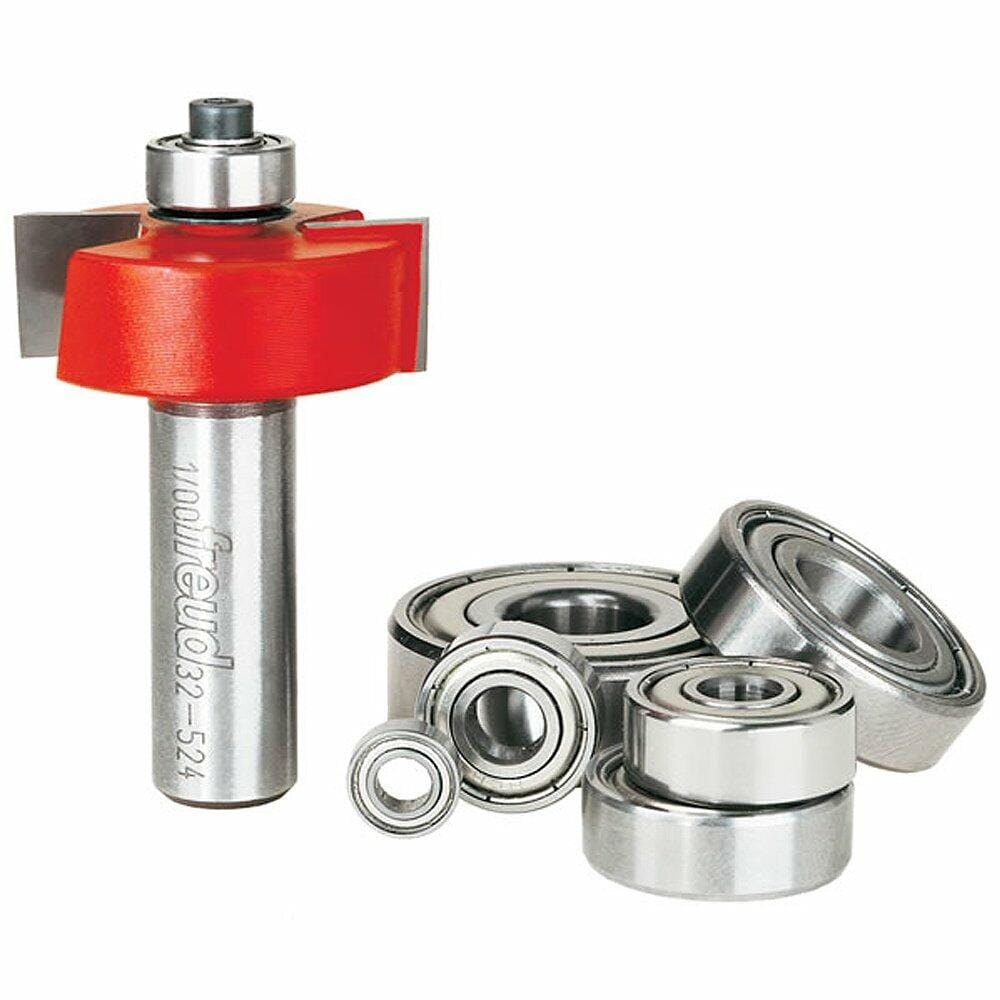

• (1) Freud 1-3/8" Diameter Rabbeting Router Bit with 1/2" Shank (32-524)
• (7) Interchangeable Shielded Guide Bearings (3/8", 1/2", 5/8", 3/4", 7/8", 1-1/8", 1-3/8")
• (1) Hex Wrench for Bearing Retention Screw

Technical Specifications

Pro-Tip: Always verify that the locking screw holding the guide bearing is snug before routing; swapping to the 1-3/8-inch bearing lets you instantly flush-trim cabinet edging without needing to change to a dedicated flush-trim router bit.
