Diablo Cut Off Wheel DBD090093101F 9 Inch (3/32 Inch Thickness 7/8 Inch Arbor 6650 Max RPM Aluminum Oxide Type 1 Metal Structural Steel Cutting)

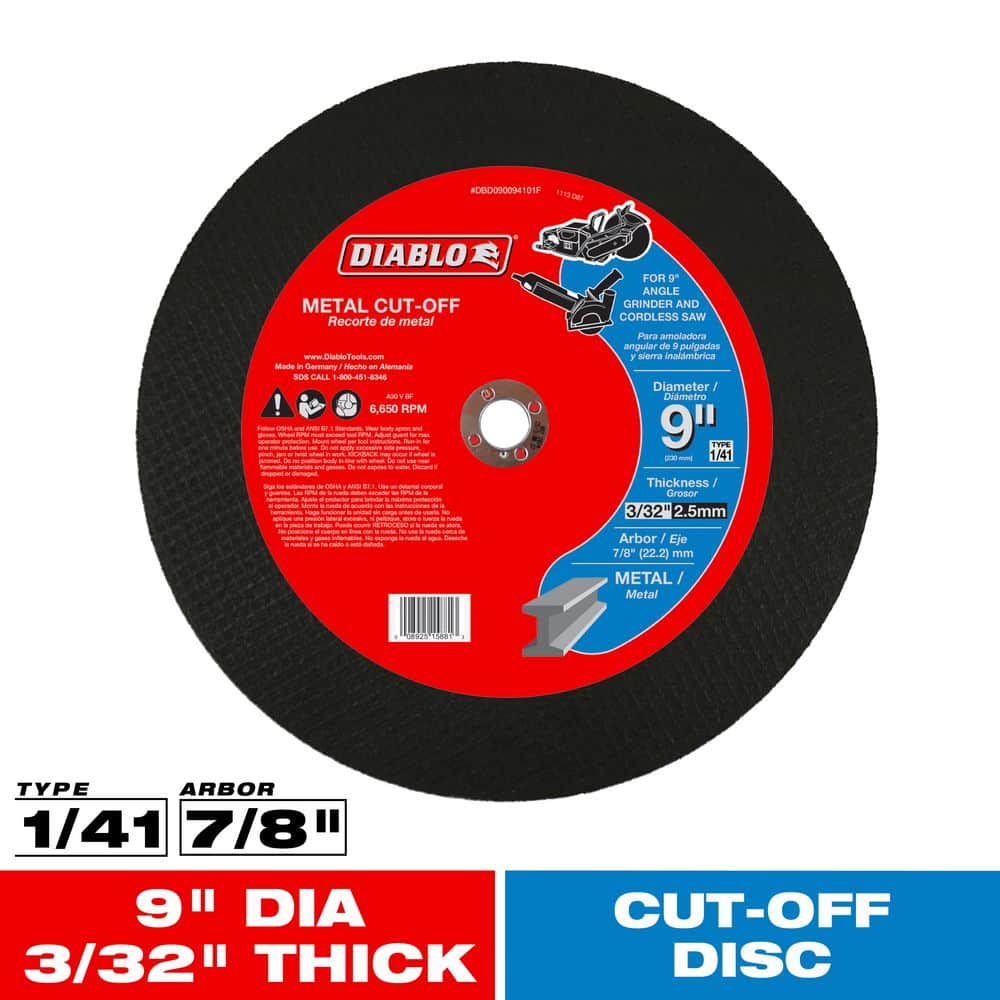

Diablo DBD090093101F 9-Inch x 3/32-Inch Type 1 Metal Cut-Off Wheel

The Diablo DBD090093101F 9-Inch x 3/32-Inch Type 1 Metal Cut-Off Wheel is a fully reinforced abrasive disc engineered for slitting structural steel tubing, rebar, angle iron, and sheet metal on job sites. Rated for a maximum rotational speed of 6,650 RPM with a 7/8-inch arbor size, this Type 1 flat wheel utilizes a 30-grit premium aluminum oxide formulation with a resinoid bond system. Outfitted with heavy-duty fiberglass reinforcement webs for shatter resistance during hand-held grinding operations, this 3/32-inch thin blade executes metal fabrication cuts.

Best Used For:

• Structural Steel Tubing & Channel Cutting: Slicing through heavy wall steel tubing, unistrut, and structural steel beams during metal framing.
• Rebar & Threaded Rod Trimming: Severing thick steel rebar stakes and threaded rod flush in concrete rebar grids.
• Confined Space Pipe Fabrication: Trimming steel pipes and heavy iron stock in restricted clearance zones using 9-inch cordless cutoff saws.

Key Performance & Safety Features

• 30-Grit Premium Aluminum Oxide Blend: Formulated to maintain aggressive abrasive grain sharpness for rapid stock removal in ferrous metals.
• 6,650 Maximum RPM Operating Speed: Engineered to withstand the rotational velocity of high-powered 9-inch angle grinders and cordless cut-off saws.
• Fully Reinforced Fiberglass Construction: Internal high-tensile fiberglass mesh matrix prevents disc deflection and disc shattering under high load.
• Thin 3/32-Inch Kerf Width Profile: Reduces material resistance to produce narrow, burr-free cuts while minimizing power draw on battery tools.
• Universal 7/8-Inch Arbor Fitment: Mounts directly onto standard 7/8-inch grinder spindles and industrial cutoff tool arbors.
• Resinoid Bond Matrix (A30V BF Code): Heat-resistant resin formulation locks abrasive grains securely to prevent premature wheel breakdown.

What's Included

• (1) Diablo DBD090093101F 9-Inch x 3/32-Inch Type 1 Metal Cut-Off Wheel

Technical Specifications

Pro-Tip: Allow the 6,650 RPM wheel speed to do the cutting work without applying heavy downward pressure; excessive force increases thermal stress on the resinoid bond, accelerating wheel wear on thick steel stock.
