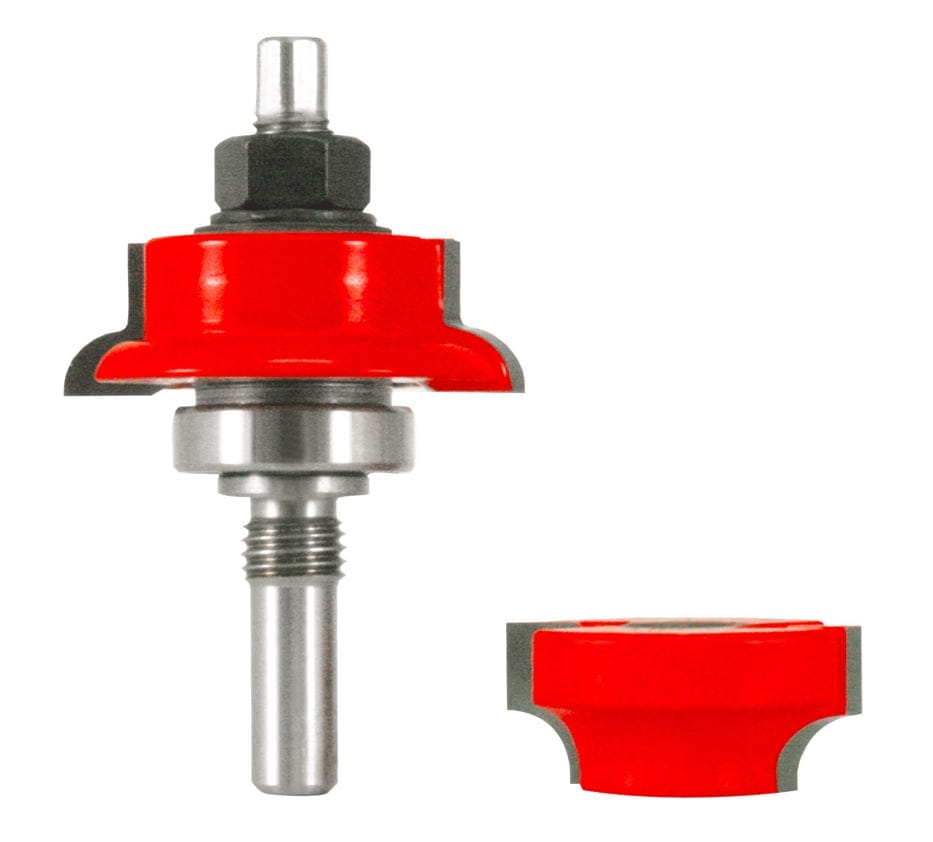

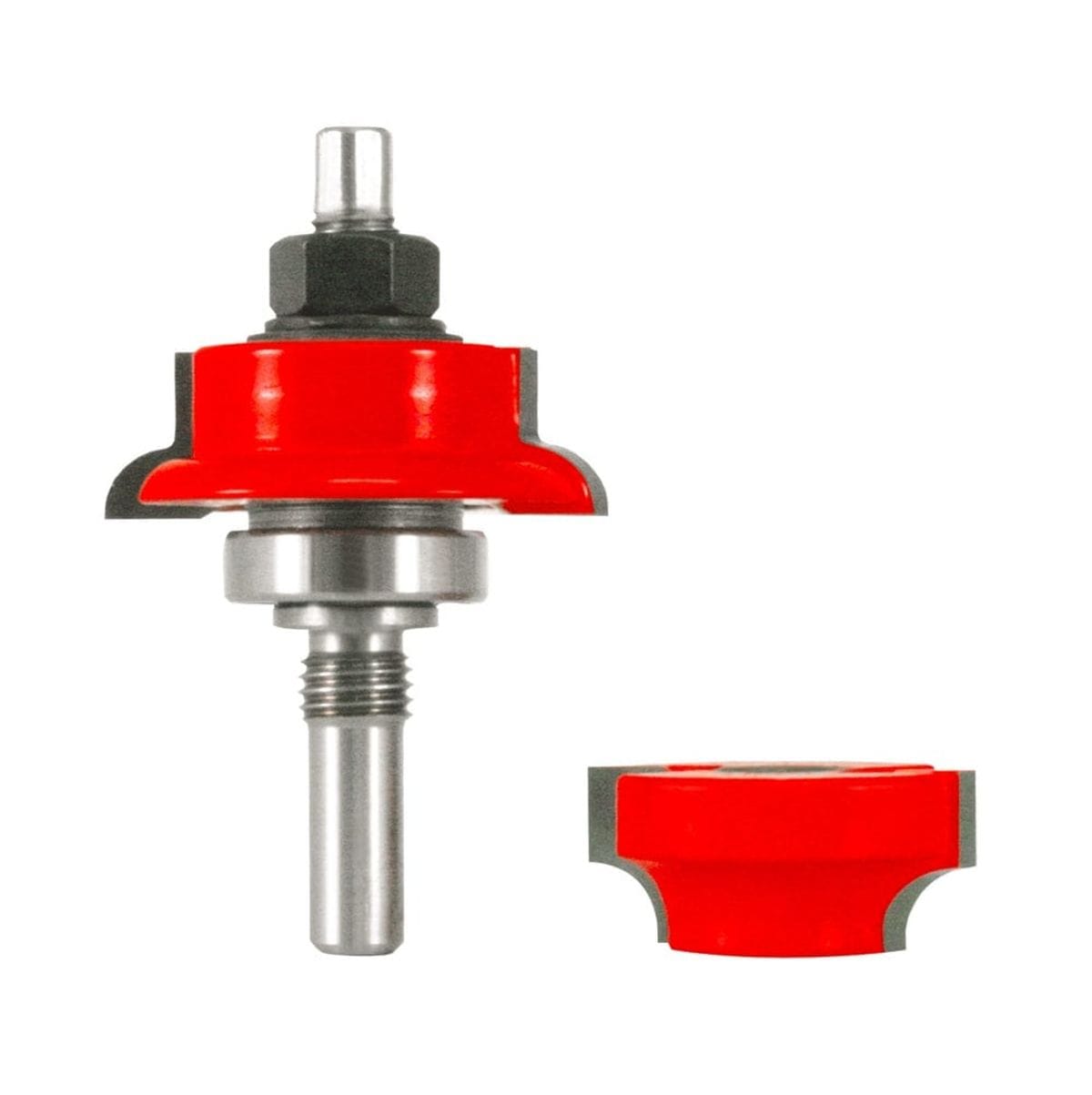

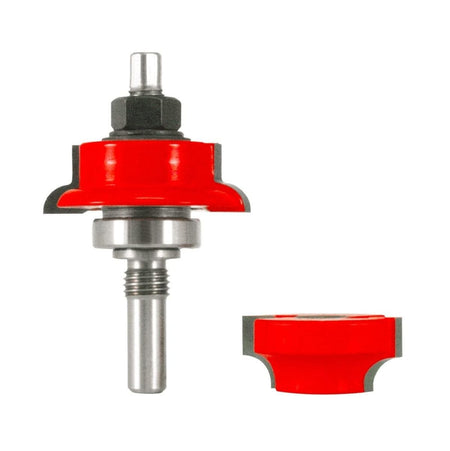

The Freud 99-860 rail and stile router bit set, showing the main bit assembly with its bearing and shank, and the separate rail cutter piece.

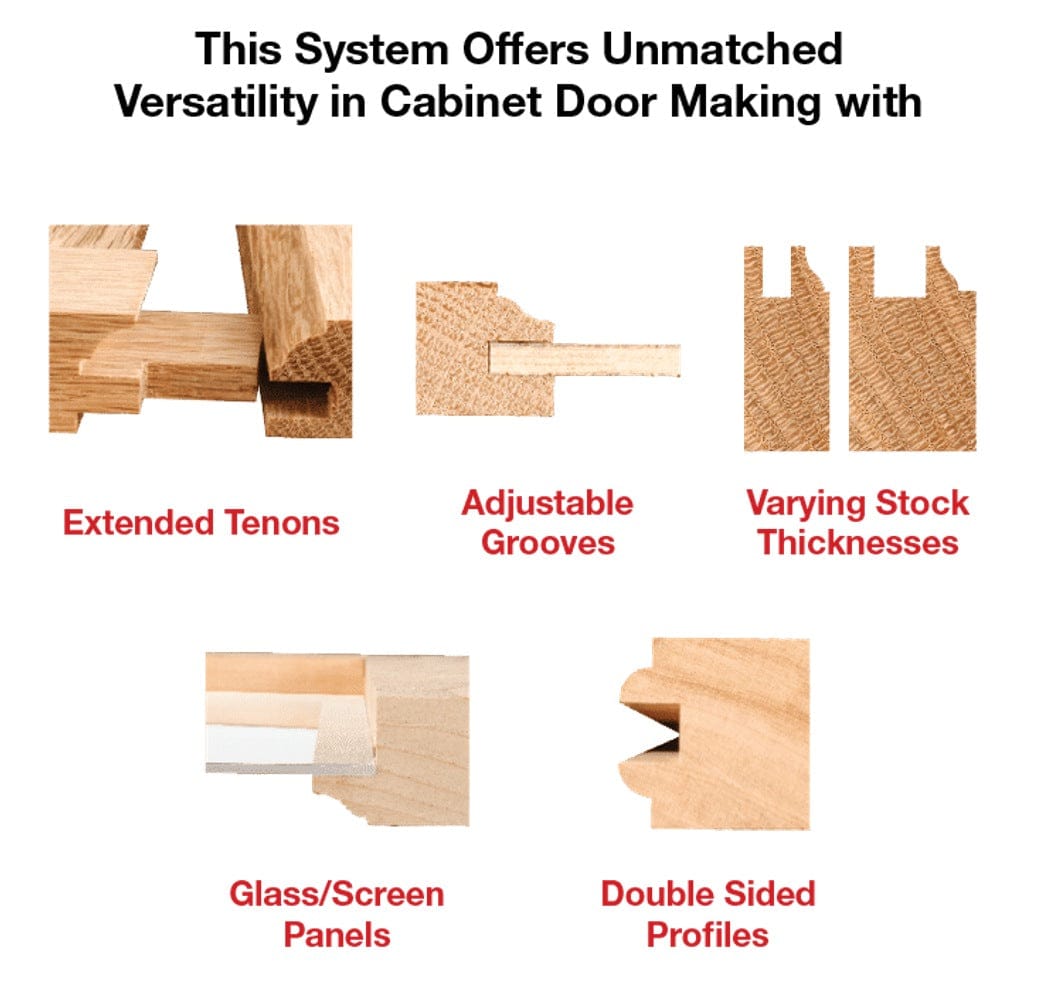

A feature infographic showcasing the versatility of the Freud router bit system with examples of extended tenons, adjustable grooves, varying stock thicknesses, glass panel compatibility, and double-sided profiles.

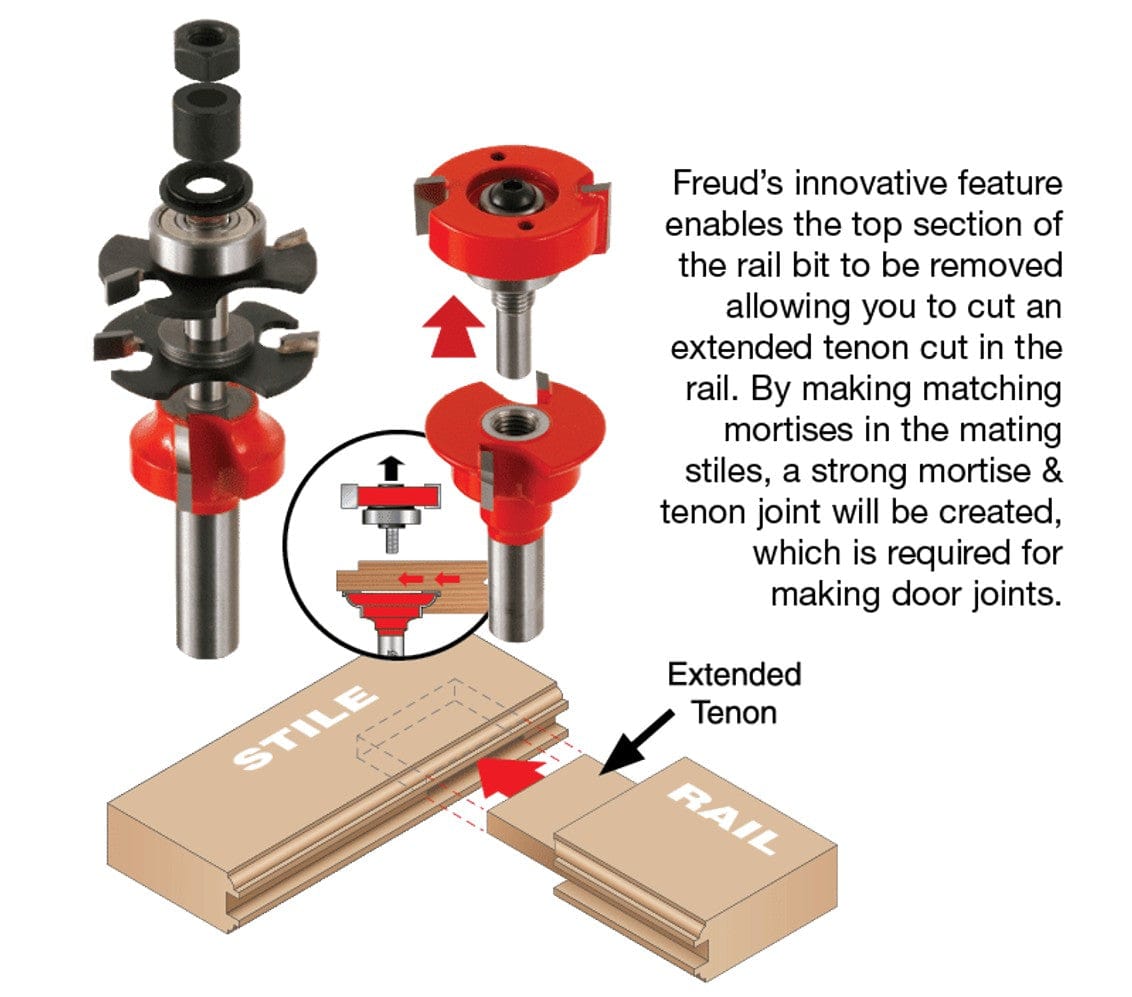

Infographic explaining how the Freud router bit creates a strong extended tenon joint by removing the top section of the bit to cut the rail.

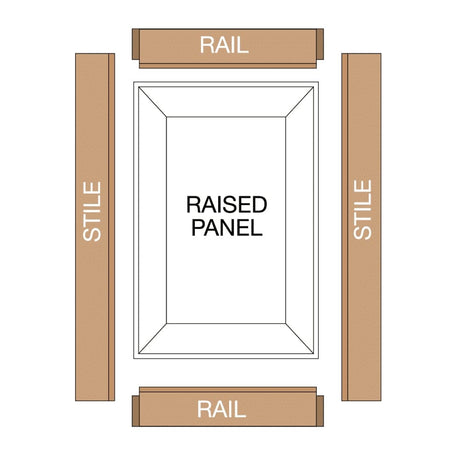

A diagram showing the exploded view of a cabinet door, with the individual components labeled: two stiles, two rails, and a central raised panel.

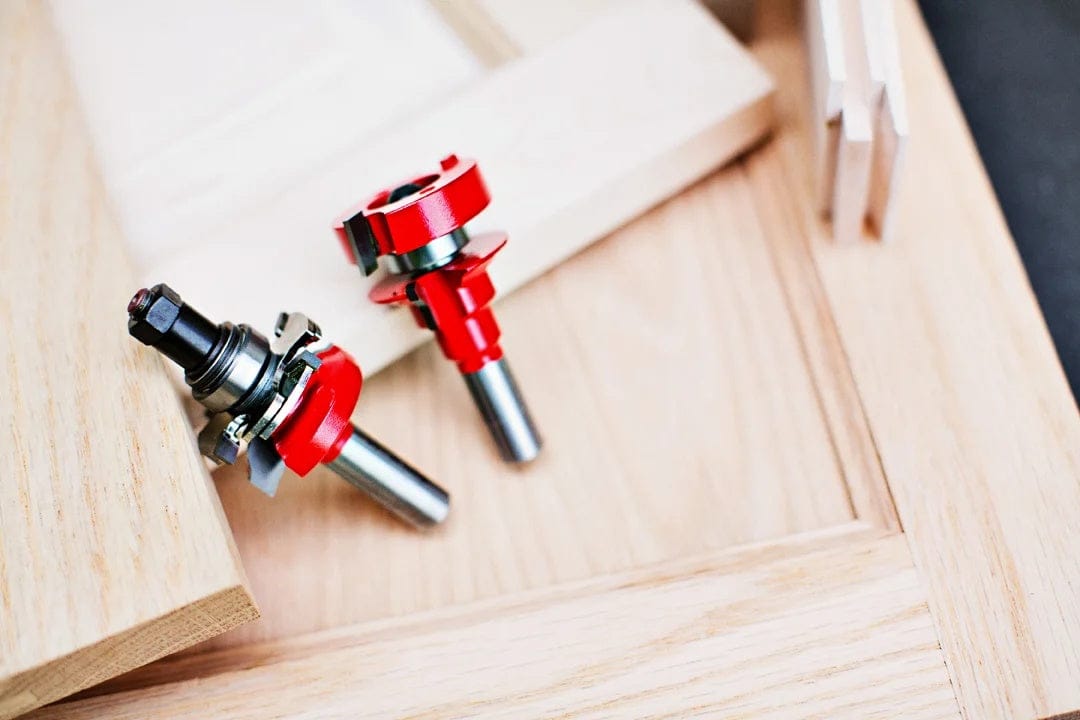

The Freud rail and stile router bits resting on a partially constructed wooden cabinet door in a workshop setting, showing the tools in a real-world application.
The Freud 99-860 rail and stile router bit set, showing the main bit assembly with its bearing and shank, and the separate rail cutter piece.
Premier Adjustable Rail & Stile Preview promotional how to video
The Freud 99-860 rail and stile router bit set, showing the main bit assembly with its bearing and shank, and the separate rail cutter piece.
A feature infographic showcasing the versatility of the Freud router bit system with examples of extended tenons, adjustable grooves, varying stock thicknesses, glass panel compatibility, and double-sided profiles.
Infographic explaining how the Freud router bit creates a strong extended tenon joint by removing the top section of the bit to cut the rail.
A diagram showing the exploded view of a cabinet door, with the individual components labeled: two stiles, two rails, and a central raised panel.
The Freud rail and stile router bits resting on a partially constructed wooden cabinet door in a workshop setting, showing the tools in a real-world application.
The Freud 99-860 rail and stile router bit set, showing the main bit assembly with its bearing and shank, and the separate rail cutter piece.
Premier Adjustable Rail & Stile Preview promotional how to video
Freud

Freud Router Bit 99860 1-11/16 Inch Premier Adjustable Rail And Stile (Round Over Cabinet Door Woodworking Tool)

In stock
SKU: 99-860
$68.50 USD
$106.97 USD Sale $68.50 USD

Description

Freud precisely the best logo Logout

Freud 99-860 Premier Adjustable Rail and Stile Router Bit with 1/2-Inch Shank

The Freud 99-860 Premier Adjustable Rail and Stile Router Bit mills matching profile joints for custom cabinet doors across material thicknesses ranging from 5/8-inch to 1-1/4-inch. Engineered with TiCo high-density carbide cutting tips and patented extended tenon capability, this precision router cutter builds exceptionally strong long-tenon door frames with a clean, tear-out-free round-over profile. Protected by a non-stick Perma-SHIELD thermal coating and equipped with adjustable shims for 7/32-inch to 3/8-inch panel grooves, this 1/2-inch shank woodworking bit operates smoothly in table-mounted routers to deliver professional cabinetmaking results.

Best Used For:

  • Custom Cabinet Door Construction: Milling matching rail and stile joints for kitchen cabinet doors, vanity doors, and architectural paneling.
  • Extended Tenon Frame Assembly: Cutting deep, high-strength tenon joints that provide superior structural gluing surface area for heavy doors.
  • Varying Stock Thickness Shaping: Adjusting groove widths to fit thin plywood panels or thick solid wood center panels seamlessly on table routers.

Key Performance & Safety Features

  • Versatile Material Range: Easily adjusts to mill perfect rail and stile profiles in stock ranging from 5/8-inch to 1-1/4-inch thick.
  • TiCo High-Density Carbide Tips: Premium carbide metallurgy maintains razor-sharp cutting edges and resists wear in hardwoods and softwoods.
  • Patented Extended Tenon Capability: Engineered geometry forms longer tenons to maximize frame joint strength and structural durability.
  • Adjustable Panel Groove Shims: Includes precision shims to customize groove widths from 7/32-inch for plywood up to 3/8-inch for solid panels.
  • Perma-SHIELD Non-Stick Coating: Reduces friction, prevents pitch accumulation, and guards the steel body against rust and heat buildup.

What's Included

  • (1) Freud 99-860 Premier Adjustable Rail and Stile Router Bit with 1/2" Shank
  • (1) Set of Precision Shims for Panel Groove Adjustment

Technical Specifications

Specification Detail
Model Number / Part ID 99-860 (99860)
Overall Cutter Diameter 1.6875 in (1-11/16 in / 42.86 mm)
Router Shank Diameter Size 0.50 in (1/2 in Shank)
Profile Shaping Style Round Over Rail and Stile Profile
Material Thickness Range 0.625 in to 1.25 in (5/8" to 1-1/4")
Panel Groove Adjustment Span 0.218 in to 0.375 in (7/32" to 3/8")
Cutter Tooth Metallurgy TiCo High-Density Tungsten Carbide
Anti-Stick Coating System Perma-SHIELD Thermal Barrier Coating
Recommended Router Setup Table-Mounted Fixed Routers
Target Trade Application Cabinet Door Woodworking and Joinery
Pro-Tip: Feed stock through the Freud adjustable rail and stile router bit using multiple shallow passes rather than a single deep cut; light passes prevent wood burning and ensure clean, splinter-free profiles on cabinet door rails.
