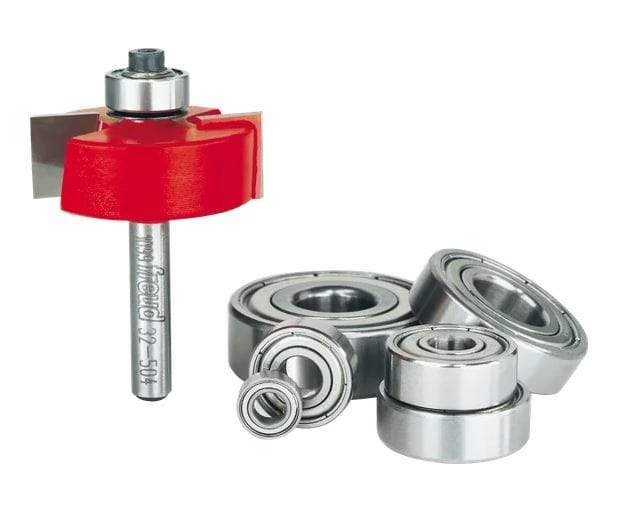

A professional studio photograph of the Freud 32-504 multi-rabbet bit alongside its included accessories, which feature several polished steel ball bearings of varying diameters for adjustable cutting depths.

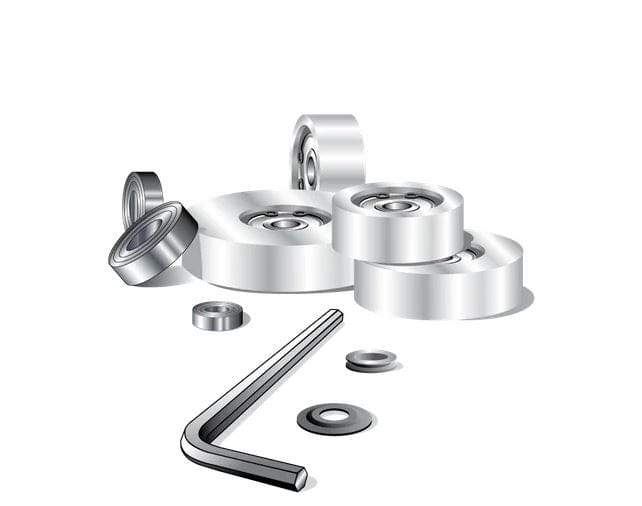

A technical illustration of the accessories included in the Freud 32-504 set, featuring several polished steel ball bearings, specialized step washers, and a black hex key wrench for making bearing changes.
The retail packaging for the Freud 32-504 multi-rabbet set, showcasing the Industrial Router Bit branding and listing the seven available cutting profiles: Flush, 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inch, 7/16 inch, and 1/2 inch.
A detailed technical schematic for the Freud 32-504 bit assembly. The diagram lists various compatible ball bearings, the included hex wrench, and illustrates how the 3/8 inch and 1/2 inch step washers are mounted to the bit's pilot.
An exploded-view technical diagram showing the assembly of the Freud 32-504 flush trim bit. The illustration highlights the 2.5mm hex wrench, cap screw, ball bearing, and step washer used to secure the bearing to the top of the bit.
A technical diagram for the Freud 32-504 bit illustrating a wood cross-section with a red path indicating a rabbet cut that is exactly 7/16 of an inch deep and up to 1/2 of an inch high.
A technical diagram for the Freud 32-504 bit illustrating a wood cross-section with a red path indicating a rabbet cut that is exactly 5/16 of an inch deep and up to 1/2 of an inch high.
A technical diagram for the Freud 32-504 bit illustrating a wood cross-section with a red path indicating a rabbet cut that is exactly 3/8 of an inch deep and up to 1/2 of an inch high.
A technical diagram for the Freud 32-504 bit illustrating a wood cross-section with a red path indicating a rabbet cut that is exactly 1/8 of an inch deep and up to 1/2 of an inch high.
A technical diagram for the Freud 32-504 bit illustrating a wood cross-section with a red path indicating a rabbet cut that is exactly 1/4 of an inch deep and up to 1/2 of an inch high.
A technical diagram for the Freud 32-504 bit illustrating a wood cross-section with a red path indicating a precise 1/2-inch deep rabbet cut that is up to 1/2-inch high.
A two-part technical diagram showing a rectangular wooden block. The top image shows the block with a grey template attached to the bottom, and the bottom image shows the block after routing, with a precise L-shaped rabbet joint cut along the edge.
A close-up action photograph of the Freud 32-504 bit mounted in a router table, performing a clean rabbeting cut on the edge of a piece of plywood.
A professional studio photograph of the Freud 32-504 multi-rabbet bit alongside its included accessories, which feature several polished steel ball bearings of varying diameters for adjustable cutting depths.
A technical illustration of the accessories included in the Freud 32-504 set, featuring several polished steel ball bearings, specialized step washers, and a black hex key wrench for making bearing changes.
The retail packaging for the Freud 32-504 multi-rabbet set, showcasing the Industrial Router Bit branding and listing the seven available cutting profiles: Flush, 1/8 inch, 1/4 inch, 5/16 inch, 3/8 inch, 7/16 inch, and 1/2 inch.
A detailed technical schematic for the Freud 32-504 bit assembly. The diagram lists various compatible ball bearings, the included hex wrench, and illustrates how the 3/8 inch and 1/2 inch step washers are mounted to the bit's pilot.
An exploded-view technical diagram showing the assembly of the Freud 32-504 flush trim bit. The illustration highlights the 2.5mm hex wrench, cap screw, ball bearing, and step washer used to secure the bearing to the top of the bit.
A technical diagram for the Freud 32-504 bit illustrating a wood cross-section with a red path indicating a rabbet cut that is exactly 7/16 of an inch deep and up to 1/2 of an inch high.
A technical diagram for the Freud 32-504 bit illustrating a wood cross-section with a red path indicating a rabbet cut that is exactly 5/16 of an inch deep and up to 1/2 of an inch high.
A technical diagram for the Freud 32-504 bit illustrating a wood cross-section with a red path indicating a rabbet cut that is exactly 3/8 of an inch deep and up to 1/2 of an inch high.
A technical diagram for the Freud 32-504 bit illustrating a wood cross-section with a red path indicating a rabbet cut that is exactly 1/8 of an inch deep and up to 1/2 of an inch high.
A technical diagram for the Freud 32-504 bit illustrating a wood cross-section with a red path indicating a rabbet cut that is exactly 1/4 of an inch deep and up to 1/2 of an inch high.
A technical diagram for the Freud 32-504 bit illustrating a wood cross-section with a red path indicating a precise 1/2-inch deep rabbet cut that is up to 1/2-inch high.
A two-part technical diagram showing a rectangular wooden block. The top image shows the block with a grey template attached to the bottom, and the bottom image shows the block after routing, with a precise L-shaped rabbet joint cut along the edge.
A close-up action photograph of the Freud 32-504 bit mounted in a router table, performing a clean rabbeting cut on the edge of a piece of plywood.
Freud

Freud 32-504 Multi-Rabbet Router Bit Set with Bearings 1/4 Inch Shank TiCo Carbide Tipped Joinery Tool for Cabinet Back Panels and Flush Trimming

In stock
SKU: 32-504
$39.95
$59.00 Sale $39.95

Description

Master Precision Joinery with Freud’s Versatile Multi-Rabbet Adjustable Router Bit Set

The Freud 32-504 Multi-Rabbet Router Bit Set is an essential solution for furniture makers and cabinetmakers who require ultimate flexibility in their shop. This high-performance set allows you to quickly adjust your cutting depth by simply interchanging the included precision ball bearings. Whether you are milling strong rabbeted joints, cutting deep recesses for cabinet back panels, or creating sophisticated decorative details on built-up moldings, this bit delivers a mirror-smooth finish every time.

Beyond standard joinery, the 32-504 offers dual-functionality as a flush cutting trim bit, making it a true workhorse in your tool collection. Constructed with Freud's proprietary TiCo™ Hi-Density Carbide and protected by a non-stick Perma-SHIELD® Coating, this bit is engineered to reduce blade drag and prevent heat buildup. Optimized for use in hand-held or table-mounted routers, it effortlessly handles solid hardwoods, softwoods, plywood, and abrasive wood-based composites.

Key Features

  • Multi-Depth Versatility: Interchangeable bearings allow for fast, easy adjustments to profile sizes with a single bit.
  • Dual-Function Design: Expertly performs both rabbeting and flush-cutting trim tasks for maximum utility.
  • TiCo™ Hi-Density Carbide: Specialized industrial-grade carbide formulation for maximum tool life and long-term sharpness.
  • Perma-SHIELD® Coating: Non-stick red coating protects the tool from heat collection, corrosion, and pitch buildup.
  • Universal Material Compatibility: Precision-ground to cut through all hardwoods, softwoods, plywood, and composites.
  • Machine Compatibility: Specifically designed for peak performance in hand-held and table-mounted portable routers.

What's Included

  • (1) Freud 32-504 Rabbeting Router Bit (1/4" Shank)
  • (1) #62-102 - 3/8" Ball Bearing
  • (1) #62-104 - 1/2" Ball Bearing
  • (1) #62-114 - 1-1/8" Ball Bearing
  • (1) #62-311 - Washer
  • (1) #62-313 - Washer
  • (1) Bearing Adjustment Wrench

Specifications

Number of Cutters 2
Overall Diameter (D) 1-3/8 Inches
Overall Length (H) 2-1/4 Inches
Shank Diameter (A) 1/4 Inch
Carbide Height (h) 1/2 Inch
Cut Depths Flush, 1/8", 1/4", 5/16", 3/8", 7/16", 1/2"
Bit Material TiCo™ Carbide Tipped
Coating Non-Stick Red Perma-SHIELD®
Maximum RPM 16,000 RPM
Application Rabbeting, Recesses, & Flush Trimming
Pro-Tip: To achieve a perfectly clean rabbet on the end grain, always start your cut on the end grain first before moving to the long grain edges. This allows the subsequent long grain cuts to "clean up" any minor splintering that may occur at the corners, ensuring a mirror-smooth finish for your joinery.
