Bosch GBH18V-22K24-RT 18V Brushless 3/4-Inch SDS-Plus Rotary Hammer Kit with Two 4.0 Ah Batteries, Reconditioned
Couldn't load pickup availability
Bosch GBH18V-22K24-RT 18V Brushless SDS-Plus Bulldog Rotary Hammer Kit
The Bosch GBH18V-22K24-RT Bulldog Rotary Hammer Kit is a reconditioned cordless tool designed for concrete drilling, masonry work, and chiseling. Its 18V brushless motor delivers 1.4 ft-lbs of impact energy (EPTA) with a maximum concrete drilling capacity of 3/4 inch.
The compact L-shaped housing is suited for overhead drilling and applications with limited working clearance. The rotary hammer features three operating modes and includes two 4.0 Ah batteries.
Best Used For
- Concrete and masonry anchor installation.
- Overhead concrete drilling.
- Light chiseling and material removal.
- Electrical, plumbing, and mechanical installations.
- Construction and renovation applications.
Key Features
- Brushless Motor: Operates without carbon brushes.
- 1.4 Ft-Lbs Impact Energy: Supports concrete drilling and chiseling.
- SDS-Plus Chuck: Accepts compatible drill bits and chisels.
- KickBack Control: Helps reduce sudden tool reactions if the bit binds.
- Anti-Vibration System: Reduces vibration transferred to the operator.
- Variable-Speed Trigger: Provides adjustable drilling speed.
- Vario-Lock: Allows adjustment of the chisel angle.
- Three Operating Modes: Rotary hammer, rotation only, and hammer only.
- LED Work Light: Illuminates the working area.
- Dust Collection Compatibility: Supports the optional Bosch GDE18V-12 attachment.
What's Included

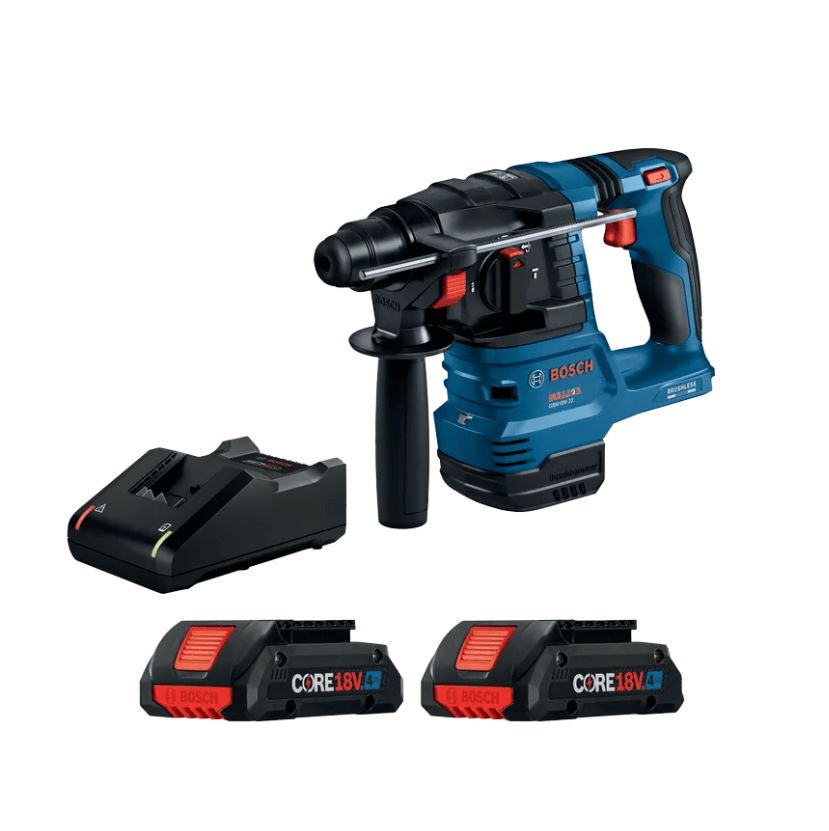

- (1) Bosch GBH18V-22 18V Brushless SDS-Plus Bulldog Rotary Hammer, reconditioned.
- (2) Bosch 18V 4.0 Ah lithium-ion batteries.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Bosch |
| Model Number | GBH18V-22K24-RT |
| Base Tool Model | GBH18V-22 |
| Product Line | Bulldog |
| Product Condition | Reconditioned |
| Product Type | Cordless Rotary Hammer Kit |
| Voltage | 18V |
| Power Source | Cordless Lithium-Ion Battery |
| Motor Type | Brushless |
| Chuck Type | SDS-Plus, Keyless |
| Maximum Concrete Drilling Capacity | 3/4 in. |
| Maximum Thin-Wall Core Bit Capacity | 2-1/2 in. |
| Maximum Steel Drilling Capacity | 1/2 in. |
| Maximum Wood Drilling Capacity | 1-1/4 in. |
| Impact Energy (EPTA) | 1.4 ft-lbs |
| No-Load Speed | 0–1,050 RPM |
| No-Load Impact Rate | 0–4,675 BPM |
| Operating Modes | Rotary Hammer, Rotation Only, Hammer Only |
| Variable Speed | Yes |
| Reverse Function | Yes |
| KickBack Control | Yes |
| Vibration Reduction | Yes |
| LED Work Light | Yes |
| Battery Platform | Bosch 18V |
| Battery Chemistry | Lithium-Ion |
| Battery Capacity | 4.0 Ah Each |
| Number of Batteries Included | 2 |
| Overall Length | 11.5 in. |
| Overall Width | 3.25 in. |
| Overall Height | 8.1 in. |
| Tool Weight | 5.1 lbs (Without Battery) |
| Compatible Dust Collection Attachment | Bosch GDE18V-12 |
| Tool Configuration | Battery Kit |
Frequently Asked Questions
Is this rotary hammer new or reconditioned?
The GBH18V-22K24-RT is a reconditioned rotary hammer kit.
How many batteries are included?
The kit includes two 18V 4.0 Ah lithium-ion batteries.
What is the maximum concrete drilling capacity?
The rotary hammer accommodates concrete drill bits up to 3/4 inch in diameter.
Can this rotary hammer be used for chiseling?
Yes. Hammer-only mode supports compatible SDS-Plus chisels.
Can this rotary hammer drill wood and steel?
Yes. Rotation-only mode supports conventional drilling with suitable bits and compatible chuck accessories.
Does this tool support dust collection?
Yes. It is compatible with the optional Bosch GDE18V-12 dust collection attachment.
