GearWrench Ratcheting Wrench Set 86450 11 Piece 120XP Universal Spline XL SAE (3 Degree Swing Arc Full Polish Chrome Alloy Steel)

In stock
SKU: 86450
$159.00 USD

Description

Gearwrench Forge Ahead Logo Logout

GearWrench 86450 11-Piece 120XP Universal Spline XL SAE Ratcheting Wrench Set

The GearWrench 86450 11-Piece 120XP Universal Spline XL Ratcheting Wrench Set is an industrial hand tool system engineered for high-torque fastening across tight engine bays and restricted equipment clearances. Powered by double-stacked 60-tooth pawls delivering 120 positions and an ultra-tight 3-degree swing arc, this 2.86-pound alloy steel set features Universal Spline box ends that fit six distinct fastener profiles, including 6-point, 12-point, E-Torx, spline, square, and partially rounded hex heads. Built with an extended XL beam length up to 25% longer than standard wrenches, these full-polish chrome SAE wrenches maximize leverage and reach when breaking loose seized nuts and bolts in automotive and industrial applications.

Best Used For:

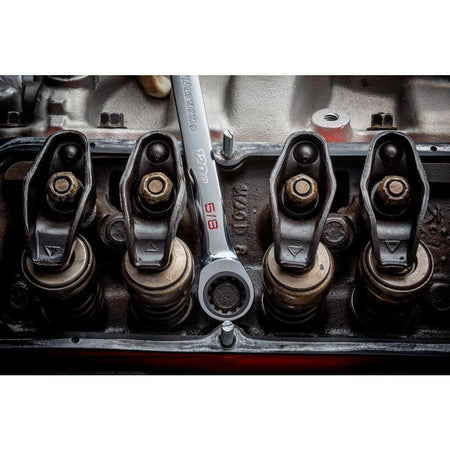

  • Restricted Access Engine & Chassis Repair: Turning hard-to-reach automotive fasteners in tight engine compartments requiring a minimal 3-degree handle swing arc.
  • Multi-Profile Fastener Servicing: Engaging 6-point, 12-point, E-Torx, spline, square, and damaged hex fasteners with a single universal box end.
  • High-Torque Bolt Breakaway: Applying extra leverage on stubborn or frozen SAE nuts using the 25% longer XL beam wrench shaft.

Key Performance & Safety Features

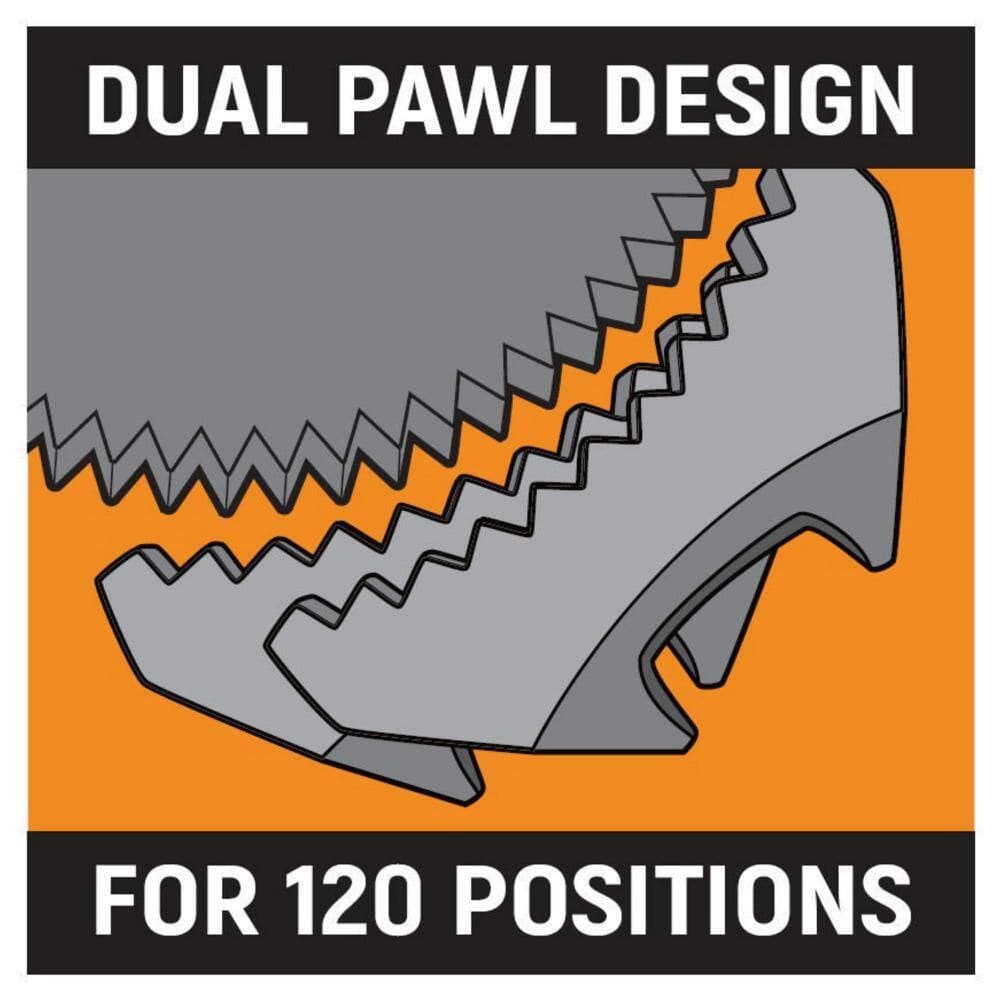

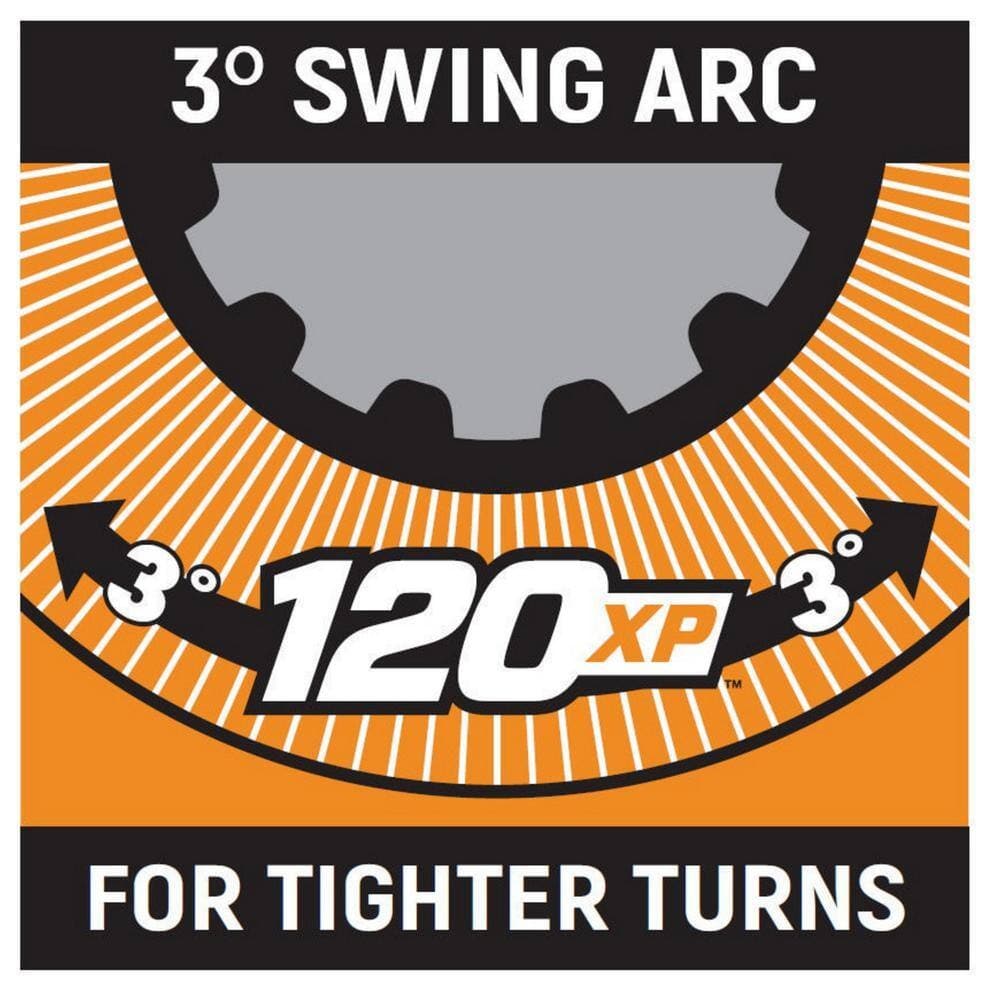

  • 120XP Double-Stacked Pawl Technology: Alternating 60-tooth pawls produce a 120-position ratcheting mechanism for precise 3-degree swing arc operation in cramped spaces.
  • Universal Spline Drive Box End: Specialized box end profile grips 6 fastener geometries: 6-point, 12-point, rounded 6-point, spline, E-Torx, and 4-point square heads.
  • 25% Extended XL Beam Geometry: Longer wrench shaft design increases mechanical leverage to decrease manual effort on high-torque applications.
  • Off-Corner Loading Surface Grip: Box end design directs rotational force onto the flat sides of the fastener head rather than the corners to prevent stripping.

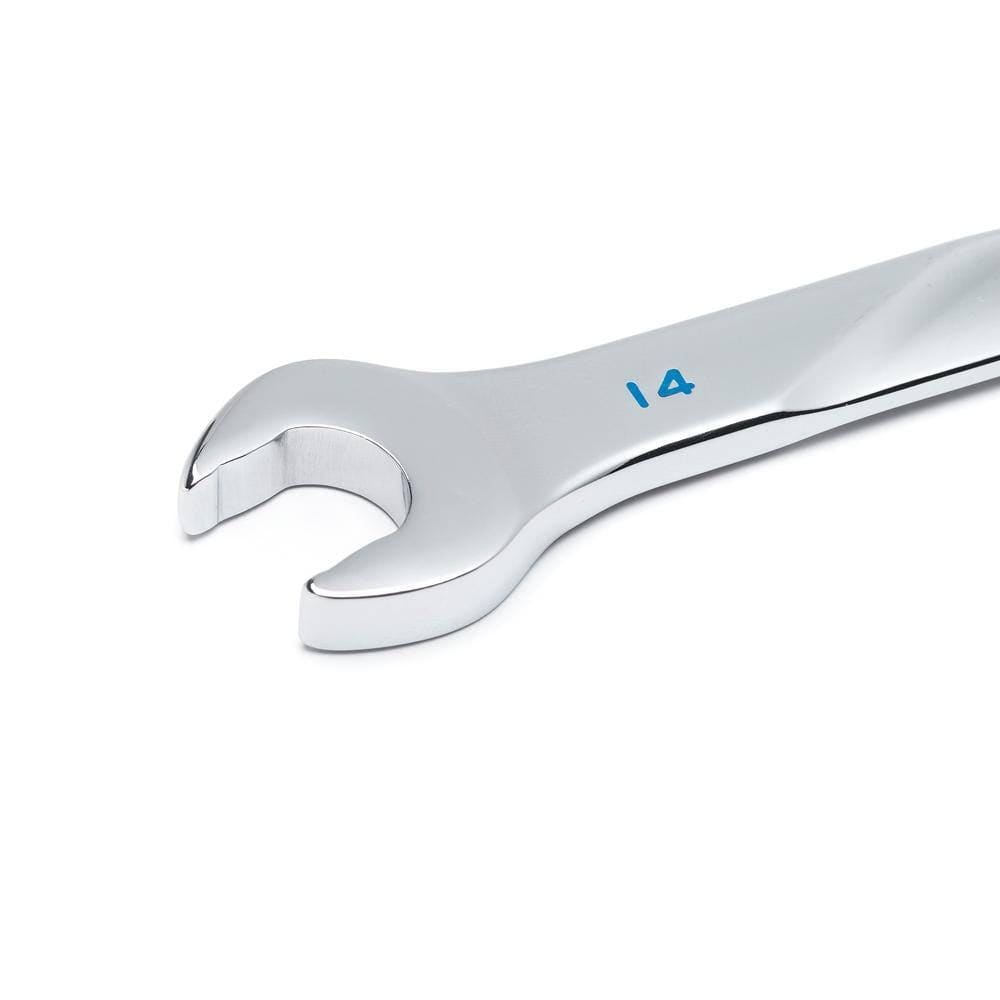

  • Slim-Line Head & Open-End Profile: Reduced box-end diameter and slim open-end head slip into narrow mechanical gaps where standard thickness wrenches bind.
  • High-Visibility Color-Coded Markings: Color-coded recessed size stamps (Red for SAE) allow fast size identification inside dark tool chests and work bays.

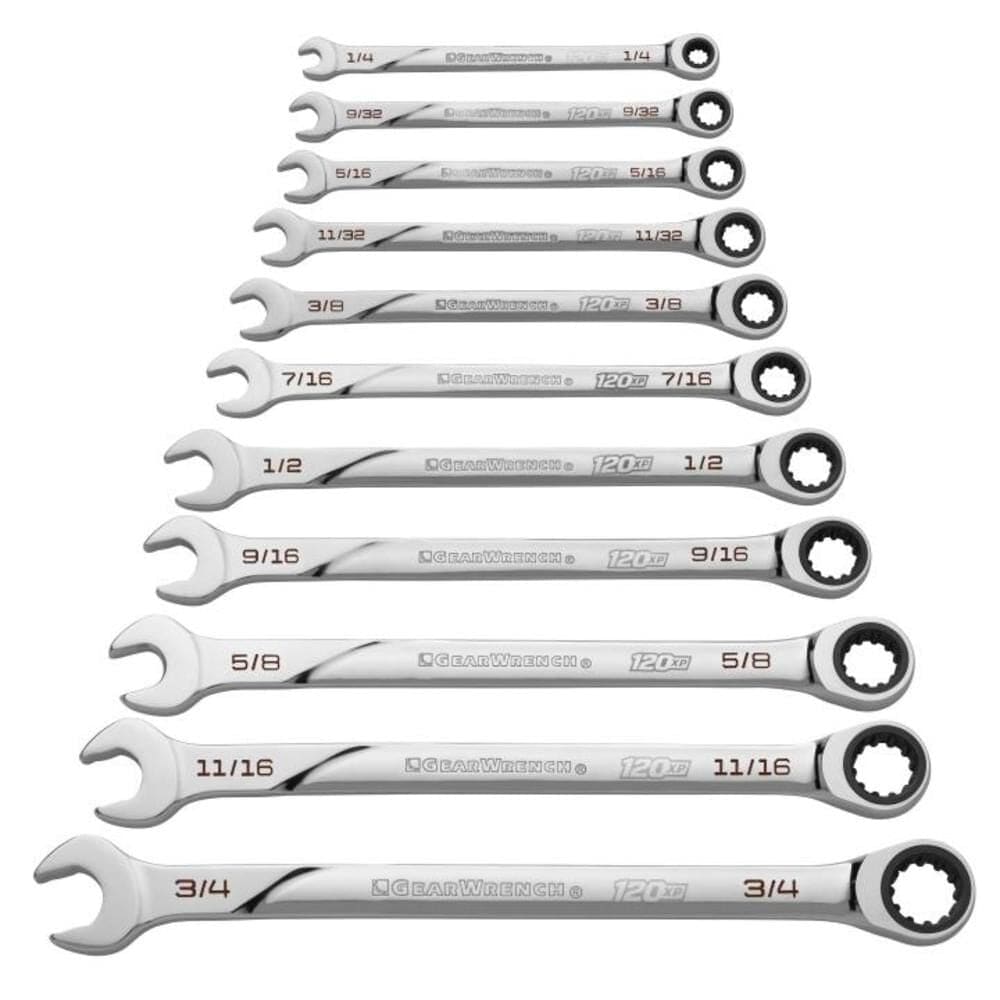

What's Included

  • (1) 1/4" 120XP Universal Spline XL Combination Ratcheting Wrench
  • (1) 9/32" 120XP Universal Spline XL Combination Ratcheting Wrench
  • (1) 5/16" 120XP Universal Spline XL Combination Ratcheting Wrench
  • (1) 11/32" 120XP Universal Spline XL Combination Ratcheting Wrench
  • (1) 3/8" 120XP Universal Spline XL Combination Ratcheting Wrench
  • (1) 7/16" 120XP Universal Spline XL Combination Ratcheting Wrench
  • (1) 1/2" 120XP Universal Spline XL Combination Ratcheting Wrench
  • (1) 9/16" 120XP Universal Spline XL Combination Ratcheting Wrench
  • (1) 5/8" 120XP Universal Spline XL Combination Ratcheting Wrench
  • (1) 11/16" 120XP Universal Spline XL Combination Ratcheting Wrench
  • (1) 3/4" 120XP Universal Spline XL Combination Ratcheting Wrench

Technical Specifications

Brand / Manufacturer GearWrench
Model / Part Number 86450
Measurement System SAE (Imperial / Fractional)
Piece Count 11 Pieces
Size Range Included 1/4 in. to 3/4 in. (1/4", 9/32", 5/16", 11/32", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4")
Ratchet Mechanism & Tooth Count 120XP Double-Stacked Pawls (120 Positions)
Minimum Swing Arc 3.0 Degrees
Box End Drive Type Universal Spline (Fits 6-pt, 12-pt, Spline, E-Torx, Square, Rounded 6-pt)
Beam Length Format Extra Long (XL Beam Pattern)
Box End Offset Angle 0 Degrees Straight Profile
Material Construction Heat-Treated Alloy Steel
Finish & Coating Full Polish Chrome Finish
Total Weight 2.86 lbs (1.30 kg)

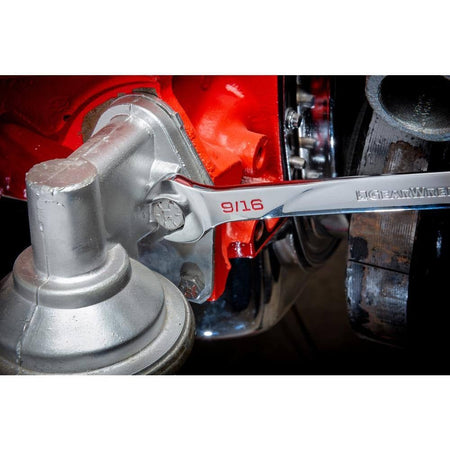

Pro-Tip: Use the open end for initial high-torque fastener loosening, then slip the 3-degree 120XP ratcheting box end onto the bolt head to rapidly back out thread passes in tight clearances without resetting the tool angle.
