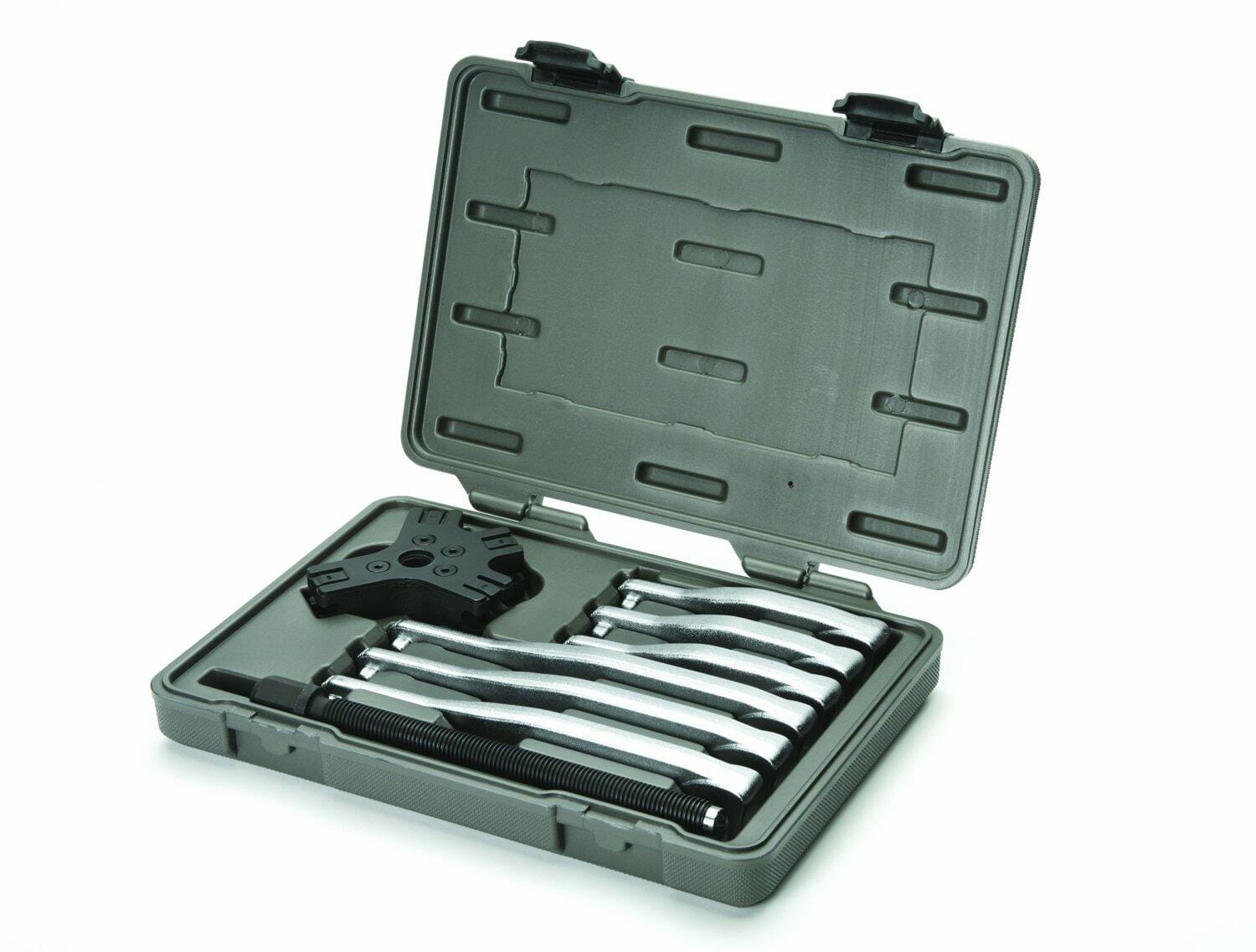

GEARWRENCH puller kit in a molded plastic case. Includes central puller body, multiple curved arms, and threaded screw. Components are organized in fitted compartments for secure storage and transport.

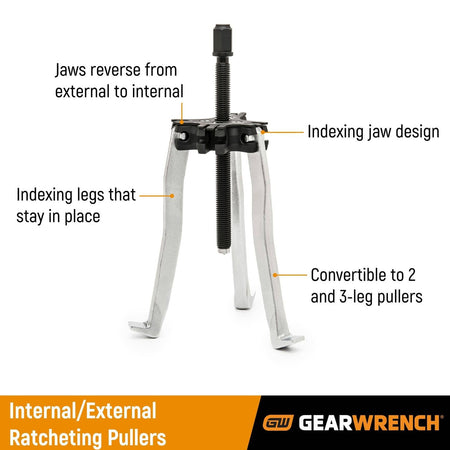

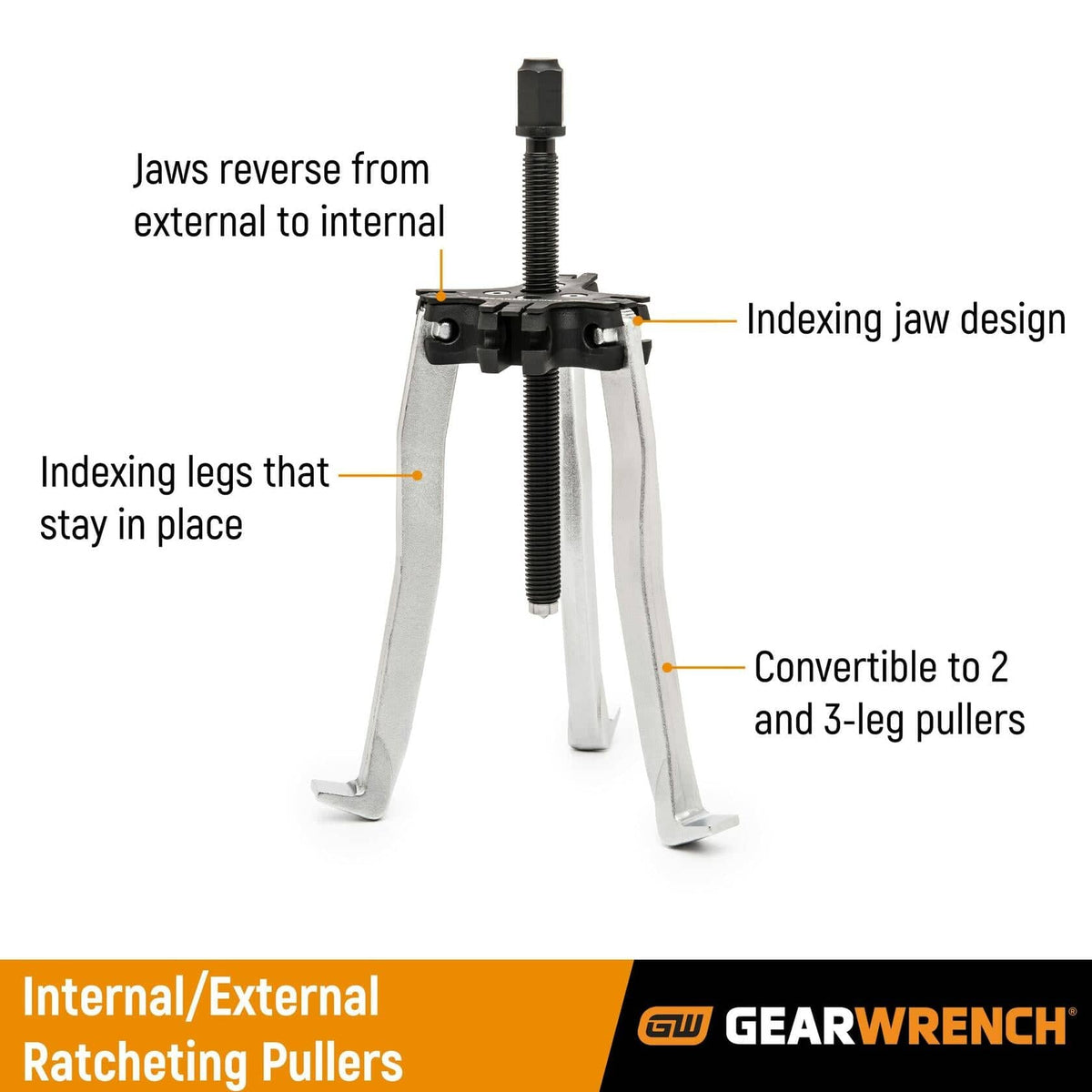

Labeled diagram of the GEARWRENCH ratcheting puller tool showing key features: reversible jaws for internal/external use, indexing jaw design, legs that lock into position, and convertible 2- or 3-leg setup. Designed for removing gears, pulleys, and bearings.

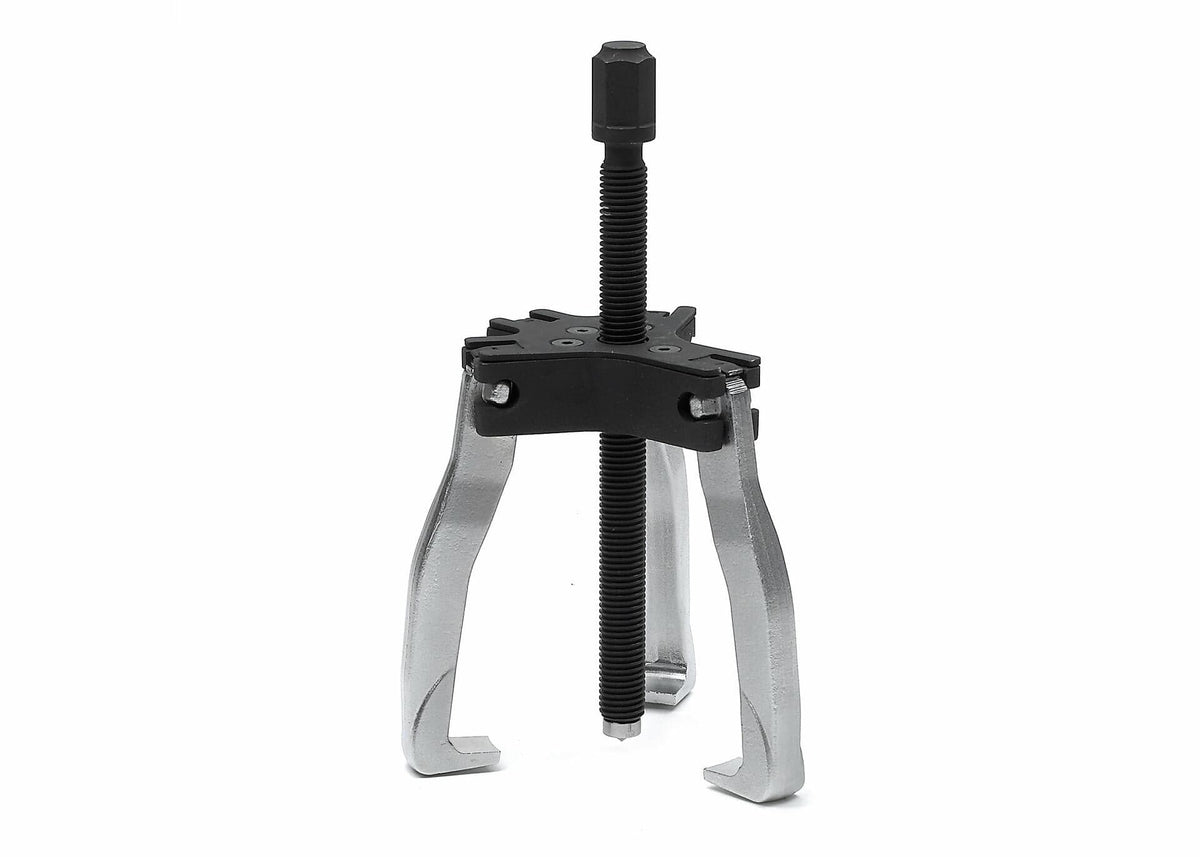

Three-jaw gear puller tool with central threaded screw and adjustable arms. Used for removing press-fitted components such as gears, pulleys, and bearings from shafts in automotive and mechanical repair.
GEARWRENCH puller kit in a molded plastic case. Includes central puller body, multiple curved arms, and threaded screw. Components are organized in fitted compartments for secure storage and transport.
Labeled diagram of the GEARWRENCH ratcheting puller tool showing key features: reversible jaws for internal/external use, indexing jaw design, legs that lock into position, and convertible 2- or 3-leg setup. Designed for removing gears, pulleys, and bearings.
Three-jaw gear puller tool with central threaded screw and adjustable arms. Used for removing press-fitted components such as gears, pulleys, and bearings from shafts in automotive and mechanical repair.
GEARWRENCH

GEARWRENCH 3628D 5-Ton Ratcheting Puller Set with Short and Long Legs

In stock
SKU: 3628D
$126.99 USD

Description

GEARWRENCH 3628D 5-Ton Ratcheting Puller Set with Short and Long Legs

The GEARWRENCH 3628D 5-Ton Ratcheting Puller Set features a time-saving indexing jaw design where legs lock into position and stay put, allowing you to easily support the puller and connect each jaw one at a time. The pullers easily convert between 2-jaw and 3-jaw configurations and allow jaws to reverse from external to internal style in seconds. Supplied with both short and long legs in a durable blow-mold storage case, this set is built for professional automotive and industrial bearing, gear, and pulley removal.

Best Used For:

  • Automotive Powertrain Service: Pulling pressed-on timing gears, harmonic balancers, and transmission bearings.
  • Industrial Machinery Maintenance: Extracting stubborn pulleys and shafts in cramped industrial equipment enclosures.
  • Fleet & Mobile Repair: Servicing heavy commercial vehicles where quick tool reconfiguration is vital.

Key Performance & Safety Features

  • Ratcheting Indexing Jaw Design: Legs index into position and stay in place so you can connect each jaw independently without assistance.
  • Convertible Configuration: Instantly switch between 2-jaw and 3-jaw setups based on pulling clearance and load requirements.
  • Reversible Jaws: Quickly change between internal grip and external pull styles in seconds.
  • Short & Long Leg Inclusions: Provides a 5-inch max spread for standard tasks and a 7.5-inch max spread for deep-set components.
  • 5-Ton High-Torque Capacity: Engineered from high-strength forged steel to withstand demanding shop environments.
  • Blow-Mold Storage Case: Keeps components neatly organized, protected, and ready for mobile service work.

What's Included

  • 1 × GEARWRENCH 5-Ton Ratcheting Puller Body
  • 3 × Short Legs (5" Max Spread)
  • 3 × Long Legs (7.5" Max Spread)
  • 1 × Blow-Mold Storage Case

Technical Specifications

Specification Parameter Product Detail
Brand / Manufacturer GEARWRENCH
Model Number / SKU 3628D
Pulling Capacity 5 Tons (High-Torque Rating)
Jaw Configurations Convertible 2-Jaw or 3-Jaw Setup
Pulling Styles Internal & External Reversible Jaws
Spread & Reach (Short Legs) 5" Max Spread / 4" Reach
Spread & Reach (Long Legs) 7.5" Max Spread / 6.75" Reach
Forged Material Heavy-Duty Alloy Steel
Warranty Coverage Full Lifetime Warranty
Universal Product Code (UPC) 082171036286

💡 PRO-TIP: When extracting tightly seated bearings or gears, apply light pre-tensioning torque to the center forcing screw, then tap the head of the screw lightly with a brass hammer to shock the component free without damaging surrounding housing threads.

Frequently Asked Questions: GEARWRENCH 3628D

Q: What is the pulling capacity of the GEARWRENCH 3628D set?

A: The set is rated for up to 5 tons of high-torque pulling force for demanding industrial and automotive applications.

Q: Can the jaws be converted between 2-jaw and 3-jaw setups?

A: Yes, the puller converts easily between 2-leg and 3-leg configurations and features reversible jaws for internal and external pulling.

Q: What leg options and maximum spreads are included?

A: The kit includes both short legs with a 5-inch max spread and long legs with a 7-1/2-inch max spread for deeper, hard-to-reach components.

Q: What is included in the package?

A: The set includes a ratcheting puller body, 3 short legs, 3 long legs, and a rugged blow-mold storage case.
