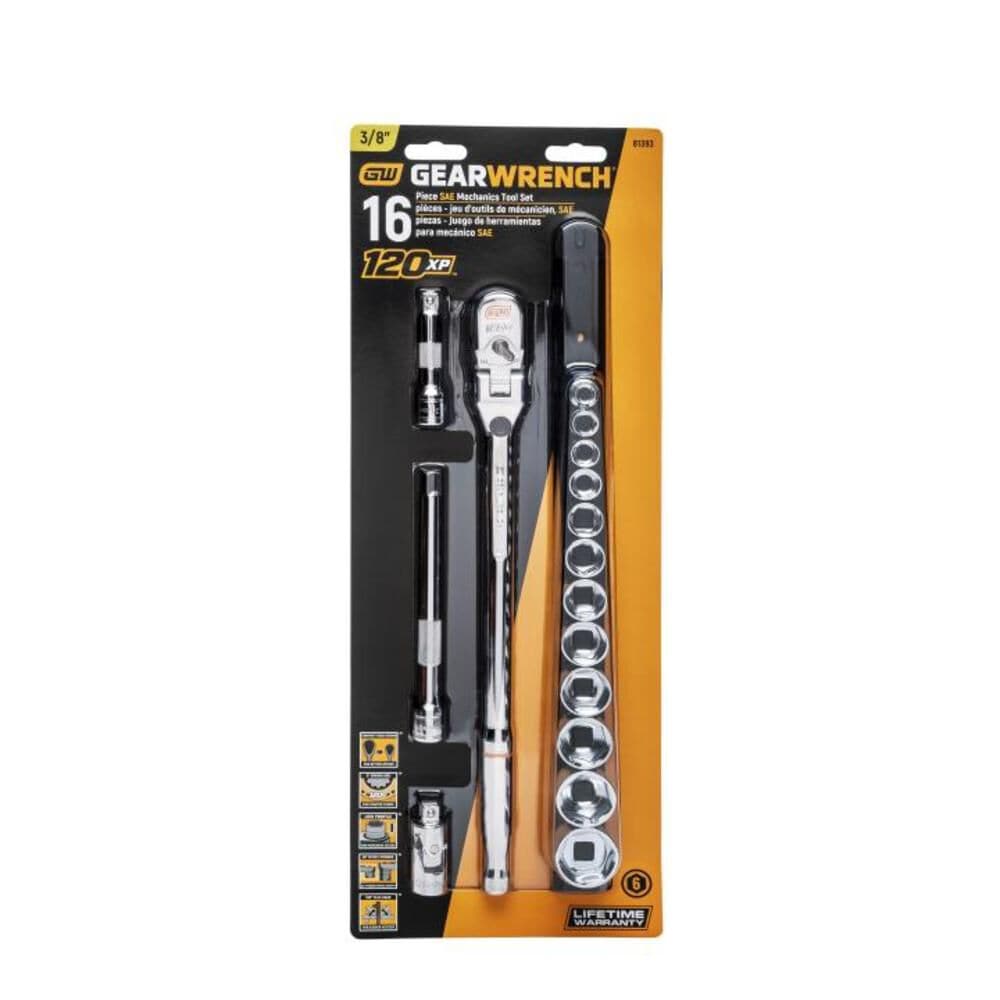

Full view of the retail carded packaging for the Gearwrench 81393 16-piece 3/8-inch drive set, displaying the locking flex head ratchet, extension bars, universal joint, and stubby sockets secured on a plastic storage rail.
Technical marketing graphic featuring an orange background with text reading 3 Degree Swing Arc For Tighter Turns, illustrating a internal cross section view of the 120XP ratchet gear tooth structure.
Product detail illustration with a vibrant orange background, highlighting text labeled 180 Degree Flex Head For Easier Access alongside a directional blueprint diagram showing the swivel motion parameters of the tool neck.
An informational graphic with black headers stating Entry Angle and Guides Fastener, featuring a technical diagram that explains the protective off-corner loading socket design that reduces fastener rounding.
Technical diagram with structural text reading Dual Pawl Design For 120 Positions, detailing the interlocking stacked alignment configuration that handles specialized mechanical force distribution.
Comparative side-by-side product diagram titled Low Profile Sockets For Better Access, contrasting the physical vertical height of a standard drive socket against an ultra-shallow stubby socket module.
Product informational graphic on a bright orange background with headers reading Includes Socket Rail and For Easy Storage, showing a stylized illustration of a secure organizational storage rail with modular holder clips.
Close-up action shot of a person using a full polish chrome Gearwrench locking flex head ratchet and stubby SAE socket to reach and turn a low-clearance bolt underneath a valve assembly on black industrial plant machinery.

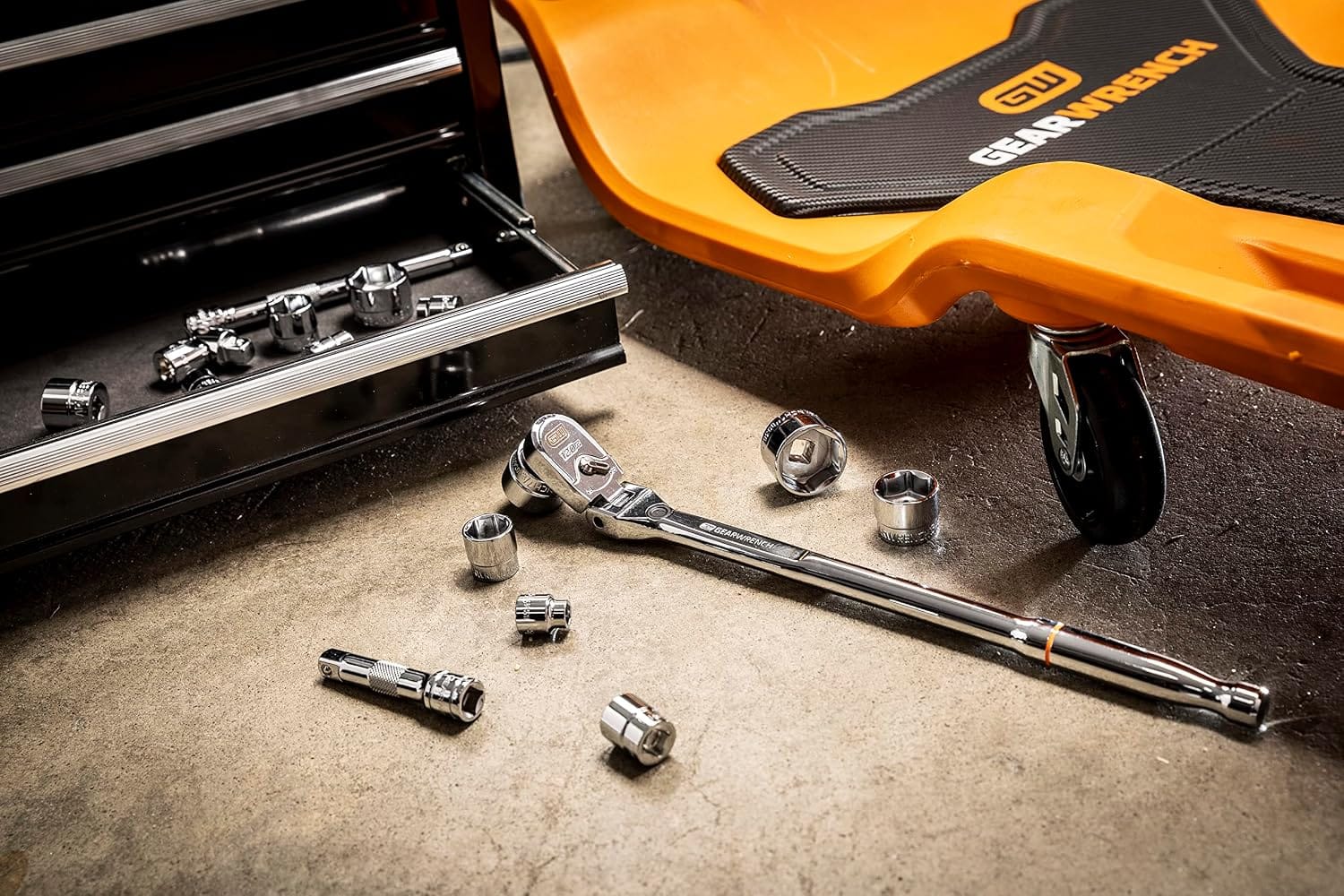

High-angle workshop floor photograph featuring the chrome Gearwrench 120XP flex head ratchet surrounded by loose stubby 6-point SAE sockets and an extension bar, situated next to an orange mechanic creeper and an open tool chest drawer.
Automotive workspace shot showing an orange Gearwrench rolling mechanic creeper and a black under-car plastic wheel ramp supporting a vehicle tire, with a modular hand wrench set organized on the creeper surface.

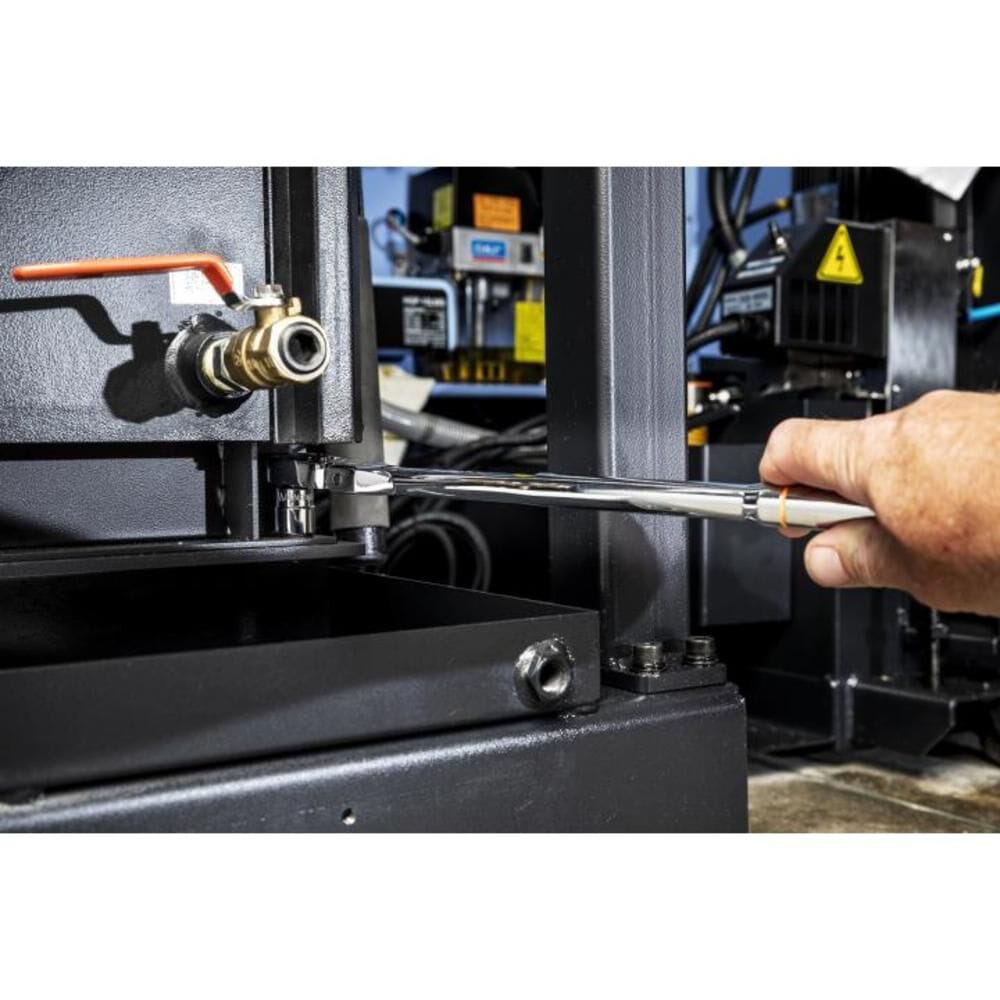

Horizontal wide-angle action view of a field mechanic applying leverage with a 3/8-inch drive Gearwrench flex head ratchet to complete a difficult clearance adjustment on heavy industrial manufacturing equipment.
GEARWRENCH® 120XP™ Ratchet (3° Swing) promotional video
Full polish chrome Gearwrench mechanics tool set components laid out horizontally, including a 3/8-inch drive locking flex head ratchet, a systematic line of stubby 6-point SAE sockets, a universal joint, and two extension bars against a solid white background.
Isolated profile perspective of a Gearwrench 3/8-inch drive 120XP locking flex head ratchet, displaying its polished chrome handle finish, distinct teardrop head shape, and integrated thumb reverse lever.
Alternative side profile view of the 3/8-inch drive Gearwrench locking flex head ratchet, showcasing the dual-direction reversing lever and the tight precision construction of its pivoting neck joint.
Close-up studio photograph of an individual Gearwrench stubby 6-point SAE socket, highlighting the polished chrome surface layer, clear size stamping, and the precise hex opening.
Isolated high-resolution view of a single Gearwrench 6-point stubby SAE socket, showing its polished mirror chrome finish, deep internal hex opening, and clean fractional sizing stamp on the outer wall.
Full view of the retail carded packaging for the Gearwrench 81393 16-piece 3/8-inch drive set, displaying the locking flex head ratchet, extension bars, universal joint, and stubby sockets secured on a plastic storage rail.
Technical marketing graphic featuring an orange background with text reading 3 Degree Swing Arc For Tighter Turns, illustrating a internal cross section view of the 120XP ratchet gear tooth structure.
Product detail illustration with a vibrant orange background, highlighting text labeled 180 Degree Flex Head For Easier Access alongside a directional blueprint diagram showing the swivel motion parameters of the tool neck.
An informational graphic with black headers stating Entry Angle and Guides Fastener, featuring a technical diagram that explains the protective off-corner loading socket design that reduces fastener rounding.
Technical diagram with structural text reading Dual Pawl Design For 120 Positions, detailing the interlocking stacked alignment configuration that handles specialized mechanical force distribution.
Comparative side-by-side product diagram titled Low Profile Sockets For Better Access, contrasting the physical vertical height of a standard drive socket against an ultra-shallow stubby socket module.
Product informational graphic on a bright orange background with headers reading Includes Socket Rail and For Easy Storage, showing a stylized illustration of a secure organizational storage rail with modular holder clips.
Close-up action shot of a person using a full polish chrome Gearwrench locking flex head ratchet and stubby SAE socket to reach and turn a low-clearance bolt underneath a valve assembly on black industrial plant machinery.
High-angle workshop floor photograph featuring the chrome Gearwrench 120XP flex head ratchet surrounded by loose stubby 6-point SAE sockets and an extension bar, situated next to an orange mechanic creeper and an open tool chest drawer.
Automotive workspace shot showing an orange Gearwrench rolling mechanic creeper and a black under-car plastic wheel ramp supporting a vehicle tire, with a modular hand wrench set organized on the creeper surface.
Horizontal wide-angle action view of a field mechanic applying leverage with a 3/8-inch drive Gearwrench flex head ratchet to complete a difficult clearance adjustment on heavy industrial manufacturing equipment.
GEARWRENCH® 120XP™ Ratchet (3° Swing) promotional video
GEARWRENCH

Gearwrench Ratchet Socket Set 81393 3/8 Inch Drive 16 Piece (120XP 3 Degree Swing Arc 9 Position Locking Flex Head 6 Point SAE Stubby Mechanics)

In stock
SKU: 81393
$85.89 USD

Description

Gearwrench Forge Ahead Logo Logout

High-Density Ultra-Low Profile SAE Mechanics Tool Set for Tight-Clearance Fastening

The Gearwrench 81393 16-Piece 3/8-Inch Drive 120XP Locking Flex Head Ratchet and SAE Stubby Socket Set delivers an ultra-thin clearance solution for professional mechanical repair. Operating via double-stacked 60-tooth pawls that provide 120 positions and a tight 3-degree swing arc, this system solves the problem of inaccessible fasteners by creating a combined tool-and-socket profile up to 50% thinner than standard assemblies. Made from drop-forged alloy steel with a full-polish chrome finish, it features a 9-position locking flex head to ensure reliable adjustable angled access within highly confined engine bays or industrial frameworks.

Best Used For:

  • Engine Bay Maintenance: Reaching buried manifold, bracket, and sensor fasteners where standard driver clearance depth is highly obstructed.
  • Industrial Machinery Assembly: Tuning equipment bolts set within narrow gaps or tight structural wells that block traditional full-height ratchets.
  • Confined Space Automotive Repair: Loosening stubborn SAE hardware tucked behind interior chassis components or suspension assemblies.

Key Performance & Safety Features

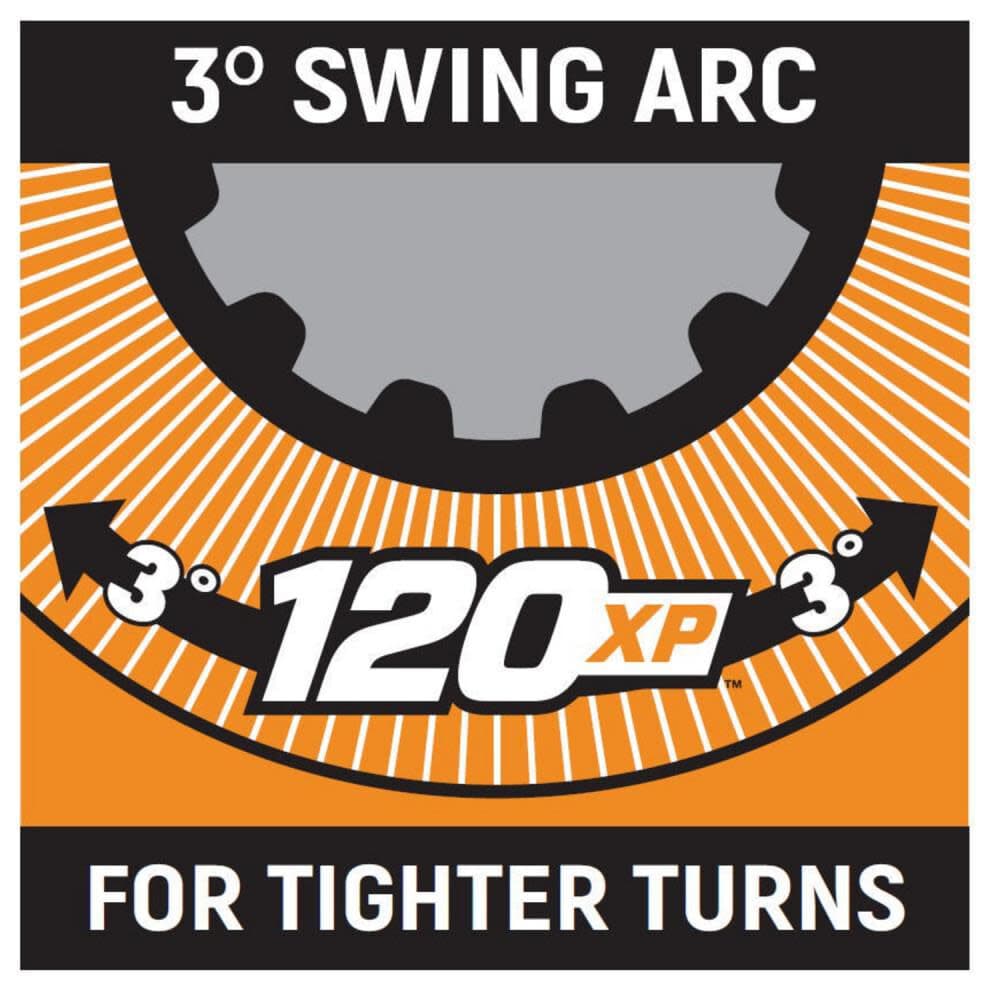

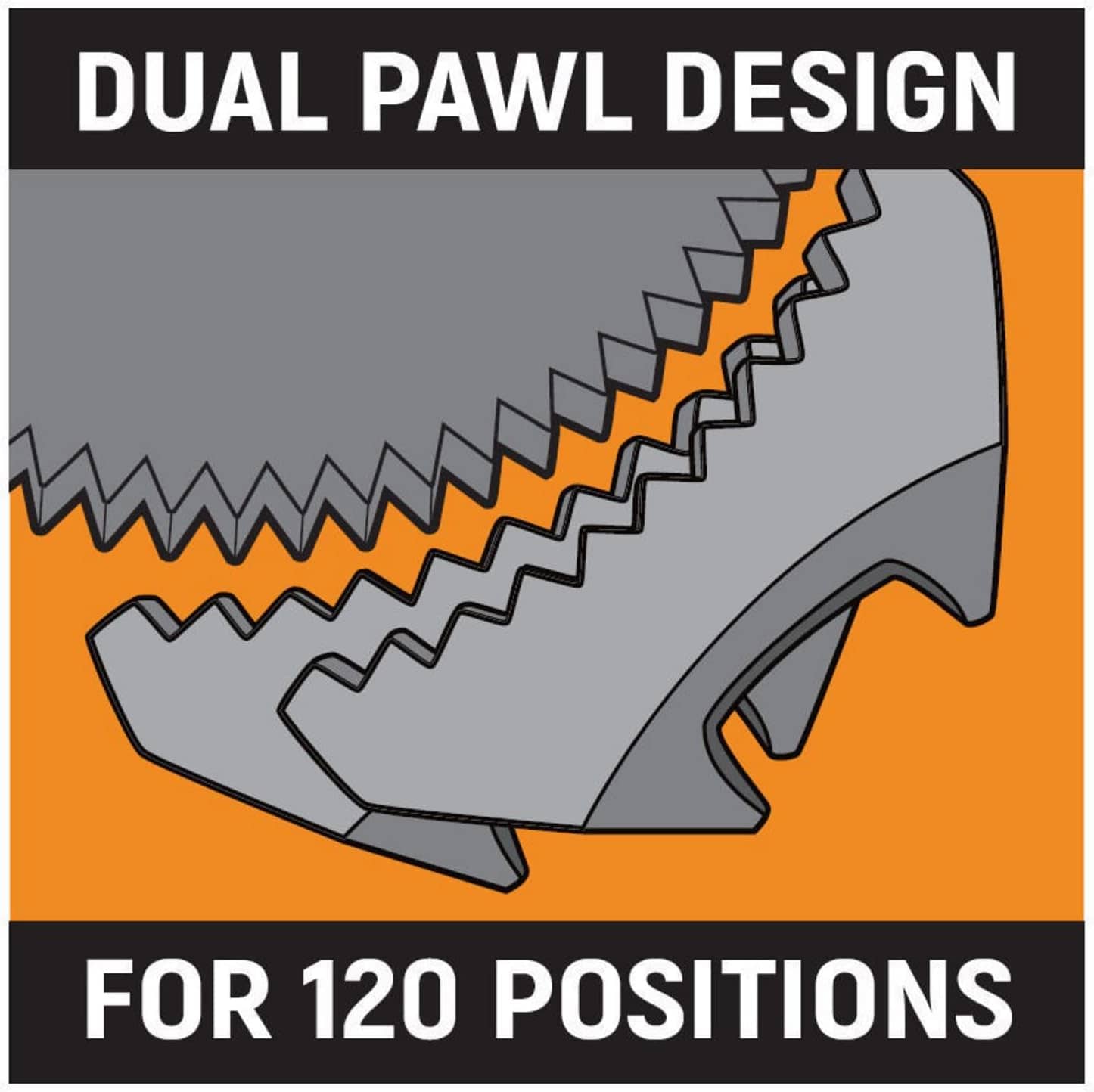

  • 120XP Dual-Pawl Technology: Double-stacked mechanism provides 120 precise indexing positions and an incredibly narrow 3-degree swing arc for micro-movements.

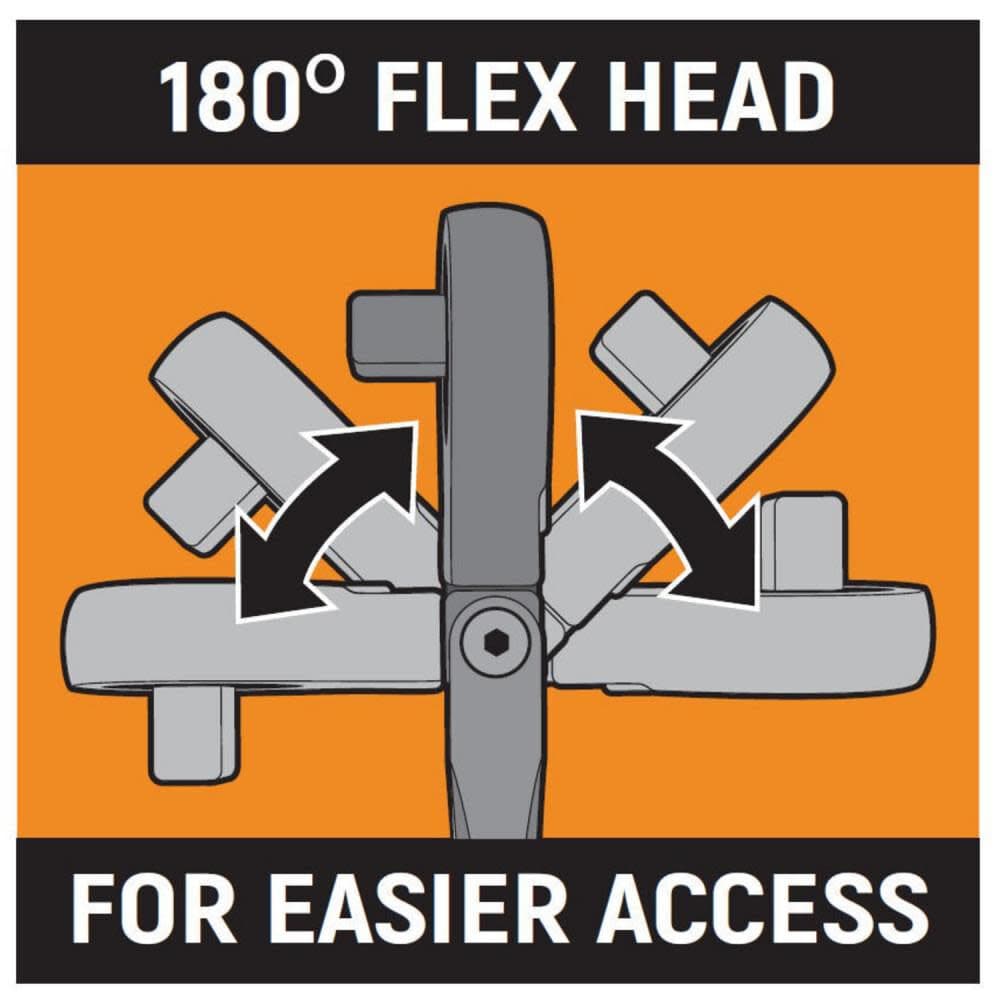

  • 9-Position Locking Flex Head: Push-button articulating head locks safely at multiple index angles to prevent slipping while transferring torque under load.

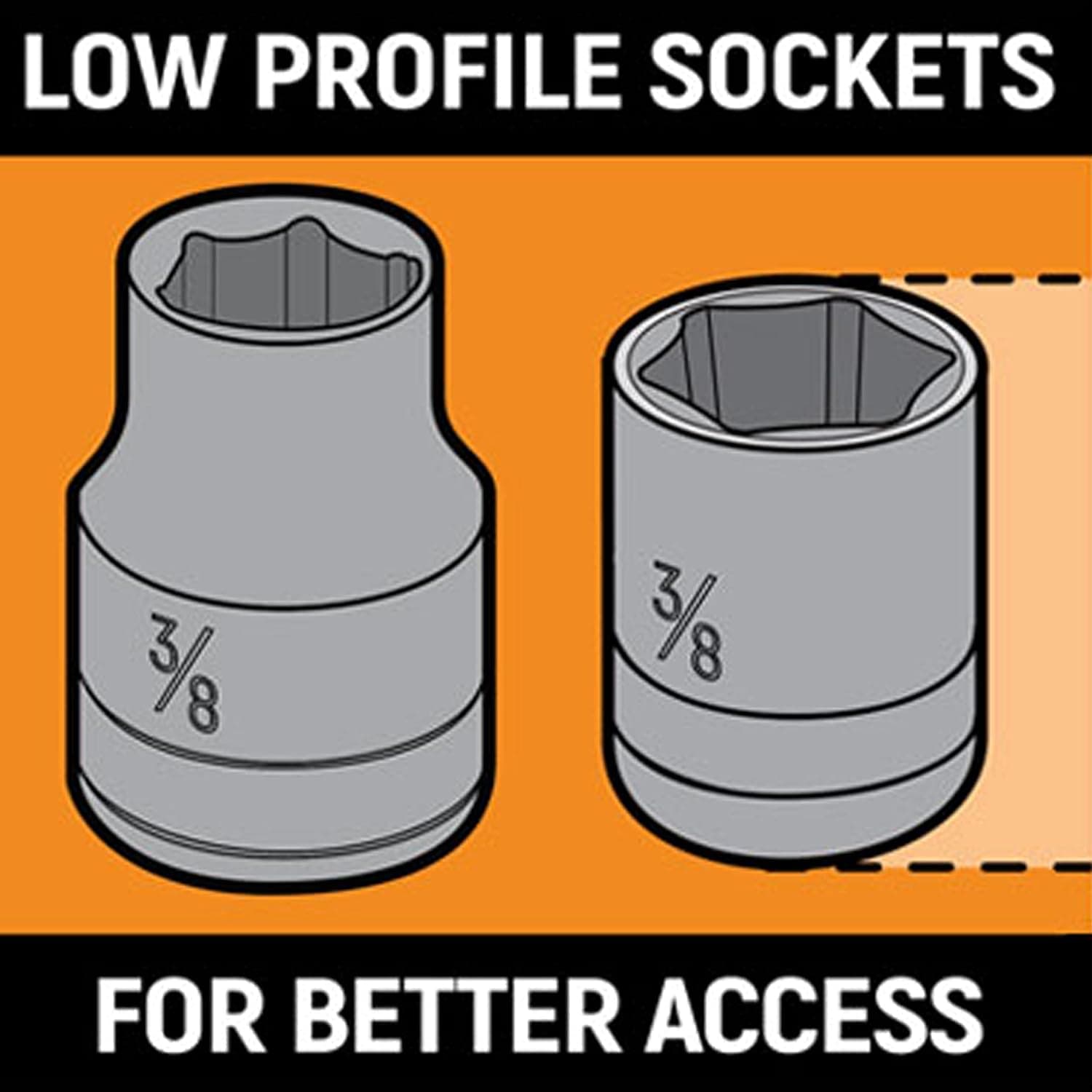

  • Stubby Low-Profile Sockets: Ultra-shallow socket profiles are up to 22% lower than traditional shallow tools to optimize extreme space access.

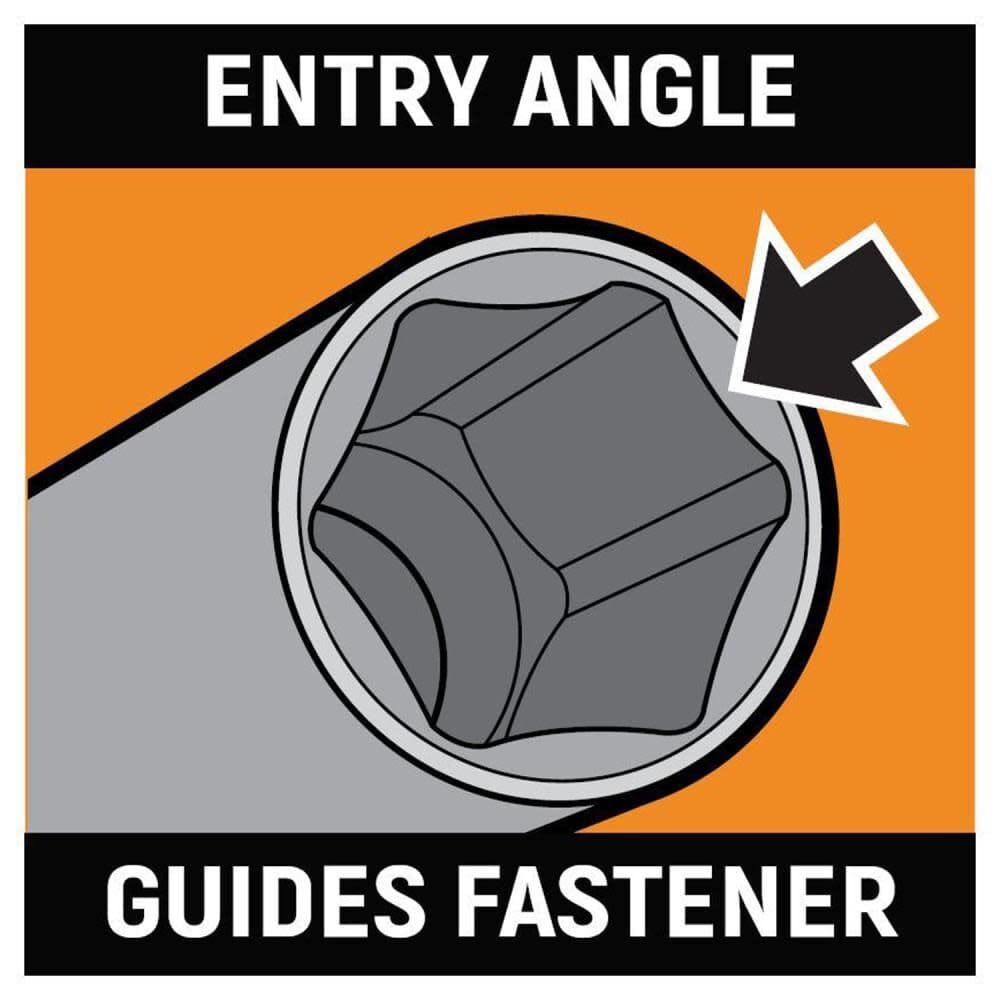

  • Off-Corner Loading Engineering: Advanced 6-point internal socket shape channels torque stress onto fastener flats, reducing corner rounding risks.

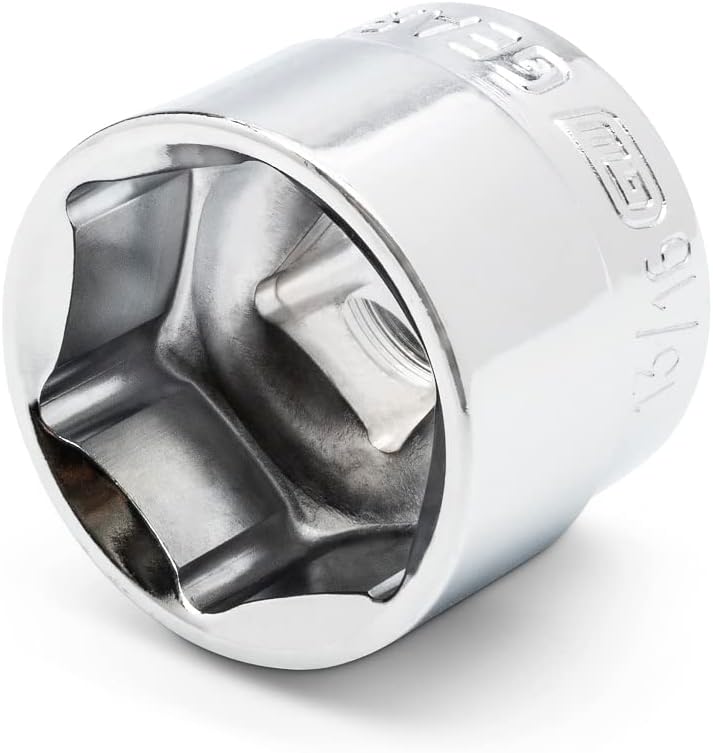

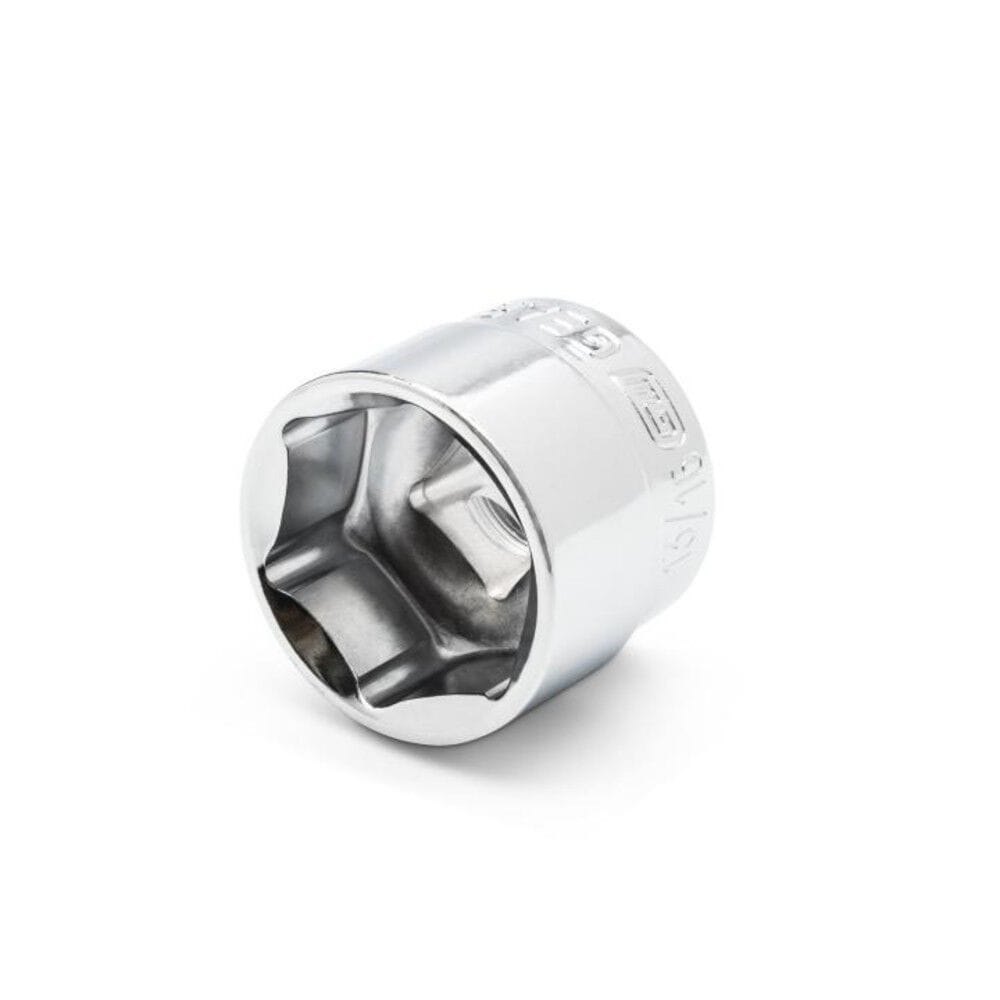

  • Stamped Size Indicators: Deep, high-visibility stamped sizing marks on each socket wall allow for fast visual identification in low-light workspaces.

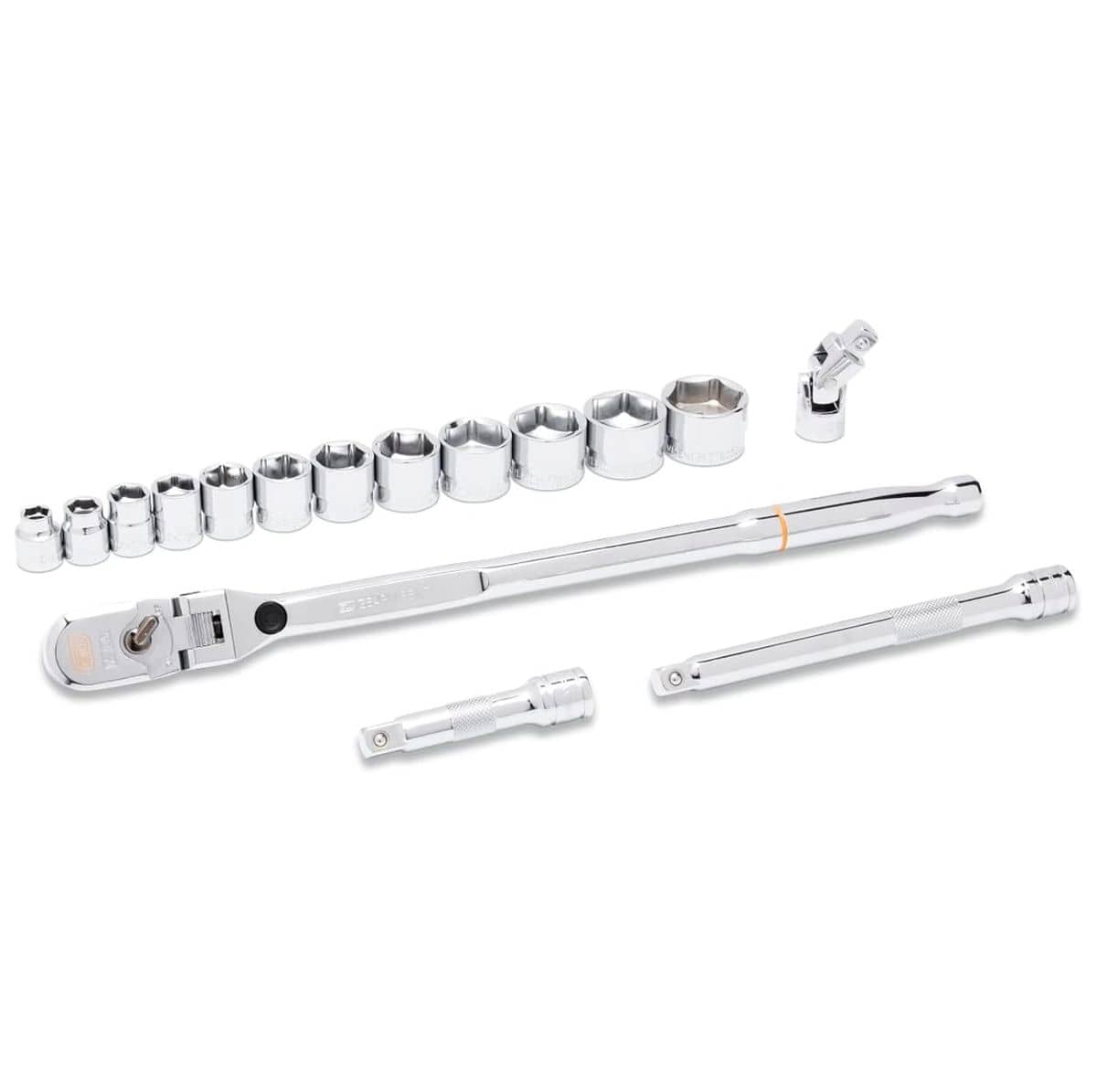

What's Included

  • (1) 3/8" Drive 120XP Locking Flex Head Teardrop Ratchet
  • (12) 6-Point SAE Stubby Sockets: 5/16 in, 3/8 in, 7/16 in, 1/2 in, 9/16 in, 5/8 in, 11/16 in, 3/4 in, 13/16 in, 7/8 in, 15/16 in, 1 in

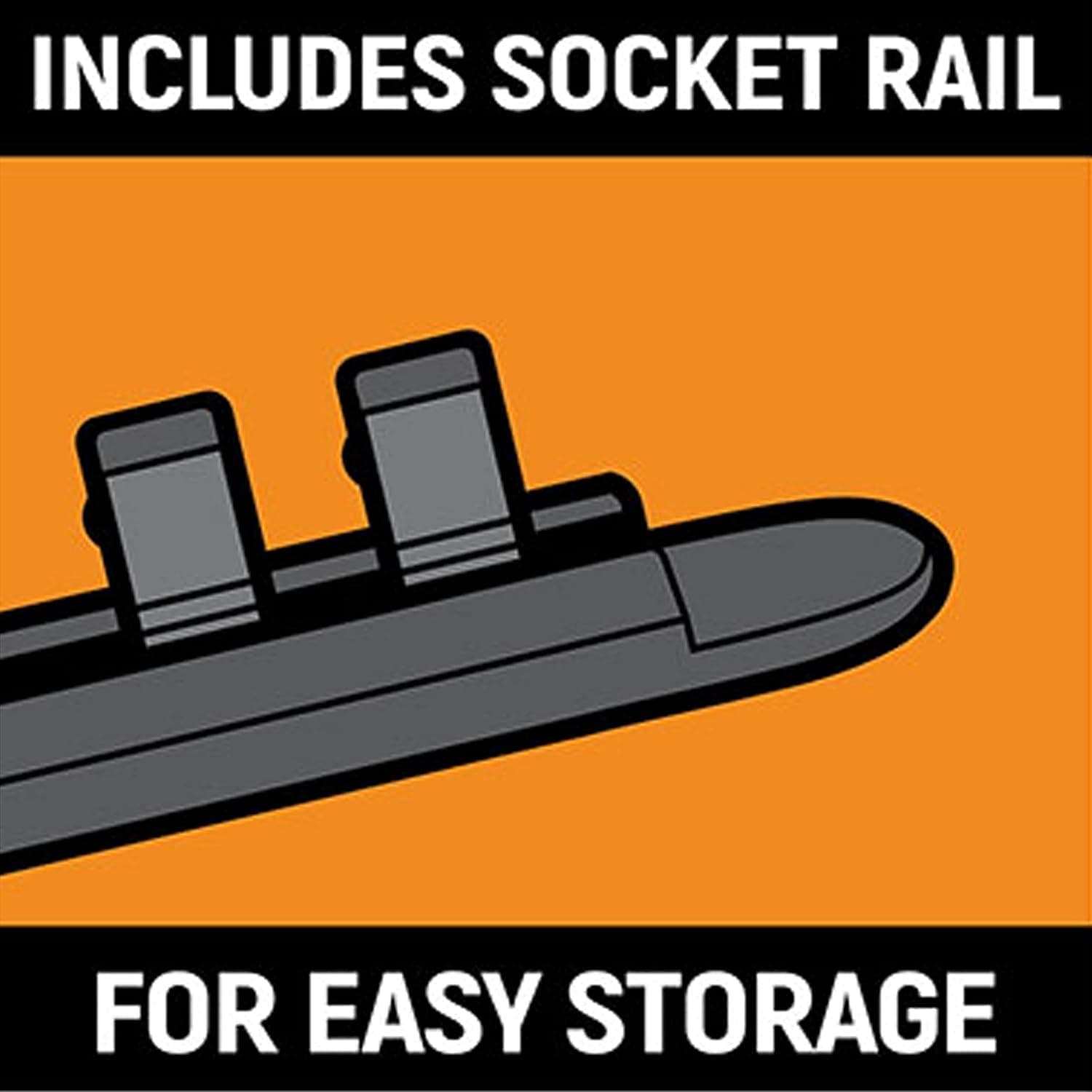

  • (1) Heavy-Duty Modular Socket Storage Rail

Technical Specifications

Set Piece Count 16 Pieces
Drive Tang Size 0.375 inches (3/8")
Ratchet Tooth Count 120 Positions (Dual-Pawl)
Minimum Swing Arc 3 Degrees
Head Articulation 9-Position Locking Flex Head
Ratchet Profile Style Teardrop Compact Head
Socket Size Coverage 5/16 inches to 1 inch Range
Socket Internal Drive Type 6-Point Off-Corner Loading
Socket Length Format Stubby Ultra-Shallow Depth
Total Catalog Set Weight 2.156 lbs
Reversible Design Yes (Lever Switch)
Compliance Standards Meets or Exceeds ASME / ANSI Specifications
Pro-Tip: To maximize leverage when using the flex head at an extreme angle, use your secondary hand to steady the joint pivot while applying downward force; keeping the drive square flush against the fastener face stops the stubby socket from walking or tipping off under high torque.
