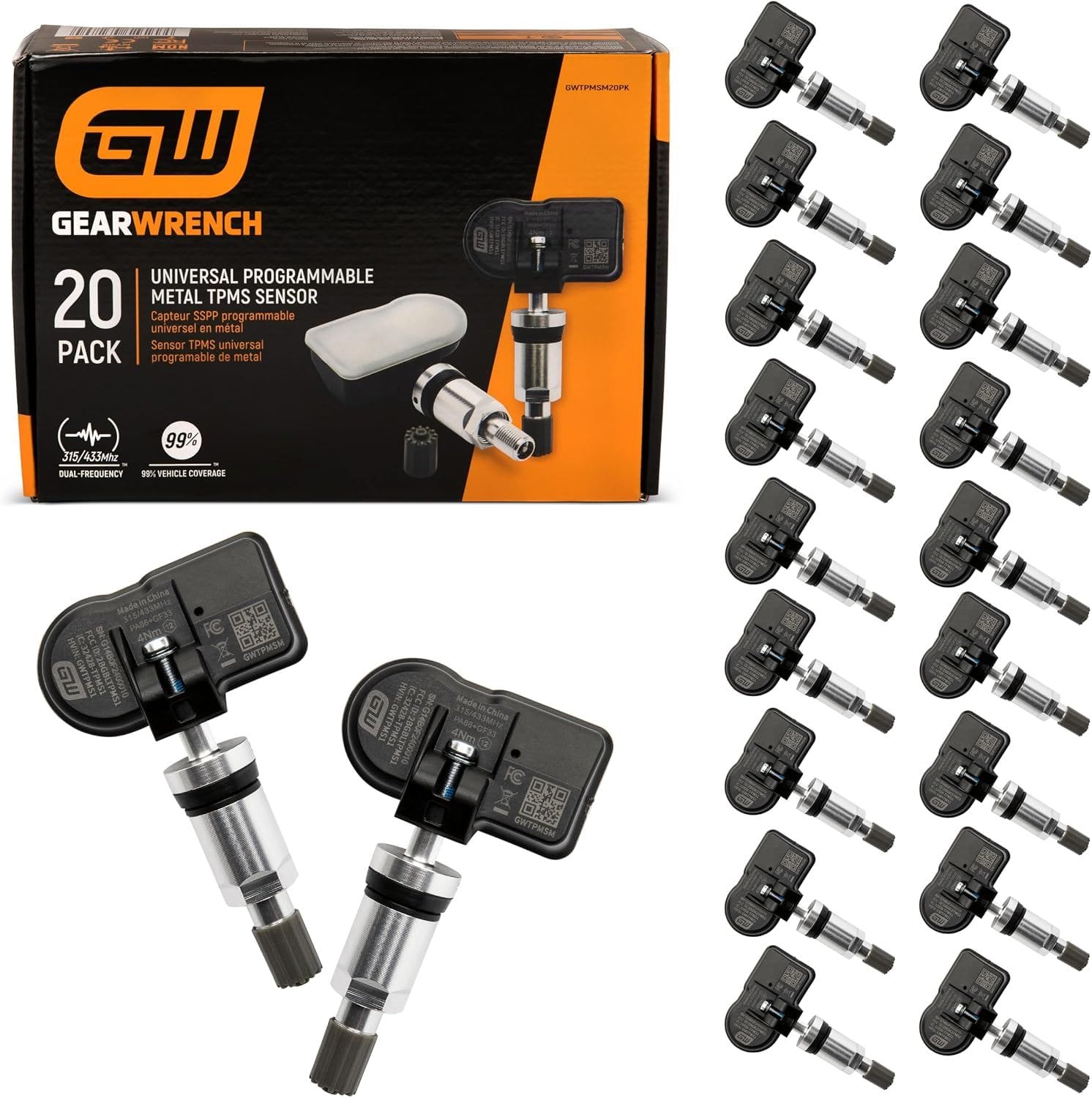

A comprehensive product kit assembly showing the orange and black GEARWRENCH universal programmable metal TPMS sensor 20-pack retail product box alongside two close-up preview sensors and twenty individual multi-vehicle clamp-in replacement units stacked in two uniform columns.

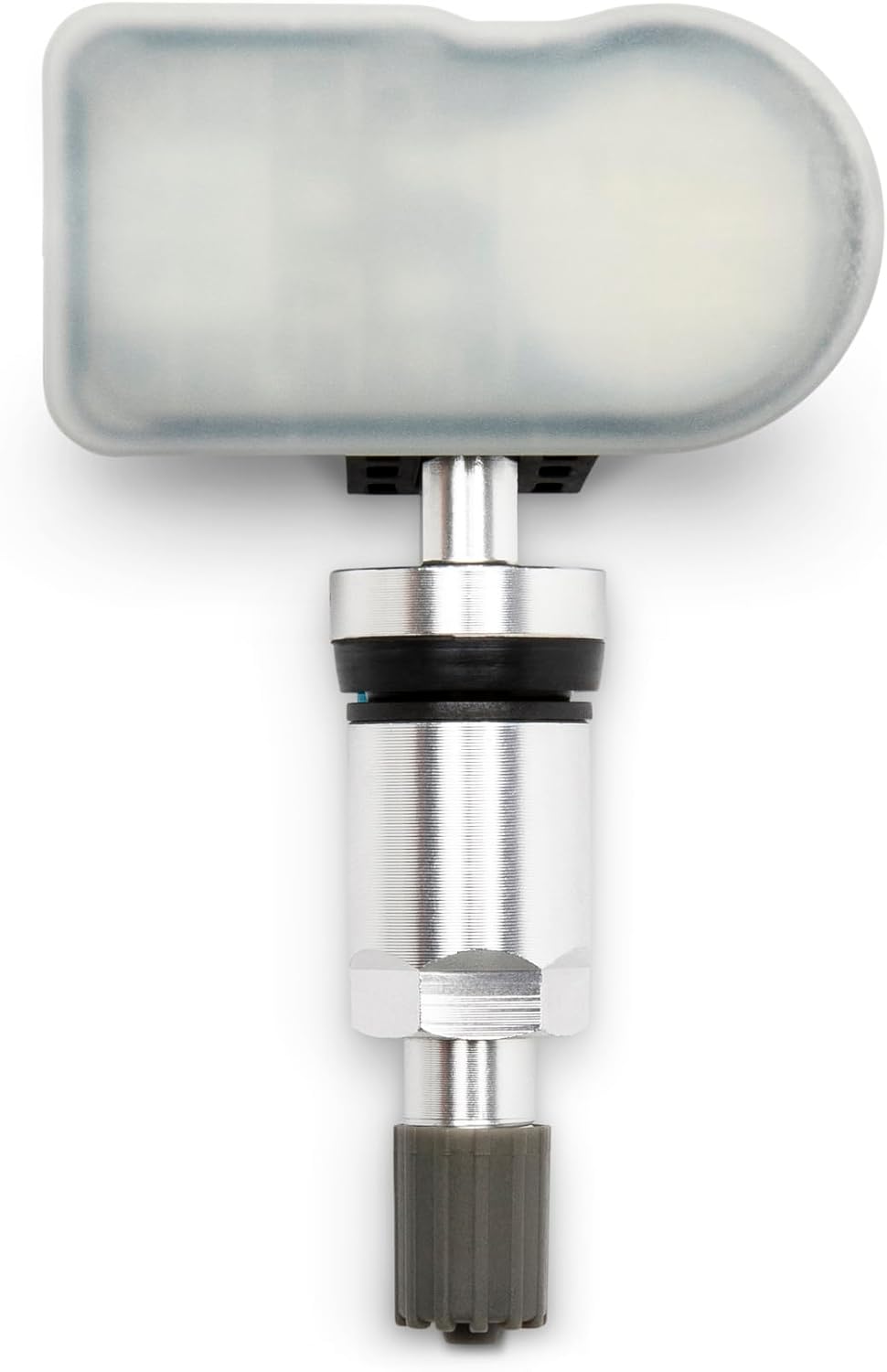

A close-up profile view of a single light gray composite capped GEARWRENCH universal programmable tire pressure monitor sensor showcasing the durable threaded metal valve stem assembly down to its protective rubber washer and gray screw-on valve cap.

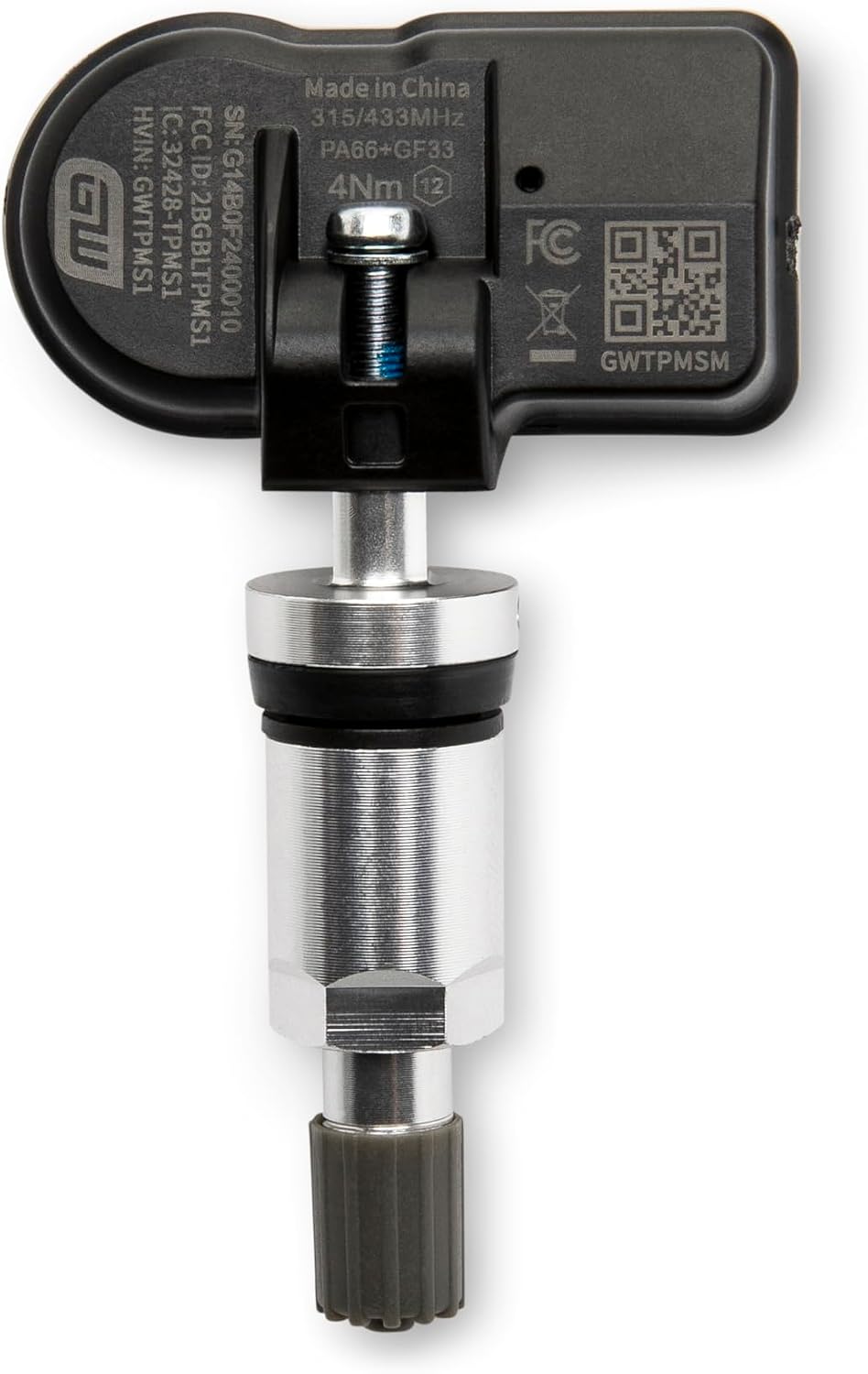

A direct top-down detail macro view of the black composite casing of a GEARWRENCH universal metal valve stem TPMS sensor highlighting technical manufacturing data marks including its 315/433MHz dual frequency operational rating, model data codes, and regulatory ISO compliance prints.
Install GEARWRENCH GWTPMSR TPMS Sensor jpromotional video
A comprehensive product kit assembly showing the orange and black GEARWRENCH universal programmable metal TPMS sensor 20-pack retail product box alongside two close-up preview sensors and twenty individual multi-vehicle clamp-in replacement units stacked in two uniform columns.

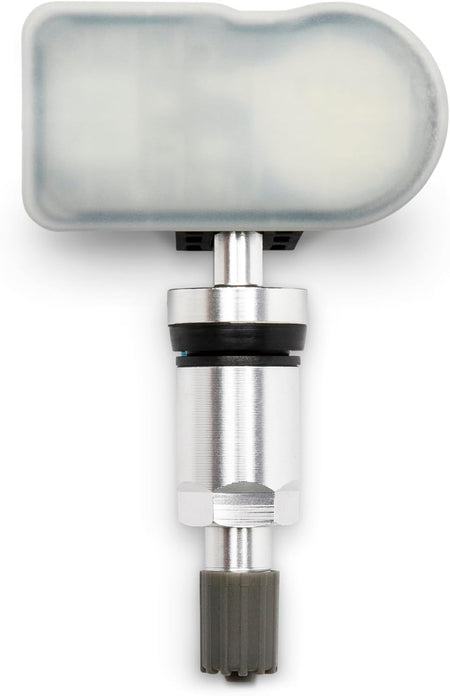

A close-up profile view of a single light gray composite capped GEARWRENCH universal programmable tire pressure monitor sensor showcasing the durable threaded metal valve stem assembly down to its protective rubber washer and gray screw-on valve cap.
A direct top-down detail macro view of the black composite casing of a GEARWRENCH universal metal valve stem TPMS sensor highlighting technical manufacturing data marks including its 315/433MHz dual frequency operational rating, model data codes, and regulatory ISO compliance prints.
Install GEARWRENCH GWTPMSR TPMS Sensor jpromotional video
GEARWRENCH

GEARWRENCH TPMS Sensor GWTPMSM20PK 315MHz 433MHz Universal Programmable Metal Valve Stem (Dual Frequency ID Cloning Fleet Maintenance 20 Pack)

Only 3 left
SKU: GWTPMSM20PK
$380.00 USD

Description

Gearwrench Forge Ahead Logo Logout

Commercial-Grade Dual-Frequency Tire Pressure Sensor Matrix with 100% ID Cloning and Extended 5-Year Battery Life

The GEARWRENCH GWTPMSM20PK Universal Programmable Metal TPMS Sensor 20 Pack delivers professional-grade electronic tracking stability and broad vehicle system synchronization under extreme road debris stress. Engineered with a specialized dual-frequency circuit framework, this diagnostic hardware natively supports both 315 MHz and 433 MHz radio signal transmissions to match original equipment configurations. This multi-vehicle fleet solution resolves persistent dashboard warning illumination faults and time-consuming scanner reconfiguration bottlenecks by incorporating 100% ID cloning logic that replicates existing sensor IDs to entirely eliminate traditional relearn processing loops. Built to maintain accurate real-time pressure, wheel position temperature, and internal battery data logs across domestic, Asian, and European applications, each impact-resistant metal valve module operates reliably across a wide temperature threshold from -40°F to 257°F.

Best Used For:

  • Instant Wheel ID Cloning: Replicating exact factory sensor identities during seasonal wheel updates or component replacements to bypass complex dashboard diagnostic programming.
  • Fleet Management Upgrades: Retrofitting high-volume commercial light trucks, passenger cars, and transit vehicles across European, Asian, and domestic automotive platforms.
  • All-Weather Signal Stability: Tracking telemetry continuously in heavy multi-vehicle service bays exposed to severe road moisture, highway debris, and deep freeze environments.

Key Performance & Safety Features

  • Dual-Frequency Integration: Operates on both 315 MHz and 433 MHz transmission wavelengths to provide up to 99% worldwide vehicle model compatibility.
  • 100% ID Cloneable Logic: Mirrors exact pre-existing factory identification metrics so technicians can execute immediate tire swaps with zero system downtime.
  • Extended Lifespan Architecture: Internally powered by long-life cells engineered to sustain continuous active monitoring cycles for over 5 years.
  • SAE & ISO Standard Compliance: Rigidly bench-tested to meet and exceed structural and data transmission quality metrics for demanding field applications.
  • Corrosion-Resistant Metal Valves: Rugged metal stem construction defends structural sealing paths against aggressive moisture, road salt, and thermal fluctuations.

What's Included

  • (20) GEARWRENCH Universal Programmable Metal TPMS Sensors
  • (20) Integrated Premium Metal Valve Stem Assemblies with Caps

Technical Specifications

Specification Value
Brand Name GEARWRENCH
Model Number GWTPMSM20PK
Radio Frequencies Supported 315 MHz & 433 MHz Dual-Frequency
Cloning Capability 100% ID Copying (No Relearn Required)
Operating Temperature Range -40°F to 257°F
Storage Temperature Threshold -40°F to 257°F
Valve Interface Style Metal Valve Stem Clamp-In
Overall Module Length 1.8 in
Overall Module Width 0.64 in
Overall Module Height 0.98 in
Internal Battery Power Source Long-Life Lithium Cell Included (Non-Rechargeable)
Regulatory Standard Criteria SAE & ISO Standards Compliant
Assembled Package Weight 1.764 lbs.
Commercial Warranty Protection 24 Month or 24,000 Miles Limited

Pro-Tip: When configuring these universal modules using your handheld diagnostic programming tool, clone the sensor IDs while the units are still staged in the batch tray before physical wheel mounting. This step saves significant labor by confirming software verification data intents prior to seating tire beads.
