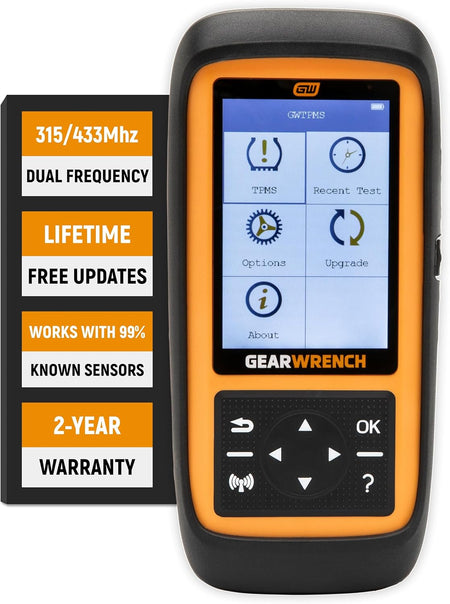

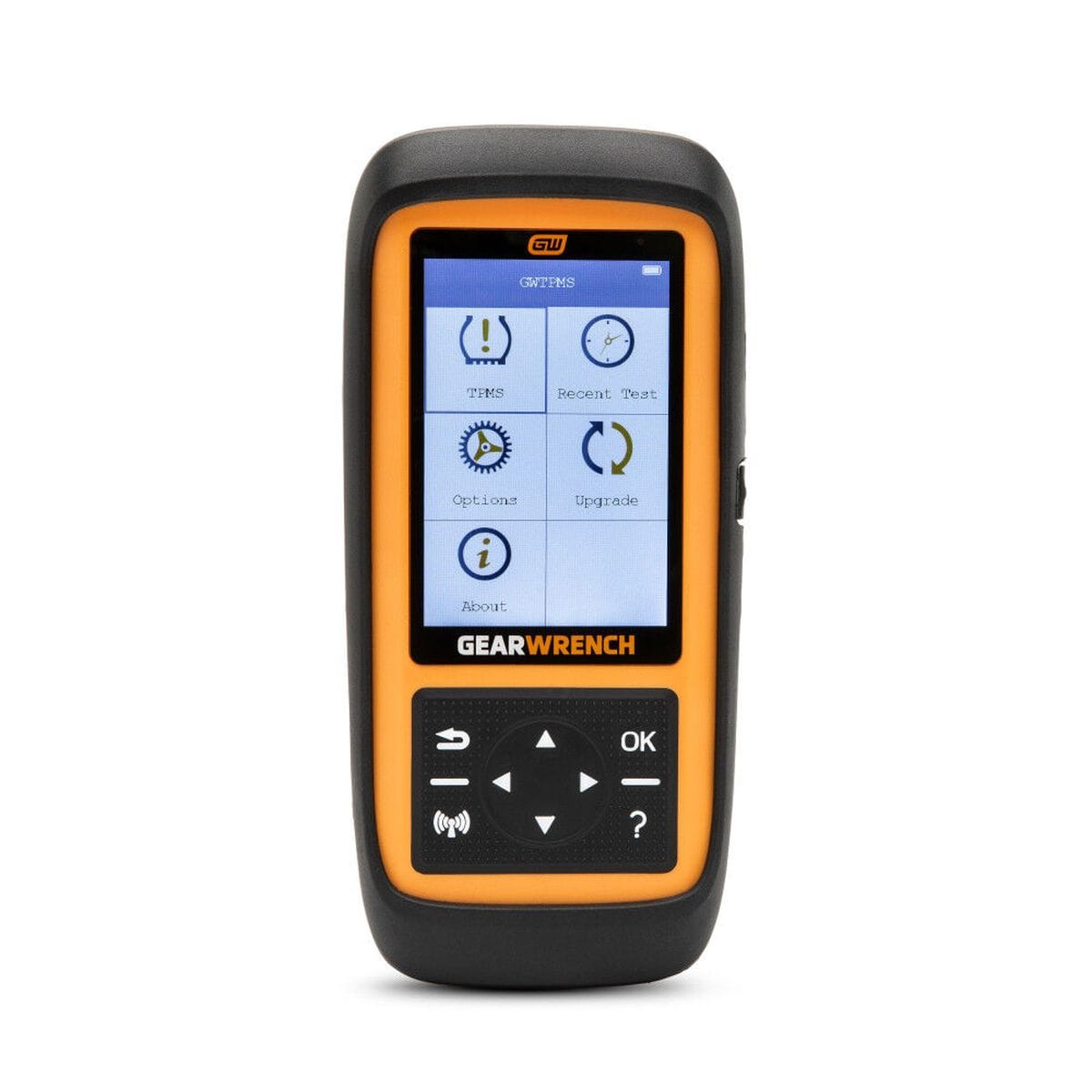

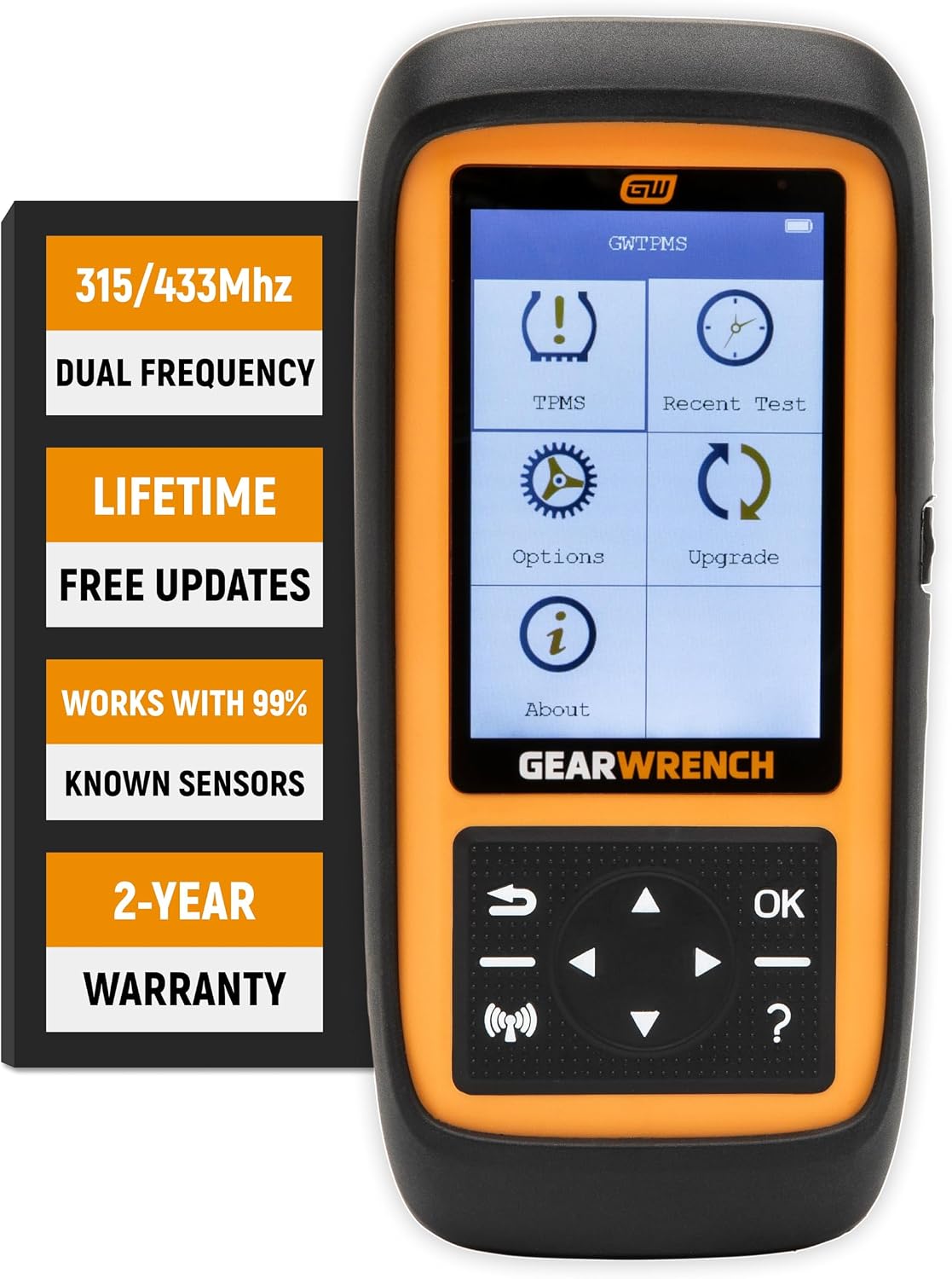

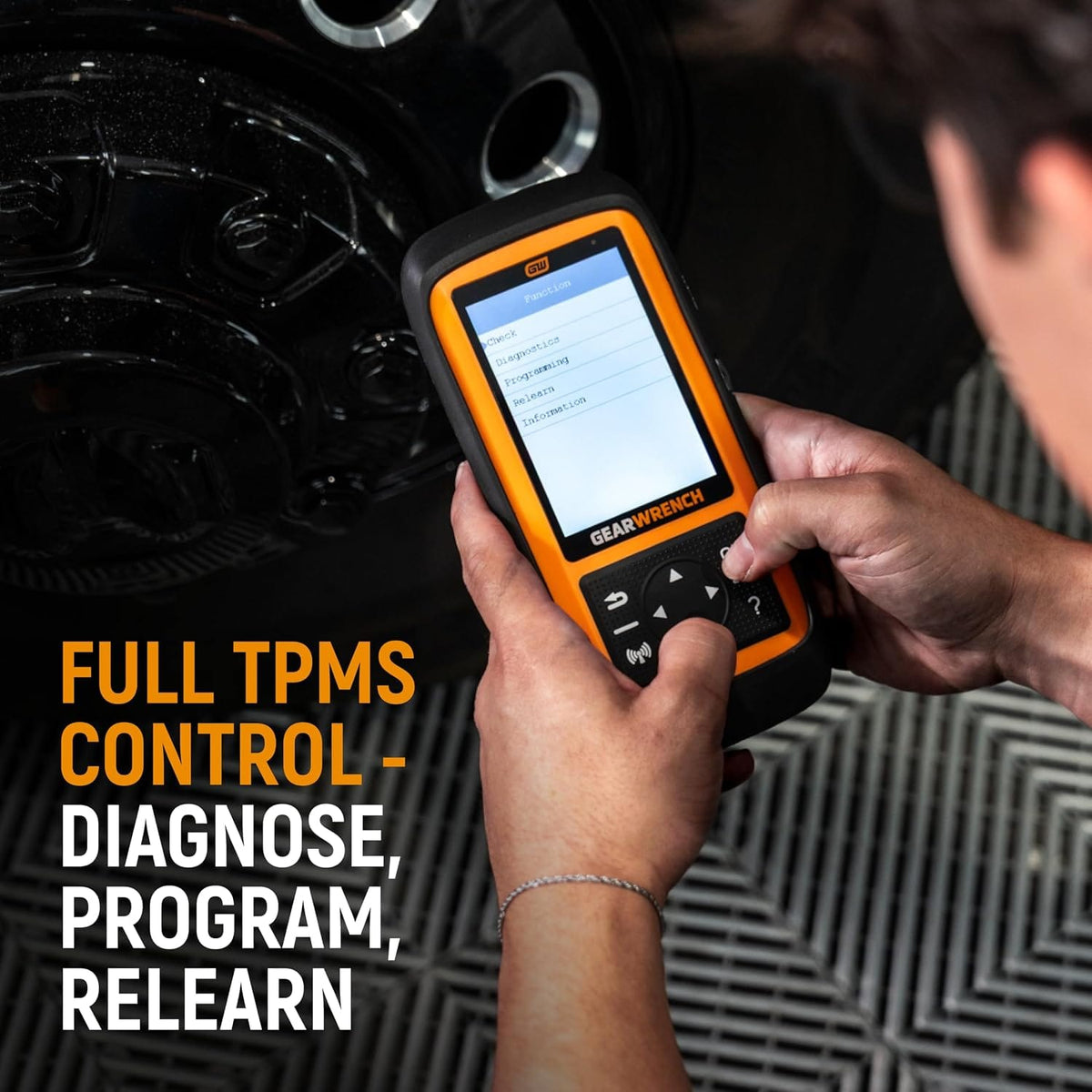

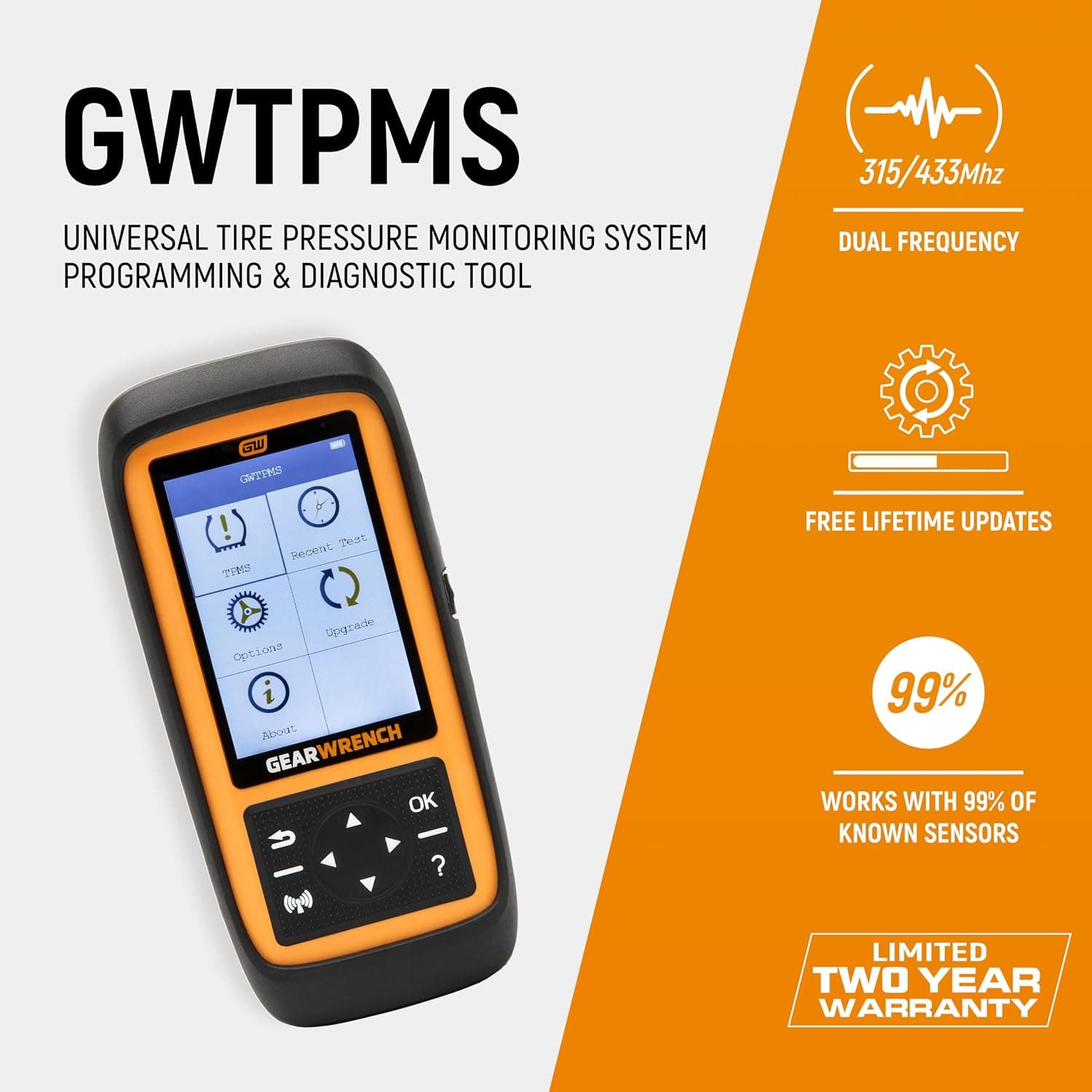

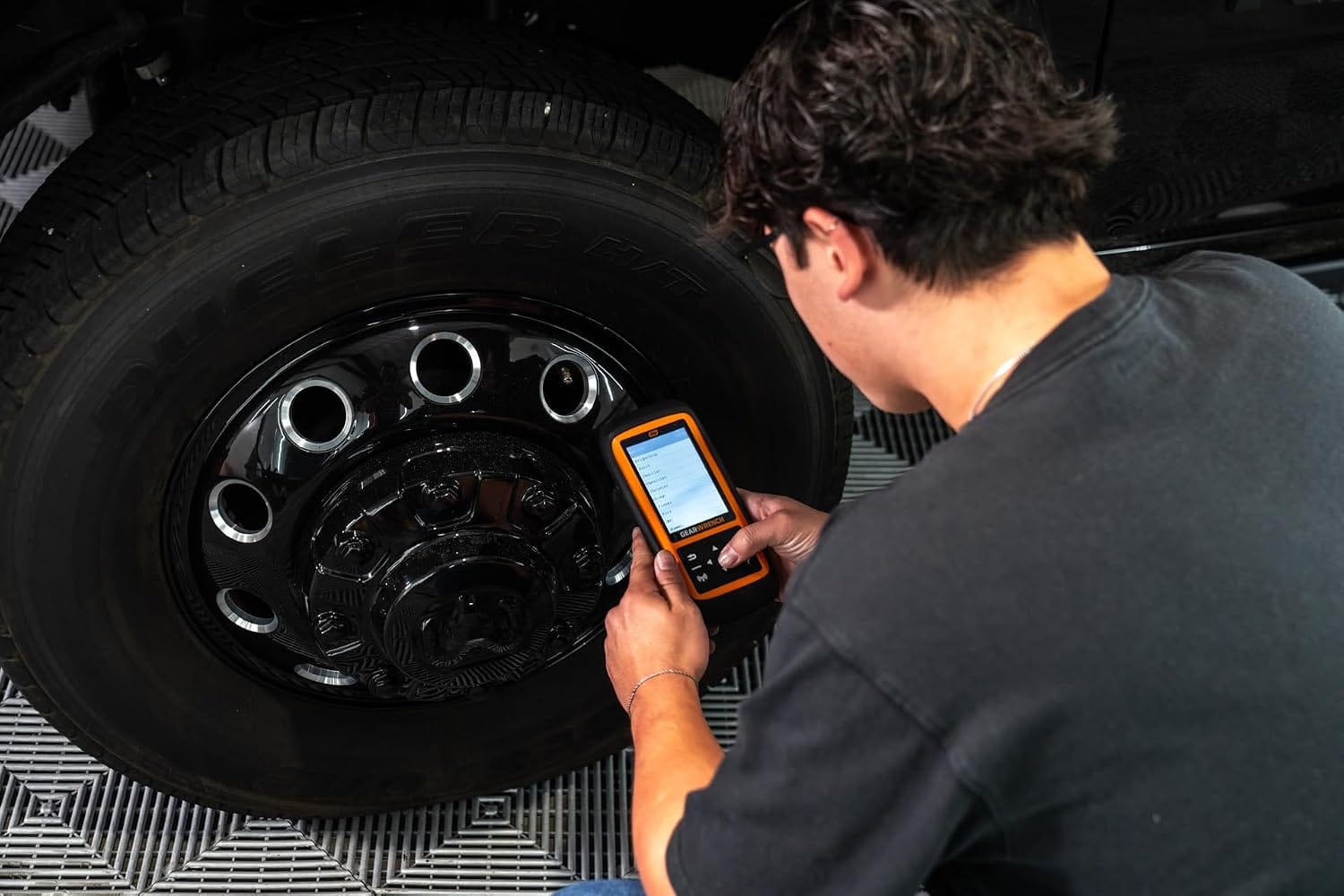

GEARWRENCH Universal TPMS Programming Diagnostic Tool GWTPMS (Dual Frequency 315MHz 433MHz Sensor Activation Code Clearing Relearn Fleet Maintenance)
Couldn't load pickup availability
Commercial-Grade Dual-Frequency Tire Pressure Sensor Programming Platform with Multi-Sensor Staging and Wireless Code Diagnostics
The GEARWRENCH GWTPMS Universal Tire Pressure Monitoring System Programming & Diagnostic Tool delivers professional-grade electronic calibration velocity and sensor reconfiguration capabilities across domestic and import vehicle fleets. Engineered with integrated dual-frequency modules supporting both 315 MHz and 433 MHz transmission channels, this handheld scanner reads sensor identities, position arrays, operational temperatures, and internal battery parameters. This dynamic diagnostic solution resolves dashboard warning illumination bugs and communication dropouts during comprehensive tire rotations or replacement workflows by allowing technicians to program up to 8 specialized sensors simultaneously. Outfitted with a high-visibility 4-inch color display panel and a wireless interface for lifetime firmware updates, this multi-vehicle platform executes step-by-step guided relearn scripts to restore accurate wheel module communication interfaces.
Best Used For:
- Multi-Vehicle Relearn Sequences: Syncing new original equipment or aftermarket wireless wheel modules to host electronic control modules using guided on-screen steps.
- Simultaneous Batch Programming: Writing custom firmware, protocol profiles, and unique hex identification codes to 8 target wheel assemblies at once.
- Fleet Diagnostic Sweeps: Pulling and clearing diagnostic trouble codes (DTCs) from dashboard indicators while tracking real-time data logs on complex service bays.
Key Performance & Safety Features
- Dual Frequency Radio Matrix: Operates natively on 315 MHz and 433 MHz signals to maximize coverage indices for both domestic and imported vehicle fleets.
- Multi-Sensor Batch Staging: Enables fast multi-sensor processing parameters to eliminate individual standalone configuration delays on new tire builds.
- Full Data Parameter Log: Extracts unique sensor IDs, tire wheel positions, internal pressure metrics, internal temperatures, and battery condition markers.
- 4-Inch Color Control Screen: Incorporates a high-contrast graphical user interface to display legible instructions under high ambient shop lighting.
- Wireless Lifetime Adjustments: Integrated network updates bypass external interface wire configurations to instantly install the latest model definitions.

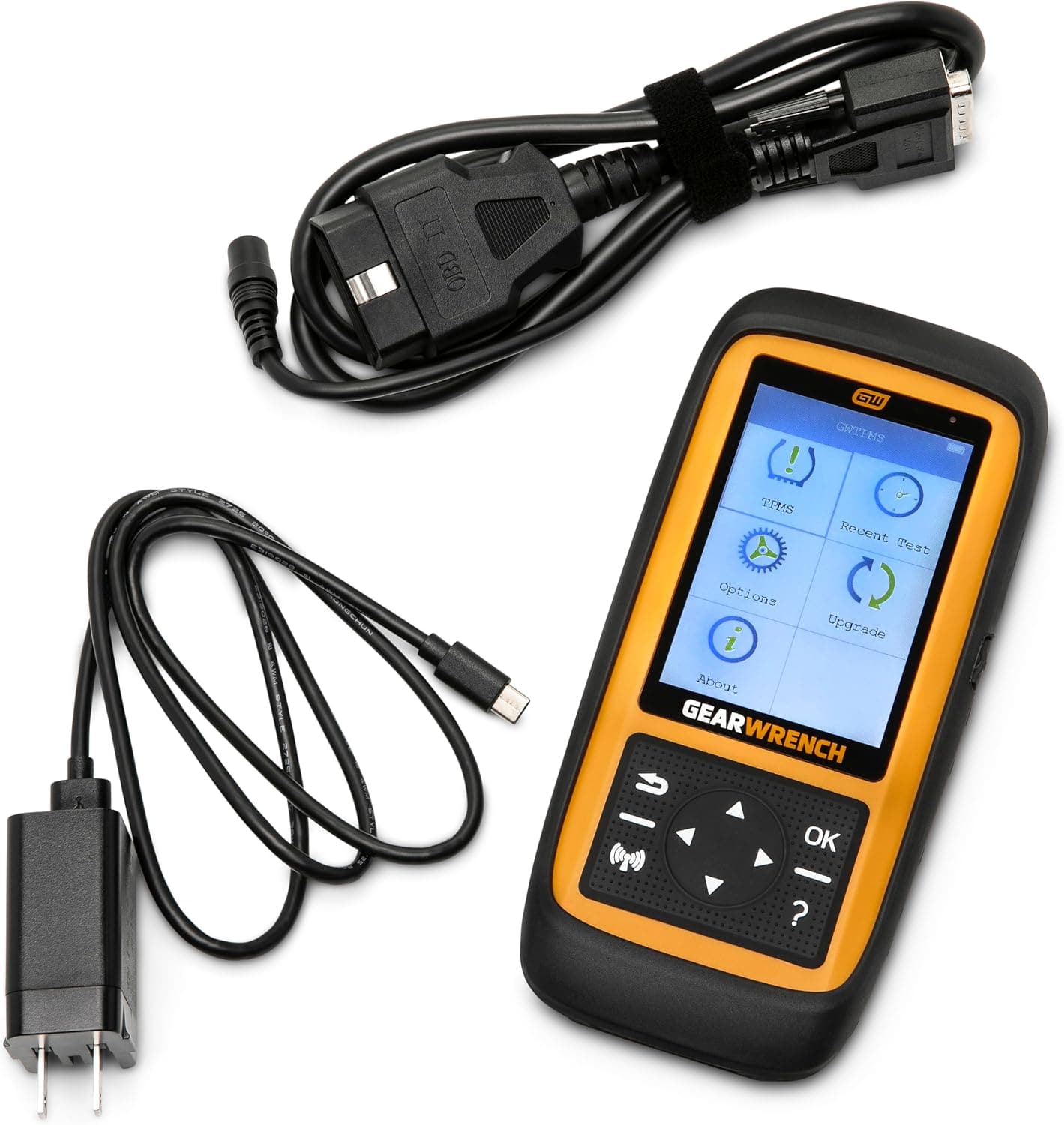

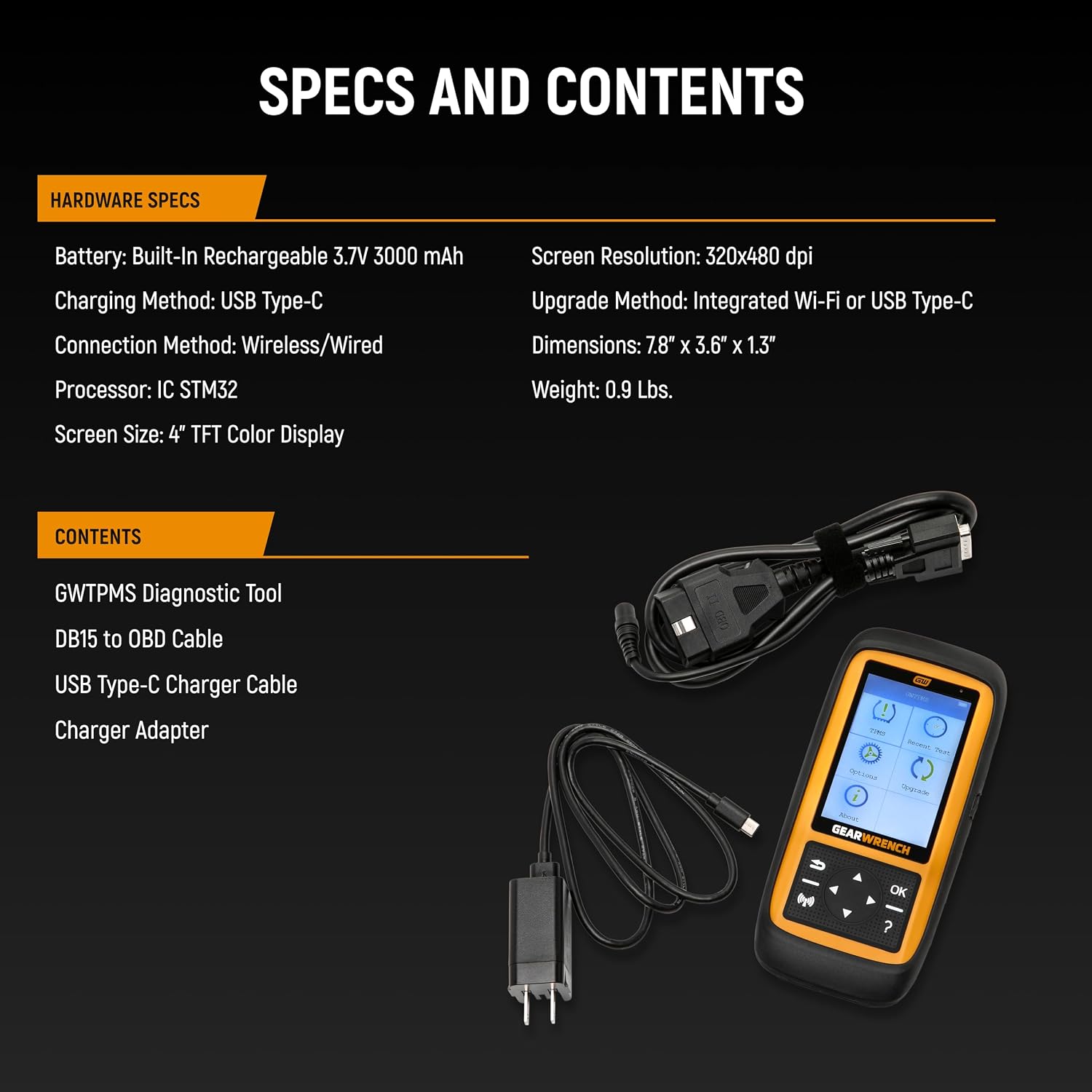

What's Included
- (1) GEARWRENCH GWTPMS Universal TPMS Programming & Diagnostic Tool
- (1) Integrated 4-Inch Display Console Assembly
Technical Specifications
| Specification | Value |
|---|---|
| Brand | GEARWRENCH |
| Model Number | GWTPMS |
| Signal Frequency Range | 315 MHz and 433 MHz |
| Batch Programming Limit | Up to 8 Sensors Simultaneously |
| Screen Dimensions / Type | 4.0 in LCD Color Interface |
| Software Licensing | Free Wireless Lifetime System Updates |
| Product Condition Class | New |
| Overall Housing Height | 1.3 in |
| Net Scanner Weight | 1.54 lbs. |
| Manufacturer Warranty | 2 Years Limited Commercial Warranty |
| Regulatory Restrictions | CA Prop 65 Compliant |
Pro-Tip: When diagnosing communication faults on metallic bead structures, hold the scanner antenna tip directly parallel to the tire valve stem core. This alignment maximizes wave induction pathways and prevents adjacent tire modules from cross-talking during batch configurations.
