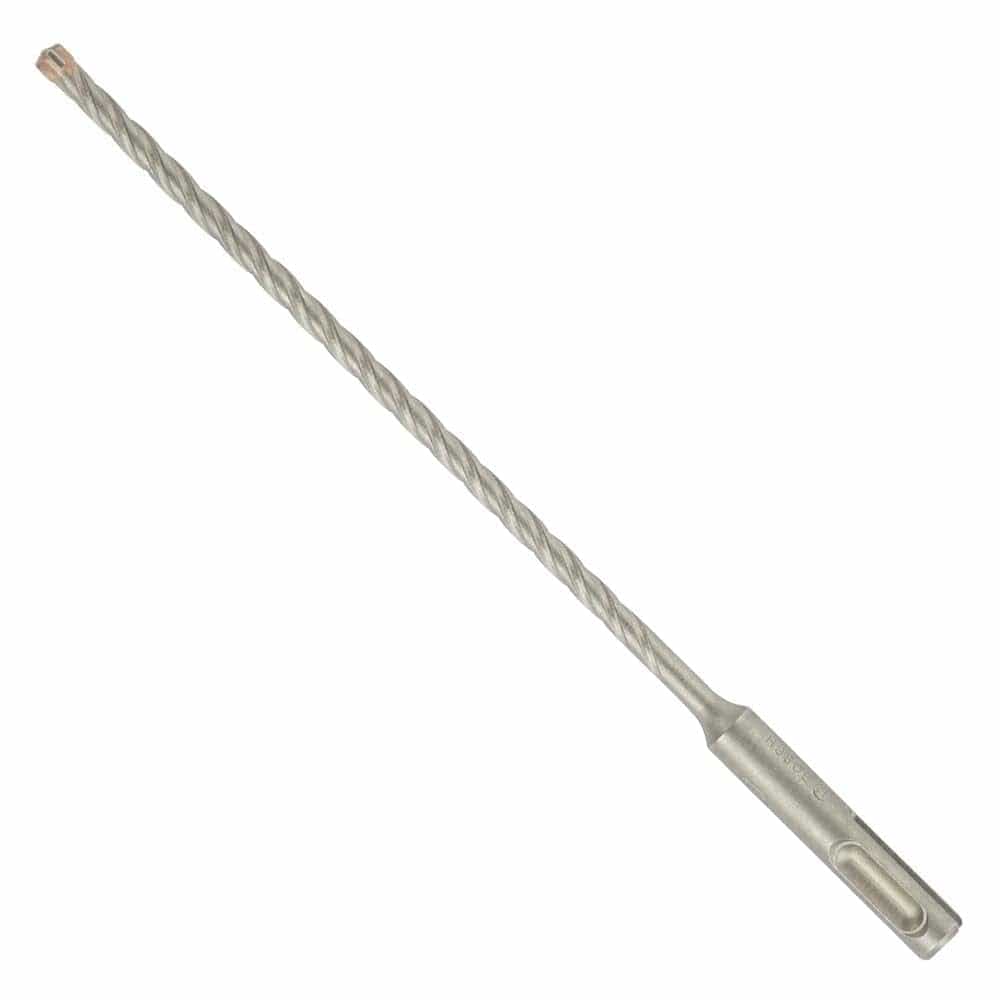

Full view of the Bosch SDS-plus Bulldog Xtreme rotary hammer bit, showing the long, spiraled flute and the carbide 4-cutter head.

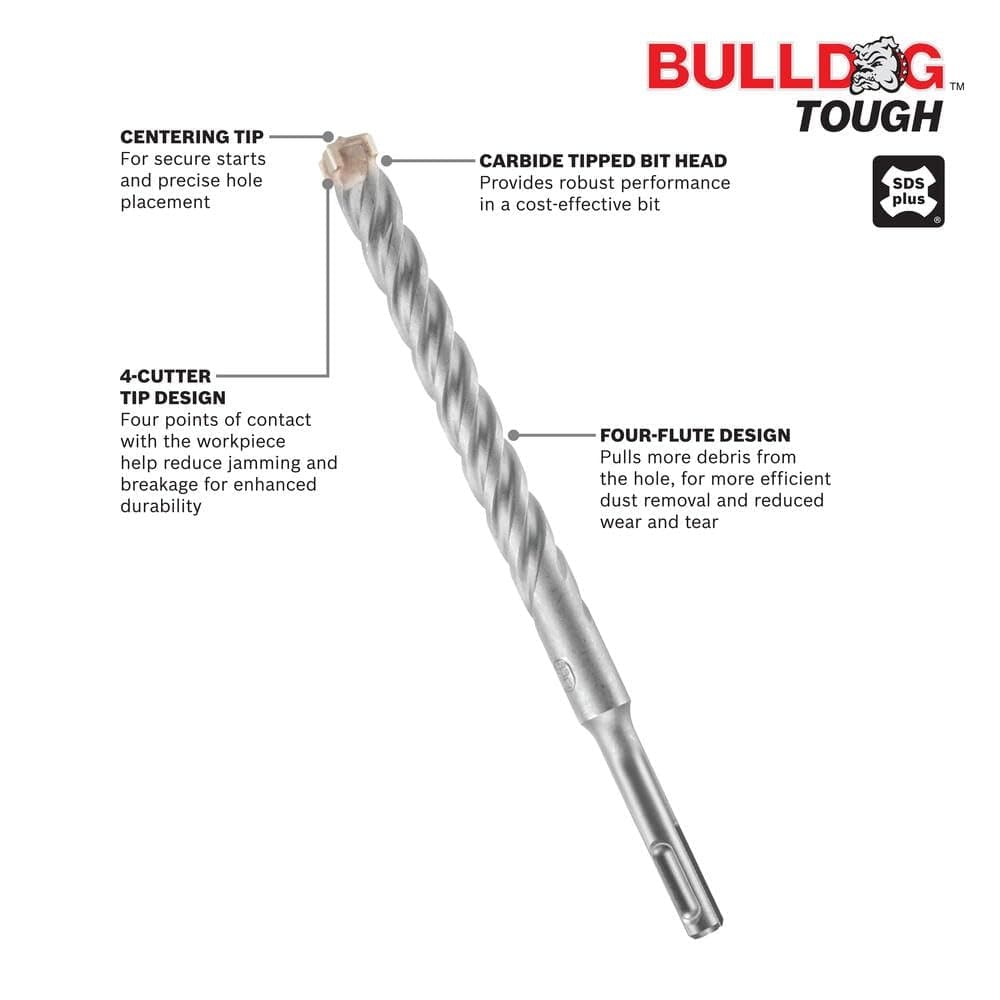

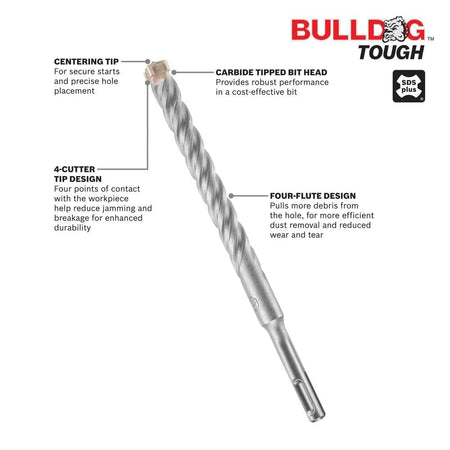

Technical diagram of the Bosch SDS-Plus bit, labeling key features such as the centering tip, 4-cutter carbide tip design, and 4-flute design for efficient debris removal.

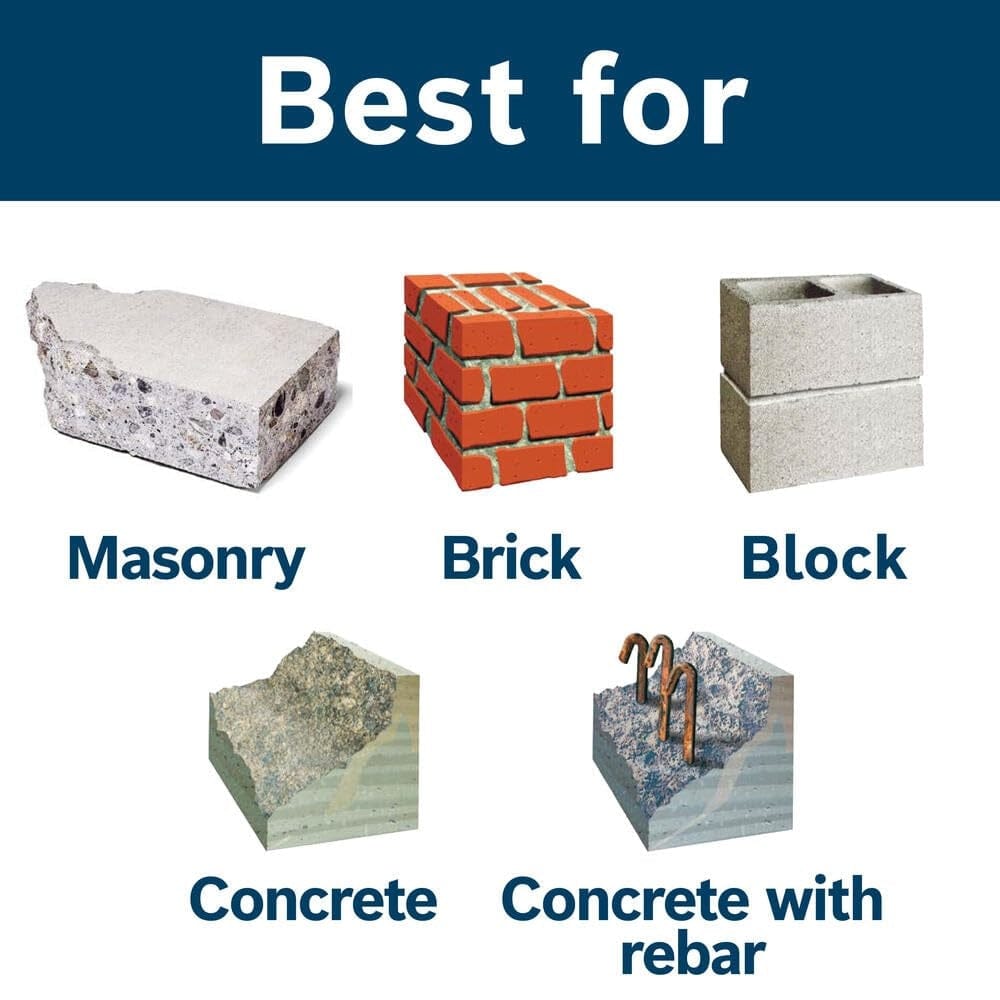

Infographic illustrating the compatibility of the Bosch Bulldog Xtreme bit with masonry, brick, block, concrete, and concrete with rebar.
Full view of the Bosch SDS-plus Bulldog Xtreme rotary hammer bit, showing the long, spiraled flute and the carbide 4-cutter head.
Technical diagram of the Bosch SDS-Plus bit, labeling key features such as the centering tip, 4-cutter carbide tip design, and 4-flute design for efficient debris removal.
Infographic illustrating the compatibility of the Bosch Bulldog Xtreme bit with masonry, brick, block, concrete, and concrete with rebar.
BOSCH

Bosch Hammer Bit HCFC2032 7/32x8-1/2 Inch Bulldog Xtreme (4 Cutter Carbide Tip Rebar Resistant Concrete Anchor Drilling Tool)

In stock
SKU: HCFC2032
$14.99 USD

Description

Bosch Promotional Logo Logout

Bosch HCFC2032 7/32-Inch x 8-1/2-Inch Bulldog Xtreme 4-Cutter SDS-plus Hammer Drill Bit

The Bosch HCFC2032 7/32-Inch x 8-1/2-Inch Bulldog Xtreme Rotary Hammer Bit drills high-precision anchor holes through reinforced concrete, embedded steel rebar mesh, and solid masonry blocks. Engineered with an innovative four-cutter carbide head and an optimized four-flute spiral channel, this 6-inch usable length bit delivers twice the service life and rapid debris evacuation compared to standard 2-cutter bits. A sharp centering tip prevents bit walking on impact, allowing professional contractors to bore clean, true-concentric holes for mechanical wedge and sleeve anchors without snagging on rebar.

Best Used For:

  • Reinforced Concrete Rebar Drilling: Piercing through hidden steel rebar networks in poured foundation walls without shattering the carbide cutting edges.
  • Concrete Anchor Pilot Boring: Drilling exact 7/32-inch diameter holes for concrete screw anchors and masonry fasteners on commercial jobsites.
  • Overhead & Wall Fastening: Executing repetitive anchoring tasks securely using corded or cordless SDS-plus rotary hammer drills.

Key Performance & Safety Features

  • 4-Cutter Carbide Head Architecture: Quad-edge cutting geometry delivers up to 2X longer operating life and prevents binding when hitting rebar.
  • Precision Centering Tip Design: Pointed starter tip ensures exact hole positioning and stops bit walking on hard aggregate surfaces.
  • Advanced 4-Flute Debris Removal: High-volume spiral channels evacuate pulverized concrete instantly to reduce thermal friction and bit wear.
  • Universal SDS-plus Shank Fit: Engineered for secure tool-free retention and maximum impact energy transfer across all SDS-plus hammers.
  • Diffusion-Hardened Steel Body: Withstands intense rotational torsion and high-frequency hammer blows during heavy contractor use.

What's Included

  • (1) Bosch HCFC2032 7/32" x 6" x 8-1/2" Bulldog Xtreme Rotary Hammer Bit

Technical Specifications

Specification Detail
Model Number / Part ID HCFC2032
Drilling Diameter Size 0.21875 in (7/32 in / 5.56 mm)
Usable Cutting Length 6.0 in (152.4 mm)
Overall Tool Length 8.5 in (8-1/2 in / 215.9 mm)
Shank Drive Type SDS-plus Quick-Change Shank
Cutter Head Configuration 4-Cutter Solid Carbide Tip Head
Flute Channel Count 4-Flute Spiral Debris Evacuation
Bit Series Classification Bosch Bulldog Xtreme Heavy-Duty Series
Tool Machine Compatibility All Corded and Cordless SDS-Plus Rotary Hammers
Substrate Suitability Reinforced Concrete, Rebar, Brick, Stone, Masonry
Pro-Tip: Allow the rotary hammer to do the work without applying extreme downward force when encountering rebar; letting the 4-cutter carbide head feed naturally prevents overheating and maximizes bit longevity.
