Husqvarna Ride On Power Trowel CRT 60 74LX 970461801 59 Inch (74 HP Kohler Turbo Diesel 132 RPM 12 Blade Commercial Concrete Finishing Machine)

Only 1 left
SKU: 970461801
$62,500.00 USD

Shipping Quote Required

Request a Shipping Quote
Description

Husqvarna Logo logout

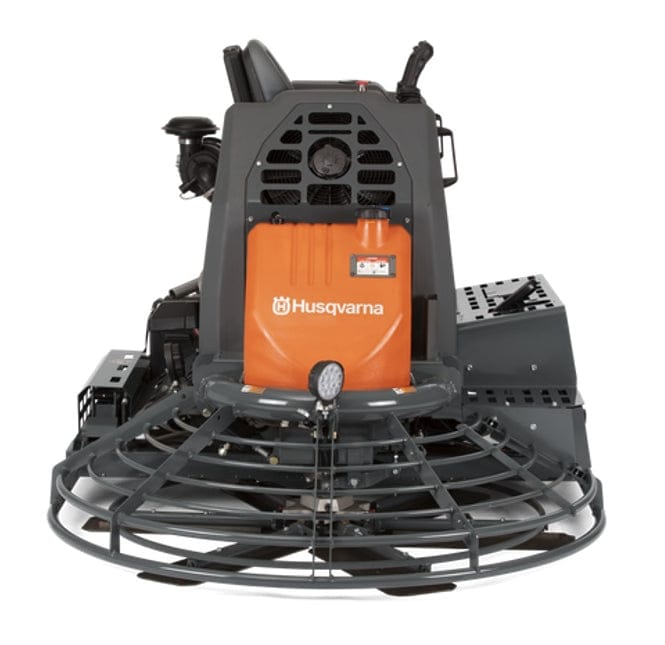

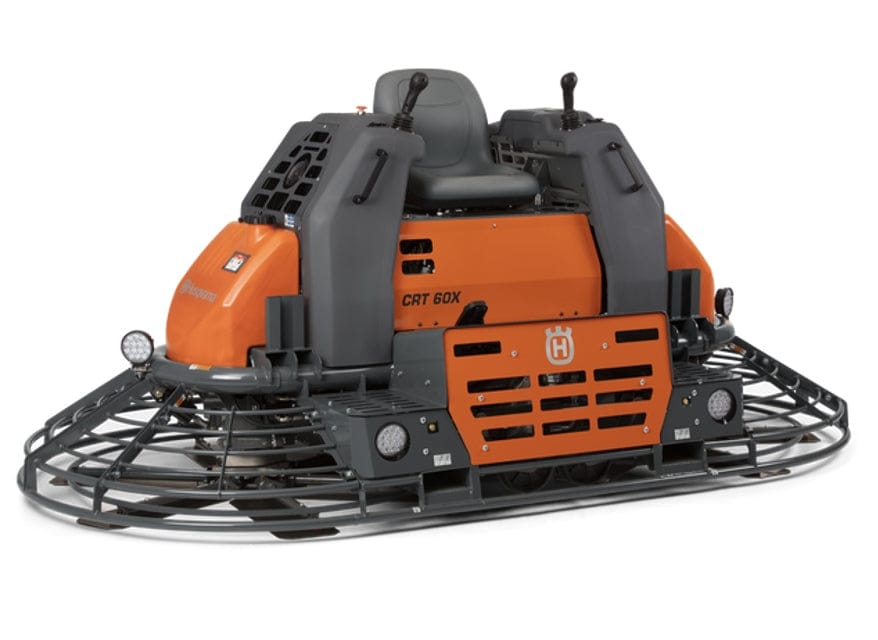

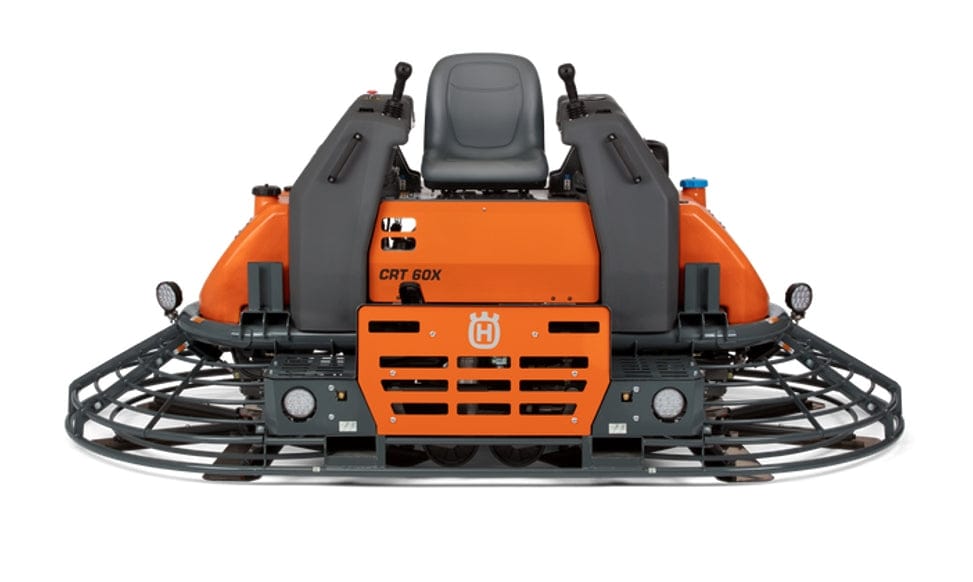

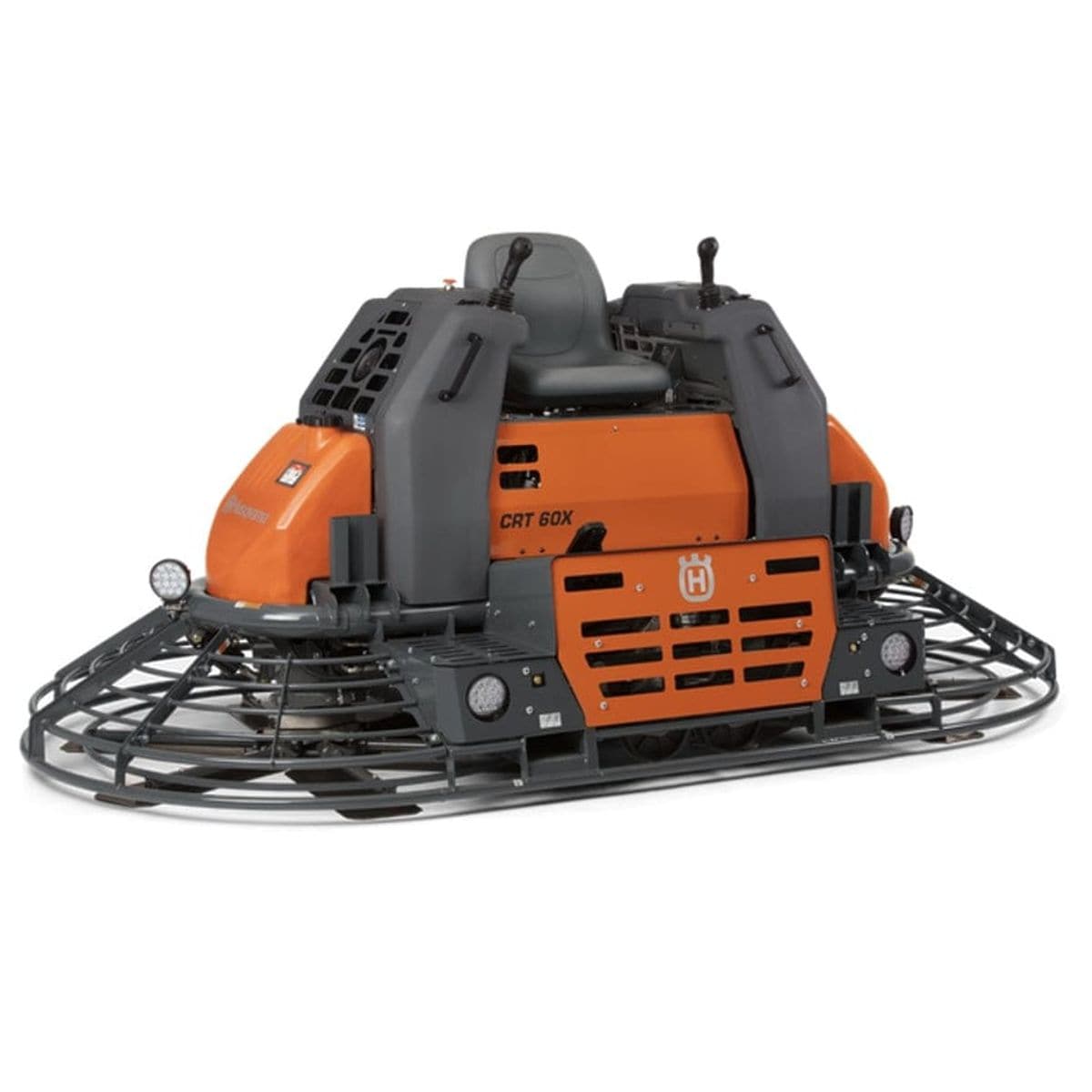

Husqvarna CRT 60 74LX 59" Ride-On Power Trowel (74 HP Turbo Diesel)

The Husqvarna CRT 60 74LX 59-inch ride-on power trowel floats and burnishes expansive concrete slabs across large industrial warehouses, commercial distribution centers, and multi-level parking decks spanning 20,000 to 50,000 square feet. Powered by a Tier 4 Final 74 HP liquid-cooled Kohler turbo diesel engine paired with an advanced electro-hydraulic drive system, this 12-blade ride-on machine delivers high torque across variable rotor speeds ranging from 25 to 132 RPM. Outfitted with ergonomic joystick power steering, an integrated hydraulic wheel kit for crane-free servicing, and an intelligent onboard diagnostics computer that modulates engine load dynamically, it equips commercial concrete contractors with maximum floor flatness, high production rates, and low operator fatigue.

Best Used For:

  • Large-Scale Industrial Floor Finishing: Panning and finishing massive warehouse superflat floors, logistics terminals, and retail superstructures ranging from 20,000 to 50,000 square feet.
  • High-Tolerance Commercial Slab Pours: Achieving precise FF/FL flatness and levelness numbers on post-tensioned slabs, bridge decks, and elevated structural decks.
  • Hard Burnish and Polishing Prep: Hard troweling cured concrete to a high-density, high-gloss surface profile prior to densifier application and mechanical polishing.

Key Performance & Safety Features

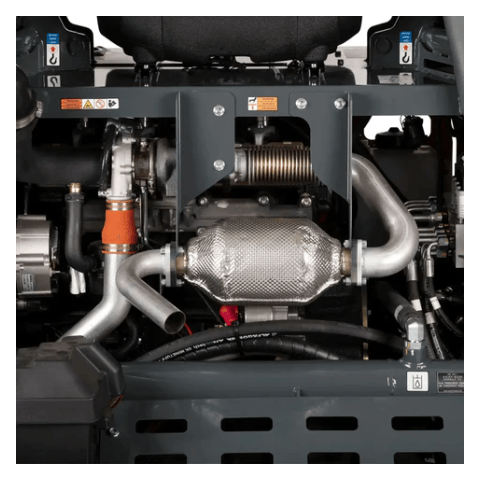

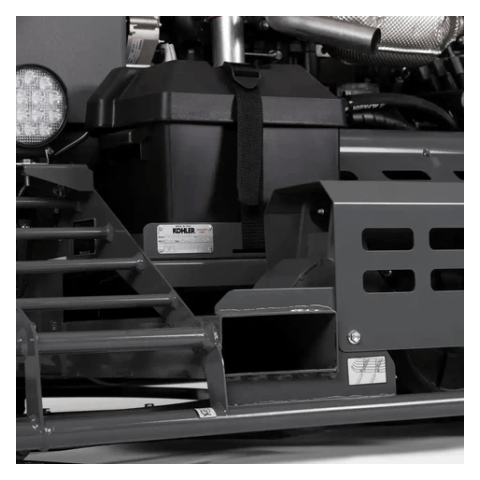

  • Tier 4 Final 74 HP Kohler Turbo Diesel: High-output liquid-cooled diesel powerplant supplies steady hydraulic torque across demanding panning and burnishing cycles.

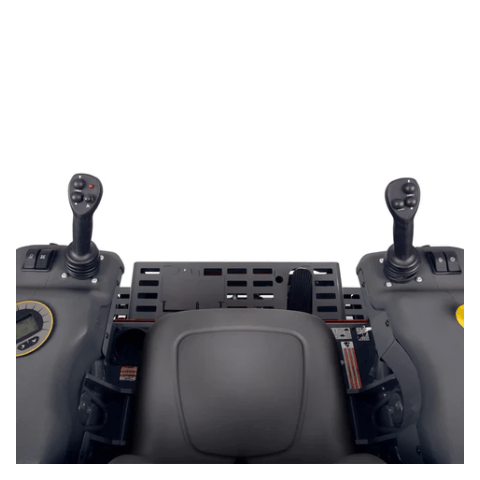

  • Responsive Dual Joystick Power Steering: Electro-hydraulic joystick controls deliver pinpoint directional steering with zero physical steering effort or fatigue.
  • Integrated Hydraulic Wheel System: Built-in hydraulic transport wheels allow solo jobsite maneuvering and rapid blade or float pan swaps without overhead cranes or forklifts.

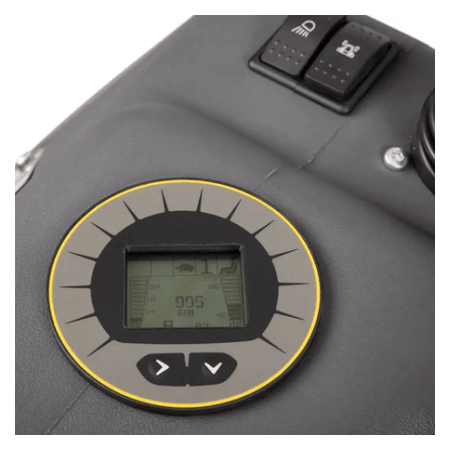

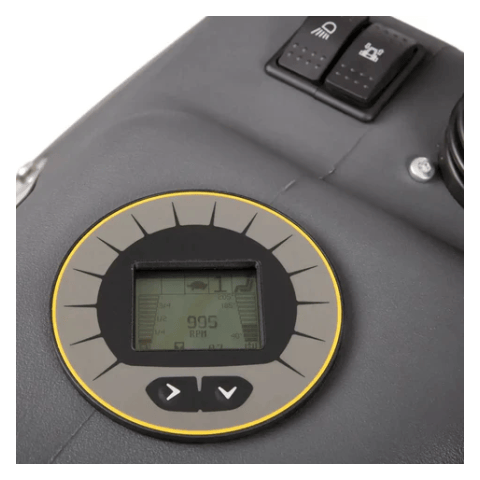

  • Patented Onboard Diagnostic Monitoring: Digital display provides real-time operational feedback including engine RPM, hydraulic fluid pressures, temperatures, and fuel levels.
  • Wide 59-Inch Twin-Rotor Coverage: Dual 6-blade rotor spiders span a full 59-inch panning width to accelerate floor coverage on tight setting schedules.

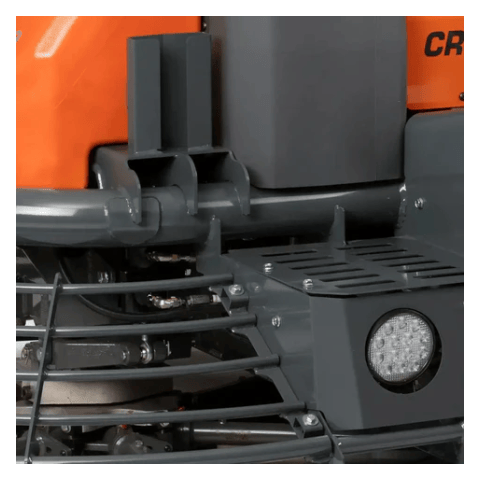

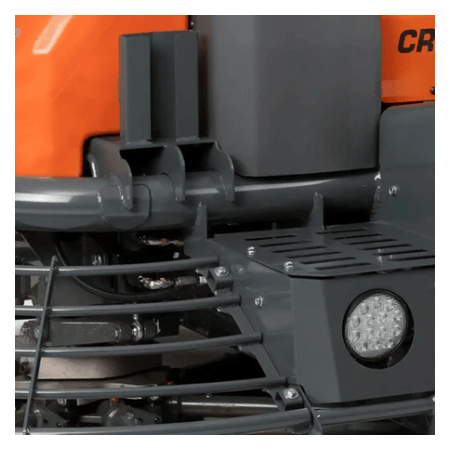

  • High-Output LED Jobsite Lighting: Integrated front and rear LED work lights illuminate the slab surface during early morning and night pour schedules.

What's Included

  • (1) Husqvarna CRT 60 74LX Ride-On Power Trowel (Part 970461801)
  • (1) Kohler 74 HP Liquid-Cooled Turbo Diesel Engine (Factory Installed)
  • (12) Heavy-Duty Trowel Blades (23" x 8")
  • (1) Built-In Hydraulic Wheel Kit Assembly
  • (1) Operator & Safety Instruction Manual

Available for pickup at our Tomball, TX location:

30702 State Highway 249
Tomball, Texas 77375

Monday-Friday 7am-5pm CST
Saturday 7am-1pm CST

Technical Specifications

Manufacturer Husqvarna Construction Products
Model Part Number CRT 60 74LX (Part 970461801)
Engine Model & Type Kohler Turbo Diesel, Liquid-Cooled (Tier 4 Final)
Horsepower Rating 74.0 HP (55.2 kW Output)
Total Trowel Path Width 59.00 inches (149.86 cm Finishing Span)
Rotor Speed Range 25 to 132 RPM Variable Speed
Blade Configuration 12 Blades Total (6 Blades per Spider Rotor)
Standard Blade Dimensions 23.00 in Length x 8.00 in Width (58.4 cm x 20.3 cm)
Fuel Tank Fluid Capacity 12.00 gallons (45.42 Liters Diesel)
Water Spray Tank Capacity 12.00 gallons (45.42 Liters Water Retardant)
Overall Machine Dimensions 127.0 in Length x 65.0 in Width x 57.0 in Height
Operating Machine Weight 2,720.00 lbs (43,520.00 oz / 1,233.77 kg)
Suitable for material type Fresh Commercial Concrete Slabs, Industrial Floors, & Parking Decks

Pro-Tip: During initial break-in passes with float pans attached, maintain rotor speeds between 30 and 45 RPM to allow the high torque of the 74 HP Kohler diesel to consolidate the cream layer smoothly without throwing excess slurry onto adjacent green slabs.
