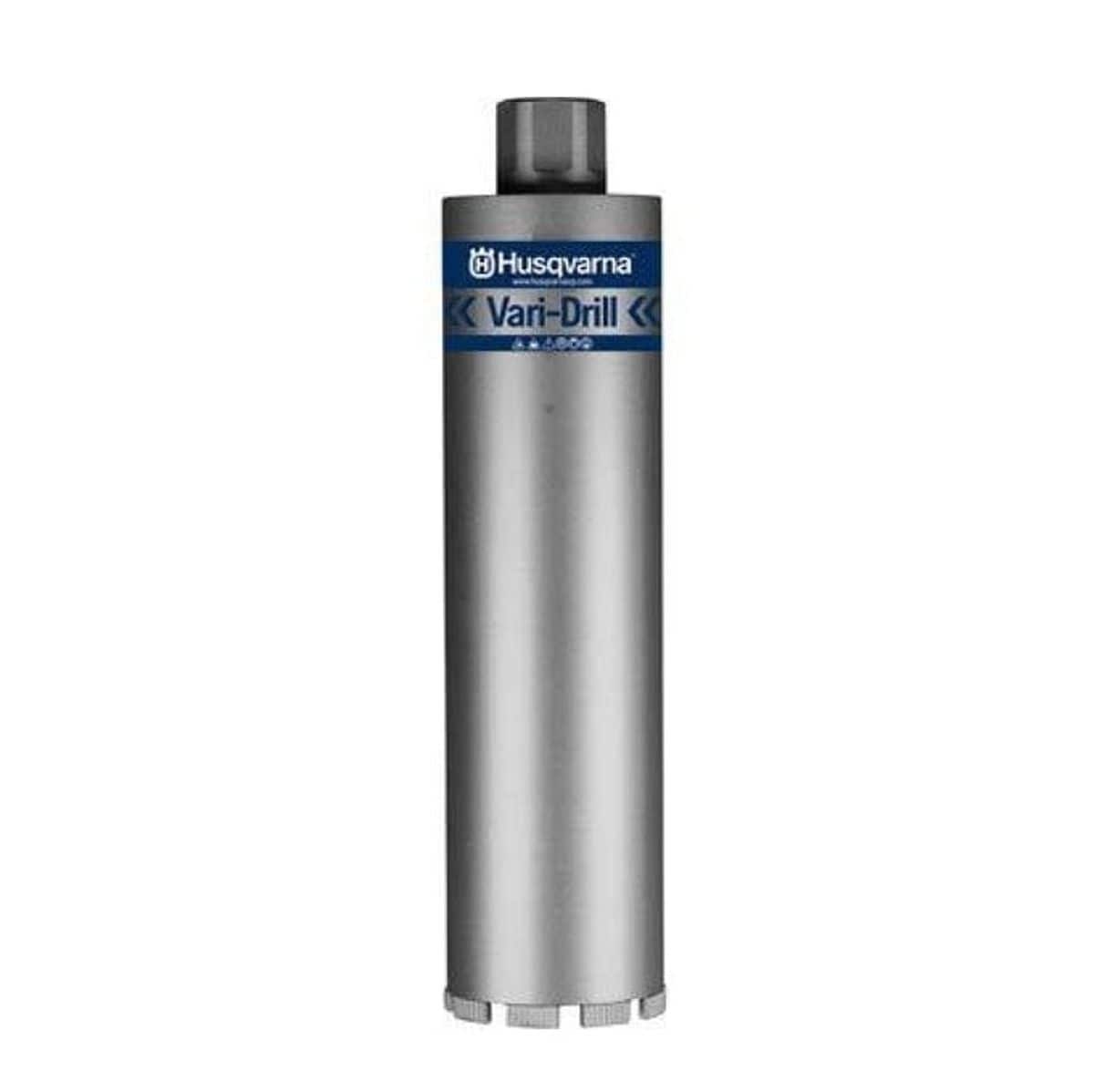

Studio product shot of the Husqvarna 594101503 Vari-Drill diamond core drill bit, featuring a long silver steel tube body with a blue brand label and segmented diamond cutting teeth at the tip.

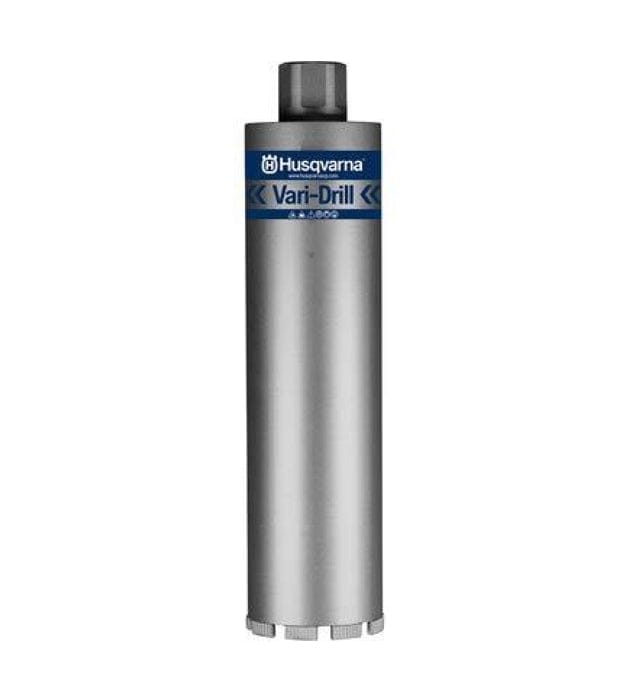

Studio product shot of the Husqvarna 594101503 Vari-Drill diamond core drill bit, featuring a long silver steel tube body with a blue brand label and segmented diamond cutting teeth at the tip.
Studio product shot of the Husqvarna 594101503 Vari-Drill diamond core drill bit, featuring a long silver steel tube body with a blue brand label and segmented diamond cutting teeth at the tip.
Studio product shot of the Husqvarna 594101503 Vari-Drill diamond core drill bit, featuring a long silver steel tube body with a blue brand label and segmented diamond cutting teeth at the tip.
Husqvarna

Husqvarna 594101503 3.5 Inch Diamond Core Drill Bit 24 Inch Tube Length B10 Vari-Drill Reinforced Concrete Masonry Extended Reach Wet Cutting

In stock
SKU: 594101503
$179.87 USD

Description

3.5" x 24" B10 Vari-Drill™ Diamond Core Bit | Extended Reach

Part Number: 594101503

Series: B10 Vari-Drill™ (Silver Performance Level)

Product Overview The Husqvarna 594101503 is a high-performance 3.5-inch diamond core drill bit featuring an extended 24-inch tube length, designed specifically for deep-hole drilling applications. Part of the Vari-Drill™ B10 series, this bit is engineered for professional contractors requiring reliable cutting speed and longevity in heavy-duty materials.

Optimized for wet cutting, the B10 series utilizes a specialized bond matrix and laser-welded segments to drill efficiently through hard reinforced concrete, masonry, and stone. The extended reach allows for single-pass drilling of thick walls and floors without the need for extensions.

Key Features & Benefits

  • Extended Reach: The 24-inch (610mm) tube length allows for deep drilling applications that standard 14-inch bits cannot reach, reducing the need for barrel extensions.

  • Reinforced Concrete Specialist: Engineered to cut through heavy steel reinforcement, hard cured concrete, and hard aggregate with consistent speed.

  • Z-Edge Segment Design: Features Husqvarna’s proprietary "roof-top" Z-Edge segments which provide an easier start, reduced vibration, and immediate smooth cutting without a long break-in period

  • Laser Welded Segments: Segments are laser welded to the tube (on diameters 2" to 8") to ensure maximum structural integrity and safety during high-stress drilling.

  • Silver Performance Grade: A professional "Intermediate" grade tool that offers an excellent balance of cost, cutting speed, and service life.

Technical Specifications

  • Bit Diameter: 3.5 Inches (89 mm

  • Tube Length: 24 Inches (610 mm)

  • Thread Connection: 1-1/4"-7 UNC (Standard industry thread)




  • Cutting Mode: Wet Cutting Only (Water coolant required)

  • Segment Height: 0.40" (10 mm)




  • Number of Segments: 9

  • Application Bond: Vari-Drill™ B10 (Designed for Hard/Reinforced materials)

Material Compatibility

  • Optimal: Reinforced Concrete, Hard Cured Concrete, Heavy Steel Reinforcement.

  • Good: Brick, Masonry, Block.

  • Not Recommended: Asphalt or highly abrasive soft materials (may cause premature wear).

Equipment Compatibility

Compatible with all standard core drill motors and rigs using a 1-1/4"-7 spindle, including Husqvarna models DM 280, DM 340, and similar professional coring rigs.
