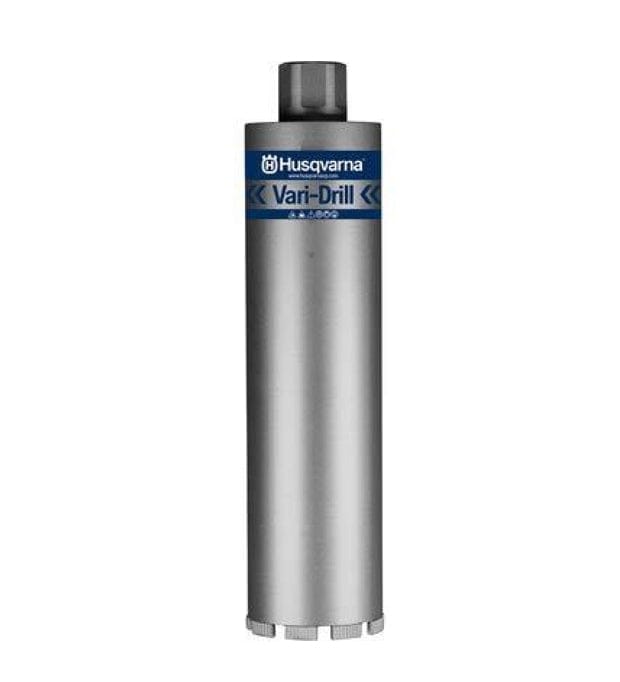

Husqvarna 595934204 3.25 Inch Diamond Core Drill Bit 24 Inch Tube Length B10 Vari-Drill Reinforced Concrete Masonry Extended Reach Wet Cutting

Drill Deep 3.25 Inch Holes in Hard Concrete with the Husqvarna Extended Reach Core Bit

Achieve professional precision and depth with the Husqvarna 595934204 3.25-Inch Diamond Core Drill Bit. As a key component of the Silver performance level B10 Vari-Drill series, this bit is engineered to overcome the limitations of standard length tools. With an extended 24-inch tube length, it allows you to drill through thick foundations, bridge decks, and heavy structural walls in a single, continuous pass. This "Extended Core Travel" capability eliminates the wobble and downtime associated with adding barrel extensions, ensuring a straighter, cleaner hole for your installations.

The 595934204 is specifically designed to handle hard reinforced concrete containing abrasive aggregates like granite, flint, and limestone. It features eight high-performance diamond segments, laser-welded to the barrel to ensure maximum bond strength and operator safety even under the high torque of deep drilling. Optimized for wet cutting applications with drill motors ranging from 2 to 5 horsepower, this bit delivers consistent cutting speed and extended life. It is the ideal solution for creating 3.25-inch (83mm) openings for conduit, large piping, and structural anchors.

Key Features

• 24-Inch Extended Reach: Drills deep holes in one setup without the need for additional extensions.
• 3.25-Inch Diameter: Precise sizing (83mm) for specific conduit, piping, and anchor applications.
• Vari-Drill B10 Technology: Silver performance level engineered for speed and durability in hard materials.
• Hard Aggregate Performance: Cuts efficiently through reinforced concrete, granite, flint, and limestone.
• 8 Laser-Welded Segments: Ensures exceptional segment retention and safety during heavy-duty use.
• Standard Connection: 1-1/4"-7 thread ensures compatibility with most professional core drill rigs.
• Fast Start Design: Segment geometry reduces vibration and promotes a smooth start in reinforced concrete.

What's Included:

• (1) 3.25" x 24" B10 Vari-Drill Diamond Core Bit (595934204)

Specifications
