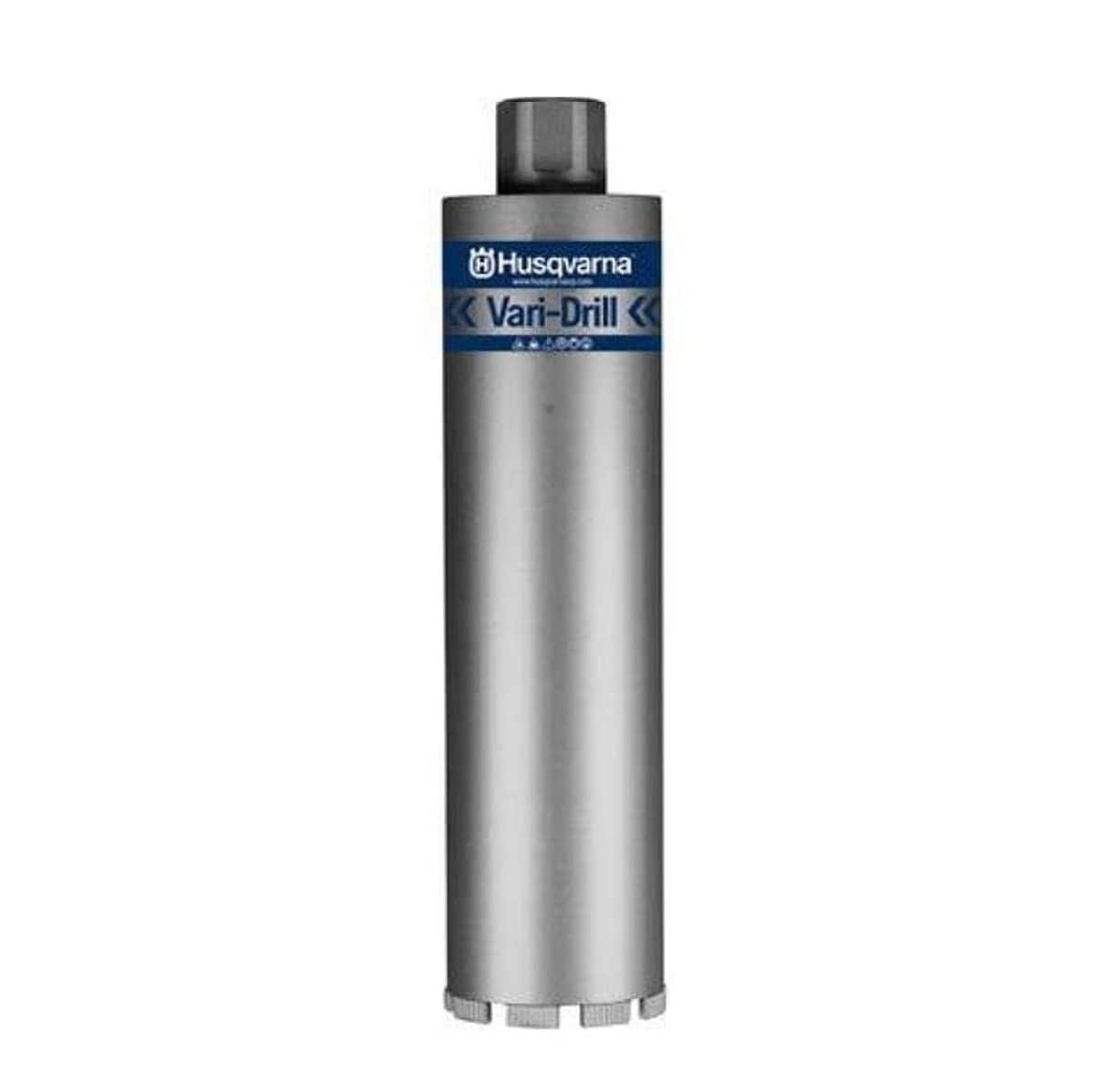

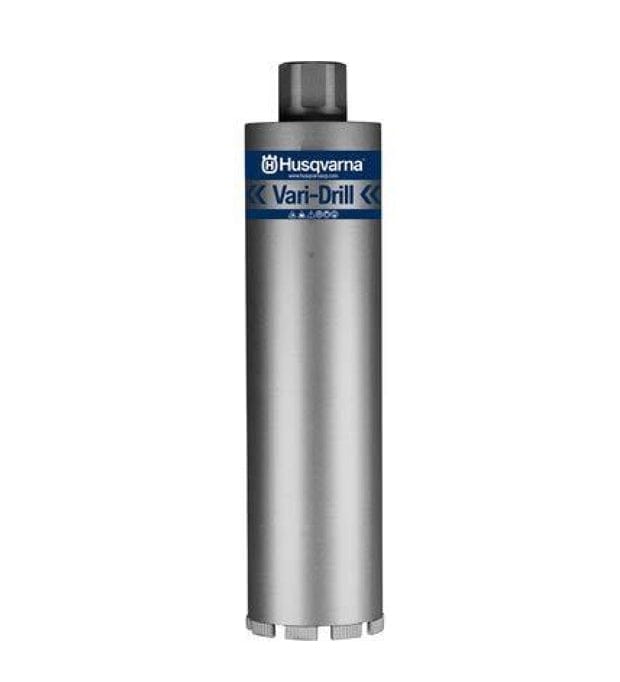

Husqvarna 595934207 5.5 Inch Diamond Core Drill Bit 24 Inch Tube Length B10 Vari-Drill Reinforced Concrete Masonry Extended Reach Wet Cutting

Drill Deep 5.5 Inch Holes in Hard Reinforced Concrete with the Husqvarna Extended Reach Core Bit

Master your deep structural drilling projects with the Husqvarna 595934207 5.5-Inch Diamond Core Drill Bit. As a specialized tool in the Silver performance level B10 Vari-Drill series, this bit is engineered to handle the most demanding heavy-duty applications. Its extended 24-inch tube length is a critical advantage, allowing contractors to drill through thick foundations, bridge decks, and heavy masonry walls in a single, continuous pass. This "Extended Core Travel" capability drastically reduces the downtime and bit deviation often caused by stopping to add barrel extensions, ensuring a straighter, cleaner bore.

The 595934207 is built to cut through hard reinforced concrete containing abrasive aggregates like granite, flint, and limestone. It features 12 high-performance diamond segments with Husqvarna's signature "Z-Edge" roof-top design. This unique segment shape reduces contact area at the start of the cut, promoting a fast, smooth entry into the material and minimizing vibration. Laser-welded to the barrel for maximum bond strength and safety, these segments are optimized for wet cutting with motors ranging from 2 to 5 horsepower. It is the ideal solution for creating 5.5-inch (140mm) openings, perfect for specialized large-diameter piping and bollard installations.

Key Features

• 24-Inch Extended Reach: Drills deep holes in one setup without the need for additional extensions.
• 5.5-Inch Diameter: Precise sizing (140mm) for 5-inch pipe sleeves and specialized industrial applications.
• Vari-Drill B10 Technology: Silver performance level engineered for speed and durability in hard materials.
• Z-Edge Segment Design: Roof-top shape ensures an easy start and fast cutting speed.
• Hard Aggregate Performance: Cuts efficiently through reinforced concrete, granite, flint, and limestone.
• Laser-Welded Segments: Ensures exceptional segment retention and safety during heavy-duty use.
• Standard Connection: 1-1/4"-7 thread ensures compatibility with most professional core drill rigs.

What's Included:

• (1) 5.5" x 24" B10 Vari-Drill Diamond Core Bit (595934207)

Specifications
