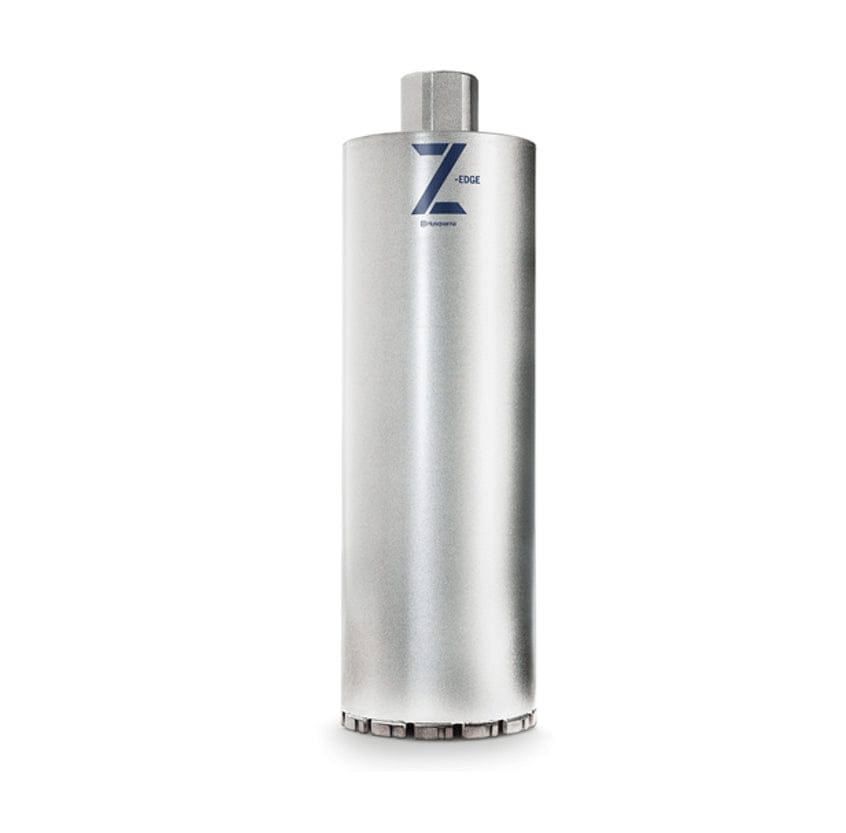

Husqvarna Elite-Drill B1420 5/8-in Diamond Crown Core Drill Bit Professional Wet Coring for Reinforced Concrete and Hard Aggregate Masonry Bit
Couldn't load pickup availability
Precision Engineering for Extreme Concrete: Professional Gold-Level Coring Performance
The Husqvarna Elite-Drill B1420 5/8" Diamond Crown Bit (596242702) is a top-tier "Gold" performance tool designed for contractors who tackle the most challenging materials. Featuring a specialized continuous crown segment rather than traditional individual segments, this bit provides a constant cutting surface that ensures smoother starts and ultra-precise holes. It is specifically engineered to excel in flint-hard cured concrete and heavily reinforced concrete, allowing you to slice through rebar with significantly reduced vibration and superior speed.
Developed for professional use in heavy-duty handheld or rig-mounted applications, the B1420 series offers an ideal balance of aggressive cutting and long-term wear resistance. The thin-wall tube design reduces the surface area in contact with the material, which minimizes friction and allows for faster penetration even in high-PSI concrete. This bit is optimized for wet drilling operations, ensuring that the diamond matrix stays cool and debris is efficiently flushed out, extending the life of the tool and maintaining peak performance throughout its lifespan.
Key Features
- Continuous Crown Design: Delivers a smooth, precise drilling experience with minimal vibration and easier hole starts compared to segmented bits.
- Gold Performance Level: Husqvarna’s highest performance tier, optimized for maximum cutting speed and life in the toughest aggregates.
- High Steel Reinforcement Ready: Engineered to maintain structural integrity and cutting efficiency when encountering heavy rebar.
- Thin-Wall Construction: Lightweight barrel reduces the load on the drill motor and increases drilling speed.
- Wet Use Optimized: Designed for constant water cooling to prevent diamond glazing and ensure efficient slurry removal.
- Versatile Power Compatibility: Efficiently operates on drill motors ranging from 2 HP to 5 HP.
What's Included
- (1) Husqvarna Elite-Drill B1420 5/8" Diamond Crown Core Bit (596242702)
Specifications
| Brand | Husqvarna |
| Model Number | 596242702 |
| Performance Level | Gold (Elite-Drill) |
| Bit Diameter | 0.625 in (5/8 in) |
| Drill Connection | 5/8 in - 11 Threaded |
| Core Length | 14 in |
| Segment Type | Crown (Continuous) |
| Segment Height | 0.4 in |
| Segment Width | 0.125 in |
| Coolant | Wet Use Only |
| Power Range (Min) | 2 hp |
| Power Range (Max) | 5 hp |
| Weight | ~0.91 lbs |
Pro-Tip: Because the B1420 is a crown-style bit, it is exceptionally good for starting holes without a pilot or a rig guide. To get the best life out of your bit, ensure a steady flow of water; if the slurry turns very dark or thick, increase the water pressure immediately to prevent the diamonds from overheating and "polishing" over.
