JET Manual Chain Hoist S90-150-10 1.5 Ton 10 Foot Lift Puller Tool (Weston Dual Pawl Brake Grade 80 Load Steel Rigging Garage Workshop Machinery)

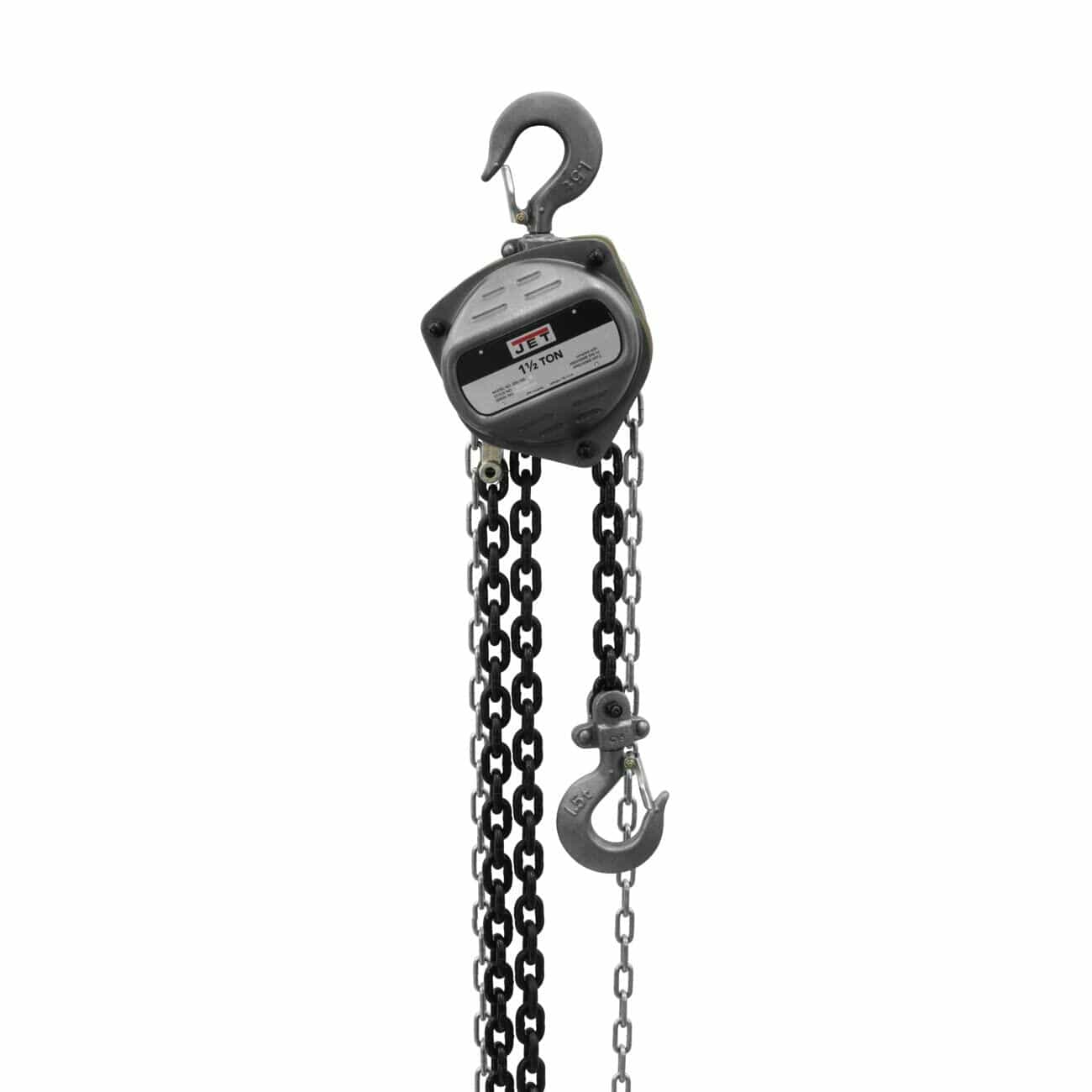

JET S90-150-10 S90 Series 1.5-Ton 10-Foot Lift Manual Hand Chain Hoist

The JET S90-150-10 1.5-ton manual hand chain hoist lifts automotive engines, positions heavy fabrication workpieces, suspends structural steel assemblies, and maneuvers machinery loads up to a rated 3,307 lb capacity across a 10-foot standard lift height. Engineered with an impact-resistant all-steel housing, heat-treated internal gearing, and a Grade 80 black oxide coated load chain, this compact 35-pound manual block operates with minimal headroom clearance of only 13 inches for low-ceiling garages and industrial workshops. Outfitted with a Weston-style double-pawl mechanical load brake that splits holding forces across opposite sides of the ratchet gear, 360-degree swivel hooks with visual overload deformation indicators, heavy cast-steel safety latches, and needle-bearing-supported load sheaves, it equips rigging crews, automotive technicians, and steel fabricators with smooth, low-effort lifting compliant with ANSI/ASME B30.16 and HST-2 standards.

Best Used For:

• Automotive Engine and Drivetrain Extraction: Hoisting vehicle engines, heavy transmissions, and rear axle assemblies cleanly in automotive repair shops and service bays.
• Industrial Fabrication and Beam Positioning: Lifting heavy structural steel weldments, machine tool attachments, and plate steel components onto welding tables or machine beds.

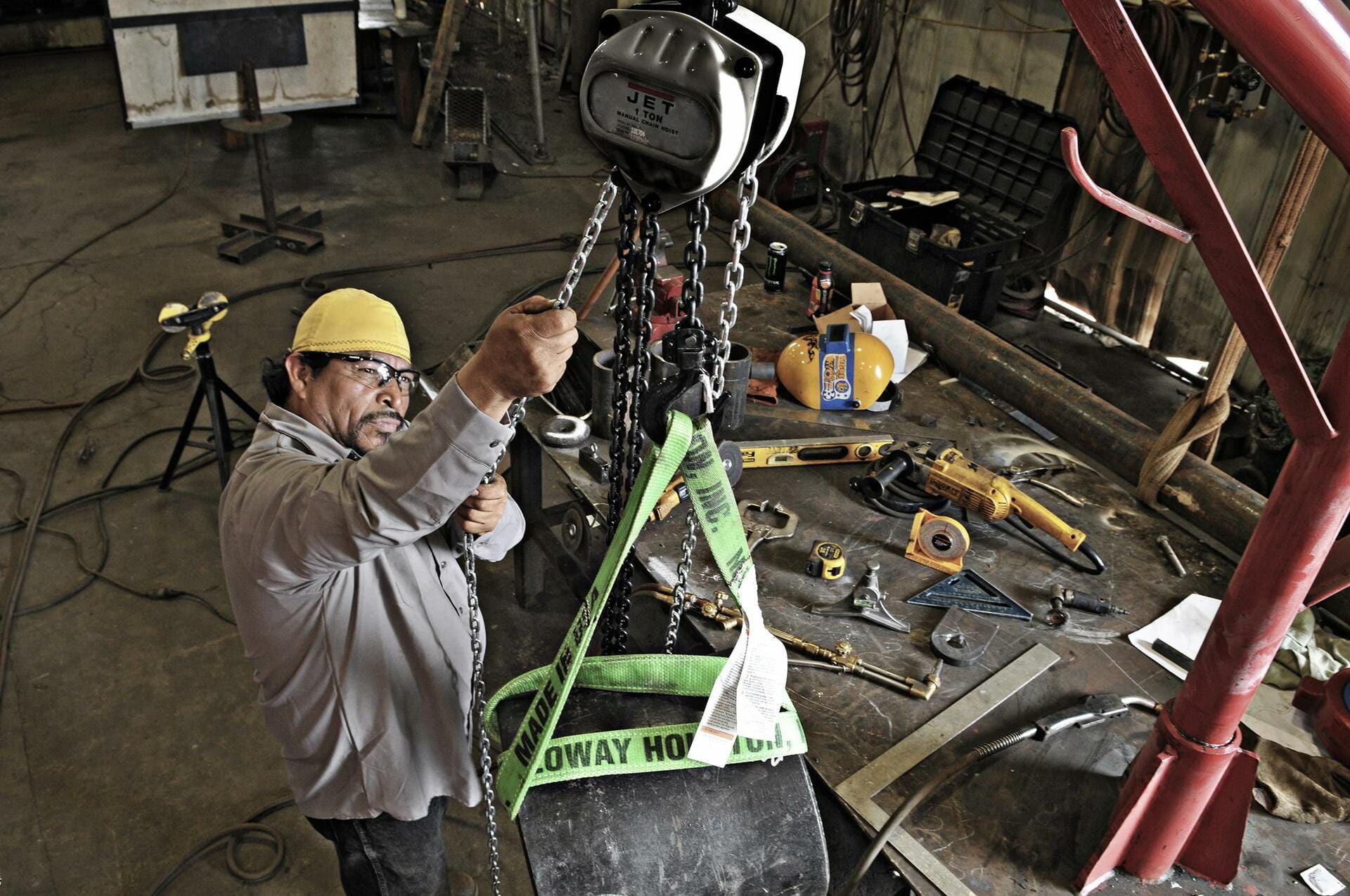

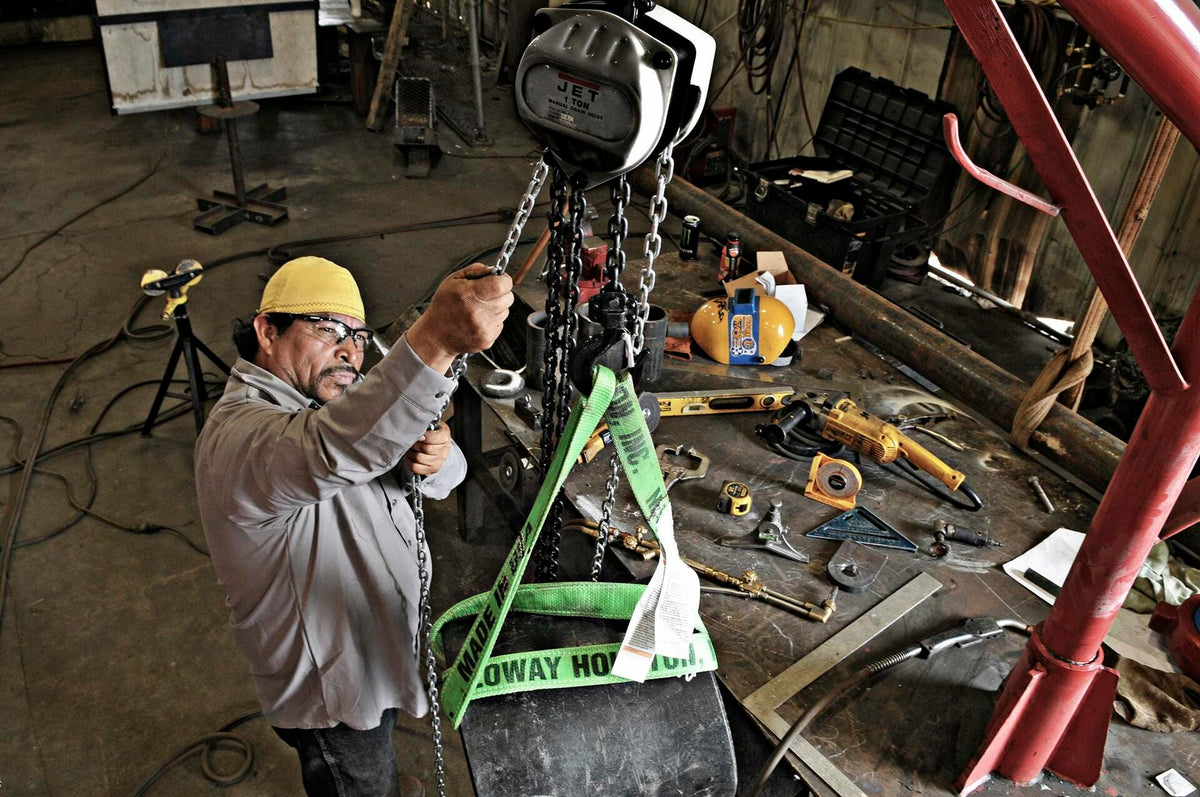

• Overhead Trolley and Facility Rigging: Mounting to I-beam push trolleys and gantry cranes to transport industrial pumps, electric motors, and maintenance loads across manufacturing facilities.

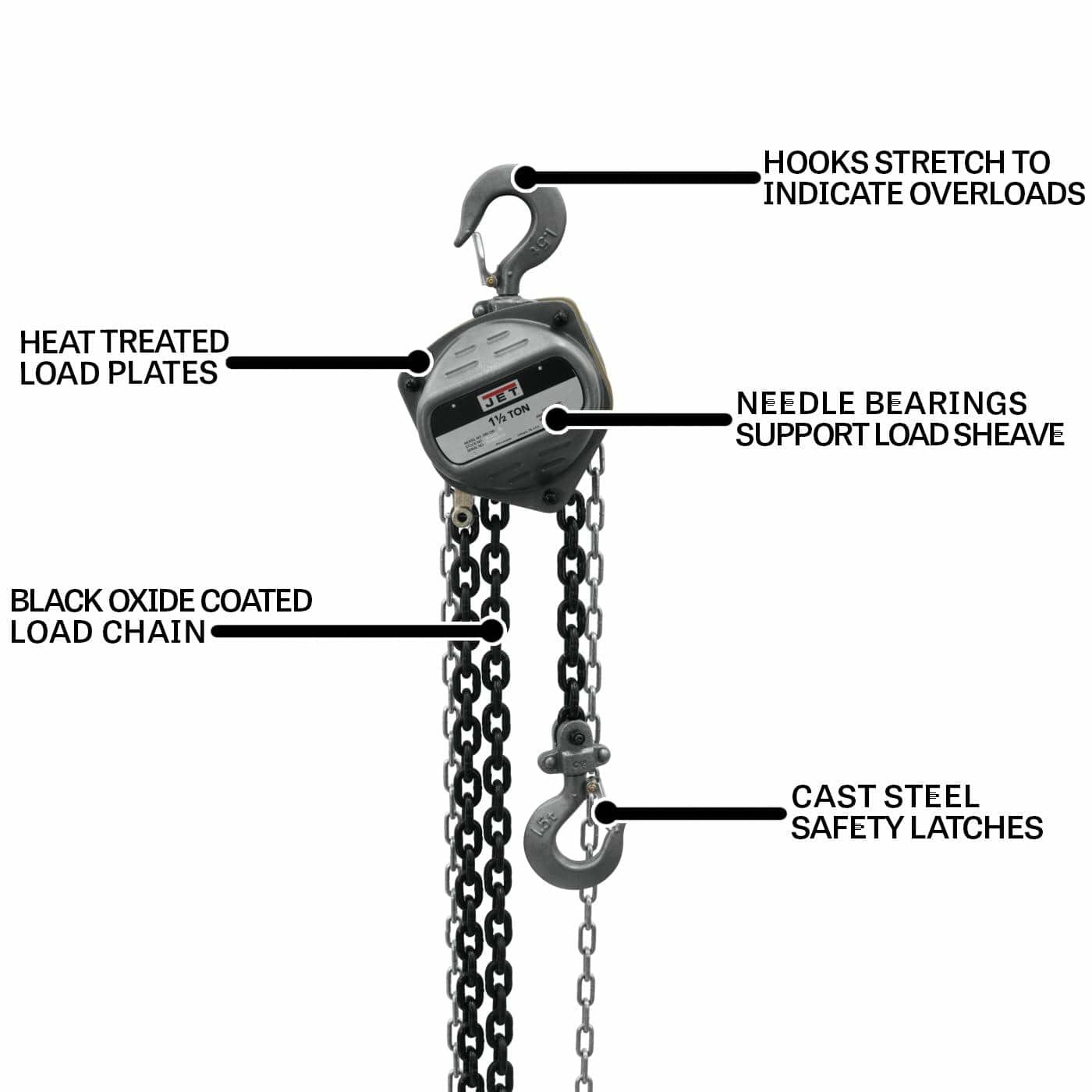

Key Performance & Safety Features

• Weston-Style Double Pawl Brake: Dual-pawl ratchet mechanism splits load holding forces to opposite sides of the gear for positive load retention and precise lowering control.
• Overload-Indicating 360° Swivel Hooks: Drop-forged steel hooks rotate 360 degrees for easy rigging and slowly deform under severe overload to give operators an immediate visual warning.
• Grade 80 Black Oxide Load Chain: Heat-treated alloy steel lifting chain delivers high tensile strength and wear resistance while resisting environmental rust and corrosion.
• Durable Cast Steel Safety Latches: Heavy-duty latches secured with heavy-duty fasteners resist bending and rough jobsite impacts to keep rigging slings firmly seated.
• Needle Bearing Mechanical Efficiency: High-precision needle bearings support the load sheave, minimizing operational friction and reducing physical operator fatigue.
• Compact Low-Headroom Profile: 13-inch hook-to-hook profile allows for maximum vertical lift clearance in tight, low-ceiling work environments.

What's Included

• (1) JET S90-150-10 1.5-Ton Hand Chain Hoist (10-Foot Lift)
• (1) 10-Foot Grade 80 Black Oxide Coated Load Chain
• (1) Continuous Hand Chain Loop
• (1) Top Swivel Mounting Hook with Cast Steel Safety Latch
• (1) Bottom Swivel Load Hook with Cast Steel Safety Latch
• (1) Operator's Manual and Factory Inspection Certificate

Technical Specifications

Pro-Tip: Before undertaking critical overhead engine or machinery lifts, check the hook throat opening against the raised indicator marks on the forged hook body; if the throat has opened wider than the indicator points, the hook has experienced an overload condition and must be retired from service.
