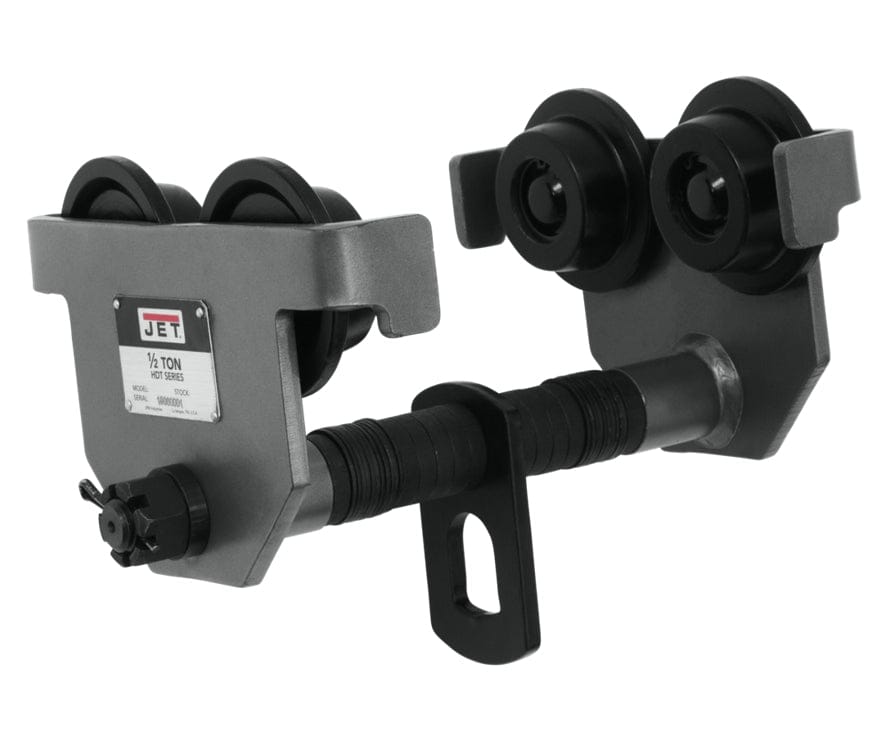

Studio angle view of the grey Jet 1/2-HDT manual beam trolley featuring four black wheels, a threaded adjustable width crossbar with washers, and a distinct lower hanging eyelet for lifting attachments

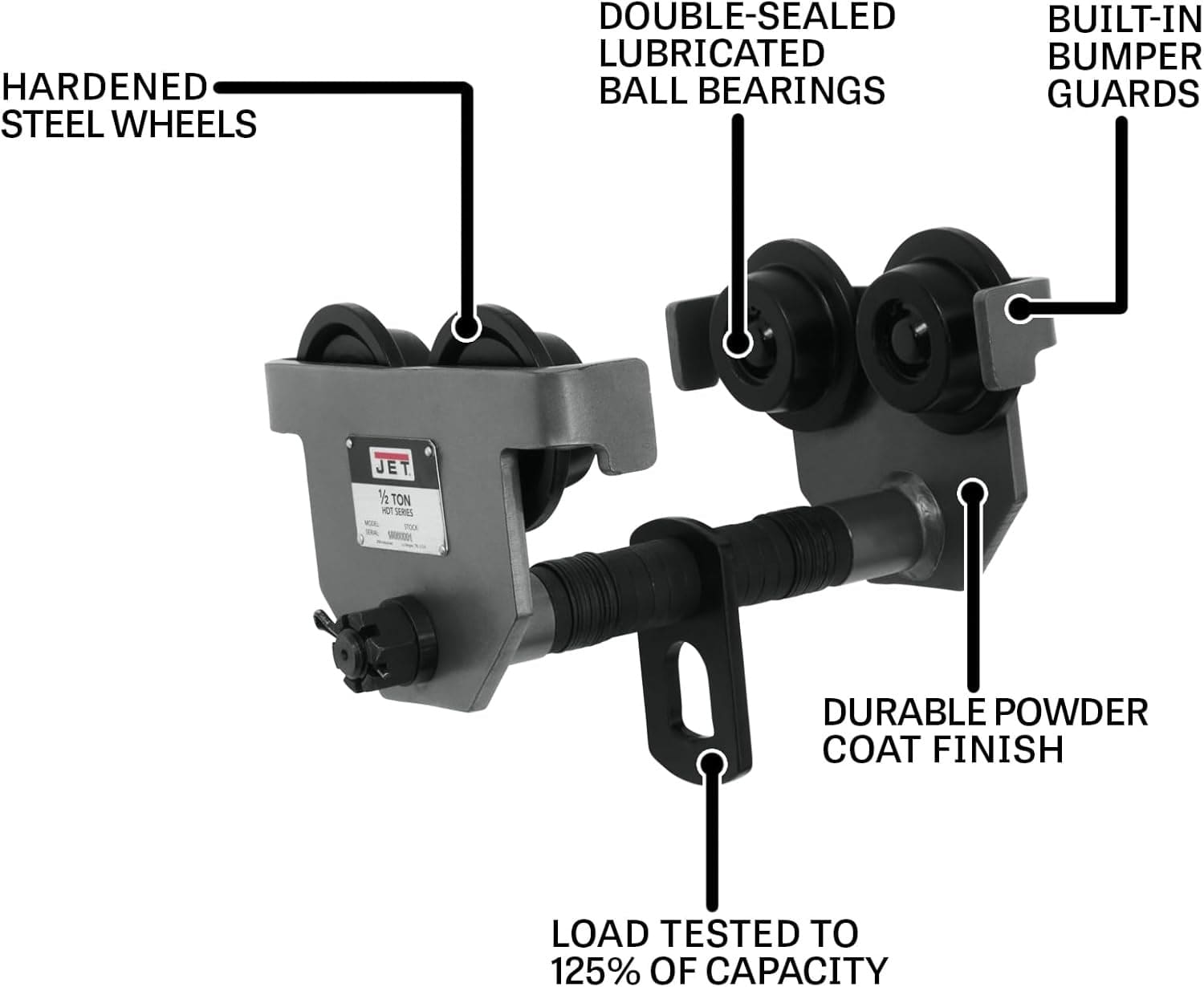

Infographic of the Jet 1/2-HDT trolley detailing key features including hardened steel wheels, double-sealed lubricated ball bearings, built-in bumper guards, a durable powder coat finish, and a note stating it is load tested to 125% of capacity
Studio angle view of the grey Jet 1/2-HDT manual beam trolley featuring four black wheels, a threaded adjustable width crossbar with washers, and a distinct lower hanging eyelet for lifting attachments

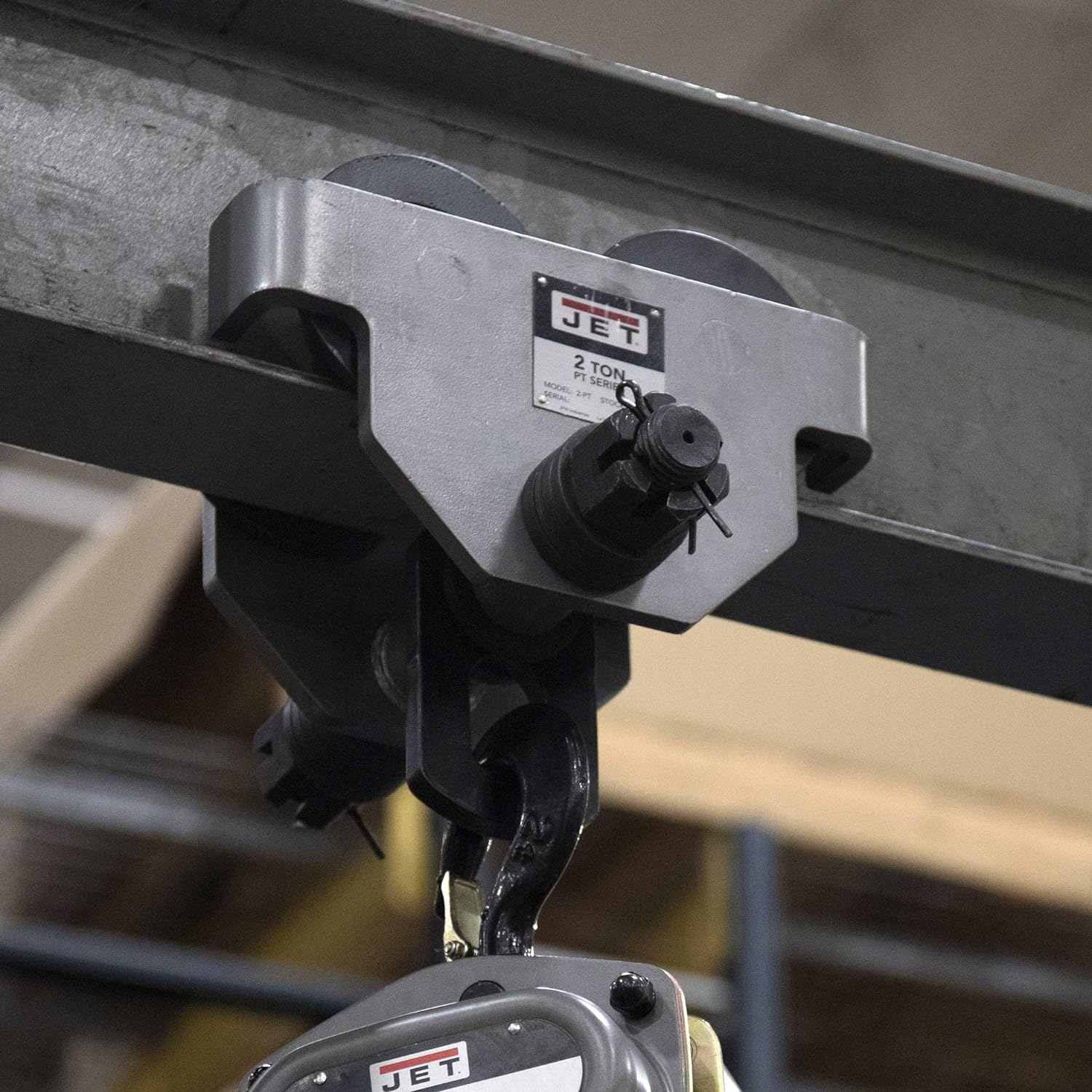

Close-up application shot of a Jet beam trolley securely mounted on an overhead steel I-beam, shown supporting a hoist hook to demonstrate industrial lifting use
Red and black square badge displaying the text 2 Year Warranty in large white block letters
Studio angle view of the grey Jet 1/2-HDT manual beam trolley featuring four black wheels, a threaded adjustable width crossbar with washers, and a distinct lower hanging eyelet for lifting attachments
Infographic of the Jet 1/2-HDT trolley detailing key features including hardened steel wheels, double-sealed lubricated ball bearings, built-in bumper guards, a durable powder coat finish, and a note stating it is load tested to 125% of capacity
Studio angle view of the grey Jet 1/2-HDT manual beam trolley featuring four black wheels, a threaded adjustable width crossbar with washers, and a distinct lower hanging eyelet for lifting attachments
Close-up application shot of a Jet beam trolley securely mounted on an overhead steel I-beam, shown supporting a hoist hook to demonstrate industrial lifting use
Red and black square badge displaying the text 2 Year Warranty in large white block letters
JET

JET Manual Beam Trolley 1/2-HDT 1/2 Ton Adjustable (1100 LB Capacity 2-1/2 to 8 Inch Beam Flange Width Sealed Bearings Low Headroom I-Beam)

In stock
SKU: 1/2-HDT
$89.00 USD

Description

Jet Tools Logo logout

JET 1/2-HDT 1/2-Ton Manual Adjustable Beam Trolley

The JET 1/2-HDT Manual Beam Trolley is an industrial material handling carriage engineered for traversing manual or powered chain hoists along I-beams, H-beams, and curved overhead rail systems. Delivering a 1,100-pound rated load capacity across adjustable flange widths from 2-1/2 to 8 inches, this manual trolley features hardened steel wheels supported by double-sealed, permanently lubricated precision ball bearings. Outfitted with a welded all-steel frame, integrated impact bumper guards on side plates, a 35-inch minimum curve radius, and a low-profile 4-inch headroom design, this 11-pound unit complies with OSHA, ANSI/ASME B30.11, and B30.17 standards.

Best Used For:

  • Overhead Material Traversing: Gliding 1,100-pound loads across structural I-beams and wide-flange H-beams in fabrication shops.
  • Curved Track Overhead Conveyance: Navigating overhead rail curves with a minimum 35-inch radius in manufacturing lines.
  • Low-Headroom Hoist Mounting: Suspending manual or electric chain hoists in tight vertical clearance bays to maximize lift height.

Key Performance & Safety Features

  • 1,100 LB Working Load Limit: Industrial 1/2-ton capacity rating supports heavy overhead hoist suspending and load transportation.
  • Universal Adjustable Flange Width (2-1/2" to 8"): Spacer washer kit allows custom fitting to wide-flange H-beams and standard S-beams.
  • Hardened Steel Double-Sealed Wheel Assemblies: Precision-machined 2-13/16 inch steel wheels utilize lubricated bearings for low-friction rolling.
  • Integral Impact Side Bumper Guards: Protective side plate bumpers absorb rail strikes and prevent wheel derailment under load.
  • Low-Profile 4-Inch Headroom Profile: Compact frame geometry minimizes vertical distance loss between beam flange and hoist hook.
  • OSHA & ANSI/ASME Certified Compliance: Built to satisfy rigorous ANSI / ASME B30.11 and B30.17 industrial overhead trolley standards.

What's Included

  • (1) JET 1/2-HDT 1/2-Ton Manual Adjustable Beam Trolley
  • (1) Complete Set of Adjustment Spacer Washers

Technical Specifications

Brand / Manufacturer JET Tools
Model / Part Number 1/2-HDT (Stock Number: 262005)
Rated Working Load Limit 1/2 Ton (1,100 lbs / 498.95 kg)
Beam Flange Width Adjustment Range 2-1/2 in. to 8 in. (63.5 mm to 203.2 mm)
Minimum Beam Height Requirement 3.0 in. (76.2 mm)
Minimum Rail Curve Radius 35 in. (889 mm)
Trolley Wheel Diameter 2-13/16 in. (71.43 mm)
Vertical Headroom Clearance Loss 4.0 in. (101.6 mm)
Maximum Clevis Hook Size Opening 1-1/4 in. (31.75 mm)
Safety Standard Compliance OSHA Regulations, ANSI / ASME B30.11, B30.17
Assembled Net Tool Weight 11.0 lbs (4.99 kg)
Pro-Tip: Distribute the included spacer washers equally on both sides of the center suspension clevis pin when adjusting flange width; equal washer spacing keeps the trolley centered along the beam flange and prevents binding against track edges.
