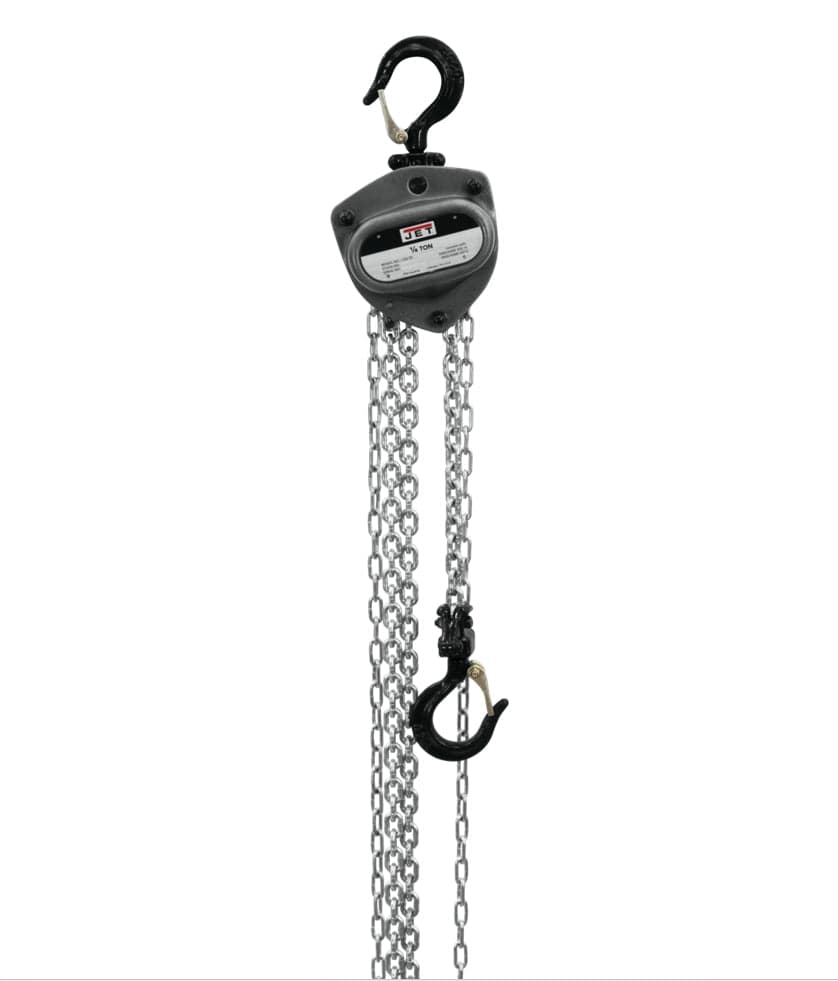

A studio shot of the Jet L100-250WO-10 1/4-ton hand chain hoist, showing its gray metal body, top hook, bottom hook, and the long load and hand chains.

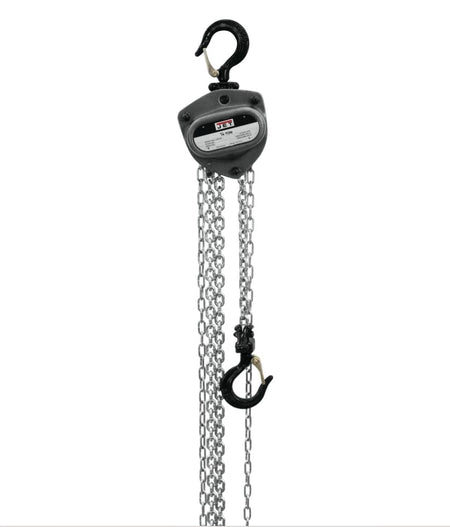

A studio shot of the Jet L100-250WO-10 1/4-ton hand chain hoist, showing its gray metal body, top hook, bottom hook, and the long load and hand chains.

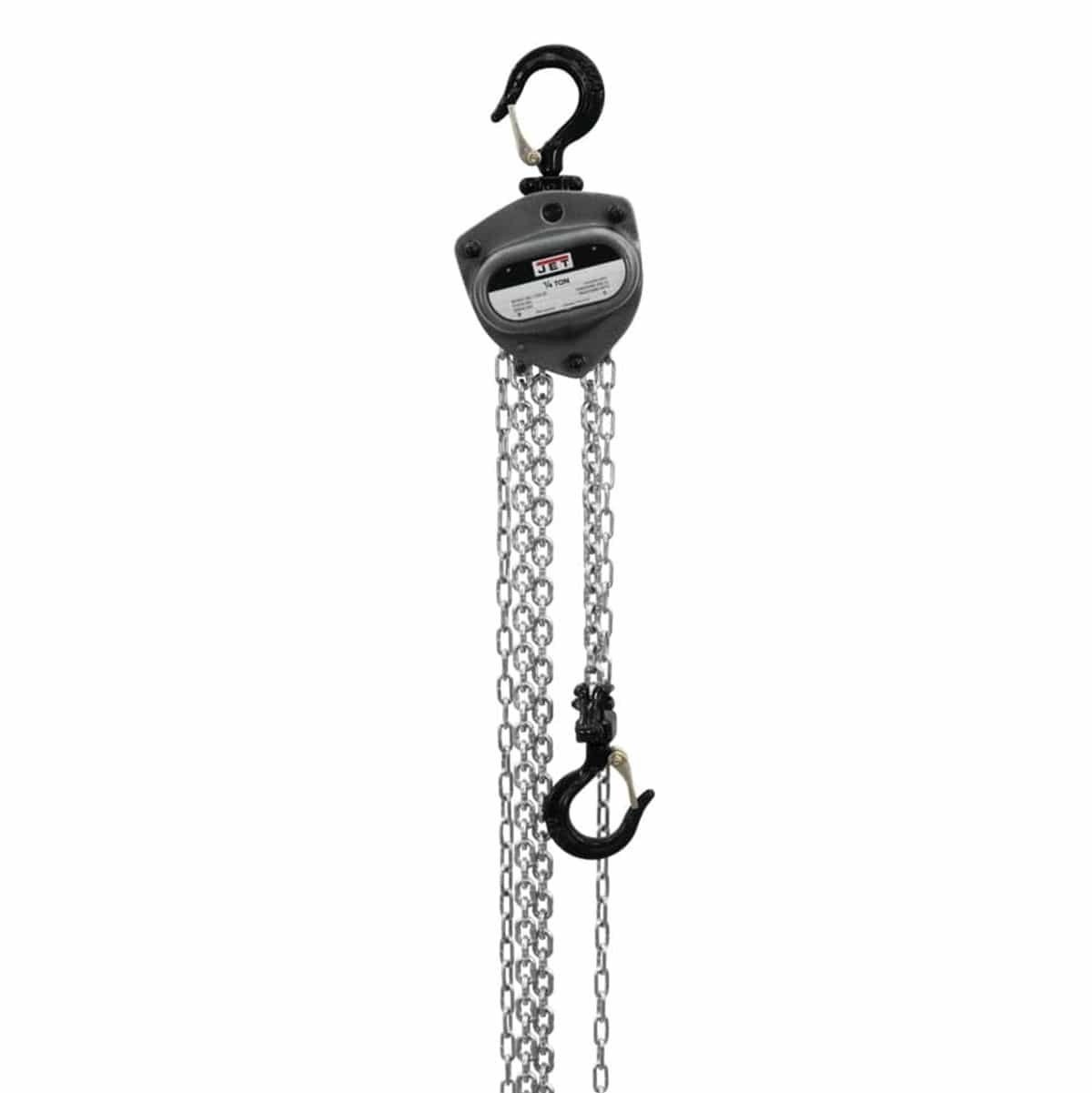

A studio shot of the Jet L100-250WO-10 1/4-ton hand chain hoist, showing its gray metal body, top hook, bottom hook, and the long load and hand chains.
A studio shot of the Jet L100-250WO-10 1/4-ton hand chain hoist, showing its gray metal body, top hook, bottom hook, and the long load and hand chains.
JET

JET Hand Chain Hoist L100-250WO-10 1/4 Ton (550 LB Capacity 10 Foot Lift Slip Clutch Overload Fused Brake Grade 100 Chain Overhead Industrial)

In stock
SKU: L100-25WO-10
$289.00 USD

Description

Jet Tools Logo logout

JET L100-250WO-10 1/4-Ton Hand Chain Hoist with Overload Protection & 10-Foot Lift

The JET L100-250WO-10 L-100 Series 1/4-Ton Hand Chain Hoist is a compact overhead manual lifting device engineered for positioning machinery, hoisting steel components, and rigging loads in tight low-headroom environments. Featuring a 550-pound rated working load capacity and a 10-foot lift height with a 9-13/16 inch minimum headroom clearance, this industrial hoist incorporates a slip-clutch overload protection system that prevents lifting beyond rated capacity limits. Outfitted with JET's patented fused mechanical load brake, Grade 100 corrosion-resistant 0.16 x 0.47 inch plated load chain, double-sealed ball bearing load sheaves, and 360-degree swiveling drop-forged safety hooks, this 8.6-pound hoist meets rigorous industrial safety requirements.

Best Used For:

  • Low-Headroom Industrial Overhead Lifting: Hoisting motors, pumps, and mechanical components inside tight plant maintenance spaces.
  • Confined Space Machinery Positioning: Raising and aligning heavy equipment where low 9-13/16 inch headroom clearance is required.
  • Overload-Protected Plant Rigging: Executing safety-critical lifts where slip-clutch protection prevents accidental equipment overloading.

Key Performance & Safety Features

  • Factory Slip-Clutch Overload Protection: Prevents operators from lifting damaging loads exceeding the 550-pound working load limit.
  • Patented Single-Piece Fused Brake System: Fuses mechanical brake components into a single unit backed by a lifetime replacement warranty.
  • Grade 100 Corrosion-Resistant Plated Load Chain: Heat-treated 0.16 x 0.47 inch alloy chain delivers 20% higher tensile strength than Grade 80 chain.
  • Compact 9-13/16 Inch Headroom Frame: Low-profile all-steel body operates efficiently in restricted vertical clearance areas.
  • Double-Sealed Ball Bearing Load Sheaves: Sealed precision bearings support internal sheaves to optimize mechanical efficiency and reduce hand chain pull.
  • Overload-Indicating 360-Degree Swivel Hooks: Drop-forged alloy steel hooks rotate 360 degrees and stretch slowly under excessive force as a visual warning.

What's Included

  • (1) JET L100-250WO-10 1/4-Ton Hand Chain Hoist with Overload Protection & 10-Foot Lift
  • (1) Factory Load Test Certificate

Technical Specifications

Brand / Manufacturer JET Tools
Model / Part Number L100-250WO-10 (L-100 Series)
Rated Working Load Limit 1/4 Ton (550 lbs / 249.48 kg)
Maximum Vertical Lift Height 10 ft. (3.05 Meters)
Minimum Headroom Clearance 9-13/16 in. (249.2 mm)
Overload Protection Mechanism Mechanical Slip-Clutch System
Load Chain Rating & Dimensions Grade 100 Plated (0.16 in. x 0.47 in. / 4 mm x 12 mm)
Mechanical Brake System Patented Fused Brake with Weston Double Pawls
Hand Chain Travel to Lift 1 Foot 18 ft. Hand Chain Pull
Hand Chain Full Load Pull Force 42 lbs (19.05 kg Force)
Sheave Shaft Bearing Type Double-Sealed Precision Ball Bearings
Assembled Net Tool Weight 8-6/10 lbs (8.6 lbs / 3.90 kg)
Pro-Tip: Pull the hand chain with a steady, uniform motion; if the internal slip clutch engages and slips during a lift, stop immediately, as this signals the load exceeds the 550-pound working capacity limit.
