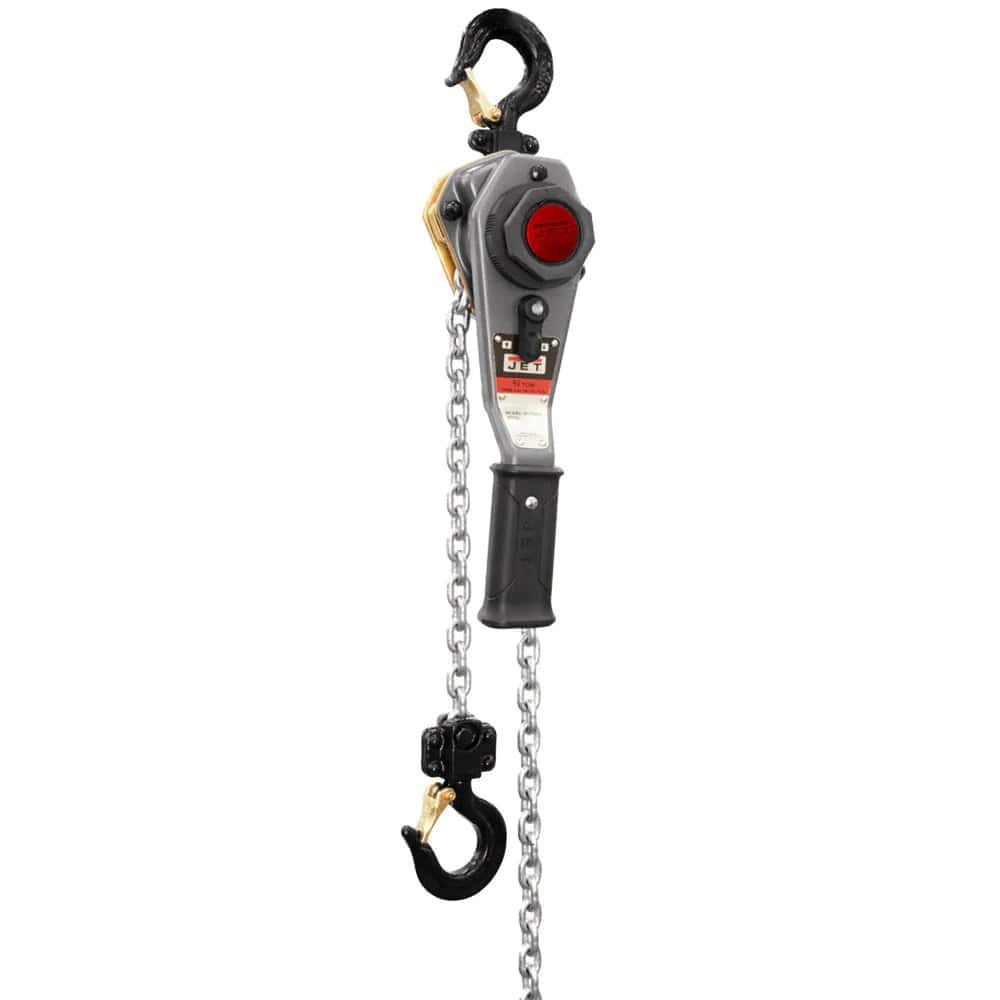

A full studio shot of the Jet JLH 3/4-ton lever hoist, showing the hoist body, ergonomic handle, and the top and bottom hooks with the load chain.

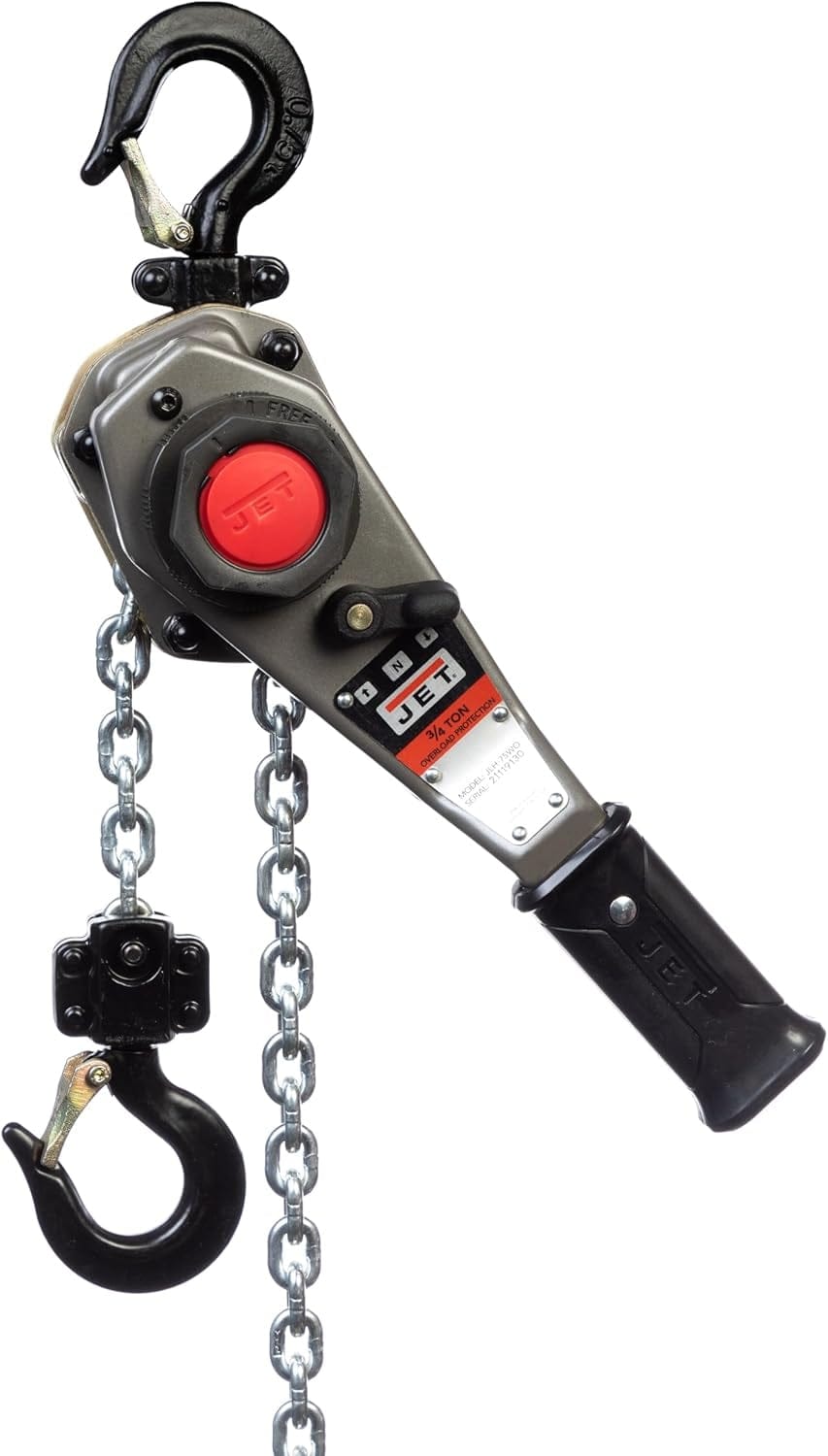

A side profile studio shot of the Jet JLH 3/4-ton lever hoist, highlighting the ergonomic handle, red selector knob, and load chain.
A reverse-angle studio shot of the Jet JLH 3/4-ton lever hoist, showing the back of the hoist body, handle, and the black hooks with safety latches.
An informational graphic showing a close-up of the 3-ton hook on the Jet hoist, with the text "HOOK REPLACEMENT INDICATOR POINTS" on a red banner below.
An informational graphic showing the internal mechanism of the "DOUBLE PAWL BRAKE DESIGN," with two pawls engaging a central ratchet gear.
An informational logo for the "LIFETIME FUSED BRAKE REPLACEMENT" warranty, showing the brake components inside a hexagonal icon.
A red and black graphic logo that reads "LIFETIME WARRANTY."

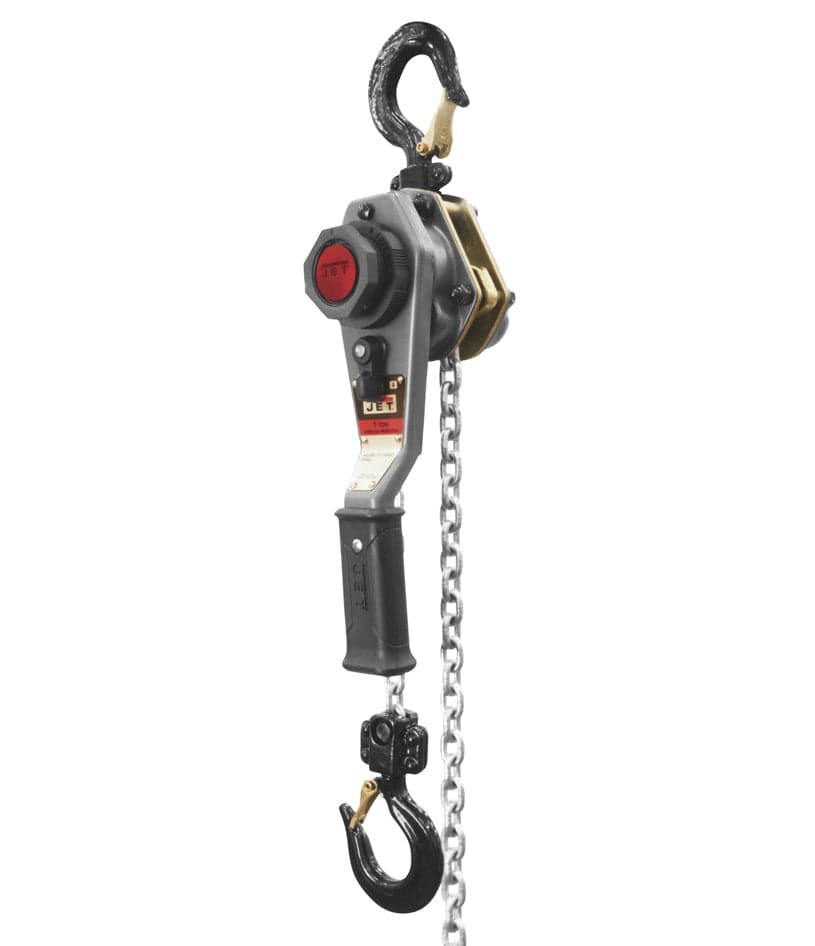

A studio shot of the Jet JLH-75WO-10 3/4-ton lever hoist, showing its gray all-steel body, top hook, bottom hook, and load chain.

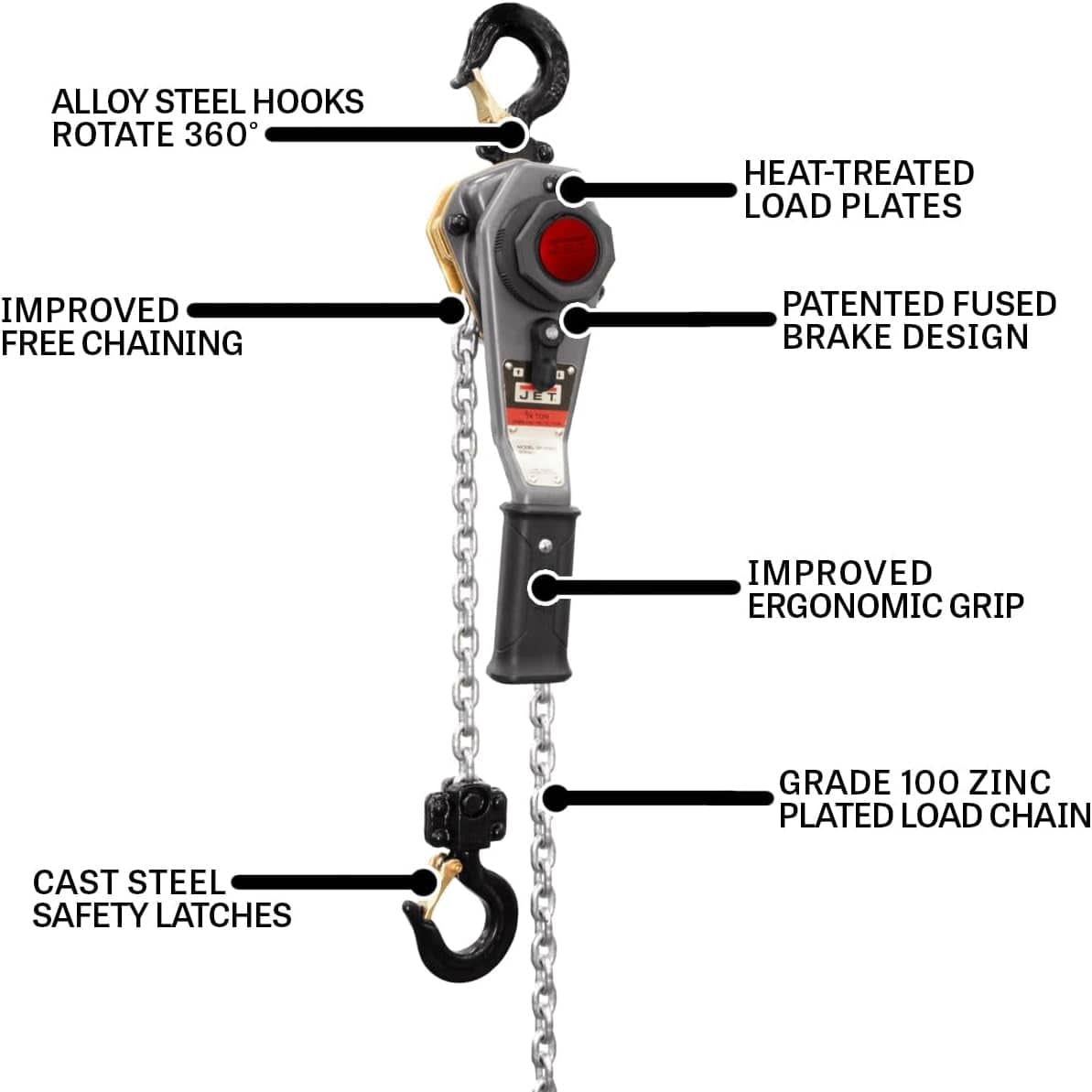

An informational graphic of the Jet JLH lever hoist with callouts pointing to key features: "ALLOY STEEL HOOKS ROTATE 360°," "IMPROVED FREE CHAINING," "CAST STEEL SAFETY LATCHES," "HEAT-TREATED LOAD PLATES," "PATENTED FUSED BRAKE DESIGN," "IMPROVED ERGONOMIC GRIP," and "GRADE 100 ZINC PLATED LOAD CHAIN."
A full studio shot of the Jet JLH 3/4-ton lever hoist, showing the hoist body, ergonomic handle, and the top and bottom hooks with the load chain.
A side profile studio shot of the Jet JLH 3/4-ton lever hoist, highlighting the ergonomic handle, red selector knob, and load chain.

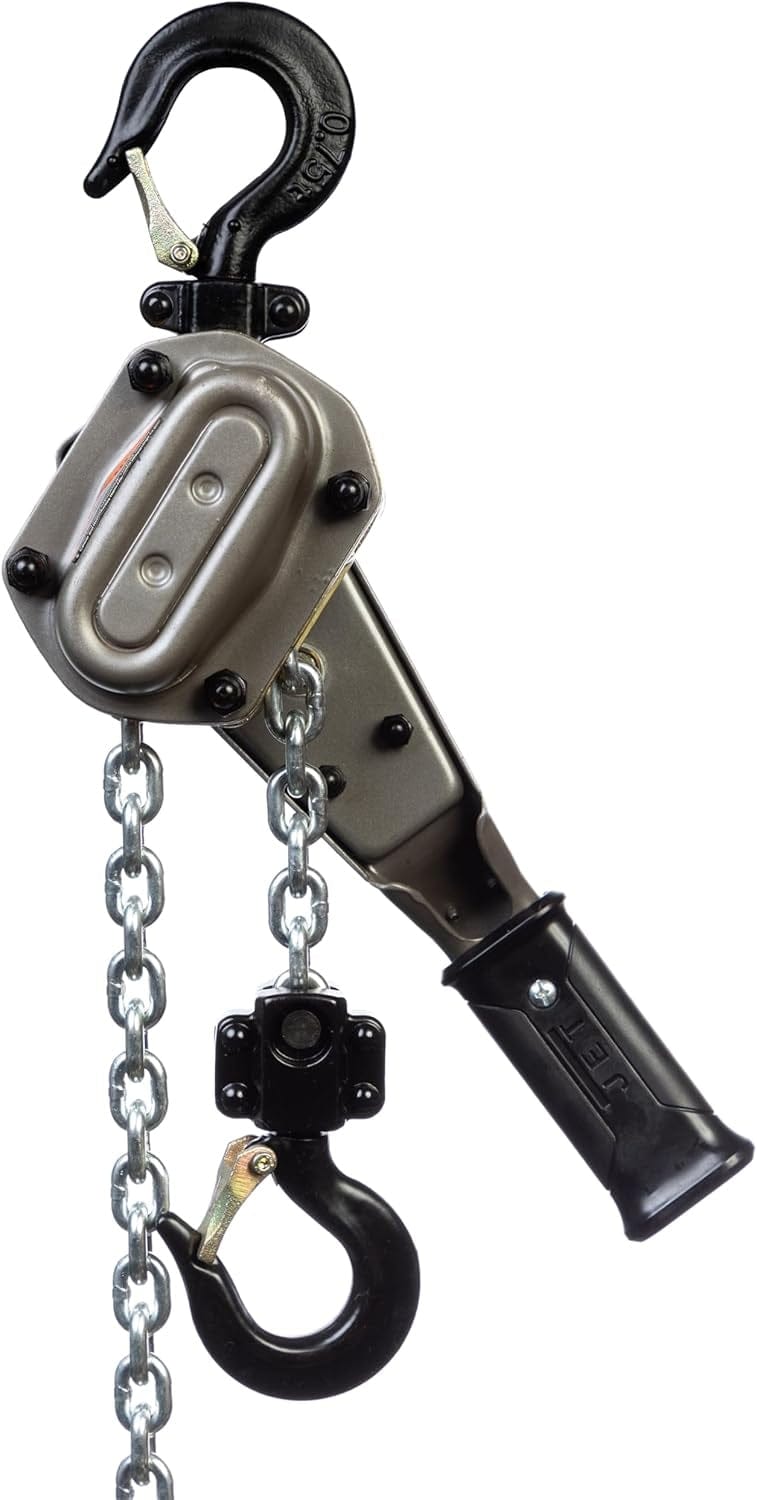

A reverse-angle studio shot of the Jet JLH 3/4-ton lever hoist, showing the back of the hoist body, handle, and the black hooks with safety latches.
An informational graphic showing a close-up of the 3-ton hook on the Jet hoist, with the text "HOOK REPLACEMENT INDICATOR POINTS" on a red banner below.
An informational graphic showing the internal mechanism of the "DOUBLE PAWL BRAKE DESIGN," with two pawls engaging a central ratchet gear.
An informational logo for the "LIFETIME FUSED BRAKE REPLACEMENT" warranty, showing the brake components inside a hexagonal icon.
A red and black graphic logo that reads "LIFETIME WARRANTY."
Jet

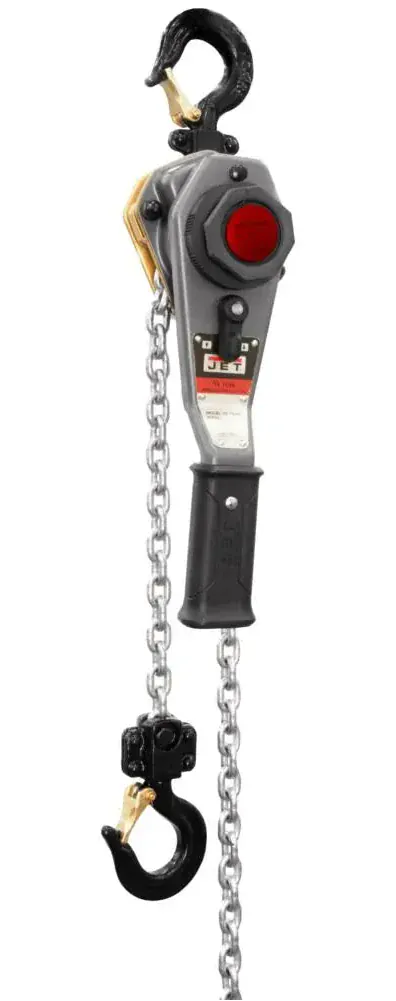

Jet 3/4 Ton Lever Hoist with 10 Foot Lift JLH-75WO-10 Resettable Overload Protection Weston Style Brake and All Steel Body

In stock
SKU: JLH-75WO-10
$269.99
$420.24 Sale $269.99
Description

Safety-First Lifting for Severe Industrial Use

The Jet JLH-75WO-10 is the solution for heavy-duty industrial lifting and pulling where safety is paramount. This hoist is engineered for severe environments, providing 3/4-ton (1,500 lbs) of power with a 10-foot lift. Its most critical feature is the slip-clutch style overload protection, which prevents crews from lifting or pulling dangerously heavy loads beyond the hoist's rated capacity. This not only protects the hoist and the load but, most importantly, the operator. If triggered, the overload protection can be reset on-site, minimizing downtime.

Safety and durability are built into every component. The hoist features an impact-resistant, all-steel body and a revolutionary single-piece brake design that is backed by a lifetime replacement warranty. A Weston-style double-pawl brake system splits the load for a more secure hold. For added safety, the industrial-rated alloy steel hooks rotate 360° for easy rigging and are designed to slowly stretch to provide a clear visual indication of an overload. Its compact, lightweight design makes it the ideal lever hoist for confined areas and low-headroom applications.

Key Features

  • Resettable Overload Protection: Slip-clutch design prevents lifting or pulling damaging loads beyond the 3/4-ton rated capacity.
  • Lifetime Warranty Brake: Revolutionary single-piece brake design is fused for the ultimate in safety and backed by a lifetime warranty.

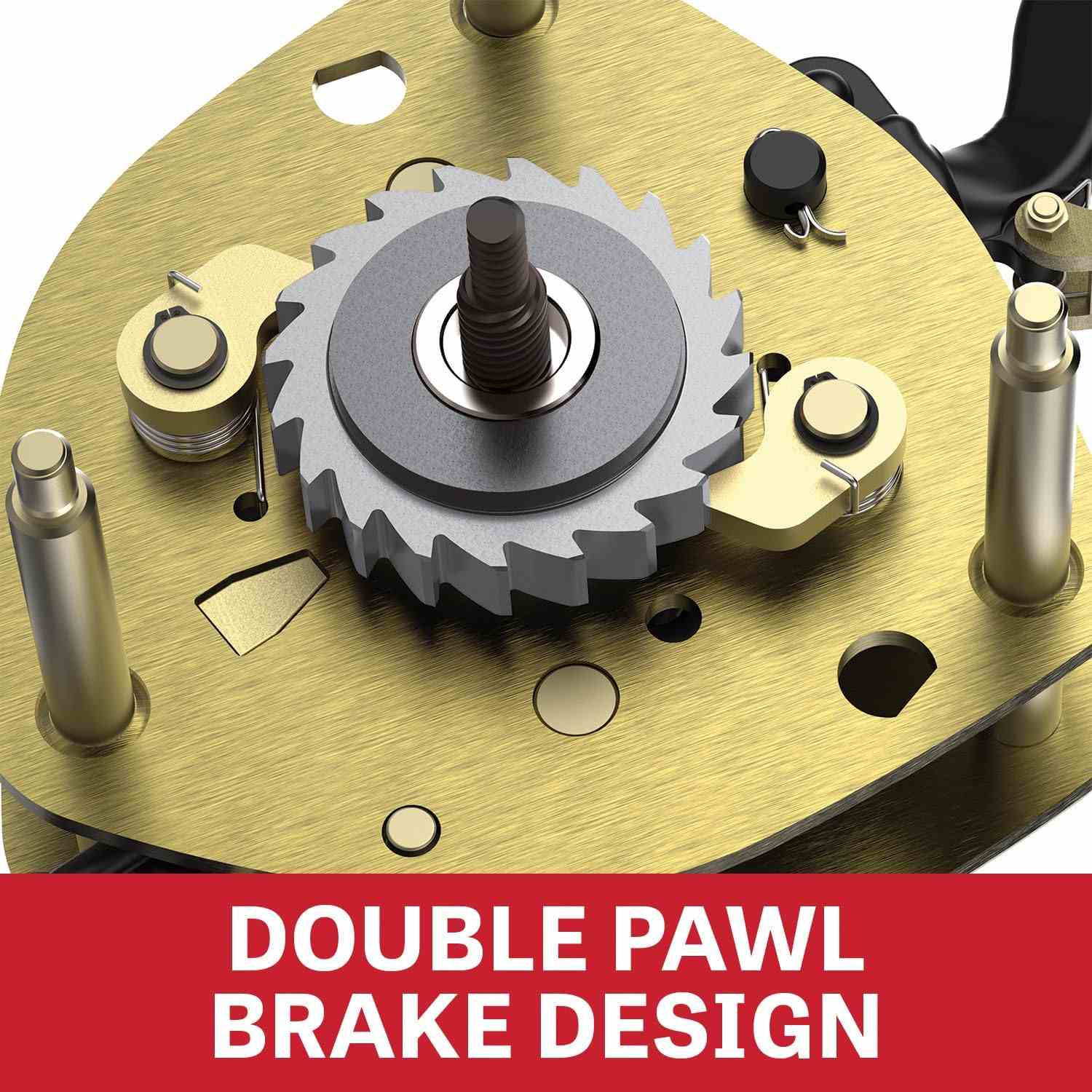

  • Weston-Style Brake: Double ratchet pawl design splits the load to opposite sides of the gear for greater load security.
  • Easy Free Chain: A 2-step, no-load free-chaining system permits quicker hoist positioning and take-up of slack.

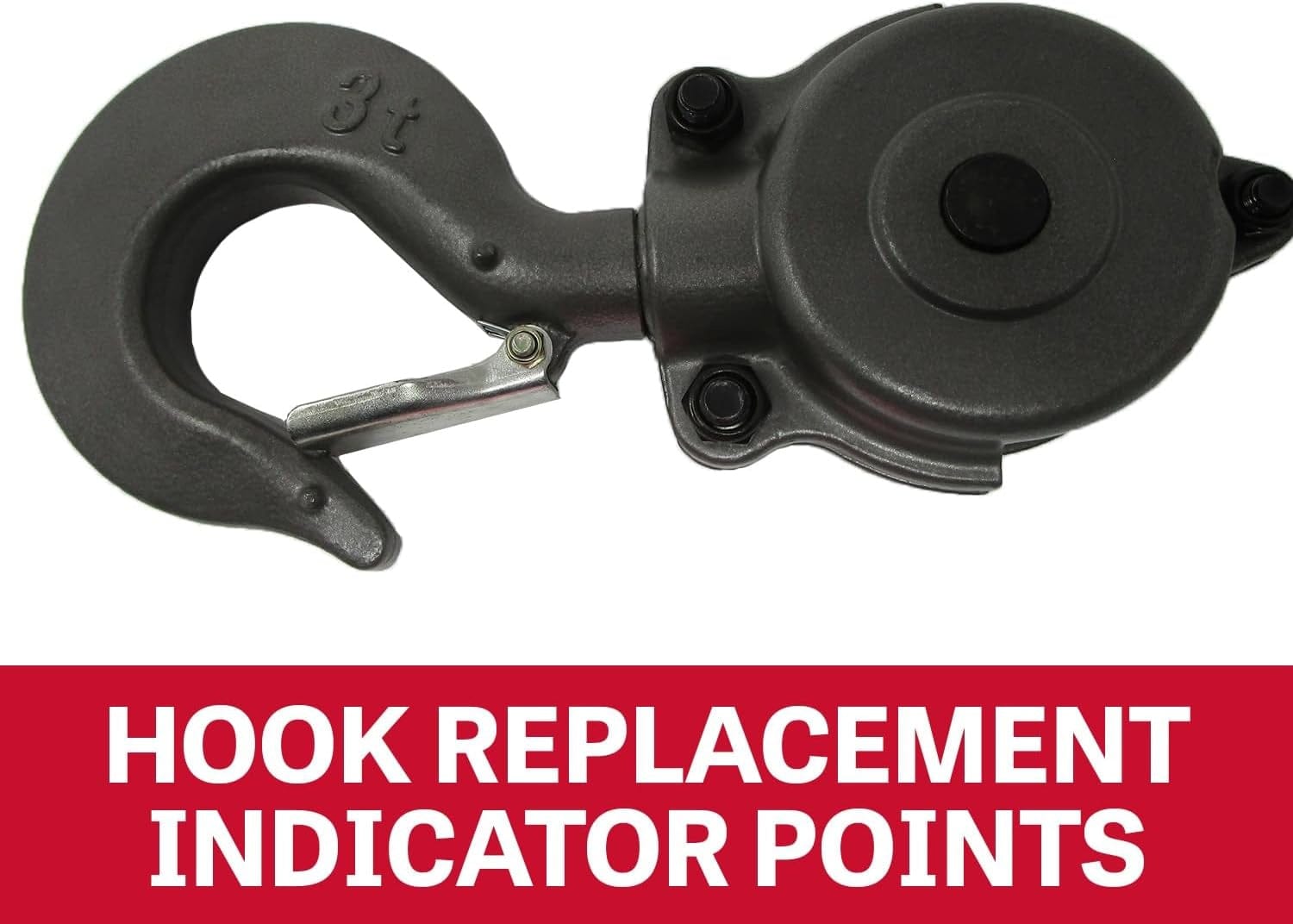

  • Overload Indicating Hooks: Industrial-rated alloy steel hooks rotate 360° and will slowly stretch to indicate an overload.
  • Durable Steel Body: Impact-resistant all-steel construction for added durability and protection in severe environments.
  • Compact & Lightweight: Ideal for confined areas and low-headroom applications where a larger hoist won't fit.
  • Safety Certified: Complies with ANSI / ASME B30.21 and HST-3 standards and is load-tested to 125% of capacity.

What's Included

  • (1) 3/4-Ton Lever Hoist with Overload Protection, 10' Lift (JLH-75WO-10)
  • (1) Load Test Certificate

Specifications

Brand Jet
Model JLH-75WO-10
Load Capacity 3/4 Ton (1,500 lbs)
Lift 10 ft (120 in)
Overload Protection Yes (Slip Clutch)
Brake Type Weston Style Double Pawl
Material Steel
Chain Pull to Lift Rated Load 63.88 lbf
Lever Length 10.24 in
Number of Chain Strands 1
Product Weight 13.07 lbs
Compliance ANSI / ASME B30.21, HST-3
Warranty Lifetime (Brake)
