JET

Jet Lever Hoist JLH75WO10 3/4 Ton 10 Foot Lift (Slip Clutch Overload Protection Industrial Rigging Pulling Tool Load Certified Assembly)

In stock
SKU: JLH-75WO-10
$269.99 USD
$420.24 USD Sale $269.99 USD

Description

Jet Tools Logo logout

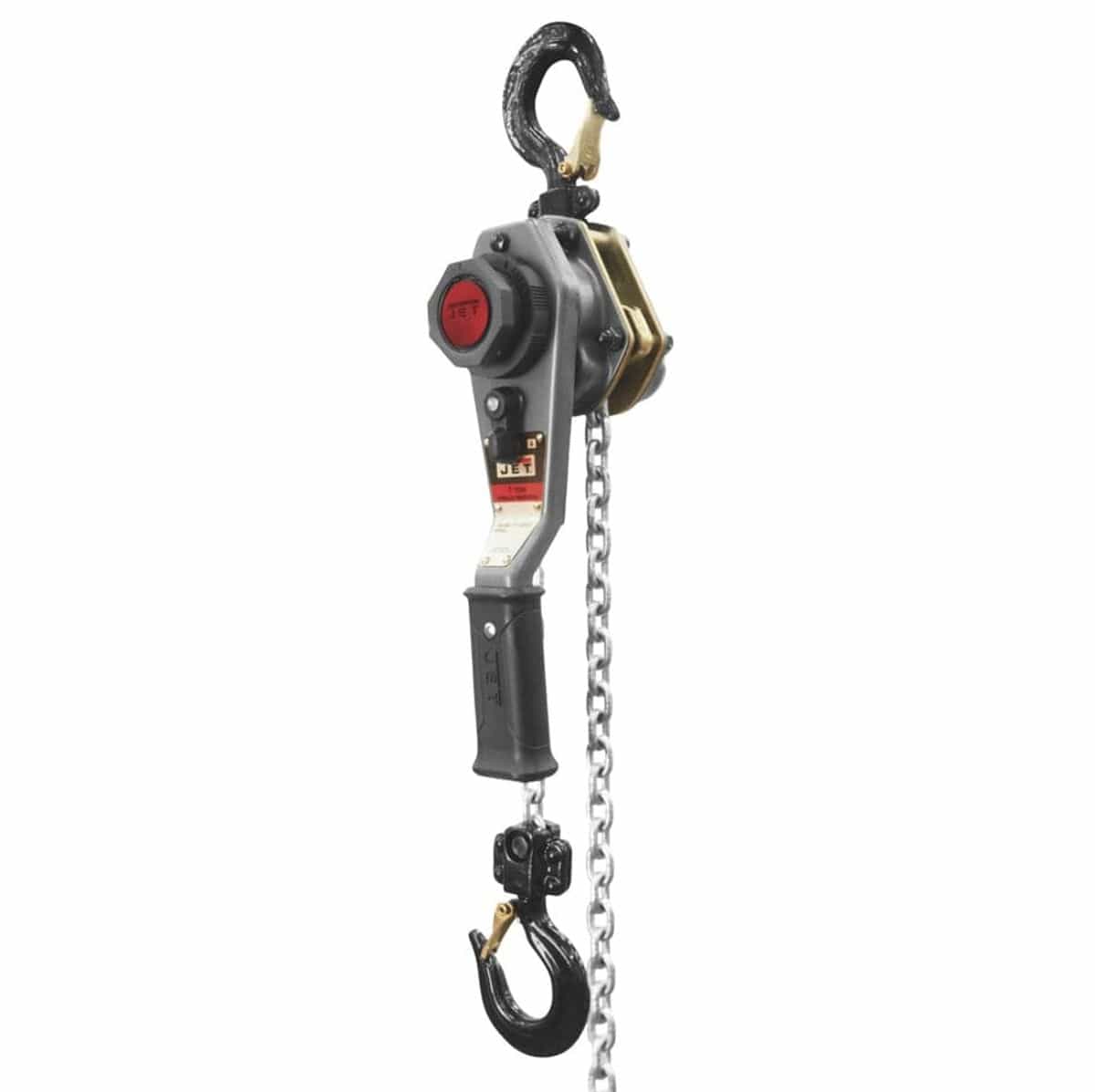

Jet JLH-75WO-10 3/4-Ton 10-Foot Lift Industrial Lever Hoist

The Jet JLH-75WO-10 3/4-ton 10-foot lever hoist lifts and pulls heavy industrial loads safely in severe operational environments. Engineered with a resettable slip-clutch overload protection system and a Weston-style double-pawl brake design, this 13.07-pound lifting tool prevents dangerous over-capacity loading while maintaining secure load control. Outfitted with an impact-resistant all-steel body, 360-degree rotating overload-indicating hooks, and a 2-step free-chaining mechanism, it equips rigging crews, steel erection teams, and industrial maintenance mechanics with reliable, certified pulling power.

Best Used For:

  • Industrial Machinery and Equipment Positioning: Lifting and shifting heavy manufacturing equipment, structural steel beams, and mechanical components into place.
  • Rigging and Confined Space Pulling: Pulling, tensioning, and securing heavy loads in tight factory corners and low-headroom overhead spaces.
  • Safe Construction and Demolition Rigging: Performing controlled lifting operations protected by resettable slip-clutch overload mechanisms and ANSI compliance standards.

Key Performance & Safety Features

  • Resettable Overload Protection: Slip-clutch mechanism prevents lifting loads beyond the 3/4-ton rated capacity and can be reset directly on-site.
  • Weston-Style Double-Pawl Brake: Dual ratchet pawl system splits the load symmetrically to opposite sides of the gear for maximum holding security.
  • Overload Indicating 360-Degree Hooks: Industrial alloy steel hooks rotate fully for easy rigging and will slowly stretch to provide visual warning of an overload.
  • 2-Step Free-Chaining System: No-load free-chain mechanism enables quick hoist positioning and rapid take-up of chain slack.
  • ANSI / ASME Safety Compliance: Factory load-tested to 125 percent of capacity and certified to meet strict ANSI B30.21 and HST-3 safety standards.

What's Included

  • (1) 3/4-Ton Lever Hoist with Overload Protection, 10' Lift (JLH-75WO-10)
  • (1) Factory Load Test Certificate

Technical Specifications

Manufacturer Jet Tools (JPW Industries)
Model Number JLH-75WO-10
Product Classification Industrial Lever Hoist / Chain Puller
Rated Load Capacity 0.75 Tons (1,500 lbs / 680 kg)
Chain Lift Distance 10.0 feet (120 inches / 3.05 m)
Overload Protection Type Resettable Slip-Clutch Mechanism
Braking System Design Weston-Style Double Pawl Brake
Chain Pull Force Required 63.88 lbf (Pounds of Force)
Operating Lever Length 10.24 inches (260 mm)
Chain Strand Count 1 Single Strand
Net Product Weight 13.07 lbs (5.93 kg)
Safety Compliance Standards ANSI / ASME B30.21 & HST-3
Manufacturer Warranty Lifetime Brake System Warranty

Pro-Tip: When rigging heavy loads with a lever hoist, always inspect the 360-degree load hooks for any sign of throat opening distortion; if the hook indicators show stretching, take the hoist out of service immediately to prevent structural failure.
