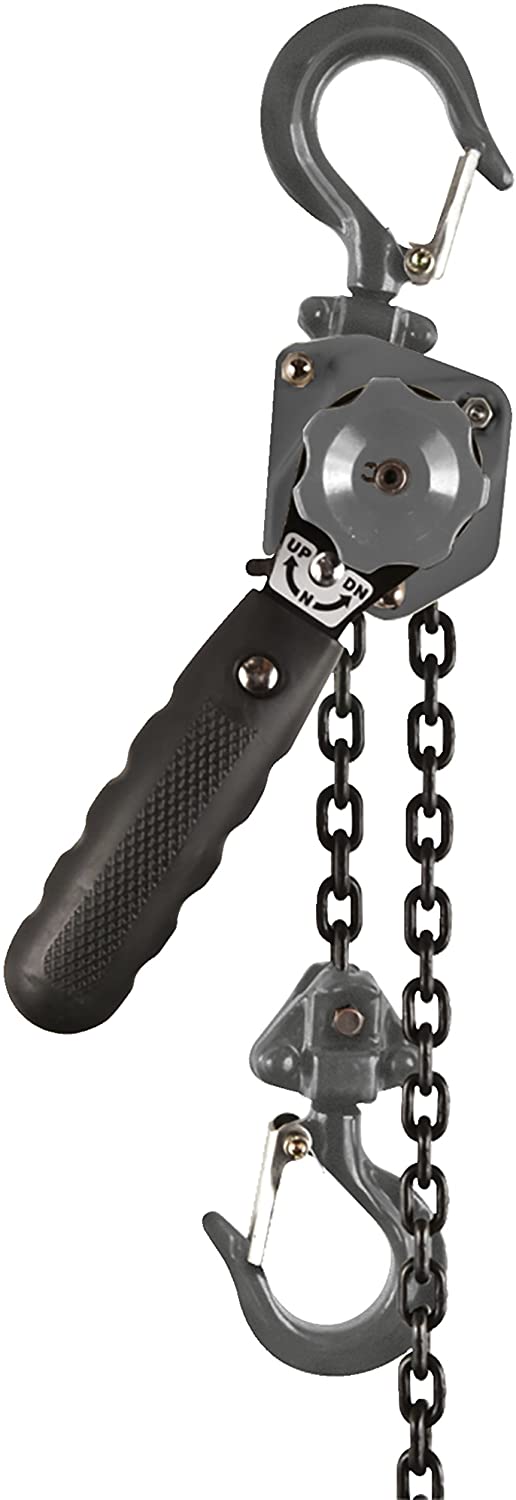

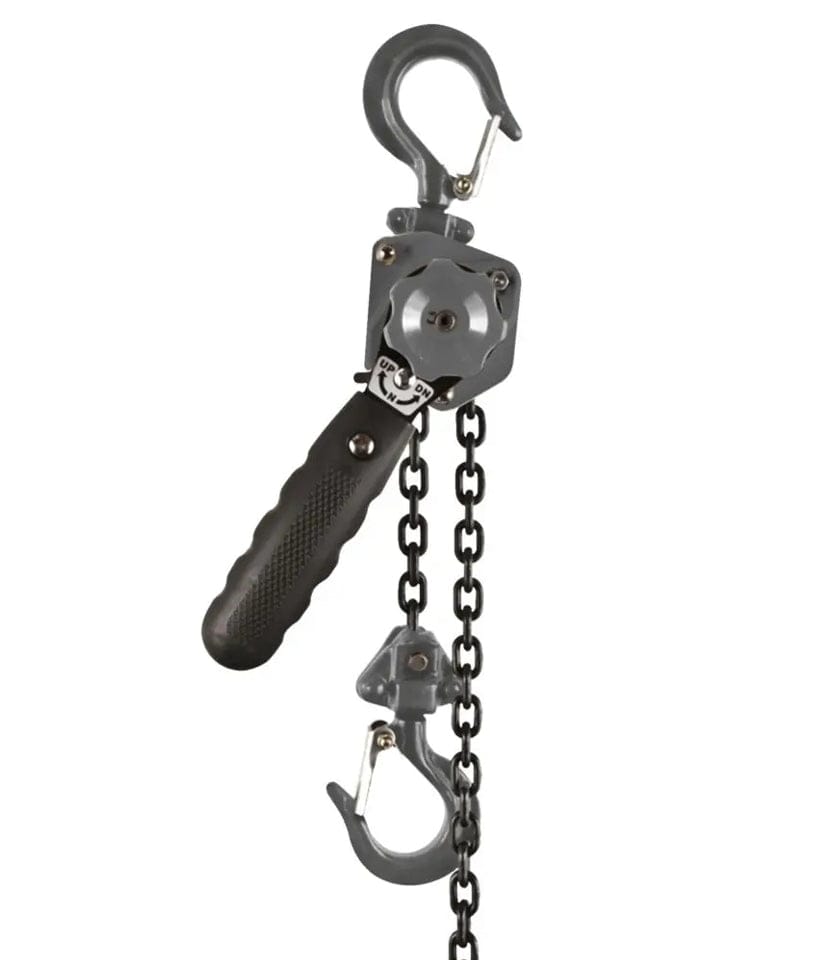

Image of JET JLP-025A-5 JLP-A Series 1/4 Ton Mini-Puller, 5' Lift. This is a gray, heavy-duty manual chain hoist, designed for lifting and pulling. It features a textured black grip handle for operation, two robust hooks on either end for attachment, and two lengths of dark metal chain hanging vertically from the main mechanism.
JET

Jet JLP-A Series 1/4 Ton Lever Hoist with 5 Foot Lift Weston Style Brake Grade 80 Load Chain Compact Steel Body JLP-025A-5

Only 3 left
SKU: JLP-025A-5
$110.91
Description

Compact Power for Contractor-Grade Lifting

The Jet JLP-025A-5 is the perfect compact lever hoist (or "mini-puller") for your light-to-medium-duty industrial applications. At only 4.5 lbs, this hoist is specifically designed for low-headroom applications and use in confined areas where a larger hoist simply won't fit. It's the ideal choice for contractors and maintenance crews who need a reliable, safe, and portable lifting solution for pulling, stretching, and positioning loads up to 1/4 ton.

Built for reliability and jobsite safety, this hoist features an impact-resistant all-steel construction. The load is secured by a Weston-style double-pawl brake system that splits the load for greater security. It features a Grade 80 black oxide-coated load chain for durability and industrial-rated alloy steel hooks that rotate 360° for easy rigging. As a critical safety feature, these hooks are designed to slowly stretch to indicate an overload situation, preventing hoist failure.

Key Features

  • 1/4 Ton Capacity: Provides 5 feet of lift for light to medium-duty pulling and lifting.
  • Weston-Style Brake: Double-pawl brake design splits the load for greater load security and dependable operation.
  • Compact & Lightweight: Smaller body and 4.5 lb weight are ideal for low-headroom applications and confined spaces.
  • Grade 80 Load Chain: Features a black oxide coating for added durability and corrosion resistance.
  • Industrial Steel Hooks: Hooks rotate 360° for easy rigging and slowly stretch to indicate an overload, enhancing jobsite safety.
  • Durable Construction: Impact-resistant all-steel body with cast steel safety latches for a long service life.
  • Smooth Operation: Needle bearing design increases efficiency and promotes smooth lifting.
  • Safety Certified: Complies with ANSI / ASME B30.21 and HST-3 standards and is load-tested to 125% of capacity.

What's Included

  • (1) JLP-A Series 1/4 Ton Lever Hoist, 5' Lift (JLP-025A-5)
  • (1) Load Test Certificate

Specifications

Brand Jet
Model JLP-025A-5
Load Capacity (Tons) 1/4
Lift (Ft.) 5
Headroom (In.) 8-1/4
Handle Length (In.) 6
Lever Pull Force (LBF) 60
Number of Falls 1
Load Chain Dimensions (Mm.) 4 x 12
Hook Throat Opening (In.) 1-2/5
Overload Protection No
Ship Yard Hooks No
Weight (Lbs.) 4-1/2
