JET Lever Hoist JLP-050A-15 1/2 Ton Mini (1000 LB Capacity 15 Foot Extended Lift Weston Double Pawl Brake Grade 80 Load Chain Puller)

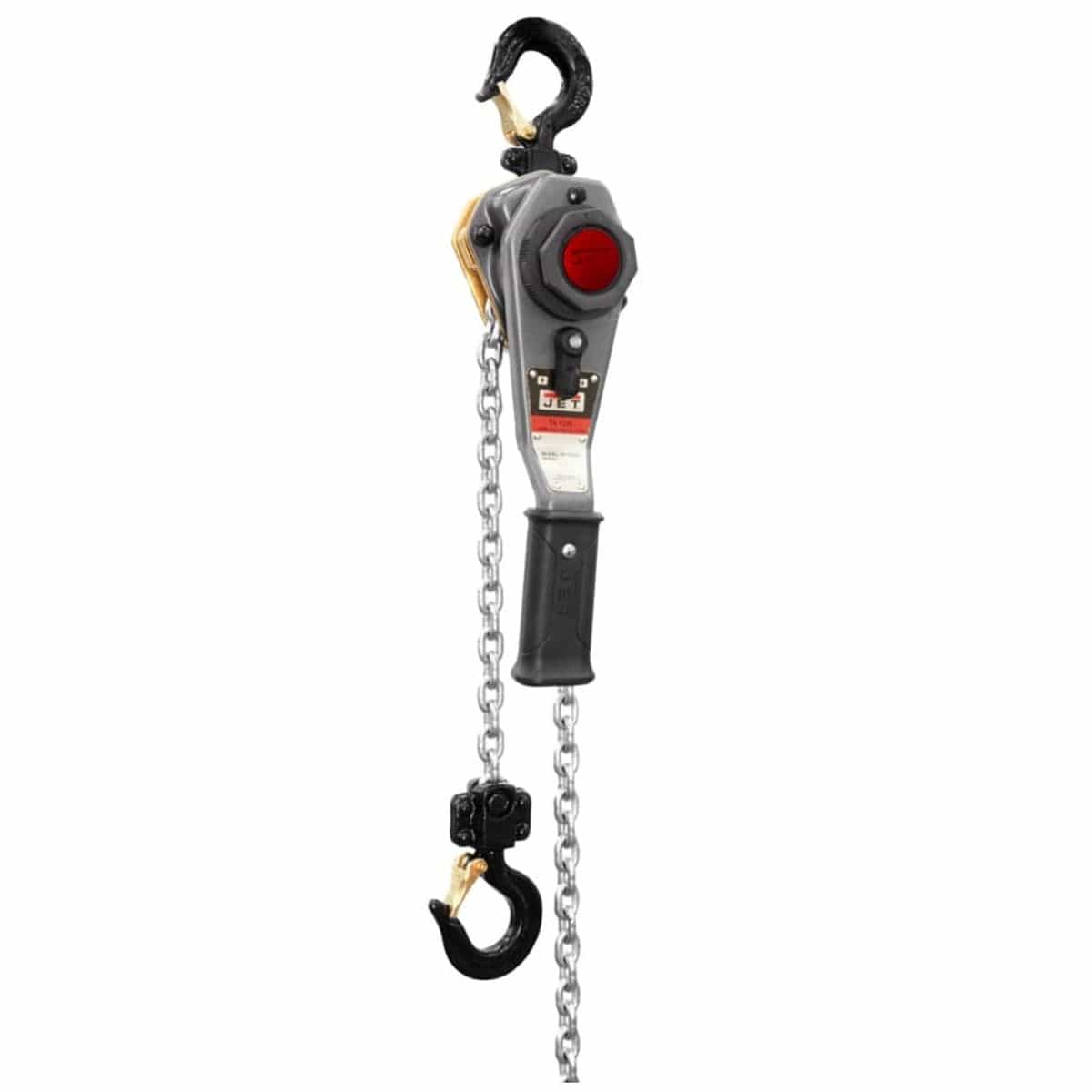

JET JLP-050A-15 1/2-Ton Mini Lever Hoist with 15-Foot Extended Lift

The JET JLP-050A-15 JLP-A Series 1/2-Ton Mini Lever Hoist is an extended-reach manual lifting and pulling device engineered for long-distance rigging, structural beam alignment, and pipe positioning in confined spaces. Featuring a 1,000-pound rated load capacity and a 15-foot extended lift height within a compact 10-inch headroom profile, this mini-puller utilizes a Weston-style double ratchet pawl mechanical brake for positive load control. Outfitted with Grade 80 black oxide-coated 0.17 x 0.47 inch load chain, 360-degree swiveling drop-forged safety hooks with cast steel latches, needle-bearing supported load sheaves, and an all-steel impact-resistant housing, this 9-37/100 pound hoist complies with ANSI/ASME B30.21 and HST-3 performance standards.

Best Used For:

• Extended-Reach Machinery Positioning: Hoisting and pulling industrial equipment across 15-foot spans in low-headroom mechanical rooms.
• Long-Distance Pipe & Structural Pulling: Drawing heavy steel pipe runs, flanges, and structural trusses together across extended distances.
• Confined Space Mechanical Maintenance: Tensioning rigging cables and conveyor assemblies inside tight engine bays and equipment shafts.

Key Performance & Safety Features

• 1,000 LB Working Load Limit: Delivers 1/2-ton lifting or pulling force requiring only 86 pounds of manual lever handle pull effort.
• 15-Foot Extended Lift Chain: Long-reach Grade 80 chain configuration allows continuous long-distance pulling without rigging resets.
• Weston-Style Double Pawl Mechanical Brake: Dual-pawl brake architecture splits load stress across opposite gear teeth for load holding.
• Compact 10-Inch Headroom Profile: Mini-puller frame body and short 8.5-inch lever handle operate smoothly in restricted spaces.
• Overload-Indicating Safety Hooks: Drop-forged steel hooks stretch slowly when overloaded to provide visual warning prior to failure.
• Grade 80 Black Oxide Load Chain: Heat-treated 0.17 x 0.47 inch alloy steel chain offers high tensile strength and surface corrosion resistance.

What's Included

• (1) JET JLP-050A-15 JLP-A Series 1/2-Ton Mini Lever Hoist with 15-Foot Lift (Stock Number: 287202)
• (1) Factory Load Test Certificate

Technical Specifications

Pro-Tip: When executing long-reach horizontal pulls across the full 15-foot chain length, keep the load chain straight without twisting to ensure smooth entry into the needle-bearing load sheave.
