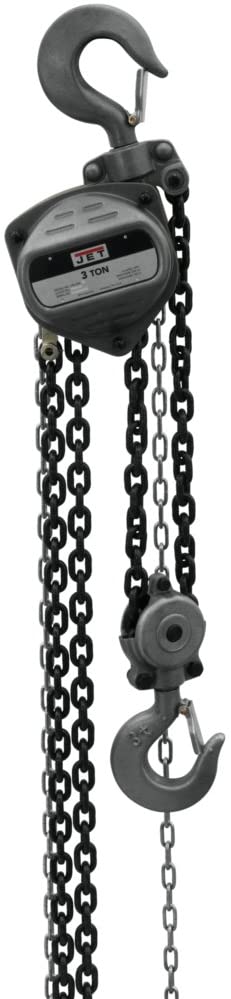

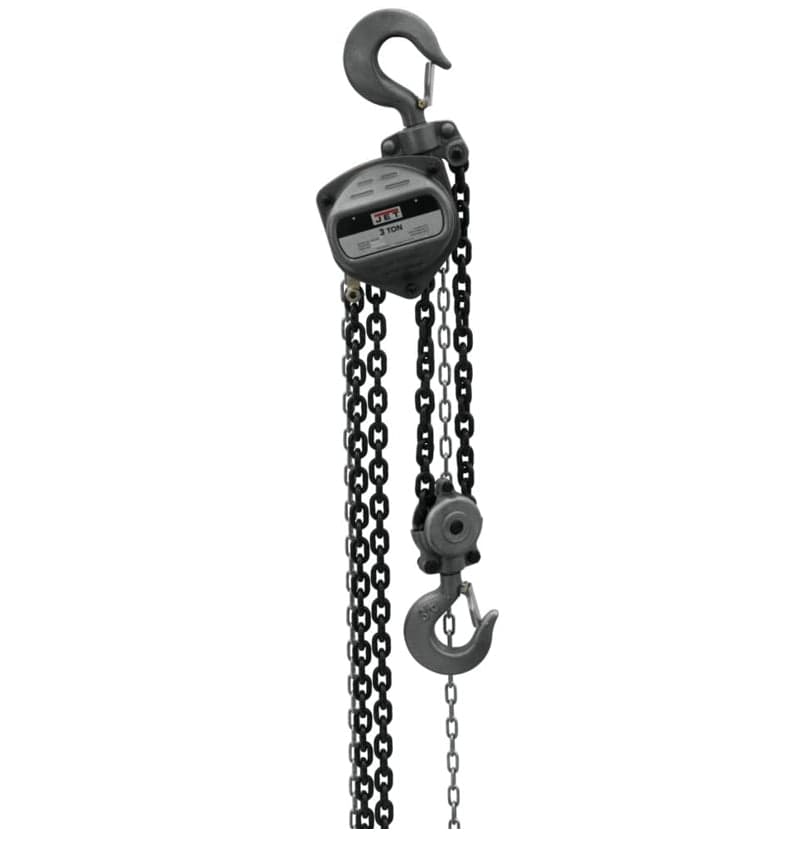

A full studio shot of the Jet S90 series 3-ton hand chain hoist, showing the hoist body, the bottom hook, and the black oxide Grade 80 load chain.

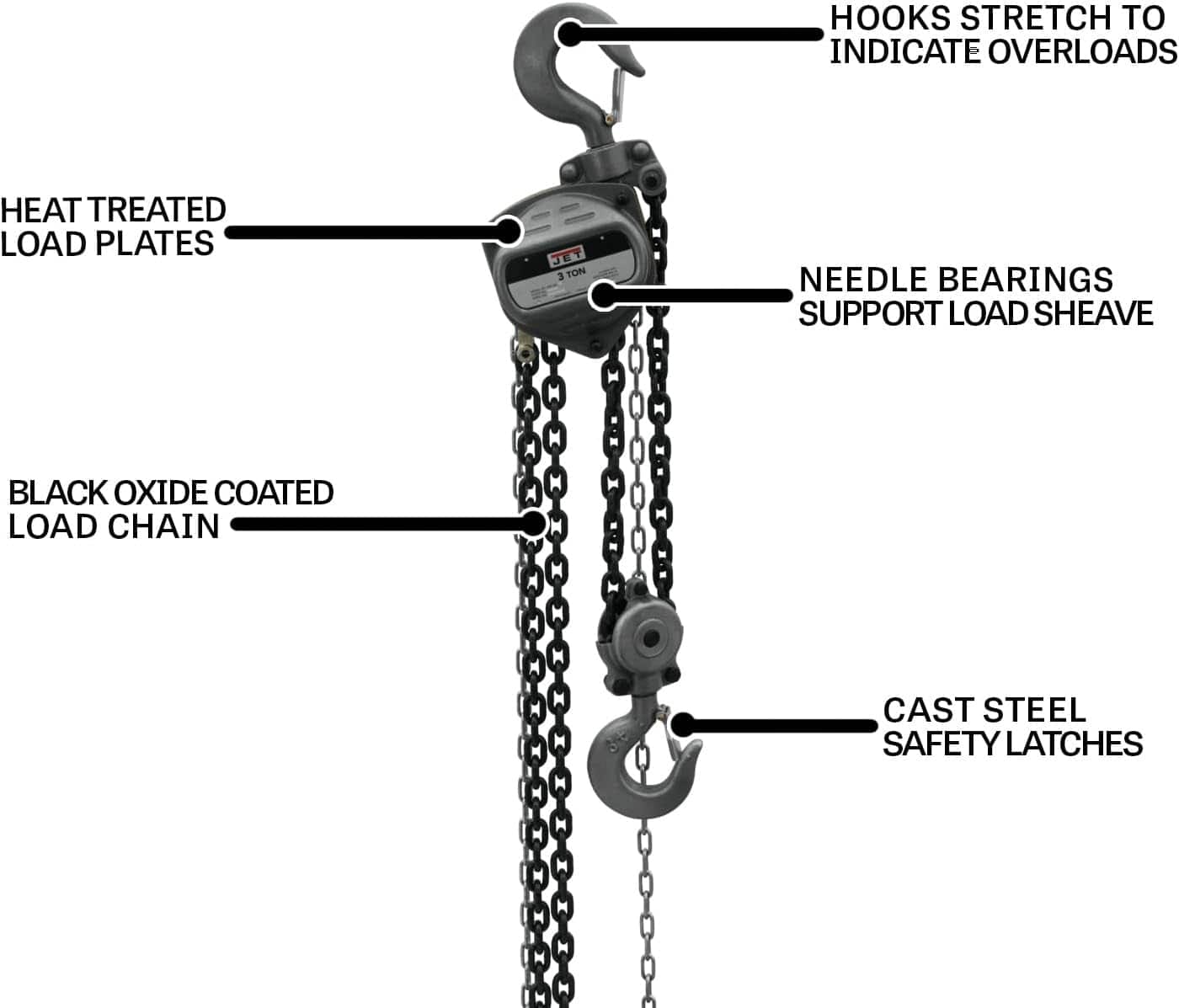

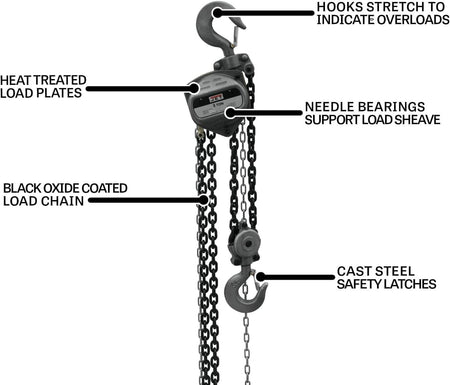

An informational graphic of the Jet S90 hand chain hoist with callouts pointing to key features: "HOOKS STRETCH TO INDICATE OVERLOADS," "HEAT TREATED LOAD PLATES," "NEEDLE BEARINGS SUPPORT LOAD SHEAVE," "BLACK OXIDE COATED LOAD CHAIN," and "CAST STEEL SAFETY LATCHES."

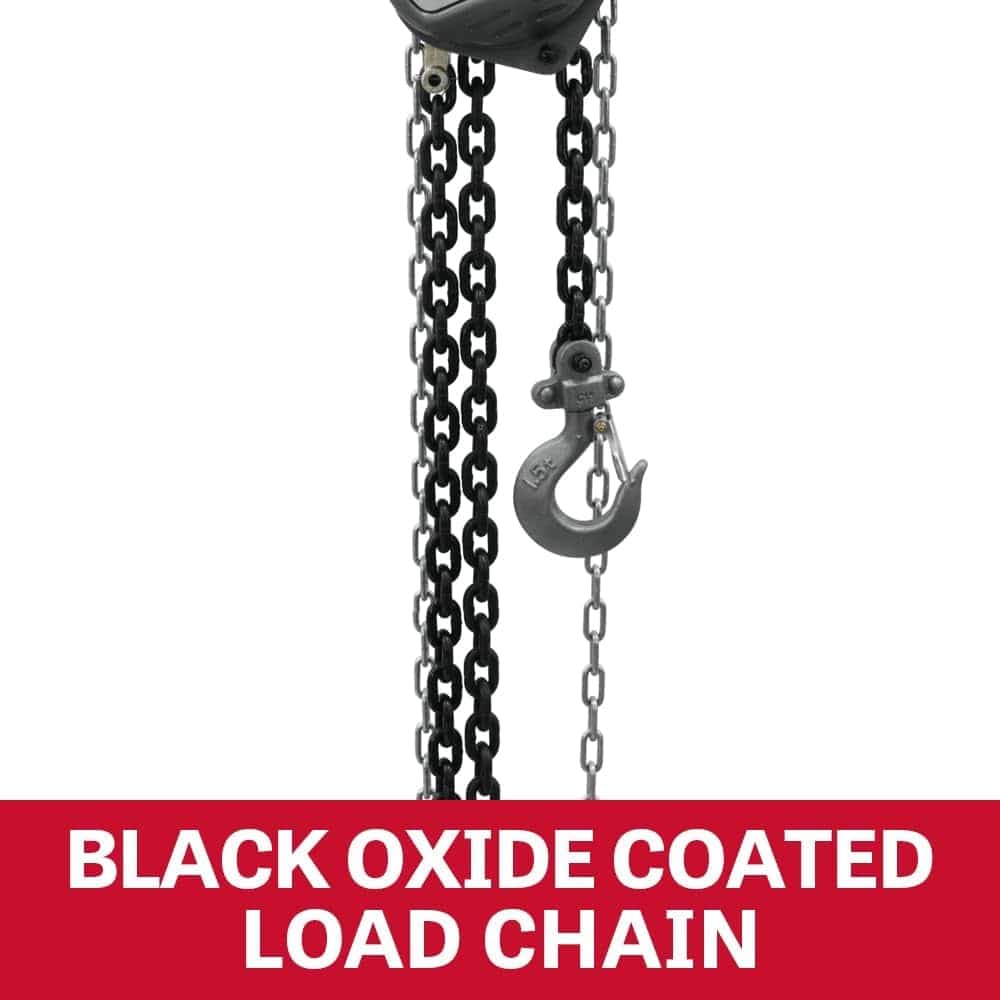

An informational graphic showing the black oxide coated load chain and the bottom hook of the Jet hoist, with the text "BLACK OXIDE COATED LOAD CHAIN" on a red banner below.

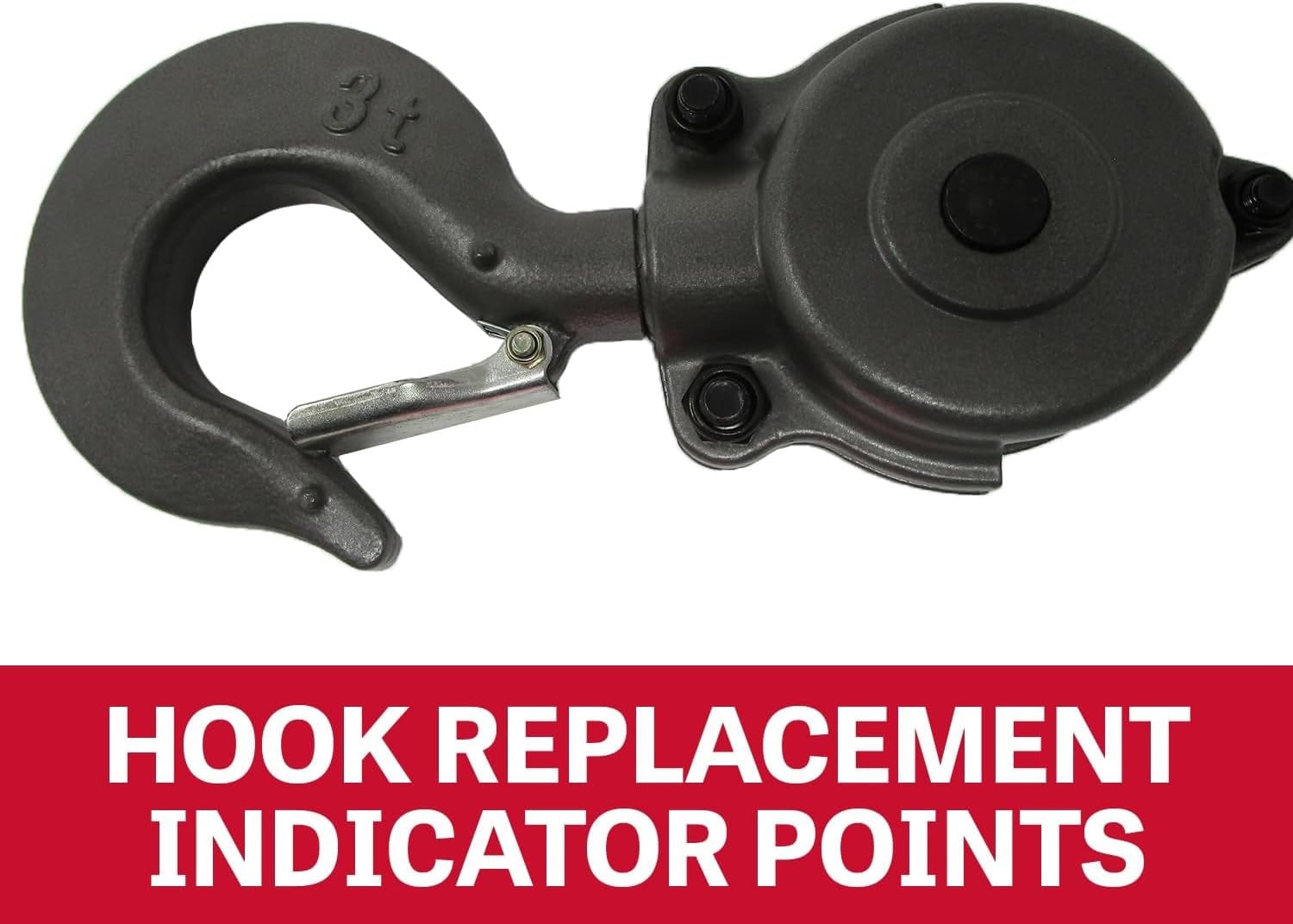

An informational graphic showing a close-up of the 3-ton top hook on the Jet hoist, with the text "HOOK REPLACEMENT INDICATOR POINTS" on a red banner below.

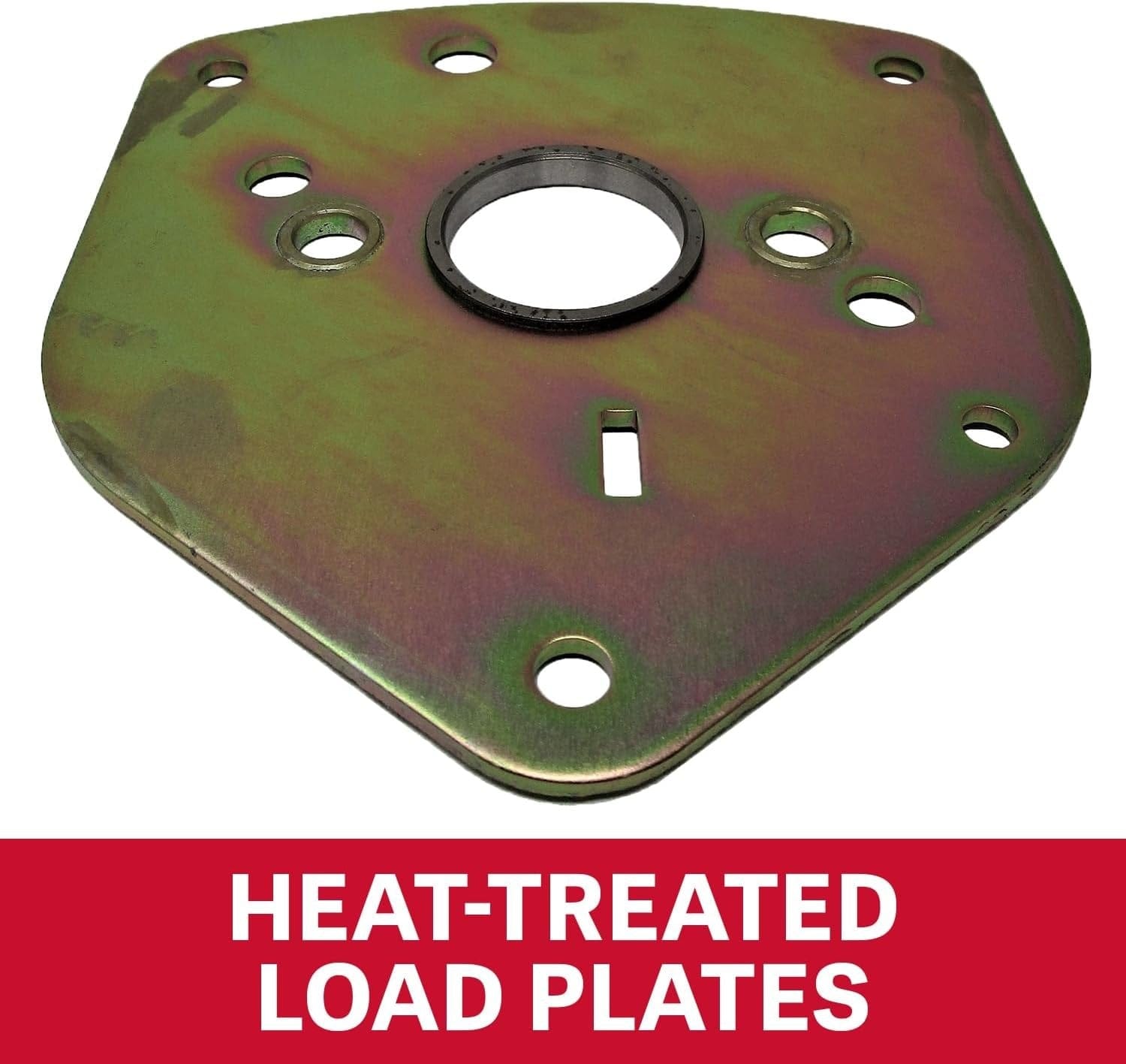

An informational graphic showing a single heat-treated internal load plate for the Jet hoist, with the text "HEAT-TREATED LOAD PLATES" on a red banner below.

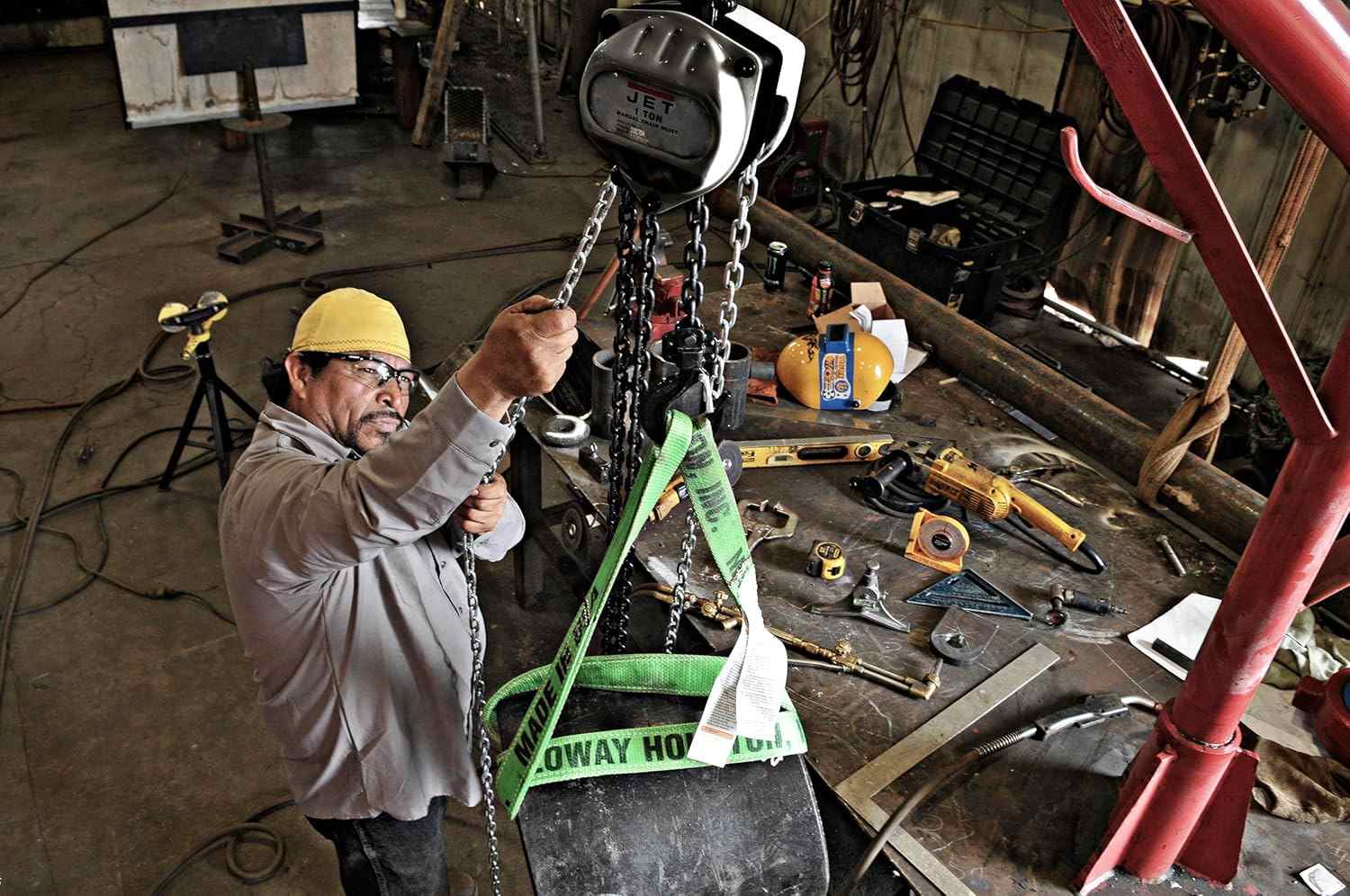

A worker in a fabrication shop uses the Jet S90 3-ton hand chain hoist to lift a heavy metal object secured with a green lifting sling.
A full studio shot of the Jet S90 series 3-ton hand chain hoist, showing the hoist body, the bottom hook, and the black oxide Grade 80 load chain.
An informational graphic of the Jet S90 hand chain hoist with callouts pointing to key features: "HOOKS STRETCH TO INDICATE OVERLOADS," "HEAT TREATED LOAD PLATES," "NEEDLE BEARINGS SUPPORT LOAD SHEAVE," "BLACK OXIDE COATED LOAD CHAIN," and "CAST STEEL SAFETY LATCHES."
An informational graphic showing the black oxide coated load chain and the bottom hook of the Jet hoist, with the text "BLACK OXIDE COATED LOAD CHAIN" on a red banner below.
An informational graphic showing a close-up of the 3-ton top hook on the Jet hoist, with the text "HOOK REPLACEMENT INDICATOR POINTS" on a red banner below.
An informational graphic showing a single heat-treated internal load plate for the Jet hoist, with the text "HEAT-TREATED LOAD PLATES" on a red banner below.
A worker in a fabrication shop uses the Jet S90 3-ton hand chain hoist to lift a heavy metal object secured with a green lifting sling.
JET

Jet S90-300-15 S90 Series Hand Chain Hoist 3 Ton Capacity 15 Foot Lift with Weston Style Brake and Grade 80 Load Chain

In stock
SKU: S90-300-15
$399.99
Description

The Contractor's Choice for Reliable Light-Duty Lifting

The Jet S90-300-15 is the ideal contractor-grade hand chain hoist, engineered for reliability and durability in demanding, light-duty industrial applications. Its compact, lightweight body is perfect for low-headroom situations and confined areas, allowing you to get 3 tons of lifting power exactly where you need it. This hoist is built to be easily maintained and serviced, ensuring it's always ready for the next job.

Safety and durability are the core of the S90 series. This hoist features a Weston-style double ratchet pawl brake that splits the load to opposite sides of the gear for greater load security. It's built for the harshest environments, using impact-resistant all-steel construction, heat-treated load plates, and a Grade 80 black oxide-coated load chain for corrosion resistance. The 360-degree rotating alloy steel hooks feature new cast-steel safety latches that won't bend out of compliance and are designed to stretch slowly, providing a clear visual indication of an overload situation.

Key Features

  • 3-Ton Load Capacity: Provides substantial lifting power for light-duty industrial and contractor applications.
  • Weston-Style Brake: Double ratchet pawl brake design splits the load for greater load security and prevents slippage.
  • Grade 80 Load Chain: Black oxide-coated chain provides superior durability and corrosion resistance.
  • Durable All-Steel Construction: Impact-resistant body with heat-treated load plates and case-hardened internals.
  • Cast-Steel Safety Latches: More durable than stamped latches, these will not bend out of compliance.
  • Alloy Steel Hooks: Industrial rated hooks rotate 360° for easy rigging and stretch to indicate an overload.
  • Smooth Operation: Needle bearings support the load sheave for increased efficiency and smooth lifting.
  • Safety Compliant: Meets ANSI / ASME B30.16 and HST-2 Standards and is load-tested to 125% of capacity.

What's Included

  • (1) S90 Series Hand Chain Hoist, 3-Ton Capacity, 15-Foot Lift (S90-300-15)
  • (1) Load Test Certificate

Specifications

Brand Jet
Model S90-300-15
Load Capacity (Tons) 3
Lift (Ft.) 15
Overload Protection No
Headroom (In.) 20-1/2
Hand Chain Overhaul (Ft.) to Lift 1Ft. 115
Hand Chain Pull Force (LBF) 87
Load Chain Dimensions (Mm.) 8 x 24
Number of Falls 2
Compliance ANSI / ASME B30.16, HST-2
Weight (Lbs.) 90
