JET Hand Chain Hoist S90-150-15 1-1/2 Ton (3000 LB Capacity 15 Foot Lift Weston Double Pawl Brake Grade 80 Load Chain Overhead Industrial)

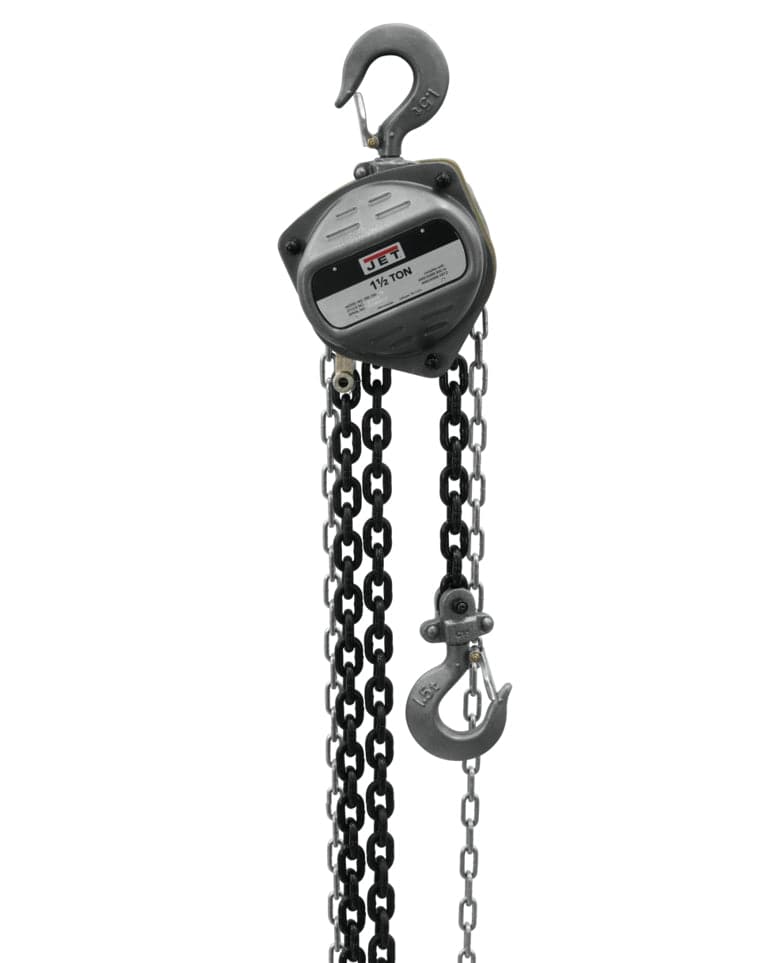

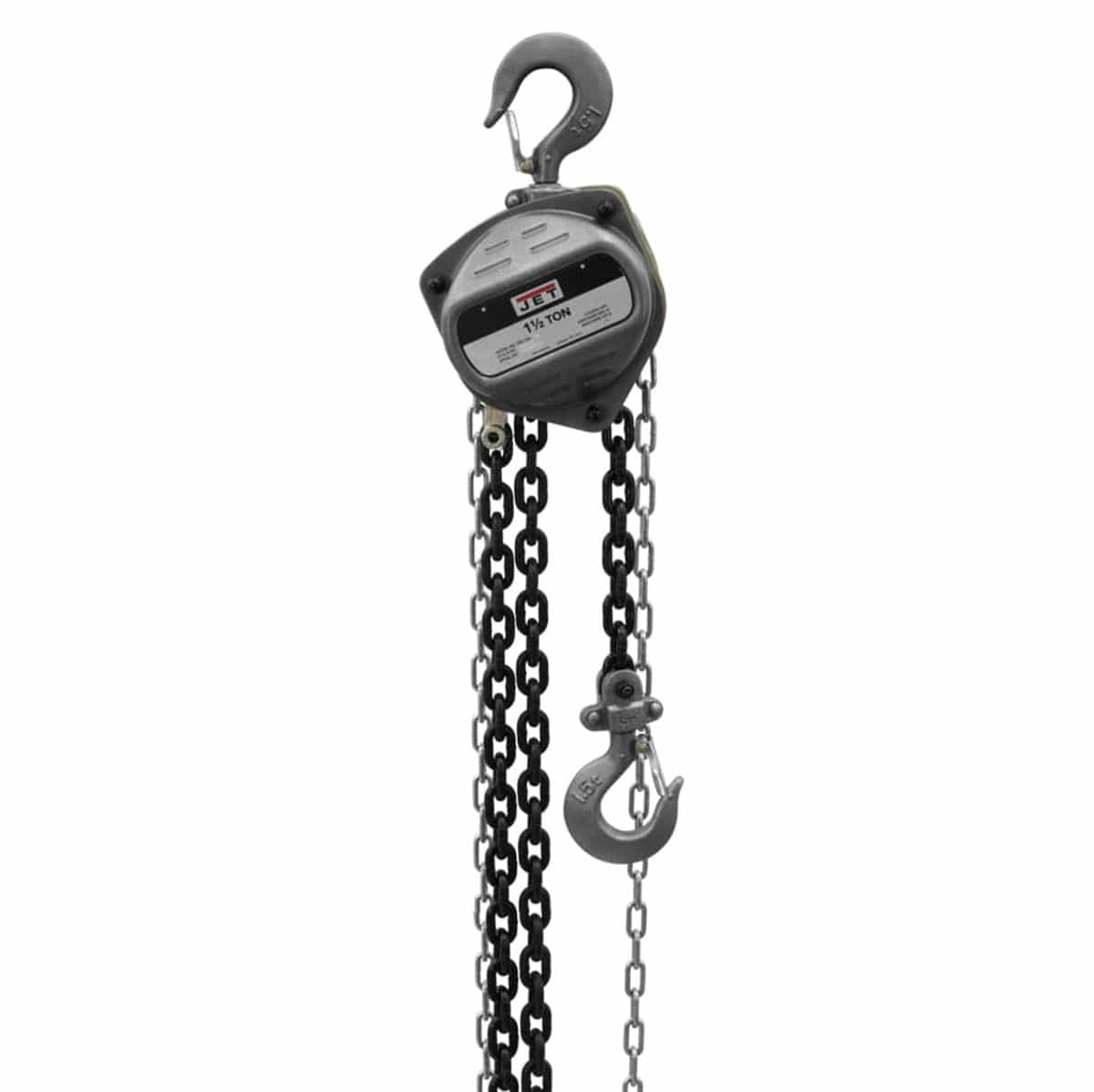

JET S90-150-15 1-1/2-Ton Hand Chain Hoist with 15-Foot Lift

The JET S90-150-15 S90 Series 1-1/2-Ton Hand Chain Hoist is a manual overhead lifting tool engineered for positioning industrial machinery, hoisting structural steel members, and managing heavy plant maintenance loads. Delivering 3,000 pounds of rated load capacity across a 15-foot vertical lift height, this industrial hoist incorporates a Weston-style double ratchet pawl mechanical load brake for positive load holding. Outfitted with Grade 80 black oxide-coated alloy steel load chain, 360-degree swiveling drop-forged alloy steel hooks with cast safety latches, needle-bearing supported load sheaves, and an all-steel impact-resistant housing, this 52-pound tool executes overhead rigging operations in low-headroom spaces.

Best Used For:

• Industrial Machinery Positioning: Raising, lowering, and aligning 3,000-pound electric motors, pumps, and gearboxes during installation.
• Structural Steel Assembly: Hoisting structural steel beams, plates, and frame weldments in low-headroom manufacturing bays.
• Confined Space Plant Maintenance: Executing controlled overhead pulls inside tight mechanical rooms where larger powered hoists cannot fit.

Key Performance & Safety Features

• 3,000 LB Working Load Limit: Engineered to lift contractor and industrial loads up to 1-1/2 tons safely and efficiently.
• 15-Foot Vertical Lift Reach: Long-reach Grade 80 load chain allows continuous overhead lifting across multi-story heights without resetting rigging.
• Weston-Style Double Pawl Brake System: Dual ratchet pawl architecture splits load stress across opposite gear teeth to ensure positive load holding.
• Grade 80 Black Oxide Load Chain: Heat-treated alloy steel chain provides high tensile strength and surface corrosion resistance in harsh environments.
• Impact-Resistant All-Steel Housing: Heavy-duty steel case protects case-hardened internal gear components and heat-treated load plates from jobsite debris.
• Overload-Indicating 360-Degree Swivel Hooks: Drop-forged alloy steel hooks rotate 360 degrees and deform slowly under excessive load as a visual safety indicator.

What's Included

• (1) JET S90-150-15 S90 Series 1-1/2-Ton Hand Chain Hoist with 15-Foot Lift

Technical Specifications

Pro-Tip: Perform a visual inspection of the Grade 80 load chain and cast safety latches prior to hoisting 3,000-pound loads; keeping the chain clean and lightly lubricated ensures smooth movement across the needle-bearing load sheave.
