JET Hand Chain Hoist S90-100-20 1 Ton (2200 LB Capacity 20 Foot Extended Lift Weston Double Pawl Brake Grade 80 Load Chain Overhead Industrial)

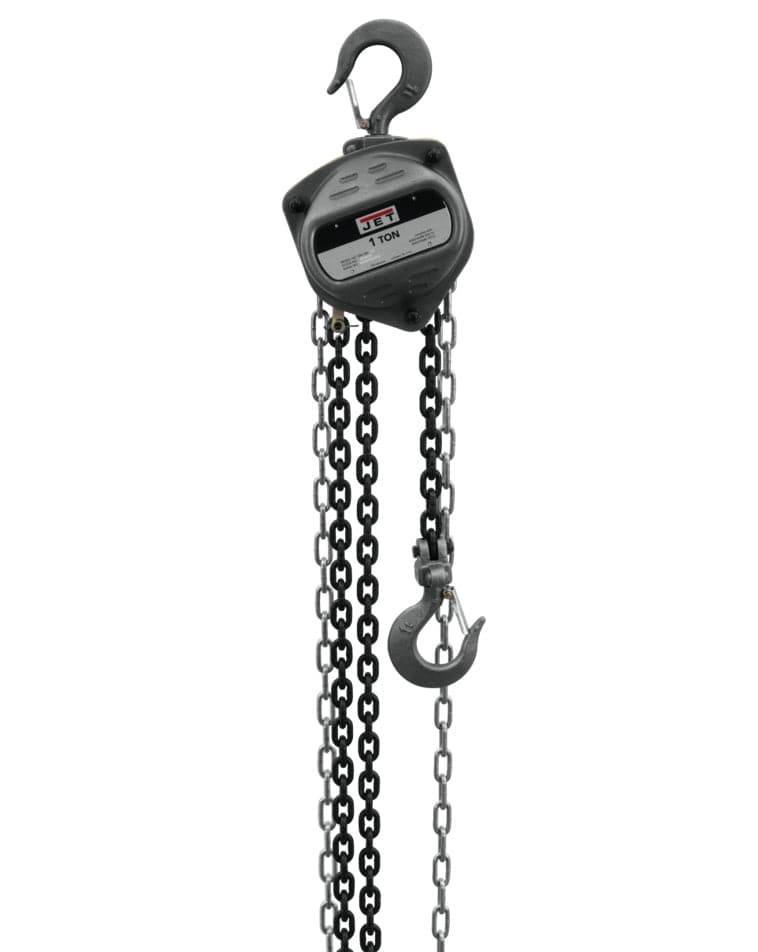

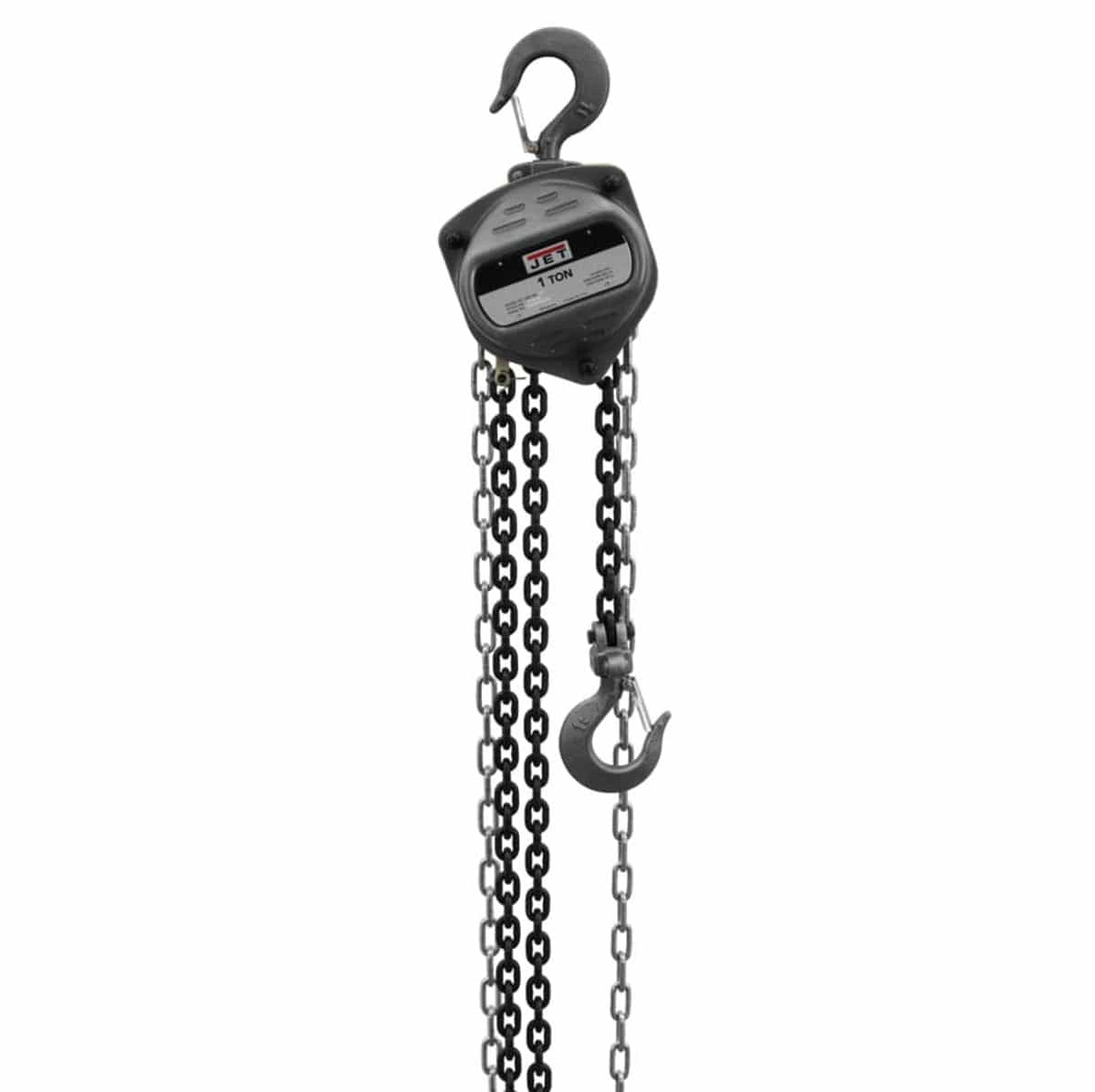

JET S90-100-20 1-Ton Hand Chain Hoist with 20-Foot Extended Lift

The JET S90-100-20 S90 Series 1-Ton Hand Chain Hoist is an extended-reach manual overhead lifting device engineered for positioning heavy machinery, hoisting structural steel beams, and managing plant maintenance loads. Featuring a 2,200-pound rated load capacity and a 20-foot vertical lift height within an 11-inch headroom profile, this industrial hoist utilizes a Weston-style double ratchet pawl mechanical load brake for positive load control. Outfitted with Grade 80 black oxide-coated 0.24 x 0.71 inch load chain, 360-degree swiveling drop-forged alloy steel hooks with cast safety latches, needle-bearing supported load sheaves, and an all-steel impact-resistant housing, this 38-pound hoist executes overhead rigging tasks.

Best Used For:

• High-Bay Industrial Overhead Lifting: Hoisting heavy electric motors, pumps, and gearboxes across 20-foot vertical distances in manufacturing facilities.
• Structural Steel & Machinery Alignment: Raising and positioning heavy structural steel plates, trusses, and industrial machinery components during assembly.
• Plant Maintenance Rigging in Tight Quarters: Executing controlled overhead lifts where an 11-inch headroom clearance profile is required.

Key Performance & Safety Features

• 2,200 LB Working Load Limit: Engineered to lift industrial loads up to 1 ton requiring 60 pounds of manual hand chain pull force.
• 20-Foot Extended Lift Reach: Long-reach Grade 80 chain configuration allows continuous high-ceiling lifting without resetting rigging lines.
• Weston-Style Double Pawl Brake System: Dual ratchet pawl architecture splits load stress across opposite gear teeth for load holding.
• Grade 80 Black Oxide Load Chain: Heat-treated 0.24 x 0.71 inch alloy steel chain provides high tensile strength and surface corrosion resistance.
• Compact 11-Inch Headroom Profile: Low-profile all-steel body design allows full mechanical extension in restricted vertical spaces.
• Overload-Indicating 360-Degree Swivel Hooks: Drop-forged alloy steel hooks rotate 360 degrees and deform slowly under excessive load as a visual safety indicator.

What's Included

• (1) JET S90-100-20 S90 Series 1-Ton Hand Chain Hoist with 20-Foot Extended Lift

Technical Specifications

Pro-Tip: Check the 20-foot load chain for kinks or twists along its entire length before hoisting heavy 1-ton loads; keeping chain links aligned ensures smooth passage through the internal needle-bearing load sheave.
