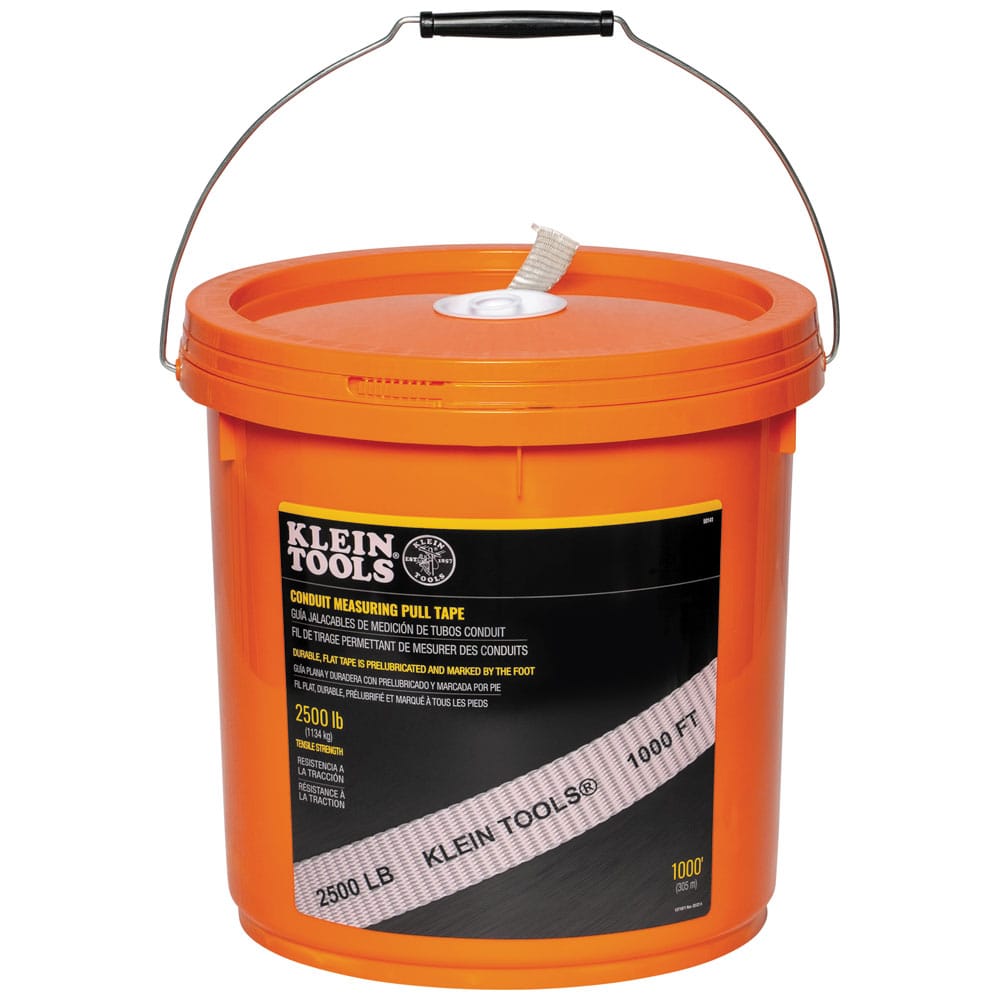

Klein Tools 50141 2500-lb tensile strength conduit pull tape packaged in a 1000-foot orange dispensing bucket for wire pulling applications.

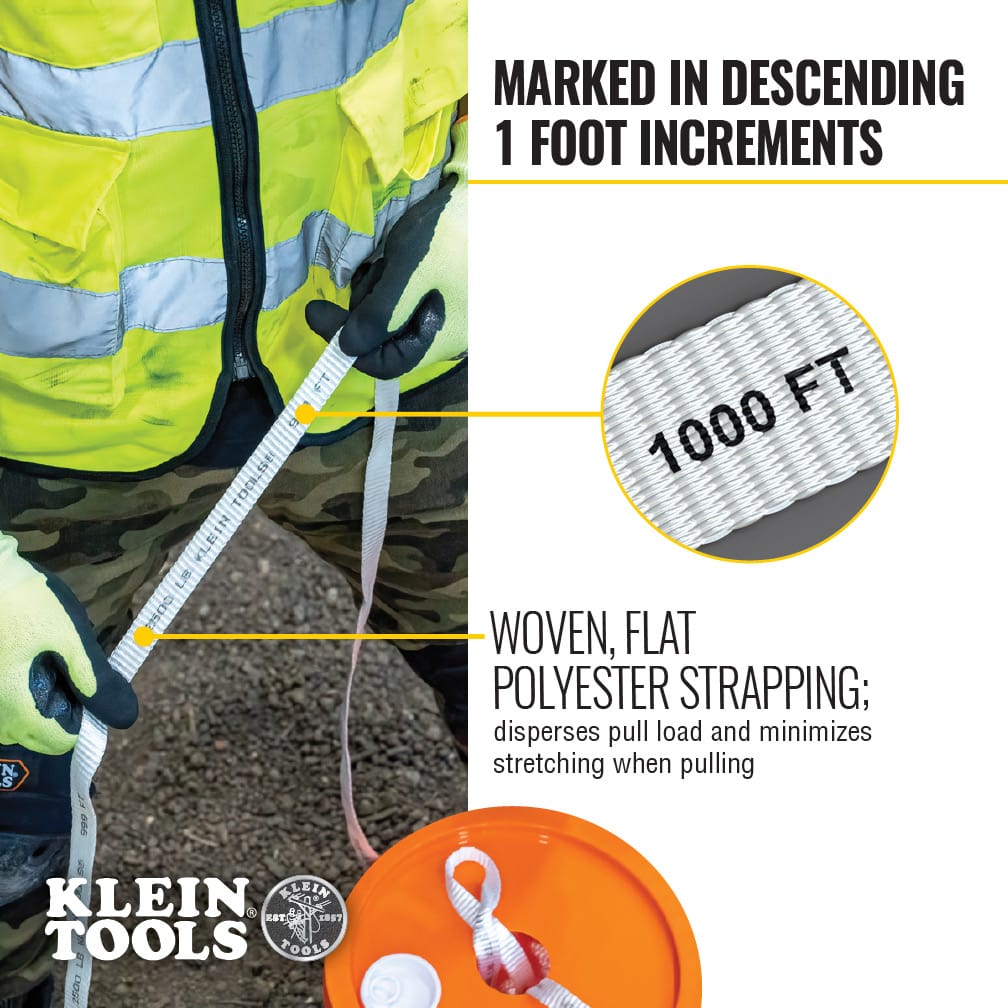

Feature callout graphic showing woven flat polyester strapping marked with descending 1-foot increments to minimize stretching and measure conduit.

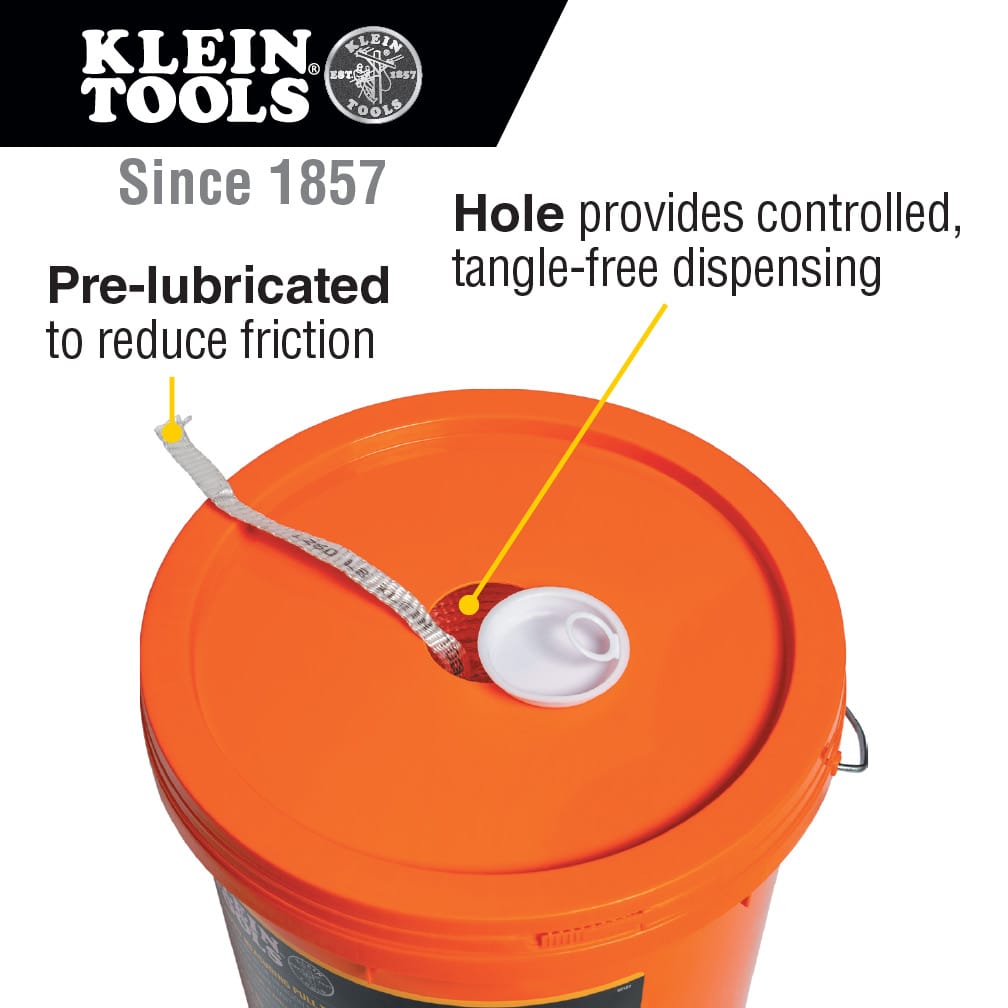

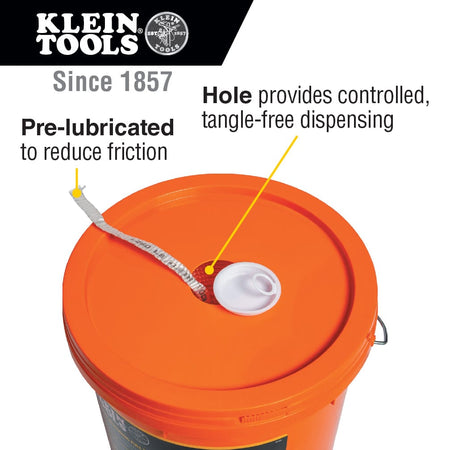

Bucket lid detail illustrating the center hole design for controlled, tangle-free dispensing of pre-lubricated conduit pull tape.

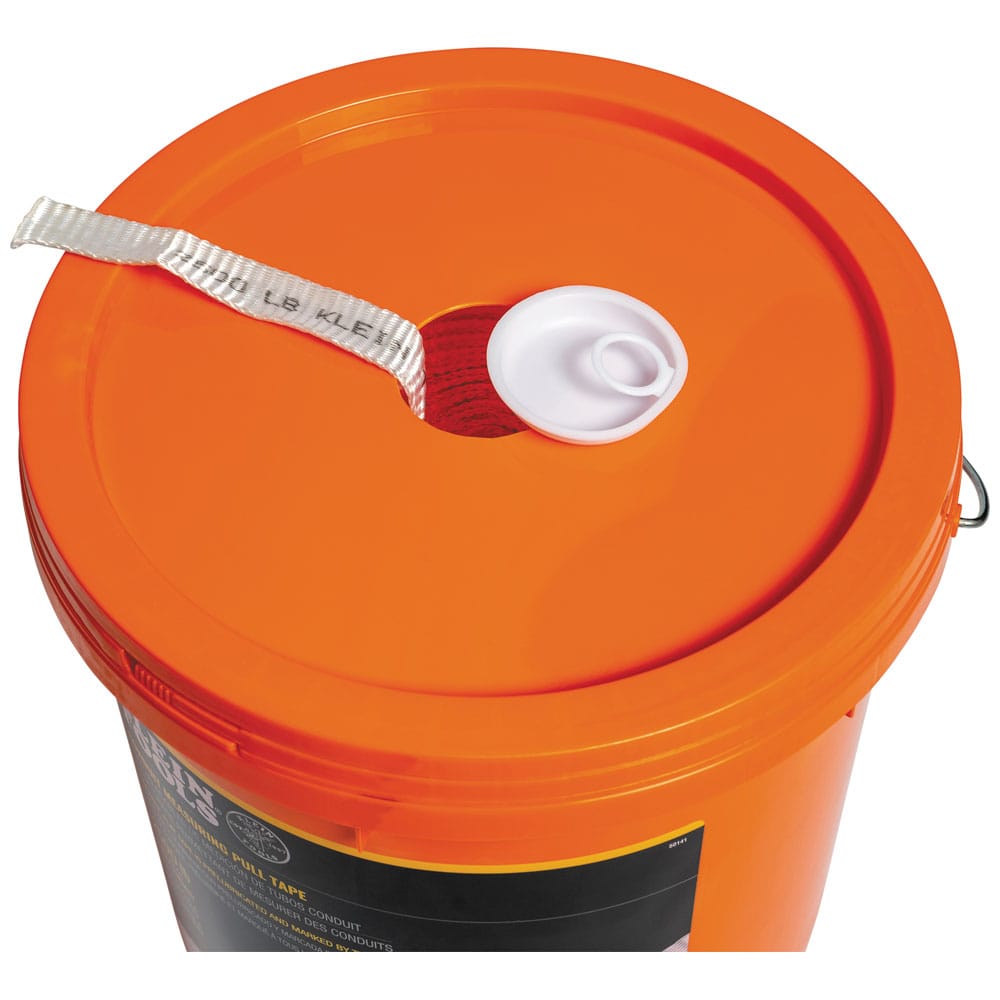

Top-down view of the Klein 50141 orange bucket lid showing the white cap removed from the center hole for pre-lubricated tape feed.

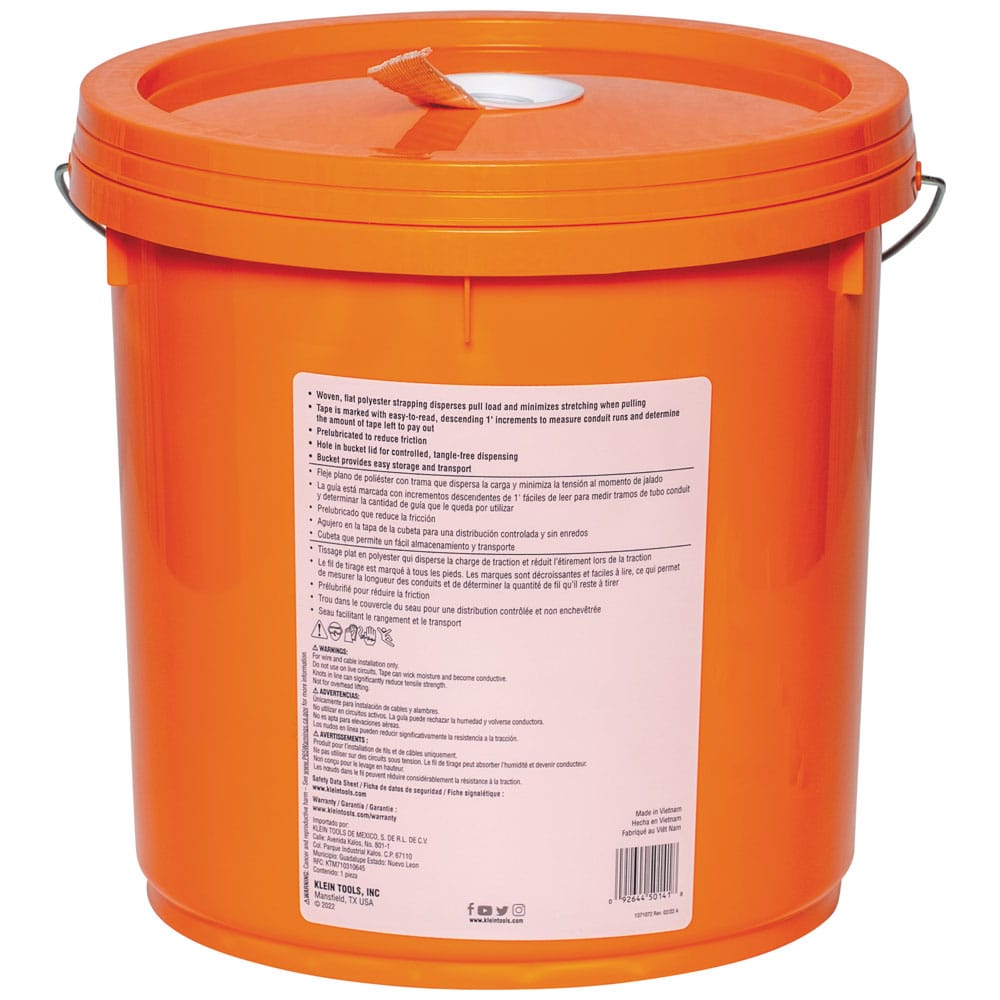

Back of the Klein Tools 50141 orange bucket displaying product safety warnings and multi-language specification details.
Electrician feeding pre-lubricated 2500-lb pull tape directly from the dispensing bucket into underground PVC conduit stub-ups on a jobsite.

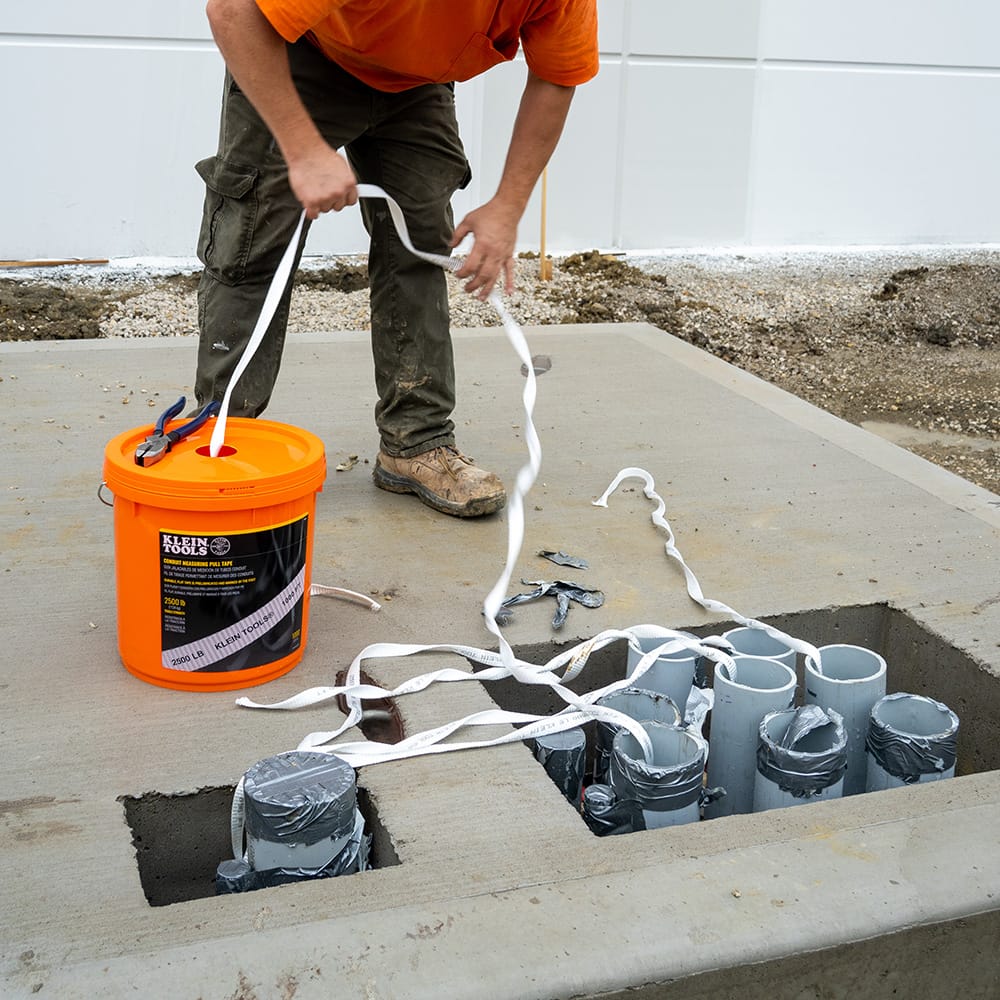

Contractor pulling pre-lubricated polyester tape out of the bucket dispensing hole into multiple commercial electrical conduit openings.

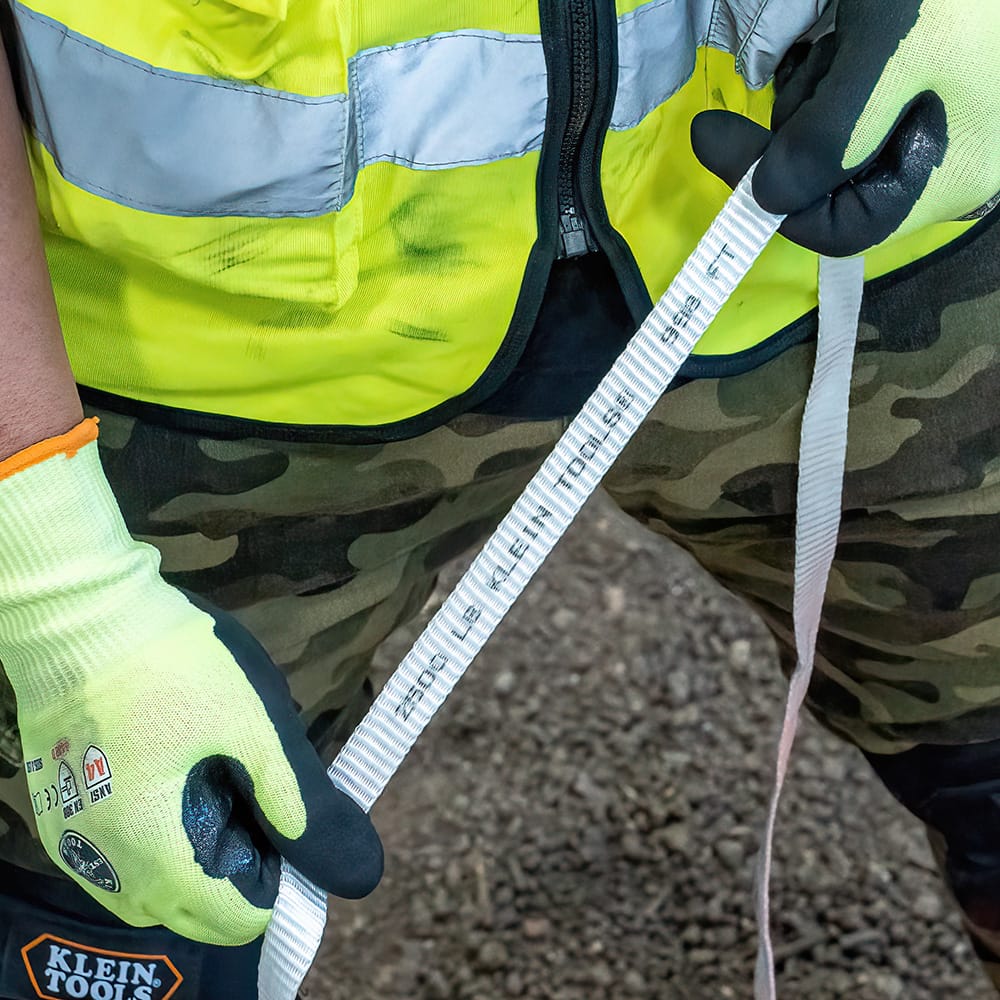

Gloved worker holding Klein Tools flat polyester pull tape, highlighting the 2500-lb tensile rating print and descending foot measurement marks.

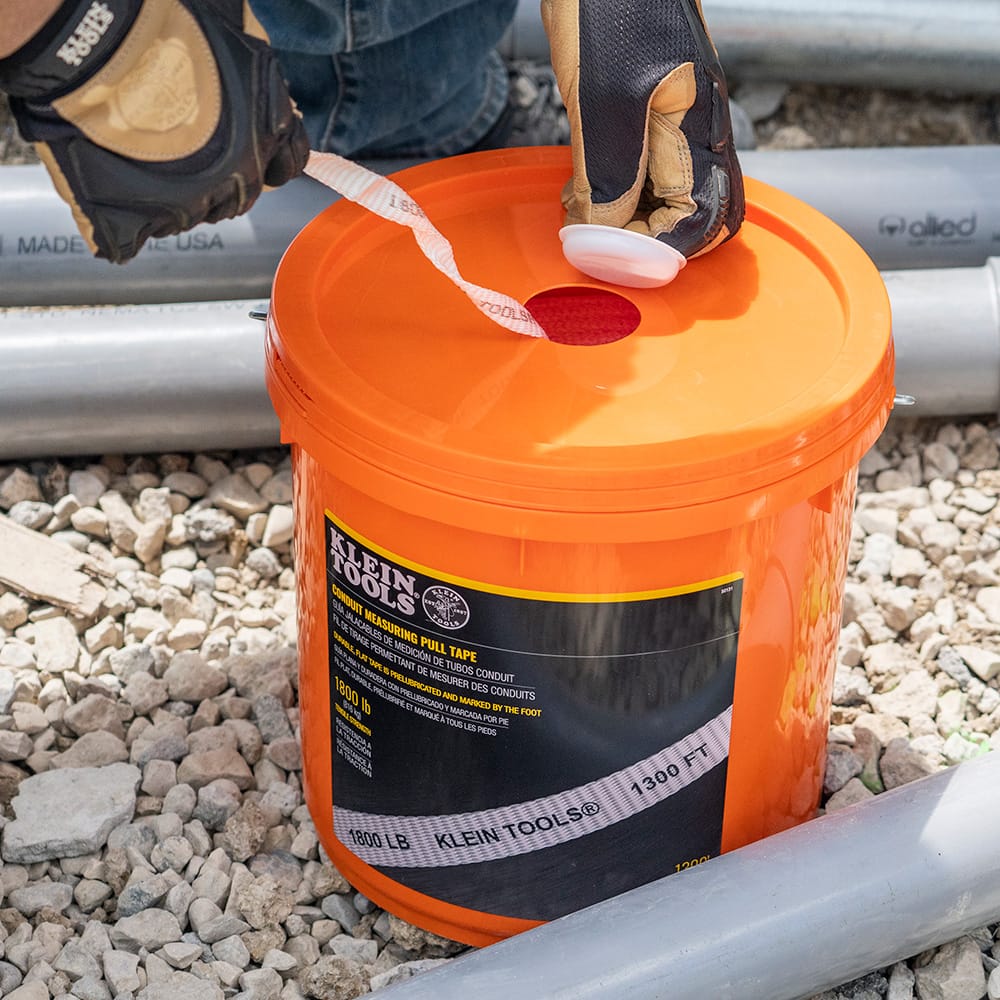

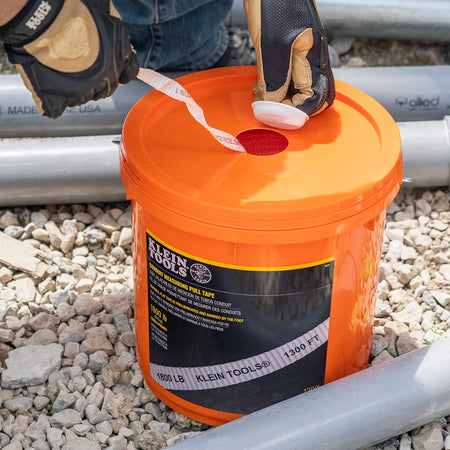

Close-up of a worker pulling white pre-lubricated measuring tape through the bucket lid access aperture on a gravel construction site.

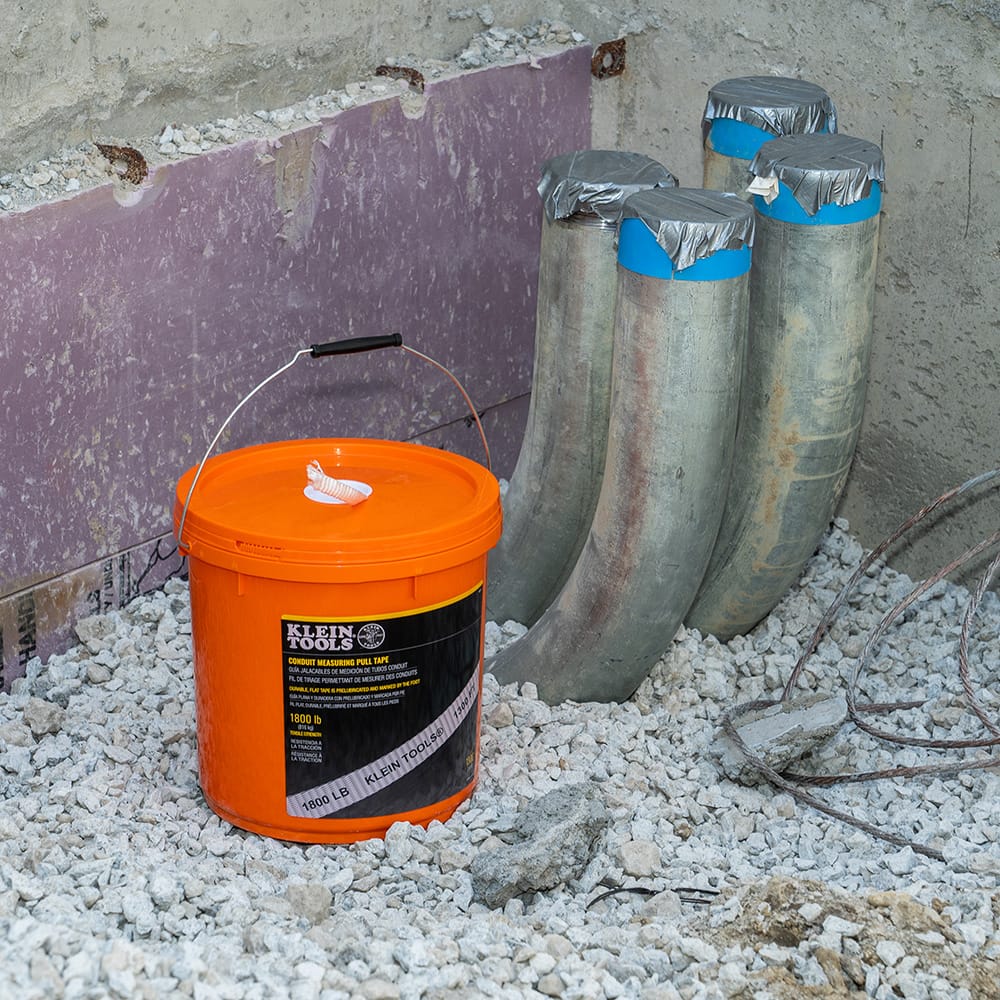

Klein Tools conduit measuring pull tape bucket sitting next to rigid metal elbow conduits on a jobsite ready for commercial cable installation.

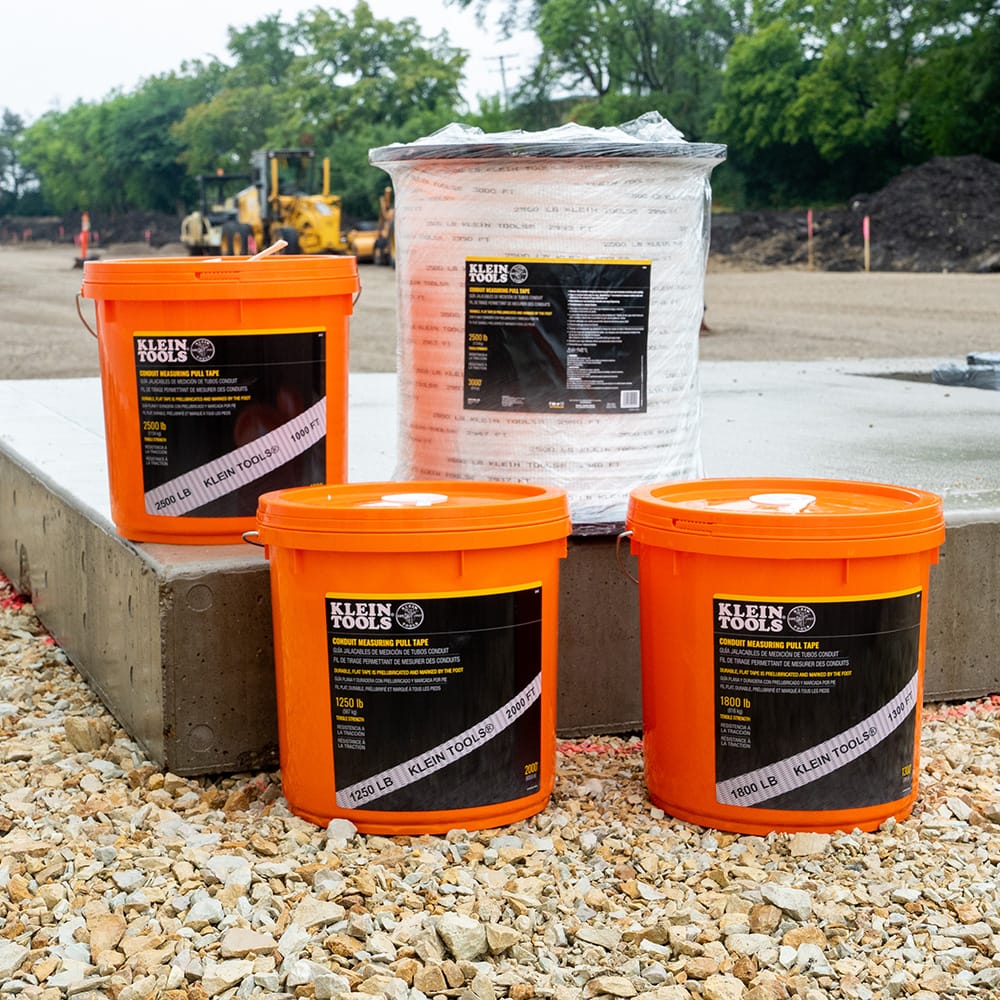

Klein Tools conduit pull tape product family showing 1250 lb, 1800 lb, and 2500 lb tensile strength options in buckets and large jobsite reels.

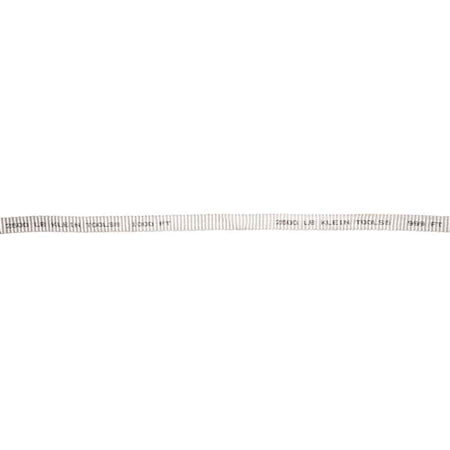

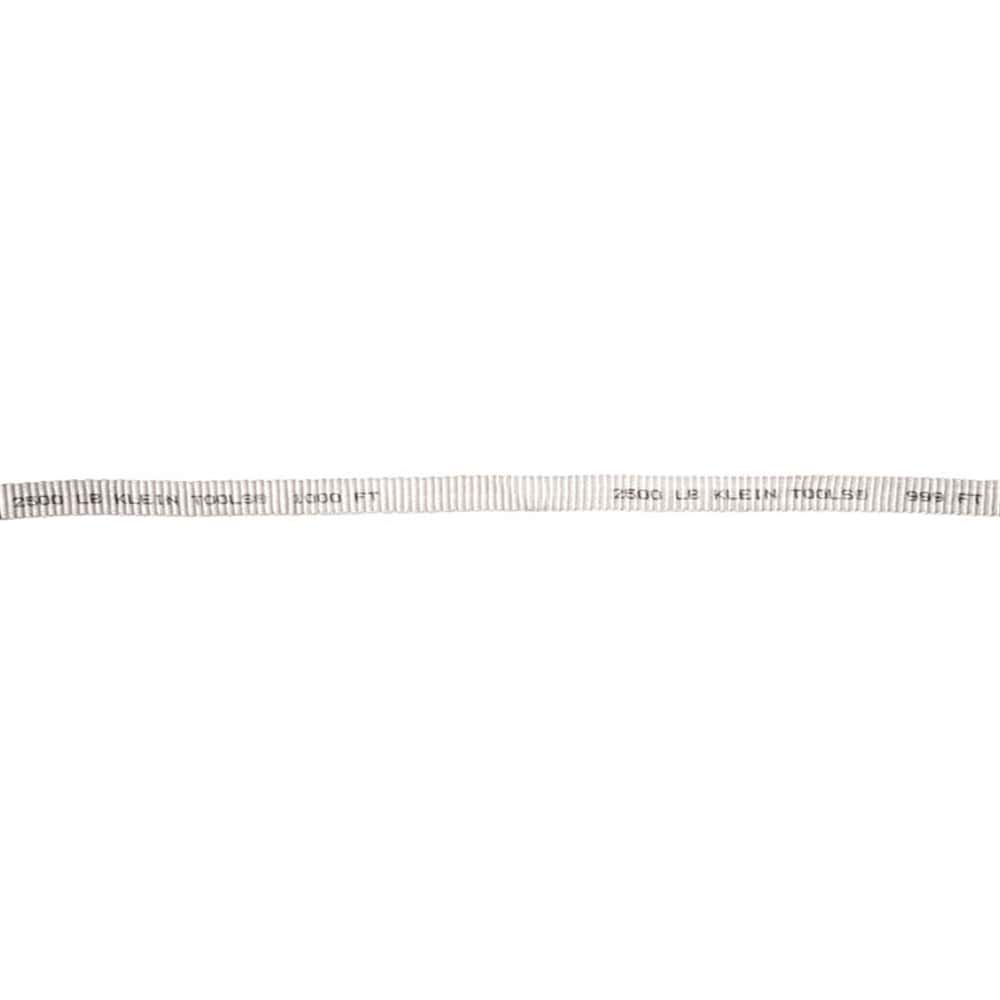

Close-up of Klein Tools flat woven polyester pull tape displaying pre-printed 2500 lb tensile strength rating and sequential foot measurements.

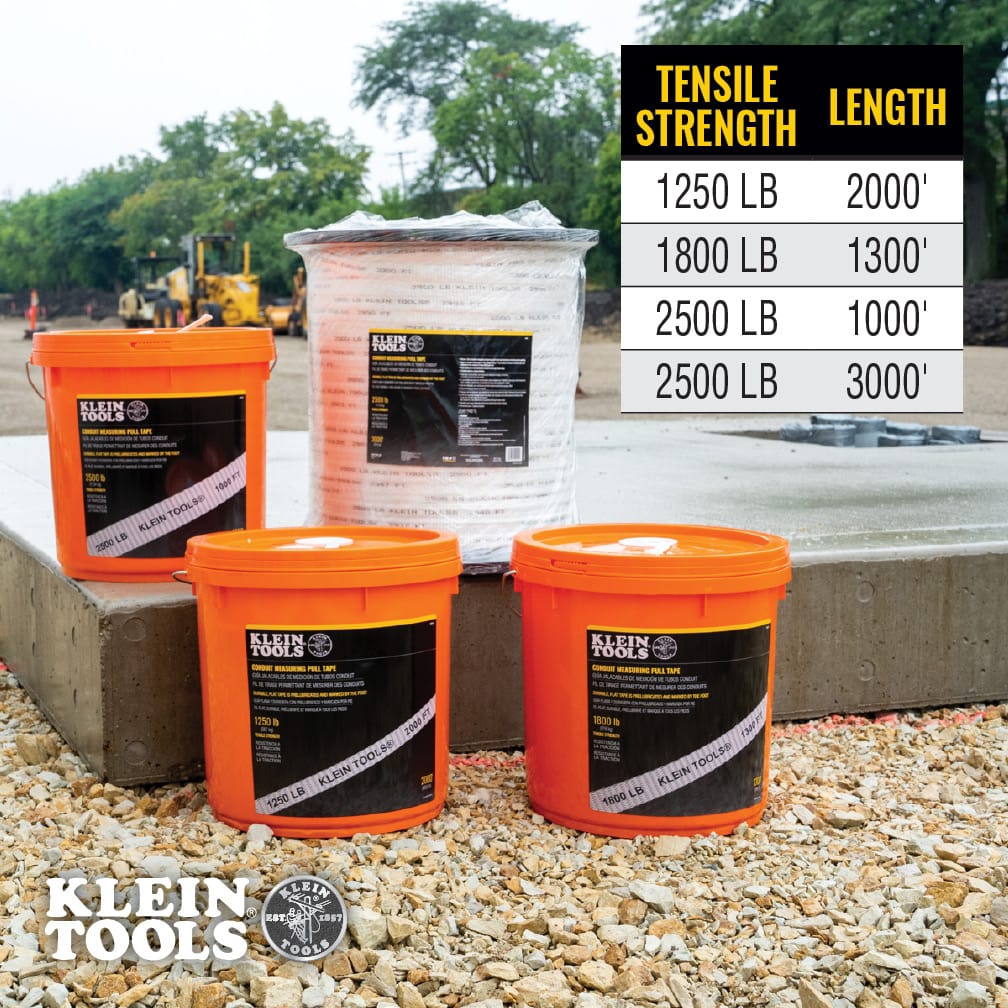

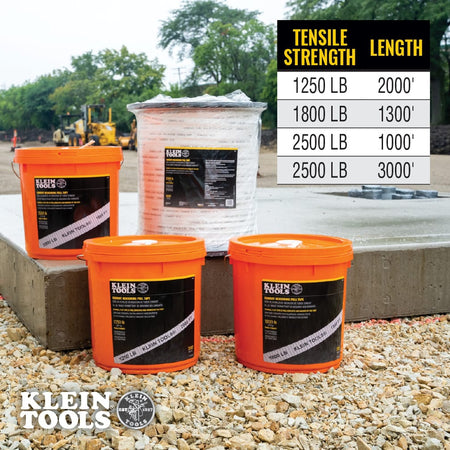

Selection chart for Klein Tools pull tape detailing 1250 lb at 2000 ft, 1800 lb at 1300 ft, 2500 lb at 1000 ft, and 2500 lb at 3000 ft options.
Conduit Measuring Pull Tape (50122, 50131, 50141, 50142) promotional video
Klein Tools 50141 2500-lb tensile strength conduit pull tape packaged in a 1000-foot orange dispensing bucket for wire pulling applications.
Feature callout graphic showing woven flat polyester strapping marked with descending 1-foot increments to minimize stretching and measure conduit.
Bucket lid detail illustrating the center hole design for controlled, tangle-free dispensing of pre-lubricated conduit pull tape.
Top-down view of the Klein 50141 orange bucket lid showing the white cap removed from the center hole for pre-lubricated tape feed.
Back of the Klein Tools 50141 orange bucket displaying product safety warnings and multi-language specification details.
Electrician feeding pre-lubricated 2500-lb pull tape directly from the dispensing bucket into underground PVC conduit stub-ups on a jobsite.
Contractor pulling pre-lubricated polyester tape out of the bucket dispensing hole into multiple commercial electrical conduit openings.
Gloved worker holding Klein Tools flat polyester pull tape, highlighting the 2500-lb tensile rating print and descending foot measurement marks.
Close-up of a worker pulling white pre-lubricated measuring tape through the bucket lid access aperture on a gravel construction site.
Klein Tools conduit measuring pull tape bucket sitting next to rigid metal elbow conduits on a jobsite ready for commercial cable installation.
Klein Tools conduit pull tape product family showing 1250 lb, 1800 lb, and 2500 lb tensile strength options in buckets and large jobsite reels.
Close-up of Klein Tools flat woven polyester pull tape displaying pre-printed 2500 lb tensile strength rating and sequential foot measurements.
Selection chart for Klein Tools pull tape detailing 1250 lb at 2000 ft, 1800 lb at 1300 ft, 2500 lb at 1000 ft, and 2500 lb at 3000 ft options.
Conduit Measuring Pull Tape (50122, 50131, 50141, 50142) promotional video
KLEIN TOOLS

Klein Conduit Pull Tape 50141 2500 Lb Tensile 1000 Ft (0.76 Inch Flat Polyester Descending Foot Markings Pre Lubricated Wire Pulling Tool)

In stock
SKU: 50141
$119.99 USD

Description

Klein promotional logo logout

Klein Tools 50141 2500-Pound Conduit Measuring Pull Tape 1000-Foot

The Klein Tools 50141 Conduit Measuring Pull Tape is an industrial wire-pulling line engineered with 2500 pounds of tensile strength to install heavy electrical conductors through commercial conduit runs. Formulated from 0.76-inch wide woven flat polyester strapping pre-lubricated with ethylene glycol, this 17.4 lb pulling tape disperses tensile loads to eliminate sidewall friction and conduit burn-through. The tape features clear sequential descending 1-foot markings for immediate distance verification and comes housed in a heavy-duty orange bucket with a lid dispensing hole for tangle-free payout.

Best Used For:

  • Commercial Conduit Wire Pulling: Drawing heavy electrical feeders and service cables through long EMT, IMC, or PVC conduit runs without burning inner duct walls.
  • Conduit Distance Measurement: Verification of exact duct run lengths prior to cable orders using sequential descending 1-foot incremental depth markings.
  • Tangle-Free Field Payout: Dispensing pre-lubricated pulling line smoothly directly from the protective bucket lid aperture during single-operator installations.

Key Performance & Safety Features

  • 2500-Pound Tensile Strength: Heavy-duty woven polyester construction resists tearing and stretching under extreme mechanical pulling loads.
  • Pre-Lubricated Low-Friction Coating: Factory treated with an ethylene glycol and water lubricant mixture to reduce pulling tension and prevent friction heat.
  • Flat Load-Dispersing Profile: 0.76-inch wide flat strapping design prevents duct cutting and reduces sidewall friction on long-radius sweeps.
  • Descending 1-Foot Incremental Markings: Easy-to-read sequential foot print allows instant distance measuring and accurate remaining footage tracking.
  • Dispensing Bucket Container: Housed in a durable orange bucket with a center lid hole for smooth, tangle-free line payout and clean transport.

What's Included

  • (1) 1000-Foot Roll of Klein Tools 50141 2500-Lb Pre-Lubricated Flat Polyester Pull Tape
  • (1) Orange Storage Bucket with Dispensing Lid and Carrying Handle

Technical Specifications

Brand Klein Tools
Model Number 50141
Tensile Strength Rating 2500 lbs. (1134 kg)
Tape Length 1000 ft. (304.8 m)
Tape Width 0.76 in. (1.9 cm)
Profile Type Flat Woven Strapping
Pre-Lubricated Yes (Ethylene Glycol and Water Solution)
Distance Markings Descending 1-Foot Increments (Black Markings)
Container Type Heavy-Duty Orange Bucket with Dispensing Lid & Handle
Color White Tape with Black Printing
Total Weight 17.4 lbs. (7.89 kg)
Pro-Tip: Pull the tape directly through the center hole in the bucket lid during payout to maintain tension and keep the remaining line clean and lubricant-intact on dusty jobsites.
