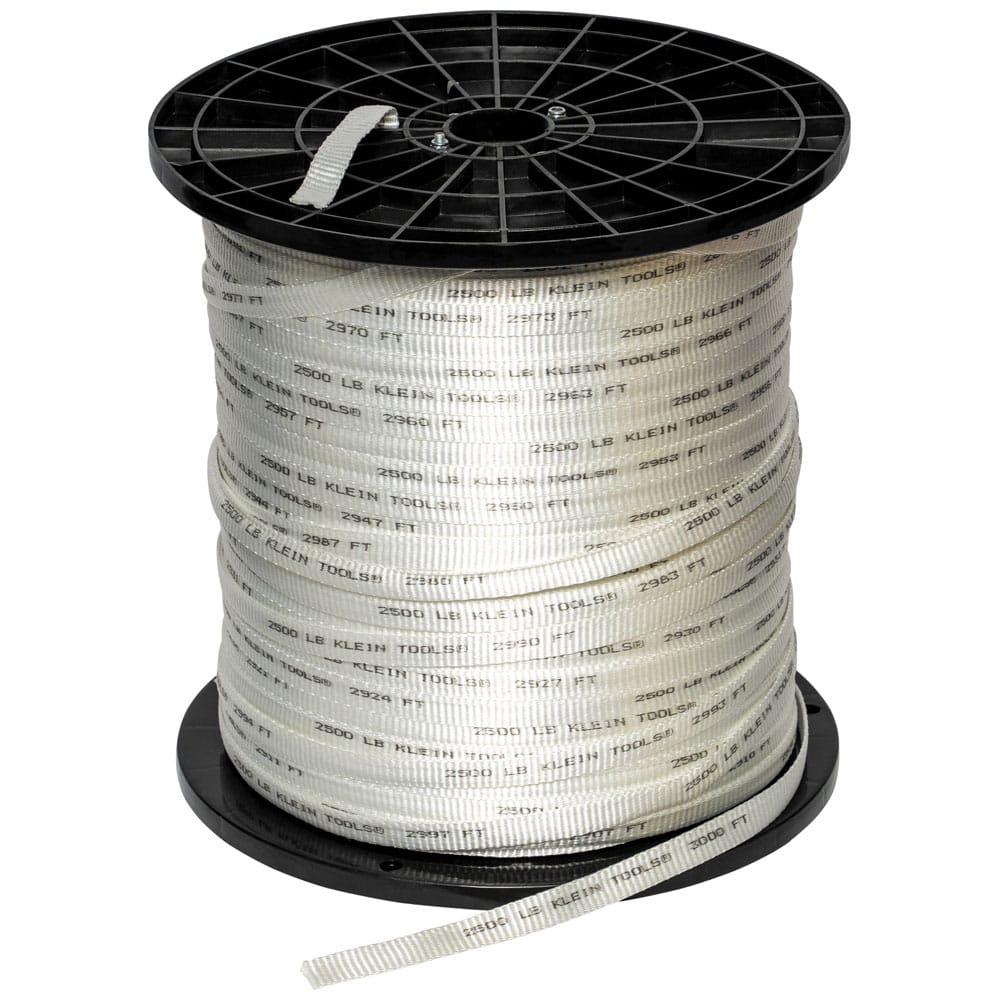

Klein Tools 50142 2500-lb tensile strength conduit pull tape wound on a 3000-foot spool reel for long-distance wire pulling.

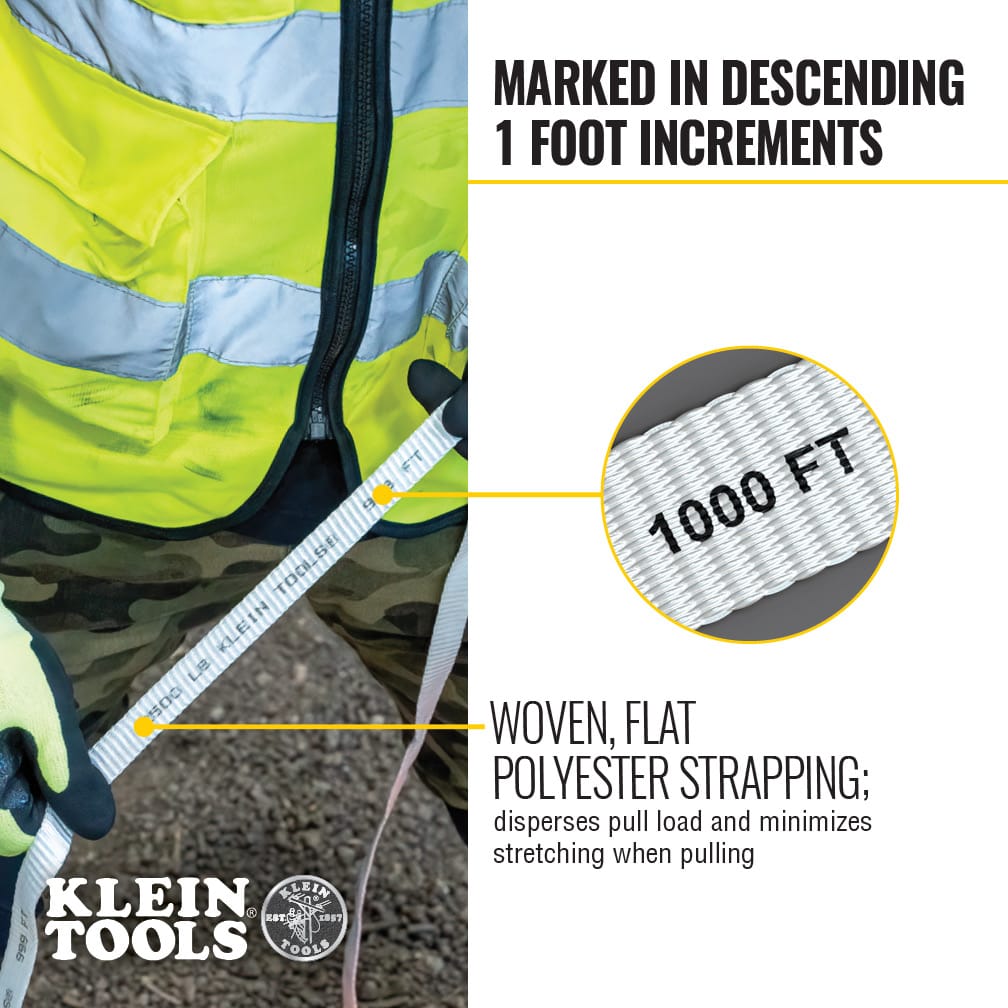

Feature callout graphic detailing woven flat polyester strapping marked with descending 1-foot increments to minimize stretching and measure conduit.

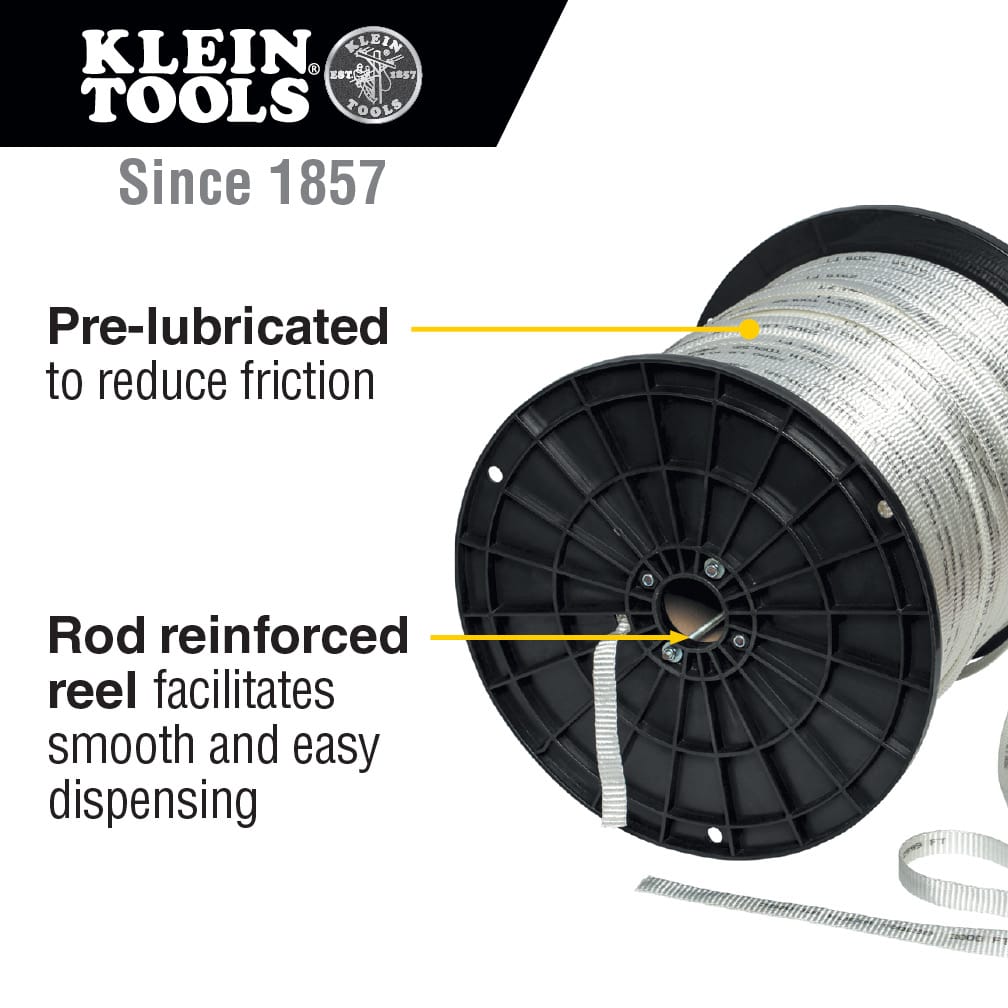

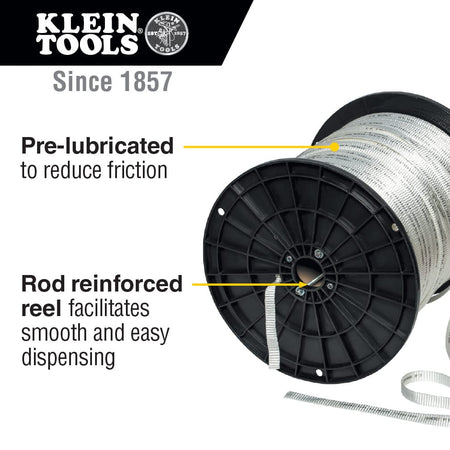

Reel construction detail showing the rod-reinforced spool center and pre-lubricated coating engineered for low-friction conduit pulling.

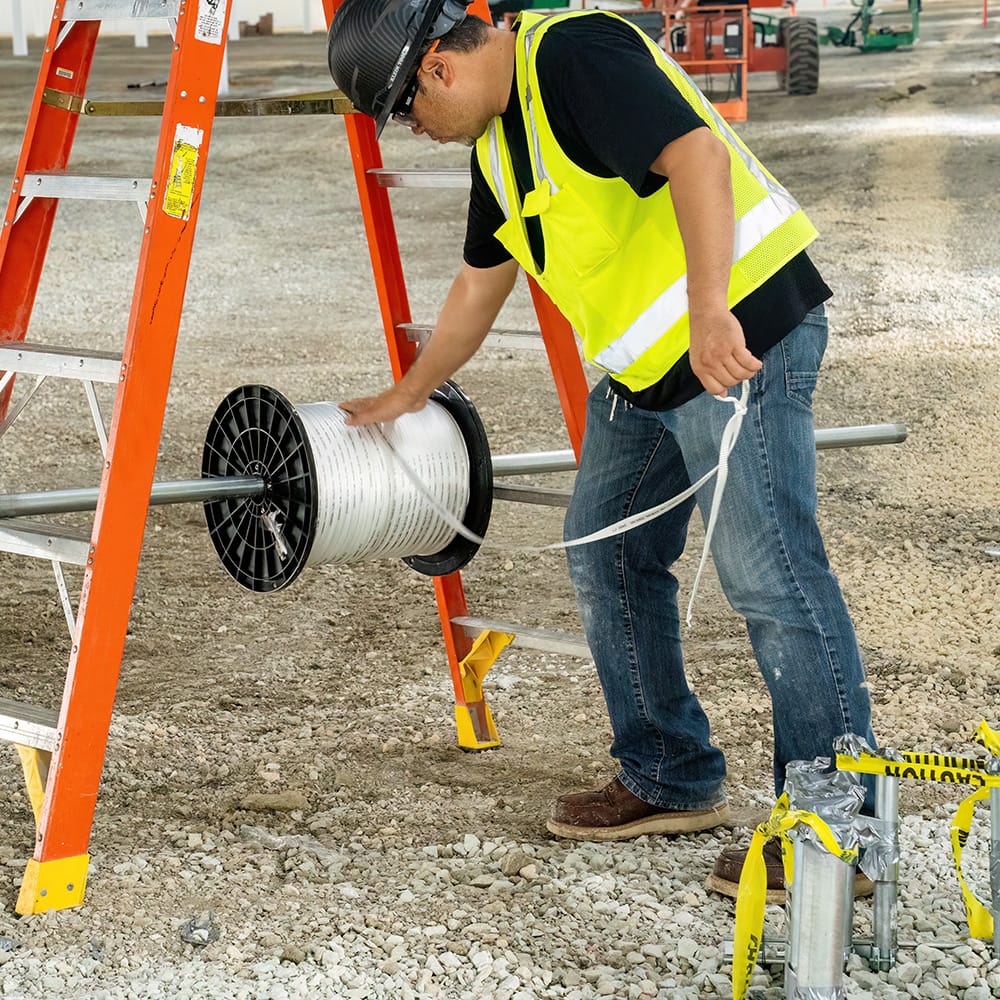

Electrician dispensing pre-lubricated 2500-lb pull tape off a rod-mounted reel setup into underground conduit stub-ups on a jobsite.

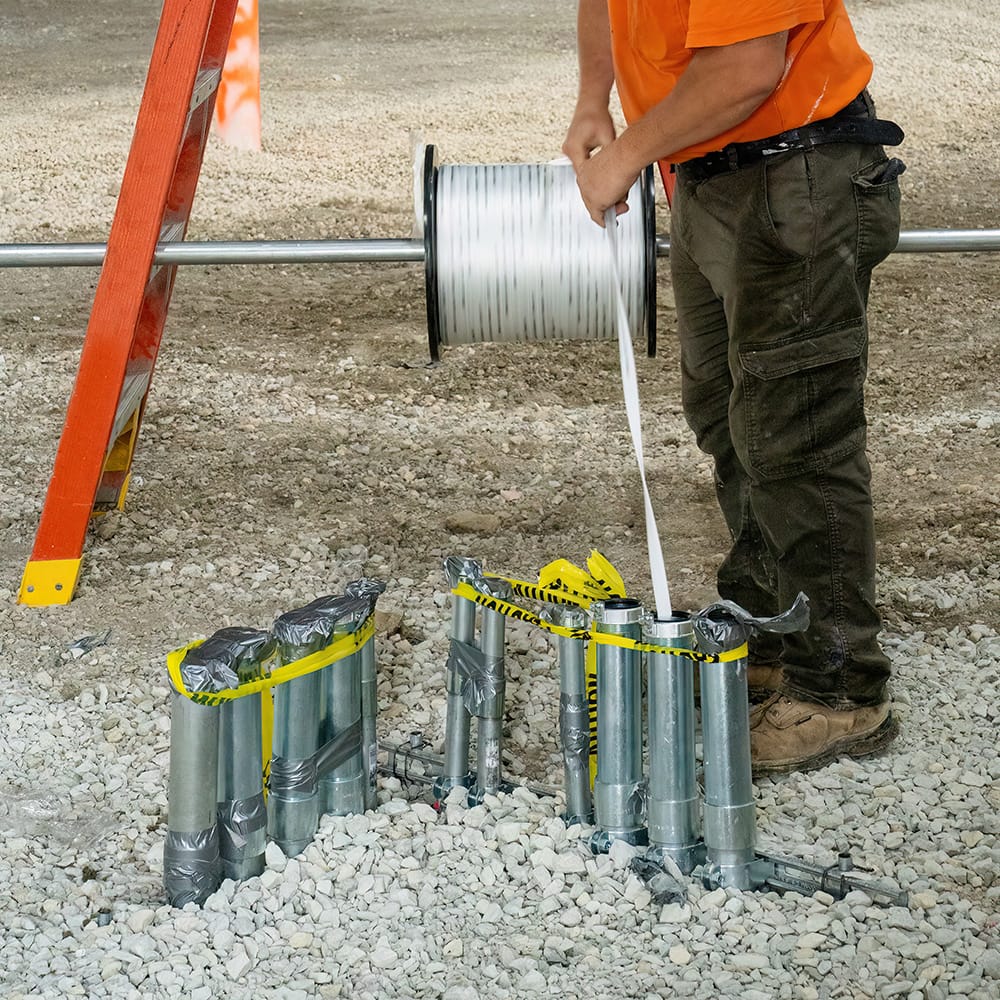

Worker feeding white polyester pull tape from a spindle-mounted reel into PVC underground utility conduits during site construction.

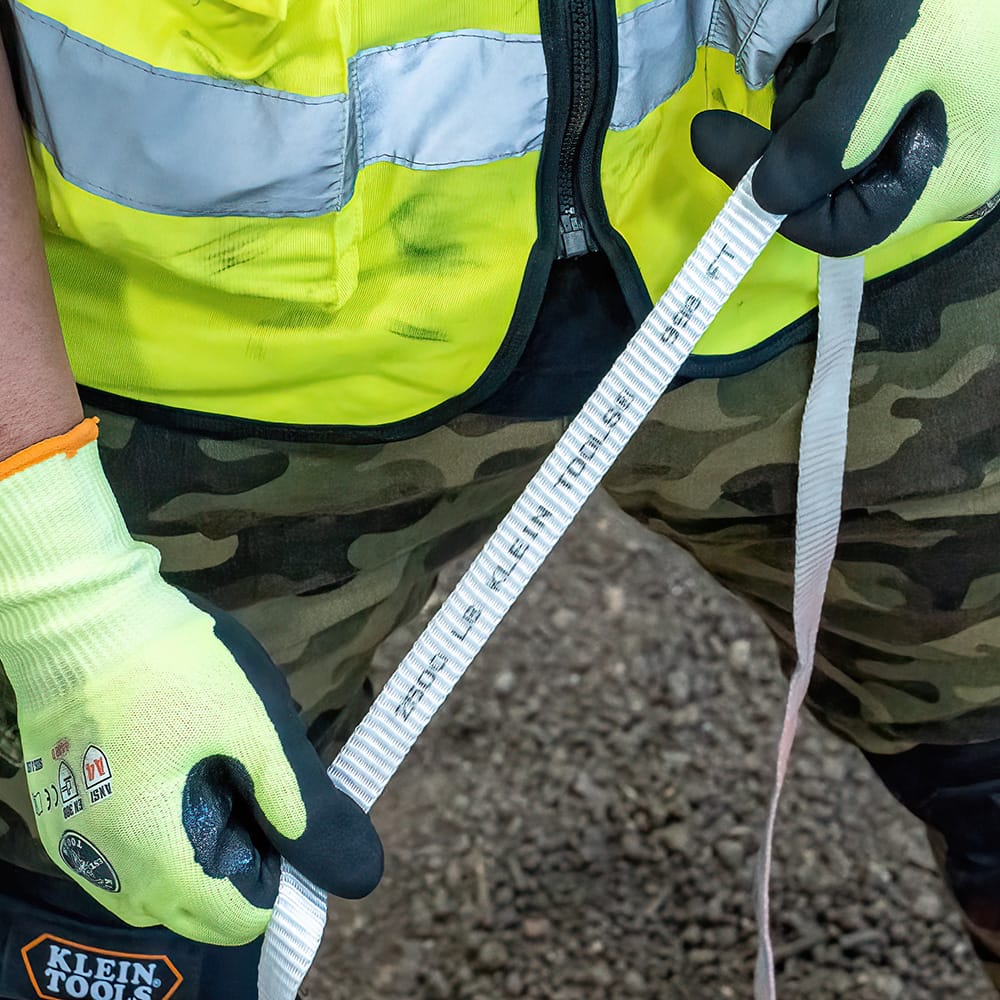

Gloved worker holding Klein Tools flat polyester pull tape, highlighting the 2500-lb tensile rating print and descending foot measurement marks.
Close-up of Klein Tools flat woven polyester pull tape displaying pre-printed 2500-lb tensile strength rating and sequential foot measurements.

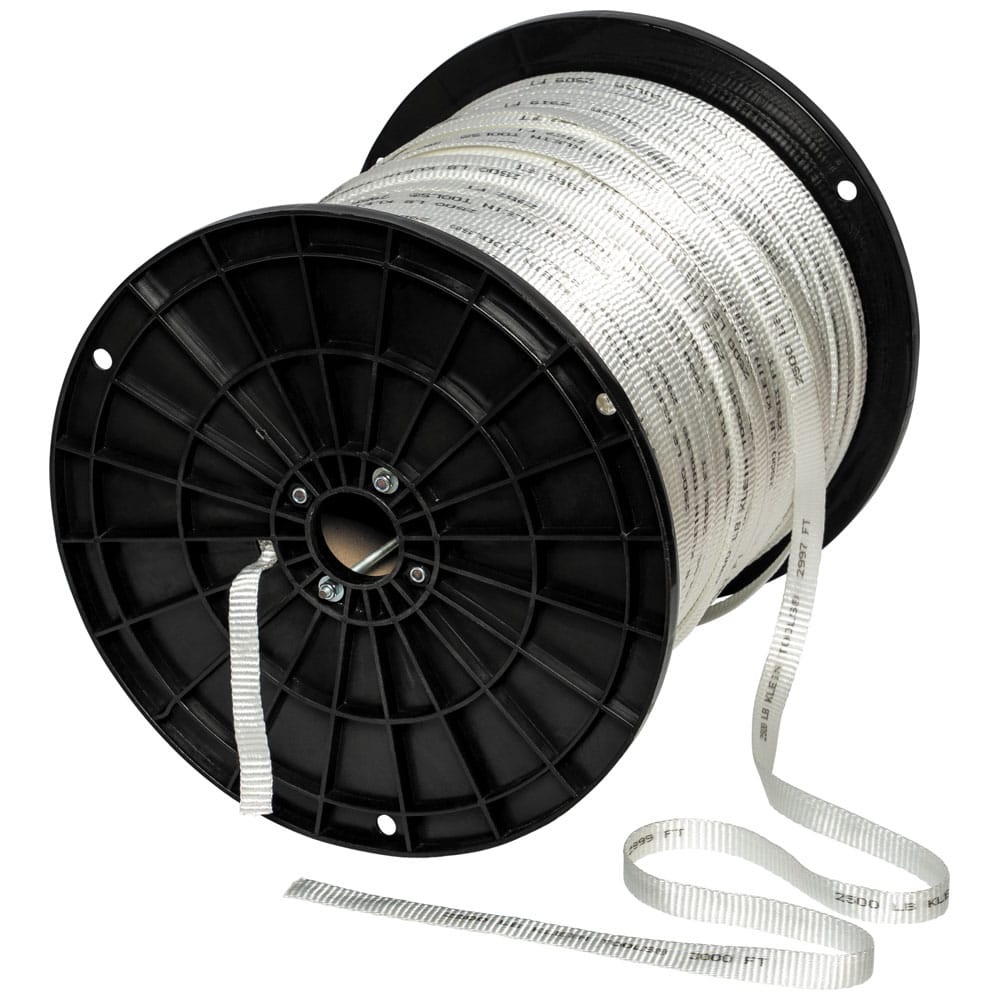

Klein Tools 50142 3000-foot pull tape reel leaning on its side showing the rod-reinforced spool and loose pre-lubricated line end.

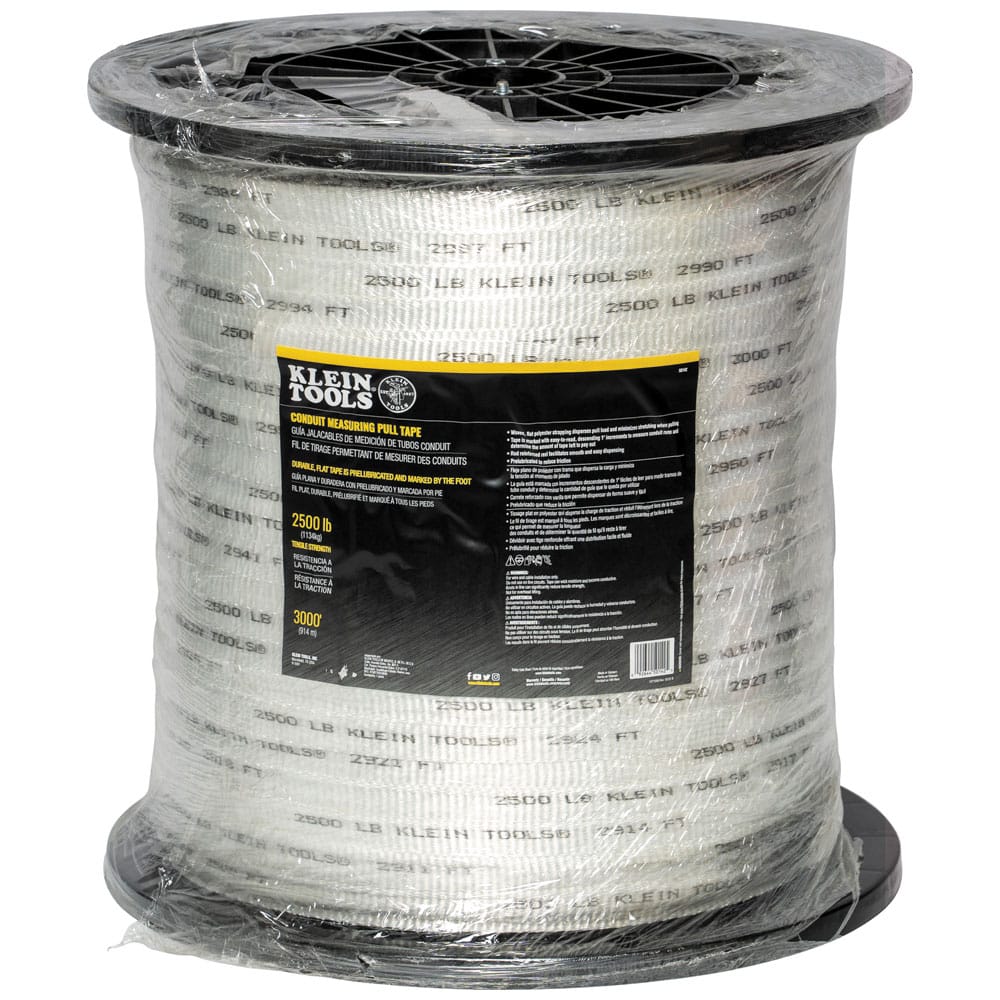

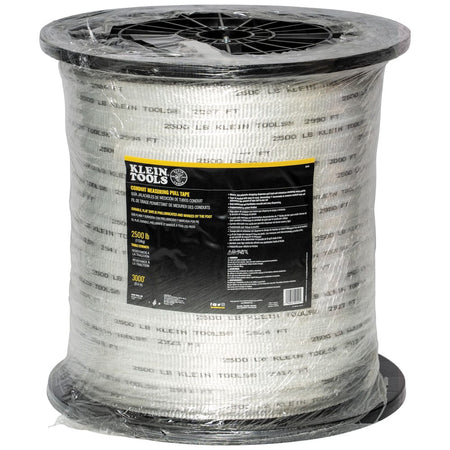

Factory shrink-wrapped Klein Tools 50142 3000-foot pull tape reel displaying the specification label and 2500-lb tensile rating.

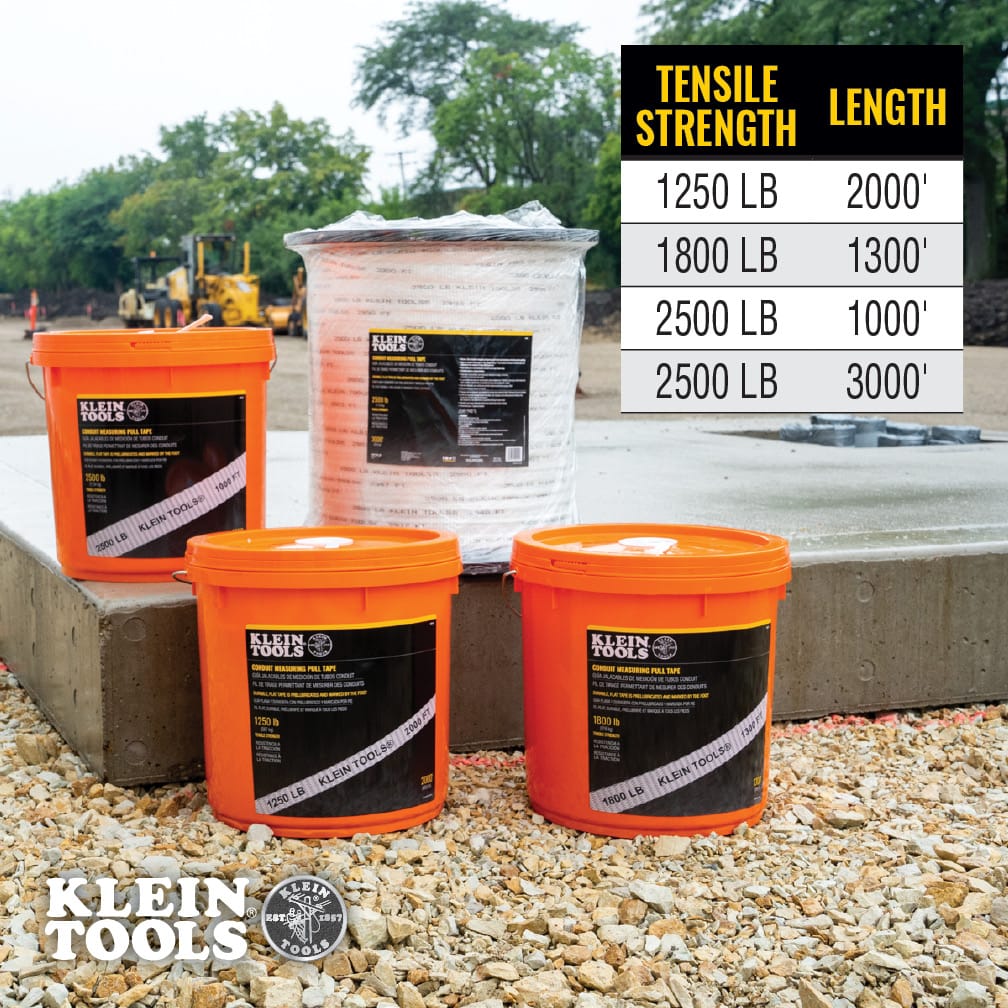

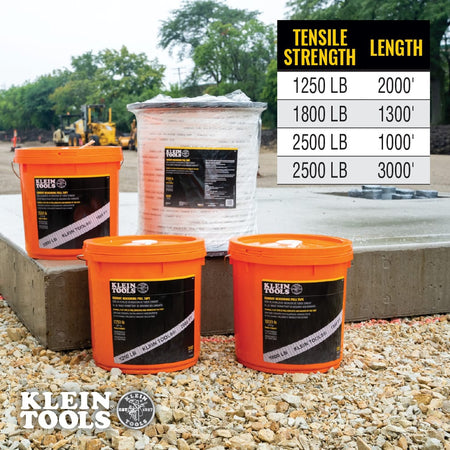

Selection chart for Klein Tools pull tape detailing 1250 lb at 2000 ft, 1800 lb at 1300 ft, 2500 lb at 1000 ft, and 2500 lb at 3000 ft options.
Conduit Measuring Pull Tape (50122, 50131, 50141, 50142) promotional video
Klein Tools 50142 2500-lb tensile strength conduit pull tape wound on a 3000-foot spool reel for long-distance wire pulling.
Feature callout graphic detailing woven flat polyester strapping marked with descending 1-foot increments to minimize stretching and measure conduit.
Reel construction detail showing the rod-reinforced spool center and pre-lubricated coating engineered for low-friction conduit pulling.
Electrician dispensing pre-lubricated 2500-lb pull tape off a rod-mounted reel setup into underground conduit stub-ups on a jobsite.
Worker feeding white polyester pull tape from a spindle-mounted reel into PVC underground utility conduits during site construction.
Gloved worker holding Klein Tools flat polyester pull tape, highlighting the 2500-lb tensile rating print and descending foot measurement marks.
Close-up of Klein Tools flat woven polyester pull tape displaying pre-printed 2500-lb tensile strength rating and sequential foot measurements.
Klein Tools 50142 3000-foot pull tape reel leaning on its side showing the rod-reinforced spool and loose pre-lubricated line end.
Factory shrink-wrapped Klein Tools 50142 3000-foot pull tape reel displaying the specification label and 2500-lb tensile rating.
Selection chart for Klein Tools pull tape detailing 1250 lb at 2000 ft, 1800 lb at 1300 ft, 2500 lb at 1000 ft, and 2500 lb at 3000 ft options.
Conduit Measuring Pull Tape (50122, 50131, 50141, 50142) promotional video
KLEIN TOOLS

Klein Conduit Pull Tape 50142 2500 Lb Tensile 3000 Ft (0.76 Inch Flat Polyester Descending Foot Markings Pre Lubricated Wire Pulling Tool)

In stock
SKU: 50142
$259.99 USD

Description

Klein promotional logo logout

Klein Tools 50142 2500-Pound Conduit Measuring Pull Tape 3000-Foot

The Klein Tools 50142 Conduit Measuring Pull Tape is an industrial wire-pulling line engineered with 2500 pounds of tensile strength to install heavy electrical conductors through long commercial conduit runs. Formulated from 0.76-inch wide woven flat polyester strapping pre-lubricated with ethylene glycol, this 52 lb pulling line disperses tensile loads to eliminate sidewall friction and conduit burn-through. The tape features clear sequential descending 1-foot markings for immediate distance verification and comes mounted on a heavy-duty rod-reinforced reel for tangle-free payout.

Best Used For:

  • Long-Run Conduit Wire Pulling: Drawing heavy feeder cables through extended EMT, IMC, or PVC conduit runs without burning inner duct walls.
  • Conduit Distance Verification: Measuring exact duct run lengths prior to wire procurement using sequential descending 1-foot incremental print markings.
  • Heavy Duty Cable Reel Payout: Dispensing pre-lubricated pulling line smoothly off a rod-reinforced spool on commercial jack stands.

Key Performance & Safety Features

  • 2500-Pound Tensile Strength: Heavy-duty woven polyester construction resists tearing and stretching under high mechanical pulling forces.
  • Pre-Lubricated Low-Friction Coating: Factory treated with an ethylene glycol and water lubricant mixture to reduce pulling tension and prevent friction heat.
  • Flat Load-Dispersing Profile: 0.76-inch wide flat strapping design prevents duct cutting and reduces sidewall friction on long-radius sweeps.
  • Descending 1-Foot Incremental Markings: Easy-to-read sequential foot print allows instant distance measuring and accurate remaining footage tracking.
  • Rod-Reinforced Dispensing Reel: Housed on a heavy-duty spool engineered for smooth, tangle-free line payout and stable mounting on payout stands.
  • Made in USA: Manufactured in the United States to meet strict industrial utility and electrical contracting standards.

What's Included

  • (1) 3000-Foot Reel of Klein Tools 50142 2500-Lb Pre-Lubricated Flat Polyester Pull Tape

Technical Specifications

Brand Klein Tools
Model Number 50142
Tensile Strength Rating 2500 lbs. (1134 kg)
Tape Length 3000 ft. (914.4 m)
Tape Width 0.76 in. (1.9 cm)
Profile Type Flat Woven Strapping
Pre-Lubricated Yes (Ethylene Glycol and Water Solution)
Distance Markings Descending 1-Foot Increments (Black Markings)
Container Type Rod-Reinforced Dispensing Reel
Color White Tape with Black Printing
Country of Origin USA
Total Weight 52 lbs. (23.58 kg)
Pro-Tip: Mount the rod-reinforced reel onto heavy-duty spindle jack stands at the conduit entry point to maintain steady tension and prevent tape overrun during high-speed mechanical pulls.
