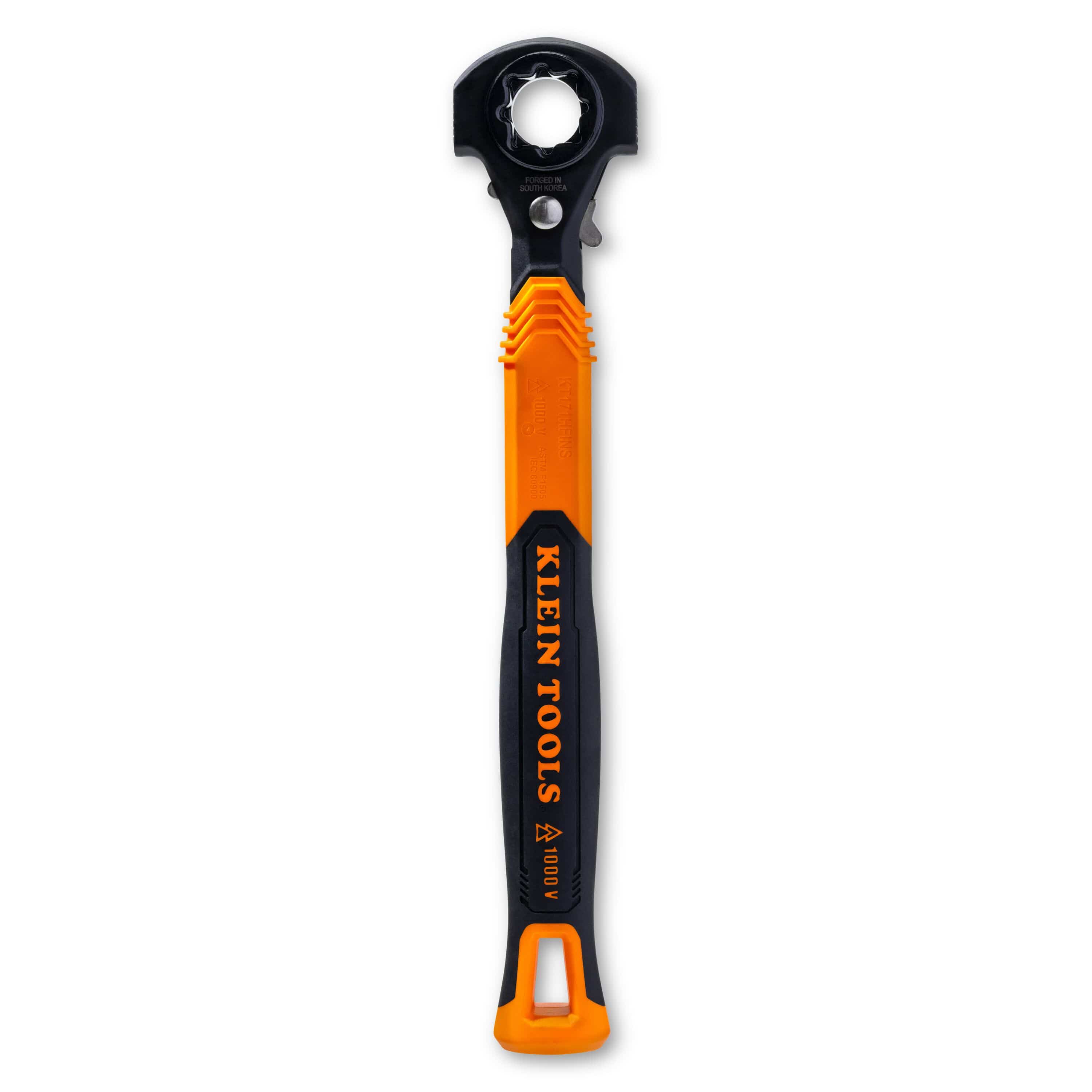

Klein Tools KT171HFINS 5-in-1 insulated lineman wrench with 1000V rated orange dielectric handle and multi-size ratcheting square socket head.

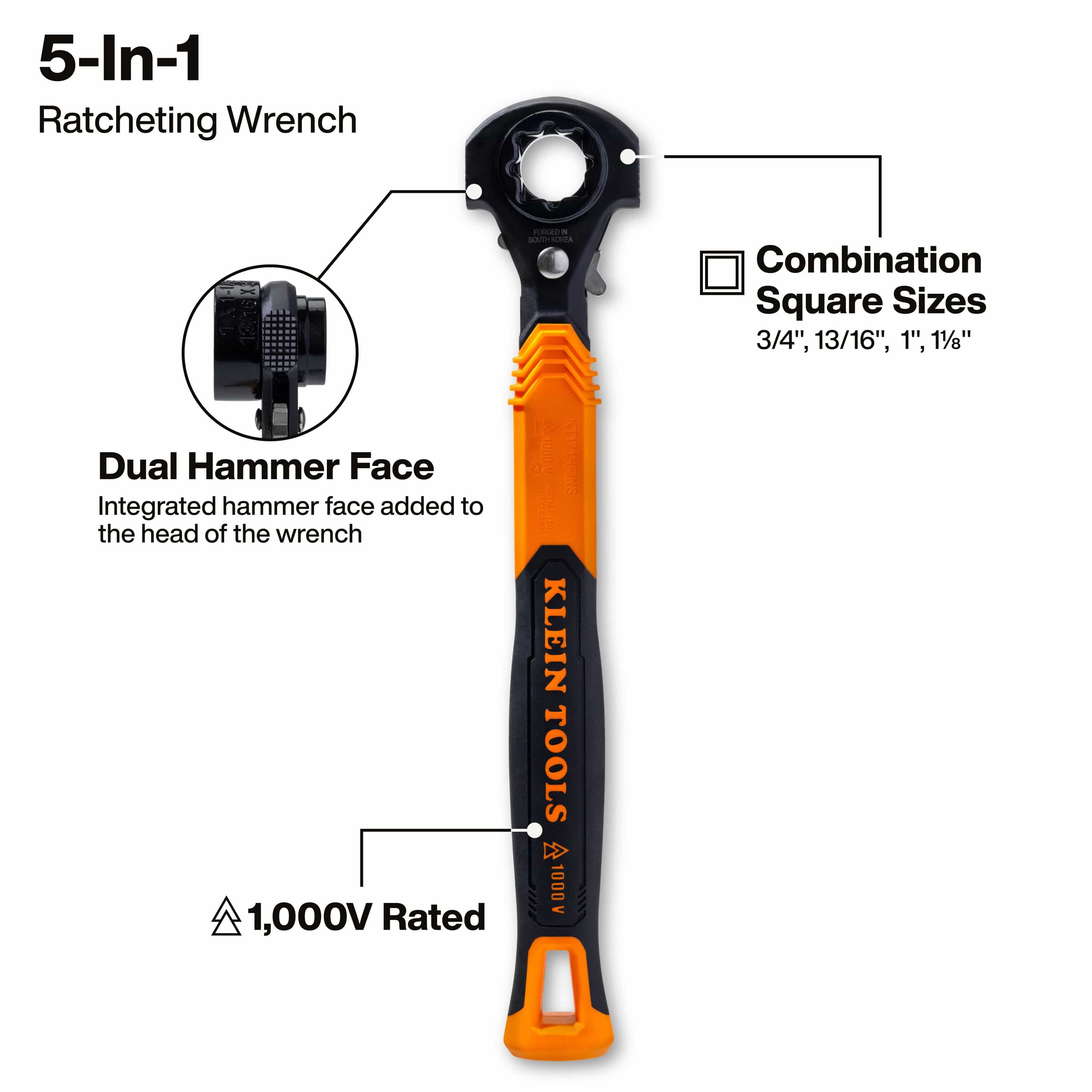

Feature callout diagram of Klein KT171HFINS wrench highlighting 3/4, 13/16, 1, and 1-1/8 inch square sockets, dual hammer faces, and 1000V rating.

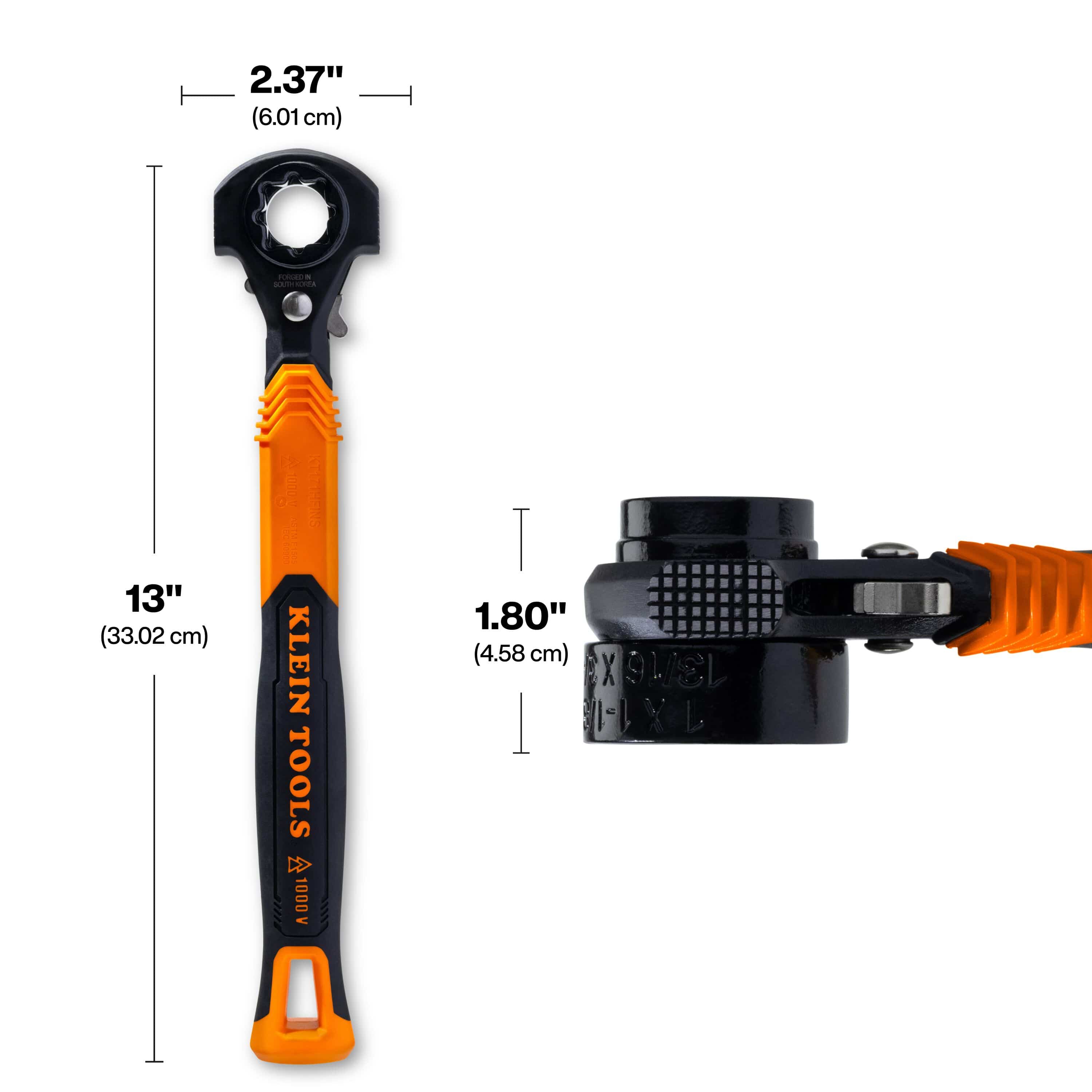

Dimension callouts for Klein KT171HFINS ratcheting lineman wrench showing 13-inch overall length, 2.37-inch head width, and 1.80-inch socket height.

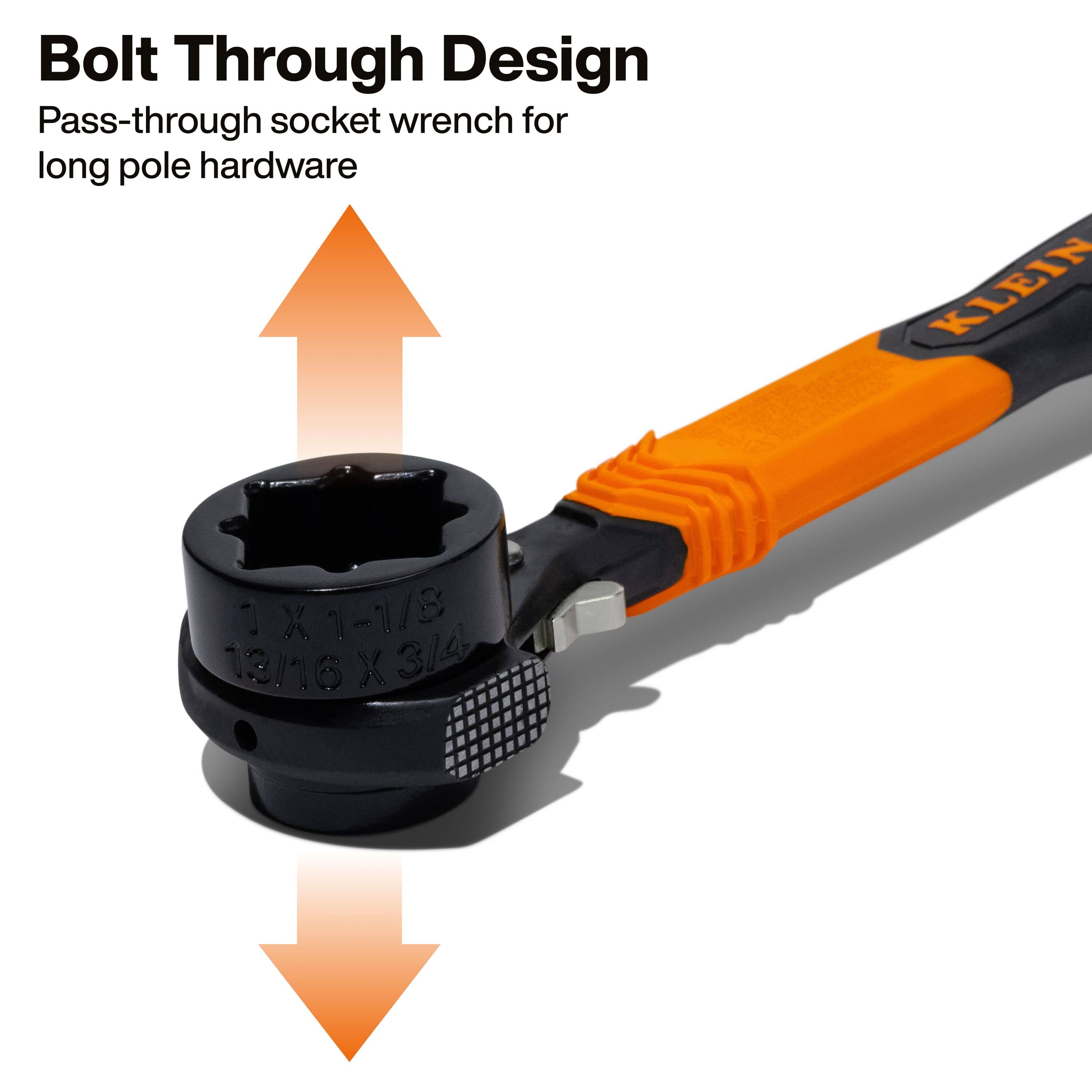

Pass-through socket diagram illustrating how long utility pole bolts extend through the Klein KT171HFINS ratcheting wrench head during installation.

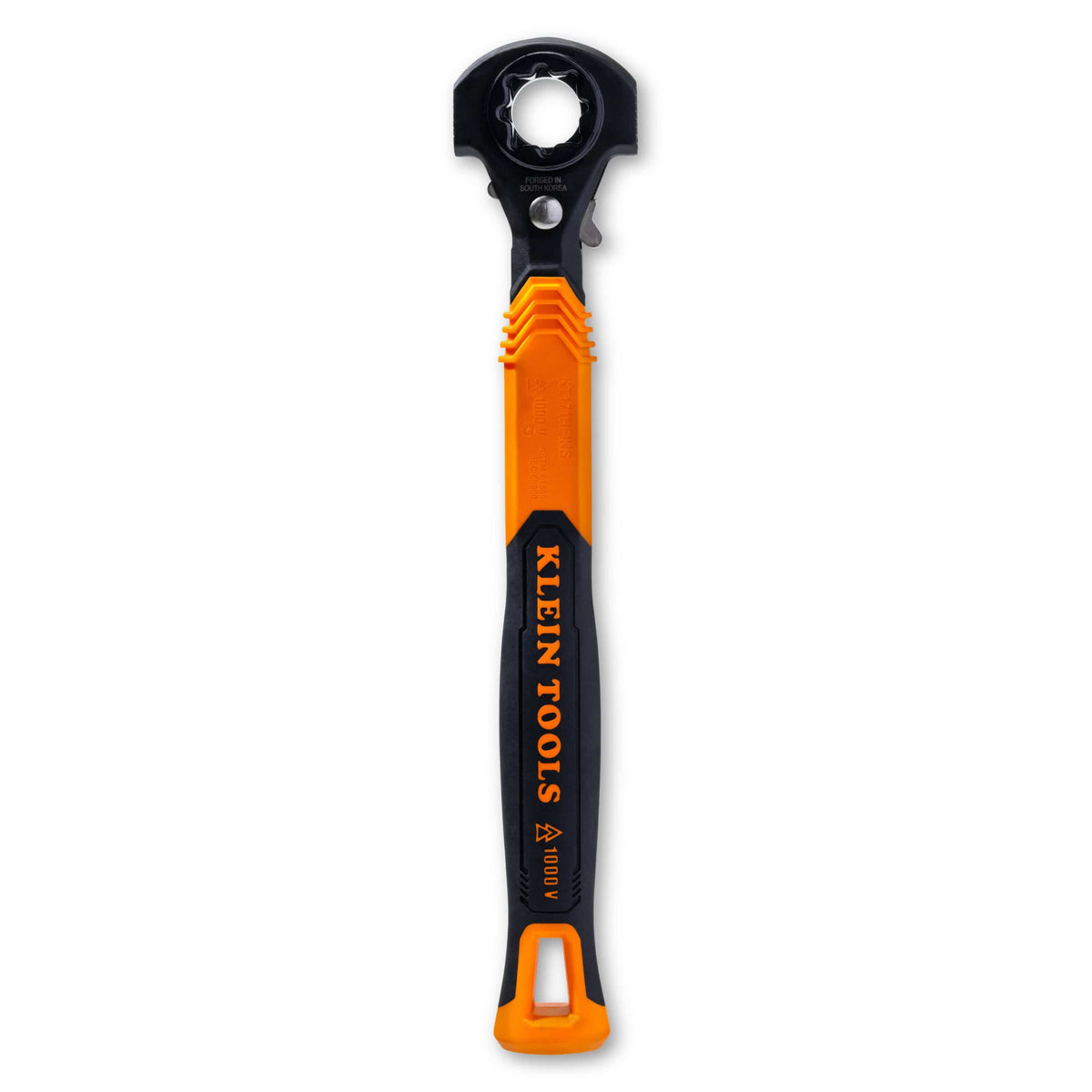

Klein Tools KT171HFINS 1000V insulated 5-in-1 lineman wrench featuring forged dual striking hammer faces and ergonomic high-traction handle grip.
Klein Tools USA promotional video
Klein Tools KT171HFINS 5-in-1 insulated lineman wrench with 1000V rated orange dielectric handle and multi-size ratcheting square socket head.
Feature callout diagram of Klein KT171HFINS wrench highlighting 3/4, 13/16, 1, and 1-1/8 inch square sockets, dual hammer faces, and 1000V rating.
Dimension callouts for Klein KT171HFINS ratcheting lineman wrench showing 13-inch overall length, 2.37-inch head width, and 1.80-inch socket height.
Pass-through socket diagram illustrating how long utility pole bolts extend through the Klein KT171HFINS ratcheting wrench head during installation.
Klein Tools KT171HFINS 1000V insulated 5-in-1 lineman wrench featuring forged dual striking hammer faces and ergonomic high-traction handle grip.
Klein Tools USA promotional video
KLEIN TOOLS

Klein Lineman Wrench KT171HFINS 5 in 1 Insulated Dual Hammer Face (1000V Rated ASTM F1505 Square Socket Utility Ratchet Hand Tool)

Only 2 left
SKU: KT171HFINS
$135.00 USD

Description

Klein promotional logo logout

Klein Tools KT171HFINS 5-in-1 Hammer Facing Insulated Lineman Wrench

The Klein Tools KT171HFINS 5-in-1 Insulated Lineman Wrench is a 1000V-rated ratcheting hand tool engineered with four square socket sizes and dual integrated striking faces. Certified to ASTM F1505 and IEC 60900 standards, this 25.6 oz forged steel wrench incorporates a 34-tooth ratcheting mechanism with a 10.6-degree swing arc and an open bolt-through design to drive overhead utility hardware, pole crossarm fasteners, and grounding staples in energized environments efficiently.

Best Used For:

  • Pole-Mounted Hardware Fastening: Turning four common utility square bolt sizes (3/4 in., 13/16 in., 1 in., 1-1/8 in.) on distribution crossarms.
  • Energized Utility Line Servicing: Fastening primary distribution hardware safely under 1000V dielectric insulation requirements.
  • Hardware & Staple Driving: Striking pole staples and ground wire molding clips directly using dual-sided forged hammer faces without switching tools.

Key Performance & Safety Features

  • 1000V Certified 3-Shot Insulation: Tested to ASTM F1505 and IEC 60900 standards with a white inner warning layer to alert users when insulation is compromised.
  • Forged Dual Hammer Striking Faces: Machined double-sided hammer faces allow driving hardware pins and staples from either side without tool rotation.
  • 34-Tooth High-Count Ratchet: Delivers a tight 10.6-degree swing arc for fast ratcheting in confined pole-top clearance spaces.
  • Pass-Through Bolt-Through Head: Open socket design allows long threaded utility bolts and studs to extend completely through the socket head.
  • Glove-Compatible Ergonomic Handle: Textured grip provides balanced weight distribution and non-slip control while wearing heavy dielectric rubber gloves.

What's Included

  • (1) Klein Tools KT171HFINS 5-in-1 Hammer Facing Insulated Lineman Wrench

Technical Specifications

Brand Klein Tools
Model Number KT171HFINS
Voltage Safety Rating 1000 V AC / ASTM F1505 and IEC 60900 Certified
Square Socket Sizes 3/4 in., 13/16 in., 1 in., 1-1/8 in.
Tooth Count & Swing Arc 34 Teeth / 10.6° Swing Arc
Head & End Type Forged Dual Hammer Head / Reversible Ratcheting Square Socket
Special Features 5-in-1 Functionality, Pass-Through Socket, Tether Hole
Insulation Type 3-Layer Injection Molded with Visible White Wear Indicator
Material & Finish Forged Steel / Corrosion-Resistant Black Phosphate
Overall Length 13 in. (33 cm)
Overall Height & Width 1.8 in. x 2.37 in.
Product Weight 25.6 oz. (1.6 lbs / 726 g)
Pro-Tip: Utilize the dual-sided striking faces to seat ground wire clips directly into utility poles without reversing the wrench head or swapping tools on aerial lifts.
