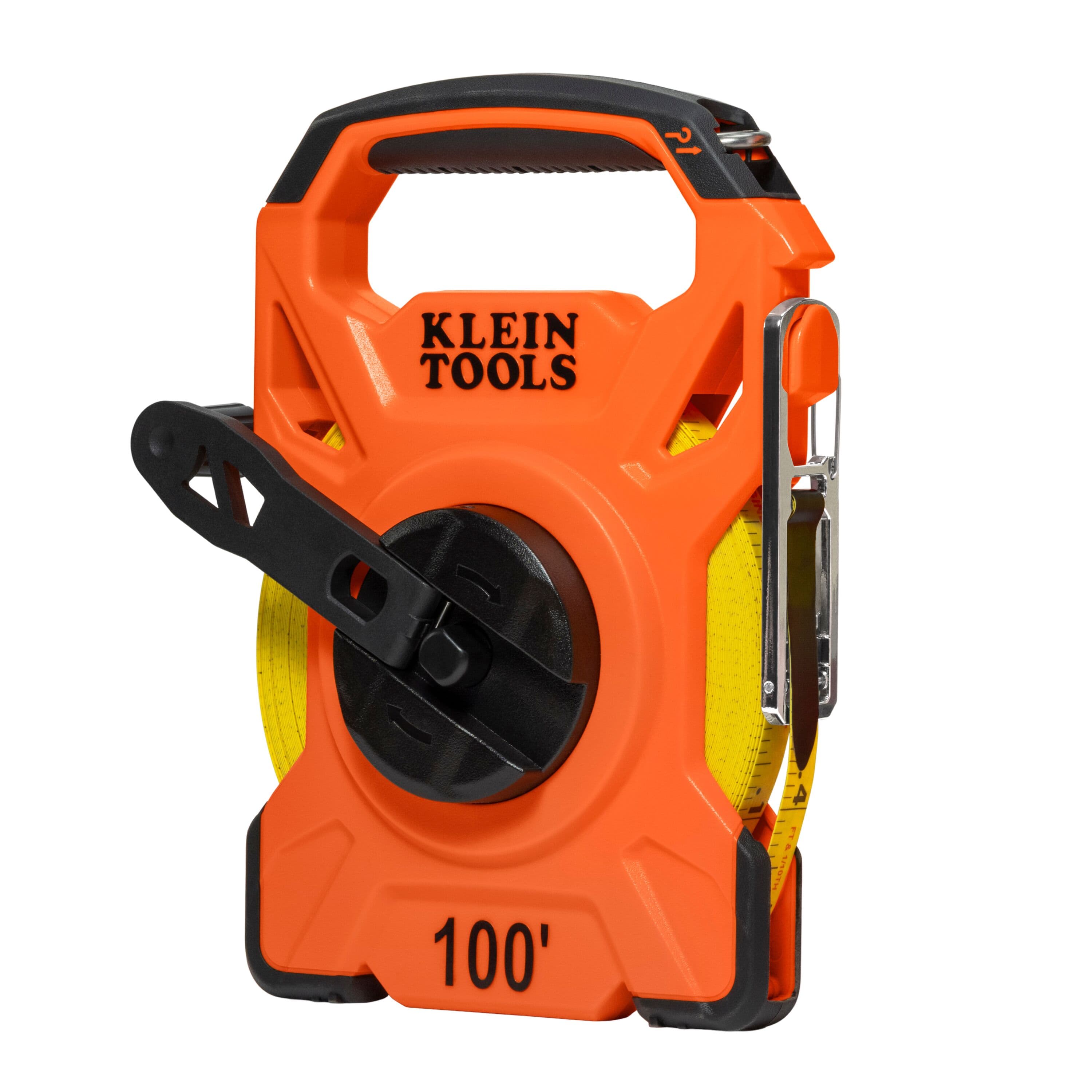

Klein Tools 94100RT 100-foot open reel tape measure featuring non-stretch PVC-coated fiberglass blade and orange high-impact housing.

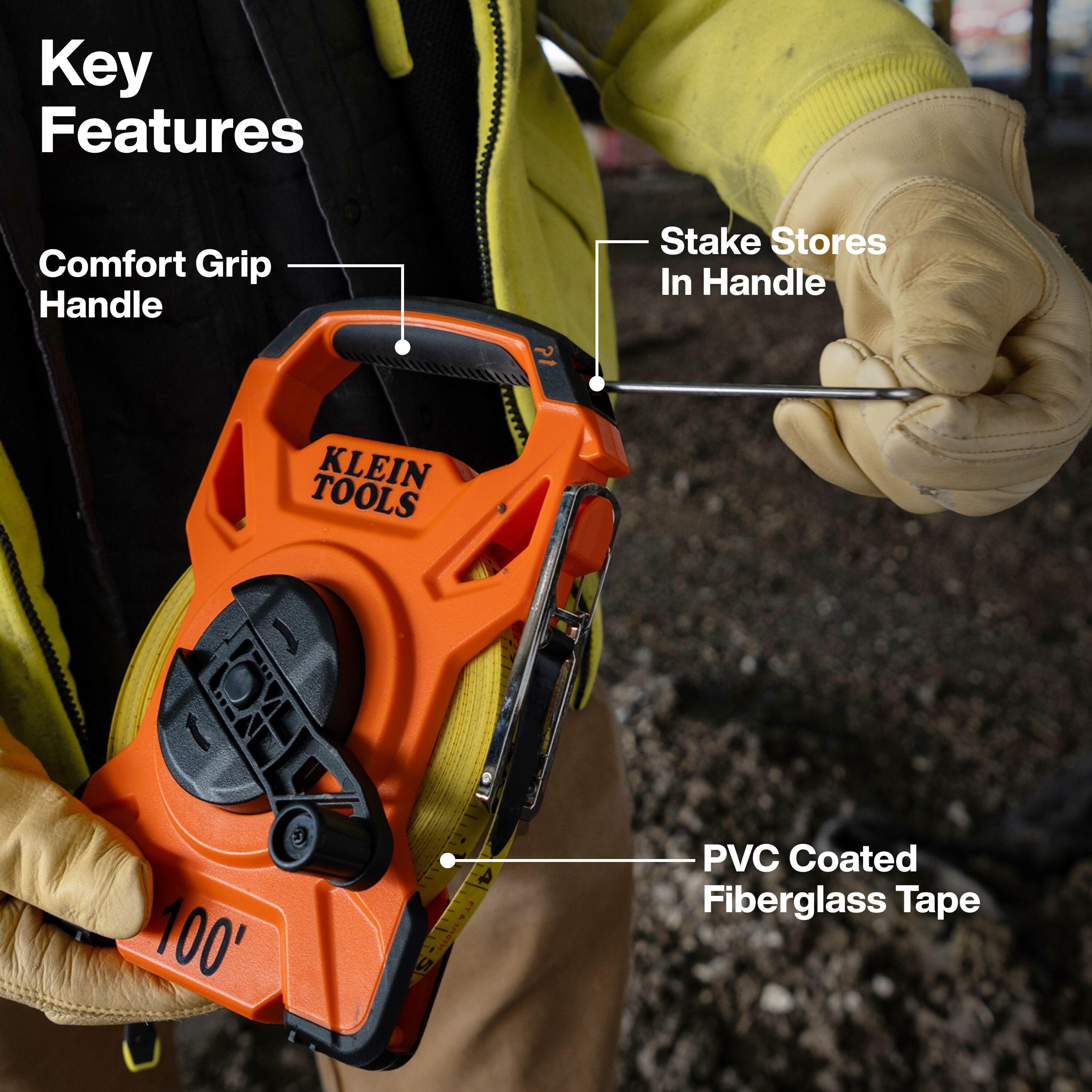

Feature callout graphic detailing the comfort grip handle, handle-stored ground stake, and non-stretch PVC-coated fiberglass blade.

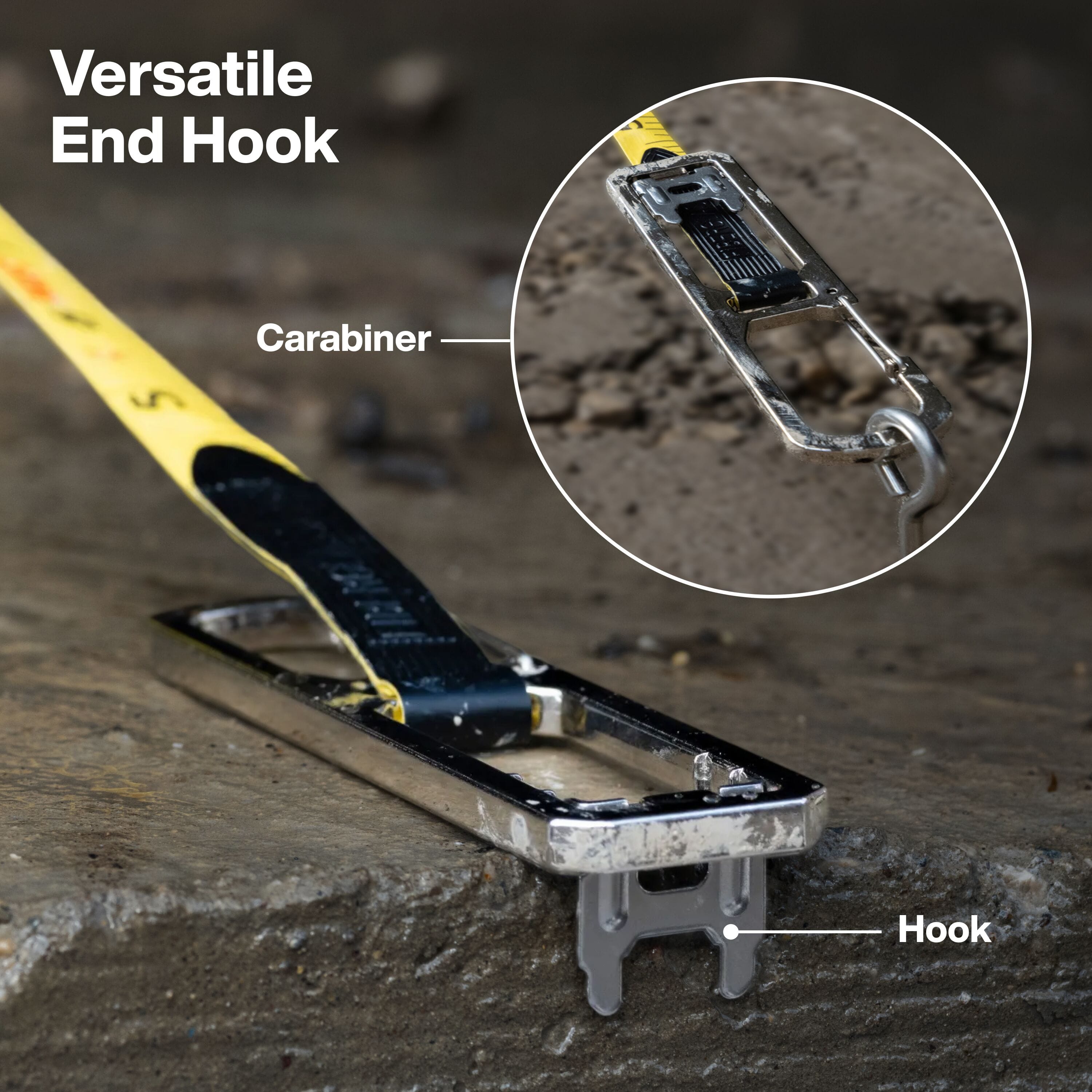

Dual-end attachment mechanism showing how the integrated carabiner clips onto anchor pins while the end hook grips concrete forms.

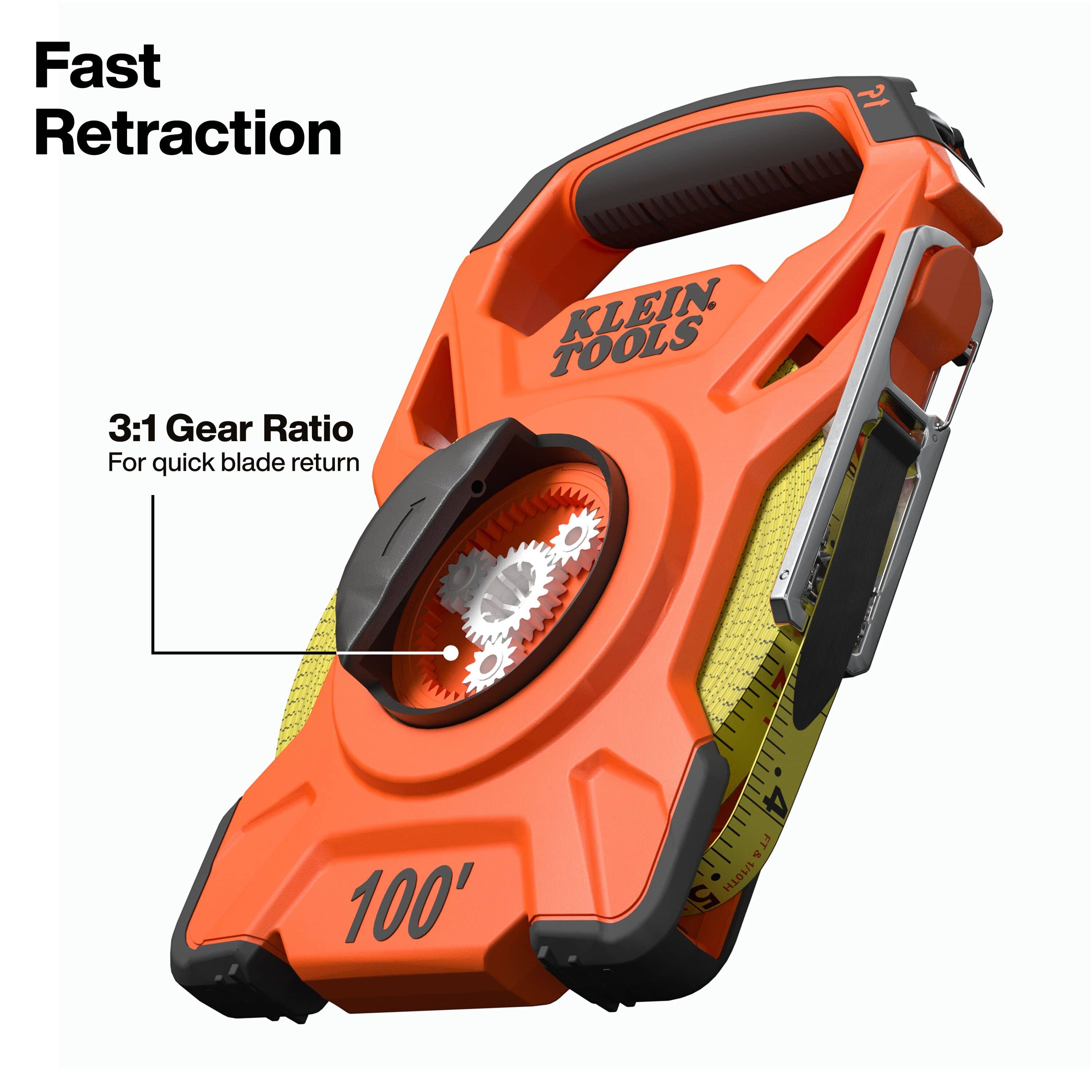

Internal planetary gear cutaway illustration demonstrating the 3:1 gear ratio designed for fast 100-foot blade manual retraction.

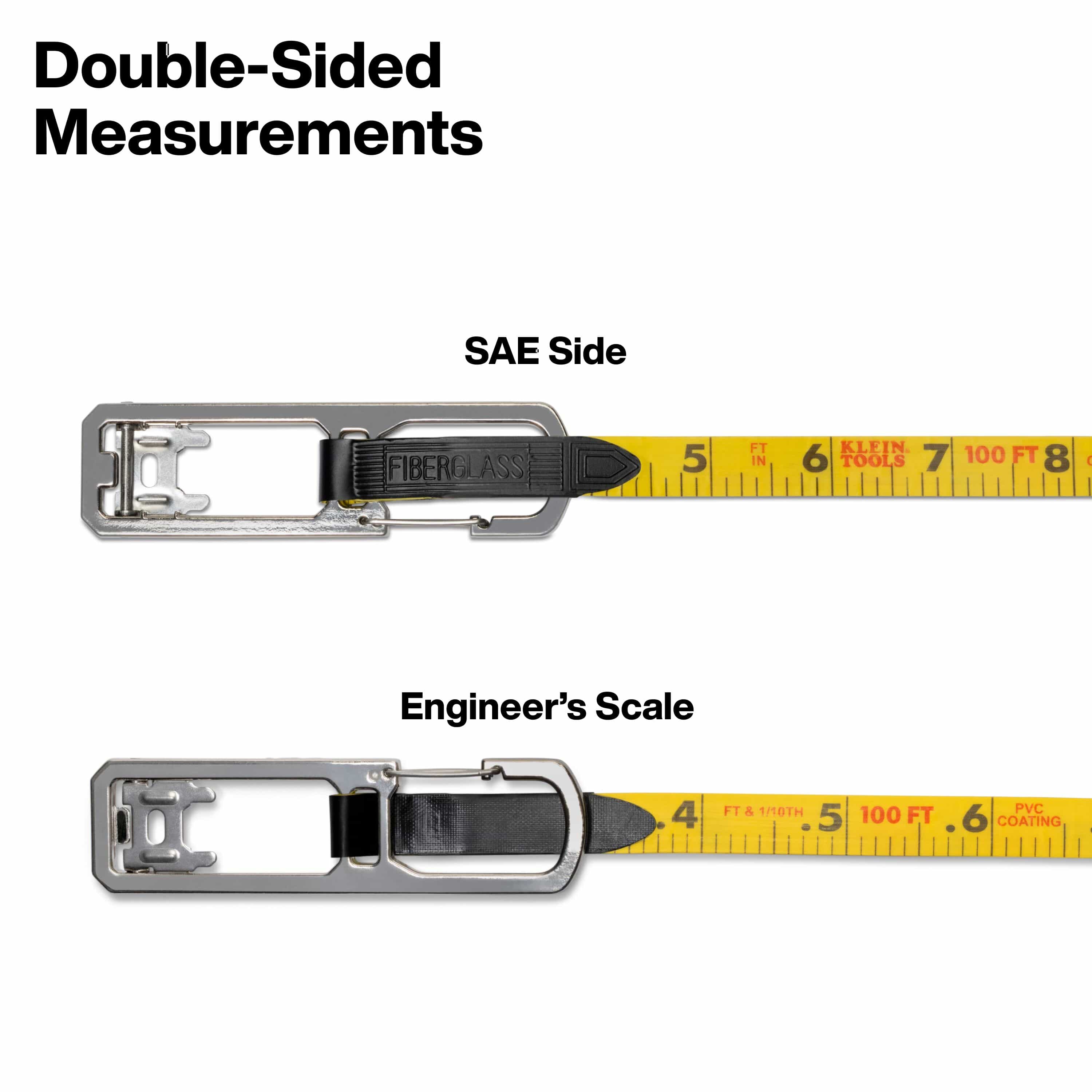

Double-sided blade view showcasing standard SAE feet and inch markings on one side and 1/10th-foot engineer's scale on the reverse.

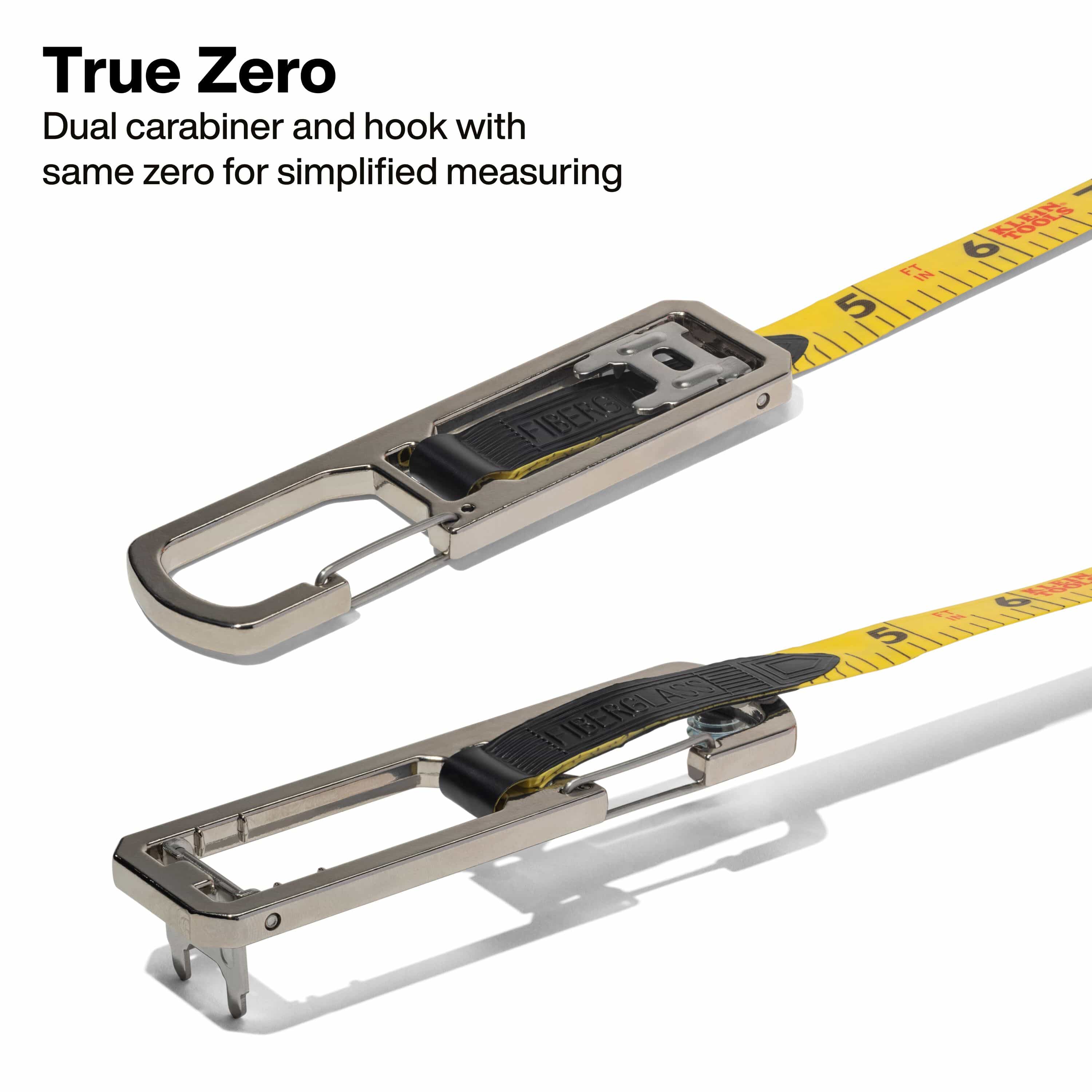

True-zero diagram proving both the carabiner attachment and single end hook align to the exact same zero reference point.
Klein Tools 94100RT 100-foot surveying open reel tape measure with manual winding crank, end hook, and carabiner attachment.
The Name on the Tools is Our Reputation promotional how to video
Klein Tools 94100RT 100-foot open reel tape measure featuring non-stretch PVC-coated fiberglass blade and orange high-impact housing.
Feature callout graphic detailing the comfort grip handle, handle-stored ground stake, and non-stretch PVC-coated fiberglass blade.
Dual-end attachment mechanism showing how the integrated carabiner clips onto anchor pins while the end hook grips concrete forms.
Internal planetary gear cutaway illustration demonstrating the 3:1 gear ratio designed for fast 100-foot blade manual retraction.
Double-sided blade view showcasing standard SAE feet and inch markings on one side and 1/10th-foot engineer's scale on the reverse.
True-zero diagram proving both the carabiner attachment and single end hook align to the exact same zero reference point.
Klein Tools 94100RT 100-foot surveying open reel tape measure with manual winding crank, end hook, and carabiner attachment.
The Name on the Tools is Our Reputation promotional how to video
KLEIN TOOLS

Klein Open Reel Tape Measure 94100RT 100 Foot Single Hook (PVC Coated Fiberglass 3 to 1 Gear Ratio SAE Engineers Scale Surveying Tool)

Only 2 left
SKU: 94100RT
$29.98 USD

Description

Klein promotional logo logout

Klein Tools 94100RT 100-Foot Open Reel Tape Measure with Single Hook and Carabiner

The Klein Tools 94100RT 100-Foot Open Reel Tape Measure is a long-distance surveying and layout tool engineered with a 1/2-inch PVC-coated fiberglass blade to eliminate stretch under tension. Operating via a 3:1 planetary gear fast-rewind system, this 26.46 oz measuring device incorporates a dual-end attachment sharing an identical zero point between its single end hook and carabiner for layout verification across civil engineering, utility trenching, and commercial construction job sites.

Best Used For:

  • Civil Site Layout & Surveying: Taking long-distance ground measurements using the dual SAE and engineer's 1/10th-inch scale markings.
  • Solo Field Trenching & Utility Line Mapping: Anchoring the tape end in dirt or sod using the handle-stored stainless steel ground stake for single-operator measuring.
  • Commercial Structural Layout: Securing measurement points onto framing, pipe runs, or site boundary stakes using the integrated end hook or carabiner.

Key Performance & Safety Features

  • PVC-Coated Fiberglass Blade: High-tensile blade construction resists stretching, abrasion, and moisture to maintain accurate linear layout readings.
  • Dual Attachment Zero-Point System: End hook and carabiner share the exact same true-zero reference point to eliminate measurement errors.
  • 3:1 Planetary Gear Drive: Internal gear mechanism provides smooth manual winding and retracts the 100-foot blade three times faster than standard cranks.
  • Handle-Stored Stainless Steel Stake: Integrated metal ground stake stores inside the frame handle for convenient single-person field anchoring.
  • Double-Sided Dual Scale Markings: Printed with standard Imperial SAE graduations on one side and specialized engineer's 1/10th-inch scale on the reverse.
  • Impact-Resistant ABS/TPR Case: Rugged open-frame housing built with non-slip thermoplastic rubber overmolding to withstand 9.35-inch frame jobsite drops.

What's Included

  • (1) Klein Tools 94100RT 100-Foot Open Reel Tape Measure
  • (1) Integrated Stainless Steel Ground Stake
  • (1) Carabiner and Single End Hook Attachment

Technical Specifications

Brand Klein Tools
Model Number 94100RT
Blade Length 100 ft. (30.5 m)
Blade Width 1/2 in. (1.27 cm)
Blade Material & Coating Fiberglass with Protective PVC Coating
Rewind Mechanism & Ratio Manual Disengaging Hand Crank / 3:1 Planetary Gear
Measurement Standards Imperial (SAE) / Engineer's Scale (1/10 in. Graduations)
End Attachment Types Single Hook and Carabiner (Shared True Zero Point)
Case Material & Construction High-Impact ABS Plastic with TPR Rubber Overmold
Special Storage Feature Stainless Steel Ground Stake Stored in Handle
Overall Frame Dimensions (H x L x W) 9.35 in. x 2.07 in. x 2.07 in.
Total Weight 26.46 oz. (1.65 lbs / 750 g)
Pro-Tip: When taking solo site measurements across open soil or turf, pull the stainless steel stake from the handle frame and drive it through the carabiner loop to lock your zero point securely into the ground.
