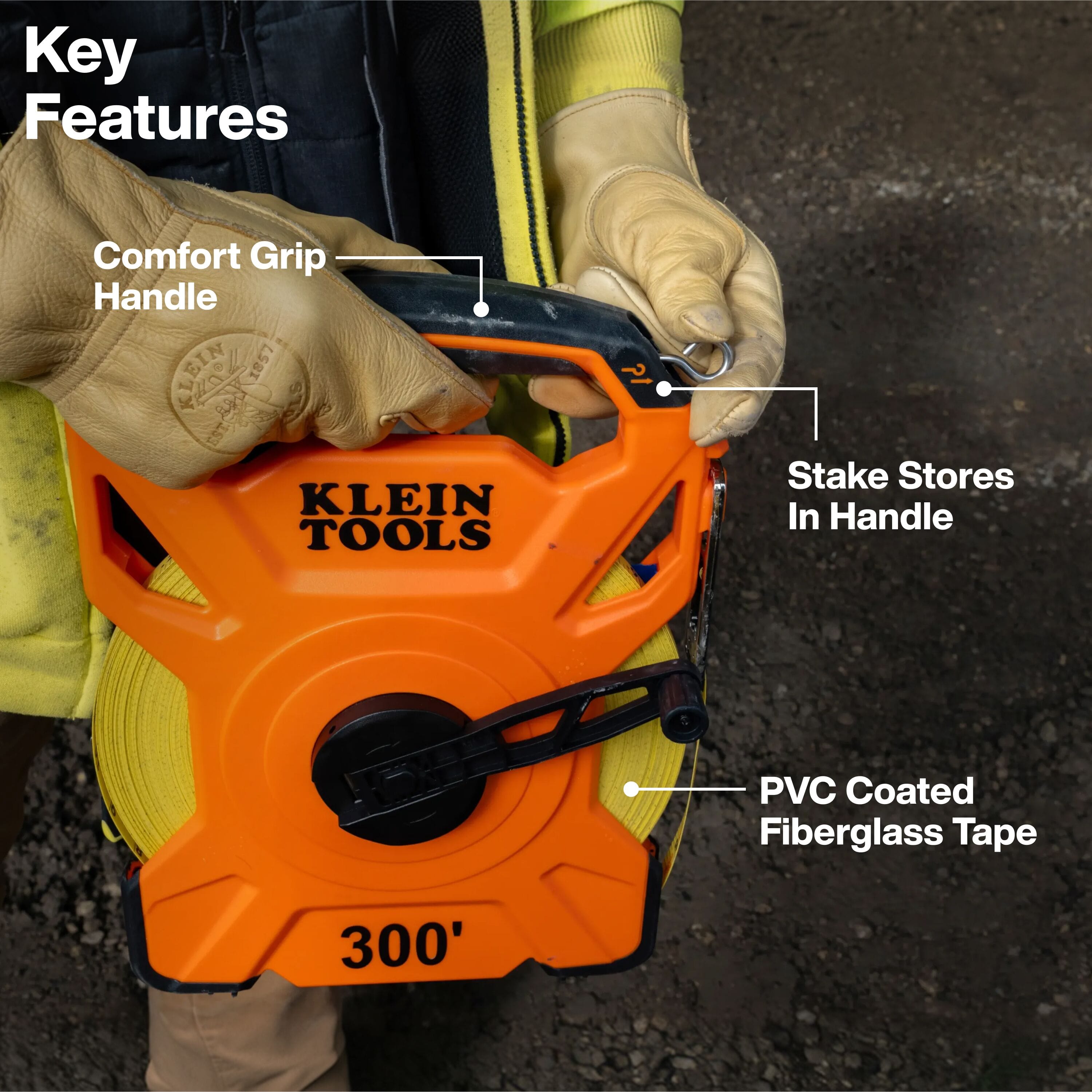

Feature callout graphic showing the rubberized comfort grip handle, handle-stored ground stake, and non-stretch PVC-coated fiberglass blade.

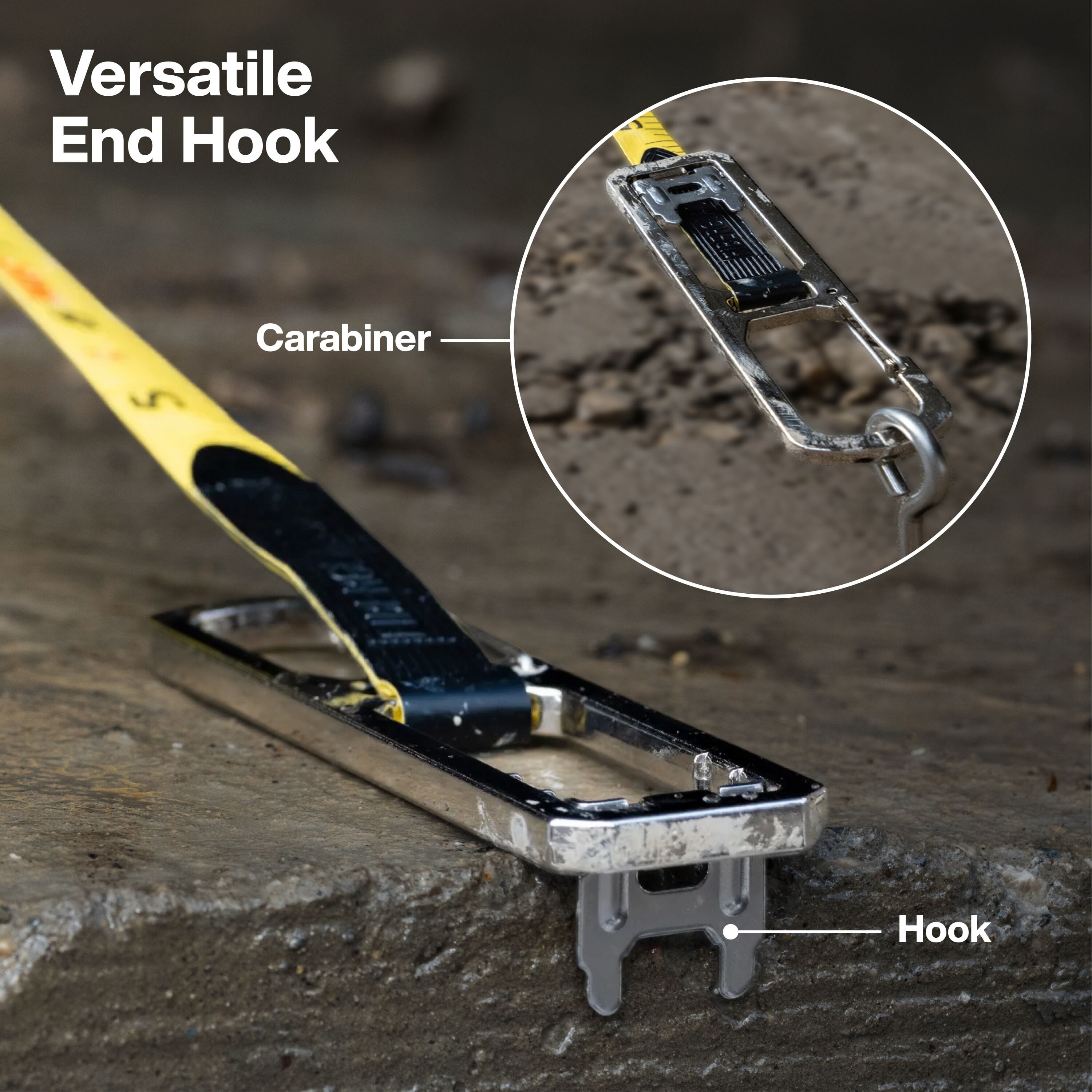

Dual-end hook system showing the carabiner anchoring to a pin and the end hook latching onto concrete forms for solo surveying.

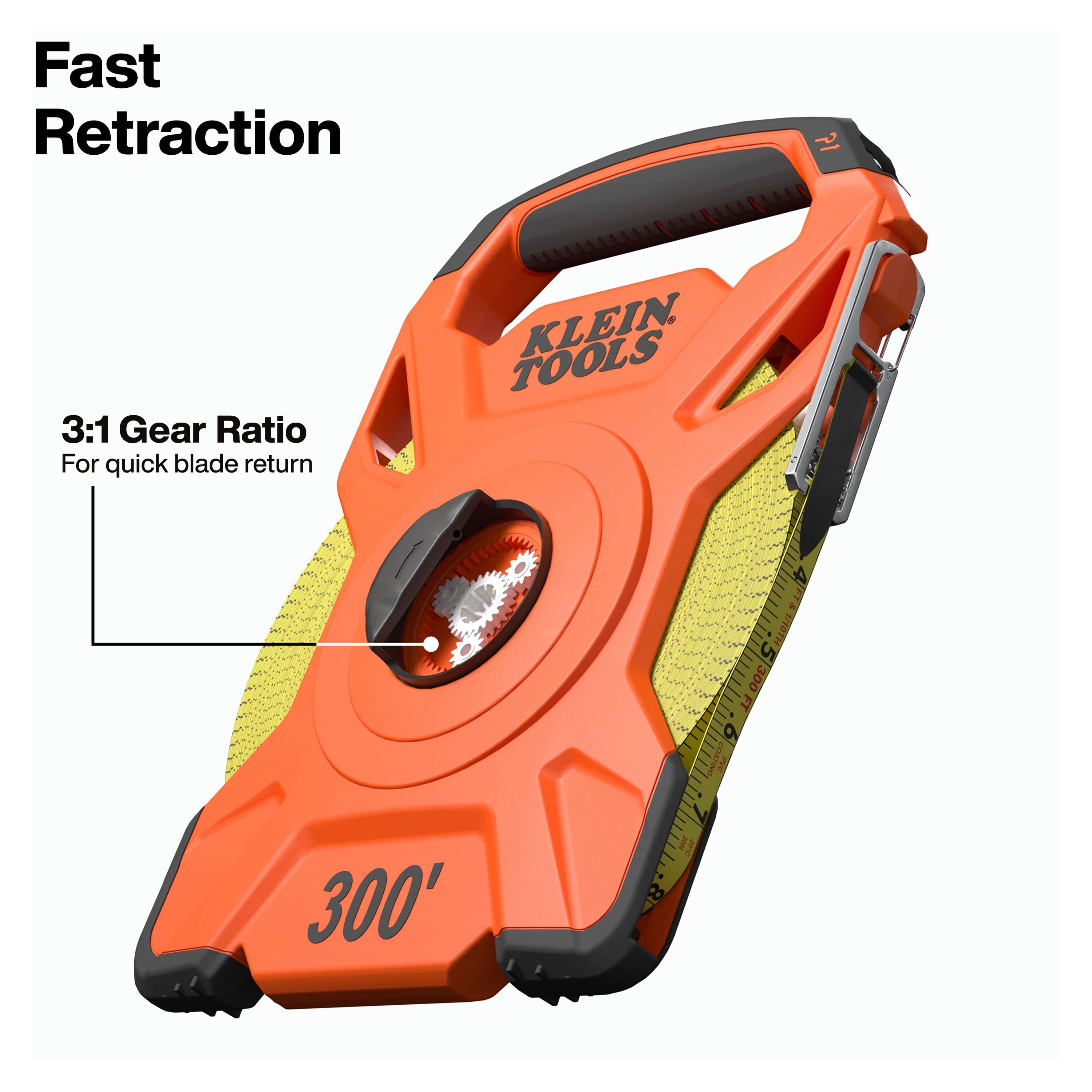

Internal planetary gear graphic detailing the 3:1 gear ratio engineered for fast manual 300-foot blade winding and retrieval.

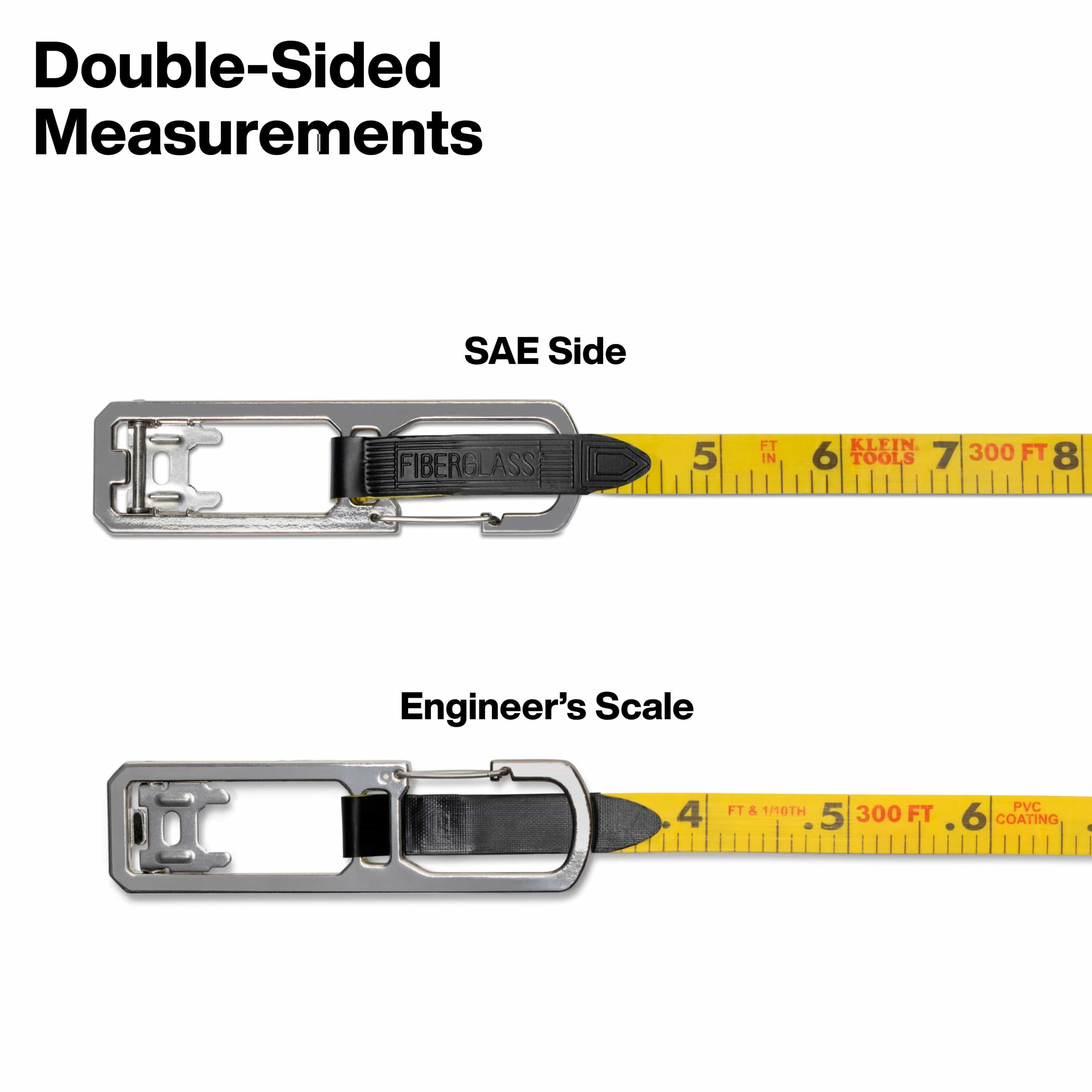

Double-sided blade markings displaying standard SAE feet and inches on one side and a 1/10th-foot engineer's scale on the reverse.

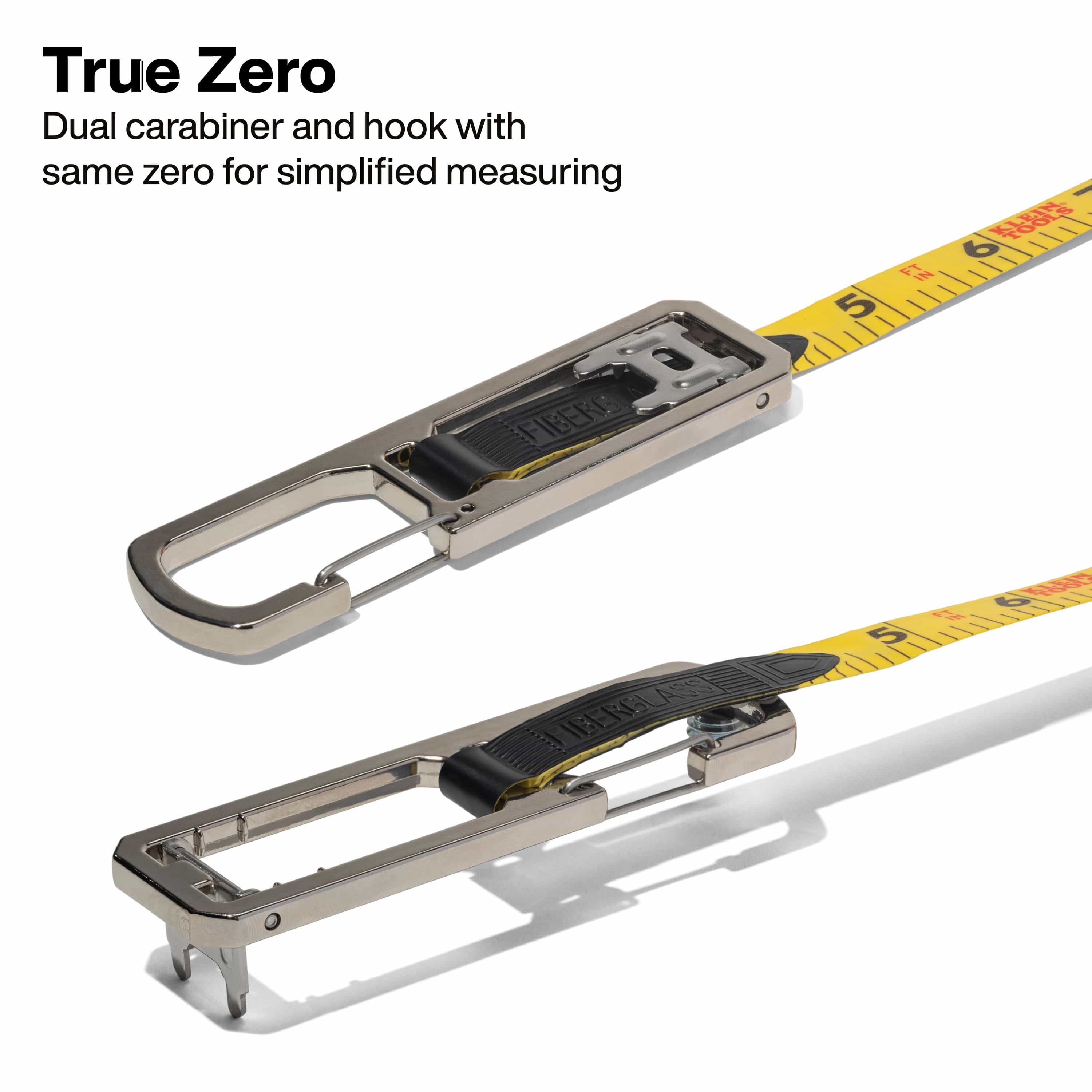

True-zero reference diagram illustrating how both the carabiner loop and single hook align to the exact same starting point.

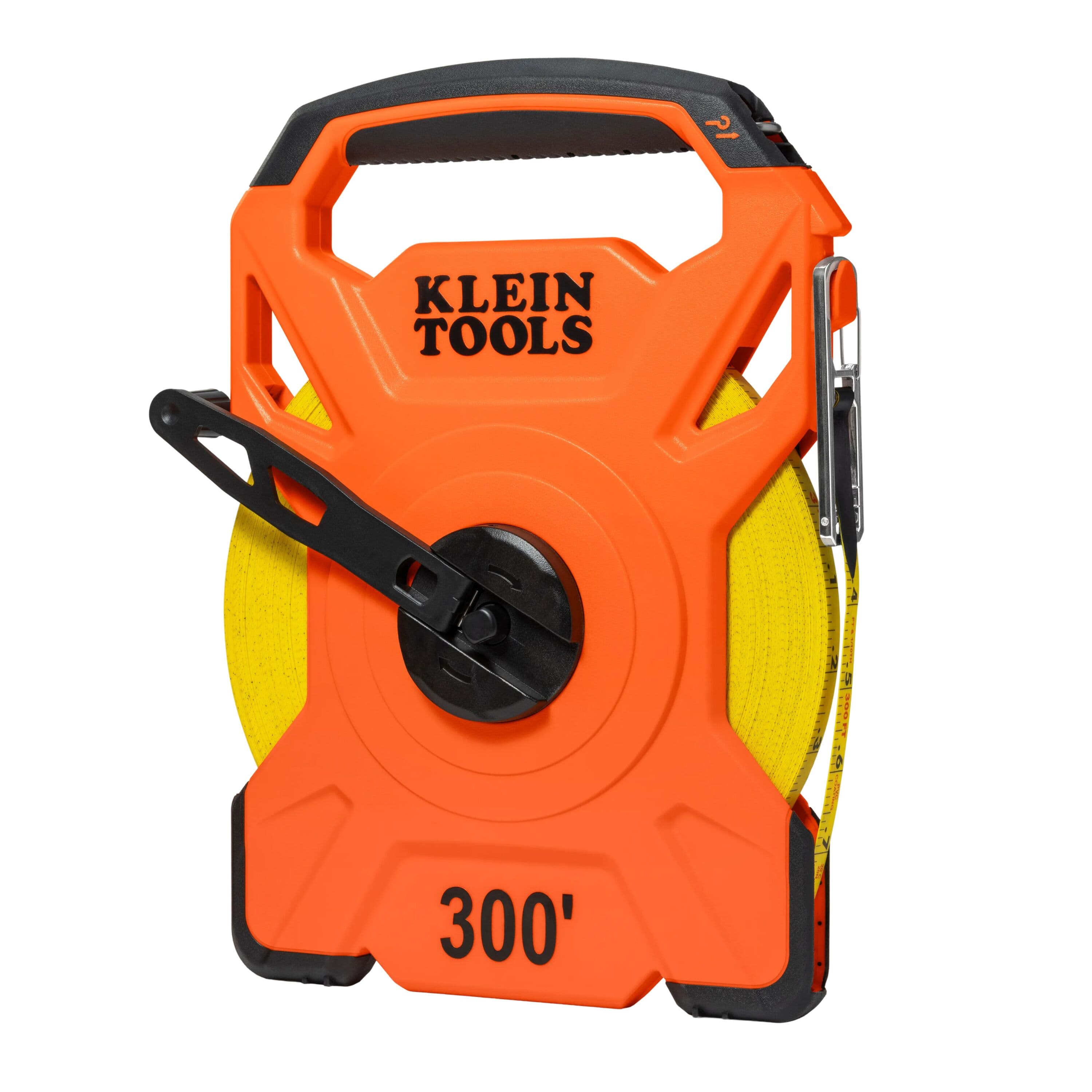

Klein Tools 94300RT 300-foot open reel surveying tape measure with folding manual crank handle, end hook, and carabiner attachment.
Klein Tools Manufacturing promotional video
Klein Tools 94300RT 300-foot open reel tape measure with a non-stretch PVC-coated fiberglass blade and orange high-impact housing.
Feature callout graphic showing the rubberized comfort grip handle, handle-stored ground stake, and non-stretch PVC-coated fiberglass blade.
Dual-end hook system showing the carabiner anchoring to a pin and the end hook latching onto concrete forms for solo surveying.
Internal planetary gear graphic detailing the 3:1 gear ratio engineered for fast manual 300-foot blade winding and retrieval.
Double-sided blade markings displaying standard SAE feet and inches on one side and a 1/10th-foot engineer's scale on the reverse.
True-zero reference diagram illustrating how both the carabiner loop and single hook align to the exact same starting point.
Klein Tools 94300RT 300-foot open reel surveying tape measure with folding manual crank handle, end hook, and carabiner attachment.
Klein Tools Manufacturing promotional video
KLEIN TOOLS

Klein Open Reel Tape Measure 94300RT 300 Foot Single Hook (PVC Coated Fiberglass 3 to 1 Gear Ratio SAE Engineers Scale Surveying Tool)

Only 2 left
SKU: 94300RT
$42.98 USD

Description

Klein promotional logo logout

Klein Tools 94300RT 300-Foot Open Reel Tape Measure with Single Hook and Carabiner

The Klein Tools 94300RT 300-Foot Open Reel Tape Measure is a long-distance surveying and site layout measuring instrument equipped with a 1/2-inch non-stretch PVC-coated fiberglass blade. Featuring a manual 3:1 planetary gear fast-rewind system, this 60.32 oz open-frame tape utilizes a dual end-attachment configuration sharing a true zero reference point between its carabiner and single hook to verify dimensions across civil construction, utility trenching, and commercial grading jobs.

Best Used For:

  • Large-Scale Site Surveying: Performing long-distance boundary and civil layout measurements using double-sided SAE and 1/10th-foot engineer scale graduations.
  • Single-Operator Utility Layout: Securing the blade end in open soil using the handle-stored stainless steel ground stake for solo measurement tasks.
  • Commercial Foundation & Framing Layout: Anchoring the carabiner or single hook onto grade pins, concrete forms, or structural steel markers.

Key Performance & Safety Features

  • PVC-Coated Fiberglass Blade: Heavy-duty non-conductive fiberglass tape coating resists stretching under tension, abrasion, and moisture on rough terrain.
  • Dual Attachment True-Zero System: Both the carabiner and single end hook align to the exact same zero point to maintain precision accuracy across layout methods.
  • 3:1 Planetary Gear Drive: High-efficiency internal gearing mechanism enables three-times-faster blade retraction during long 300-foot reel winding.
  • Handle-Stored Stainless Steel Stake: Integrated ground anchor pin stores directly inside the frame handle for immediate access during solo field work.
  • Double-Sided Dual Scale Markings: High-visibility printing features standard SAE feet and inch markings on one side and an engineer's 1/10th-foot scale on the reverse.
  • Impact-Resistant ABS/TPR Frame: Rugged open-reel housing built from high-impact ABS plastic with non-slip thermoplastic rubber overmolding for jobsite durability.

What's Included

  • (1) Klein Tools 94300RT 300-Foot Open Reel Tape Measure
  • (1) Integrated Stainless Steel Ground Stake
  • (1) Carabiner and Single End Hook Attachment Assembly

Technical Specifications

Brand Klein Tools
Model Number 94300RT
Tape Length 300 ft. (91.4 m)
Tape Width 1/2 in. (1.27 cm)
Blade Material & Coating Fiberglass Core with Protective PVC Coating
Rewind Mechanism & Gear Ratio Manual Disengaging Hand Crank / 3:1 Planetary Gear System
Measurement Standards Imperial (SAE) / Engineer's Scale (1/10 in. Graduations)
Hook Type & Zero System Single Hook and Carabiner (Shared True Zero Point)
Special Storage Feature Stainless Steel Ground Stake Stored in Handle Base
Housing Material & Colors ABS Plastic with TPR Overmold / Orange and Black
Overall Frame Dimensions (H x L x W) 14.03 in. x 2.18 in. x 10.13 in.
Total Weight 60.32 oz. (3.77 lbs / 1710 g)
Pro-Tip: When laying out long utility runs across open field terrain, pull the handle-stored stainless steel stake and pin the carabiner loop into soil to hold your true-zero point independently.
