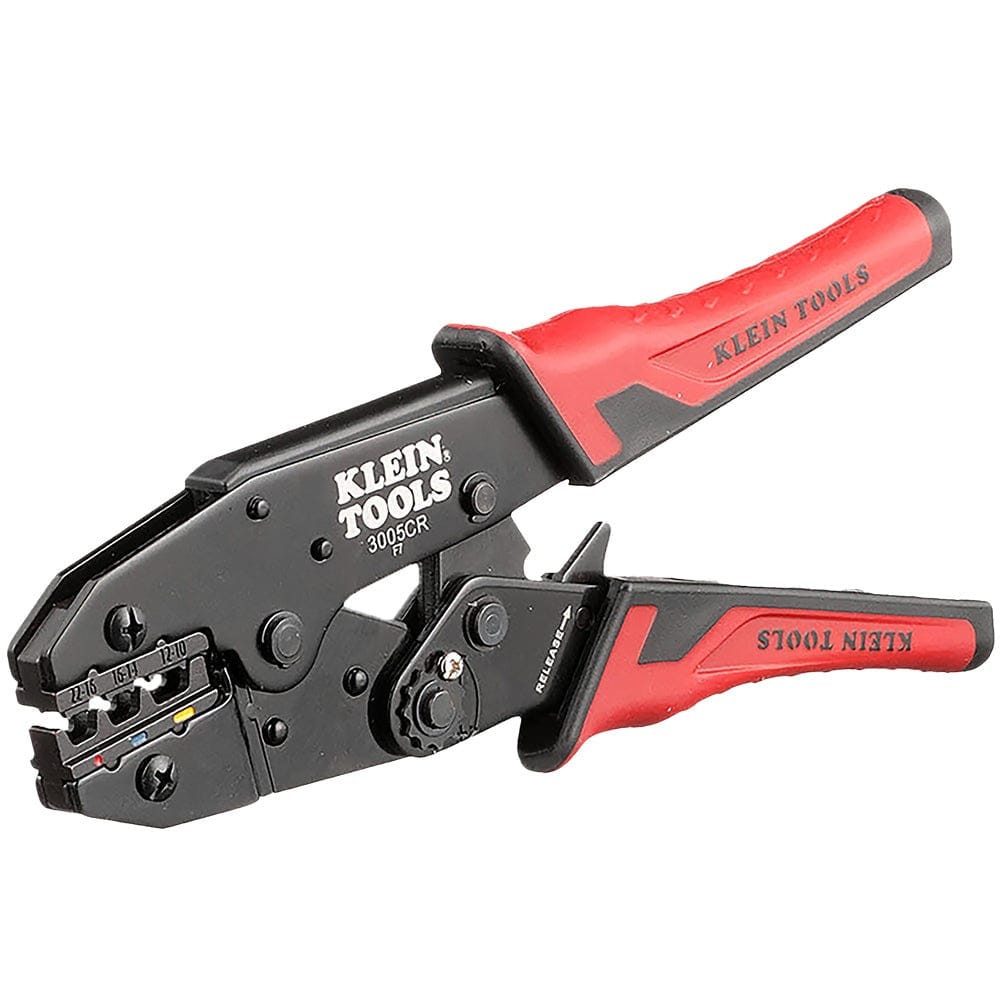

The Klein Tools 3005CR ratcheting wire crimper, featuring red and black dual-material comfort-grip handles and a black steel crimping head with color-coded markings for terminal sizes.

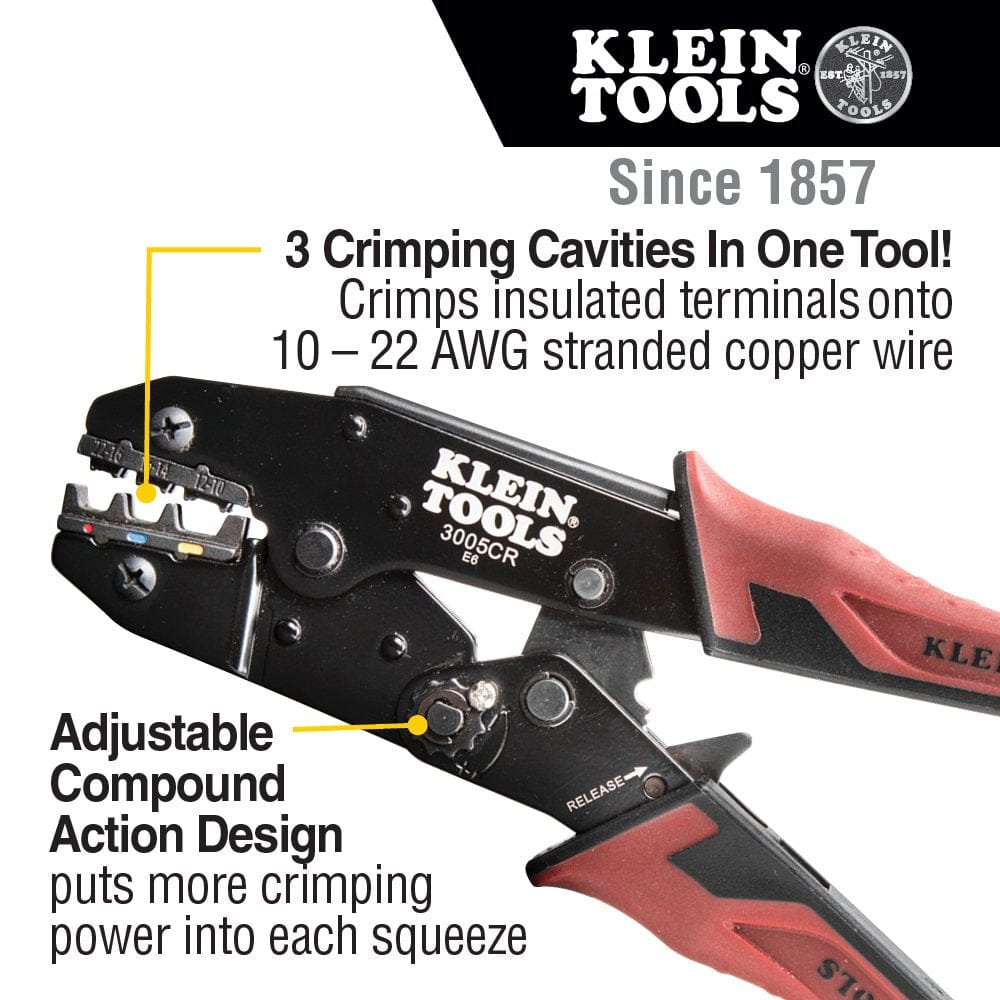

A product feature graphic showing the crimping jaws and identifying the three color-coded cavities for 10 to 22 AWG wire, along with the adjustable compound action design for increased crimping power.
A close-up view of the crimping head showing three color-coded cavities marked with red, blue, and yellow dots to correspond with insulated terminal wire gauges.

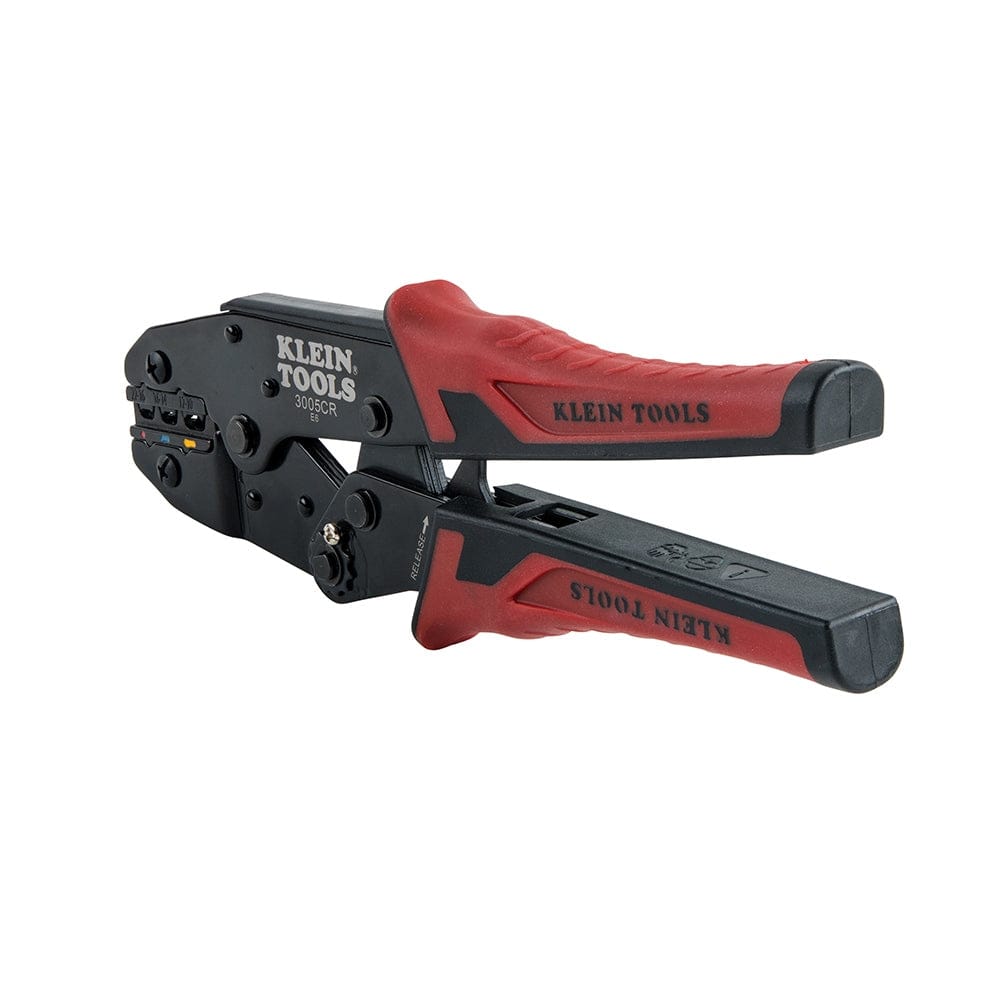

A perspective view of the ratcheting crimper in a closed position, highlighting the ergonomic handle shape and the durable steel construction of the tool body.

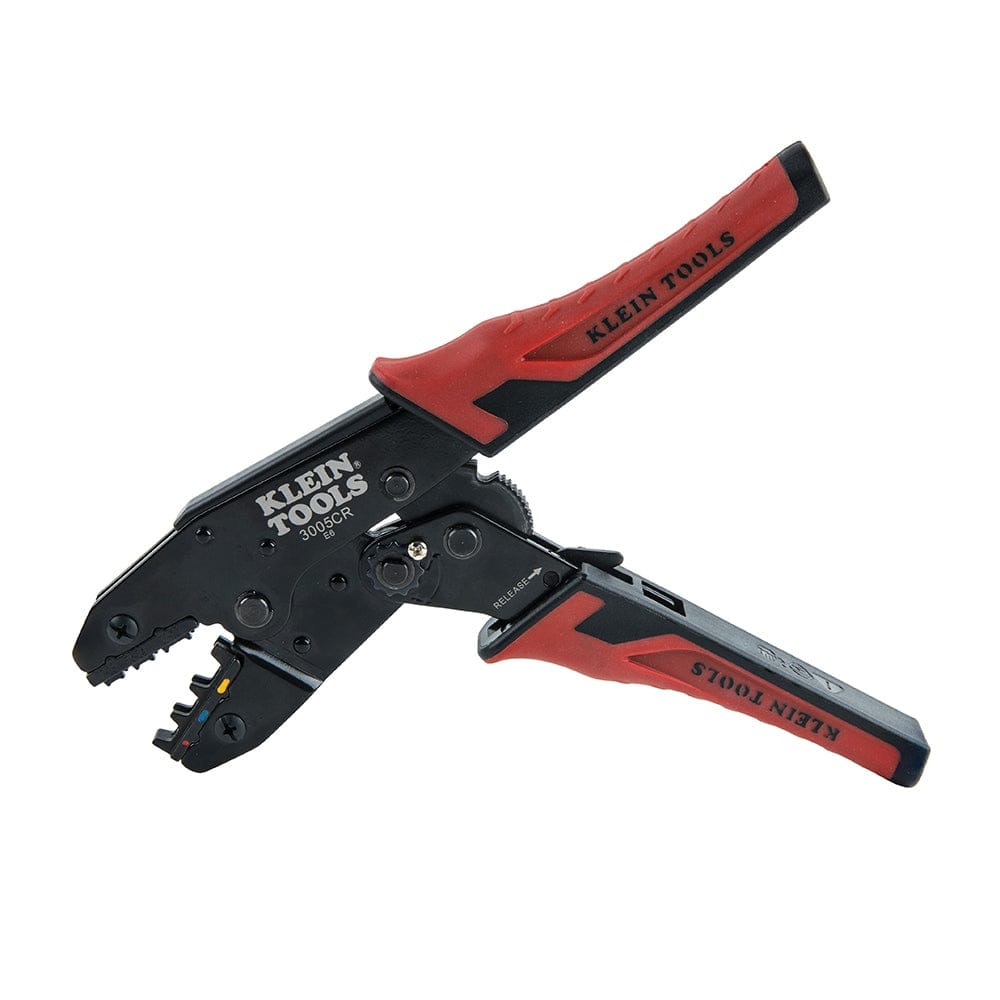

The crimping tool shown with the ratcheting jaws partially open, revealing the internal gear mechanism and the force adjustment dial located near the pivot point.

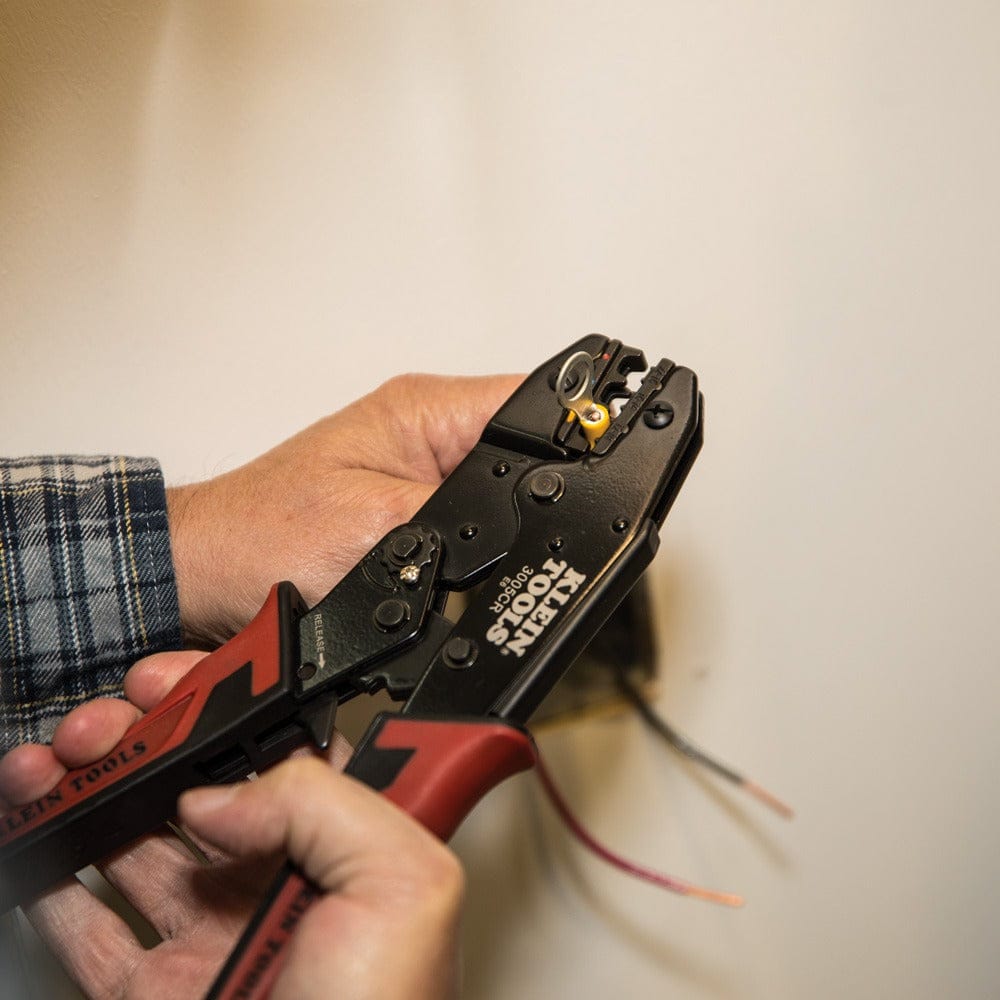

A close-up action shot of a technician using the ratcheting crimper to secure a yellow insulated ring terminal onto the end of a copper wire.

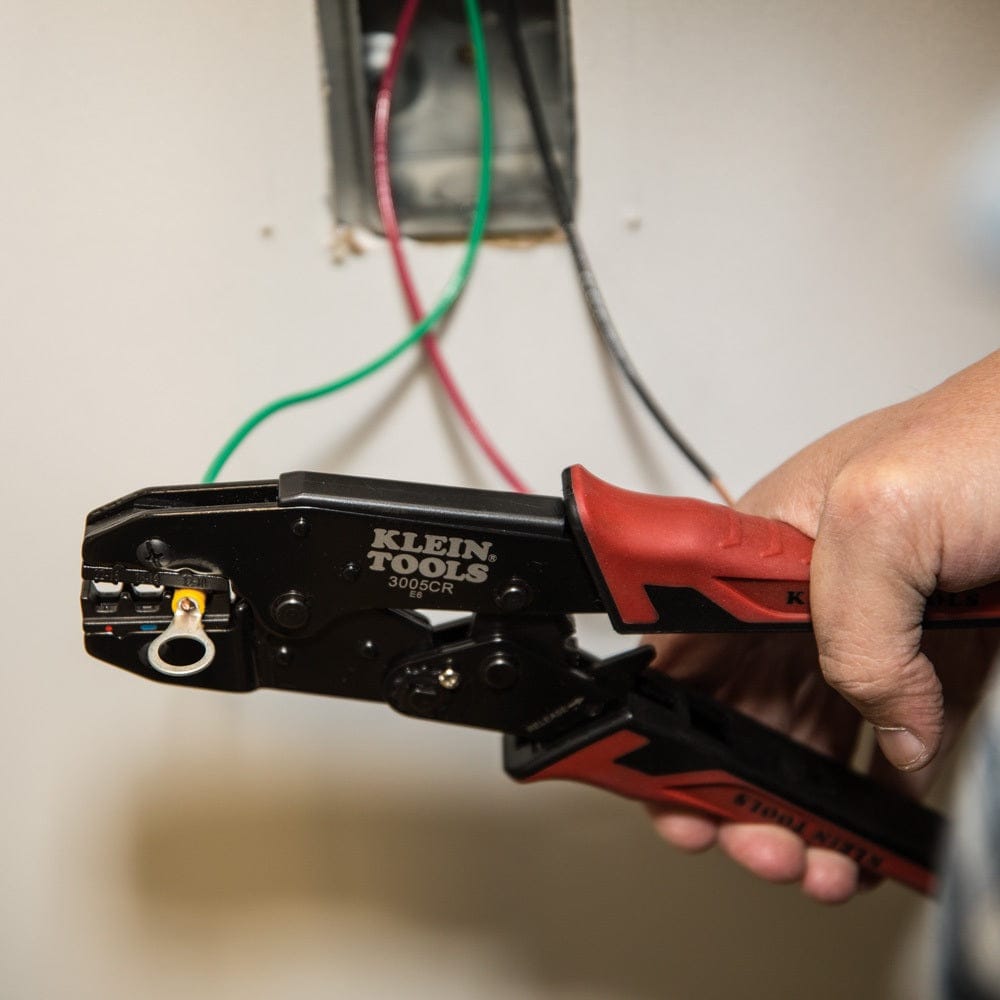

An action shot showing the crimping tool held near an electrical junction box with green and red wires, illustrating its use in residential or industrial wiring applications.

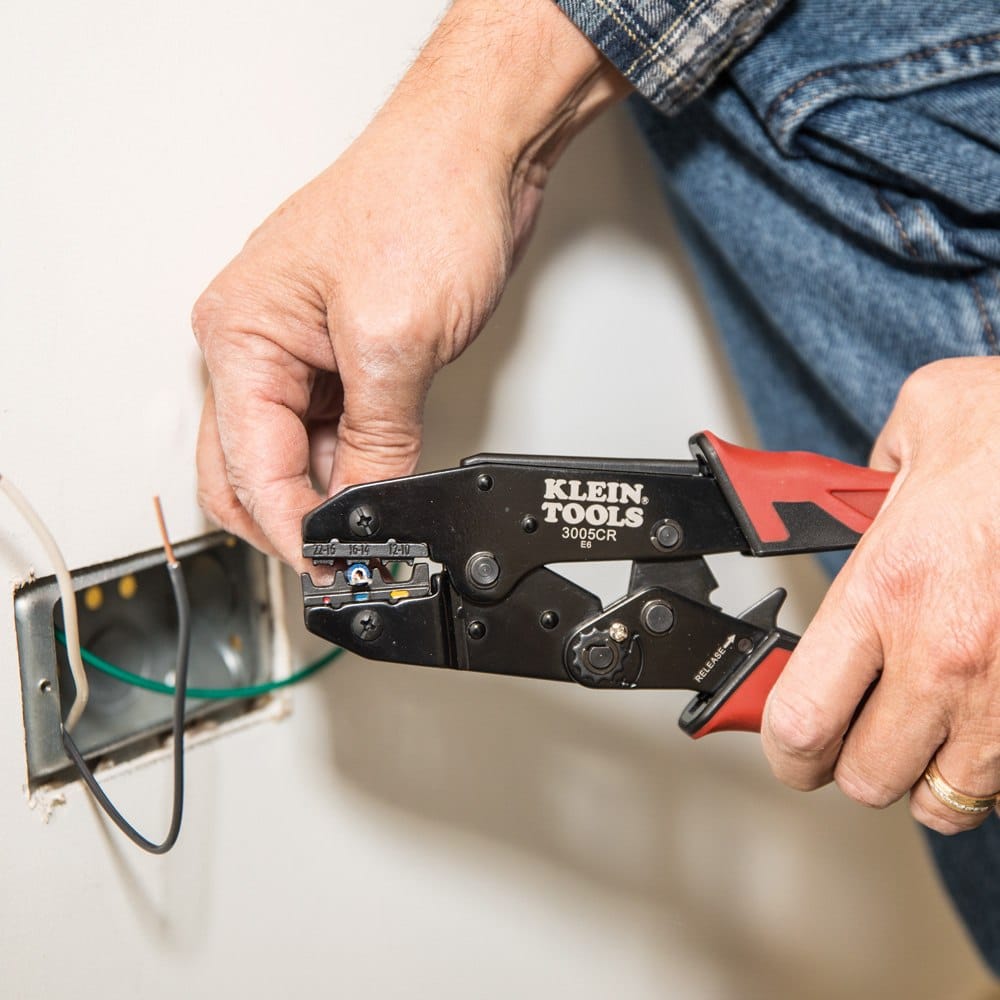

A detailed view of a wire being inserted into an insulated terminal placed within the middle (blue) crimping cavity of the ratcheting tool for a precise termination.
Ratcheting Crimper (Cat. No promotional video
The Klein Tools 3005CR ratcheting wire crimper, featuring red and black dual-material comfort-grip handles and a black steel crimping head with color-coded markings for terminal sizes.
A product feature graphic showing the crimping jaws and identifying the three color-coded cavities for 10 to 22 AWG wire, along with the adjustable compound action design for increased crimping power.
A close-up view of the crimping head showing three color-coded cavities marked with red, blue, and yellow dots to correspond with insulated terminal wire gauges.
A perspective view of the ratcheting crimper in a closed position, highlighting the ergonomic handle shape and the durable steel construction of the tool body.
The crimping tool shown with the ratcheting jaws partially open, revealing the internal gear mechanism and the force adjustment dial located near the pivot point.
A close-up action shot of a technician using the ratcheting crimper to secure a yellow insulated ring terminal onto the end of a copper wire.
An action shot showing the crimping tool held near an electrical junction box with green and red wires, illustrating its use in residential or industrial wiring applications.
A detailed view of a wire being inserted into an insulated terminal placed within the middle (blue) crimping cavity of the ratcheting tool for a precise termination.
Ratcheting Crimper (Cat. No promotional video
KLEIN TOOLS

Klein Tools Wire Crimper 3005CR 10-22 AWG Ratcheting (Full Cycle Compound Action Color Coded Insulated Terminal Electrical Connection Hand Tool)

In stock
SKU: 3005CR
$34.97 USD

Description

Klein promotional logo logout

Commercial Wire Terminal Compression Station with Full-Cycle Ratchet Matrix, Compound Lever Mechanism, and Color-Coded Jaw Cavities

The Klein Tools 3005CR Ratcheting Wire Crimper Tool delivers industrial-grade terminal compression utility and absolute joint integrity for multi-gauge electrical wiring applications. Engineered to compress 10-22 AWG insulated wire connectors onto stranded copper lines, this high-durability hand tool operates through an integrated compound mechanical action. This structural wiring solution resolves weak cold-weld failures, irregular pressure distributions, and operator hand fatigue inside crowded control panelboards by combining a full-cycle automated ratchet release with a adjustable compression force dialing matrix. Outfitted with dual-material molded handle sleeves and three color-coded sizing profiles, this 1.3 lb steel instrument ensures uniform electrical terminations across demanding marine, automotive, and building sub-circuits.

Best Used For:

  • Control Panel Assembly: Crimping industrial ring terminals and spade lugs securely onto stranded copper conductors inside commercial electrical equipment enclosures.
  • Marine Electronics Wiring: Terminating water-resistant insulated heat-shrink butt splice connectors across standard low-voltage boat accessories and bilge pump circuits.
  • Automotive Fleet Upfitting: Securing heavy-gauge electrical couplings and continuous ground links during auxiliary system installations on service vehicles.

Key Performance & Safety Features

  • Full-Cycle Ratchet Safeguard: Mechanical lock matrix denies jaw expansion until the compression cycle reaches full uniform depth, eliminating incomplete terminations.
  • Color-Coded Sizing Matrix: High-visibility markers partition the nests into 22-16 AWG (Red), 16-14 AWG (Blue), and 12-10 AWG (Yellow) fields for zero-error wire matching.
  • Force Modulation Dial: Integrated rotary dial permits field adjustment of applied leverage parameters to balance tool wear and custom terminal hardness variations.
  • Compound High-Leverage Pivots: Optimized double-hinge linkage multiplies operator squeeze forces cleanly, maximizing mechanical output while lowering grip spans.
  • Bi-Directional Side Entrance: Symmetric profile design permits identical wire insertion tracking angles from either side of the jaw to clear frame obstacles.

What's Included

  • (1) Klein Tools 3005CR Full-Cycle Ratcheting Crimper (10-22 AWG)

Technical Specifications

Specification Value
Brand Name Klein Tools
Model Number 3005CR
Tool Mechanism Type Full-Cycle Ratcheting Crimper
Wire Capacity Range 10 to 22 AWG (American Wire Gauge)
Terminal Style Compatibility Insulated Connectors Only
Crimping Cavities Count 3 Distinct Pockets (Color-Coded)
Overall Tool Length 9.0 in.
Overall Tool Width 3.0 in.
Overall Tool Height 0.09 in.
Chassis Structural Core High-Tensile Hardened Steel
Handle Sleeve Finish Dual-Material Molded Comfort Sleeves
Net Instrument Weight 1.3 lbs.
Universal Framework UPC 092644344008

Pro-Tip: When working with thick 10 AWG yellow insulated blocks, check that your stripped copper strands populate the entry collar fully without escaping the sleeve base. Keeping all conductors contained inside the die during ratchet execution maintains solid current pathways and max tensile holding values.
