Klein Tools Wrench Set 47140INS 8 Piece 1000V Insulated Box End 3/8 to 13/16 Inch (Stepped Profile Wear Indicator SAE Electrician Kit Carrying Case)

Only 3 left
SKU: 47140INS
$299.99 USD

Description

Klein promotional logo logout

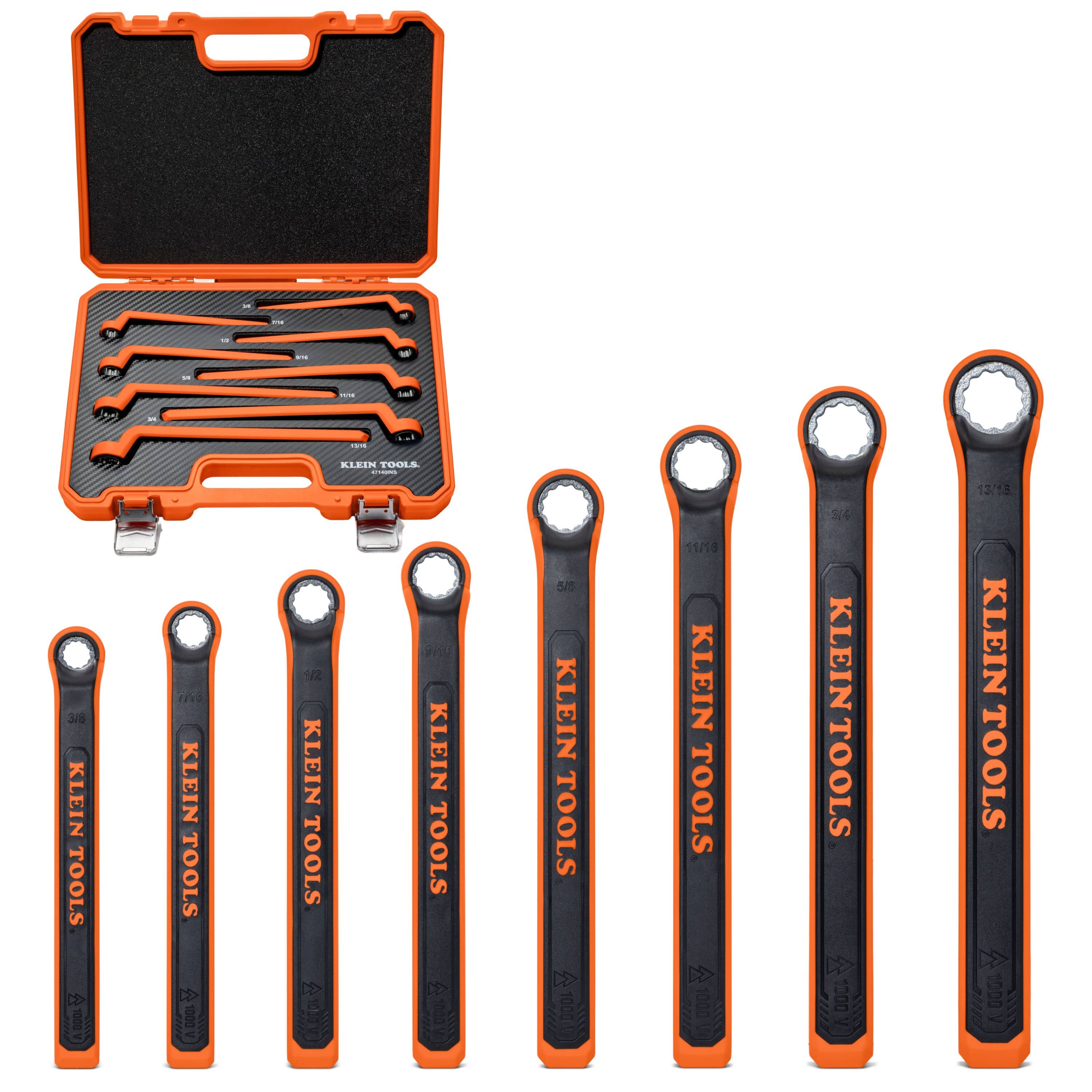

Klein Tools 47140INS 8 Piece 1000V Insulated Box End Wrench Set

The Klein Tools 47140INS 8-Piece 1000V Insulated Box End Wrench Set operates as a dielectric mechanical hand tool kit engineered to turn hex nuts and bolts near energized electrical infrastructure. Certified to ASTM F1505-16 and IEC 60900 standards for shock protection up to 1000V AC, this 6.40-pound set features forged steel construction wrapped in a three-part insulation matrix with a white wear-indicator warning layer. Ranging from 3/8 inch to 13/16 inch in SAE imperial sizes, these wrenches utilize stepped box-end geometry and oversized handles optimized for use with Class 2 rubber electrical safety gloves, enabling utility crews to execute safe terminations on transformer busbars and switchgear.

Best Used For:

  • Energized Transformer & Busbar Maintenance: Turning terminal nuts and mounting bolts near live electrical busbars certified for shock isolation up to 1000V AC.
  • High-Voltage Switchgear & Power Grid Servicing: Fastening hardware in tight utility cabinets using stepped box-end clearance profiles while wearing Class 2 safety gloves.
  • Substation & Underground Feeder Operations: Torque-tightening primary electrical connections with insulated wrenches stored in a protective foam-lined case.

Key Performance & Safety Features

  • 1000V Dielectric Safety Isolation: Individually tested to meet ASTM F1505-16 and IEC 60900 standards for live-line shock protection up to 1000V.

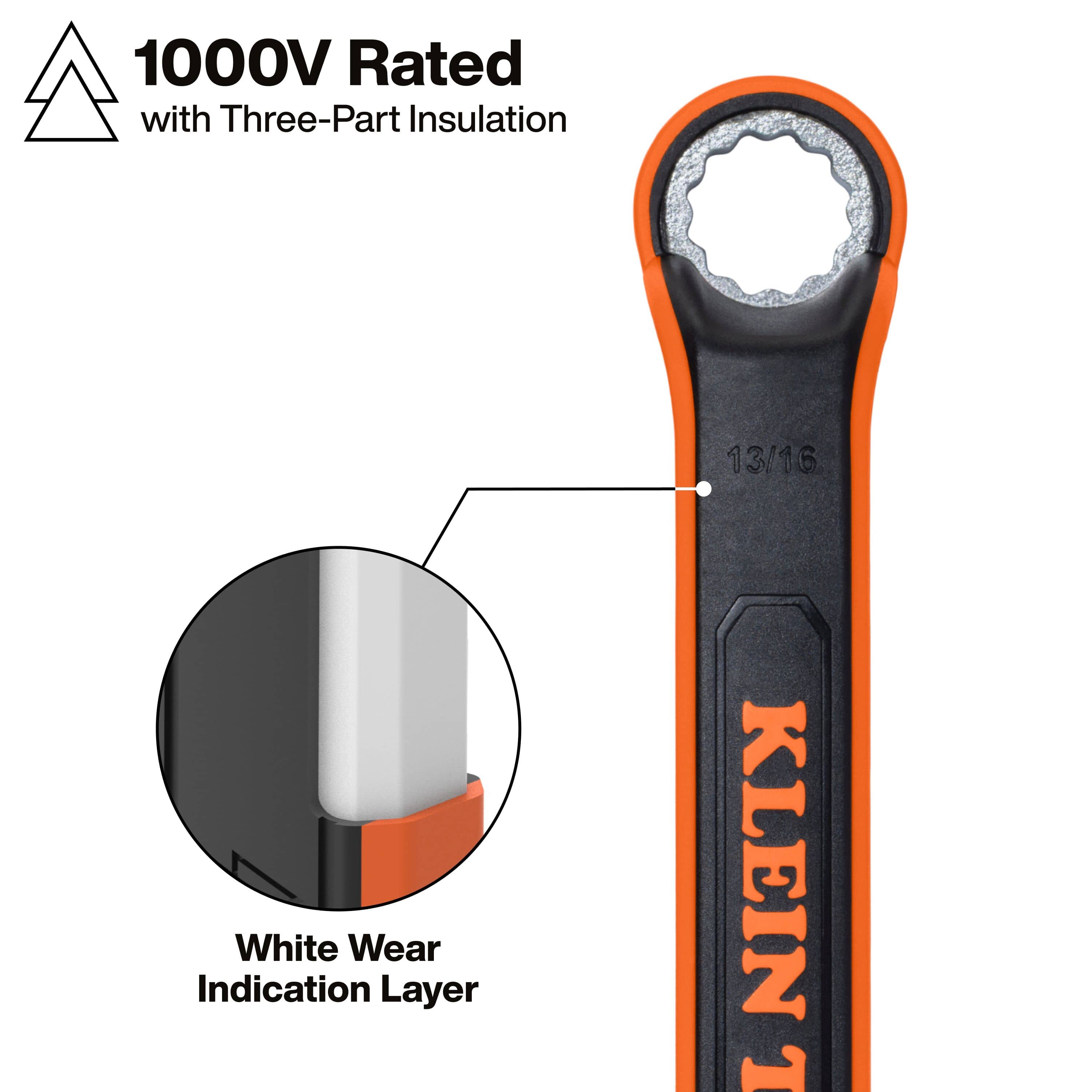

  • Three-Part Insulation with Wear Indicator: Inner white dielectric warning layer becomes visible if outer polymer insulation becomes scored or compromised.

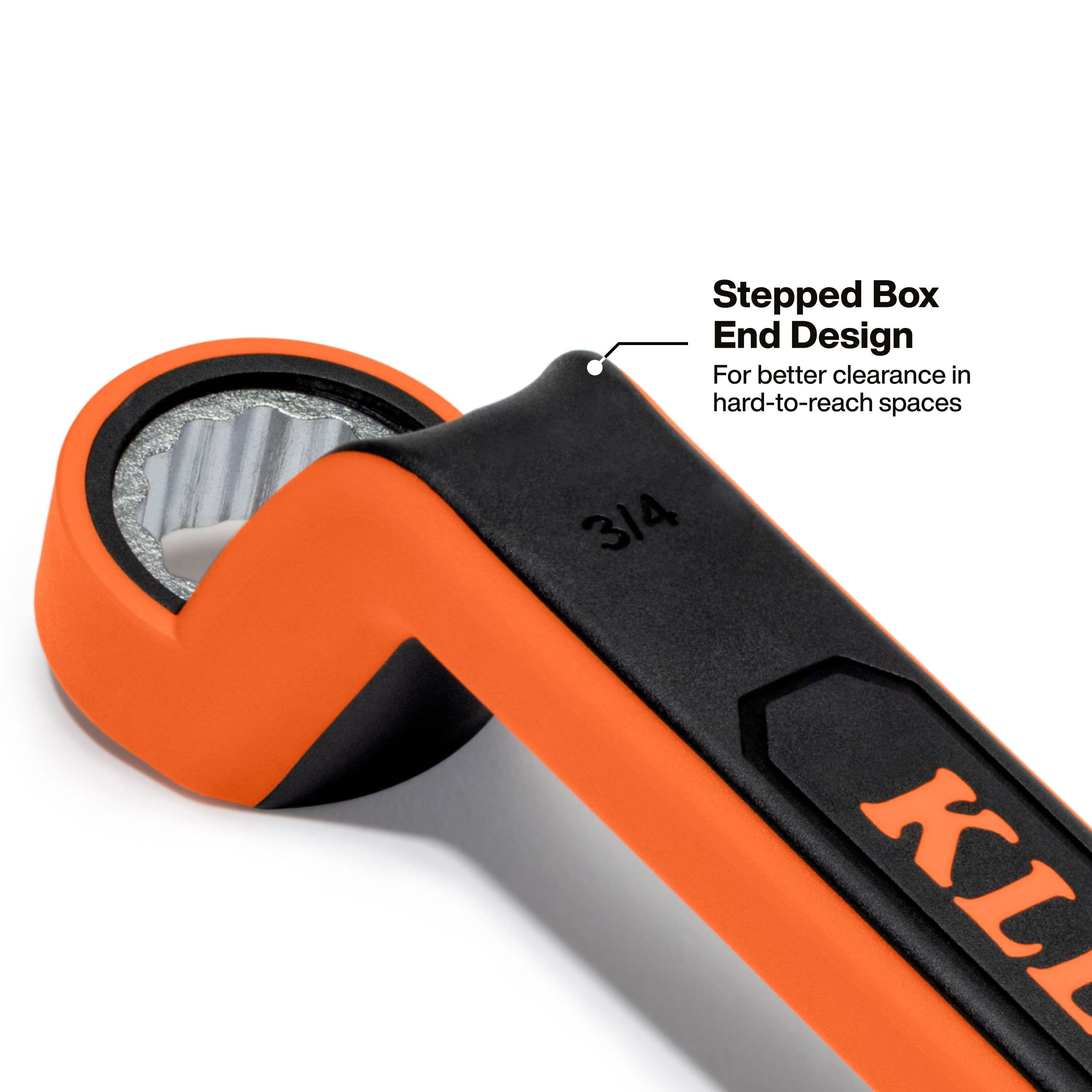

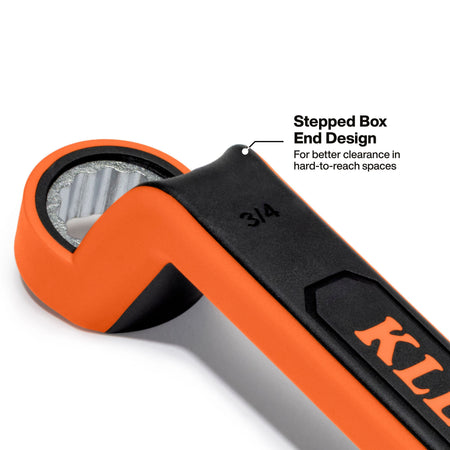

  • Stepped Box End Profile Geometry: Angled offset configuration provides increased clearance to reach bolts in narrow terminal housings.

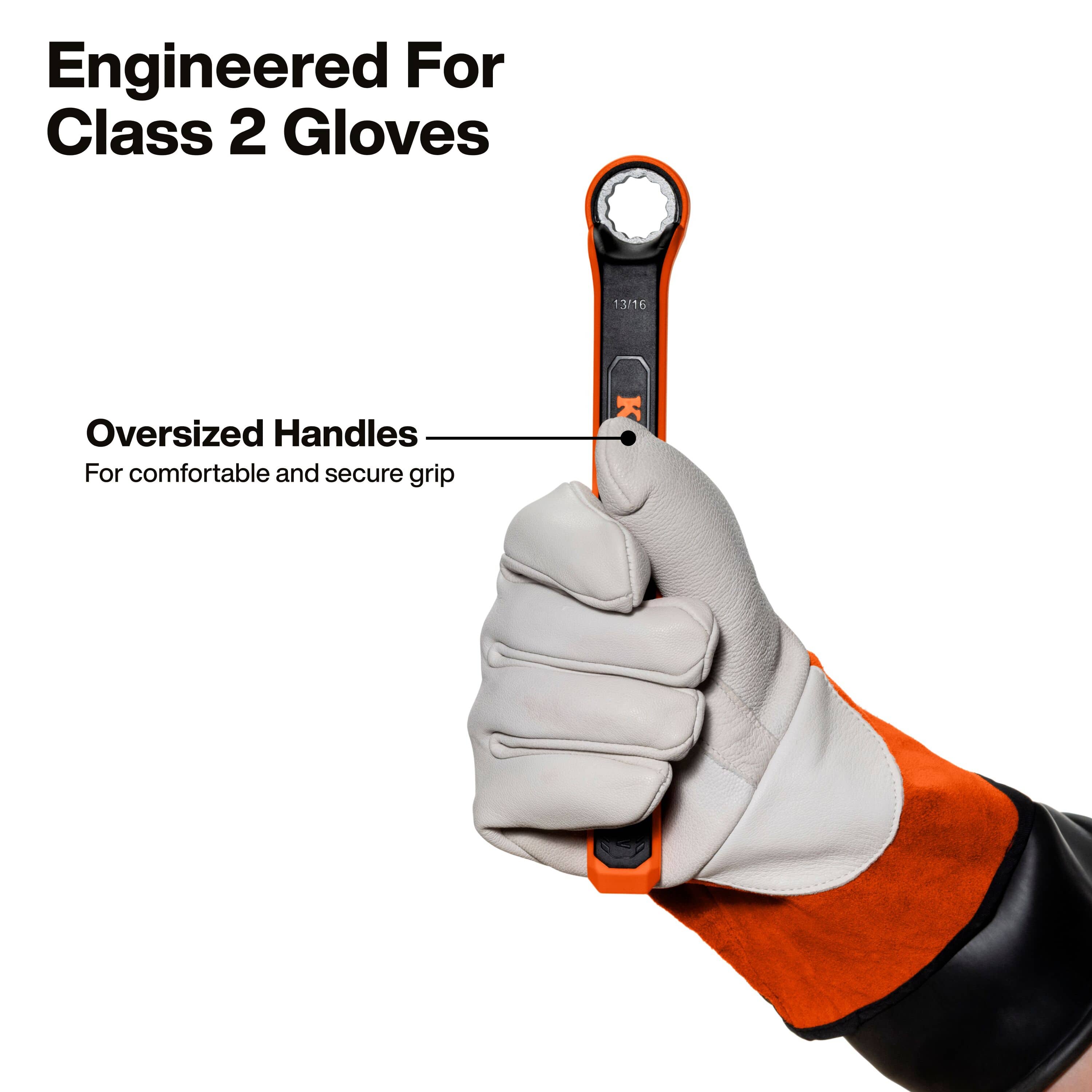

  • Oversized Glove-Friendly Handles: High-torque handle profile maximizes rotational leverage and grip stability when operating in bulky rubber safety gloves.
  • Forged Alloy Steel Construction: Heat-treated steel wrench core delivers high torsional strength to break rusted or high-torque fasteners.

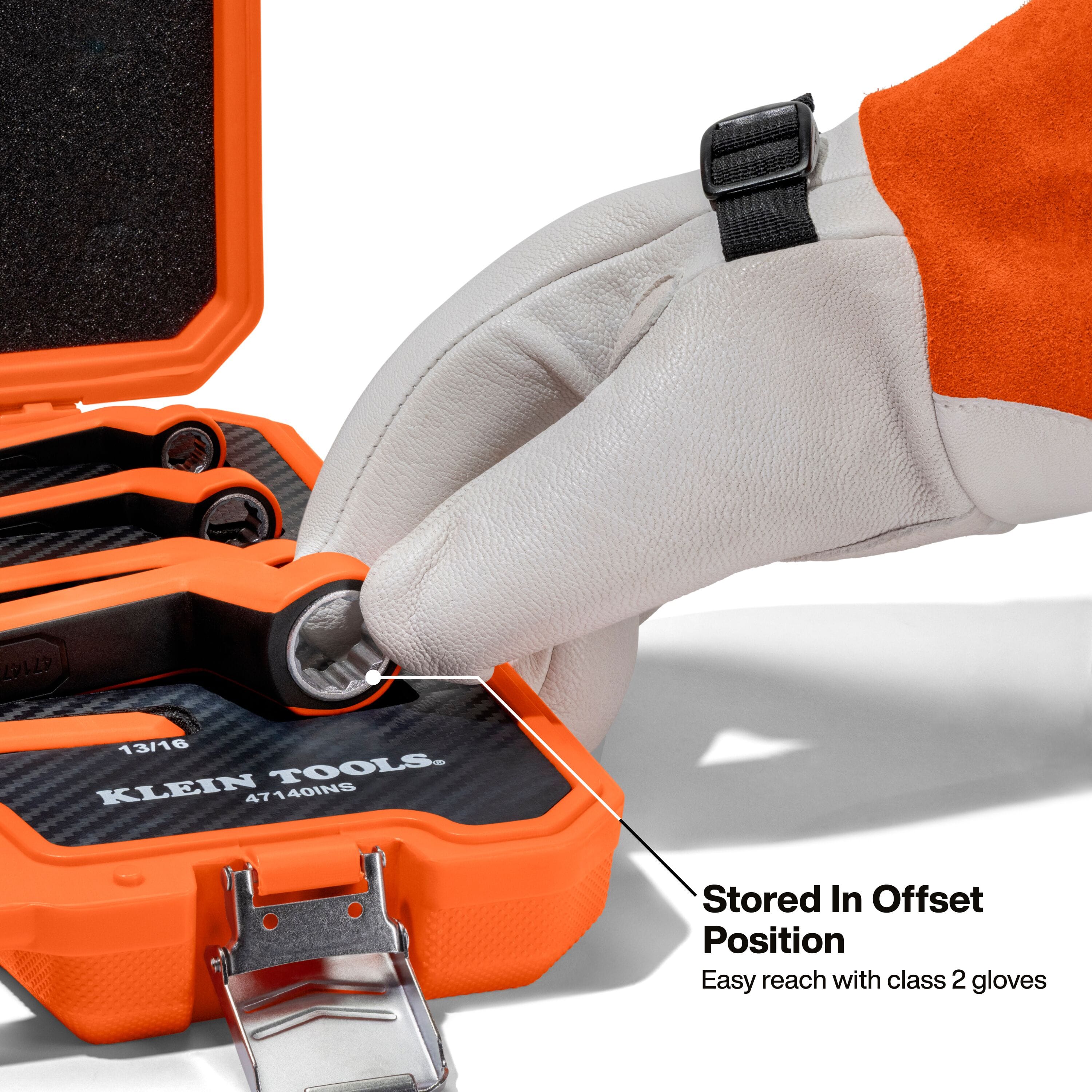

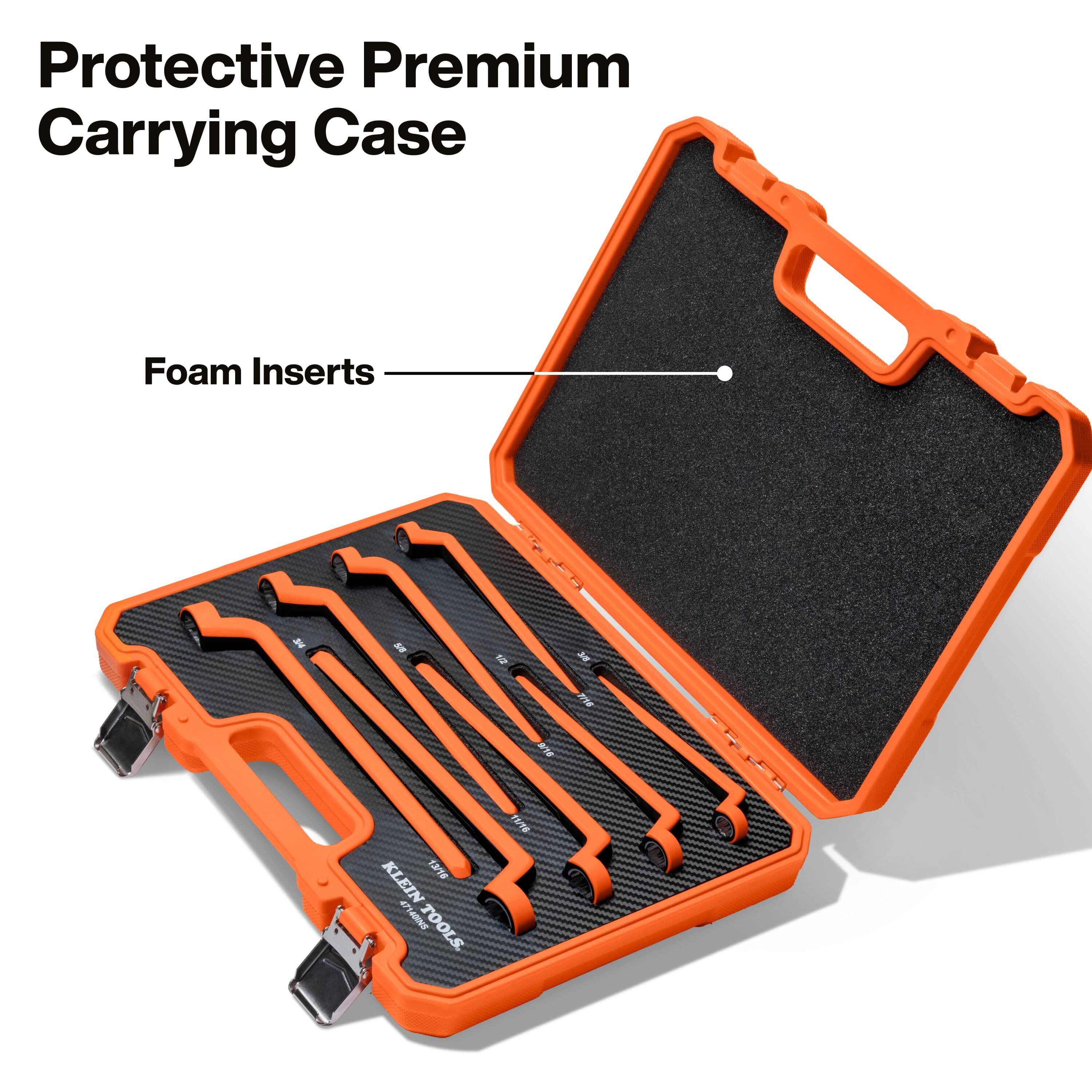

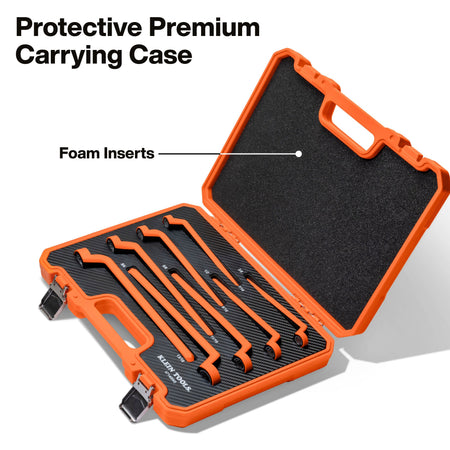

  • Rugged Foam-Lined Storage Case: Hard shell case with custom foam cutouts protects wrench insulation from impact damage during vehicle transit.

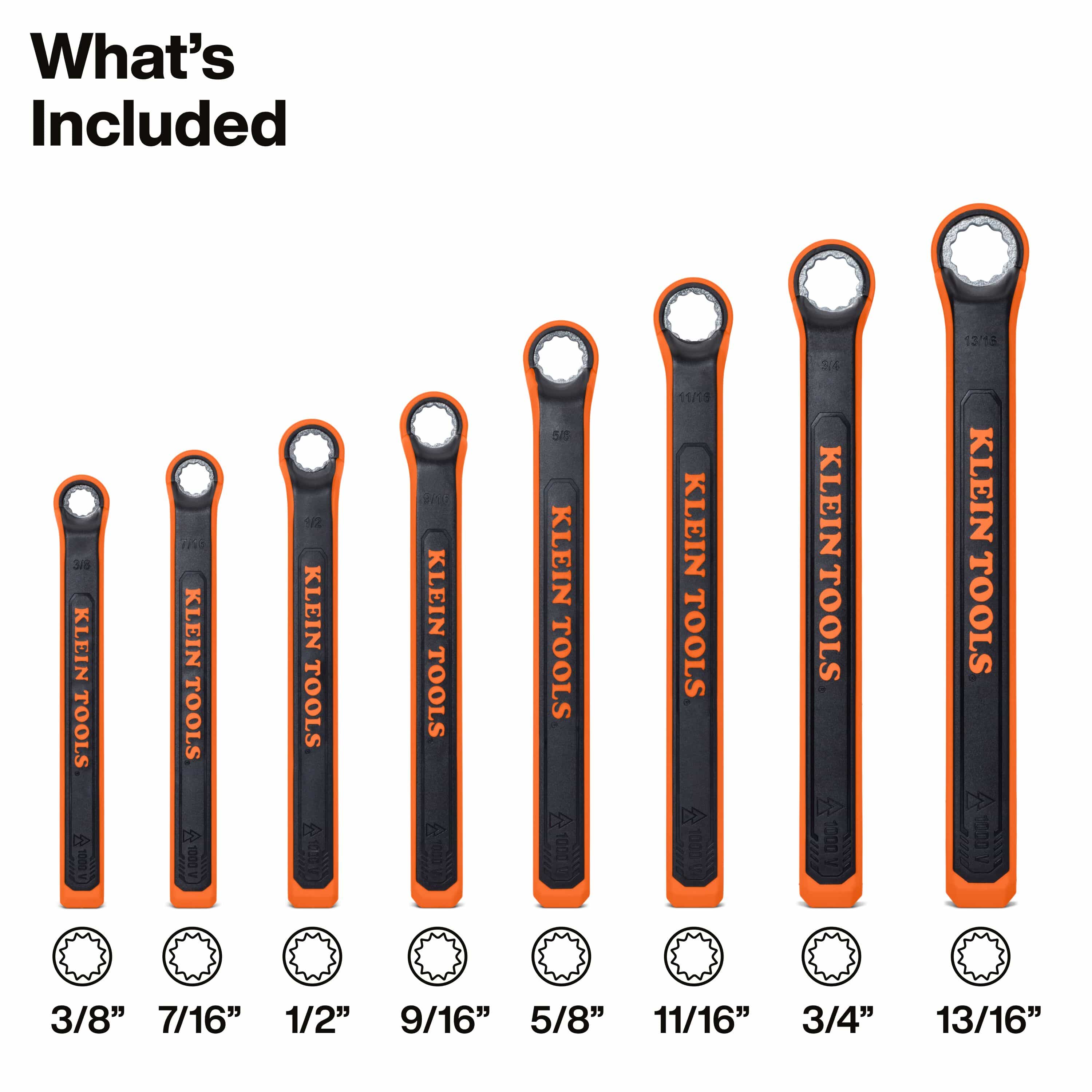

What's Included

  • (1) 3/8" 1000V Insulated Box End Wrench
  • (1) 7/16" 1000V Insulated Box End Wrench
  • (1) 1/2" 1000V Insulated Box End Wrench
  • (1) 9/16" 1000V Insulated Box End Wrench
  • (1) 5/8" 1000V Insulated Box End Wrench
  • (1) 11/16" 1000V Insulated Box End Wrench
  • (1) 3/4" 1000V Insulated Box End Wrench
  • (1) 13/16" 1000V Insulated Box End Wrench
  • (1) Heavy-Duty Foam-Lined Storage Carrying Case

Technical Specifications

Brand Manufacturer Klein Tools®
Model Part Number OEM SKU 47140INS
Tool Variant Type Heavy-Duty Insulated Box End Wrench Utility Set
Dielectric Insulation Rating 1000 Volts Maximum Compliance Shielding
SAE Wrench Size Range 3/8 in., 7/16 in., 1/2 in., 9/16 in., 5/8 in., 11/16 in., 3/4 in., 13/16 in.
Core Structural Material Forged Alloy Steel with Overmolded Dielectric Polymer Coating
Insulation Inspection Feature Three-Part Layer Matrix with White Inner Wear Indicator Layer
Box End Head Configuration Stepped Offset Clearance Profile
Total Component Kit Count 8 Individual Wrenches plus Foam-Lined Case
Total Combined Package Weight 6.40 lbs. (2.90 kg)
Compliance Safety Standards Meets or Exceeds ASTM F1505-16 and IEC 60900 Specifications

Pro-Tip: Before starting high-voltage utility work with your Klein 47140INS wrenches, conduct a pre-use inspection of the outer insulation. If the underlying white inner wear indicator layer shows through deep cuts or abrasion, take the wrench out of live-line service immediately to maintain 1000V shock isolation.
