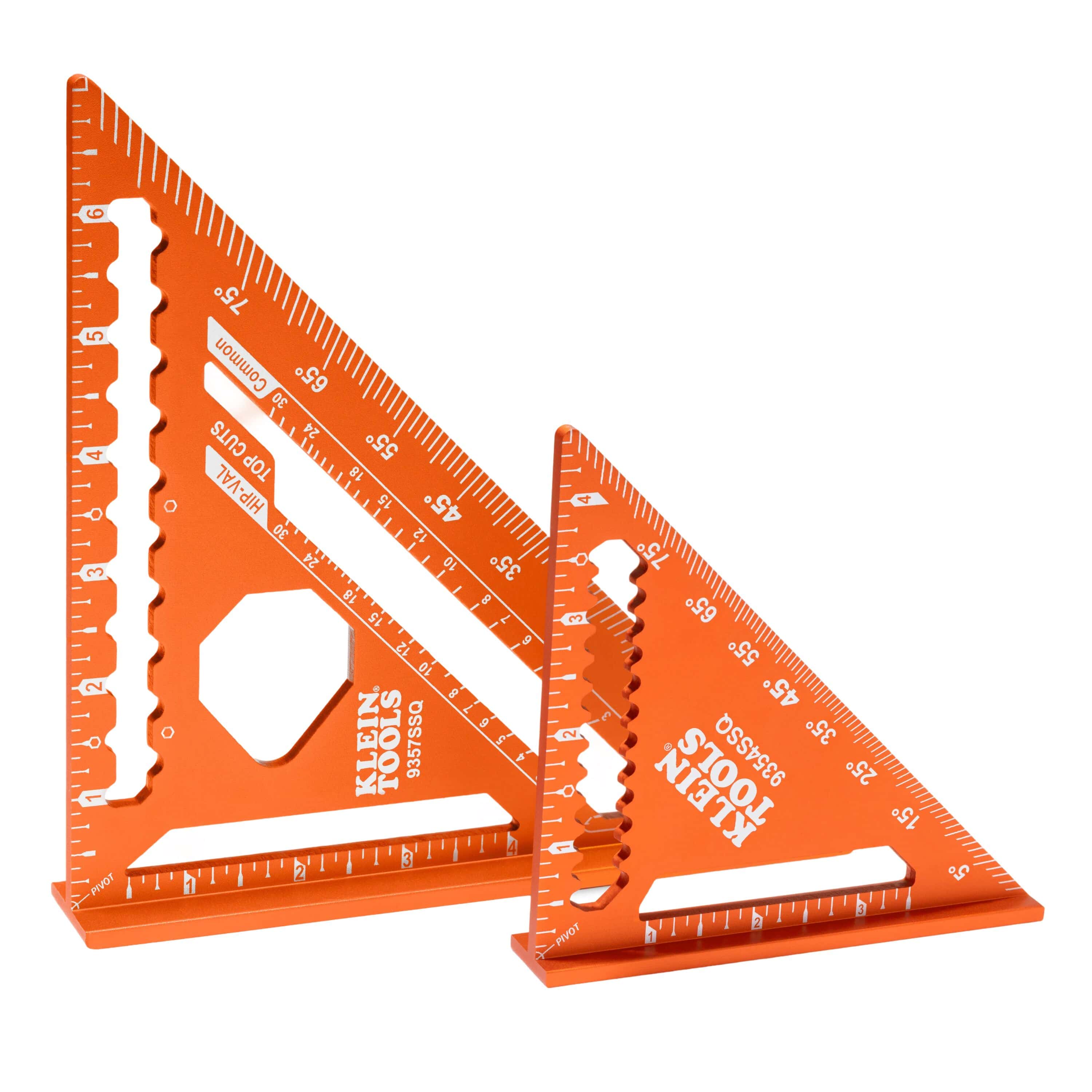

A high-angle product shot of the Klein Tools 2-piece square set, featuring the 4.5-inch trim square and the 7-inch rafter square, both constructed from durable aluminum with a high-visibility orange anodized finish and laser-etched markings.

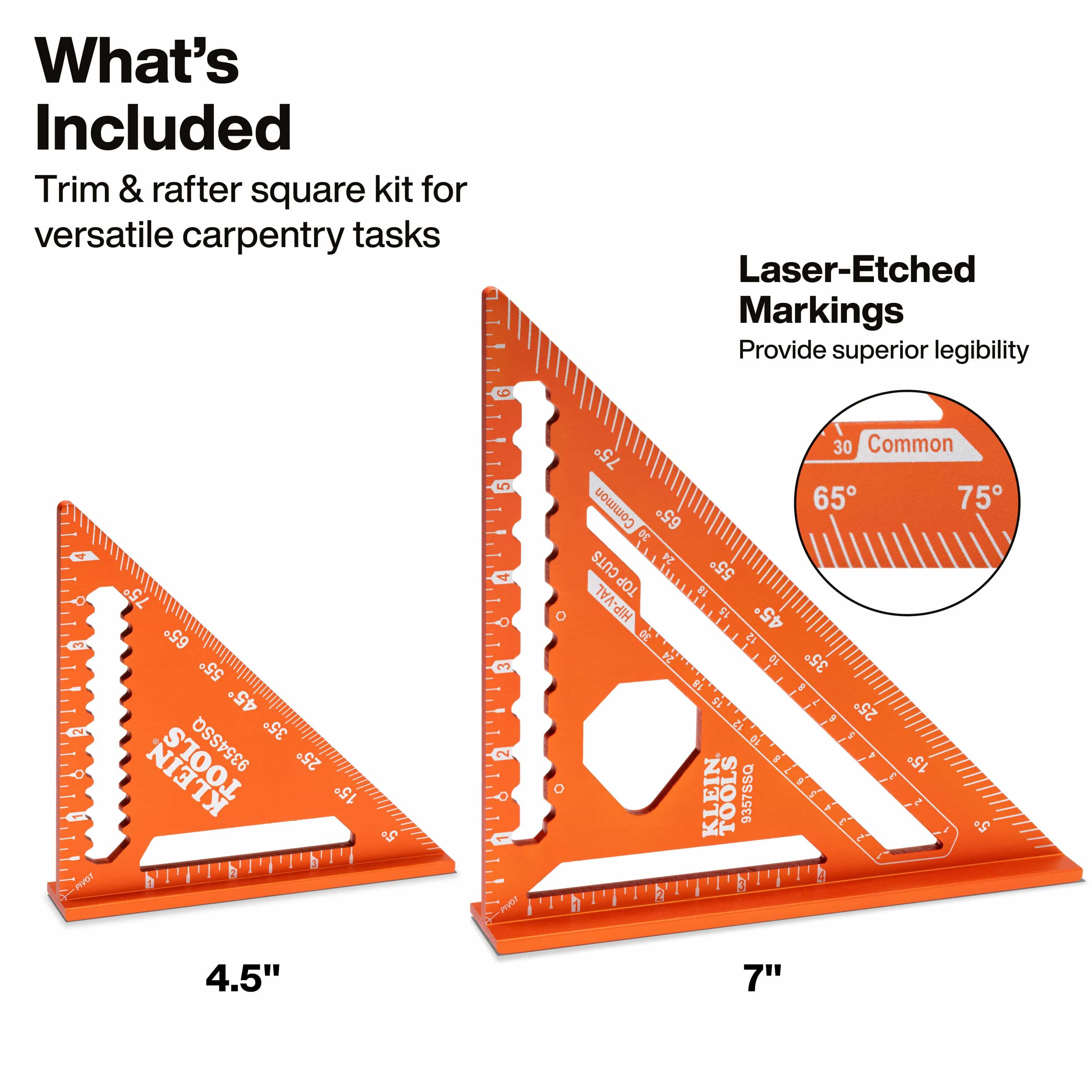

An infographic showcasing the contents of the Klein Tools trim and rafter square kit, highlighting the laser-etched markings for superior legibility and the specialized orange coating designed for professional jobsite visibility.

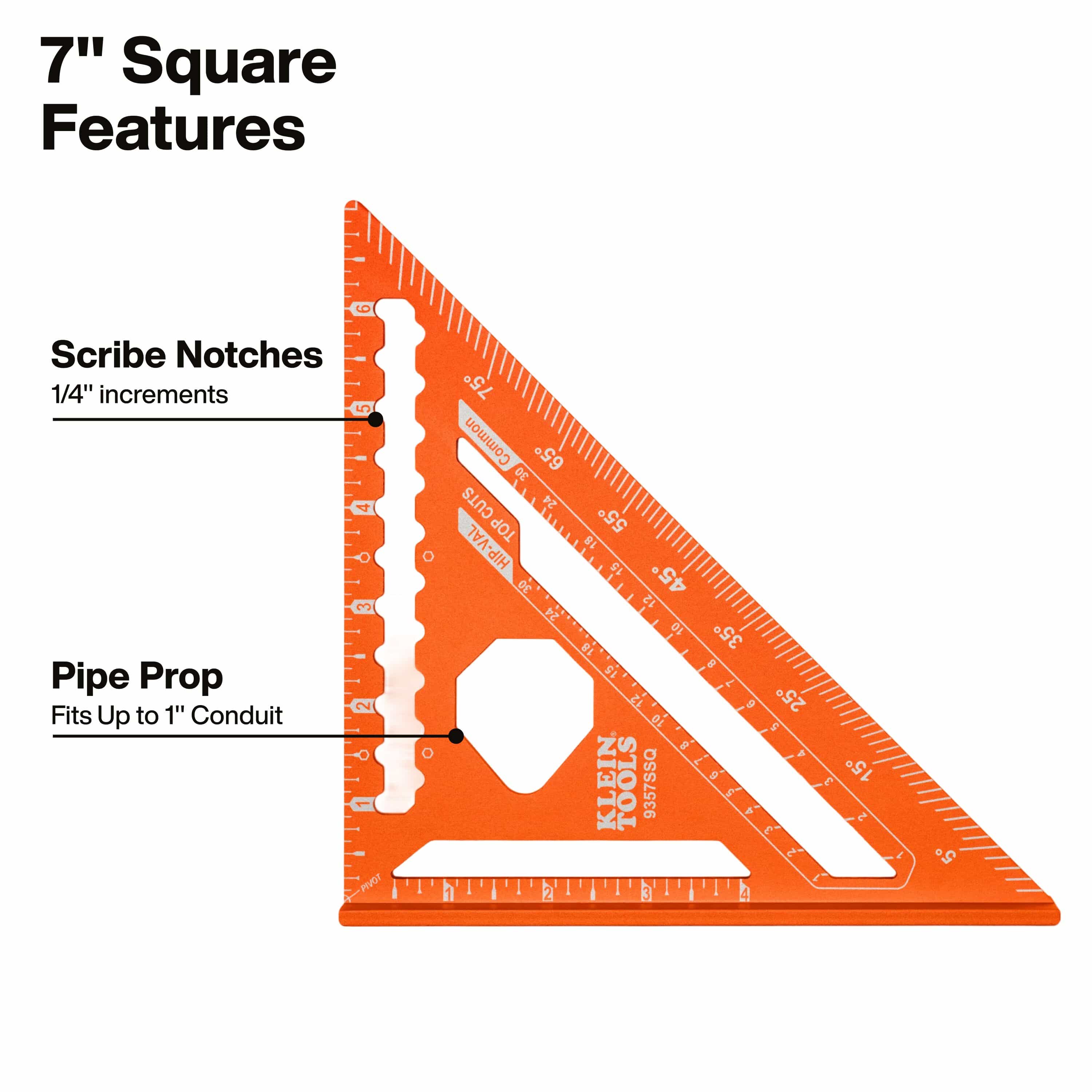

A detailed feature graphic for the 7-inch Klein Tools rafter square, illustrating the integrated scribe notches at 1/4-inch increments and the specialized pipe prop cutout that fits up to 1-inch conduit for electrical and mechanical layouts.

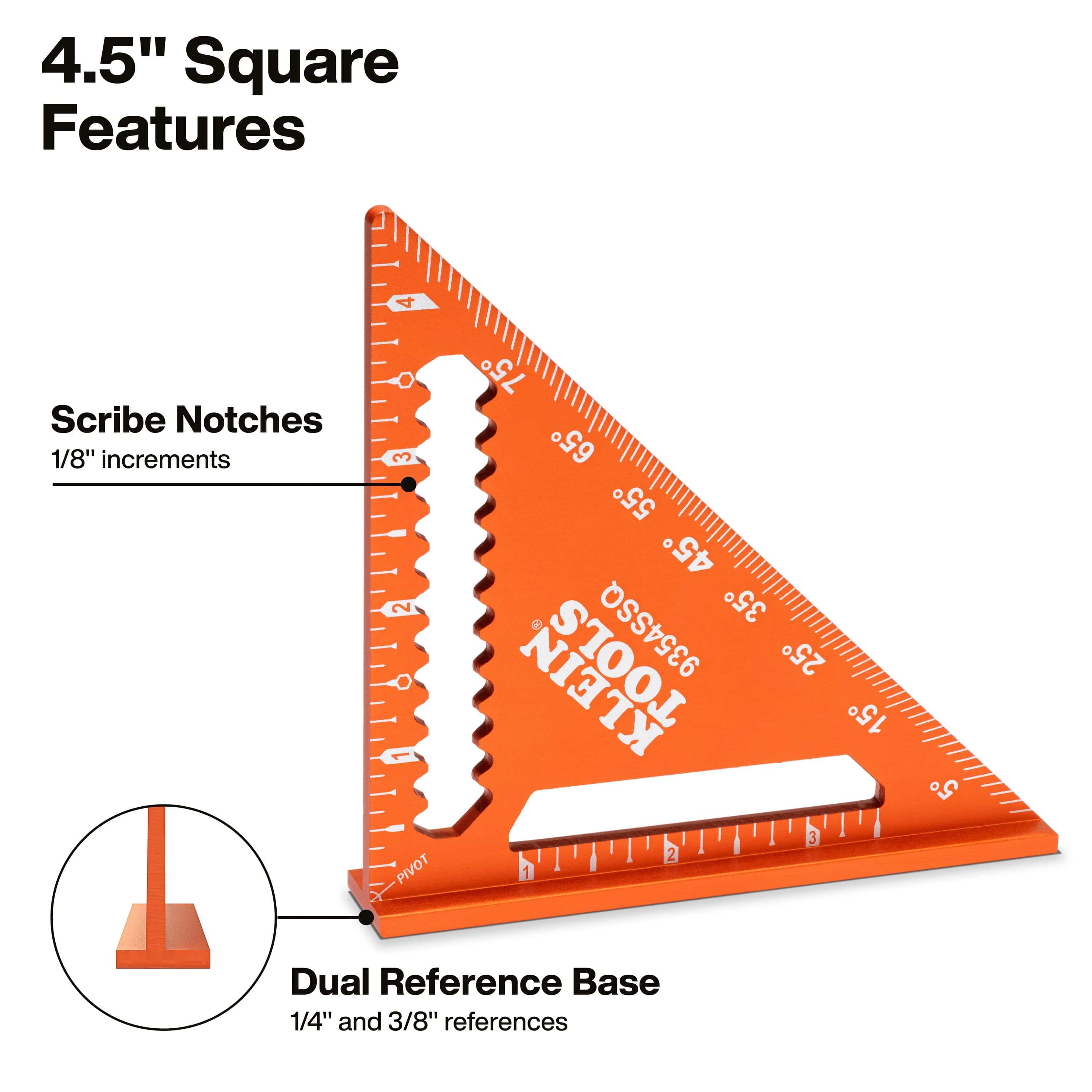

A technical graphic of the 4.5-inch Klein Tools trim square, highlighting the precision scribe notches at 1/8-inch increments and the specialized dual reference base with 1/4-inch and 3/8-inch markings for finish carpentry.

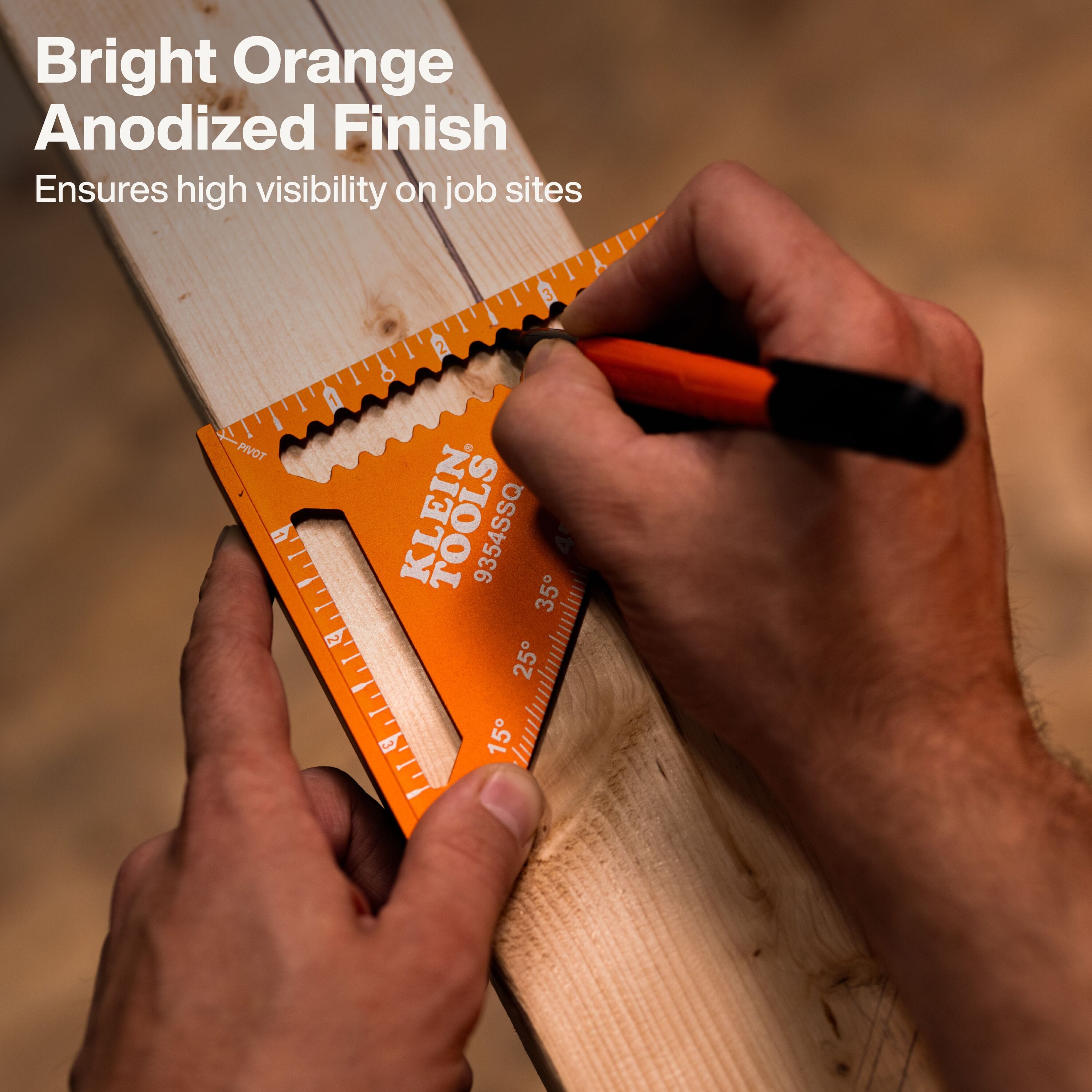

An action shot showing a professional carpenter using the Klein Tools orange anodized square to scribe a precise line on a lumber board, demonstrating the tool's high visibility and accuracy in woodworking applications.
Klein Tools Manufacturing promotional video
A high-angle product shot of the Klein Tools 2-piece square set, featuring the 4.5-inch trim square and the 7-inch rafter square, both constructed from durable aluminum with a high-visibility orange anodized finish and laser-etched markings.
An infographic showcasing the contents of the Klein Tools trim and rafter square kit, highlighting the laser-etched markings for superior legibility and the specialized orange coating designed for professional jobsite visibility.
A detailed feature graphic for the 7-inch Klein Tools rafter square, illustrating the integrated scribe notches at 1/4-inch increments and the specialized pipe prop cutout that fits up to 1-inch conduit for electrical and mechanical layouts.
A technical graphic of the 4.5-inch Klein Tools trim square, highlighting the precision scribe notches at 1/8-inch increments and the specialized dual reference base with 1/4-inch and 3/8-inch markings for finish carpentry.
An action shot showing a professional carpenter using the Klein Tools orange anodized square to scribe a precise line on a lumber board, demonstrating the tool's high visibility and accuracy in woodworking applications.
Klein Tools Manufacturing promotional video
KLEIN TOOLS

Klein Tools Square Set 93547SQVP 4 1/2 Inch Trim and 7 In Rafter Aluminum Layout Scribe (0 To 90 Deg Dual Reference Base Laser Etched Markings)

In stock
SKU: 93547SQVP
$25.98 USD

Description

Klein promotional logo logout

Klein Tools 93547SQVP 4-1/2 Inch Trim and 7 Inch Rafter Square Set

The Klein Tools 93547SQVP is a 2-piece layout square kit containing a 4-1/2-inch trim square and a 7-inch rafter square engineered for finish carpentry, roof framing, and timber woodworking. Forged from lightweight anodized aluminum with a high-visibility orange corrosion-resistant finish, these layout tools feature permanent laser-etched graduations and preset angle guides covering 0 to 90 degrees. The 4-1/2-inch trim square includes a dual reference base with 1/4-inch and 3/8-inch reference points, while precision scribe notches at 1/8-inch and 1/4-inch increments facilitate rapid, parallel line marking on lumber and trim boards.

Best Used For:

  • Finish Carpentry & Cabinetry Installation: Setting 1/4-inch and 3/8-inch reveals on door casings, window trim, and baseboards using the dual reference base.
  • Roof Framing & Rafter Pitch Calculations: Marking plumb cuts, seat cuts, and rafter angles between 0 and 90 degrees across structural dimensional lumber.
  • Parallel Lumber Scribing: Tracing uniform rip lines and parallel layout marks along board edges using integrated 1/8-inch and 1/4-inch scribe notches.

Key Performance & Safety Features

  • Complete 2-Piece Carpentry Set: Combines a compact 4-1/2" trim square and a standard 7" rafter square to cover fine finish and structural layout needs.
  • High-Visibility Anodized Aluminum: High-tensile aluminum body with a bright orange anodized coating resists rust, corrosion, and jobsite wear.
  • Laser-Etched High-Contrast Markings: Permanent laser-fused measurement scales ensure clear legibility in direct sunlight and low-light environments.
  • Integrated Precision Scribe Notches: Features built-in notch channels at 1/8" (trim square) and 1/4" (rafter square) intervals for rapid pencil scribing.
  • Dual Reference Trim Base: Specialized 1/4" and 3/8" reference overhang points streamline trim reveal layouts without manual calculations.
  • 0-to-90 Degree Angle Scale: Deeply etched protractor scale enables quick angle measurements and bevel transfers on jobsite framing.

What's Included

  • (1) 4-1/2" Anodized Aluminum Trim Square
  • (1) 7" Anodized Aluminum Rafter Square

Technical Specifications

Brand Manufacturer Klein Tools®
Model Part Number OEM SKU 93547SQVP
Product Tool Type Trim and Rafter Square Layout Set
Chassis Material Construction Anodized Structural Aluminum Alloy
Measurement System Standard Imperial (SAE)
Graduation Increments 1/8 in (Trim Square) and 1/4 in (Rafter Square)
Protractor Angle Measuring Range 0° to 90° Sweep Angle Scale
Special Measurement Features Laser Etched / Scribe Notches / Dual Reference Base
Trim Square Reference Points 1/4 in and 3/8 in Base Overhang Reveals
Overall Package Length 7.29 inches (18.5 cm)
Overall Package Width 7.25 inches (18.4 cm)
Assembled Net Tool Weight 0.69 lbs / 11.0 oz (0.31 kg)
Global Trade Item Number GTIN 00092644935411

Pro-Tip: Place the carpenter pencil lead directly inside the desired scribe notch and slide the square lip along the edge of your timber to quickly scribe long, perfectly straight rip lines without using a tape measure.
