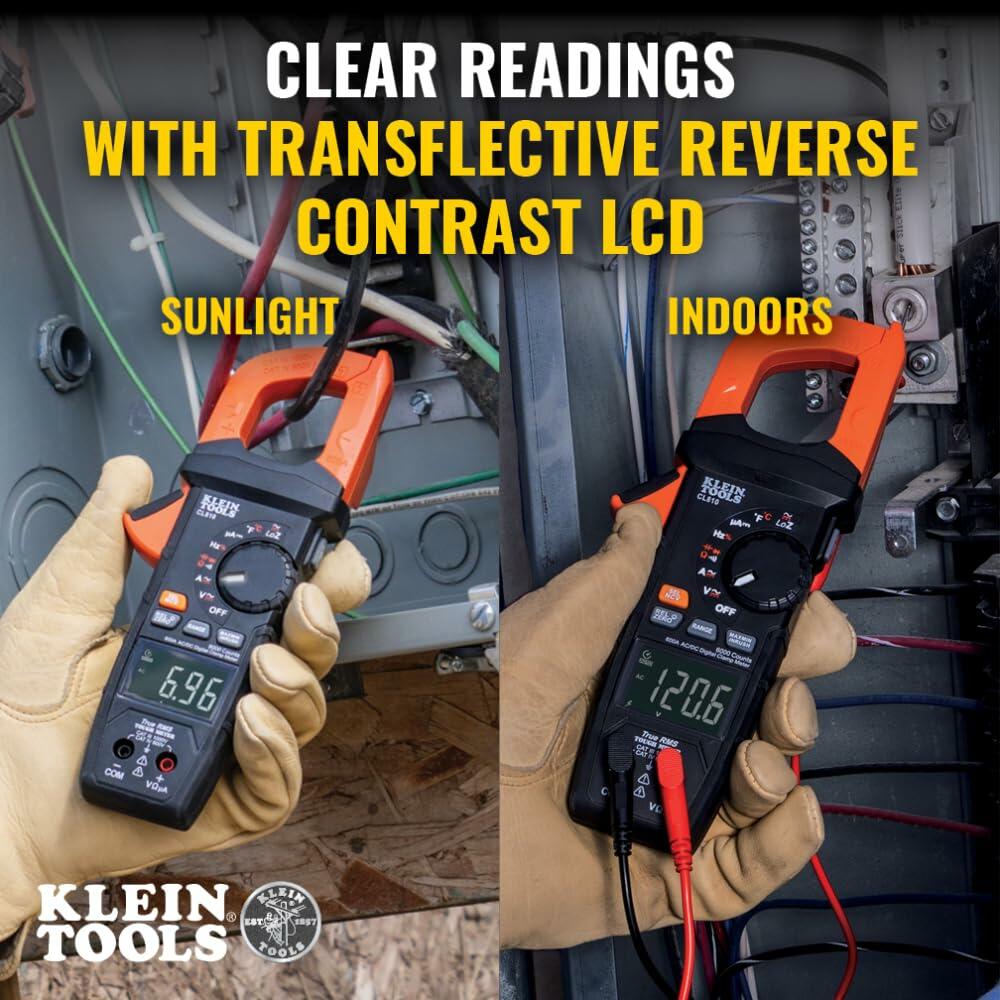

Side-by-side comparison of Klein Tools clamp meter readability in sunlight and indoors using transflective reverse contrast LCD screen
Close-up of Klein Tools CL810 clamp meter showing illuminated dial and display with multiple measurement settings for low-light visibility.

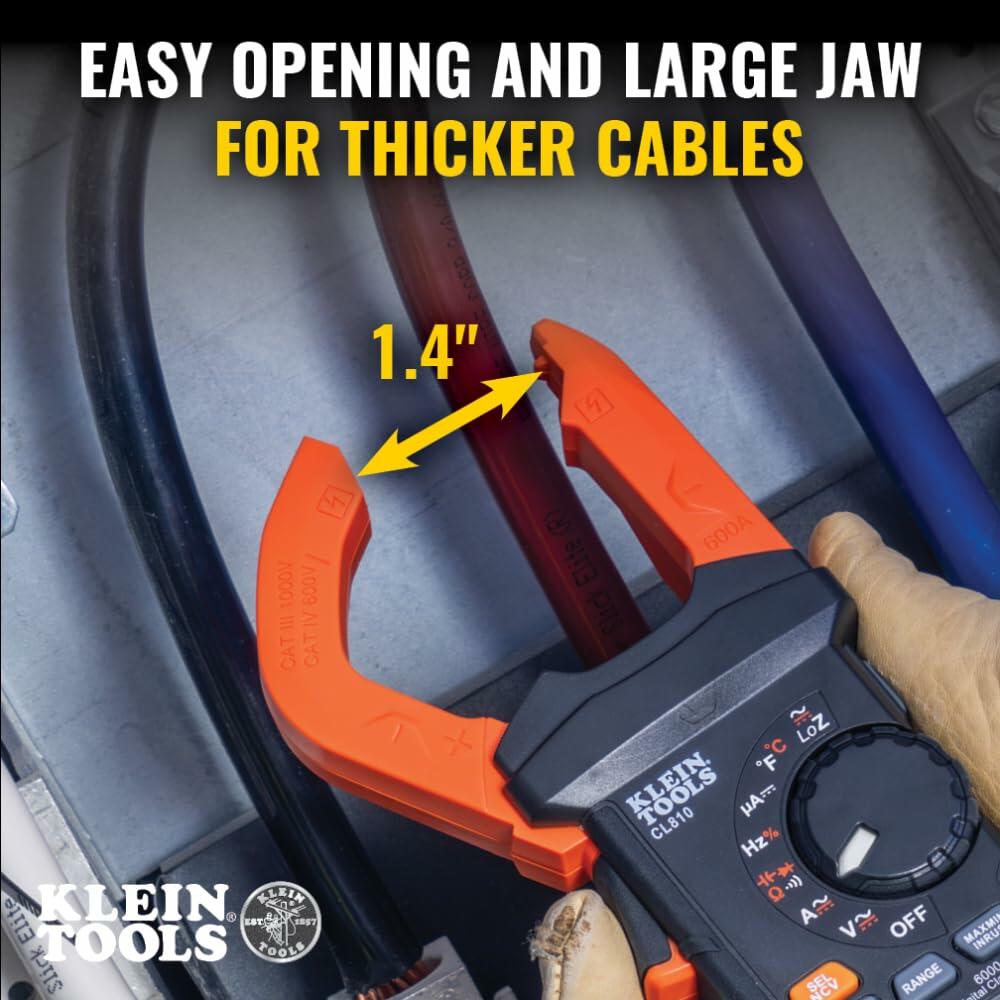

Hands using Klein Tools CL380 clamp meter on thick cables; image highlights large 1.4-inch jaw opening for heavy-duty electrical work.

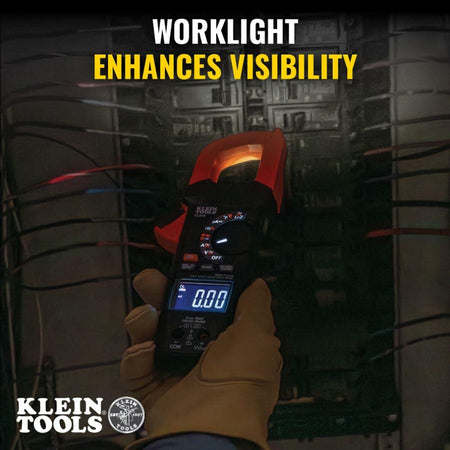

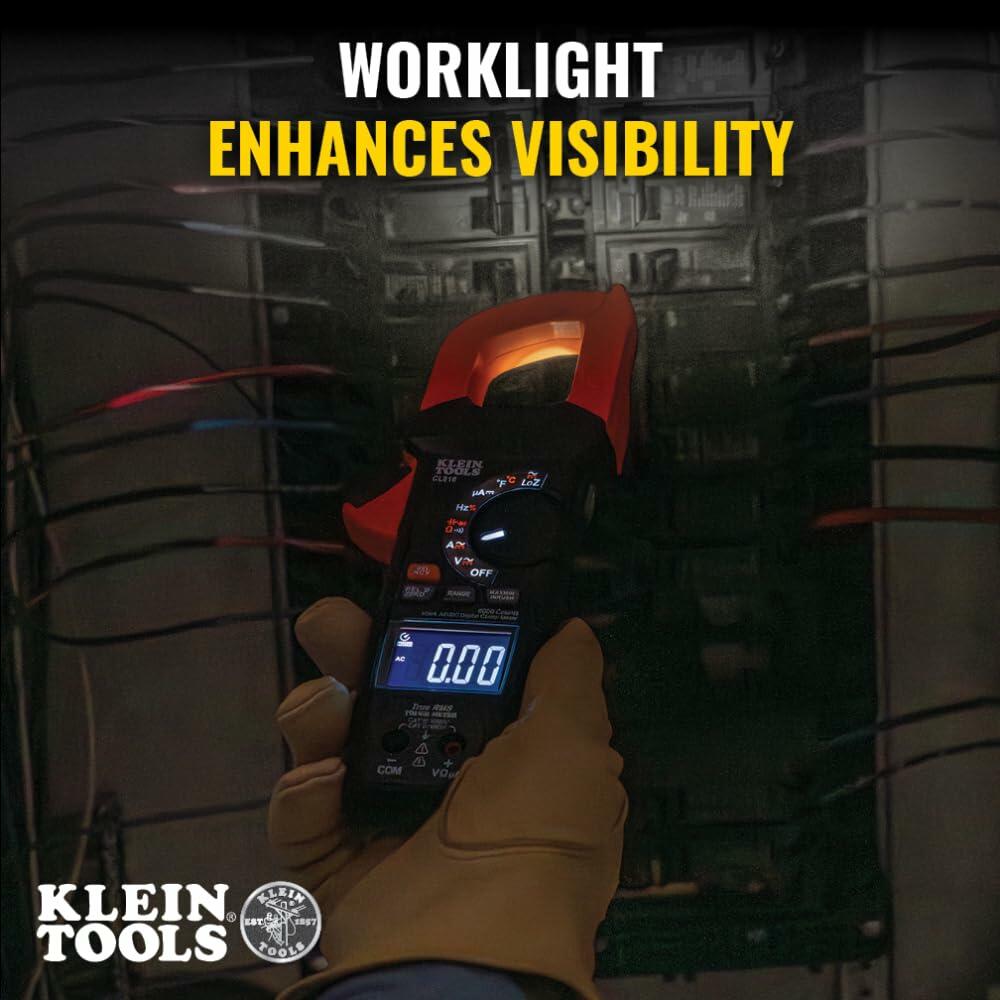

Klein Tools clamp meter in use with built-in worklight illuminating a circuit panel; display reads 0.00 amps, indicating no current detected.

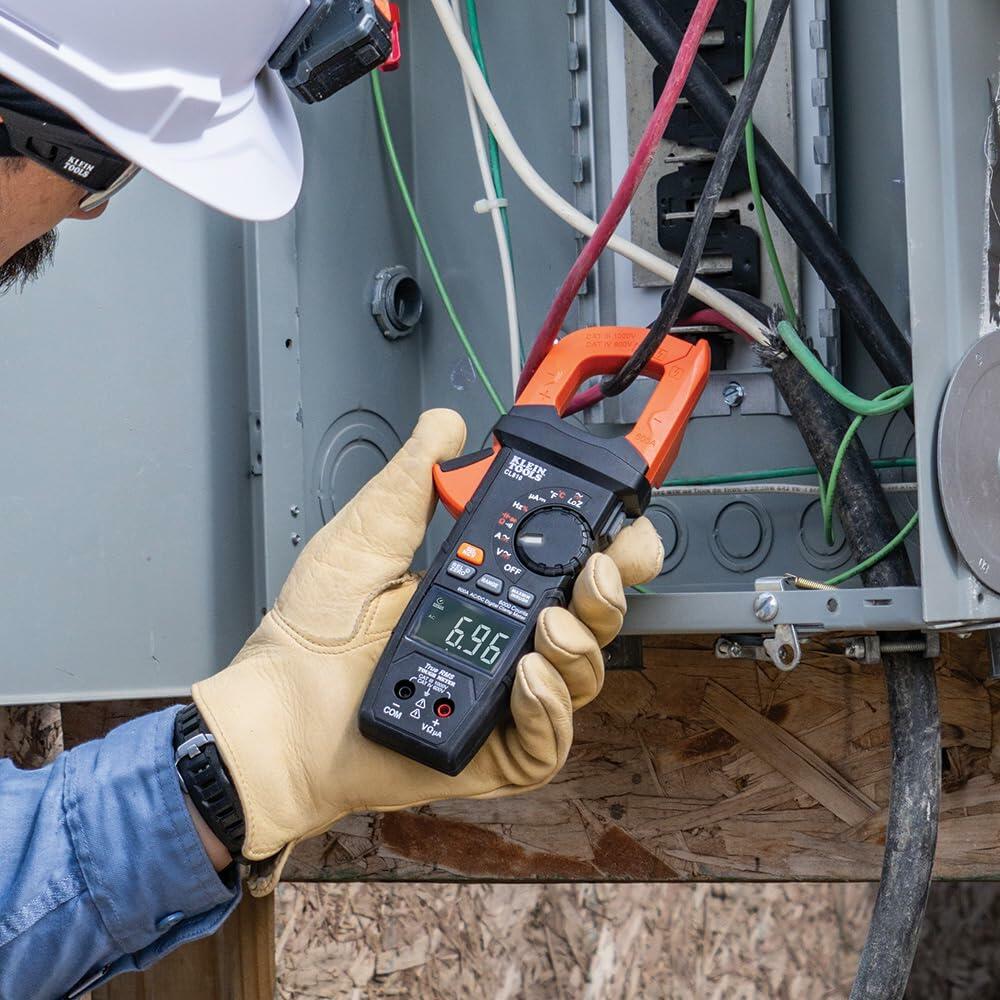

Person using clamp meter to measure current on a red wire inside an electrical panel; display shows 6.96 amps.
Person wearing safety gear using Klein Tools clamp meter to measure voltage in a circuit breaker panel; display reads 240.5 volts.

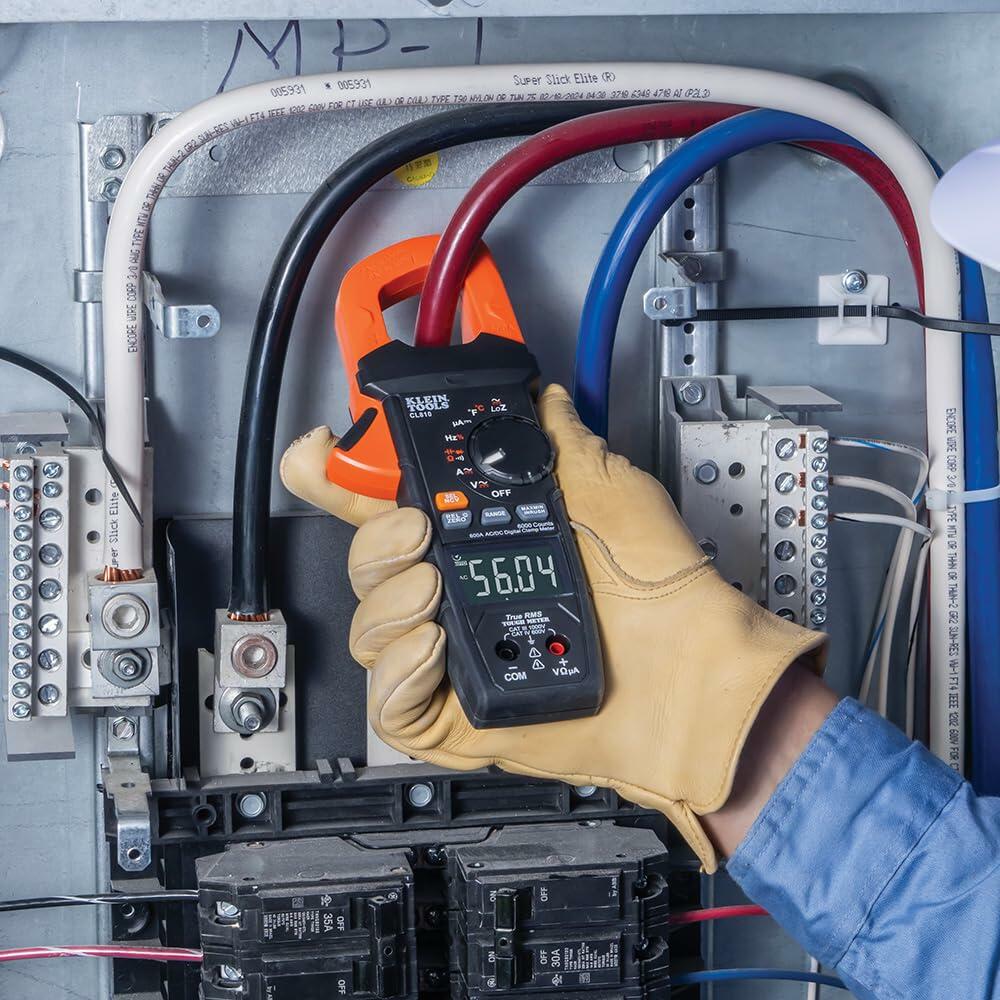

Close-up of Klein Tools clamp meter clamped around a black wire in an electrical panel; display reads 56.04 amps during diagnostics.

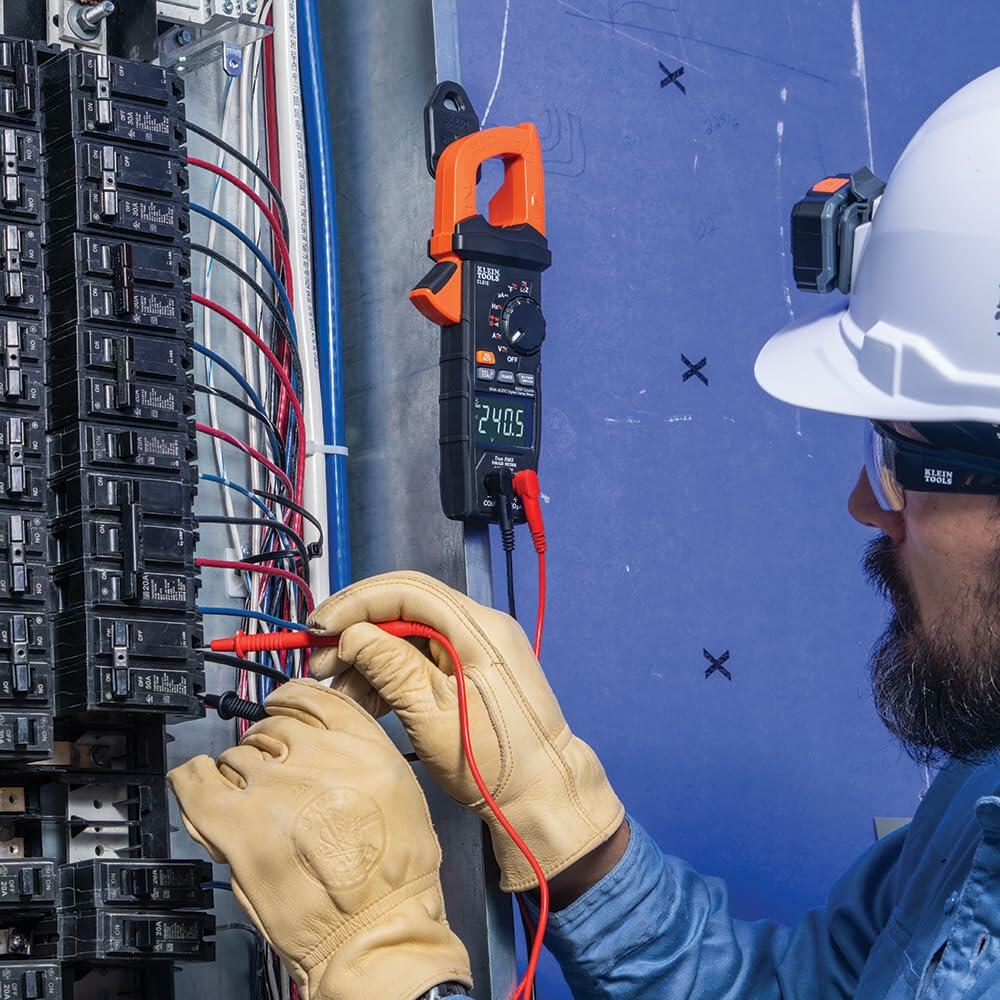

Person wearing safety gear using Klein Tools clamp meter to measure voltage in a circuit breaker panel; display reads 240.5 volts.
KLEIN TOOLS

Klein Tools Digital Clamp Meter CL810 600A Current Multimeter (1000V True RMS LoZ Ghost Voltage Inrush Temperature HVAC Electrical Diagnostics)

In stock
SKU: CL810
$139.97 USD

Description

Klein promotional logo logout

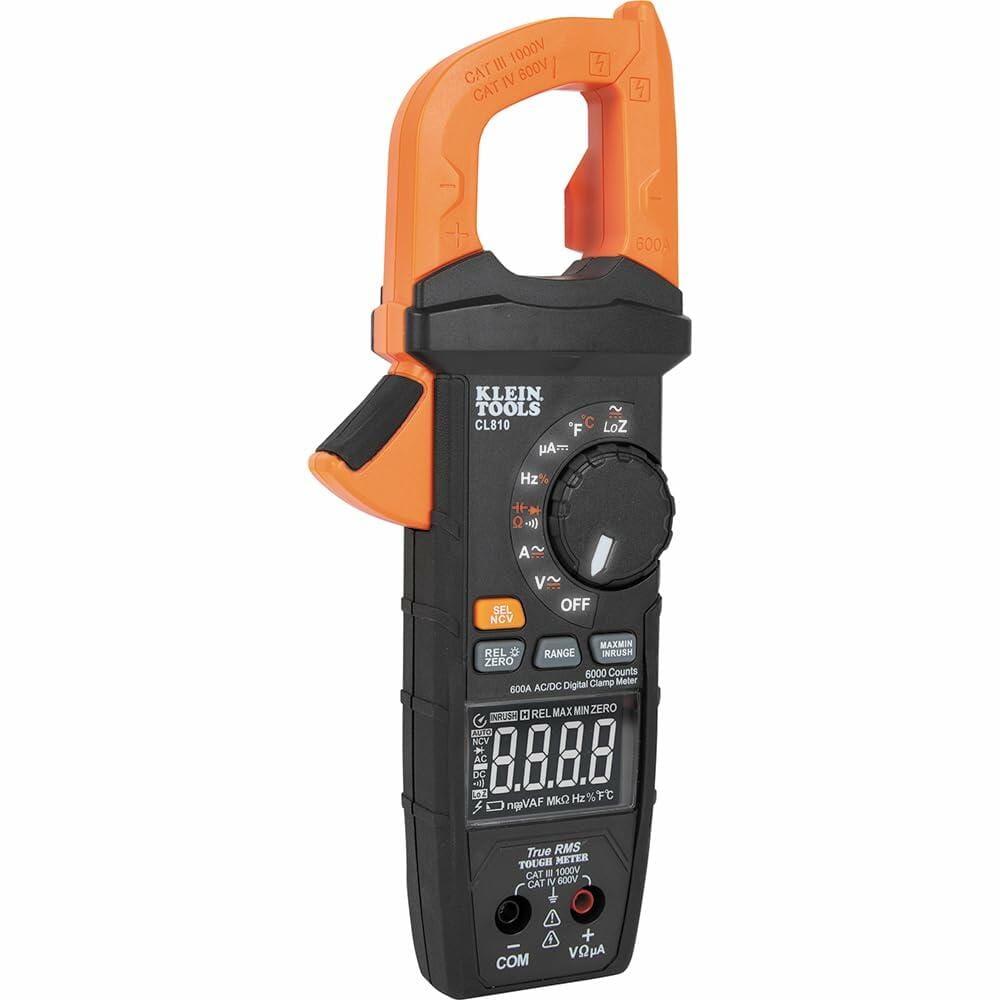

Klein Tools CL810 600A AC/DC True RMS Auto-Ranging Digital Clamp Meter with LoZ Mode

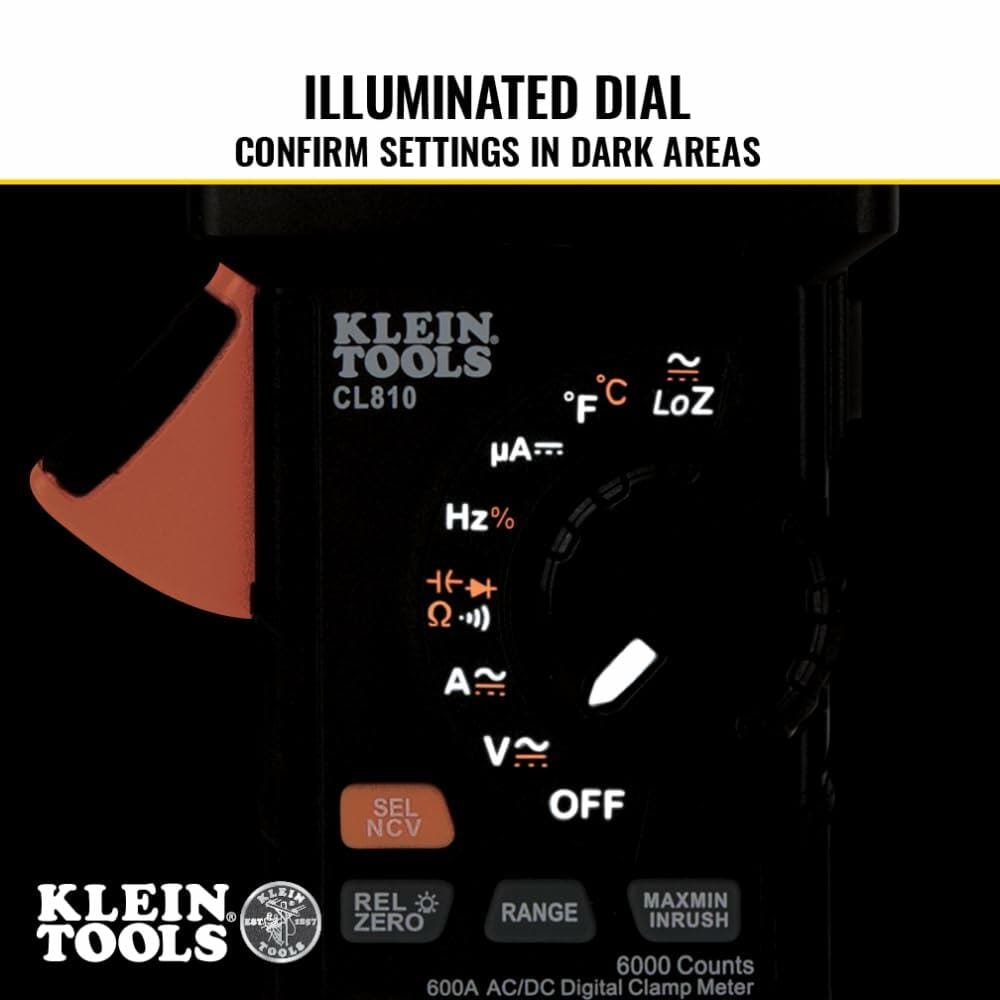

The Klein Tools CL810 Pro Digital Clamp Meter measures AC/DC current up to 600A and voltage up to 1000V for diagnosing complex industrial distribution panels, motor circuits, and commercial HVAC systems. Featuring True RMS auto-ranging technology, low impedance LoZ mode to eliminate false ghost voltages, and inrush current capture for compressor start-up loads, this diagnostic instrument delivers precision electrical testing. Engineered with an illuminated selector dial, non-contact voltage sensor in the clamp jaw, and a transflective reverse-contrast LCD, this drop-tested meter equips electricians and service technicians with clear visibility and reliable data across bright sunlight or dark electrical enclosures.

Best Used For:

  • Commercial HVAC & Motor Troubleshooting: Capturing motor inrush currents, flame sensor DC microamps, and temperature variations from -40°F to 1832°F.
  • Distribution Panel Diagnostics: Clamping conductors up to 1.4 inches in diameter to measure 600A AC/DC line currents in commercial power feeds.
  • Stray Voltage Identification: Engaging LoZ low input impedance mode to drain and eliminate capacitive ghost voltages on adjacent de-energized wiring.

Key Performance & Safety Features

  • True RMS Auto-Ranging Measurement: Delivers precise readings on linear and non-linear electrical loads across 1000V AC/DC and 600A AC/DC.
  • Low Impedance (LoZ) Mode: Identifies and eliminates ghost or stray voltages induced by parallel live conductors for dependable fault tracing.
  • Integrated Jaw NCVT Sensor: Detects live AC voltage without physical contact and emits escalating audio and visual alert signals.
  • Transflective Reverse-Contrast Display: 6000-count digital LCD screen remains readable under direct jobsite sunlight and dim electrical vault lighting.
  • CAT IV 600V & CAT III 1000V Safety Ratings: Built with 6.6-foot drop protection and IP40 dust resistance for high-energy commercial environments.

What's Included

  • (1) Klein Tools CL810 Pro Digital Clamp Meter
  • (1) Pair of Right-Angle Input Test Leads
  • (1) K-Type Thermocouple with Adapter
  • (1) Padded Protective Storage Pouch
  • (3) Standard AAA Alkaline Batteries
  • (1) Comprehensive Instruction Manual

Technical Specifications

Specification Detail
Model Number / Part ID CL810 (Digital Clamp Meter)
Current Measurement Range 600 A AC / DC
Voltage Measurement Range 1000 V AC / DC
Safety Measurement Category CAT IV 600V / CAT III 1000V
Temperature Range -40°F to 1832°F (-40°C to 1000°C)
Capacitance Measurement 6000 µF
Resistance Range 60 MΩ
Frequency Range 1 Hz to 500 kHz
Clamp Jaw Opening Capacity 1.40 in (35.6 mm Conductor Clearance)
Drop Protection & Ingress Rating 6.6 ft (2.0 m) Drop Tested / IP40 Ingress
Display Screen Type 6000-Count Transflective Reverse-Contrast LCD
Tool Dimensions & Weight 9.06 in x 3.47 in x 1.65 in / 13.0 oz (369 g)
Pro-Tip: Select LoZ mode when troubleshooting multiconductor electrical runs; by presenting a low impedance across the circuit, the CL810 discharges stray phantom voltages to verify whether a line is truly energized before servicing.
