Klein Tools Clamp Meter CL910 2000A AC DC Auto Ranging TRMS (2000V High Voltage Tester Worklight Solar Wind Power Distribution Electrical Diagnostic)

High-Voltage TRMS 2000A Digital Clamp Meter for Renewable Energy and Utility Infrastructure

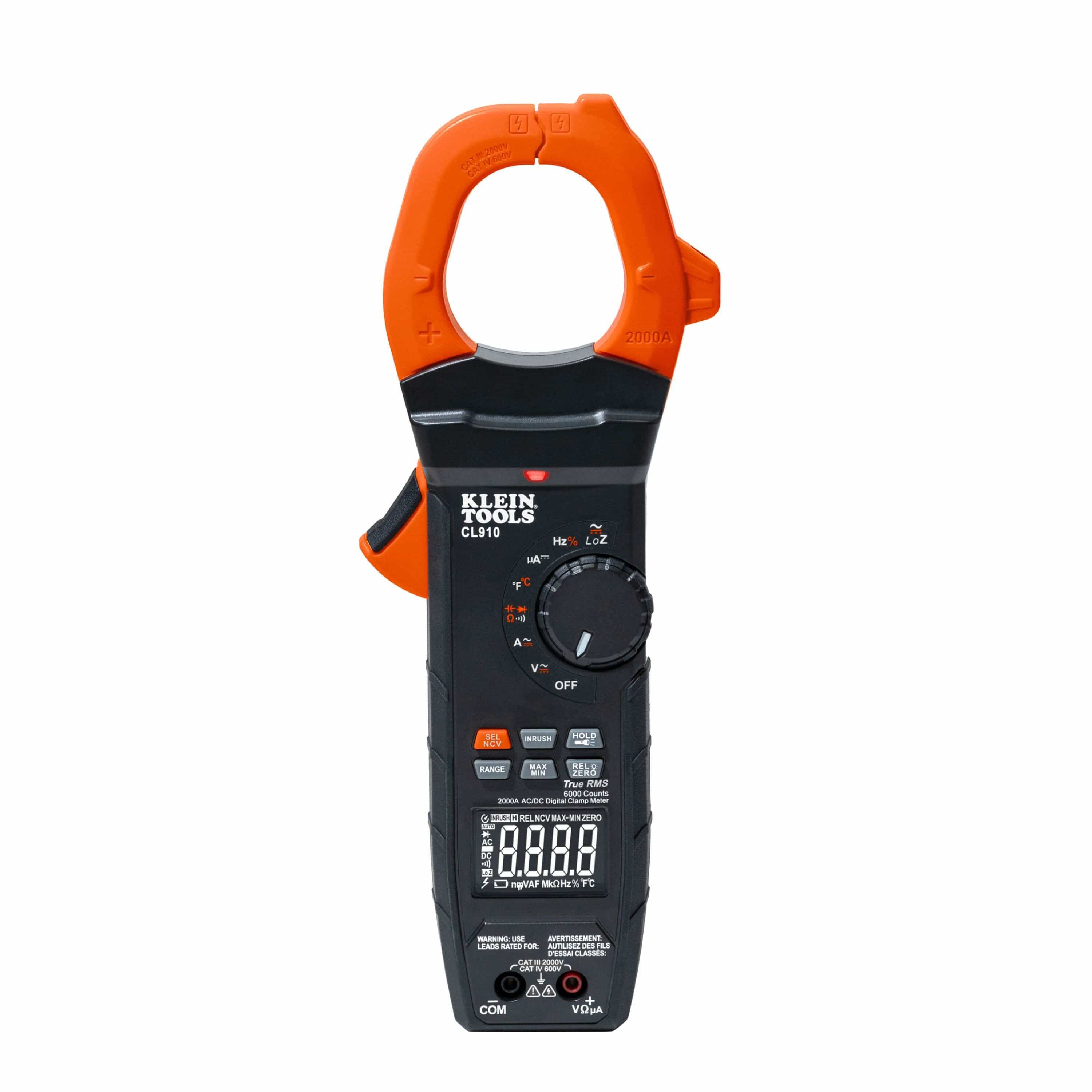

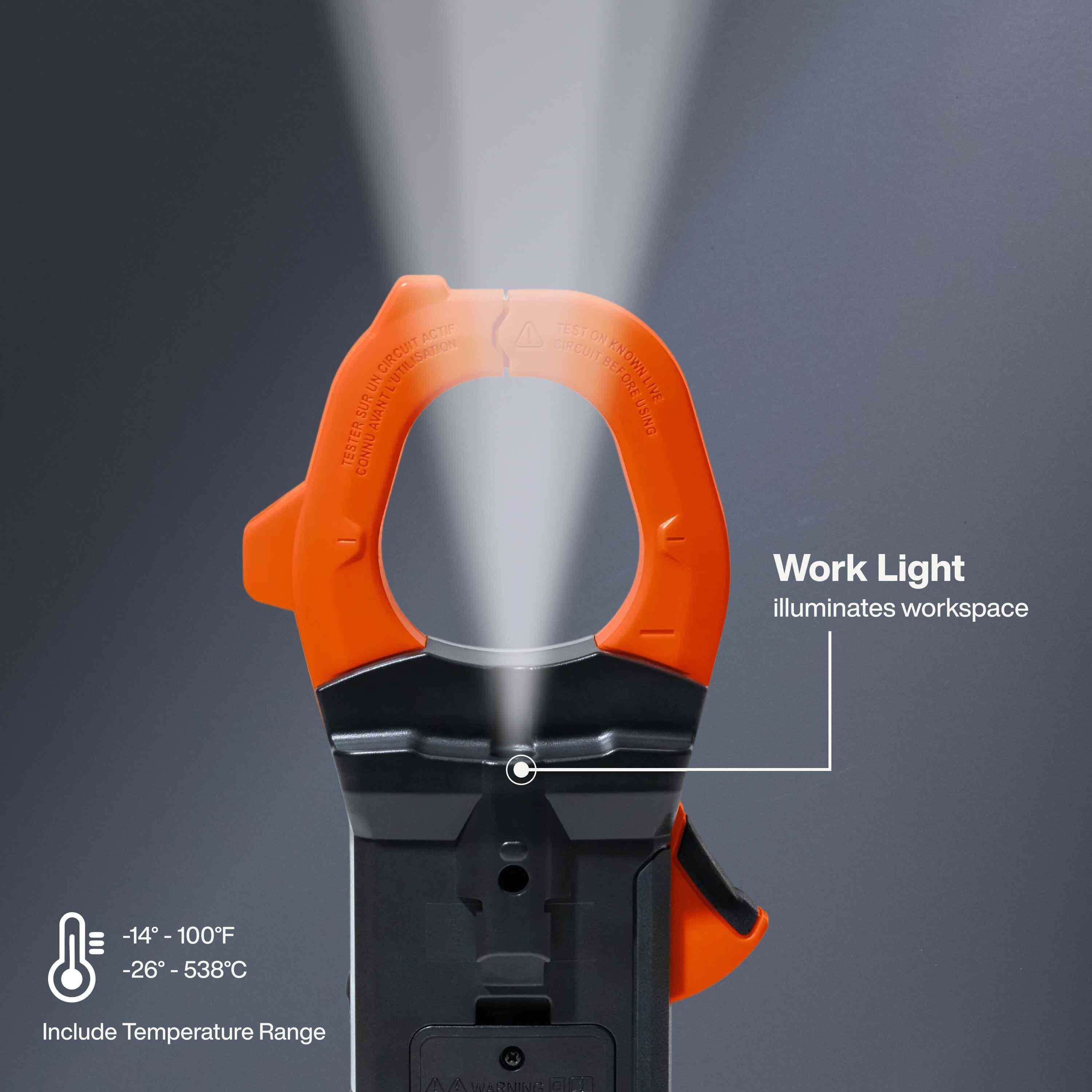

The Klein Tools CL910 2000A AC/DC Auto-Ranging TRMS Digital Clamp Meter is a professional high-voltage tester engineered for renewable energy applications and industrial power distribution facilities. Featuring a dual-rated CAT IV 600V and CAT III 2000V safety profile alongside a 2000V AC/DC measurement threshold, this diagnostic instrument solves the problem of testing high-capacity solar arrays, wind turbine circuits, and grid distribution feeds. True Root Mean Squared (TRMS) conversion circuitry delivers continuous auto-ranging measurement accuracy across non-linear electrical loads and distorted waveforms up to 2000A AC/DC via a large 2-inch clamp jaw. Constructed to withstand punishing job sites, the IP40-rated chassis features a reverse-contrast backlit LCD, a lighted command dial, an integrated worklight, and a rugged frame tested to survive a 6.6-foot drop profile.

Best Used For:

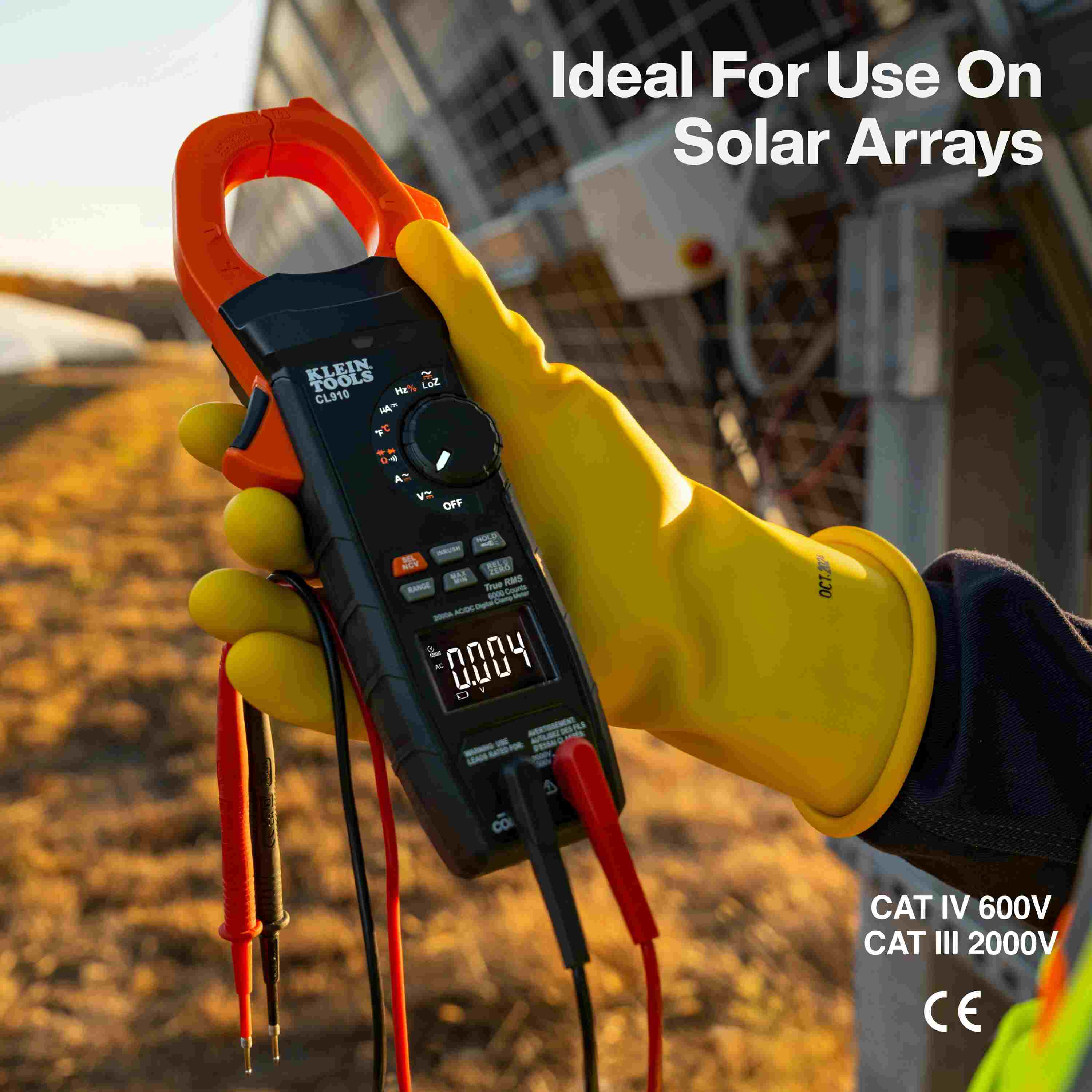

• Solar Array Maintenance: Diagnostic troubleshooting of commercial photovoltaic cell wire strings and central inverter systems matching high-voltage 2000V DC parameters.
• Wind Turbine Operations: Measuring variable industrial frequency, high AC amperage up to 2000A, and complex non-linear current waveforms safely.
• Utility Substation Commutation: Verifying system capacitance, inrush currents, and transformer temperatures inside dark or sunlit high-stakes switchgear enclosures.

Key Performance & Safety Features

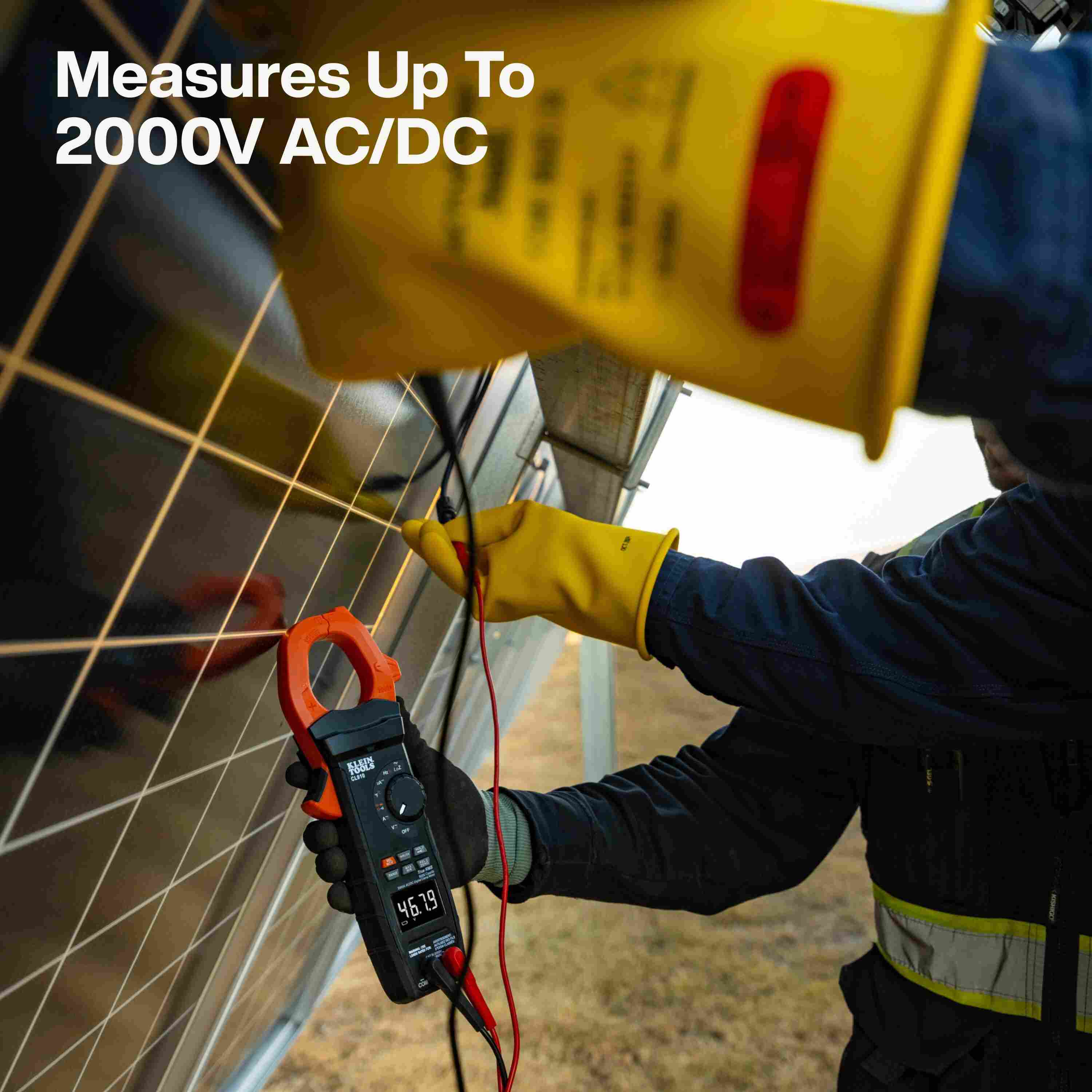

• 2000V Industrial Voltage Range: High-capacity measurement framework securely scans up to 2000V AC and 2000V DC for utility and alternative energy grids.
• TRMS Precision Monitoring: True Root Mean Squared accuracy samples highly complex or distorted wave structures with unwavering structural accuracy.
• 2-Inch Jaw Capacity: Expanded jaw opening captures heavy high-voltage wire clusters and high-amperage lines up to 2000A without line splicing.

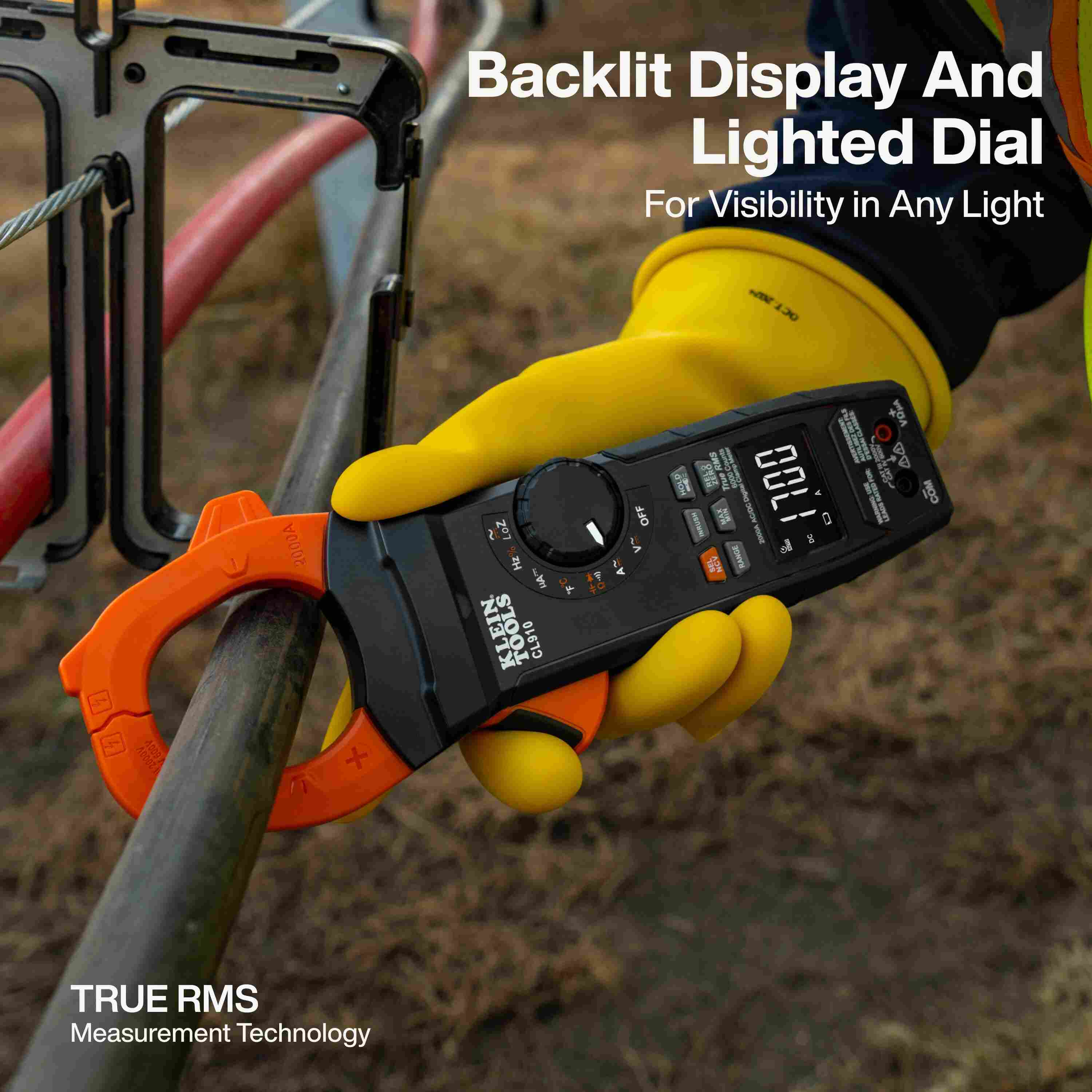

• Transflective Reverse-Contrast LCD: 6000-count display window utilizes an inverted light configuration for instantaneous legibility in blinding sun or dark electrical boxes.
• CAT III 2000V Field Protection: Structural architecture carries certified CAT IV 600V and CAT III 2000V compliance shields with 6.6-foot drop resilience.

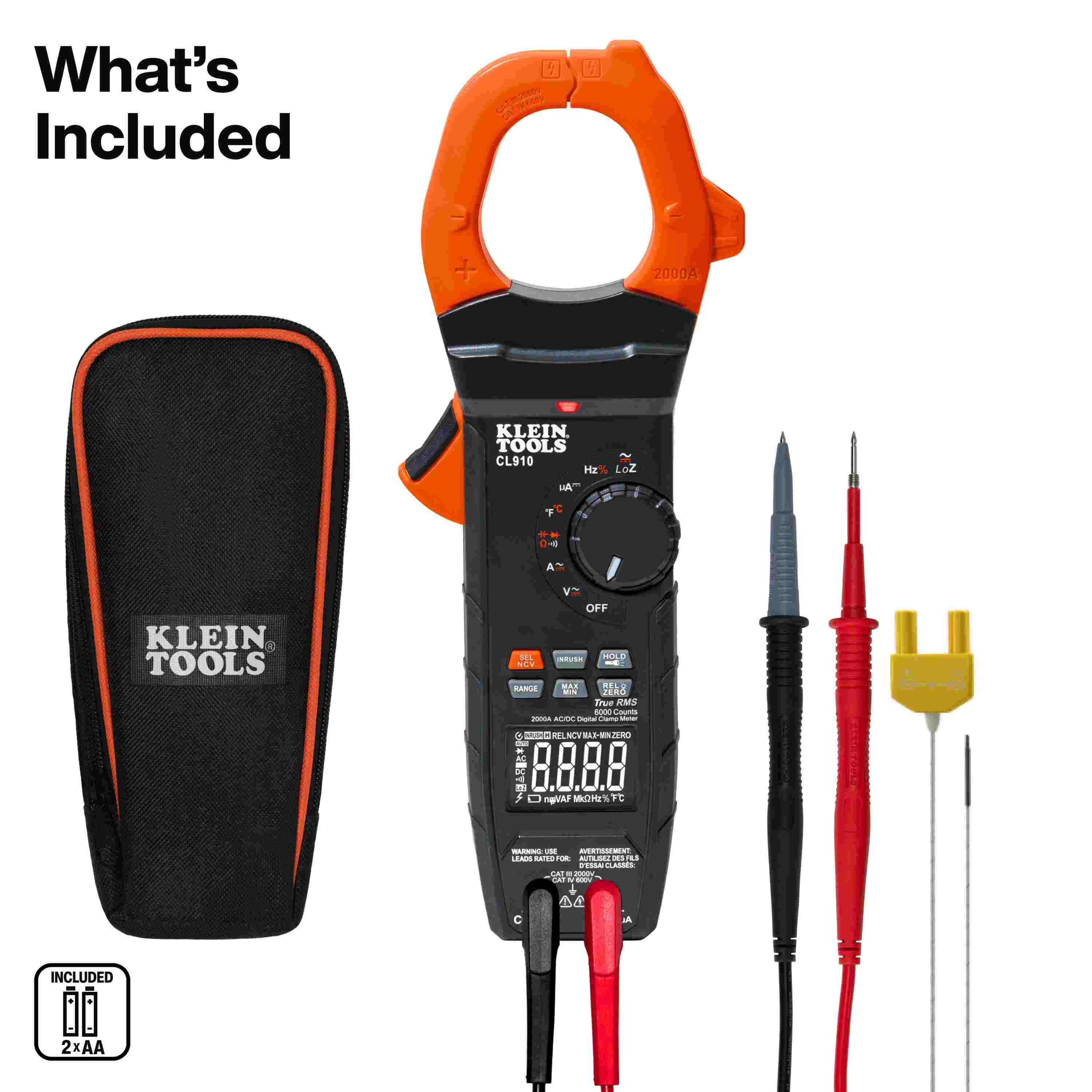

What's Included

• (1) CL910 2000A AC/DC TRMS Digital Clamp Meter
• (1) Set of Right-Angle Input Safety Test Leads
• (1) Thermocouple Sensor Component with Inline Adapter
• (1) Premium Protective Fabric Carrying Case
• (2) Heavy-Duty AA Alkaline Batteries
• (1) Comprehensive Technical Instruction Manual

Technical Specifications

Pro-Tip: When indexing transient inrush currents on high-capacity induction motors, secure the clamp jaw firmly around a single conductor line and toggle the inrush function capture map before starting the grid to block extraneous electrical line noise from altering peak value storage data.
